2.4GHz / 5GHz Dual-Band (RP-TNC) Antenna Compatible with Cisco AIRONET AIR-ANT2524DW-R= (White) WHITE

In Stock. Leaves warehouse within 2 - 3 business days

$129.00 AUD
Maximum quantity available reached.
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

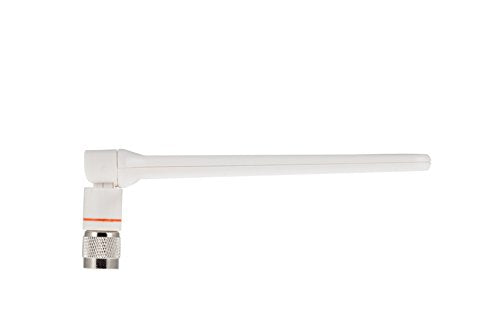

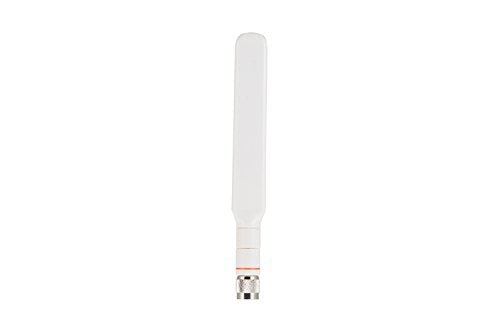

2.4GHz / 5GHz Dual-Band (RP-TNC) Antenna Compatible with Cisco AIRONET AIR-ANT2524DW-R= (White)

Color:WHITE The antenna operates in both the 2.4-GHz and 5-GHz frequency bands and is designed for use with Cisco Aironet 2.4-GHz and 5-GHz radio products that have dual-band reverse-polarity TNC (RP-TNC) antenna ports. The antenna has a nominal gain of 2 dBi in the 2.4-GHz frequency band and 4 dBi in the 5-GHz frequency band. Operating frequency range 2400 to 2500 MHz 5150 to 5850 MHz Nominal input impedance 50 Ohms VSWR Less than 2:1 Peak Gain @ 2.4. GHz 2 dBi Peak Gain @ 5 GHz 4 dBi Elevation plane 3dB beamwidth @2.4 GHz 63 degrees Elevation plane 3dB beamwidth @ 5 GHz 39 degrees Connector type RP-TNC plug Antenna length 6.63 in. (168.5 mm) Antenna width 0.83 in (21 mm) Radome length 4.88 in. (124 mm) Weight 1.3 oz Operating temperature -20°C to 60°C (-4° to 140°F) Storage temperature -40°C to 85°C (-40°F to 185°F) Environment Indoor, office System Requirements: This antenna is designed for use with Cisco Aironet access points that support simultaneous operation in the 2.4 GHz band and the 5 GHz band and that have dual-band antenna ports, labeled as such in orange text. Installation Instructions: Brand: RW RoutersWholesale Lifetime Replacement Warranty!

  • 2.4-Ghz / 5.0-Ghz
  • Part Number: AIR-ANT2524DW-R=
  • Peak Gain @ 2.4 GHz 2 dBi - 2400 to 2500 MHz
  • Peak Gain @ 5 GHz 4 dBi - 5150 to 5850 MHz
  • Manufactured By: RoutersWholesale
