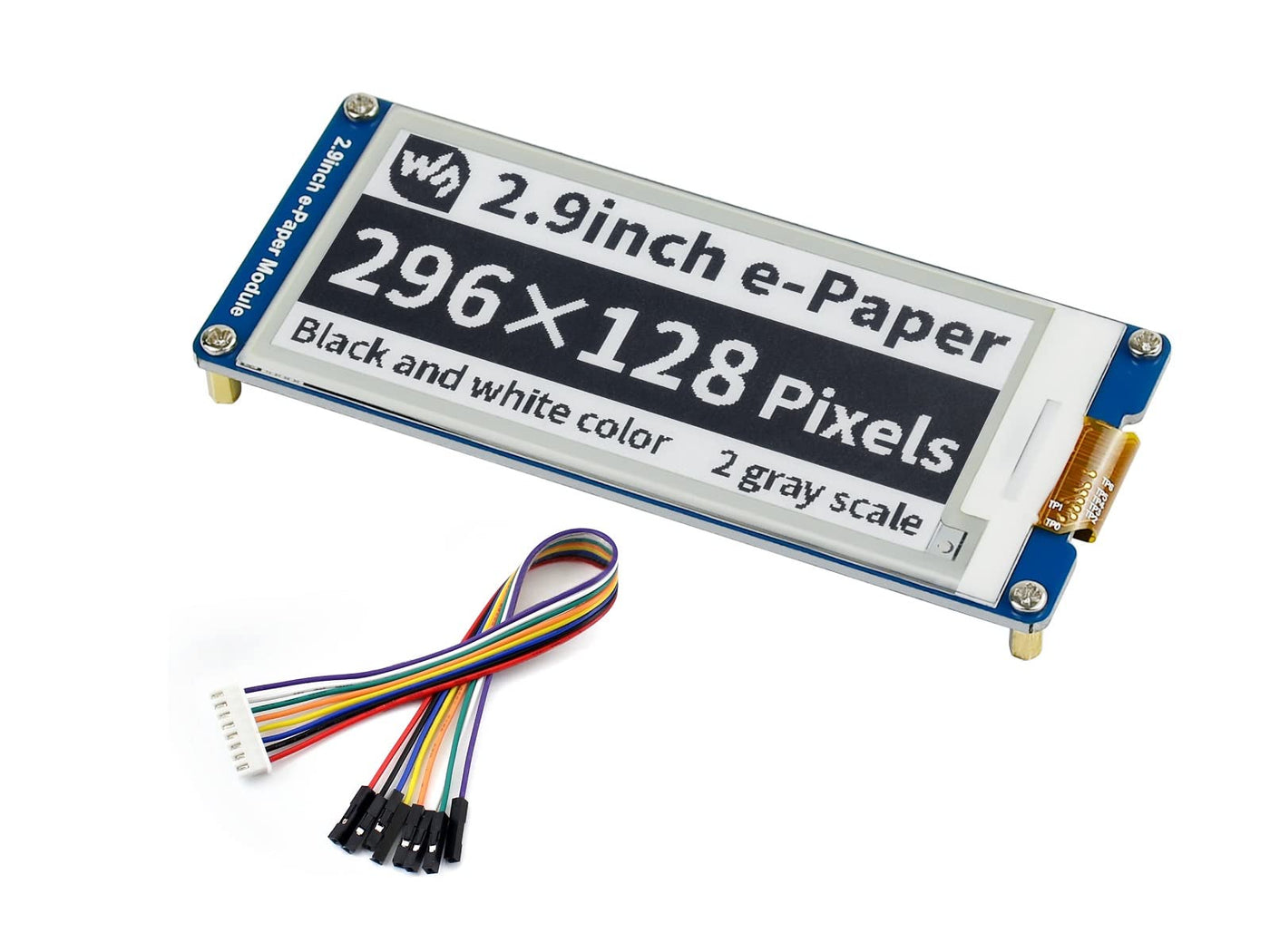

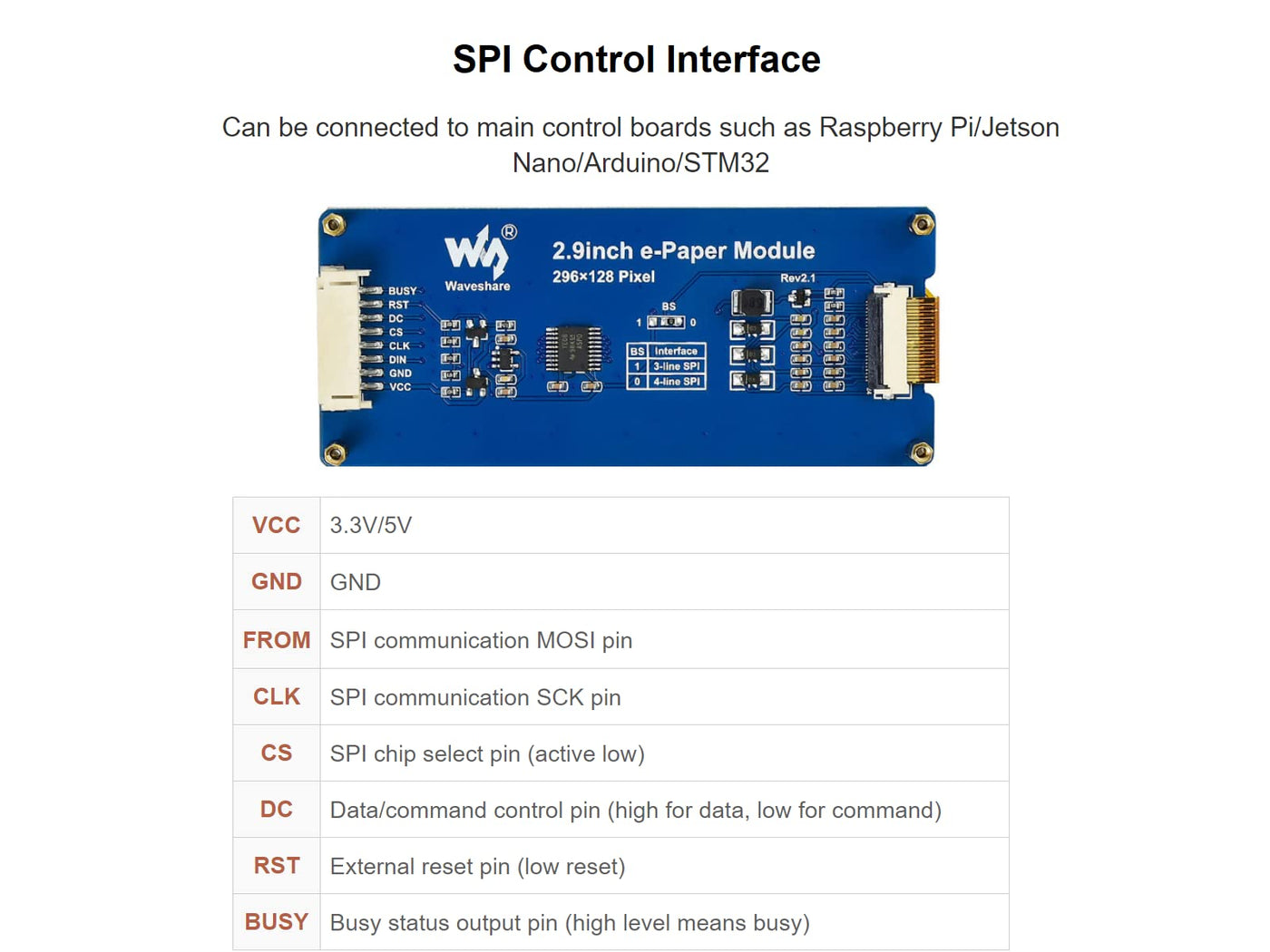

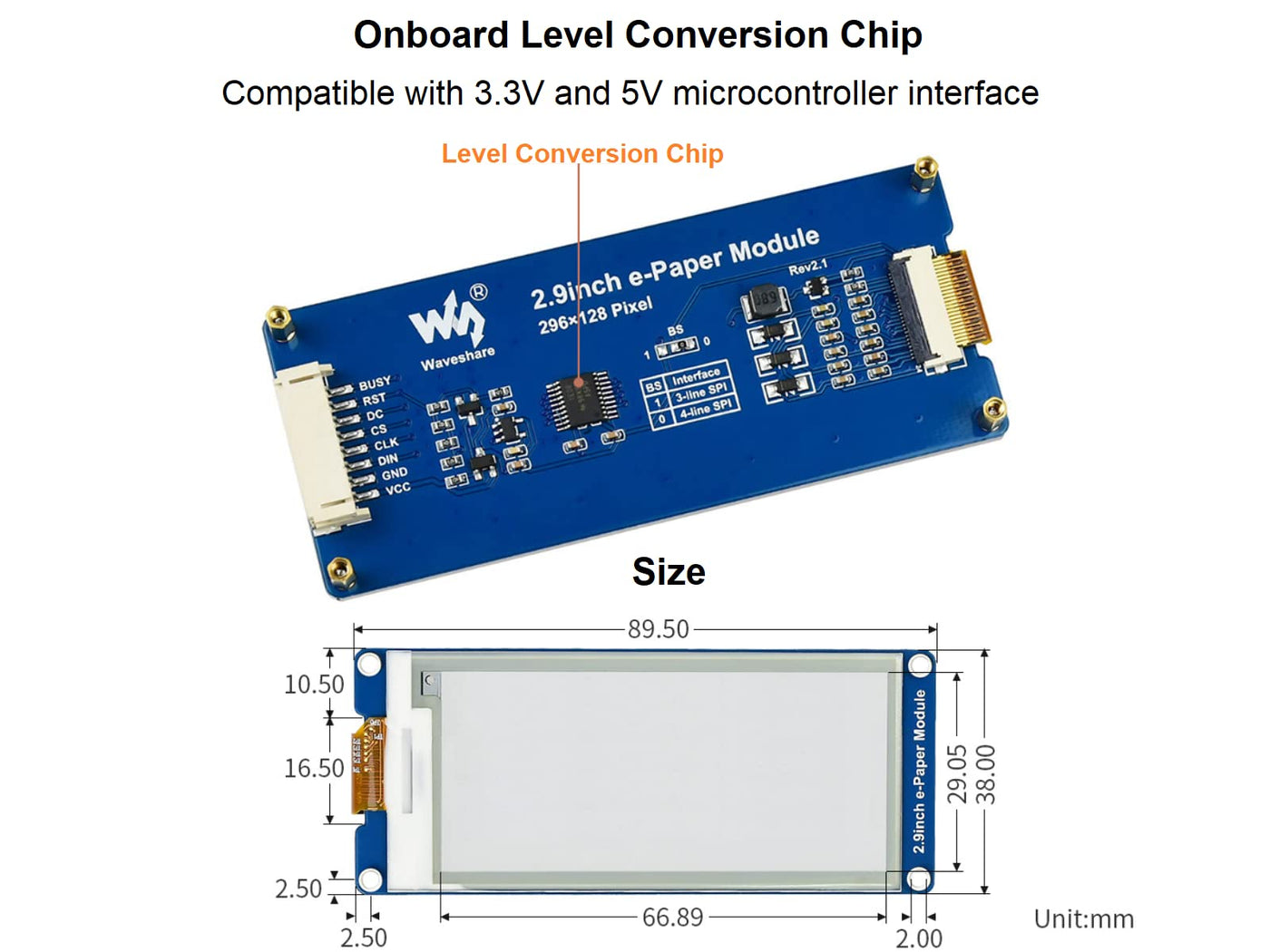

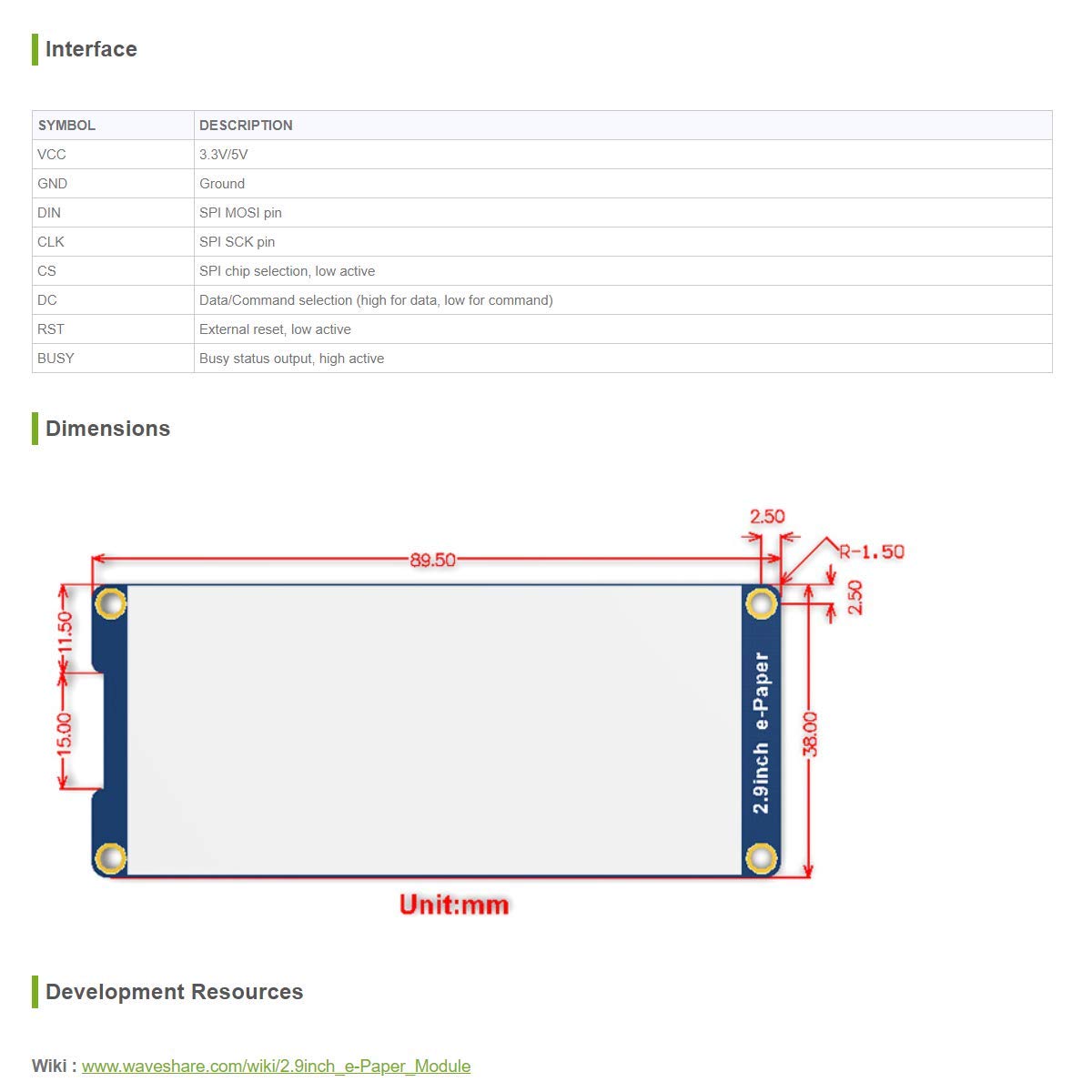

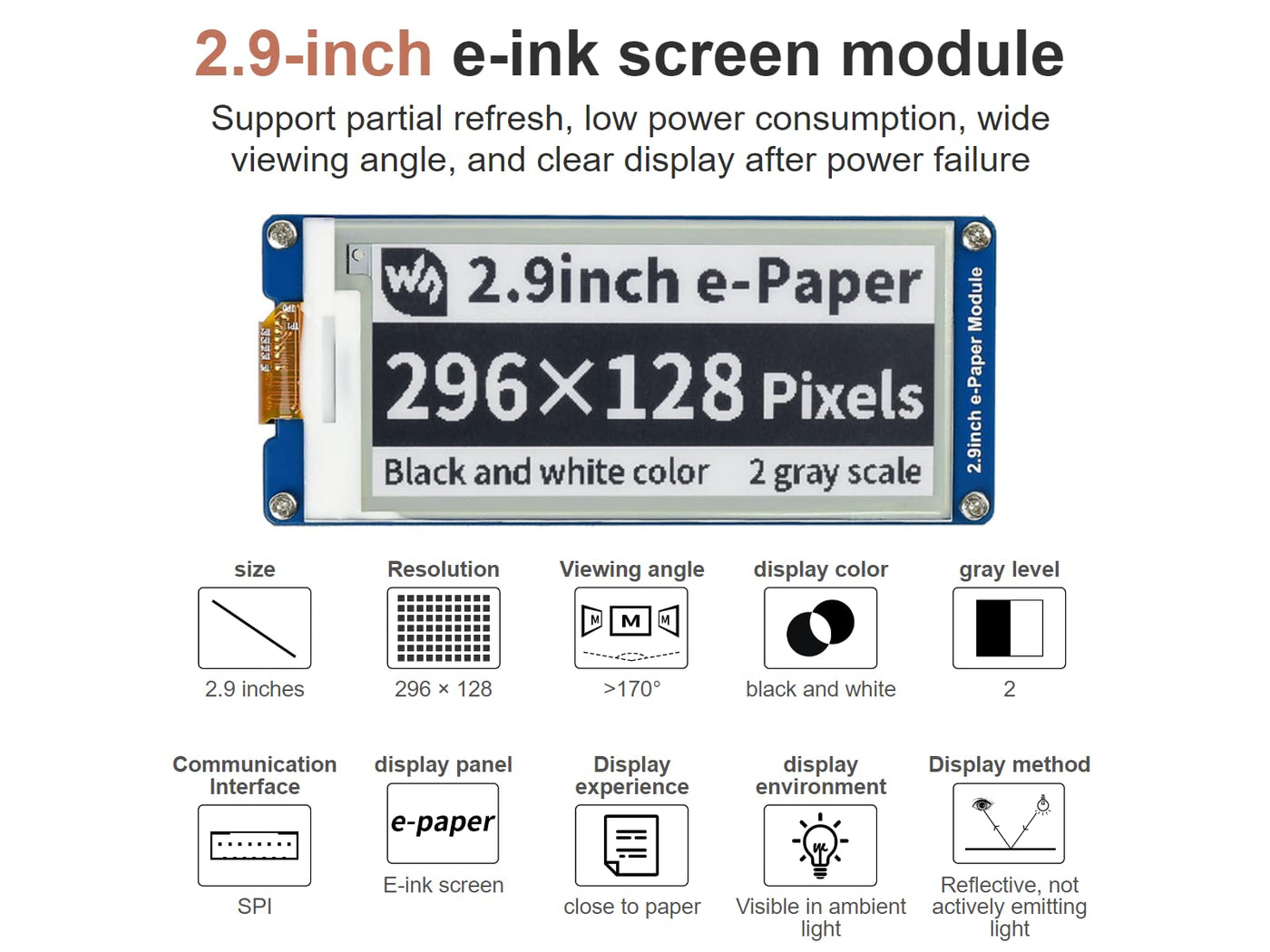

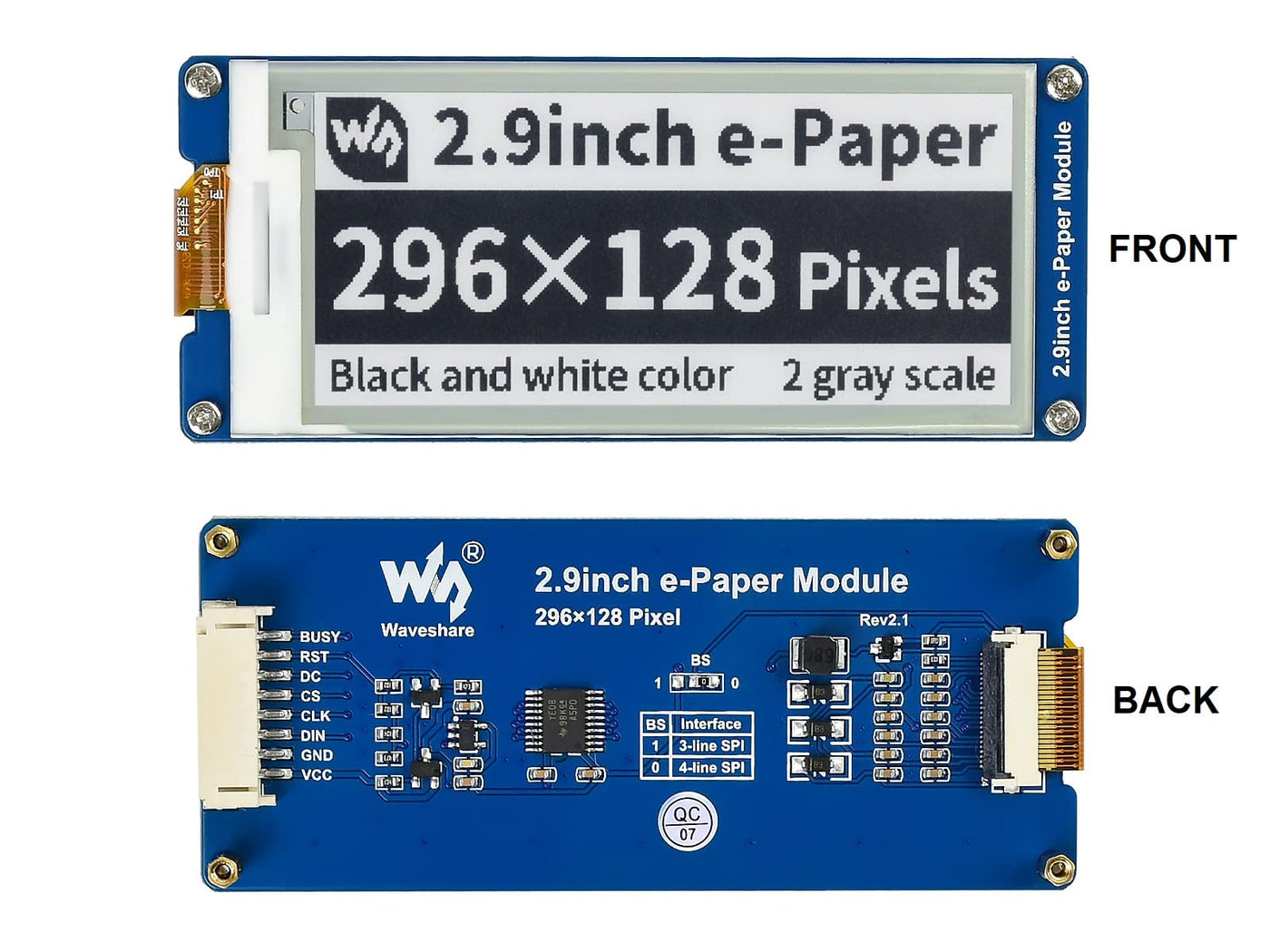

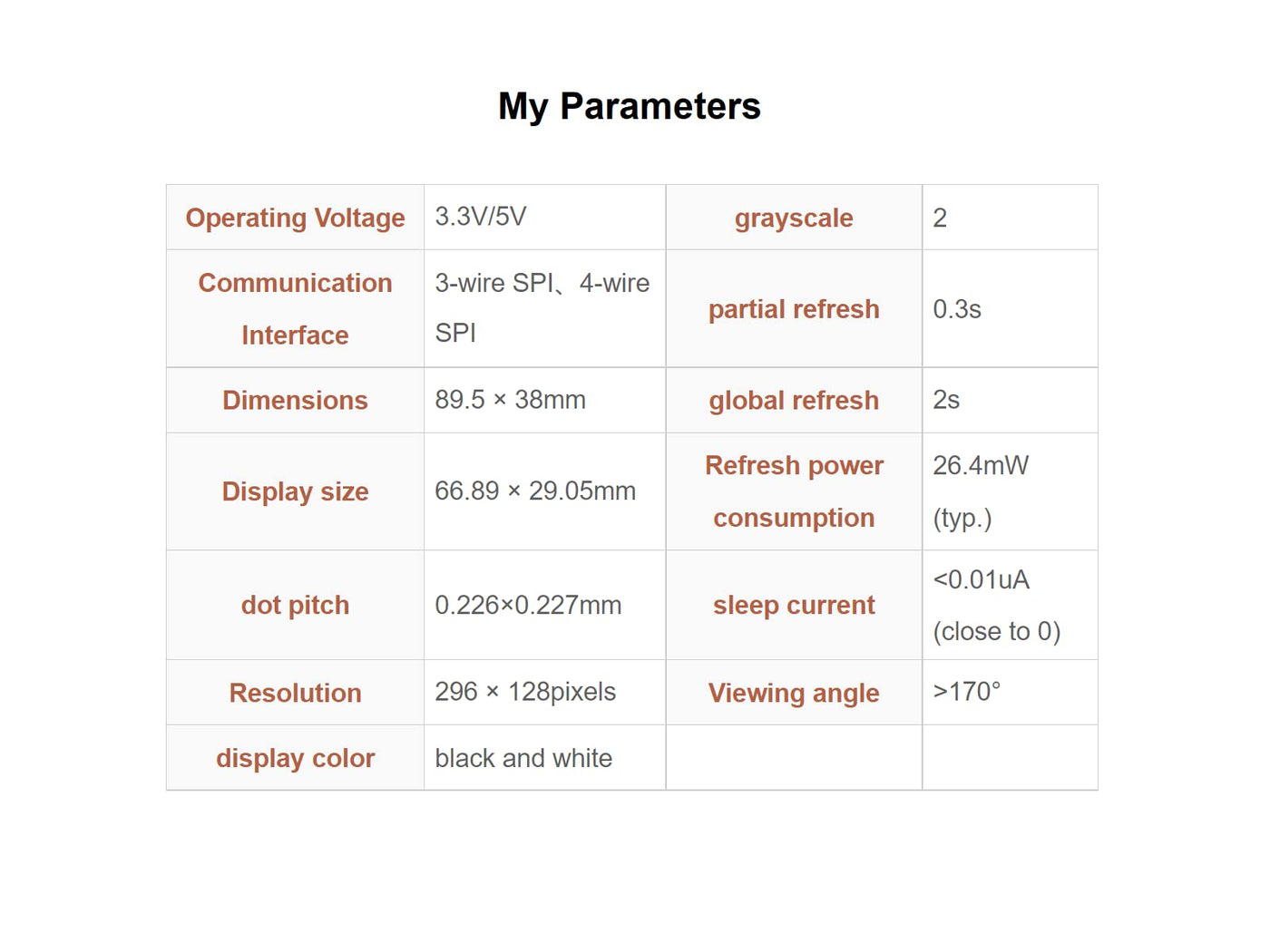

{"id":8530695880857,"title":"2.9 inch E-Paper Module 296 x 128 Resolution 3.3 V\/5 V Two-Colour E-Ink Display Module epaper Screen SPI Interface for Raspberry Pi\/Arduino\/Nucleo Support Partial Refresh 2.9inch E-paper Display Module","handle":"2-9-inch-e-paper-module-296-x-128-resolution-3-3-v-5-v-two-colour-e-ink-display-module-epaper-screen-spi-interface-for-raspberry-pi-arduino-nucleo-support-partial-refresh-2-9inch-e-paper-display-module","description":"\u003ch3\u003e2.9 inch E-Paper Module 296 x 128 Resolution 3.3 V\/5 V Two-Colour E-Ink Display Module epaper Screen SPI Interface for Raspberry Pi\/Arduino\/Nucleo Support Partial Refresh\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eOverview This is an E-Ink display module, 2.9inch, 296x128 resolution, with\nembedded controller, communicating via SPI interface, supports partial\nrefresh. Due to the advantages like ultra low power consumption, wide viewing\nangle, clear display without electricity, it is an ideal choice for\napplications such as shelf label, industrial instrument, and so on. Features:\nNo backlight, keeps displaying last content for a long time even when power\ndown Ultra low power consumption, basically power is only required for\nrefreshing SPI interface, for connecting with controller boards like Raspberry\nPi\/Arduino\/Nucleo, etc. Onboard voltage translator, compatible with 3.3V\/5V\nMCUs Comes with development resources and manual (examples for Raspberry\nPi\/Arduino\/STM32) Specifications: Operating voltage: 3.3 V\/5 V. Interface:\n3-wire SPI, 4-wire SPI Outline dimensions: 89.5 mm x 38 mm. Display size:\n66.89 mm x 29.05 mm. Dot pitch: 0.138 × 0.138. Resolution: 296 × 128. Display\ncolour: black, white. Grey level: 2. Partial refresh time: 0.3s. Full refresh\ntime: 2s. Refresh power: 26.4mW (typ.) Standby power: \u0026lt;0.017mW. Viewing angle:\n\u0026gt;170°. Package contents: 1 x 2.9 inch e-paper module. PH2.0 20 cm 8 pin x 1.\nNote: 1. If the e-paper has ghosting problem after working for some days ,\nplease set the e-paper to sleep mode or disconnect it if you needn't refresh\nthe e-paper but need to power on your development board or Raspberry Pi for\nlong time.Otherwise, the voltage of panel keeps high and it will damage the\npanel. 2.More resources if you need , please contact us via Amazon message\nfirstly to get .\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSPI interface, for connecting with controller boards like Raspberry Pi\/Arduino\/Nucleo, etc.\u003c\/li\u003e\n \u003cli\u003eUltra low power consumption, basically power is only required for refreshing\u003c\/li\u003e\n \u003cli\u003eOnboard voltage translator, compatible with 3.3V\/5V MCUs\u003c\/li\u003e\n \u003cli\u003eComes with development resources and manual (examples for Raspberry Pi\/Jetson Nano\/Arduino\/STM32)\u003c\/li\u003e\n \u003cli\u003eNo backlight, keeps displaying last content for a long time even when power down\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-24T23:53:43+10:00","created_at":"2025-09-24T23:53:40+10:00","vendor":"IBest","type":"Displays","tags":["industryDE_Sep2025"],"price":18400,"price_min":18400,"price_max":18400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45743349268633,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07Q5PZQ9F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2.9 inch E-Paper Module 296 x 128 Resolution 3.3 V\/5 V Two-Colour E-Ink Display Module epaper Screen SPI Interface for Raspberry Pi\/Arduino\/Nucleo Support Partial Refresh 2.9inch E-paper Display Module","public_title":null,"options":["Default Title"],"price":18400,"weight":30,"compare_at_price":null,"inventory_management":"shopify","barcode":"741663305087","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B07Q5PZQ9F.jpg?v=1775749543","\/\/soundstores.net\/cdn\/shop\/files\/71AtsnOsj1L.jpg?v=1758722022","\/\/soundstores.net\/cdn\/shop\/files\/61dC6RXJ4xL.jpg?v=1758722022","\/\/soundstores.net\/cdn\/shop\/files\/61Oxe4KQ88L.jpg?v=1758722023","\/\/soundstores.net\/cdn\/shop\/files\/616YcP7aRNL.jpg?v=1758722022","\/\/soundstores.net\/cdn\/shop\/files\/71UIqPIKCvL.jpg?v=1758722023","\/\/soundstores.net\/cdn\/shop\/files\/61iwZhl0dEL.jpg?v=1758722022","\/\/soundstores.net\/cdn\/shop\/files\/61rLm8wZBRL.jpg?v=1758722022"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07Q5PZQ9F.jpg?v=1775749543","options":["Title"],"media":[{"alt":null,"id":34626638774425,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07Q5PZQ9F.jpg?v=1775749543"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07Q5PZQ9F.jpg?v=1775749543","width":1600},{"alt":null,"id":34626638807193,"position":2,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71AtsnOsj1L.jpg?v=1758722022"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71AtsnOsj1L.jpg?v=1758722022","width":1600},{"alt":null,"id":34626638839961,"position":3,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61dC6RXJ4xL.jpg?v=1758722022"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61dC6RXJ4xL.jpg?v=1758722022","width":1600},{"alt":null,"id":34626638872729,"position":4,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61Oxe4KQ88L.jpg?v=1758722023"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61Oxe4KQ88L.jpg?v=1758722023","width":1600},{"alt":null,"id":34626638905497,"position":5,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/616YcP7aRNL.jpg?v=1758722022"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/616YcP7aRNL.jpg?v=1758722022","width":1600},{"alt":null,"id":34626638938265,"position":6,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71UIqPIKCvL.jpg?v=1758722023"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71UIqPIKCvL.jpg?v=1758722023","width":1600},{"alt":null,"id":34626638971033,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61iwZhl0dEL.jpg?v=1758722022"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61iwZhl0dEL.jpg?v=1758722022","width":1200},{"alt":null,"id":34626639003801,"position":8,"preview_image":{"aspect_ratio":1.33,"height":1151,"width":1531,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61rLm8wZBRL.jpg?v=1758722022"},"aspect_ratio":1.33,"height":1151,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61rLm8wZBRL.jpg?v=1758722022","width":1531}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2.9 inch E-Paper Module 296 x 128 Resolution 3.3 V\/5 V Two-Colour E-Ink Display Module epaper Screen SPI Interface for Raspberry Pi\/Arduino\/Nucleo Support Partial Refresh\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eOverview This is an E-Ink display module, 2.9inch, 296x128 resolution, with\nembedded controller, communicating via SPI interface, supports partial\nrefresh. Due to the advantages like ultra low power consumption, wide viewing\nangle, clear display without electricity, it is an ideal choice for\napplications such as shelf label, industrial instrument, and so on. Features:\nNo backlight, keeps displaying last content for a long time even when power\ndown Ultra low power consumption, basically power is only required for\nrefreshing SPI interface, for connecting with controller boards like Raspberry\nPi\/Arduino\/Nucleo, etc. Onboard voltage translator, compatible with 3.3V\/5V\nMCUs Comes with development resources and manual (examples for Raspberry\nPi\/Arduino\/STM32) Specifications: Operating voltage: 3.3 V\/5 V. Interface:\n3-wire SPI, 4-wire SPI Outline dimensions: 89.5 mm x 38 mm. Display size:\n66.89 mm x 29.05 mm. Dot pitch: 0.138 × 0.138. Resolution: 296 × 128. Display\ncolour: black, white. Grey level: 2. Partial refresh time: 0.3s. Full refresh\ntime: 2s. Refresh power: 26.4mW (typ.) Standby power: \u0026lt;0.017mW. Viewing angle:\n\u0026gt;170°. Package contents: 1 x 2.9 inch e-paper module. PH2.0 20 cm 8 pin x 1.\nNote: 1. If the e-paper has ghosting problem after working for some days ,\nplease set the e-paper to sleep mode or disconnect it if you needn't refresh\nthe e-paper but need to power on your development board or Raspberry Pi for\nlong time.Otherwise, the voltage of panel keeps high and it will damage the\npanel. 2.More resources if you need , please contact us via Amazon message\nfirstly to get .\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSPI interface, for connecting with controller boards like Raspberry Pi\/Arduino\/Nucleo, etc.\u003c\/li\u003e\n \u003cli\u003eUltra low power consumption, basically power is only required for refreshing\u003c\/li\u003e\n \u003cli\u003eOnboard voltage translator, compatible with 3.3V\/5V MCUs\u003c\/li\u003e\n \u003cli\u003eComes with development resources and manual (examples for Raspberry Pi\/Jetson Nano\/Arduino\/STM32)\u003c\/li\u003e\n \u003cli\u003eNo backlight, keeps displaying last content for a long time even when power down\u003c\/li\u003e\n \u003c\/ul\u003e"}
