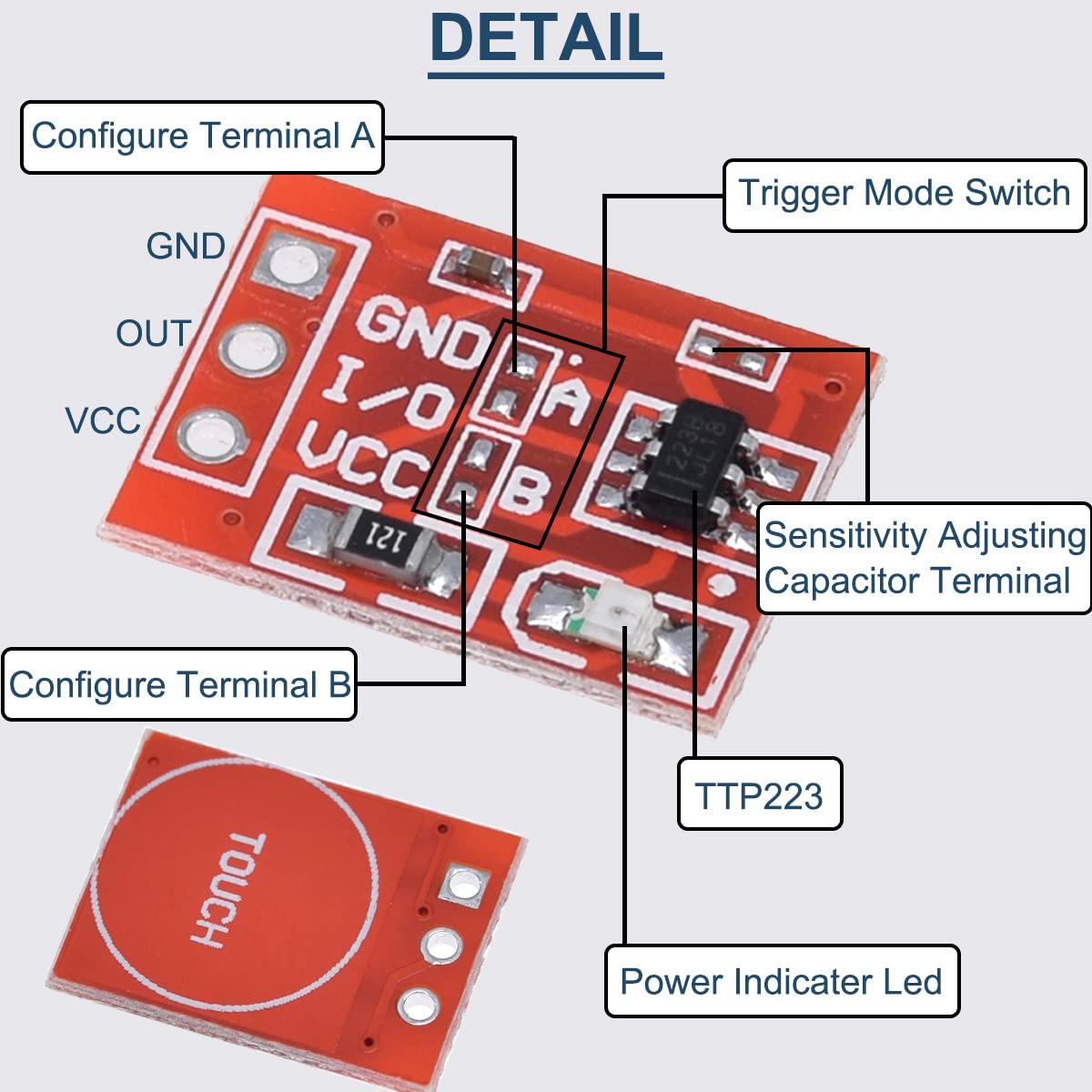

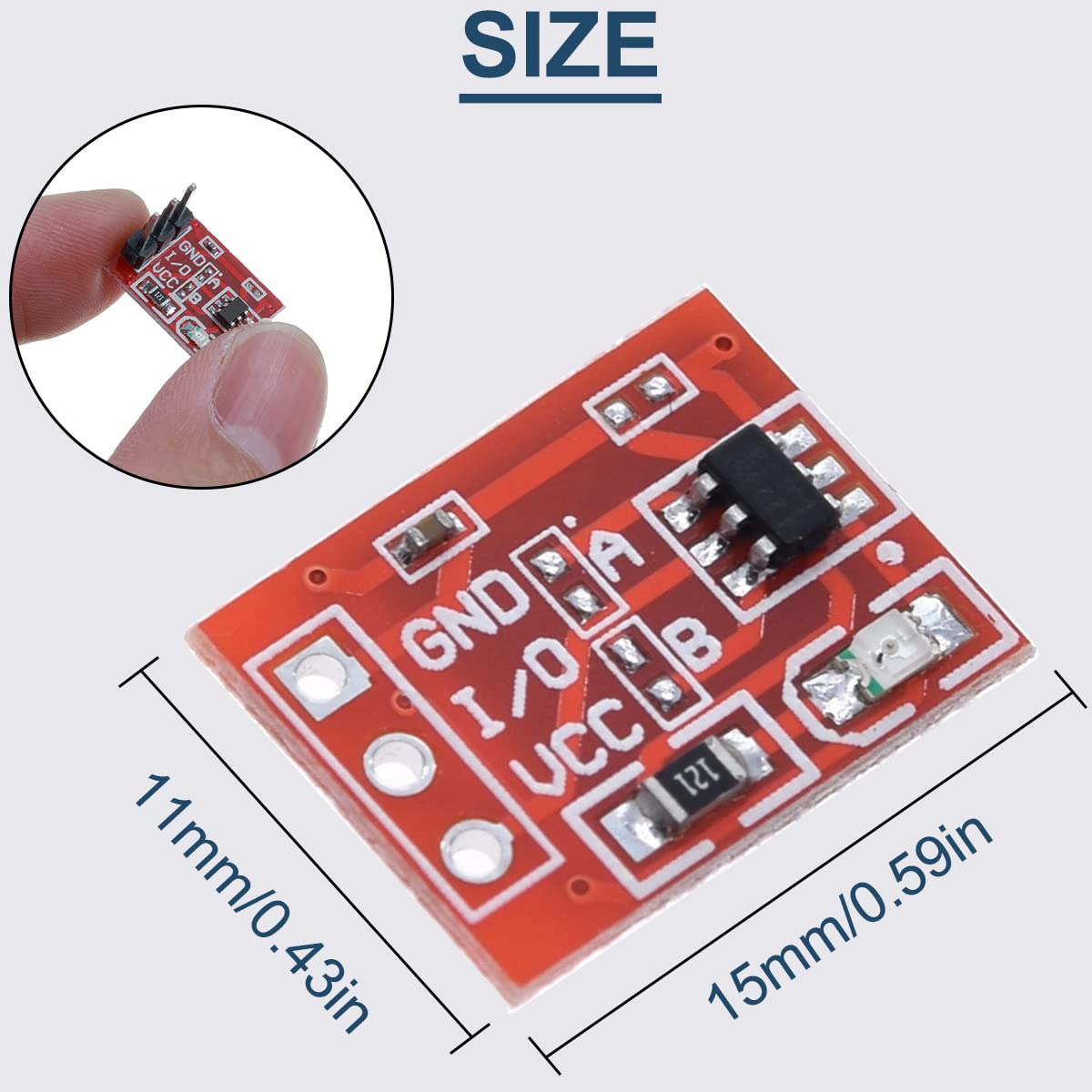

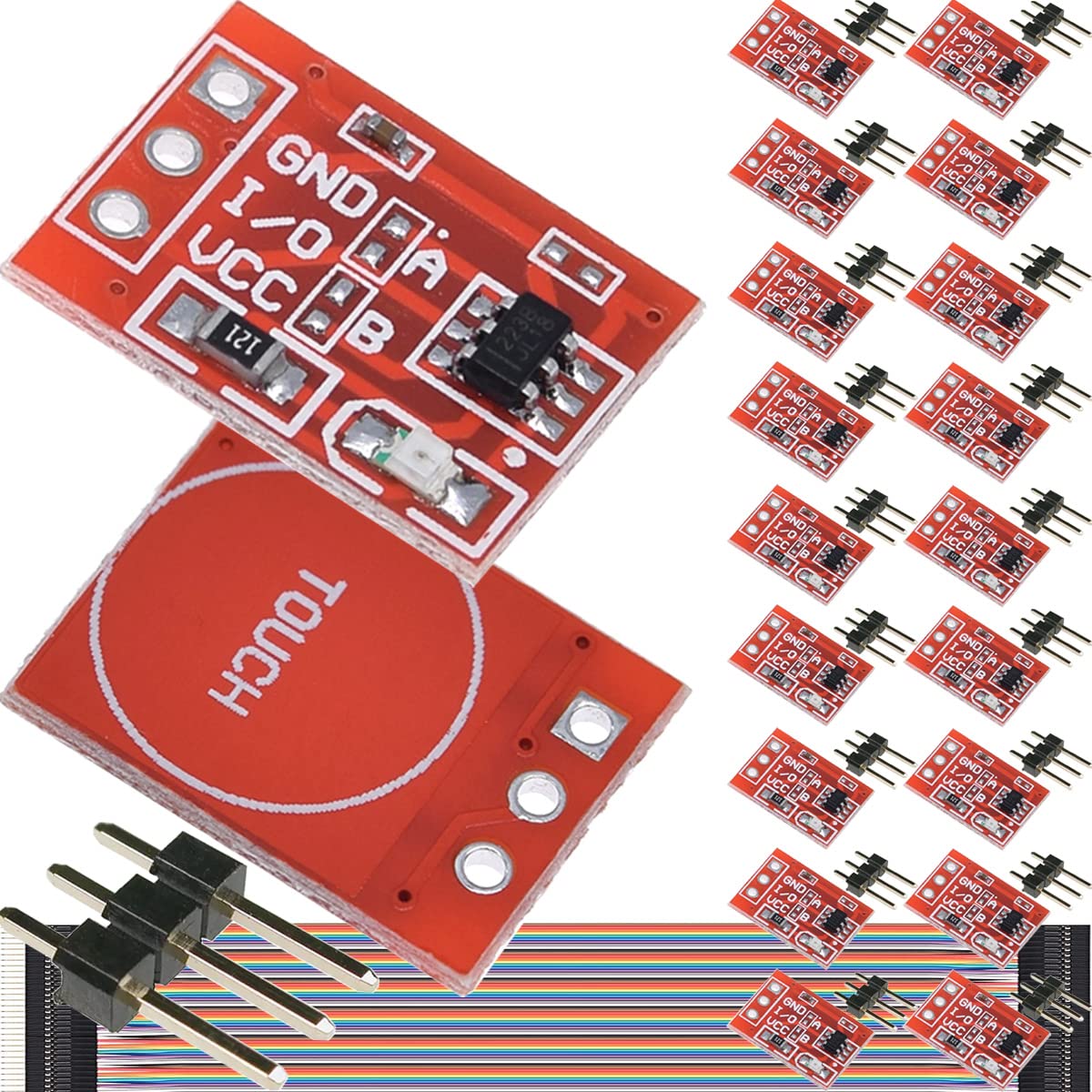

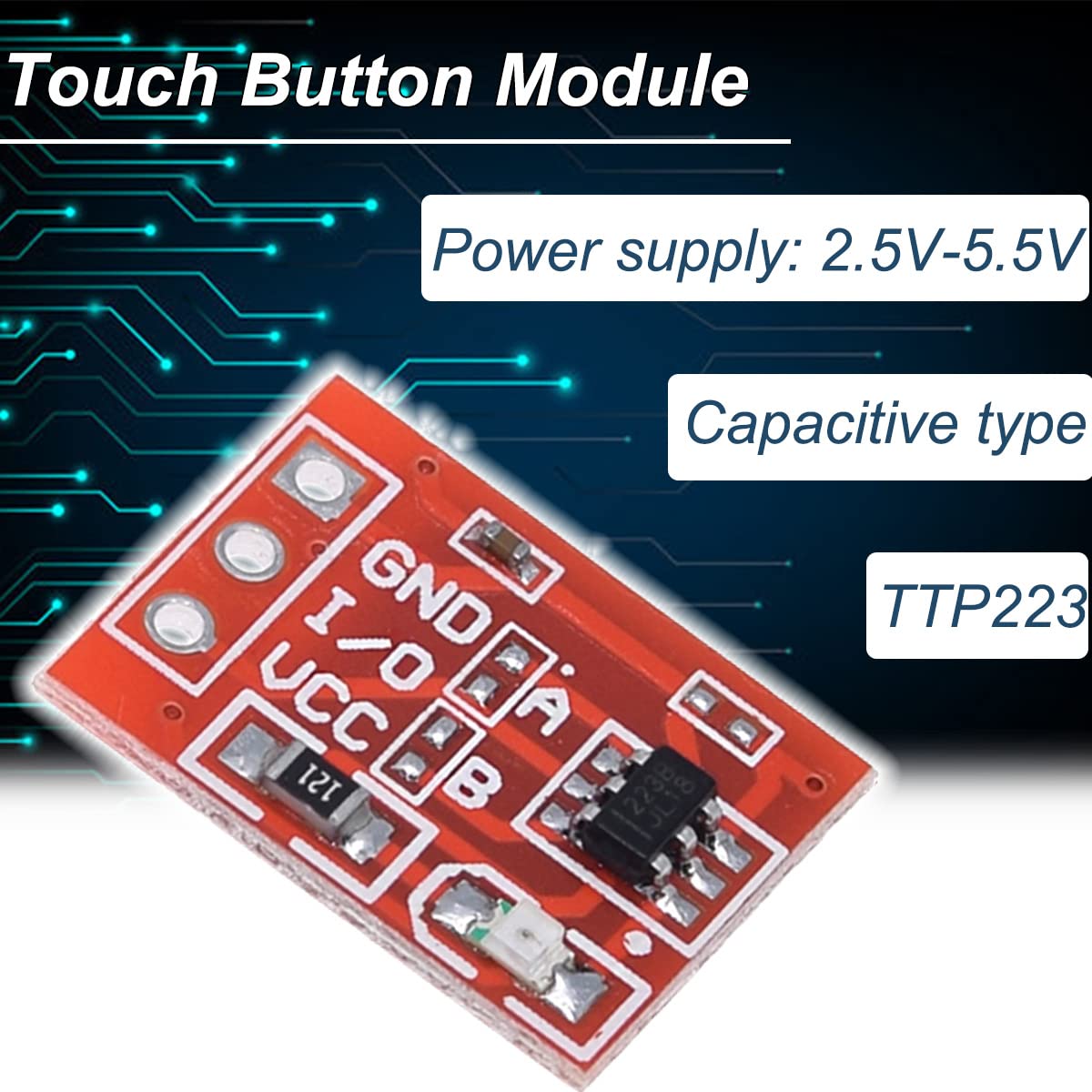

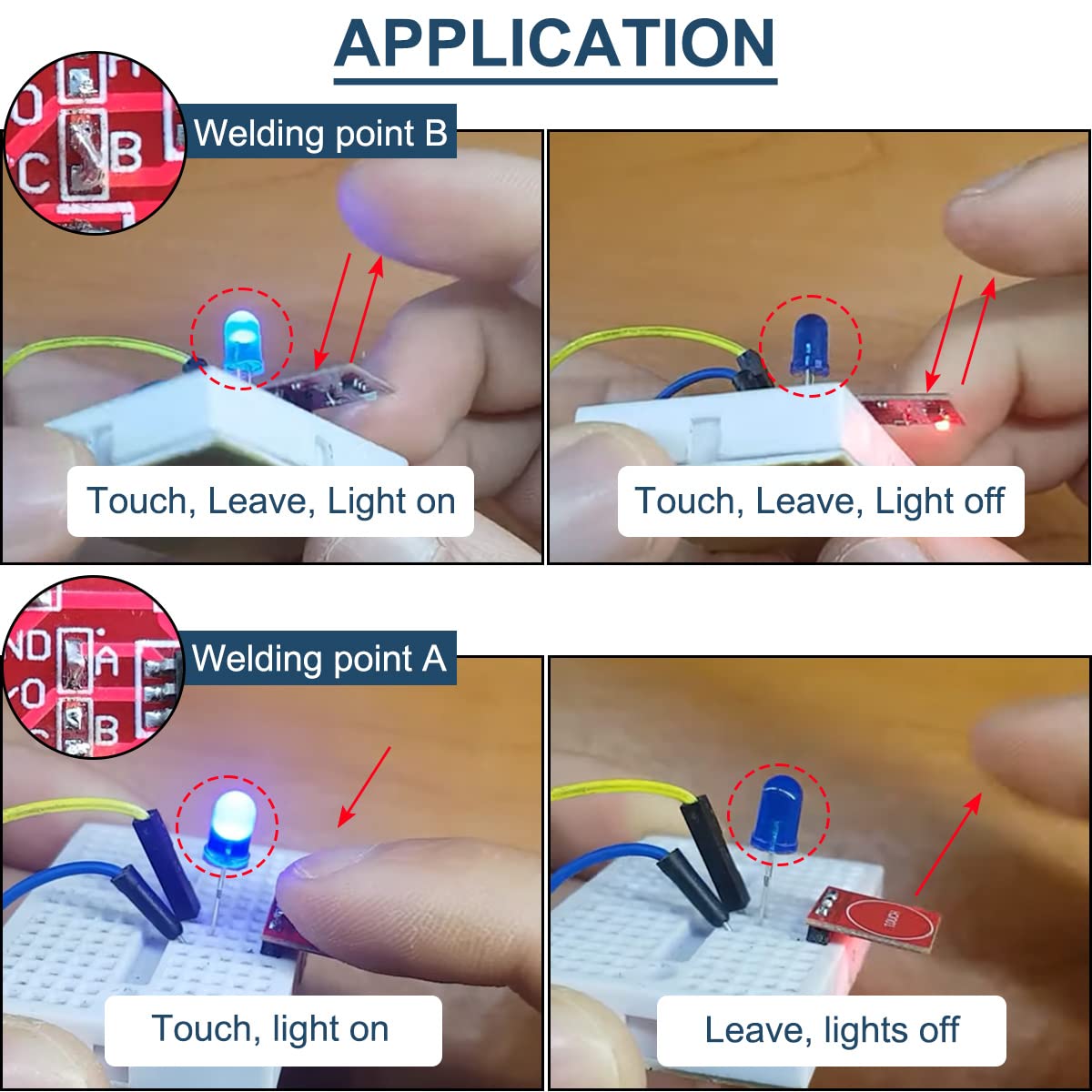

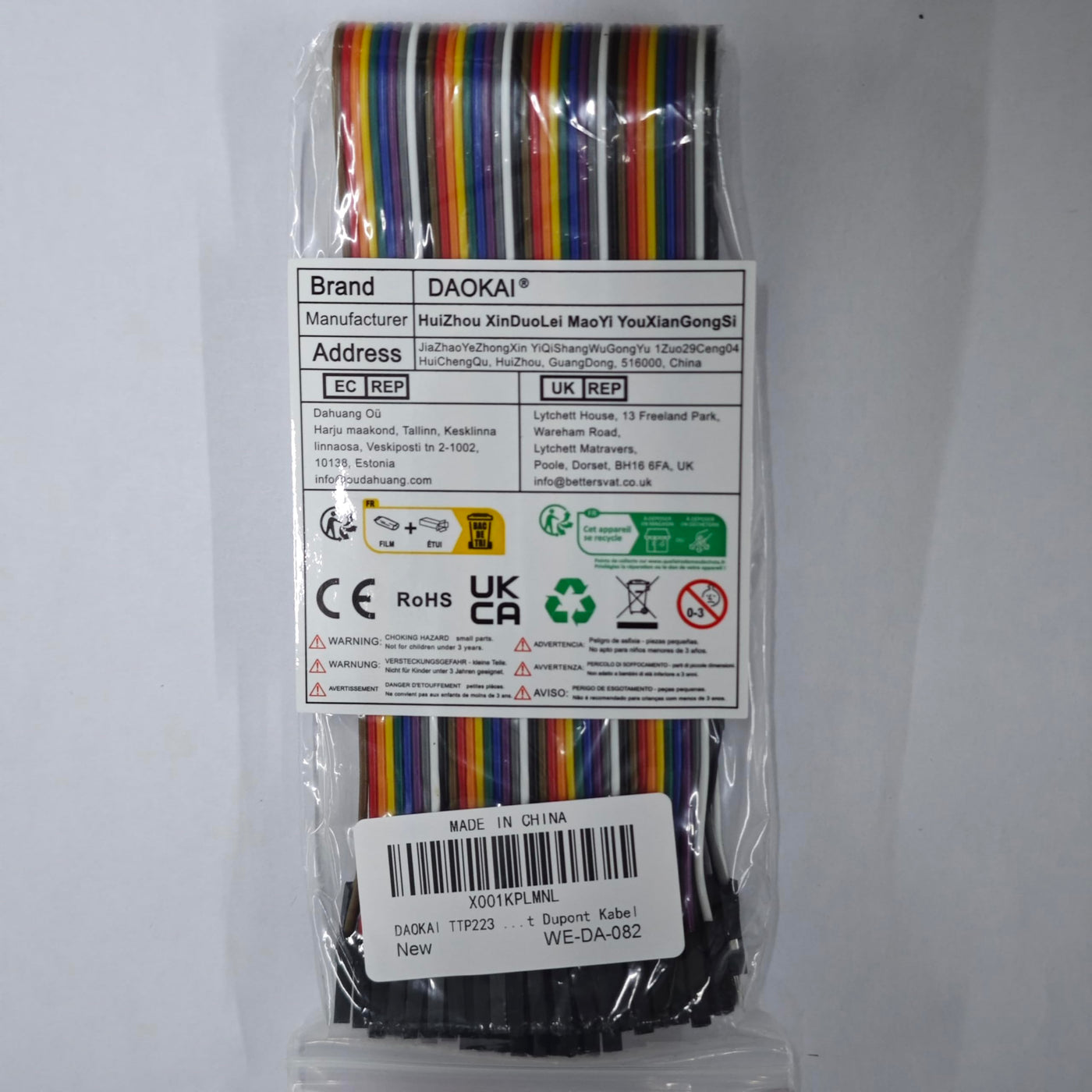

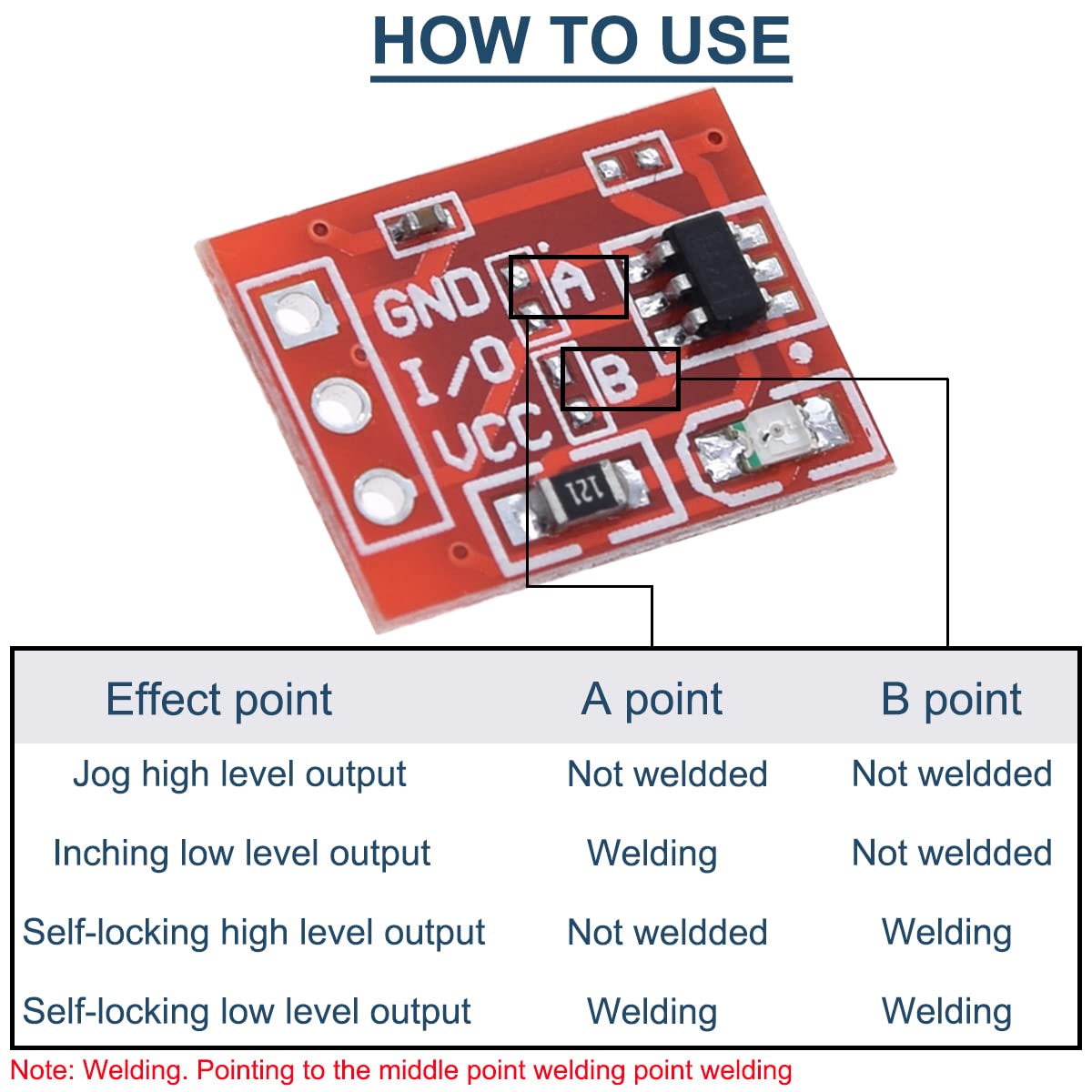

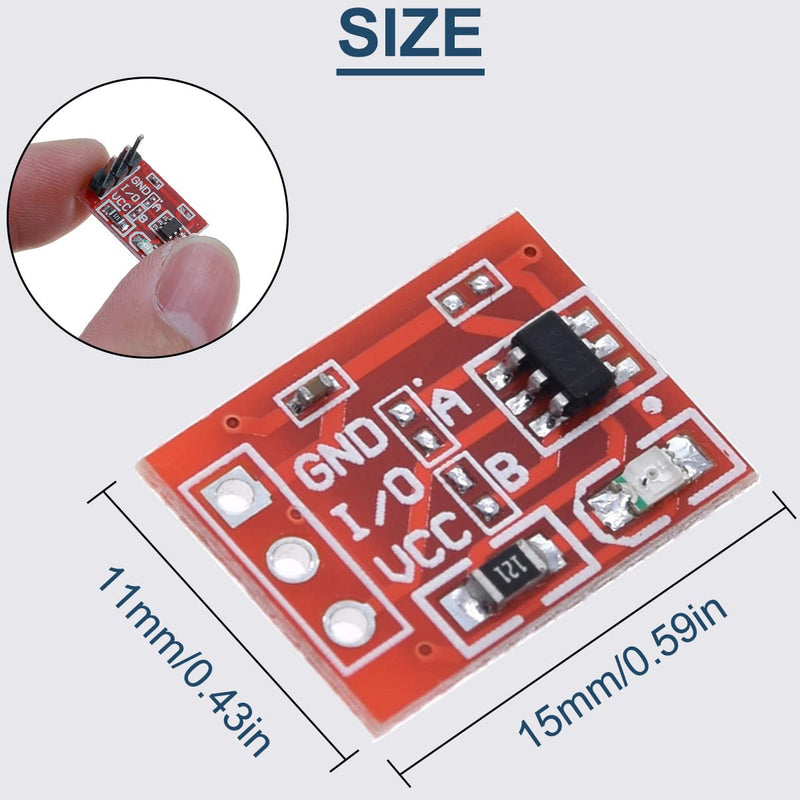

{"id":8528992796825,"title":"20 Pcs TTP223 Touch Button Module Self-Locking Jog Capacitive Touch Key Switch Sensor Module Single Channel for Arduino with Dupont Cable","handle":"20-pcs-ttp223-touch-button-module-self-locking-jog-capacitive-touch-key-switch-sensor-module-single-channel-for-arduino-with-dupont-cable","description":"\u003ch3\u003e20 Pcs TTP223 Touch Button Module Self-Locking Jog Capacitive Touch Key Switch Sensor Module Single Channel for Arduino with Dupont Cable\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Size:15x11mm\/0.59x0.43in Power:2.5-5.5V COLOR:RED Trigger setting\nmode: (1- \u0026gt; Short ; 0- \u0026gt; No Short) AB=00:No-lock High TTL level ouput;\nAB=01:Self-lock High TTL level ouput; AB=10:No-lock Low TTL level ouput;\nAB=11:Self-lock Low TTL level ouput; Package includes: 20 x TTP223 Capacitive\nTouch Key Switch Sensor Module 20 x 3 rows of needles 1 x 20pin Female to Male\nDupont Cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct introduction: This module adopts TTP223 chip, with 7 seconds automatic reset and built-in LD0 voltage regulator, to ensure long-term stable work without crash.\u003c\/li\u003e\n \u003cli\u003eSpecification: Power supply: 2.5-5.5V, module size: 15 x 11mm\/0.59 x 0.43in, the latest version, red board, the characters are at a loss, the distance increases.\u003c\/li\u003e\n \u003cli\u003eTrigger setting mode(1- \u0026gt; Short ; 0- \u0026gt; No Short): AB=00:No-lock High TTL level ouput; AB=01:Self-lock High TTL level ouput; AB=10:No-lock Low TTL level ouput; AB=11:Self-lock Low TTL level ouput.\u003c\/li\u003e\n \u003cli\u003eTTP223 chip advantage: With reset function, after the set time is exceeded, the touch signal will return to the initial state, so that the benefits of the built-in voltage regulator LD0 can be used normally, and it can work stably without an external LD0 chip, saving space costs, For example, it can be used in bracelets, MP3 products.\u003c\/li\u003e\n \u003cli\u003ePackage includes: You will get 20 x TTP223 Capacitive Touch Key Switch Sensor Module, 20 x 3 rows of needles, 1 x 20pin Female to Male Dupont Cable.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-23T10:33:02+10:00","created_at":"2025-09-23T10:32:58+10:00","vendor":"DAOKAI","type":"Single Board Computers","tags":["industryDE_Sep2025"],"price":9200,"price_min":9200,"price_max":9200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45739262705817,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0B2NRFDML","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"20 Pcs TTP223 Touch Button Module Self-Locking Jog Capacitive Touch Key Switch Sensor Module Single Channel for Arduino with Dupont Cable","public_title":null,"options":["Default Title"],"price":9200,"weight":70,"compare_at_price":null,"inventory_management":"shopify","barcode":"WE-DA-082","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0B2NRFDML.jpg?v=1775748638","\/\/soundstores.net\/cdn\/shop\/files\/71ycrpBv0pL.jpg?v=1758587581","\/\/soundstores.net\/cdn\/shop\/files\/61Xn2HpjugL.jpg?v=1758587581","\/\/soundstores.net\/cdn\/shop\/files\/61r20y_UV8L.jpg?v=1758587582","\/\/soundstores.net\/cdn\/shop\/files\/6192gm9C48L.jpg?v=1758587581","\/\/soundstores.net\/cdn\/shop\/files\/614t2f8dDcL.jpg?v=1758587582","\/\/soundstores.net\/cdn\/shop\/files\/71zYUcsx1lL.jpg?v=1758587581","\/\/soundstores.net\/cdn\/shop\/files\/81vIq5xik2L.jpg?v=1758587582"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B2NRFDML.jpg?v=1775748638","options":["Title"],"media":[{"alt":null,"id":34597094817945,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B2NRFDML.jpg?v=1775748638"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B2NRFDML.jpg?v=1775748638","width":1200},{"alt":null,"id":34597094850713,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71ycrpBv0pL.jpg?v=1758587581"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71ycrpBv0pL.jpg?v=1758587581","width":1200},{"alt":null,"id":34597094883481,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61Xn2HpjugL.jpg?v=1758587581"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61Xn2HpjugL.jpg?v=1758587581","width":1200},{"alt":null,"id":34597094916249,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61r20y_UV8L.jpg?v=1758587582"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61r20y_UV8L.jpg?v=1758587582","width":1200},{"alt":null,"id":34597094949017,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/6192gm9C48L.jpg?v=1758587581"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/6192gm9C48L.jpg?v=1758587581","width":1200},{"alt":null,"id":34597094981785,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/614t2f8dDcL.jpg?v=1758587582"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/614t2f8dDcL.jpg?v=1758587582","width":1200},{"alt":null,"id":34597095014553,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71zYUcsx1lL.jpg?v=1758587581"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71zYUcsx1lL.jpg?v=1758587581","width":1200},{"alt":null,"id":34597095047321,"position":8,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81vIq5xik2L.jpg?v=1758587582"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81vIq5xik2L.jpg?v=1758587582","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e20 Pcs TTP223 Touch Button Module Self-Locking Jog Capacitive Touch Key Switch Sensor Module Single Channel for Arduino with Dupont Cable\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Size:15x11mm\/0.59x0.43in Power:2.5-5.5V COLOR:RED Trigger setting\nmode: (1- \u0026gt; Short ; 0- \u0026gt; No Short) AB=00:No-lock High TTL level ouput;\nAB=01:Self-lock High TTL level ouput; AB=10:No-lock Low TTL level ouput;\nAB=11:Self-lock Low TTL level ouput; Package includes: 20 x TTP223 Capacitive\nTouch Key Switch Sensor Module 20 x 3 rows of needles 1 x 20pin Female to Male\nDupont Cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct introduction: This module adopts TTP223 chip, with 7 seconds automatic reset and built-in LD0 voltage regulator, to ensure long-term stable work without crash.\u003c\/li\u003e\n \u003cli\u003eSpecification: Power supply: 2.5-5.5V, module size: 15 x 11mm\/0.59 x 0.43in, the latest version, red board, the characters are at a loss, the distance increases.\u003c\/li\u003e\n \u003cli\u003eTrigger setting mode(1- \u0026gt; Short ; 0- \u0026gt; No Short): AB=00:No-lock High TTL level ouput; AB=01:Self-lock High TTL level ouput; AB=10:No-lock Low TTL level ouput; AB=11:Self-lock Low TTL level ouput.\u003c\/li\u003e\n \u003cli\u003eTTP223 chip advantage: With reset function, after the set time is exceeded, the touch signal will return to the initial state, so that the benefits of the built-in voltage regulator LD0 can be used normally, and it can work stably without an external LD0 chip, saving space costs, For example, it can be used in bracelets, MP3 products.\u003c\/li\u003e\n \u003cli\u003ePackage includes: You will get 20 x TTP223 Capacitive Touch Key Switch Sensor Module, 20 x 3 rows of needles, 1 x 20pin Female to Male Dupont Cable.\u003c\/li\u003e\n \u003c\/ul\u003e"}
