20 Pieces IDC 2 * 5 Double Row 2.54 mm Pitch JTAG ISP 10-Pin Straight Pin in-line Box Header Connector Adapter Cable Male Socket Terminal for PCB Electronic Equipment Projects. 2.54 mm Male Socket Terminal

In Stock. Leaves warehouse within 2 - 3 business days

$96.00 AUD
Maximum quantity available reached.
Shop with us and enjoy FREE shipping on every order.
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

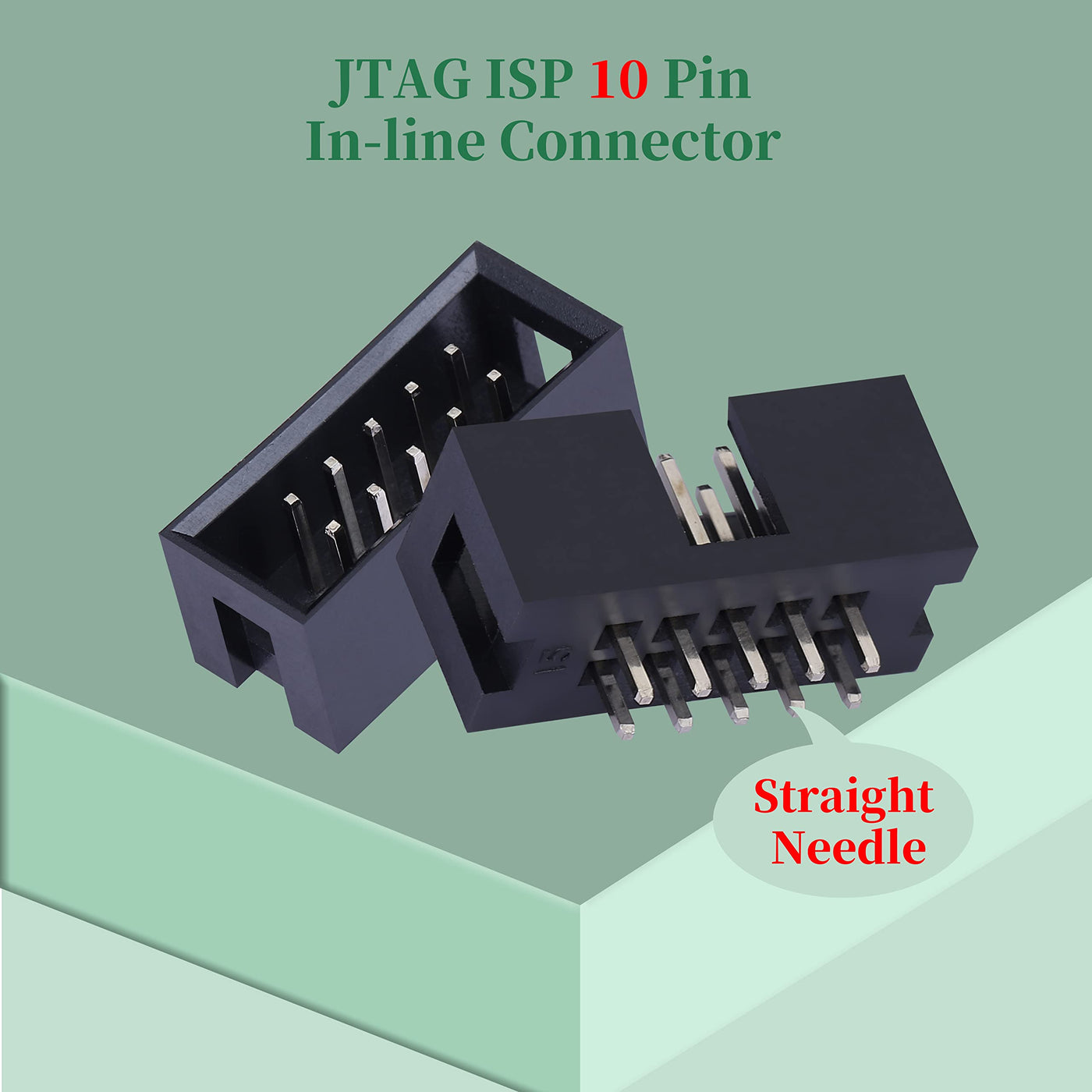

20 Pieces IDC 2 * 5 Double Row 2.54 mm Pitch JTAG ISP 10-Pin Straight Pin in-line Box Header Connector Adapter Cable Male Socket Terminal for PCB Electronic Equipment Projects.

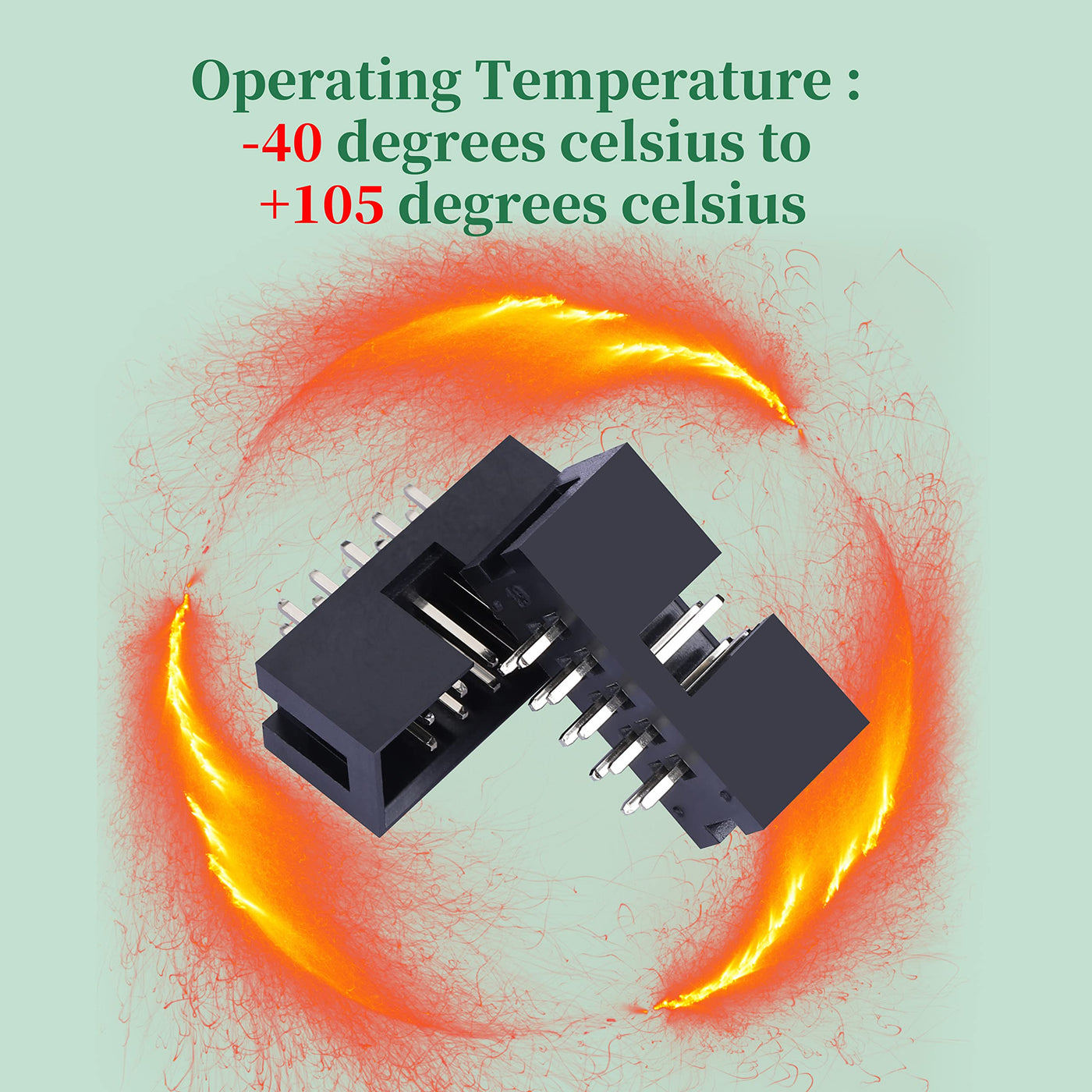

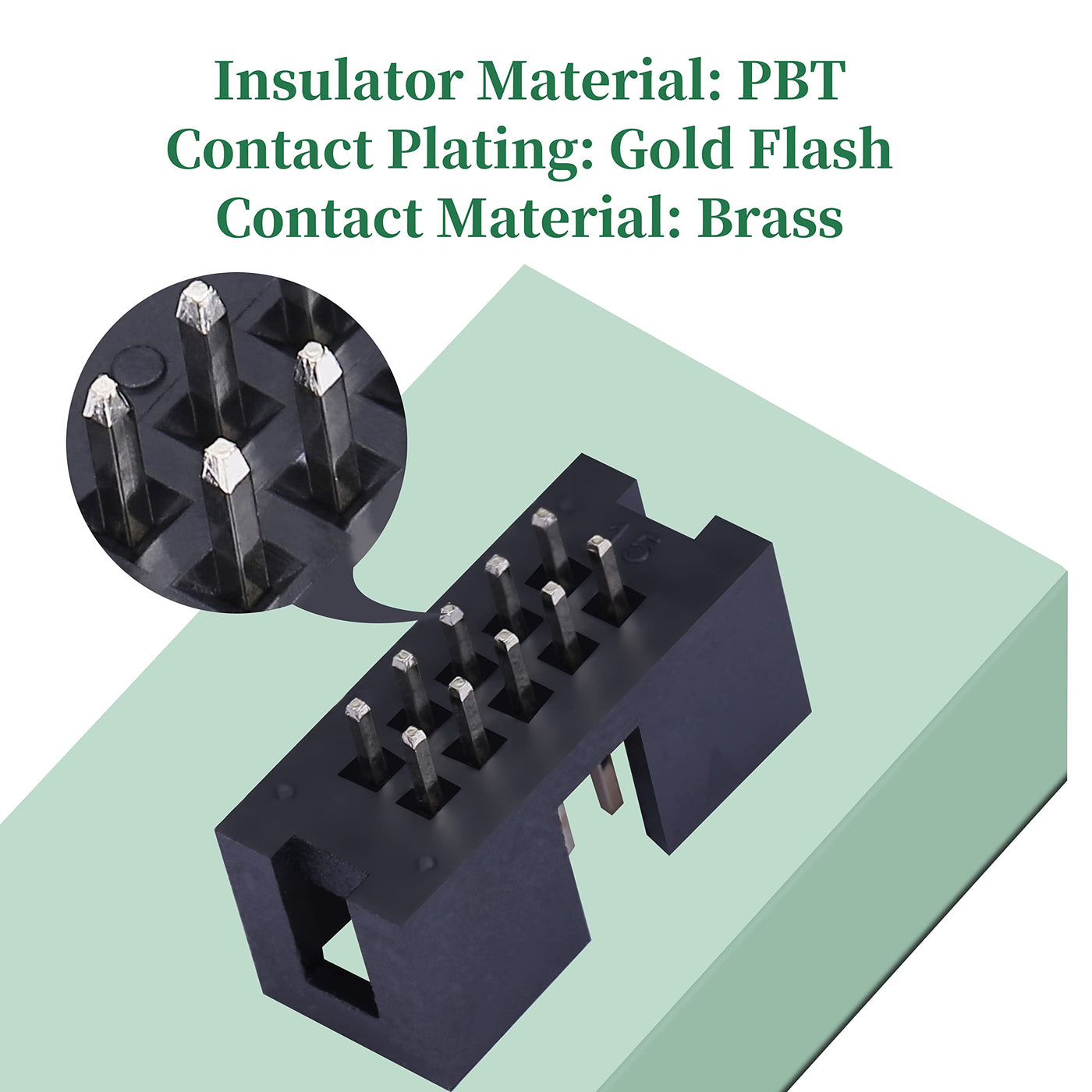

The IDC box head connector socket terminal is a very simple to use internal wiring device. Tough, durable, acid-resistant and corrosion-resistant, all- copper high-quality JTAG connector plugs can transmit control signals and weak currents to the PCB board.The IDC box head connector is essentially a JTAG wiring socket, and its function is the same as that of the female sockets SH, MX, PH, etc., and it is also a connection to the relevant connecting lines. Widely used in CNC machine tools, mining equipment, instrumentation, security, intelligent access control, communications, automotive industry, artificial intelligence and other fields.SPECIFICATIONModel: IDC 2 5 Pin Male Socket Terminal Pitch: 2.54 mm / 0.1 inch Body Orientation: Straight Row Type: Double Row Connector Type: IDC Insulator Material: PBT Contact Plating: Gold Flash Contact Material: Brass Current Rating: 3 Ampere Withstand Voltage: AC 500V Insulator Resistance: 5000 Megohm Minimum Operating Temperature: -40 Degrees Celsius to +105 Degrees Celsius Applicable Wire Gauge: UL265128 Properties: Fire / Flame RetardantOperation Tips Temperature control: The welding temperature should be lower than 220 degrees Celsius, and the single welding time should not exceed 3 seconds to avoid deformation of the plastic shell due to heat. Operation suggestion: Use heat-insulating tape or heat-sink clips to help reduce heat conduction to the plastic part.PACKING LIST20 Pieces IDC 10-Pin 2.54 mm Box Header Connector Male Socket Terminal 1

Product Features

  • IDC connectors are made of high-quality plastic and metal for durability and corrosion resistance.
  • IDC connectors are ideal connectors for PCB boards and integrated circuits, with right angle mounting and easy operation. (Note: The triangular mark on the product is the mark of the grinding tool and is not intended to mark the position of pin 1.)
  • Usually used to transmit control signals and weak currents, Ideal for your electronic projects.

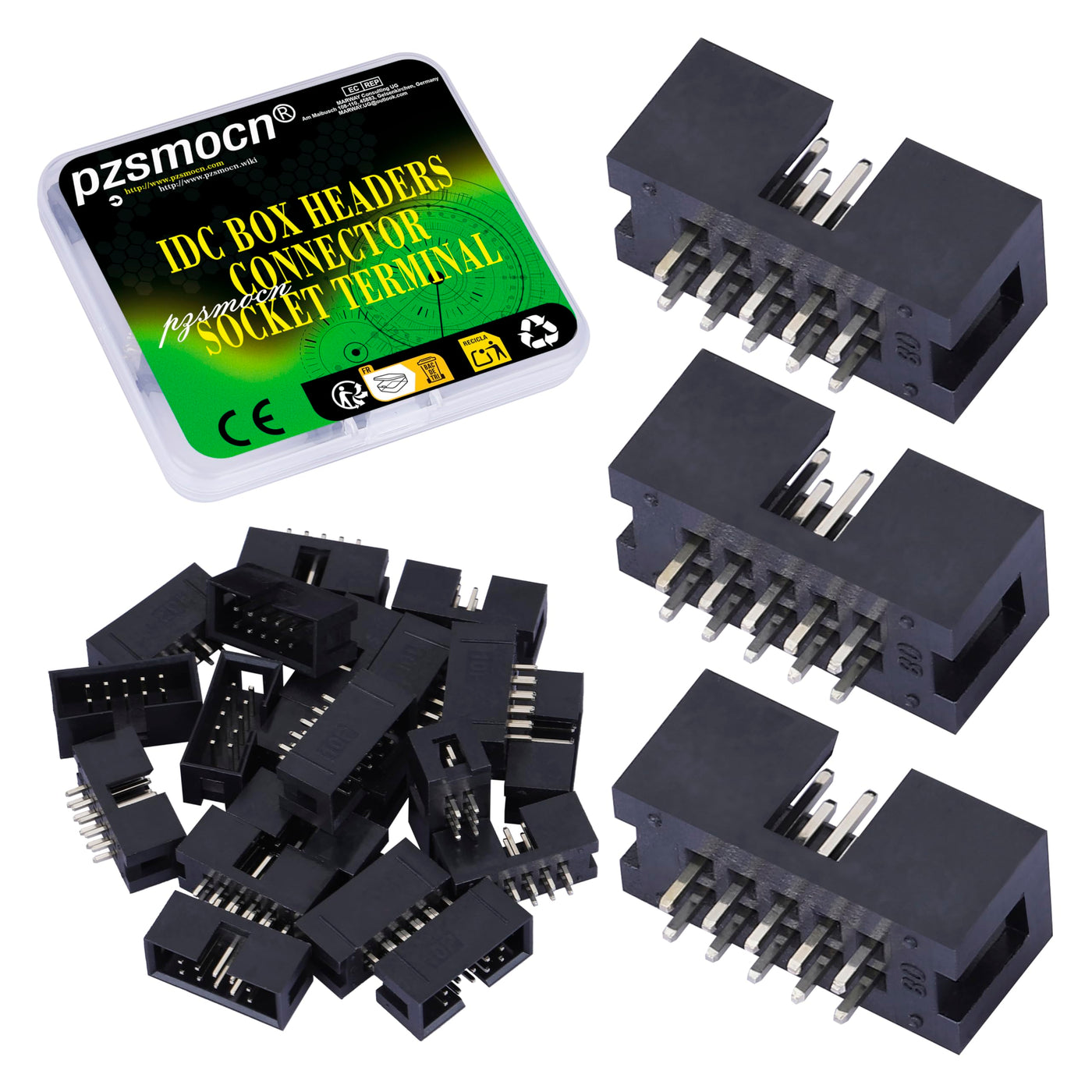

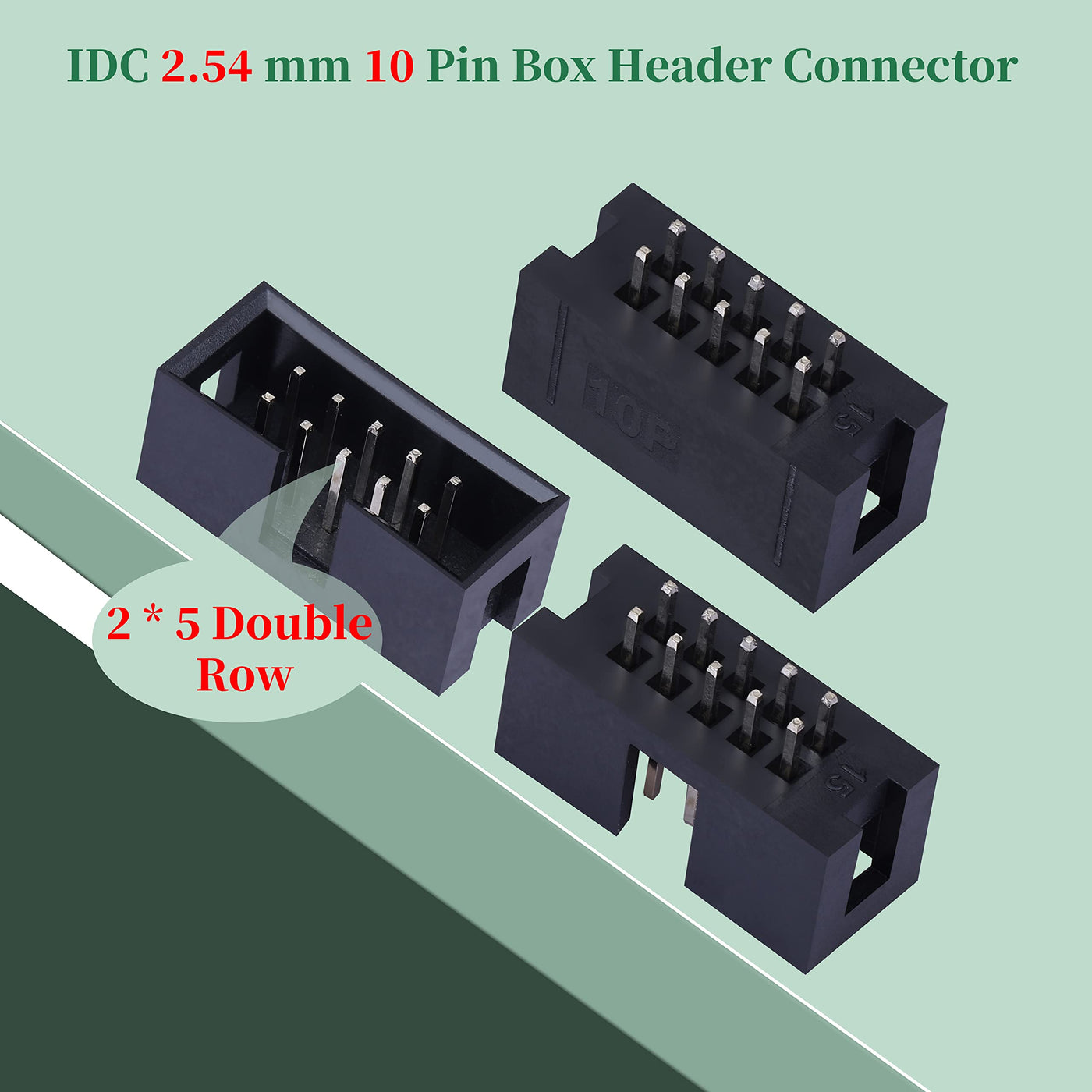

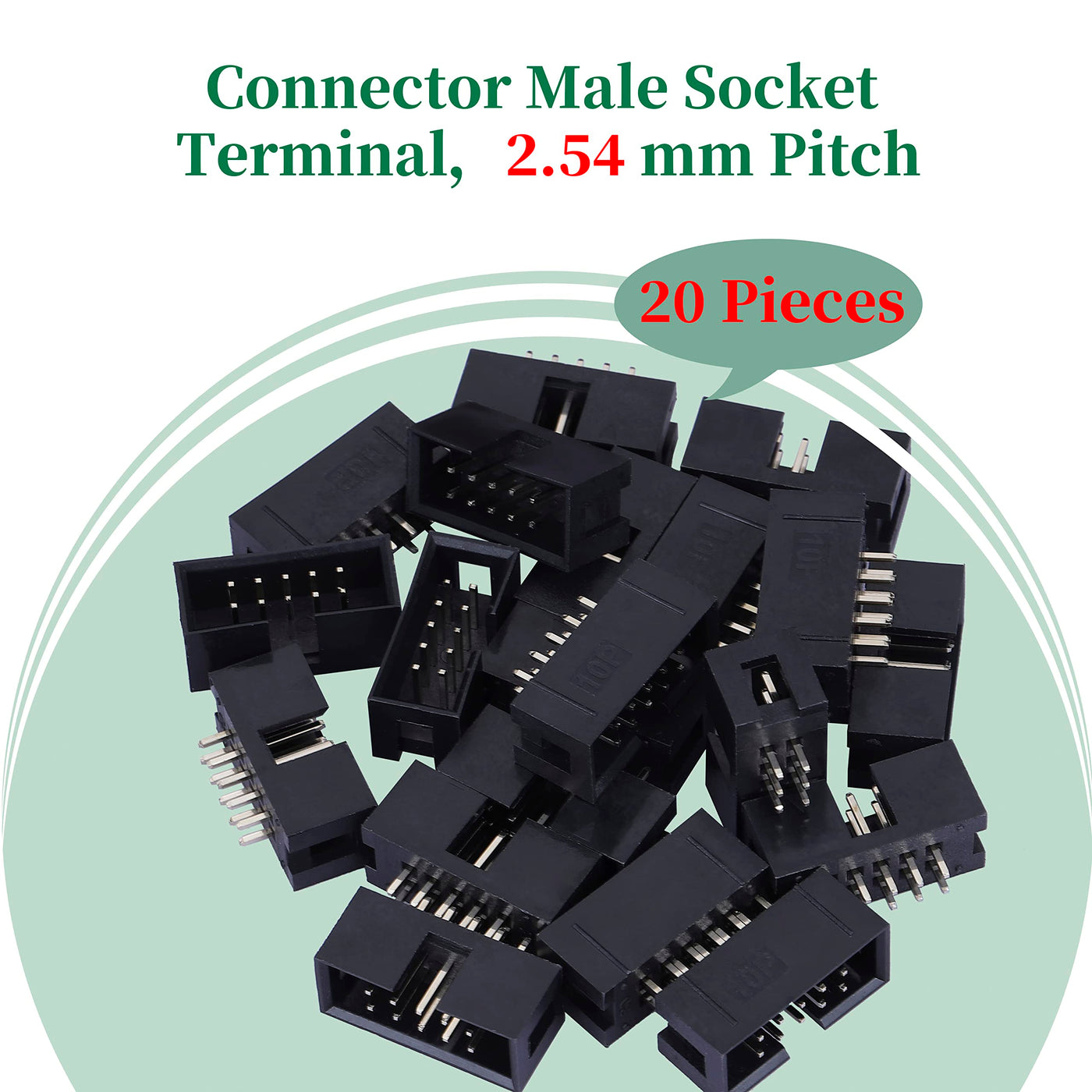

  • 20 Pieces IDC 2*5 Double Row 10-Pin Box Header Connector Male Socket Terminal 2.54 mm Pitch.

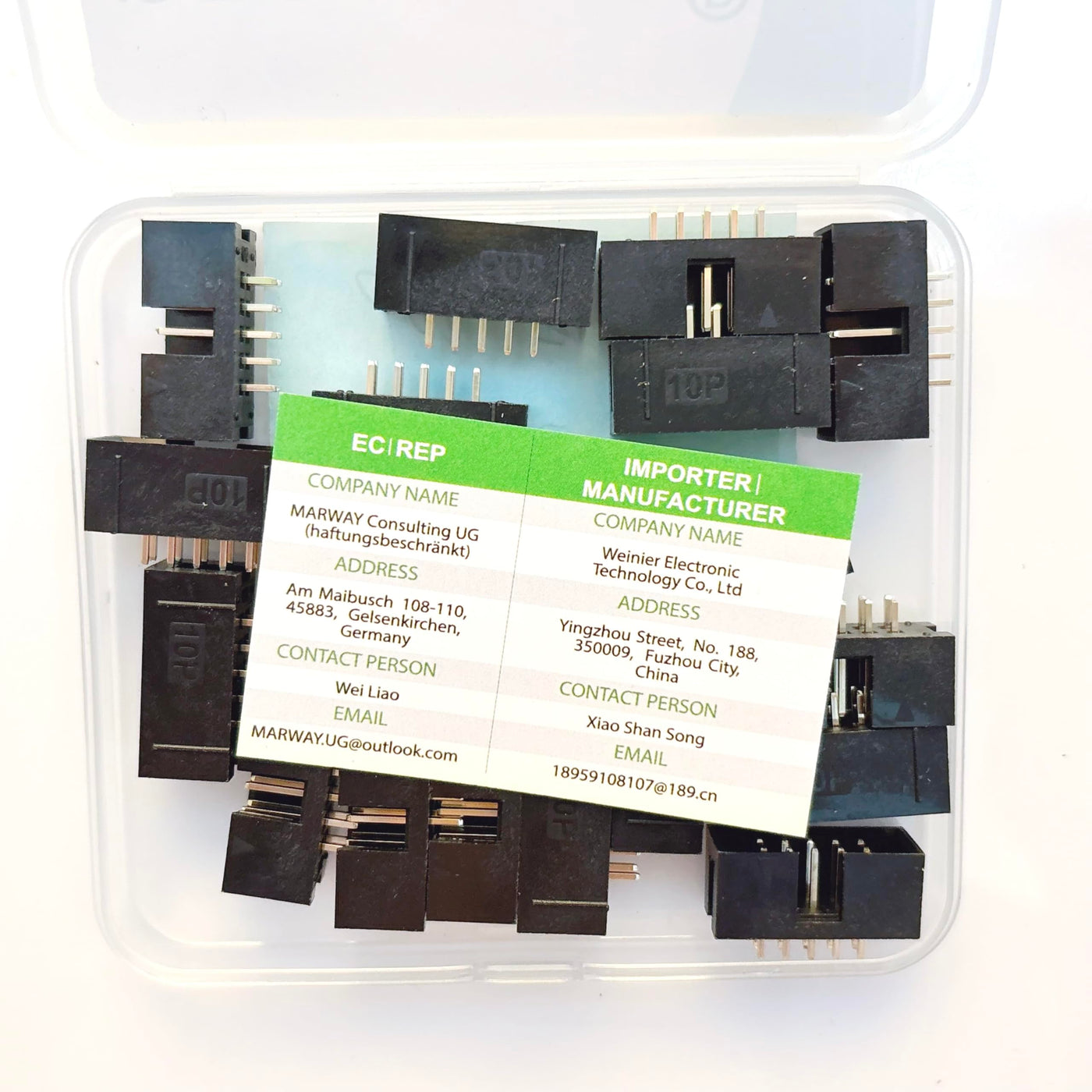

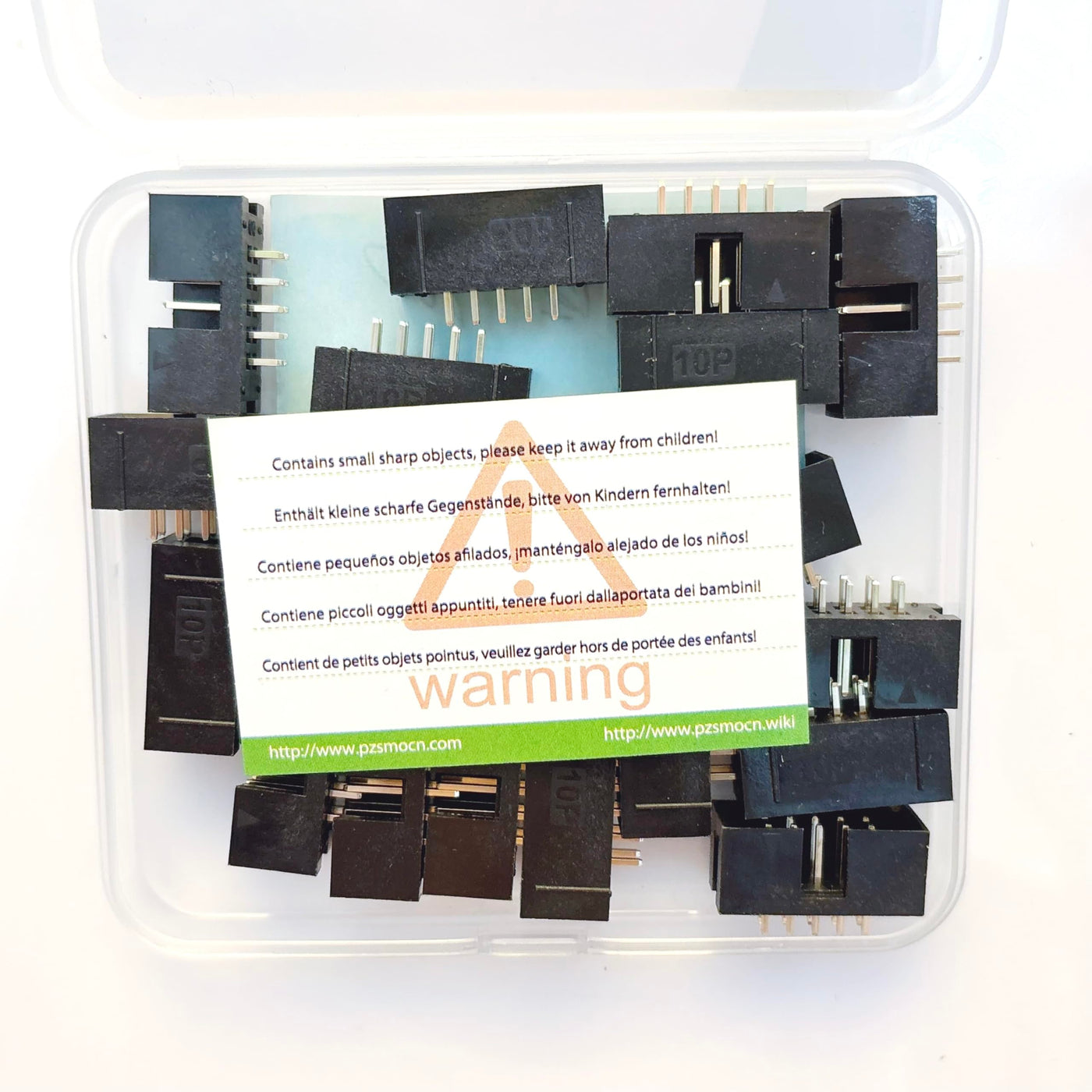

  • The PP material storage box packaging can not only help you quickly organize these connectors, but also carry these small accessories with you.
