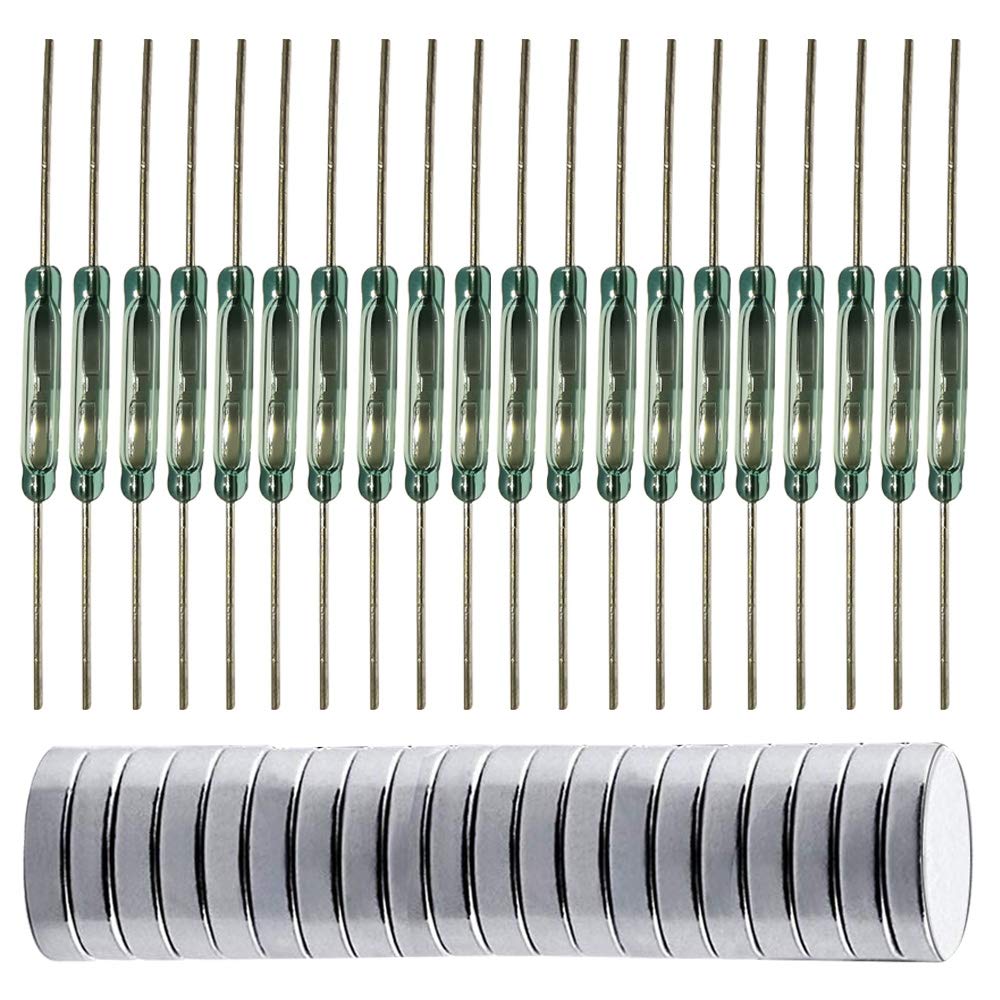

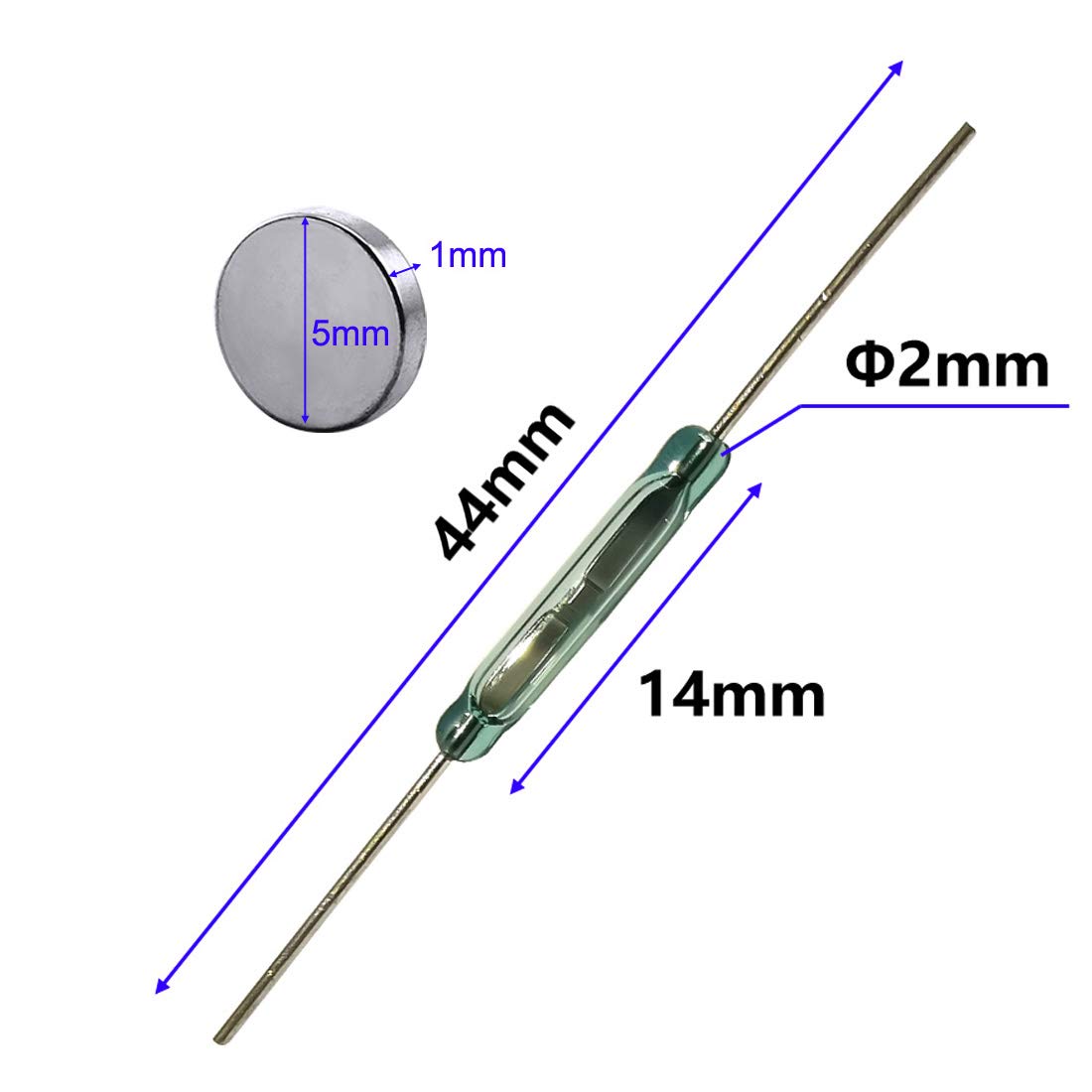

{"id":8528995319961,"title":"20pcs Glass Reed Switch Reed Contact Normally Open (N\/O) Magnetic Induction Switch (2mm×14mm) with 20pcs Multi-Use Magnetic Sheet Transparent-E383","handle":"20pcs-glass-reed-switch-reed-contact-normally-open-n-o-magnetic-induction-switch-2mm-14mm-with-20pcs-multi-use-magnetic-sheet-transparent-e383","description":"\u003ch3\u003e20pcs Glass Reed Switch Reed Contact Normally Open (N\/O) Magnetic Induction Switch (2mm×14mm) with 20pcs Multi-Use Magnetic Sheet\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePackage included: 20×Glass Reed Switch 20×Multi-Use Round Magnets\nSpecifications: Part Length 14mm Part Diameter 2mm Working temperature: -20\ndegrees to 80 degrees Maximum power 10W Maximum switching voltage 100VDC\nMaximum switching current 0.5A Maximum load current 1.0A Maximum contact\nresistance 100M Minimum insulation resistance 1010 Action time 1.0ms Bounce\ntime 0.6ms Release Time 0.4ms Response frequency 4000Hz Maximum operating\nfrequency 500Hz Sensitive Value 10-15AT Minimum reset Min Value 4FT Maximum\ncontact capacitance 0.7PF Electrical life (load) 108 (5VDC, 10mA) 105 (24VDC,\n400mA) Test line circle number\/Resistance 870\/5000Ω\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDry reed tube compact structure, small weight, can be installed in the extremely limited space, very suitable for miniaturization equipment.\u003c\/li\u003e\n \u003cli\u003eSealed in an inert gas atmosphere, never contact with the external environment, long working life.\u003c\/li\u003e\n \u003cli\u003eNot use sliding components, so there will be no metal fatigue related to the degradation of all metals, to ensure virtually unlimited mechanical life.\u003c\/li\u003e\n \u003cli\u003eReed switch can be used as a sensor, the use of magnetic field signals to control the line switching devices.\u003c\/li\u003e\n \u003cli\u003eIt is well applied in mobile phones, program-controlled switches, photocopiers, washing machines, refrigerators, cameras, disinfection cupboards, door magnets, window magnets, electromagnetic relays, electronic scales, level gauges, gas meters.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-23T10:36:05+10:00","created_at":"2025-09-23T10:36:01+10:00","vendor":"Gebildet","type":"Reed Switches","tags":["industryDE_Sep2025"],"price":9600,"price_min":9600,"price_max":9600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45739269587097,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B081JHQ55P","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"20pcs Glass Reed Switch Reed Contact Normally Open (N\/O) Magnetic Induction Switch (2mm×14mm) with 20pcs Multi-Use Magnetic Sheet Transparent-E383","public_title":null,"options":["Default Title"],"price":9600,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"781621380985","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B081JHQ55P.jpg?v=1775748705","\/\/soundstores.net\/cdn\/shop\/files\/511Yw3vQ1SL.jpg?v=1758587764","\/\/soundstores.net\/cdn\/shop\/files\/51-GNTdtMsL.jpg?v=1758587764","\/\/soundstores.net\/cdn\/shop\/files\/51wVyNBk6AL.jpg?v=1758587764","\/\/soundstores.net\/cdn\/shop\/files\/71jOhDB9LDL.jpg?v=1758587764","\/\/soundstores.net\/cdn\/shop\/files\/71YcNqVcmVL.jpg?v=1758587764"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B081JHQ55P.jpg?v=1775748705","options":["Title"],"media":[{"alt":null,"id":34597109039257,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B081JHQ55P.jpg?v=1775748705"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B081JHQ55P.jpg?v=1775748705","width":1000},{"alt":null,"id":34597109072025,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/511Yw3vQ1SL.jpg?v=1758587764"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/511Yw3vQ1SL.jpg?v=1758587764","width":1100},{"alt":null,"id":34597109104793,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51-GNTdtMsL.jpg?v=1758587764"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51-GNTdtMsL.jpg?v=1758587764","width":1000},{"alt":null,"id":34597109137561,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51wVyNBk6AL.jpg?v=1758587764"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51wVyNBk6AL.jpg?v=1758587764","width":1000},{"alt":null,"id":34597109170329,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71jOhDB9LDL.jpg?v=1758587764"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71jOhDB9LDL.jpg?v=1758587764","width":1000},{"alt":null,"id":34597109203097,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71YcNqVcmVL.jpg?v=1758587764"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71YcNqVcmVL.jpg?v=1758587764","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e20pcs Glass Reed Switch Reed Contact Normally Open (N\/O) Magnetic Induction Switch (2mm×14mm) with 20pcs Multi-Use Magnetic Sheet\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePackage included: 20×Glass Reed Switch 20×Multi-Use Round Magnets\nSpecifications: Part Length 14mm Part Diameter 2mm Working temperature: -20\ndegrees to 80 degrees Maximum power 10W Maximum switching voltage 100VDC\nMaximum switching current 0.5A Maximum load current 1.0A Maximum contact\nresistance 100M Minimum insulation resistance 1010 Action time 1.0ms Bounce\ntime 0.6ms Release Time 0.4ms Response frequency 4000Hz Maximum operating\nfrequency 500Hz Sensitive Value 10-15AT Minimum reset Min Value 4FT Maximum\ncontact capacitance 0.7PF Electrical life (load) 108 (5VDC, 10mA) 105 (24VDC,\n400mA) Test line circle number\/Resistance 870\/5000Ω\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDry reed tube compact structure, small weight, can be installed in the extremely limited space, very suitable for miniaturization equipment.\u003c\/li\u003e\n \u003cli\u003eSealed in an inert gas atmosphere, never contact with the external environment, long working life.\u003c\/li\u003e\n \u003cli\u003eNot use sliding components, so there will be no metal fatigue related to the degradation of all metals, to ensure virtually unlimited mechanical life.\u003c\/li\u003e\n \u003cli\u003eReed switch can be used as a sensor, the use of magnetic field signals to control the line switching devices.\u003c\/li\u003e\n \u003cli\u003eIt is well applied in mobile phones, program-controlled switches, photocopiers, washing machines, refrigerators, cameras, disinfection cupboards, door magnets, window magnets, electromagnetic relays, electronic scales, level gauges, gas meters.\u003c\/li\u003e\n \u003c\/ul\u003e"}
