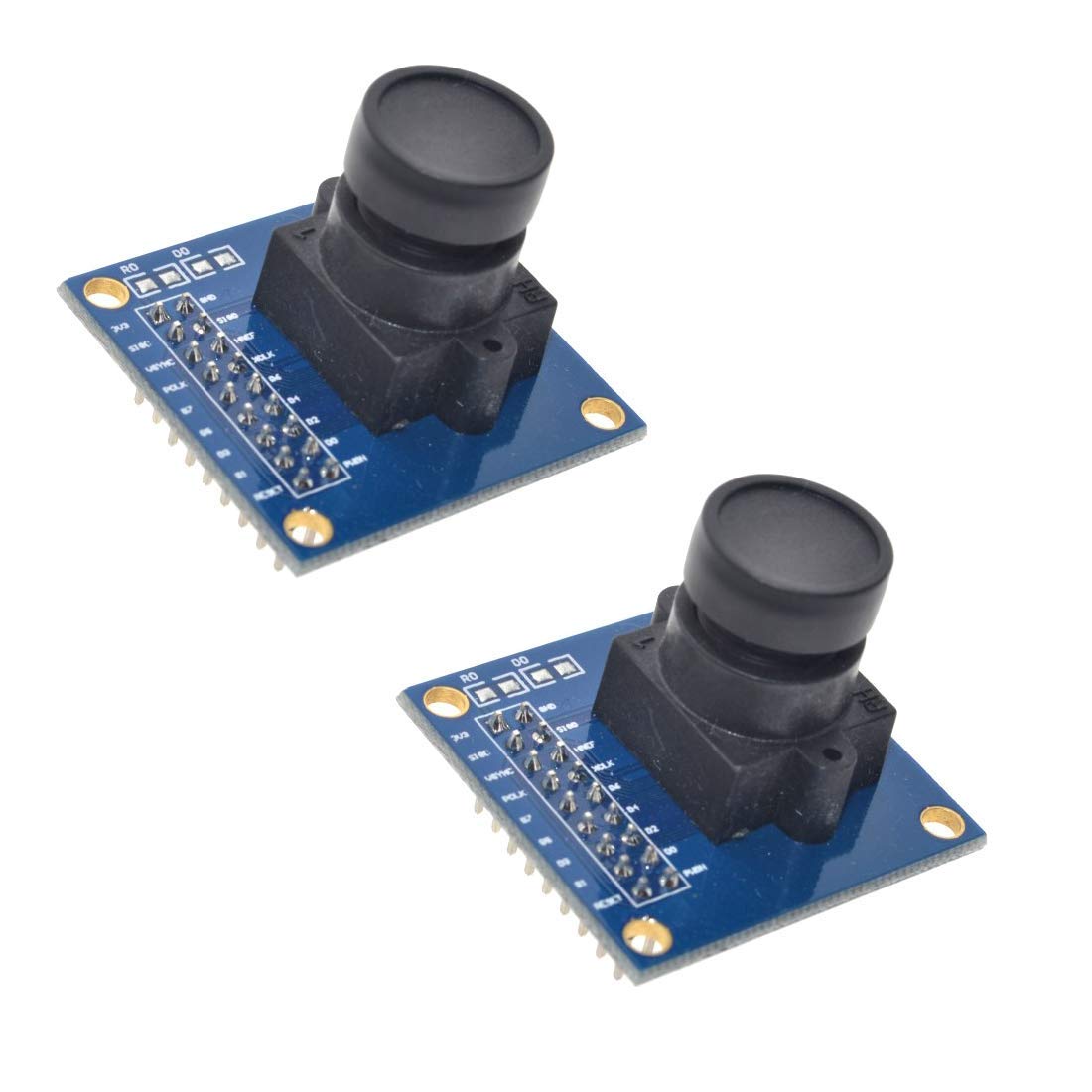

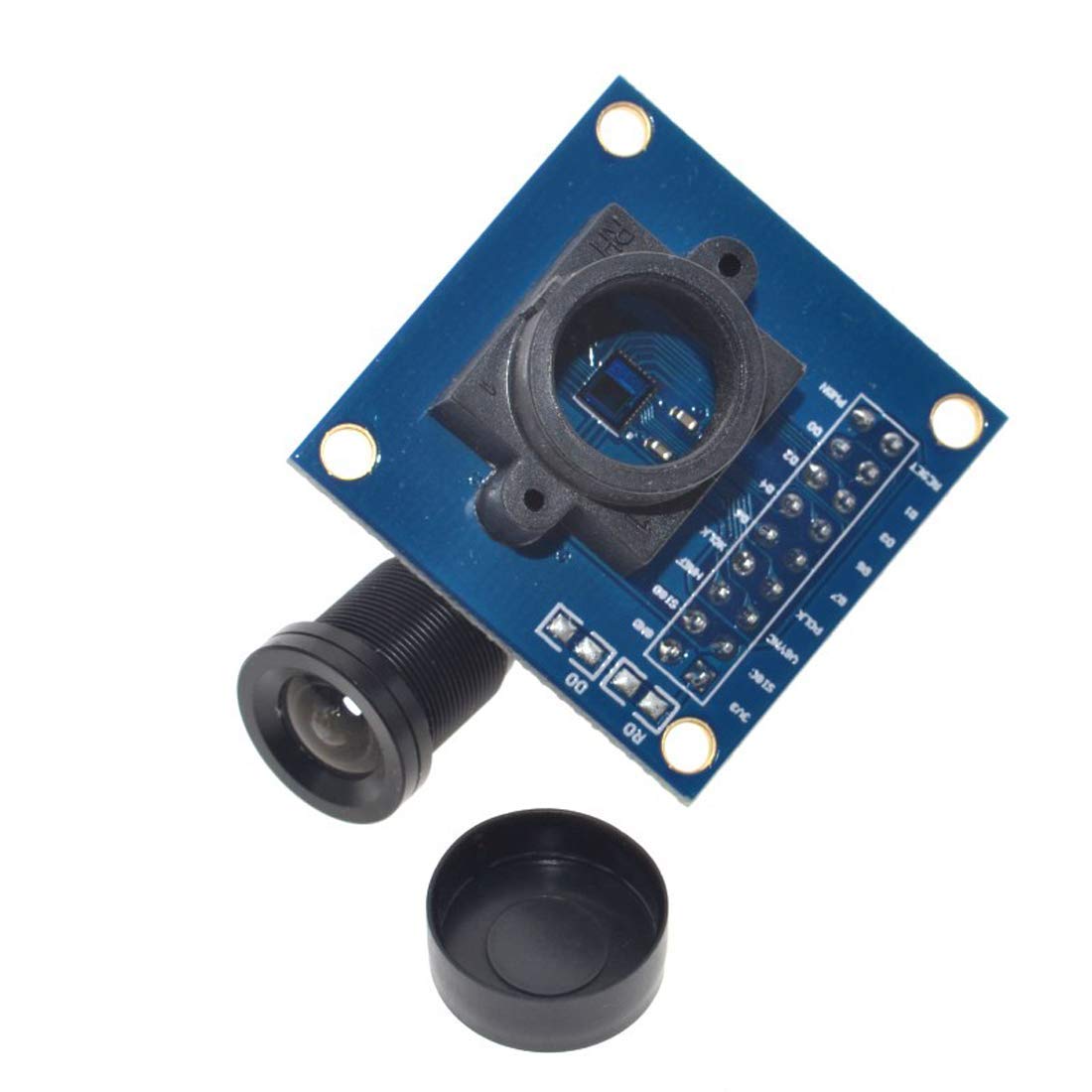

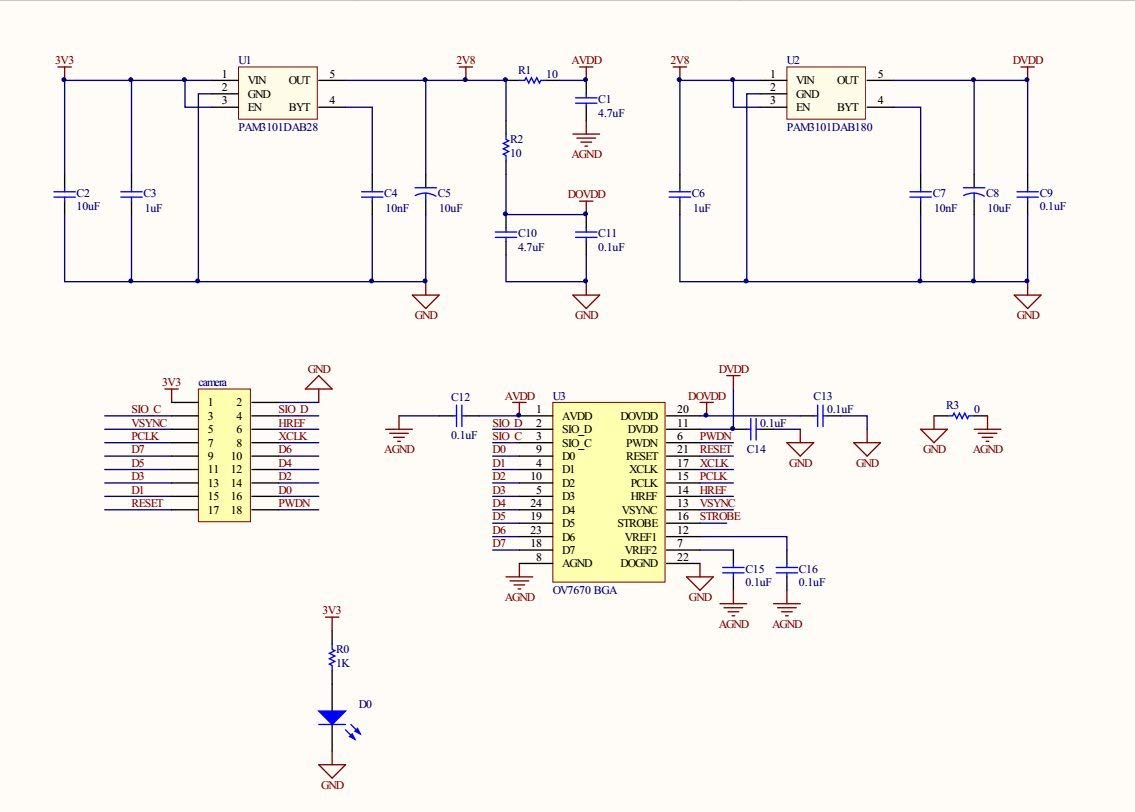

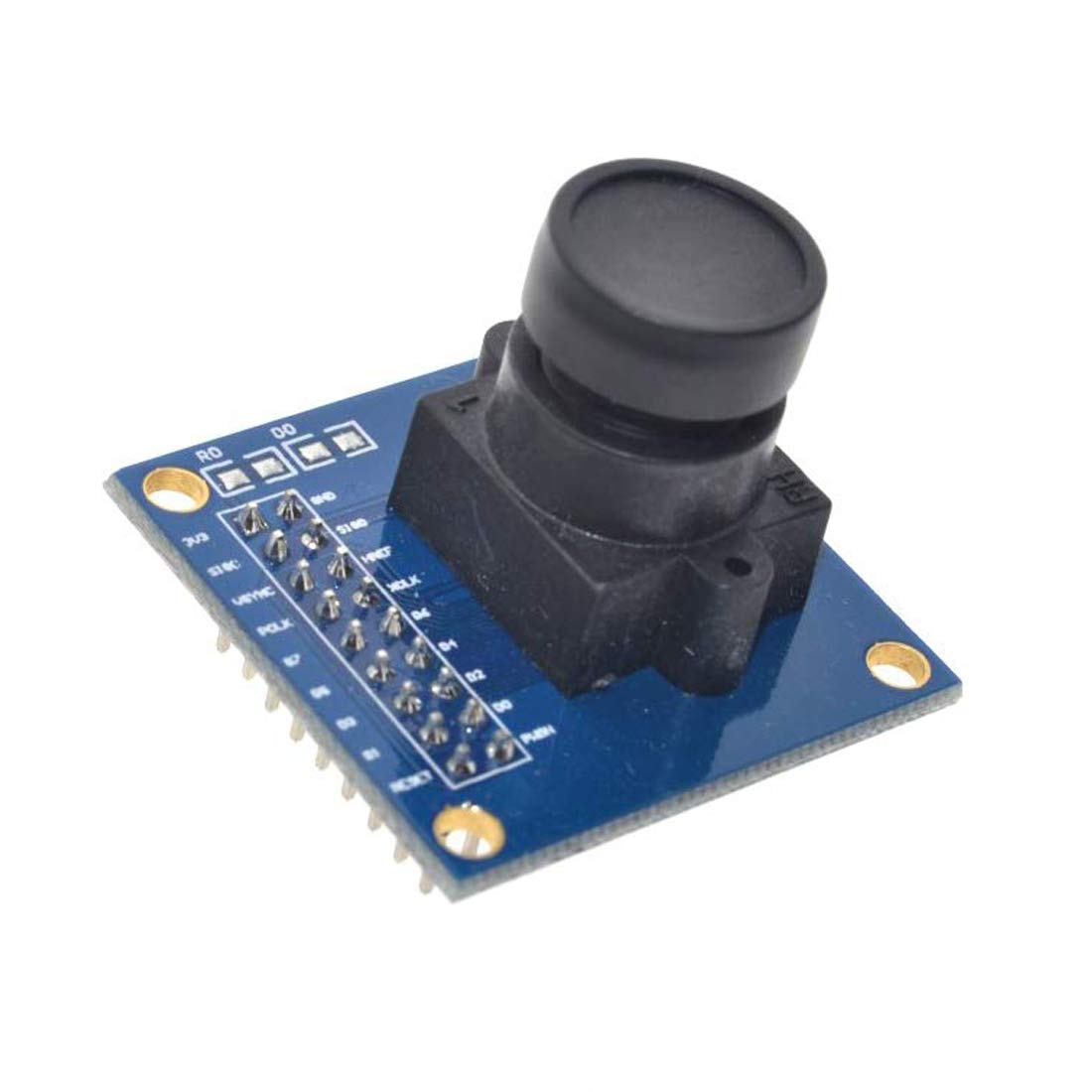

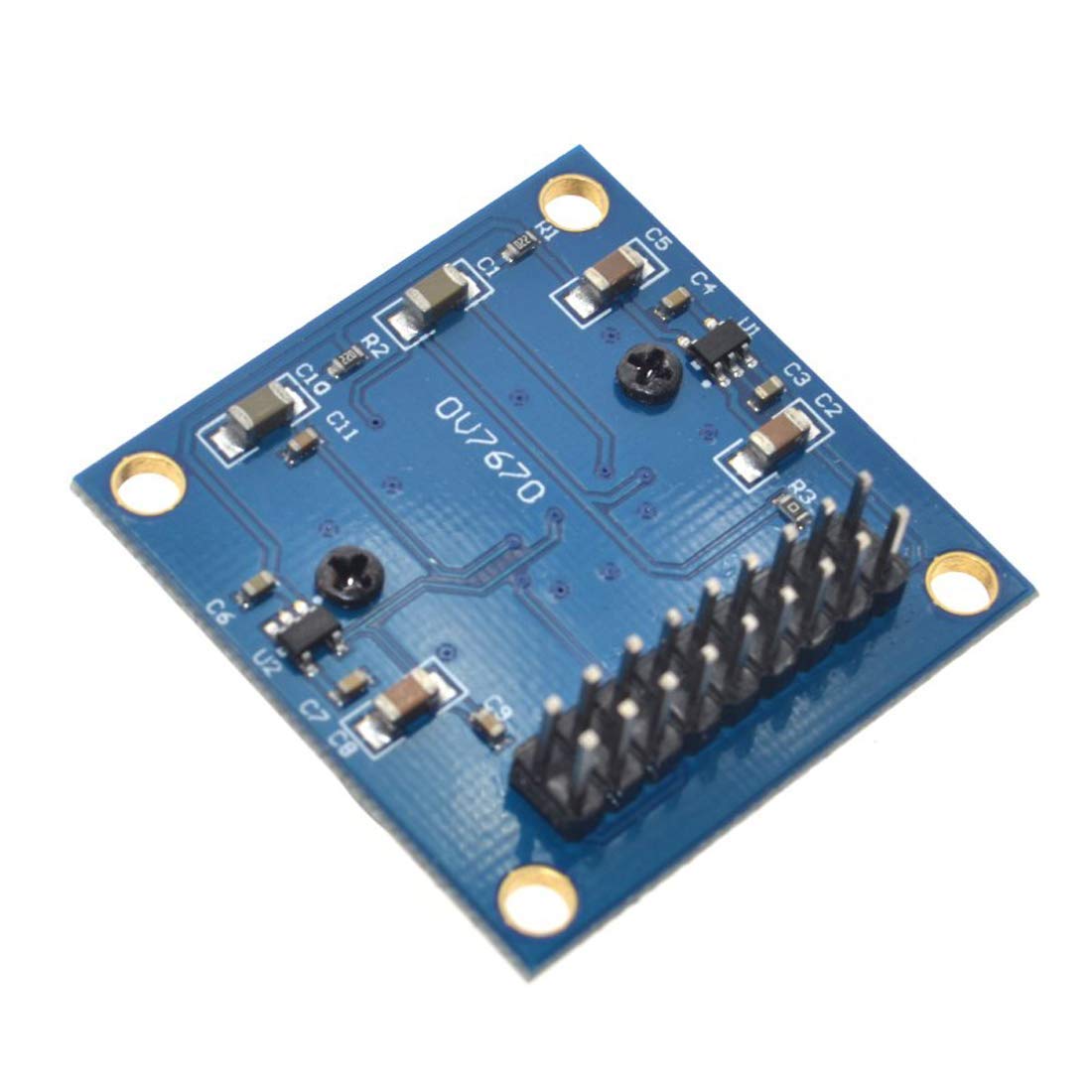

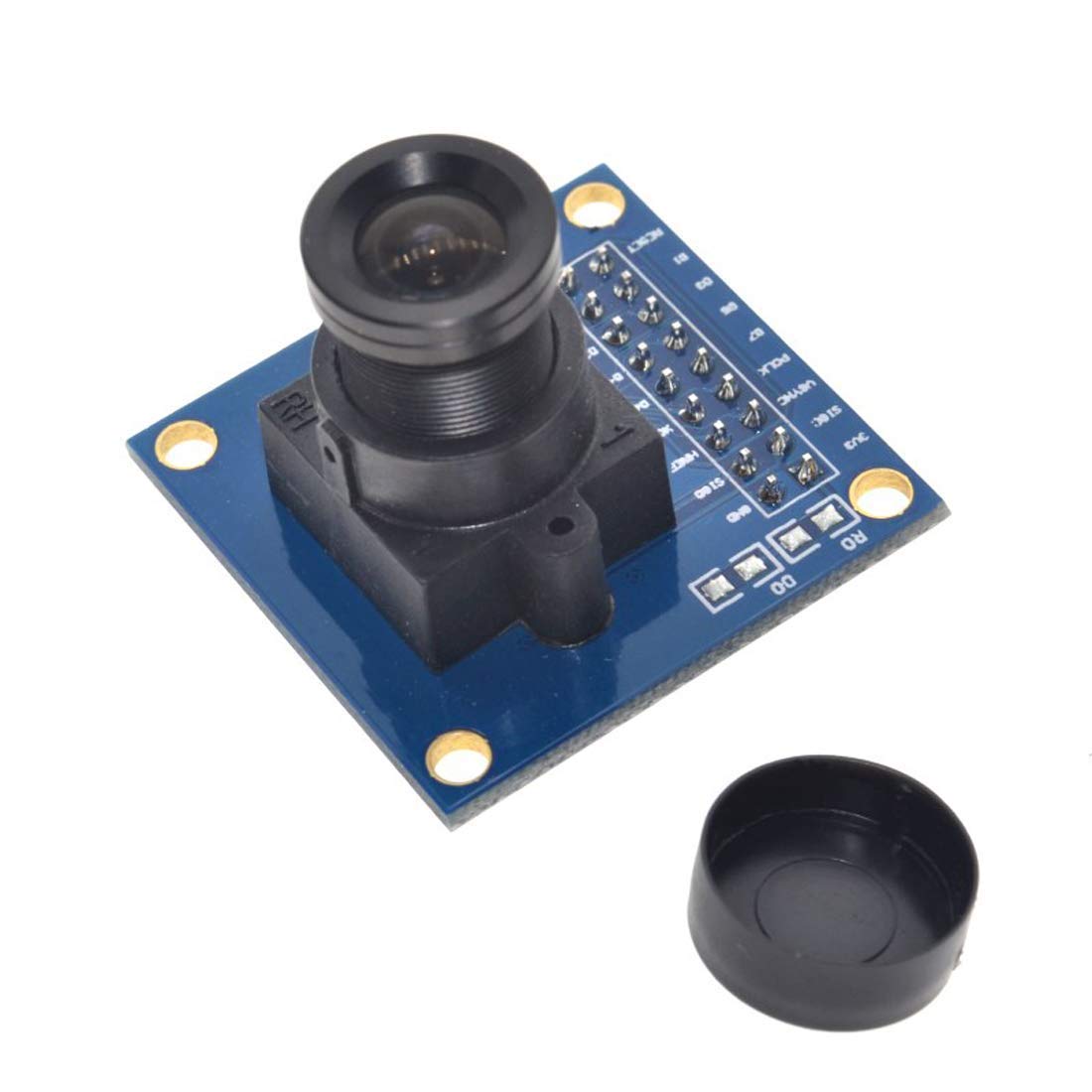

{"id":8532548255897,"title":"2pcs OV7670 640 x 480 0.3 Mega 300 KP VGA CMOS Camera Module I2C for Arduino ARM FPGA","handle":"2pcs-ov7670-640-x-480-0-3-mega-300-kp-vga-cmos-camera-module-i2c-for-arduino-arm-fpga","description":"\u003ch3\u003e2pcs OV7670 640 x 480 0.3 Mega 300 KP VGA CMOS Camera Module I2C for Arduino ARM FPGA\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePin definition: 3V3-----Input voltage (3.3.5V is recommended but not\nrecommended). GDN-----Earth Point SIO_C--control clock of SCCB interface\n(Note: some low level microcontrollers require pull up control, similar to the\nI2C interface) SIO_D--- Serial data input side (out) of SCCB interface (Note:\nsome low level microcontrollers need pull up control, similar to I2C\ninterface) VSYNC---Frame synchronization signal (output signal) HREF----Line\nsynchronization signal (output signal) PCLK----Pixel clock (output signal).\nD0-D7---Data port (output signal) Reset connection (normal use, pull-up). PWDN\n----Power consumption selection mode (normal use low) For OV7670 with FIFO,\nplease contact us Key parameters: (1) Photoreceptor Array 640X480; (2) IO\nvoltage 2.5V to 3.0V (internal LDO power supply for the core 1.8V); (3) Power\noperation 60mW\/15fpsVGAYUV; (4) Sleep \u0026lt;20 ° A; (5) Operating temperature - 30\n°C to 70 °C. (6) Stable operation 0 to 50; (7) Output format (8-bit)?\nYUV\/YCbCr4:2:2 RGB565\/555\/444 GRB4:2:2 Raw RGB Data Light (8) Size 1\/6\" (9)\nField of view 25? (10) Maximum RMS rate 30fps VGA sensitivity 1.3V\/(Lux-sec);\n(11) Signal to noise ratio 46dB; Dynamic range: 52 dB. (13) Browsing mode line\nby line; (14) Electron exposure 1 line to 510 lines; (15) Pixel area 3.6 μm x\n3.6 μm; (16) Dark current 12mV\/s at 60°; Box contents: 2 x OV7670 640 x 480\n0.3 Mega 300KP VGA CMOS Camera Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eOV7670 640x480 0.3 Mega 300KP VGA CMOS Camera Module\u003c\/li\u003e\n \u003cli\u003eResolution: 640 x 480 VGA; Power Operation: 60mW \/ 15fps VGAYUV\u003c\/li\u003e\n \u003cli\u003eIO voltage 2.5 V to 3.0 V (internal LDO power supply to core 1.8 V)\u003c\/li\u003e\n \u003cli\u003eRawRGB, RGB (GRB4:2:2, RGB565\/555\/444), YUV (4:2:2) and YCbCr (4:2:2) output formats\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-26T01:31:04+10:00","created_at":"2025-09-26T01:31:00+10:00","vendor":"Hailege","type":"Programmable Logic Circuits","tags":["industryDE_Sep2025"],"price":11900,"price_min":11900,"price_max":11900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45747016433817,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B08D7DFK18","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2pcs OV7670 640 x 480 0.3 Mega 300 KP VGA CMOS Camera Module I2C for Arduino ARM FPGA","public_title":null,"options":["Default Title"],"price":11900,"weight":40,"compare_at_price":null,"inventory_management":"shopify","barcode":"618528941707","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B08D7DFK18.jpg?v=1775751924","\/\/soundstores.net\/cdn\/shop\/files\/51bE6de7maL.jpg?v=1758814263","\/\/soundstores.net\/cdn\/shop\/files\/516h9QvihBL.jpg?v=1758814263","\/\/soundstores.net\/cdn\/shop\/files\/51lFJjrpxEL.jpg?v=1758814263","\/\/soundstores.net\/cdn\/shop\/files\/61oztDGE0lL.jpg?v=1758814263","\/\/soundstores.net\/cdn\/shop\/files\/612F_1KZGvL.jpg?v=1758814263","\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_b60e1fa7-a590-4dfd-8885-c4f7e1d1b14c.jpg?v=1758814263"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B08D7DFK18.jpg?v=1775751924","options":["Title"],"media":[{"alt":null,"id":34643042599065,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B08D7DFK18.jpg?v=1775751924"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B08D7DFK18.jpg?v=1775751924","width":1100},{"alt":null,"id":34643042631833,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51bE6de7maL.jpg?v=1758814263"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51bE6de7maL.jpg?v=1758814263","width":1100},{"alt":null,"id":34643042664601,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/516h9QvihBL.jpg?v=1758814263"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/516h9QvihBL.jpg?v=1758814263","width":1100},{"alt":null,"id":34643042697369,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51lFJjrpxEL.jpg?v=1758814263"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51lFJjrpxEL.jpg?v=1758814263","width":1100},{"alt":null,"id":34643042730137,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61oztDGE0lL.jpg?v=1758814263"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61oztDGE0lL.jpg?v=1758814263","width":1100},{"alt":null,"id":34643042762905,"position":6,"preview_image":{"aspect_ratio":1.398,"height":812,"width":1135,"src":"\/\/soundstores.net\/cdn\/shop\/files\/612F_1KZGvL.jpg?v=1758814263"},"aspect_ratio":1.398,"height":812,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/612F_1KZGvL.jpg?v=1758814263","width":1135},{"alt":null,"id":34643042795673,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_b60e1fa7-a590-4dfd-8885-c4f7e1d1b14c.jpg?v=1758814263"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_b60e1fa7-a590-4dfd-8885-c4f7e1d1b14c.jpg?v=1758814263","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2pcs OV7670 640 x 480 0.3 Mega 300 KP VGA CMOS Camera Module I2C for Arduino ARM FPGA\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePin definition: 3V3-----Input voltage (3.3.5V is recommended but not\nrecommended). GDN-----Earth Point SIO_C--control clock of SCCB interface\n(Note: some low level microcontrollers require pull up control, similar to the\nI2C interface) SIO_D--- Serial data input side (out) of SCCB interface (Note:\nsome low level microcontrollers need pull up control, similar to I2C\ninterface) VSYNC---Frame synchronization signal (output signal) HREF----Line\nsynchronization signal (output signal) PCLK----Pixel clock (output signal).\nD0-D7---Data port (output signal) Reset connection (normal use, pull-up). PWDN\n----Power consumption selection mode (normal use low) For OV7670 with FIFO,\nplease contact us Key parameters: (1) Photoreceptor Array 640X480; (2) IO\nvoltage 2.5V to 3.0V (internal LDO power supply for the core 1.8V); (3) Power\noperation 60mW\/15fpsVGAYUV; (4) Sleep \u0026lt;20 ° A; (5) Operating temperature - 30\n°C to 70 °C. (6) Stable operation 0 to 50; (7) Output format (8-bit)?\nYUV\/YCbCr4:2:2 RGB565\/555\/444 GRB4:2:2 Raw RGB Data Light (8) Size 1\/6\" (9)\nField of view 25? (10) Maximum RMS rate 30fps VGA sensitivity 1.3V\/(Lux-sec);\n(11) Signal to noise ratio 46dB; Dynamic range: 52 dB. (13) Browsing mode line\nby line; (14) Electron exposure 1 line to 510 lines; (15) Pixel area 3.6 μm x\n3.6 μm; (16) Dark current 12mV\/s at 60°; Box contents: 2 x OV7670 640 x 480\n0.3 Mega 300KP VGA CMOS Camera Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eOV7670 640x480 0.3 Mega 300KP VGA CMOS Camera Module\u003c\/li\u003e\n \u003cli\u003eResolution: 640 x 480 VGA; Power Operation: 60mW \/ 15fps VGAYUV\u003c\/li\u003e\n \u003cli\u003eIO voltage 2.5 V to 3.0 V (internal LDO power supply to core 1.8 V)\u003c\/li\u003e\n \u003cli\u003eRawRGB, RGB (GRB4:2:2, RGB565\/555\/444), YUV (4:2:2) and YCbCr (4:2:2) output formats\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e"}
