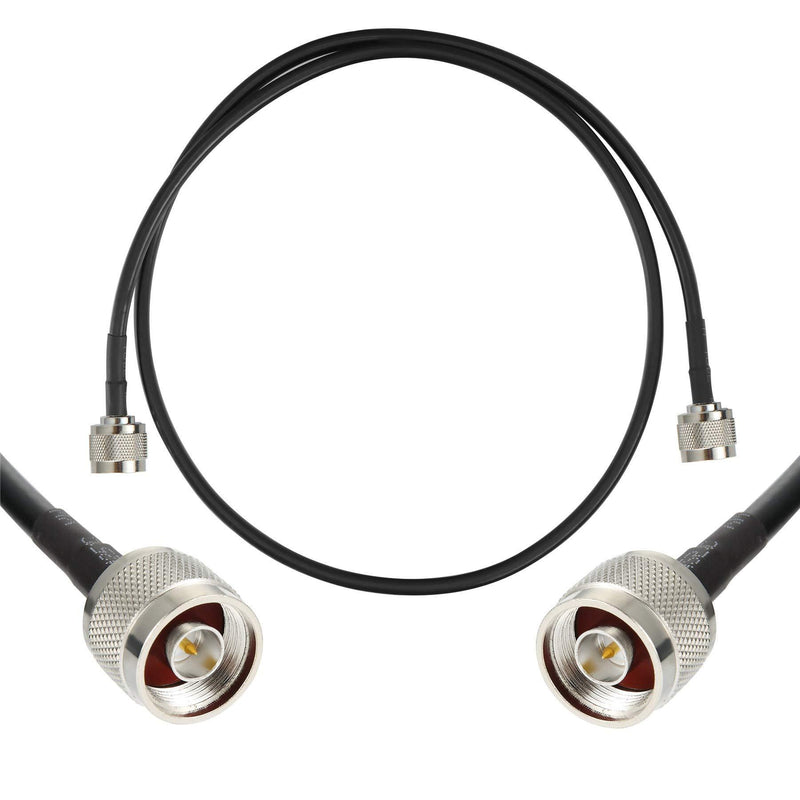

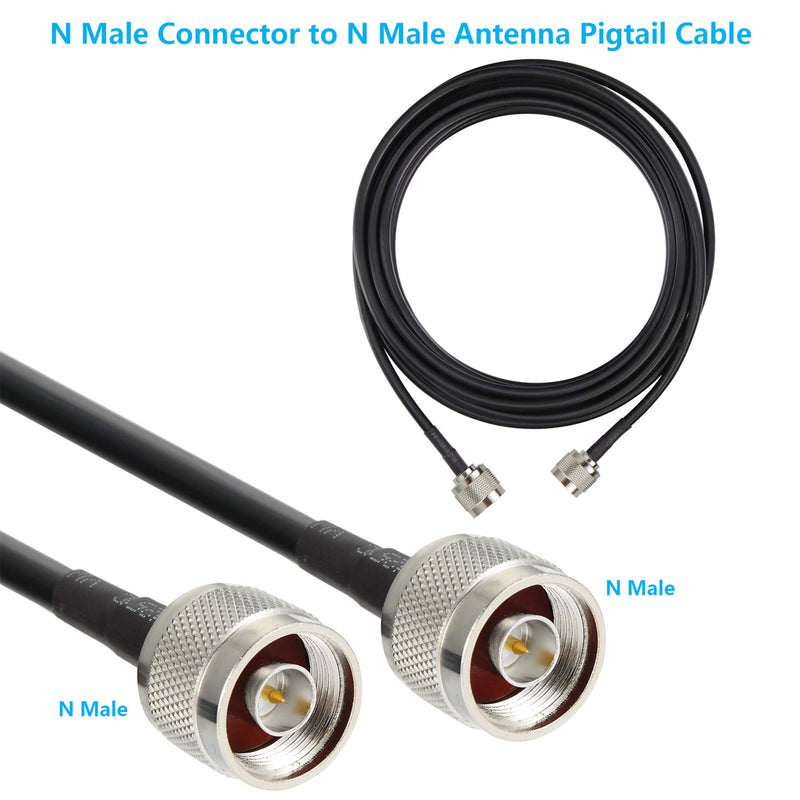

3 ft Low-Loss Coaxial Extension Cable (50 Ohm) N Male to N Male Connector, GEMEK Pure Copper Coax Cables for 3G/4G/5G/LTE/ADS-B/Ham/GPS/WiFi/RF Radio to Antenna or Surge Arrester Use (Not for TV) 3 ft
3 ft Low-Loss Coaxial Extension Cable (50 Ohm) N Male to N Male Connector, GEMEK Pure Copper Coax Cables for 3G/4G/5G/LTE/ADS-B/Ham/GPS/WiFi/RF Radio to Antenna or Surge Arrester Use (Not for TV)

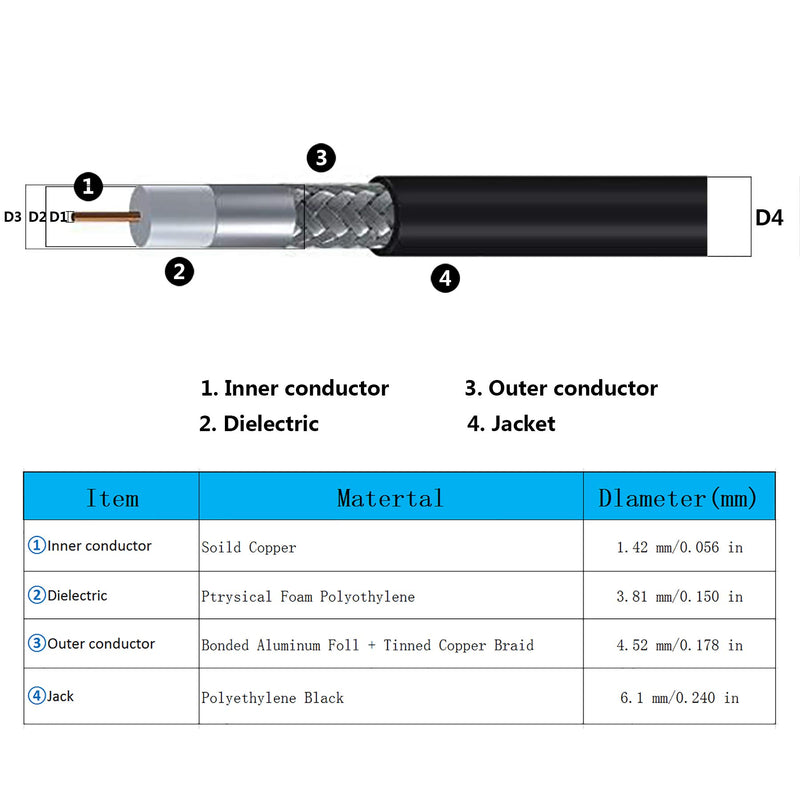

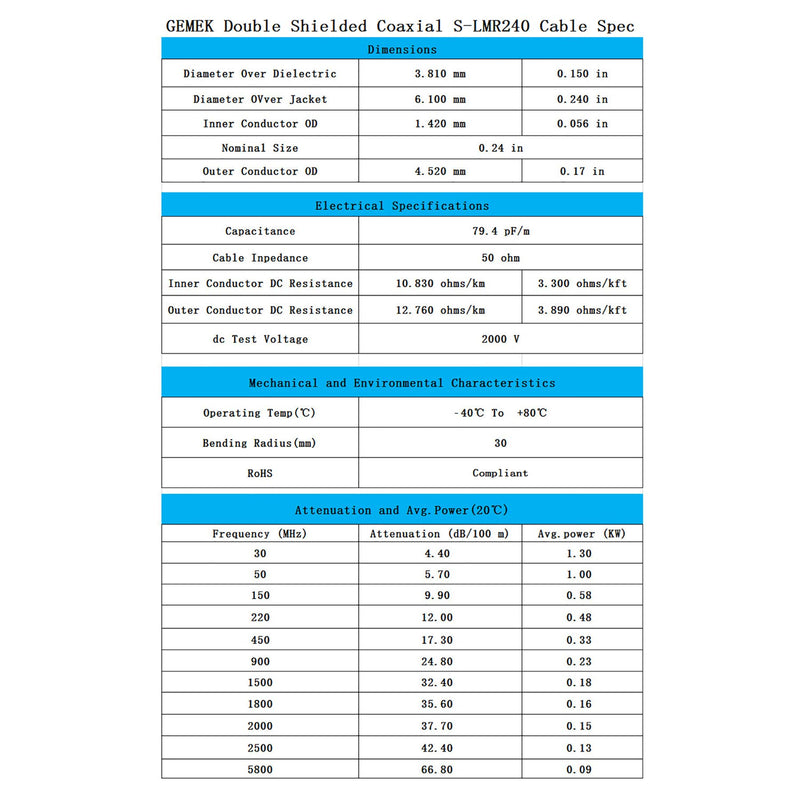

Size:3 ft GEMEK Double shielded coaxial extension cable made of low loss S-LMR240 sized pure copper coax cable. Specifications: - Connector 1: N Male plug w/ Gold-Plated pin (50 ohm) - Connector 2: N Male plug w/ Gold-Plated pin (50 ohm) - Length: 3feet(1 Meters) - Impedance: 50 Ohm - Coax: Double shielded Low-loss S-LMR240 size (0.240 inch diameter) - Operating temperature : -40°C ~ +85°C. - Minimum coiling diameter is only 1.5 inches. - 90 degree bends in one inch or less without loss. S-LMR-240: S-LMR-240 is an excellent cable for runs up to 25-30 feet in WiFi and Cellular use, and provides superior performance for HF/VHF/UHF installation up to 150 feet. The PE jacket used on S-LMR-240 makes it tougher and able to stand abrasion. Thin, flexible, light-weight S-LMR 240-sized coax makes installation easier, especially for tight bends. Application: Use to connect N radio sources such as modem, routers, WiFi Signal Booster Repeater, etc. to the N-Female connector found on many external fixed mount antennas (e.g. fiberglass omni-directional, directional panel, sector), receivers, meters and radio transmitters. GEMEK Coaxial jumper cable to connect between N-Female antennas, amps, routers, radioss, lightning suppressors and WiFi signal booster repeater, etc. Package List: 1 x N Male to N Male Low Loss Coaxial Cable (As the Picture Shown)

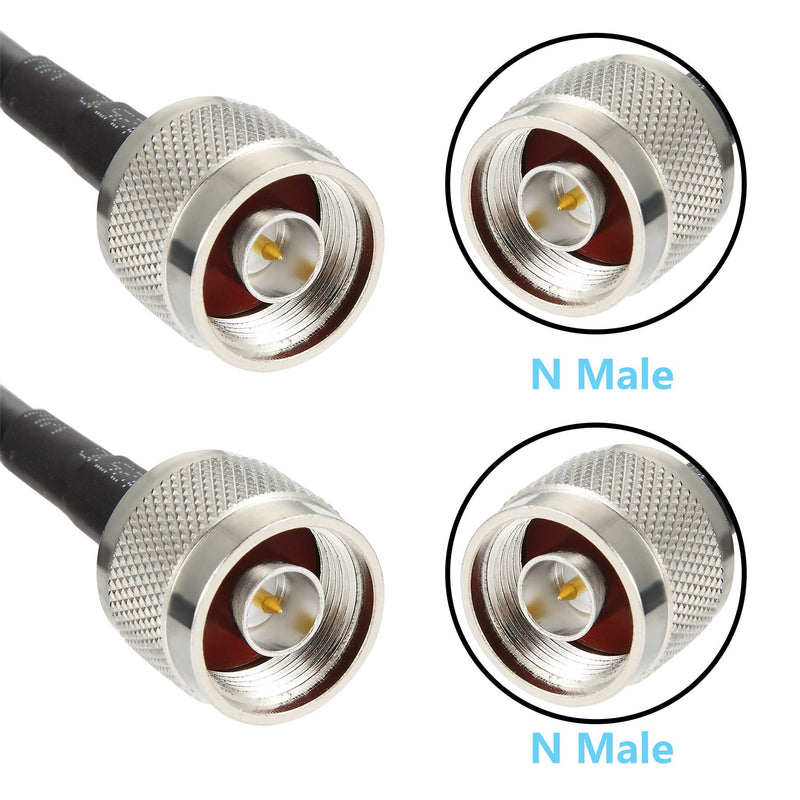

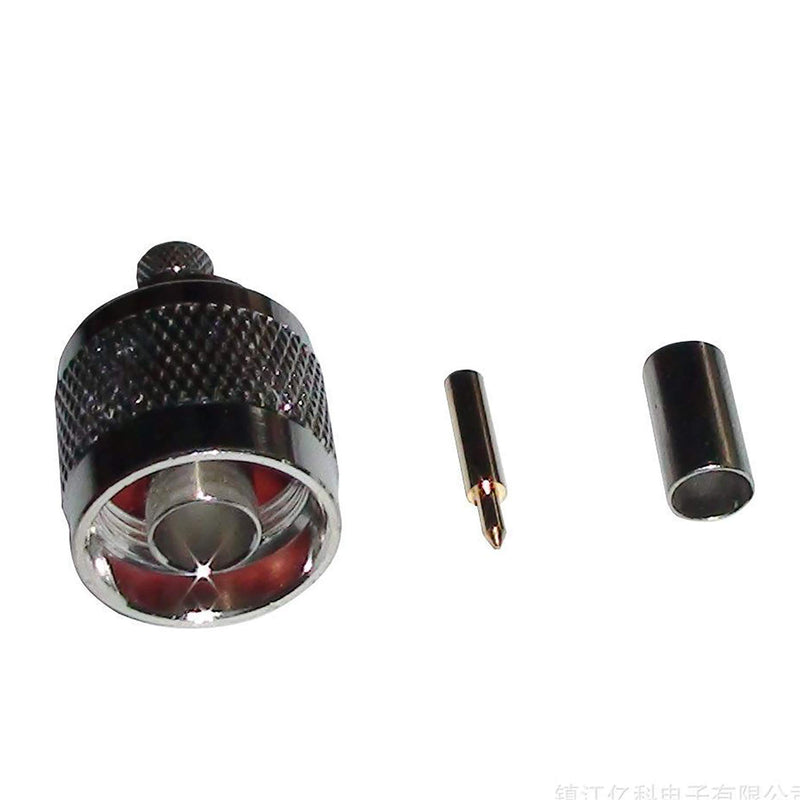

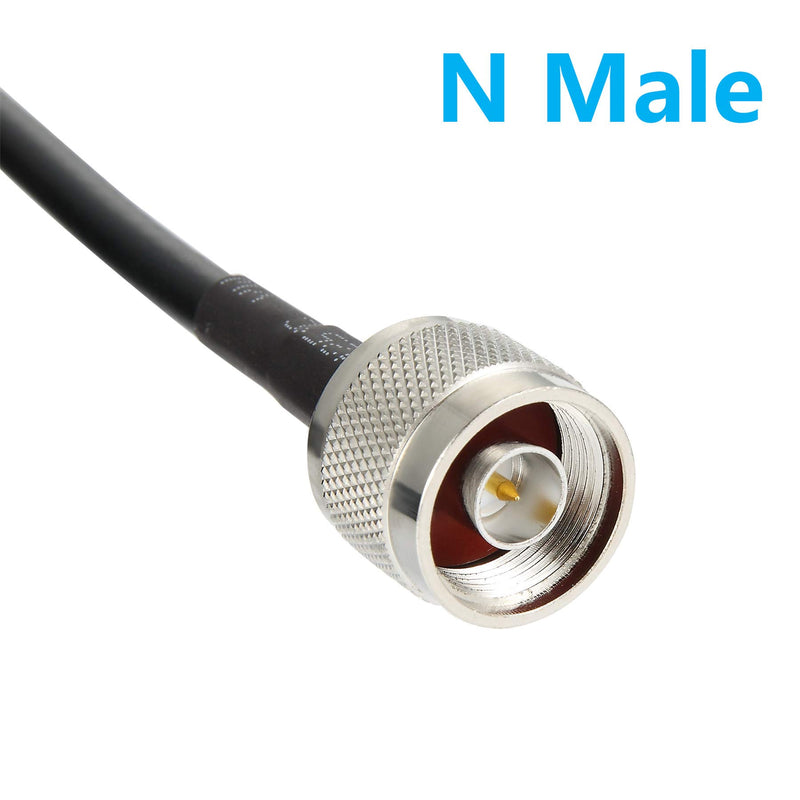

- Connector: All-copper N Male to N Male adapter.
- Connect from N Equipment to N-Style Antennas, receivers, meters, radio transmitters and WiFi Signal Booster Repeater.

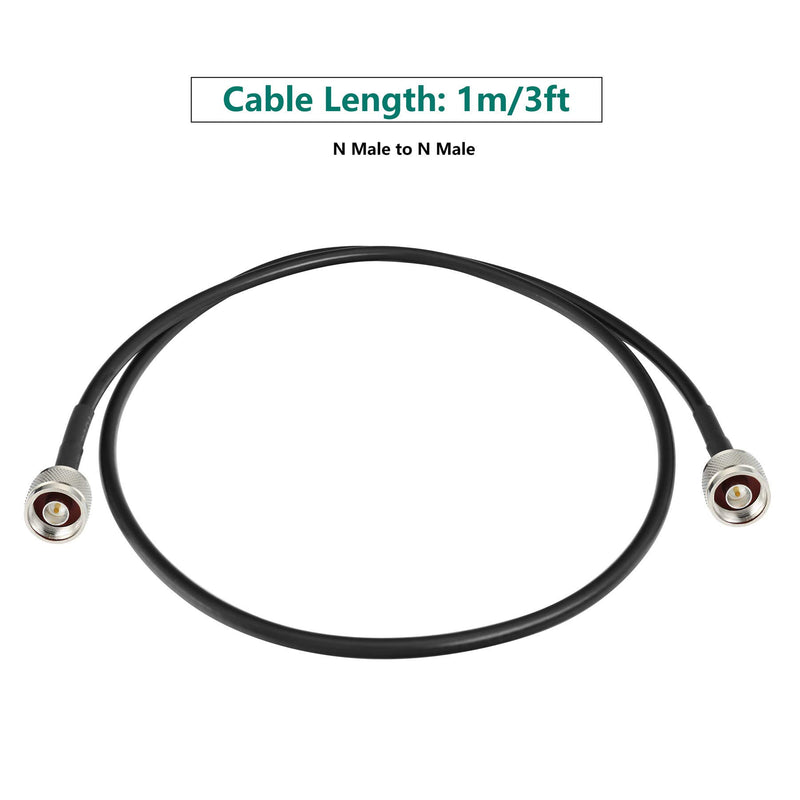

- 3 feet(1 Meters) Low-Loss S-LMR240 size coax, Impedance: 50 ohm. S-LMR240 offers a significantly larger center conductor and supports better signal retention for longer cable runs and higher frequency use.
- Double shielded coax extension cable assemblies are constructed with top quality extremely low-loss S-LMR240 cable and gold plated connectors. High frequency low loss and low impedance, heat shrink on both ends.
- Compatible with all 50 Ohm N connector equipment,Including modems and routers & WiFi Signal Booster Repeater from Cisco, Digi, Cradlepoint, Proxicast, Pepwave, Sierra Wireless, Sixnet/Red Lion and many others.
