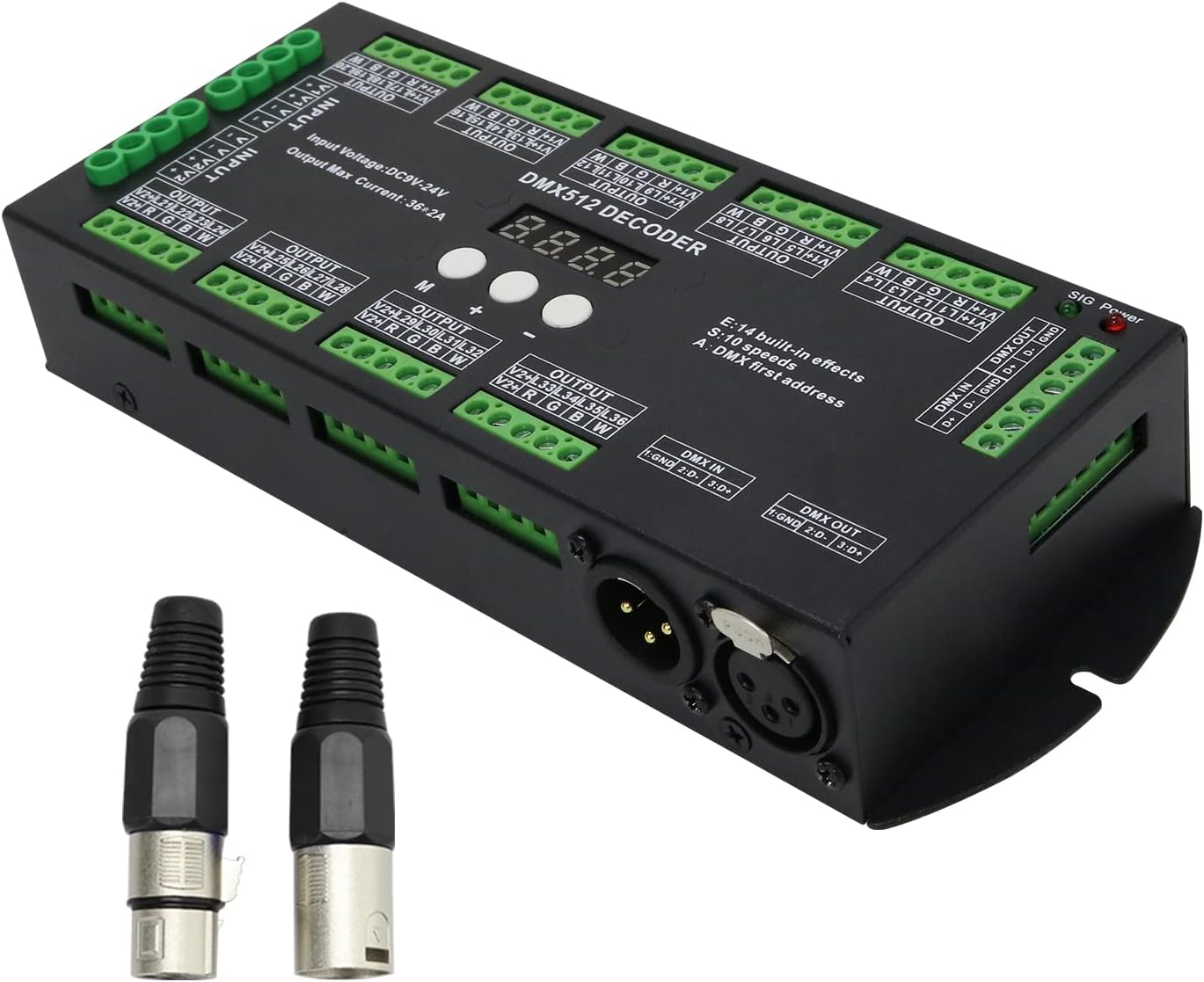

{"id":8585027092633,"title":"36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A\/CH 36 channel with display","handle":"36-channel-dmx-decoder-72a-rgbw-led-light-dmx-controller-digital-display-dmx512-dimmer-dc9v-24v-8-bit-2a-ch-36-channel-with-display","description":"\u003ch3\u003e36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A\/CH\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e36CH-DMX512 Constant decoder Operation Instruction Welcome to use the 36CH\r\nconstant decoder, which take advantage of advanced microelectronic control\r\ntechnology.This technology changes the international fashion DMX512\/1990\r\nstandard digital control signals into analog control signals.There are 1~36\r\noutput channels；each channel can achieve 256 control levels.This constant\r\ndecoder is used when DMX512 control equipment control general LED lighting.The\r\ndecoder comes with 14 kinds of test patterns, 10 levels for rate of\r\nchange.Products Performance：Input Power：DC9V~DC24V Maximum load\r\ncurrent：2A\/CHx36Maximum power load：864W（12V）1728W（24V）Output gray\r\nlevel：256Input Signal：DMX512\/1990Output signal：36 channels Constant PWM\r\nSize：L219xW88xH38MMOutput DMX：36 channels Standard XLR-3 caron plug,terminal\r\nPackage Measurement：247MMx99MMx50MM Net Weight：619g Gross Weight：738gBasic\r\nfunctions：There are 36 output channels, can connect with single or RGB, RGBW\r\nlamps；0-100%dimming output,each channel 256 gray levels； International\r\nstandard DMX512 input protocol, address code set by button； Wide voltage DC\r\ninput DC9V~DC24V； Each occupied by 36 DMX address；\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThere are 36 output channels, can connect with single or RGB,RGBW LED strips;0-100% dimming output, each channel 256 gray levels;2A each channel max 72A\u003c\/li\u003e\r\n \u003cli\u003eInternational standard DMX512 input protocol, address code set by button;Wide voltage DC input DC9V ~ DC24V;Digital Display shows the address code.\u003c\/li\u003e\r\n \u003cli\u003eEach occupied by 36 DMX address. The decoder comes with 14 kinds of test patterns, 10 levels for rate of change.\u003c\/li\u003e\r\n \u003cli\u003eMaximum power load: 864W (12V) 1728W (24V);Output gray level: 256 ;Input Signal: DMX512\/1990;Output signal: 36 channels Constant PWM;Standard XLR-3 caron plug,terminal\u003c\/li\u003e\r\n \u003cli\u003e100% SATISFACTION SERVICE30-day return \u0026amp; 2-year Service. No matter what reason cause dissatisfaction, well send replacement or reimburse you back!\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-11-27T12:25:31+11:00","created_at":"2025-11-27T12:25:27+11:00","vendor":"CHINLY","type":"Lighting Accessories","tags":["music_selected_Oct2025"],"price":37800,"price_min":37800,"price_max":37800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45936071770265,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09YRKJ8HF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A\/CH 36 channel with display","public_title":null,"options":["Default Title"],"price":37800,"weight":721,"compare_at_price":null,"inventory_management":"shopify","barcode":"767065654417","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/71H53TSxi8L._AC_SL1500_-1.jpg?v=1778306696","\/\/soundstores.net\/cdn\/shop\/files\/71cmndW0McL._AC_SL1500.jpg?v=1778306695","\/\/soundstores.net\/cdn\/shop\/files\/71r9UzuO-7L._AC_SL1500.jpg?v=1778306695","\/\/soundstores.net\/cdn\/shop\/files\/81rxkyx20AL._AC_SL1500.jpg?v=1778306695","\/\/soundstores.net\/cdn\/shop\/files\/61KknQv6B6L._AC_SL1500.jpg?v=1778306695","\/\/soundstores.net\/cdn\/shop\/files\/71uYJ0pJznL._AC_SL1500.jpg?v=1778306695","\/\/soundstores.net\/cdn\/shop\/files\/71q7qfBJyEL._AC_SL1500.jpg?v=1778306695","\/\/soundstores.net\/cdn\/shop\/files\/61CYkanPhxL._AC_SL1500.jpg?v=1778306695"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/71H53TSxi8L._AC_SL1500_-1.jpg?v=1778306696","options":["Title"],"media":[{"alt":"[AUSTRALIA] - 36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A\/CH 36 channel with display ","id":36351407292569,"position":1,"preview_image":{"aspect_ratio":1.213,"height":1134,"width":1376,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71H53TSxi8L._AC_SL1500_-1.jpg?v=1778306696"},"aspect_ratio":1.213,"height":1134,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71H53TSxi8L._AC_SL1500_-1.jpg?v=1778306696","width":1376},{"alt":"[AUSTRALIA] - 36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A\/CH 36 channel with display ","id":36351407259801,"position":2,"preview_image":{"aspect_ratio":1.003,"height":1408,"width":1412,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71cmndW0McL._AC_SL1500.jpg?v=1778306695"},"aspect_ratio":1.003,"height":1408,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71cmndW0McL._AC_SL1500.jpg?v=1778306695","width":1412},{"alt":"[AUSTRALIA] - 36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A\/CH 36 channel with display ","id":36351407325337,"position":3,"preview_image":{"aspect_ratio":1.209,"height":1241,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71r9UzuO-7L._AC_SL1500.jpg?v=1778306695"},"aspect_ratio":1.209,"height":1241,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71r9UzuO-7L._AC_SL1500.jpg?v=1778306695","width":1500},{"alt":"[AUSTRALIA] - 36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A\/CH 36 channel with display ","id":36351407358105,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81rxkyx20AL._AC_SL1500.jpg?v=1778306695"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81rxkyx20AL._AC_SL1500.jpg?v=1778306695","width":1500},{"alt":"[AUSTRALIA] - 36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A\/CH 36 channel with display ","id":36351407390873,"position":5,"preview_image":{"aspect_ratio":1.471,"height":934,"width":1374,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61KknQv6B6L._AC_SL1500.jpg?v=1778306695"},"aspect_ratio":1.471,"height":934,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61KknQv6B6L._AC_SL1500.jpg?v=1778306695","width":1374},{"alt":"[AUSTRALIA] - 36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A\/CH 36 channel with display ","id":36351407423641,"position":6,"preview_image":{"aspect_ratio":0.96,"height":1442,"width":1384,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71uYJ0pJznL._AC_SL1500.jpg?v=1778306695"},"aspect_ratio":0.96,"height":1442,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71uYJ0pJznL._AC_SL1500.jpg?v=1778306695","width":1384},{"alt":"[AUSTRALIA] - 36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A\/CH 36 channel with display ","id":36351407456409,"position":7,"preview_image":{"aspect_ratio":1.03,"height":1340,"width":1380,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71q7qfBJyEL._AC_SL1500.jpg?v=1778306695"},"aspect_ratio":1.03,"height":1340,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71q7qfBJyEL._AC_SL1500.jpg?v=1778306695","width":1380},{"alt":"[AUSTRALIA] - 36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A\/CH 36 channel with display ","id":36351407489177,"position":8,"preview_image":{"aspect_ratio":1.226,"height":1117,"width":1369,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61CYkanPhxL._AC_SL1500.jpg?v=1778306695"},"aspect_ratio":1.226,"height":1117,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61CYkanPhxL._AC_SL1500.jpg?v=1778306695","width":1369}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A\/CH\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e36CH-DMX512 Constant decoder Operation Instruction Welcome to use the 36CH\r\nconstant decoder, which take advantage of advanced microelectronic control\r\ntechnology.This technology changes the international fashion DMX512\/1990\r\nstandard digital control signals into analog control signals.There are 1~36\r\noutput channels；each channel can achieve 256 control levels.This constant\r\ndecoder is used when DMX512 control equipment control general LED lighting.The\r\ndecoder comes with 14 kinds of test patterns, 10 levels for rate of\r\nchange.Products Performance：Input Power：DC9V~DC24V Maximum load\r\ncurrent：2A\/CHx36Maximum power load：864W（12V）1728W（24V）Output gray\r\nlevel：256Input Signal：DMX512\/1990Output signal：36 channels Constant PWM\r\nSize：L219xW88xH38MMOutput DMX：36 channels Standard XLR-3 caron plug,terminal\r\nPackage Measurement：247MMx99MMx50MM Net Weight：619g Gross Weight：738gBasic\r\nfunctions：There are 36 output channels, can connect with single or RGB, RGBW\r\nlamps；0-100%dimming output,each channel 256 gray levels； International\r\nstandard DMX512 input protocol, address code set by button； Wide voltage DC\r\ninput DC9V~DC24V； Each occupied by 36 DMX address；\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThere are 36 output channels, can connect with single or RGB,RGBW LED strips;0-100% dimming output, each channel 256 gray levels;2A each channel max 72A\u003c\/li\u003e\r\n \u003cli\u003eInternational standard DMX512 input protocol, address code set by button;Wide voltage DC input DC9V ~ DC24V;Digital Display shows the address code.\u003c\/li\u003e\r\n \u003cli\u003eEach occupied by 36 DMX address. The decoder comes with 14 kinds of test patterns, 10 levels for rate of change.\u003c\/li\u003e\r\n \u003cli\u003eMaximum power load: 864W (12V) 1728W (24V);Output gray level: 256 ;Input Signal: DMX512\/1990;Output signal: 36 channels Constant PWM;Standard XLR-3 caron plug,terminal\u003c\/li\u003e\r\n \u003cli\u003e100% SATISFACTION SERVICE30-day return \u0026amp; 2-year Service. No matter what reason cause dissatisfaction, well send replacement or reimburse you back!\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
