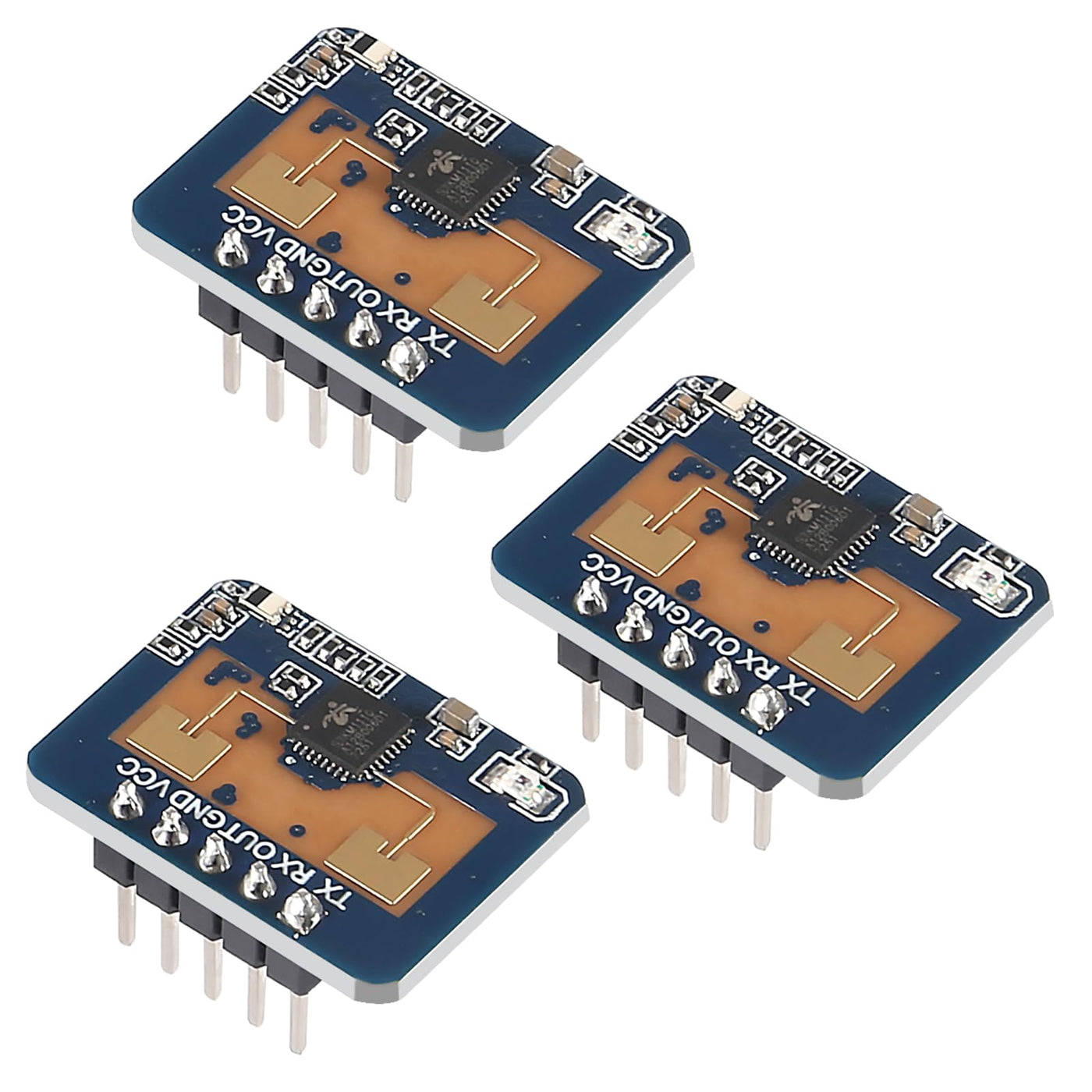

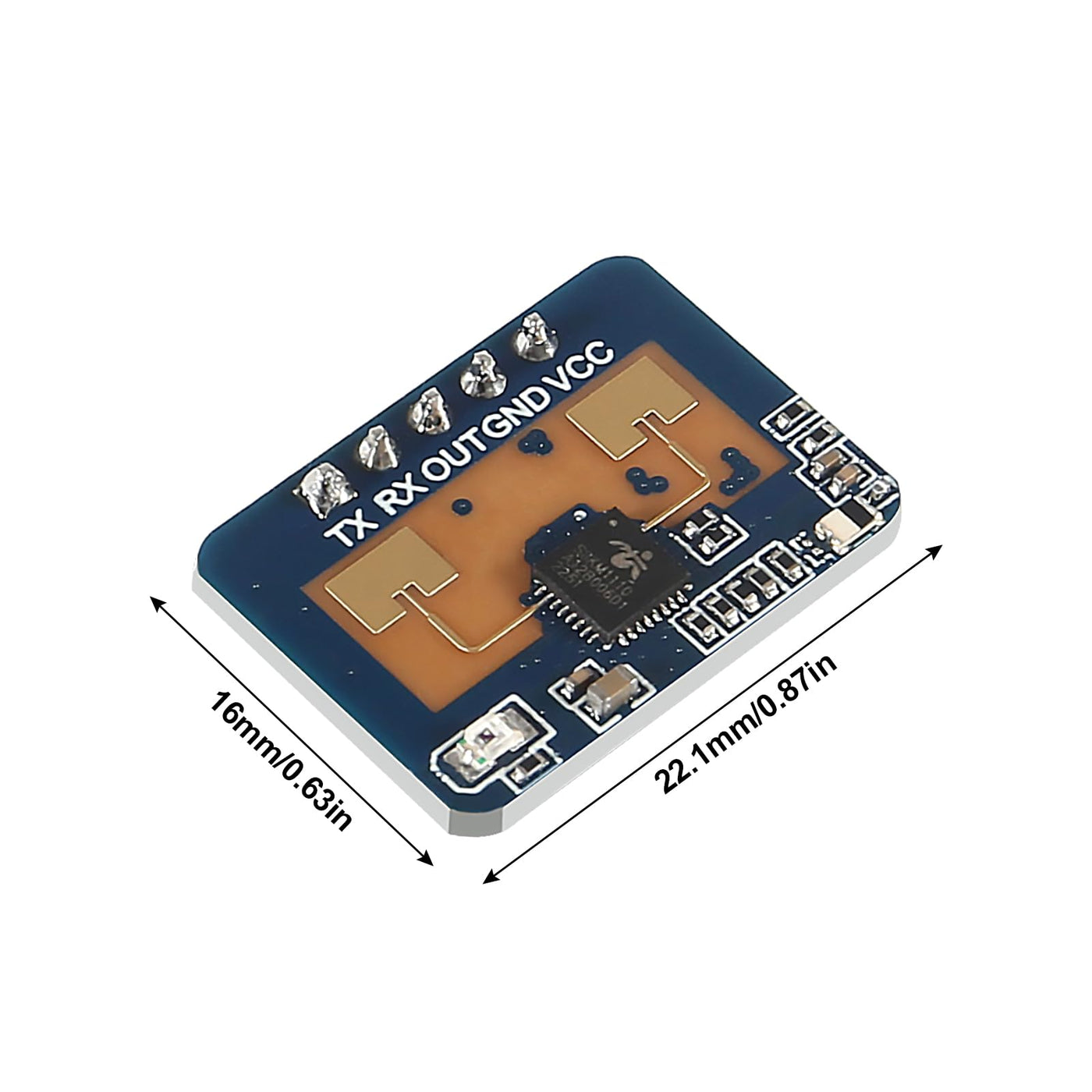

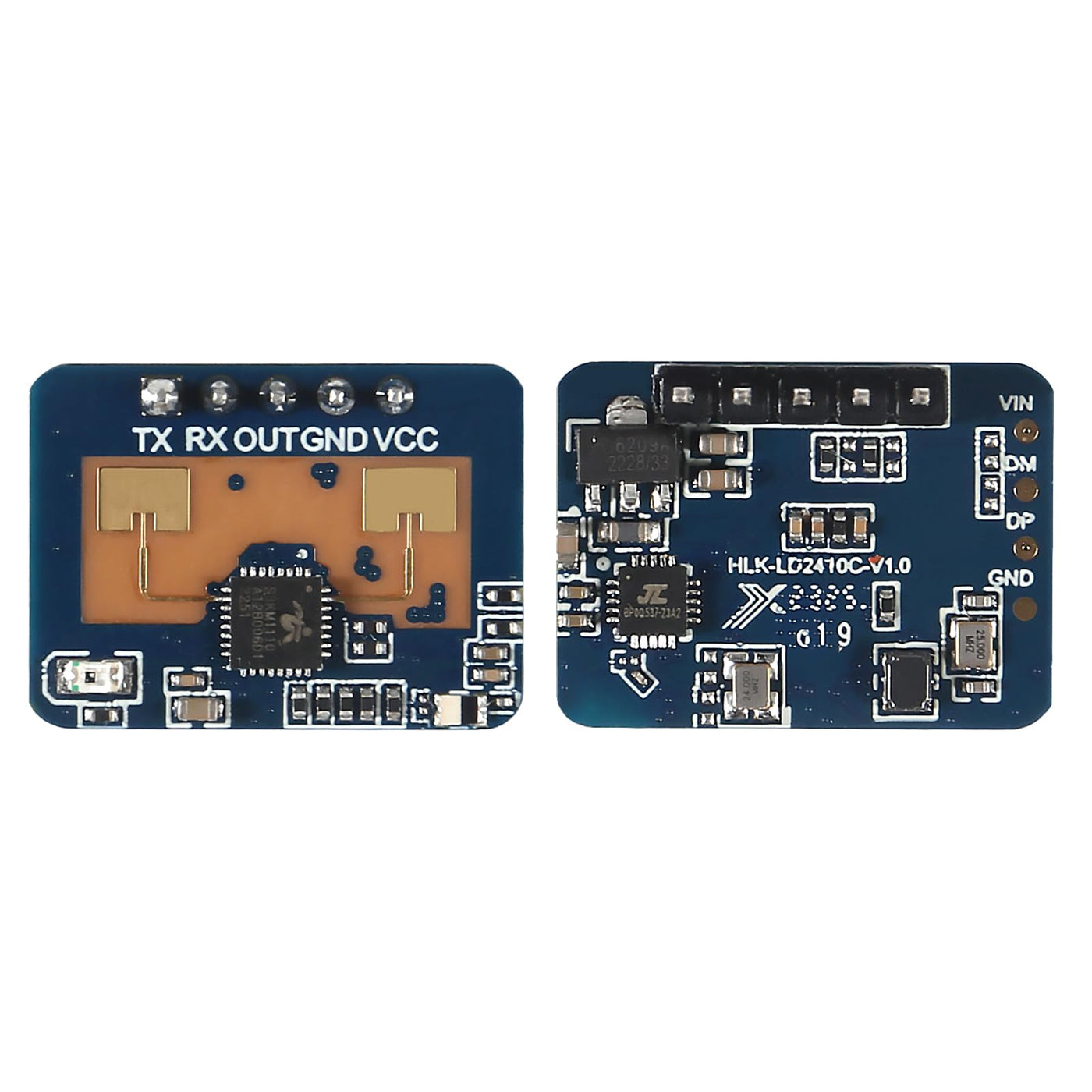

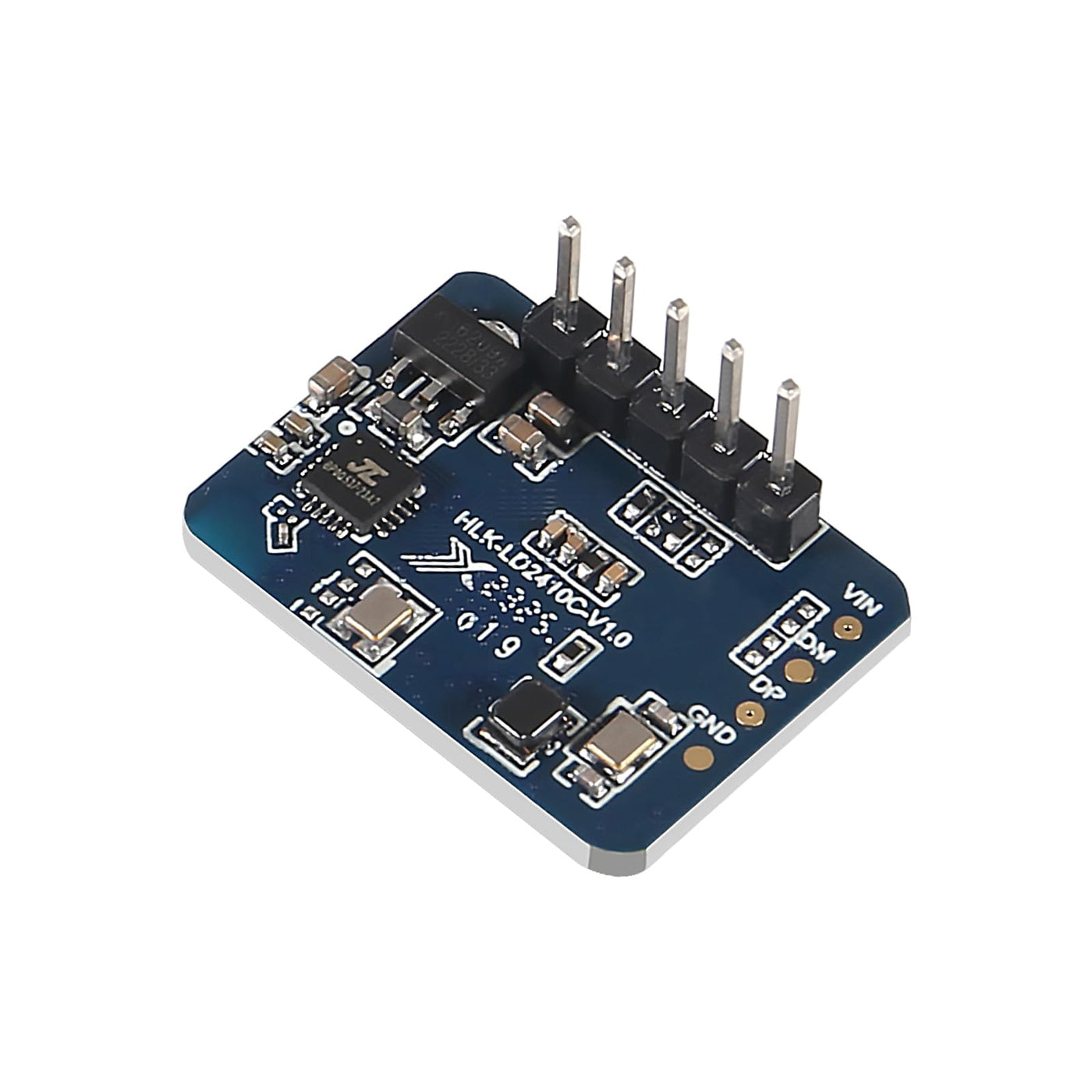

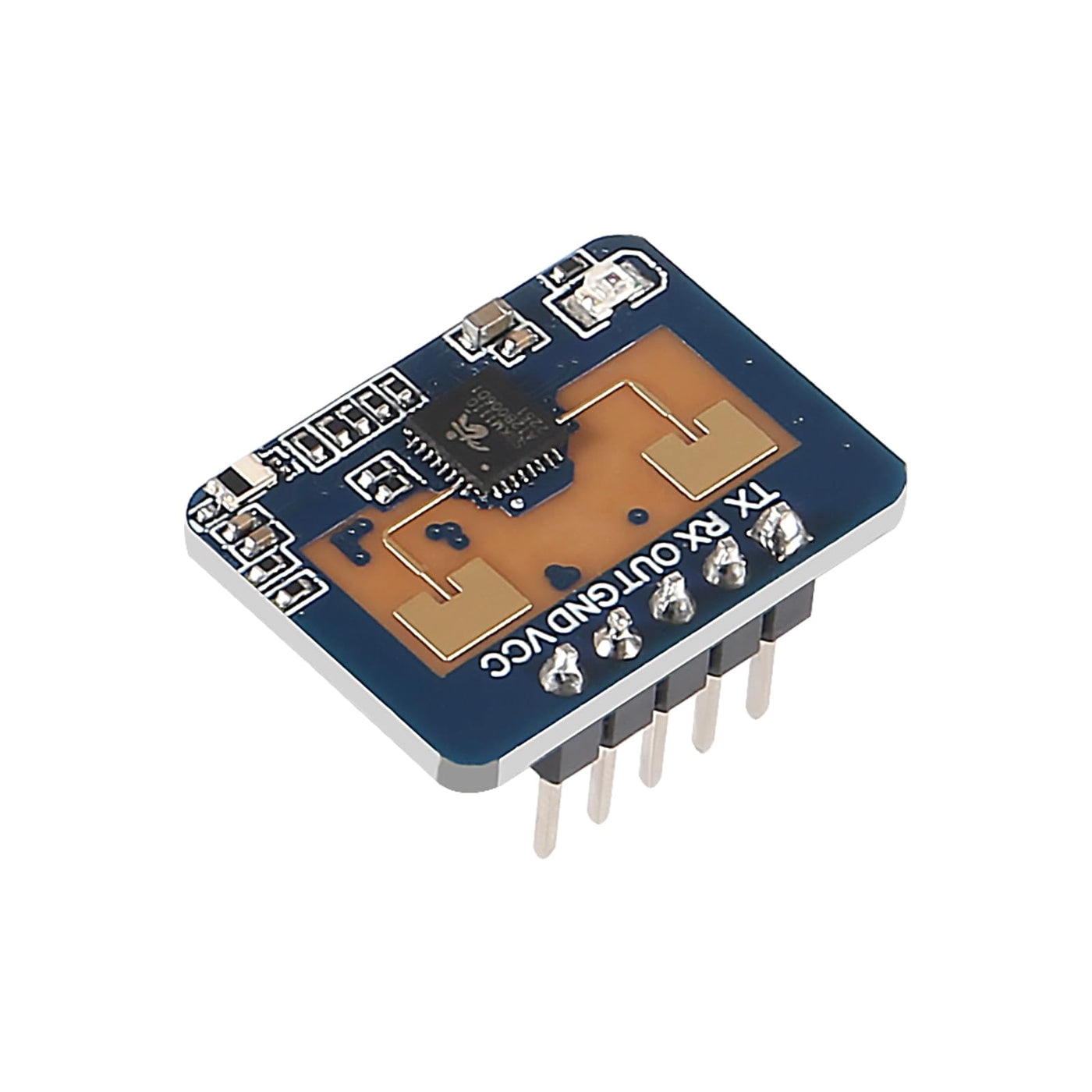

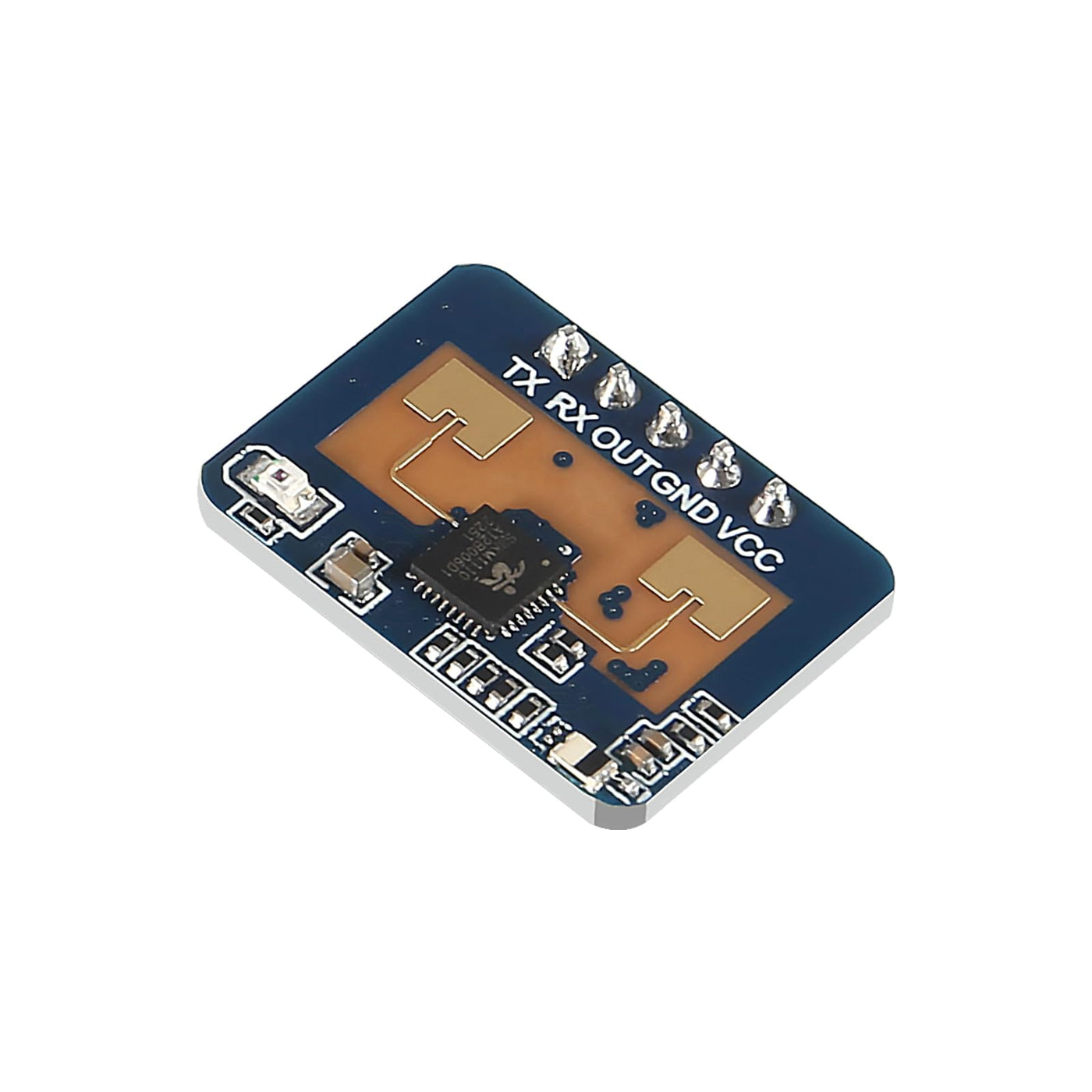

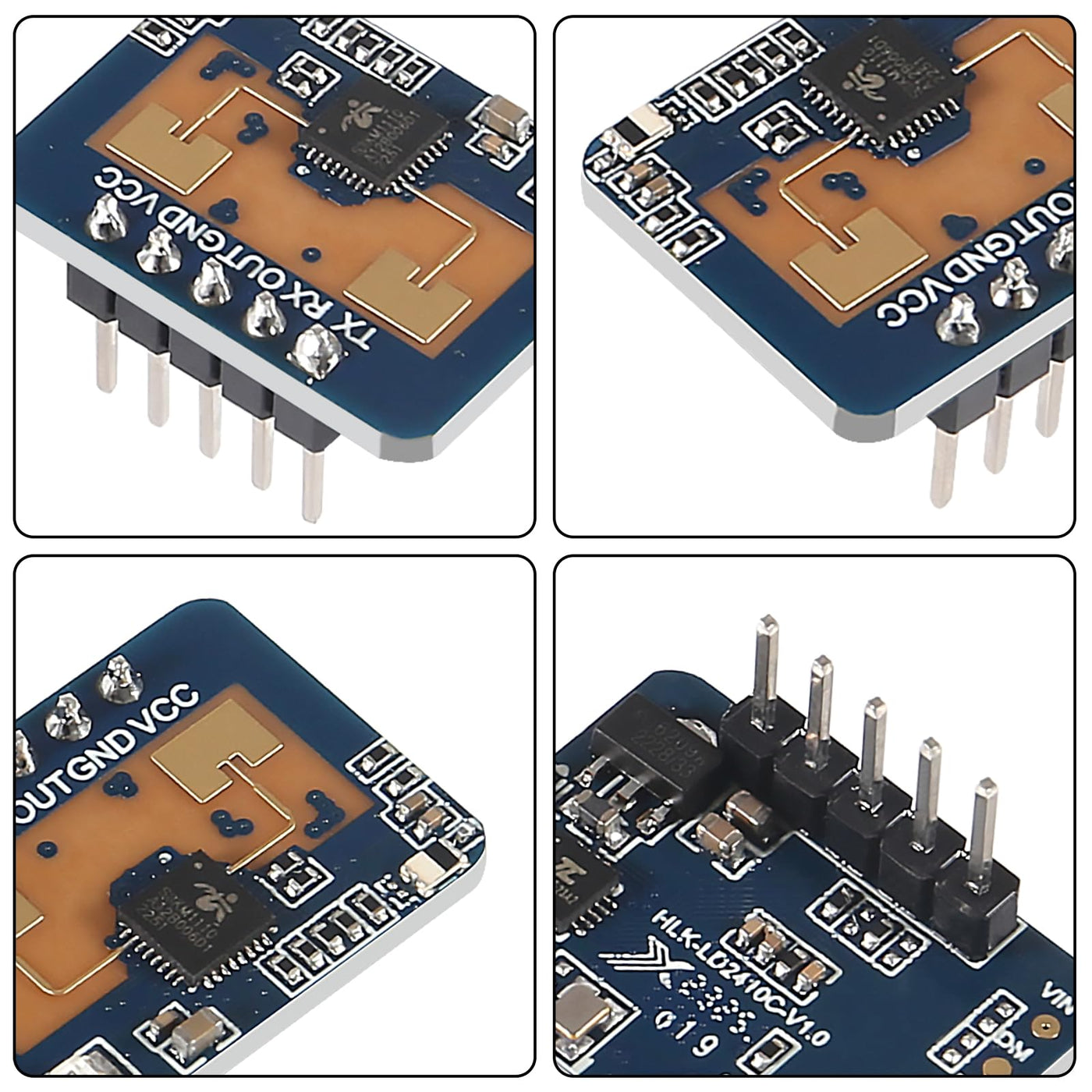

{"id":8314587775129,"title":"3pcs LD2410C Human Presence Radar Sensor Module HLK-LD2410 Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output","handle":"3pcs-ld2410c-human-presence-radar-sensor-module-hlk-ld2410-sensor-module-ld2410-millimeter-wave-radar-sensor-module-non-contact-24ghz-ism-band-serial-port-io-level-output-1","description":"\u003ch3\u003e3pcs LD2410C Human Presence Radar Sensor Module HLK-LD2410 Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Frequency: 24GHz~24.25GHz Modulation Mode: FMCW Detection Distance:\n0.75m~6m adjustable Detection Angle: ± 60° Power Supply: 5V Current: 79mA\nOutput Serial Port Level: 3.3V Sweep Bandwidth: 250MHz Range Resolution 0.75m\nAmbient Temperature: - 40℃~+85℃ Data Format: serial port ASCII output\/high and\nlow level 3.3V\u0026amp;0V Module Size: 16mmx22mm, with 5 pin holes reserved for\nhardware (factory default pin) The hole diameter of pin hole is 0.9mm, and the\ndistance between bow and foot is 2.54mm Interface Type: RX, serial port\nreceiving TX, serial transmission OUT, inductive output high level GND, power\nground VCC, power supply input (5V voltage)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e24GHz ISM band, the farthest sensing distance is up to 5 meters, the detection angle is large, and the coverage range can reach 60 degrees.\u003c\/li\u003e\n \u003cli\u003eSupport GPIO and UART output, plug and play, flexible application to different intelligent scenarios and terminal products.\u003c\/li\u003e\n \u003cli\u003eMulti-level intelligent parameter adjustment can be realized through Bluetooth or serial port to meet the needs of scene changes, visual debugging and configuration tools.\u003c\/li\u003e\n \u003cli\u003eAccurate identification within the interval, support sensing range division, shielding interference outside the interval.\u003c\/li\u003e\n \u003cli\u003eBeing sensitive to the moving human body, this product can be sensitive to the static, inching, and sitting and lying human body that cannot be recognized by the traditional scheme.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-02T19:38:28+11:00","created_at":"2025-02-01T18:47:24+11:00","vendor":"XIITIA","type":"Radar Detectors","tags":["electronics_best_sellers_Jan2025"],"price":14900,"price_min":14900,"price_max":14900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45109002207385,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CH8CRDS6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3pcs LD2410C Human Presence Radar Sensor Module HLK-LD2410 Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output","public_title":null,"options":["Default Title"],"price":14900,"weight":11,"compare_at_price":null,"inventory_management":"shopify","barcode":"687117729729","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/B0CH8CRDS6.jpg?v=1775744827","\/\/soundstores.net\/cdn\/shop\/files\/61WUPR8MegL.jpg?v=1738396047","\/\/soundstores.net\/cdn\/shop\/files\/617Cr9qKjcL.jpg?v=1738396047","\/\/soundstores.net\/cdn\/shop\/files\/71UWHqdKZAL.jpg?v=1738396047","\/\/soundstores.net\/cdn\/shop\/files\/616C8BJl0ZL.jpg?v=1738396047","\/\/soundstores.net\/cdn\/shop\/files\/61zuMZZ64ML.jpg?v=1738396047","\/\/soundstores.net\/cdn\/shop\/files\/61lmv46TRSL.jpg?v=1738396047"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/B0CH8CRDS6.jpg?v=1775744827","options":["Title"],"media":[{"alt":null,"id":32616135590041,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/B0CH8CRDS6.jpg?v=1775744827"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/B0CH8CRDS6.jpg?v=1775744827","width":1600},{"alt":null,"id":32616135622809,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61WUPR8MegL.jpg?v=1738396047"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61WUPR8MegL.jpg?v=1738396047","width":1600},{"alt":null,"id":32616135655577,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/617Cr9qKjcL.jpg?v=1738396047"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/617Cr9qKjcL.jpg?v=1738396047","width":1600},{"alt":null,"id":32616135688345,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71UWHqdKZAL.jpg?v=1738396047"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71UWHqdKZAL.jpg?v=1738396047","width":1600},{"alt":null,"id":32616135721113,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/616C8BJl0ZL.jpg?v=1738396047"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/616C8BJl0ZL.jpg?v=1738396047","width":1600},{"alt":null,"id":32616135753881,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61zuMZZ64ML.jpg?v=1738396047"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61zuMZZ64ML.jpg?v=1738396047","width":1600},{"alt":null,"id":32616135786649,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61lmv46TRSL.jpg?v=1738396047"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61lmv46TRSL.jpg?v=1738396047","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e3pcs LD2410C Human Presence Radar Sensor Module HLK-LD2410 Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Frequency: 24GHz~24.25GHz Modulation Mode: FMCW Detection Distance:\n0.75m~6m adjustable Detection Angle: ± 60° Power Supply: 5V Current: 79mA\nOutput Serial Port Level: 3.3V Sweep Bandwidth: 250MHz Range Resolution 0.75m\nAmbient Temperature: - 40℃~+85℃ Data Format: serial port ASCII output\/high and\nlow level 3.3V\u0026amp;0V Module Size: 16mmx22mm, with 5 pin holes reserved for\nhardware (factory default pin) The hole diameter of pin hole is 0.9mm, and the\ndistance between bow and foot is 2.54mm Interface Type: RX, serial port\nreceiving TX, serial transmission OUT, inductive output high level GND, power\nground VCC, power supply input (5V voltage)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e24GHz ISM band, the farthest sensing distance is up to 5 meters, the detection angle is large, and the coverage range can reach 60 degrees.\u003c\/li\u003e\n \u003cli\u003eSupport GPIO and UART output, plug and play, flexible application to different intelligent scenarios and terminal products.\u003c\/li\u003e\n \u003cli\u003eMulti-level intelligent parameter adjustment can be realized through Bluetooth or serial port to meet the needs of scene changes, visual debugging and configuration tools.\u003c\/li\u003e\n \u003cli\u003eAccurate identification within the interval, support sensing range division, shielding interference outside the interval.\u003c\/li\u003e\n \u003cli\u003eBeing sensitive to the moving human body, this product can be sensitive to the static, inching, and sitting and lying human body that cannot be recognized by the traditional scheme.\u003c\/li\u003e\n \u003c\/ul\u003e"}
