5-26V DC Incremental Rotary Encoder, E6B2-CWZ6C 38mm Diameter NPN Open-Collector Output ABZ 3 Phase General-Purpose Rotary Encoder with 2m Wiring Wire(360P/R)

In Stock. Leaves warehouse within 2 - 3 business days

$221.00 AUD
Maximum quantity available reached.
Shop with us and enjoy FREE shipping on every order.
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

5-26V DC Incremental Rotary Encoder, E6B2-CWZ6C 38mm Diameter NPN Open-Collector Output ABZ 3 Phase General-Purpose Rotary Encoder with 2m Wiring Wire(360P/R)

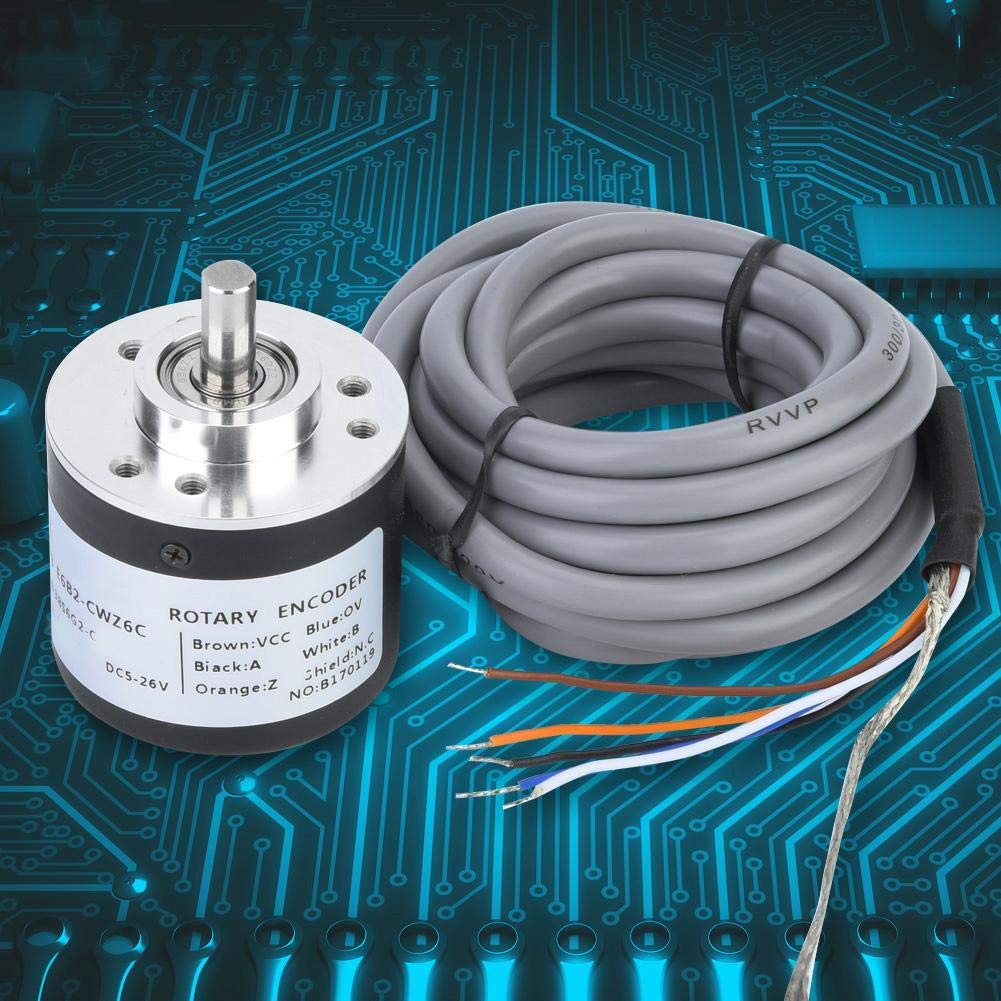

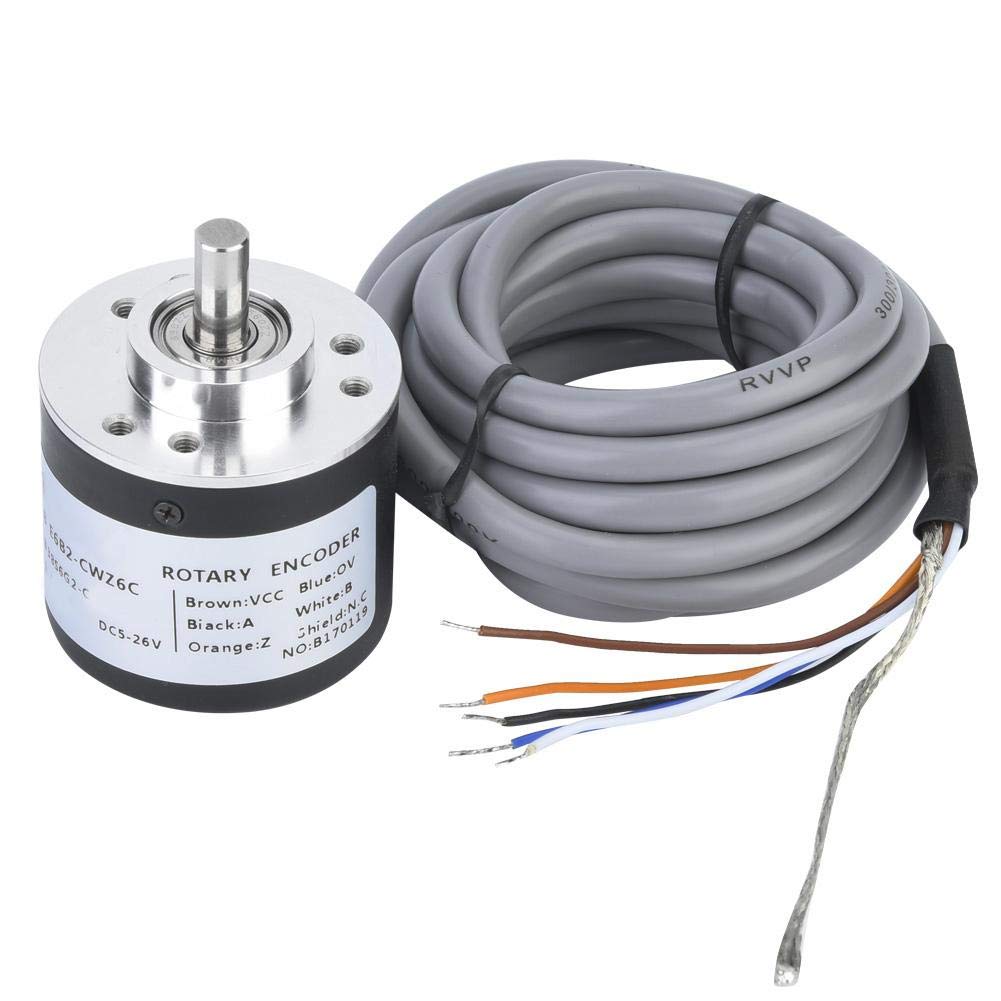

Specification: Item Name: Incremental Rotary Encoder Model: E6B2-CWZ6C Material: Lead Alloy (Shell), Aluminum (Body) Input Voltage: DC5 ~ 26V(open- collector output type) Output Mode: Voltage output, collector output, complementary output, push pull output, long line drive output, differential output, fork output Output Phase: A, B, Z phase Outer Diameter: 38 mm Thrust Shaft Diameter: 6mm Standard Length of Wiring Wire: 2m Resolution (Pulse/Rotation) : 100, 200, 300, 360, 400, 500, 600, 1000, 1024, 1200, 2000, 2500, 3600, 5000 (optional) Wiring Method: Brown Line: DC5-26V (positive pole) Blue Line: 0V (negative pole) Black Line: A(phase) White Line: B(phase) Orange Line: Z(phase) Shielding Network Cable: N.C (ground) Output Configuration: NPN open-collector output Maximum Response Frequency(3): 100kHz Starting Moment of Force: 0.9 mN.m max. Moment of Inertia: 1x10-6 kg.m² max.; (3x10-7 kg.m² max. at 600 P/R max.) Radial Shaft Loading: 30N Thrust Shaft Loading: 20N Maximum Permissible Rotating Speed: 6,000r/min Insulation Resistance: 20 MΩ min. (at 500 VDC) between current-carrying parts and case Dielectric Strength: 500 VAC, 50/60 Hz for 1 min between current-carrying parts and case Vibration Resistance(Destruction): 10 to 500 Hz, 2mm or 150 m/s² double amplitude for 11 min 3 times each in X, Y, and Z directions Shock Resistance(Destruction): 1,000m/s² 3 times each in X, Y, and Z directions Package List: 1 Encoder 3 Screw 1 Instructions

Product Features

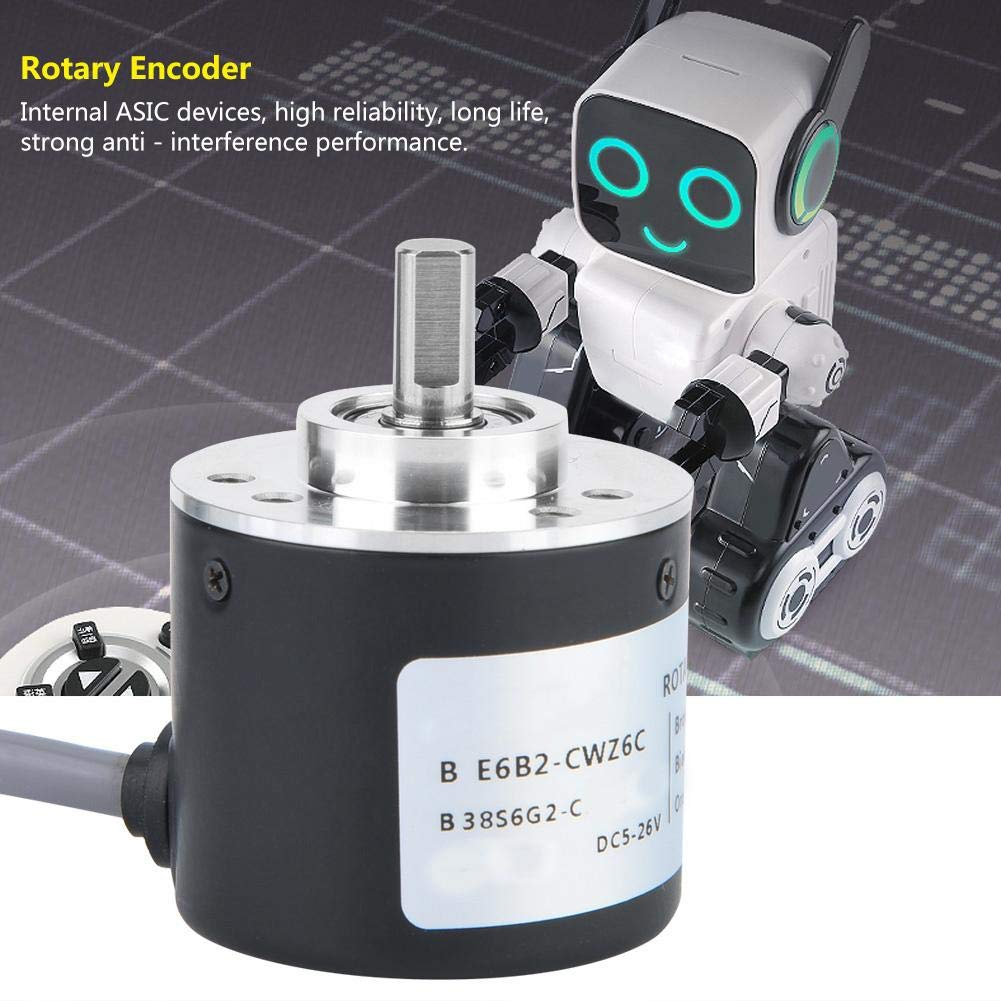

  • Excellent Internal Components:Internal ASIC devices, high reliability, long life, strong anti - interference performance.
  • Safety Design:With load short circuit protection, power supply reverse wiring protection, safer and more reliable.
  • Important Parameters:The Output Phase is A, B, Z Phase; the Outer Diameter is 38 mm, the Thrust Shaft Diameter is 6mm, the Radial Shaft Loading is 30N, the Thrust Shaft Loading is 20N.
  • Input Voltage:The rotary encoder uses corresponding power supply voltage DC5 ~ 26V (open collector output type).

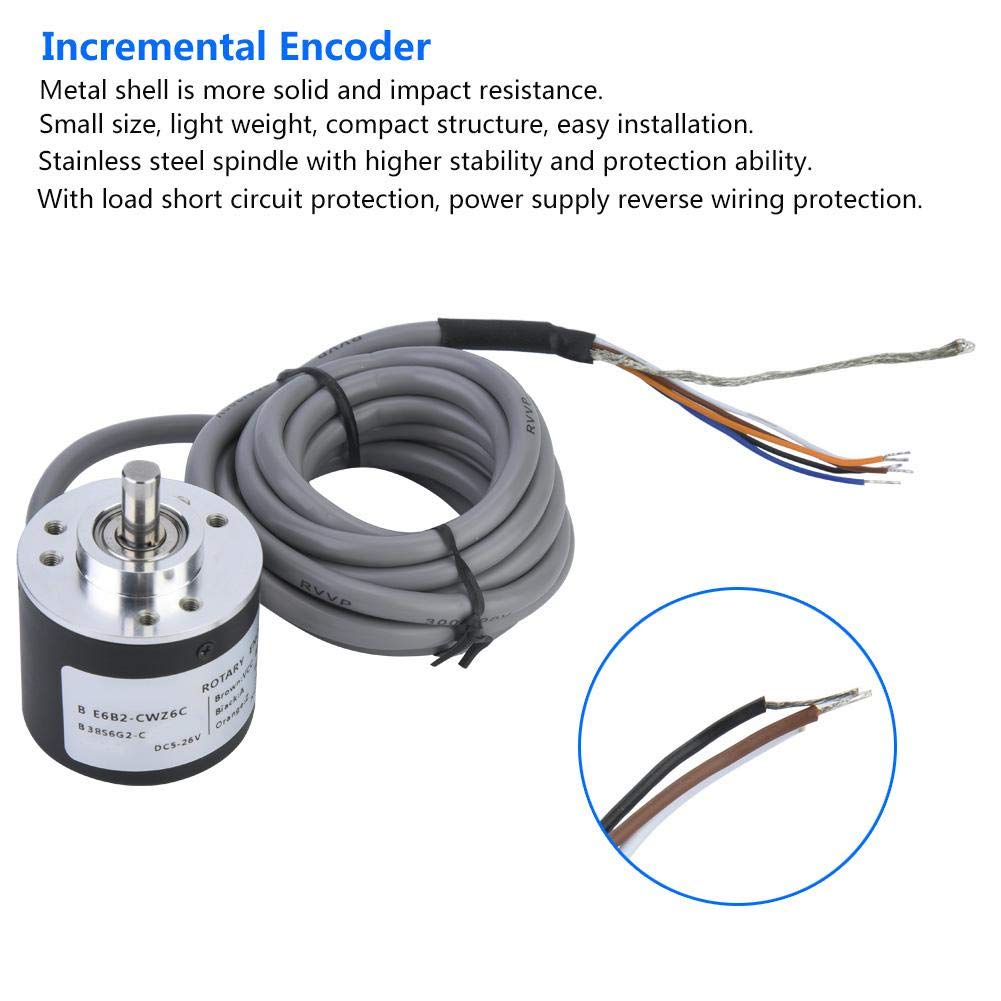

  • Stainless Steel Spindle And Metal Shell:Stainless steel spindle with higher stability and protection ability, metal shell is more solid and impact resistance.
