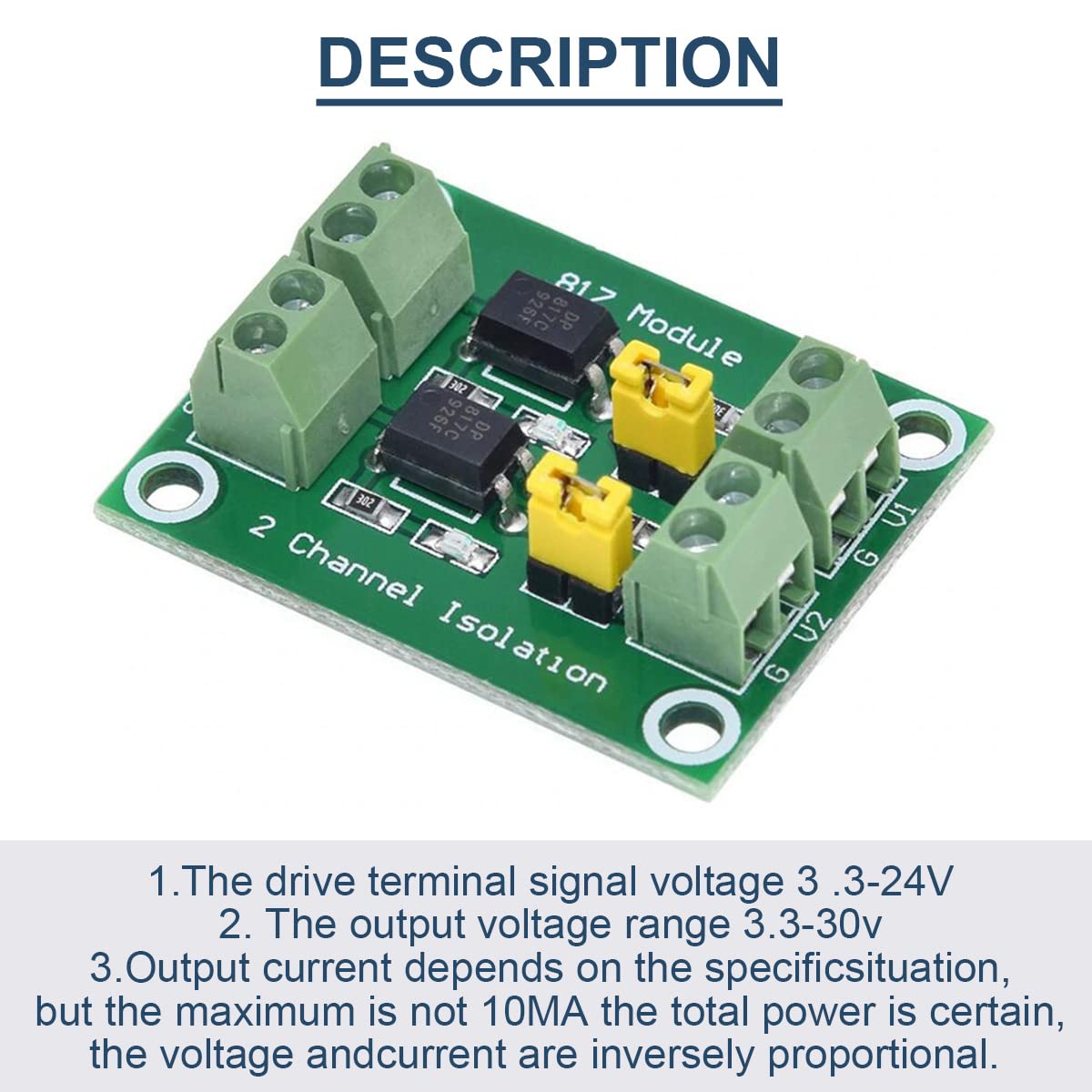

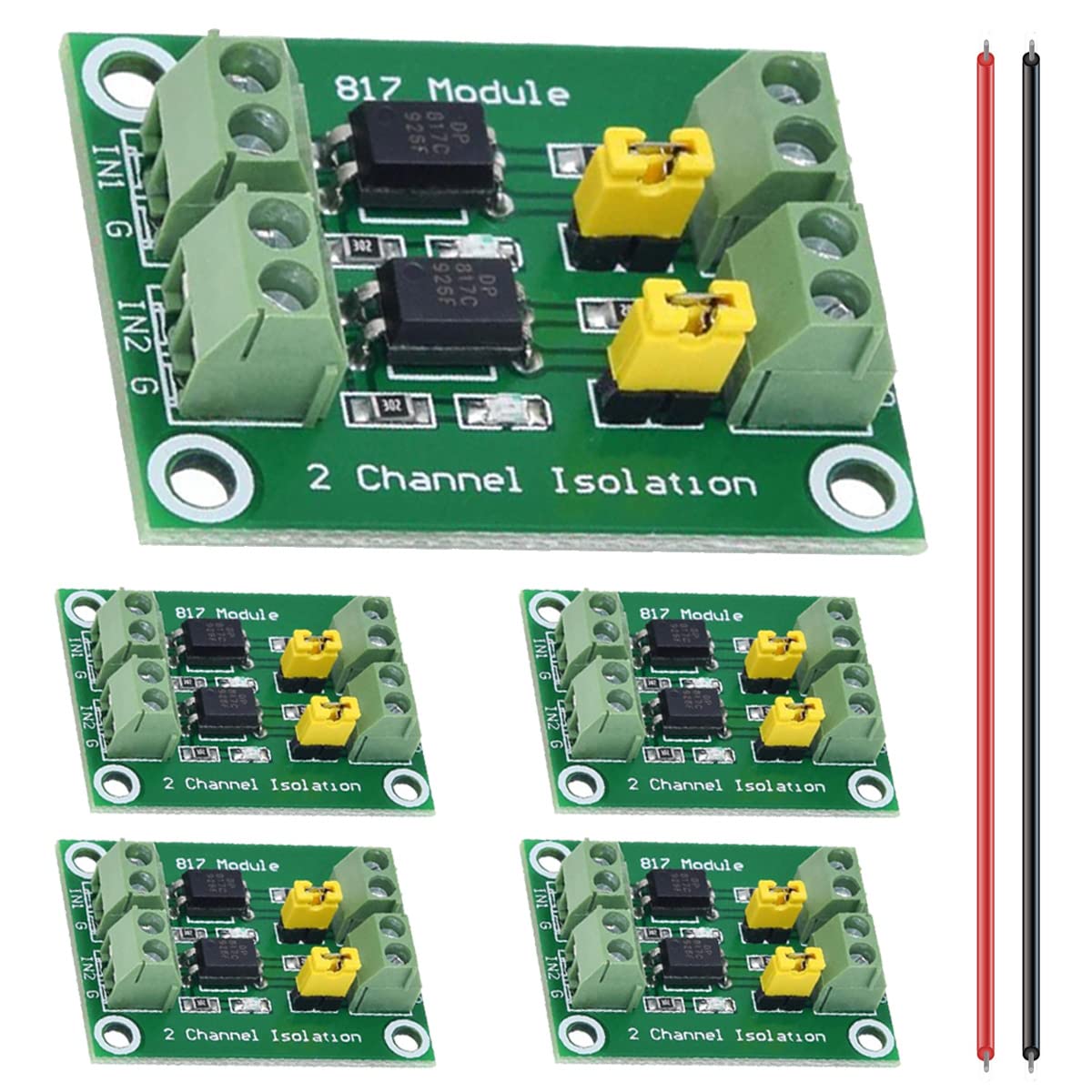

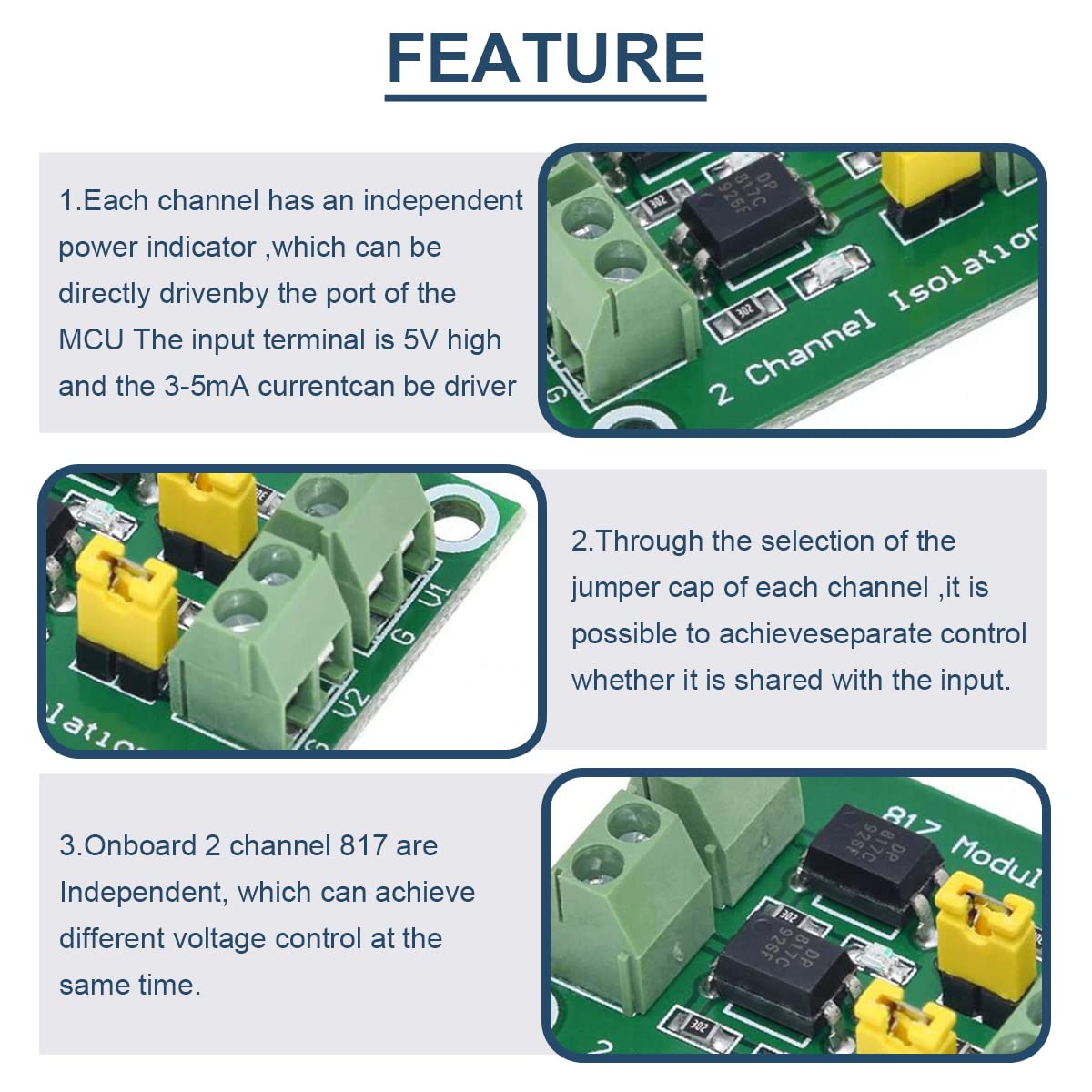

{"id":8529003970713,"title":"5 Pcs PC817 2 Channel Optocoupler Isolation Module 3.6-30V Voltage Converter Driver Photoelectric Isolated Board for Control Relay with 24AWG Wire","handle":"5-pcs-pc817-2-channel-optocoupler-isolation-module-3-6-30v-voltage-converter-driver-photoelectric-isolated-board-for-control-relay-with-24awg-wire","description":"\u003ch3\u003e5 Pcs PC817 2 Channel Optocoupler Isolation Module 3.6-30V Voltage Converter Driver Photoelectric Isolated Board for Control Relay with 24AWG Wire\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: 1. Driving Terminal Port Signal Voltage:3.3 to 24V 2. Output\nPort Voltage Port:3.3 to 30V 3. Output current depends on the\nspecificsituation, but the maximum is not 10mA the total power is certain, the\nvoltage andcurrent are inversely proportional 4. Through the jumper cap can\nachieve whether the output is high potential outputor low output 5. Onboard 2\nto Channel 817 are Independent, which can achieve different voltage control at\nthe same time Note: If it is pulse signal, please note that the limit of 817\nis below 3Khz. If the controlsignal is greater than 3Khz, please do not use\nthis module, it will not work properly Application: The output level of the\nsingle chip microcomputer is low, and the driving voltage of the driven module\nis high, for level matching, for example, some PLC inputshould have 24V\nvoltage and can be converted by this module. Package Included: 5 x PC817 2\nChannel Optocoupler Isolation Board 1 x 24AWG Wire\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSpecification: Driving Terminal Port Signal Voltage:3.3-24V; Output Port Voltage Port:3.3-30V; Output Current: 10mA(Max)\u003c\/li\u003e\n \u003cli\u003eFeature: Through the jumper cap can achieve whether the output is high potential outputor low output.\u003c\/li\u003e\n \u003cli\u003eNote: If it is pulse signal, please note that the limit of 817 is below 3Khz. If the controlsignal is greater than 3Khz, please do not use this module, it will not work properly\u003c\/li\u003e\n \u003cli\u003eApplication: The output level of the single chip microcomputer is low, and the driving voltage of the driven module is high, for level matching, for example, some PLC inputshould have 24V voltage and can be converted by this module.\u003c\/li\u003e\n \u003cli\u003ePackage Content: The package comes with 5 x PC817 2 Channel Optocoupler Isolation Board, 1 x 24AWG Wire\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-23T10:46:58+10:00","created_at":"2025-09-23T10:46:54+10:00","vendor":"DAOKAI","type":"Circuit Breakers","tags":["industryDE_Sep2025"],"price":9600,"price_min":9600,"price_max":9600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45739290329241,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09TK2WQXD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"5 Pcs PC817 2 Channel Optocoupler Isolation Module 3.6-30V Voltage Converter Driver Photoelectric Isolated Board for Control Relay with 24AWG Wire","public_title":null,"options":["Default Title"],"price":9600,"weight":60,"compare_at_price":null,"inventory_management":"shopify","barcode":"DE-DA-009","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B09TK2WQXD.jpg?v=1775748950","\/\/soundstores.net\/cdn\/shop\/files\/611VpY9X-1L.jpg?v=1758588416","\/\/soundstores.net\/cdn\/shop\/files\/61xTf2khufL.jpg?v=1758588417","\/\/soundstores.net\/cdn\/shop\/files\/61GfXhsJMZL.jpg?v=1758588417","\/\/soundstores.net\/cdn\/shop\/files\/71C0MoYLX4L.jpg?v=1758588417","\/\/soundstores.net\/cdn\/shop\/files\/61VbEK_48RL.jpg?v=1758588417","\/\/soundstores.net\/cdn\/shop\/files\/71DCPOGtr1L.jpg?v=1758588416","\/\/soundstores.net\/cdn\/shop\/files\/81Q4x3kGCpL.jpg?v=1758588417"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B09TK2WQXD.jpg?v=1775748950","options":["Title"],"media":[{"alt":null,"id":34597168152729,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B09TK2WQXD.jpg?v=1775748950"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B09TK2WQXD.jpg?v=1775748950","width":1200},{"alt":null,"id":34597168185497,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/611VpY9X-1L.jpg?v=1758588416"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/611VpY9X-1L.jpg?v=1758588416","width":1200},{"alt":null,"id":34597168218265,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61xTf2khufL.jpg?v=1758588417"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61xTf2khufL.jpg?v=1758588417","width":1200},{"alt":null,"id":34597168251033,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61GfXhsJMZL.jpg?v=1758588417"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61GfXhsJMZL.jpg?v=1758588417","width":1200},{"alt":null,"id":34597168283801,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71C0MoYLX4L.jpg?v=1758588417"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71C0MoYLX4L.jpg?v=1758588417","width":1200},{"alt":null,"id":34597168316569,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61VbEK_48RL.jpg?v=1758588417"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61VbEK_48RL.jpg?v=1758588417","width":1200},{"alt":null,"id":34597168349337,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71DCPOGtr1L.jpg?v=1758588416"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71DCPOGtr1L.jpg?v=1758588416","width":1200},{"alt":null,"id":34597168382105,"position":8,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81Q4x3kGCpL.jpg?v=1758588417"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81Q4x3kGCpL.jpg?v=1758588417","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e5 Pcs PC817 2 Channel Optocoupler Isolation Module 3.6-30V Voltage Converter Driver Photoelectric Isolated Board for Control Relay with 24AWG Wire\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: 1. Driving Terminal Port Signal Voltage:3.3 to 24V 2. Output\nPort Voltage Port:3.3 to 30V 3. Output current depends on the\nspecificsituation, but the maximum is not 10mA the total power is certain, the\nvoltage andcurrent are inversely proportional 4. Through the jumper cap can\nachieve whether the output is high potential outputor low output 5. Onboard 2\nto Channel 817 are Independent, which can achieve different voltage control at\nthe same time Note: If it is pulse signal, please note that the limit of 817\nis below 3Khz. If the controlsignal is greater than 3Khz, please do not use\nthis module, it will not work properly Application: The output level of the\nsingle chip microcomputer is low, and the driving voltage of the driven module\nis high, for level matching, for example, some PLC inputshould have 24V\nvoltage and can be converted by this module. Package Included: 5 x PC817 2\nChannel Optocoupler Isolation Board 1 x 24AWG Wire\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSpecification: Driving Terminal Port Signal Voltage:3.3-24V; Output Port Voltage Port:3.3-30V; Output Current: 10mA(Max)\u003c\/li\u003e\n \u003cli\u003eFeature: Through the jumper cap can achieve whether the output is high potential outputor low output.\u003c\/li\u003e\n \u003cli\u003eNote: If it is pulse signal, please note that the limit of 817 is below 3Khz. If the controlsignal is greater than 3Khz, please do not use this module, it will not work properly\u003c\/li\u003e\n \u003cli\u003eApplication: The output level of the single chip microcomputer is low, and the driving voltage of the driven module is high, for level matching, for example, some PLC inputshould have 24V voltage and can be converted by this module.\u003c\/li\u003e\n \u003cli\u003ePackage Content: The package comes with 5 x PC817 2 Channel Optocoupler Isolation Board, 1 x 24AWG Wire\u003c\/li\u003e\n \u003c\/ul\u003e"}
