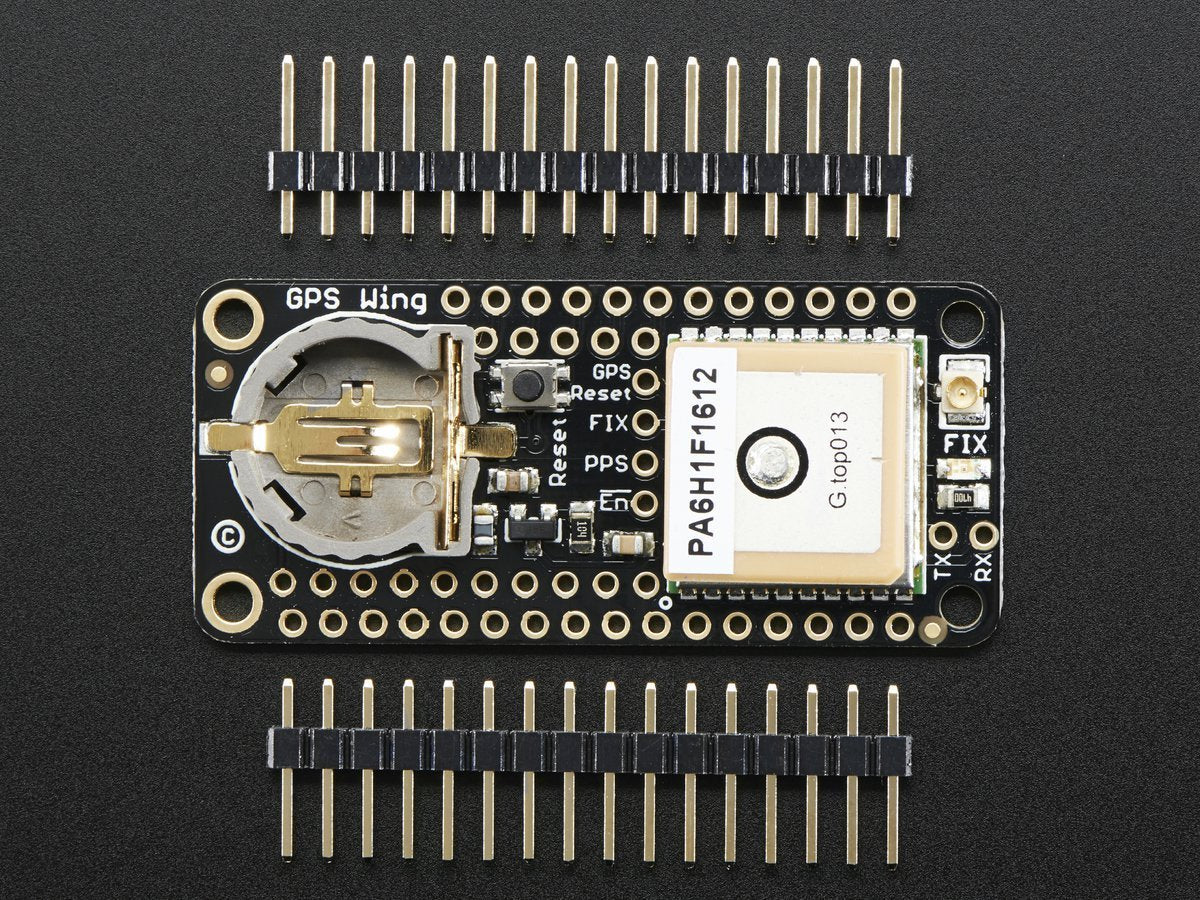

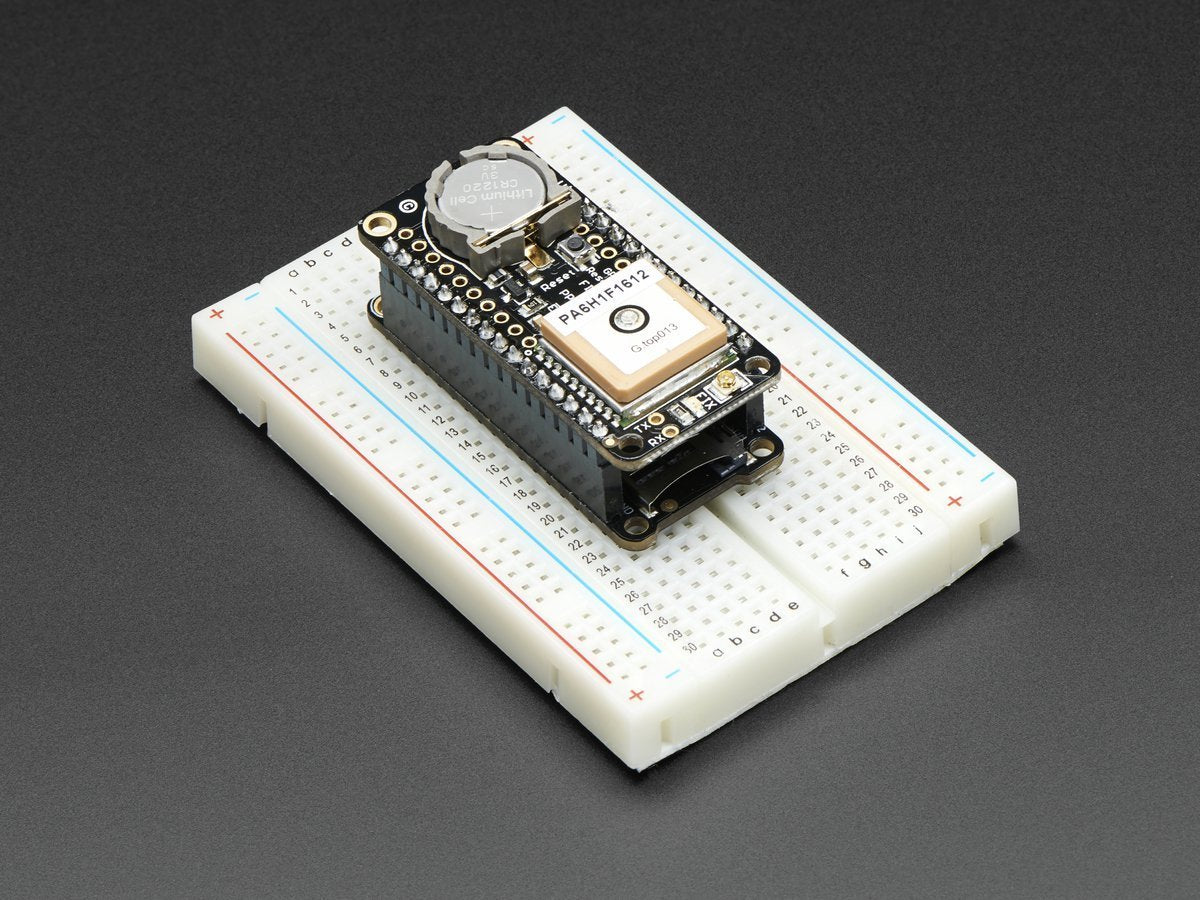

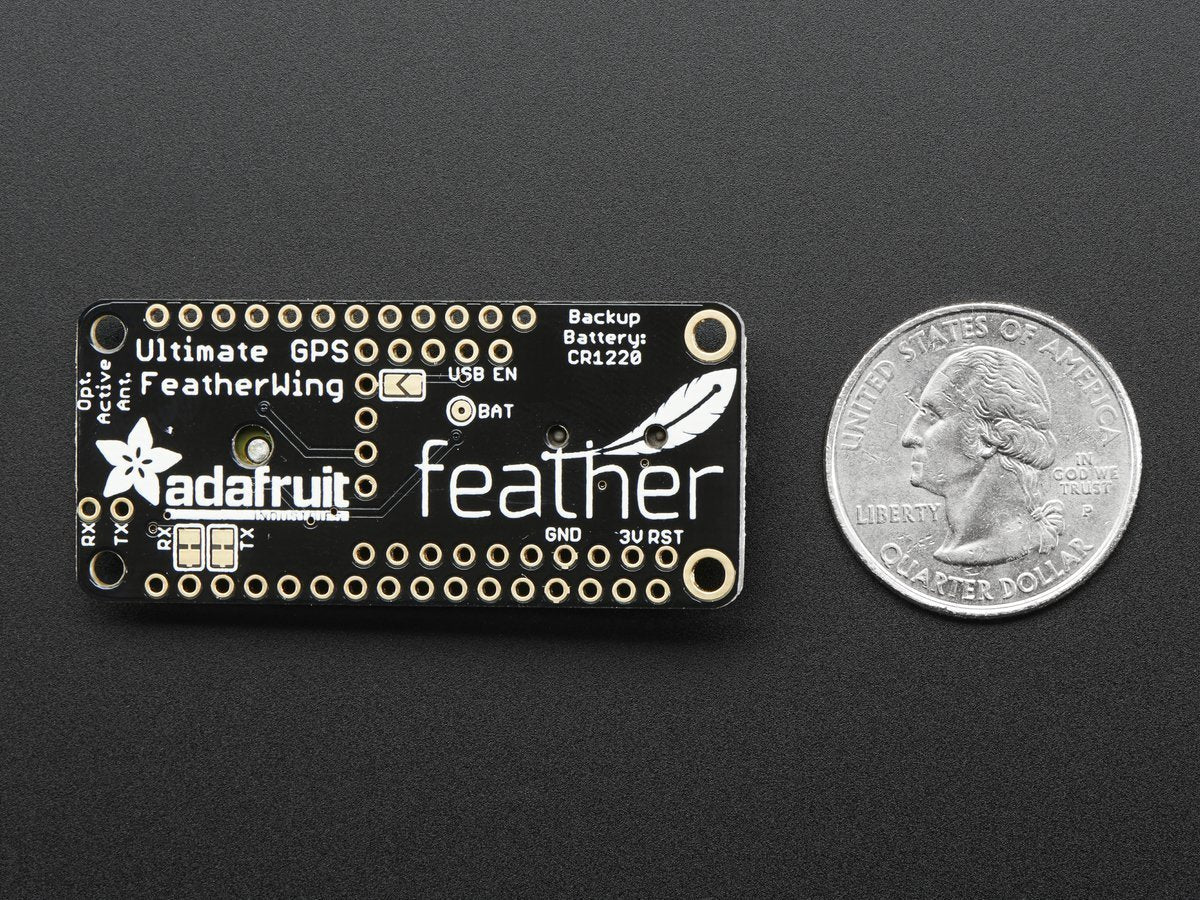

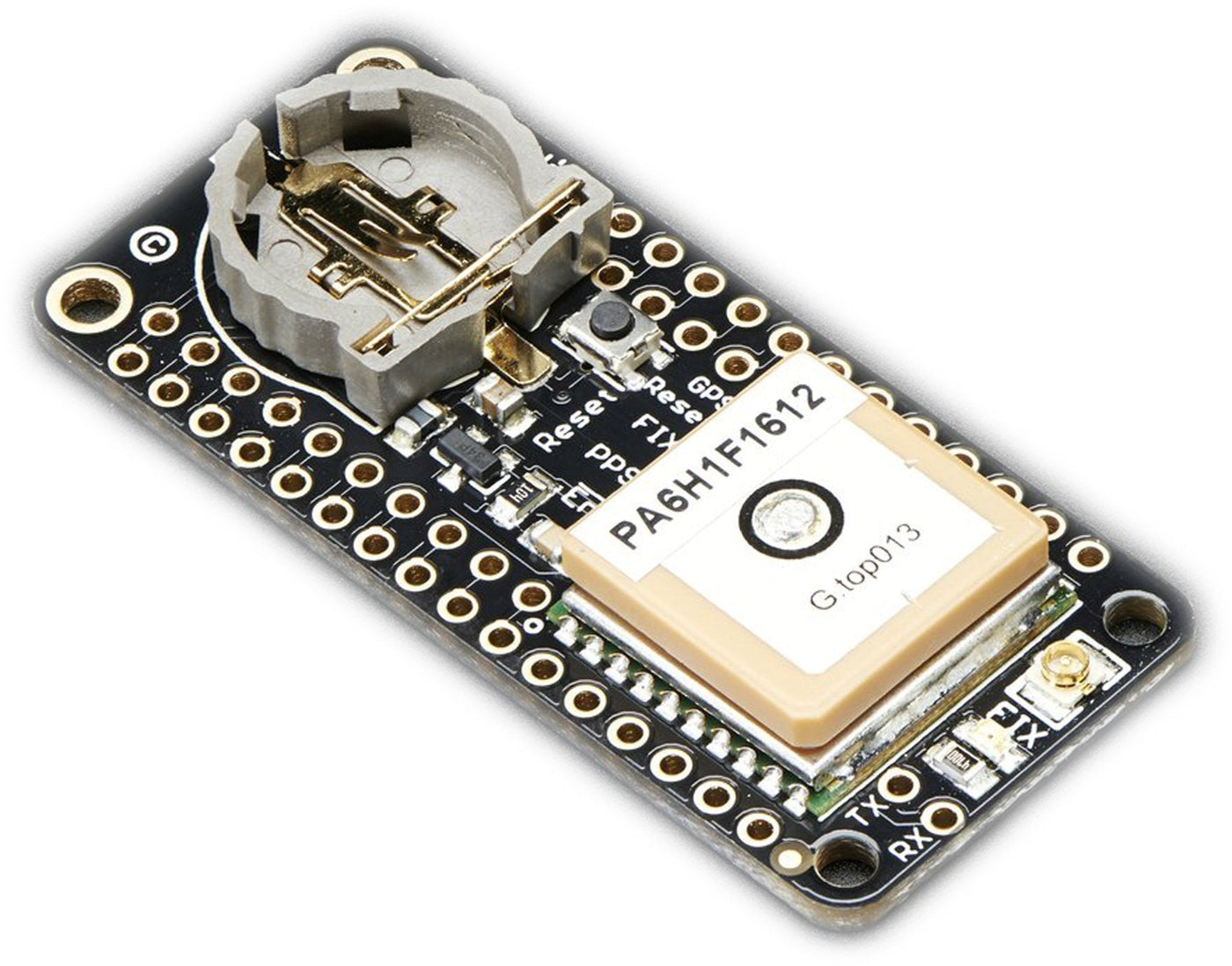

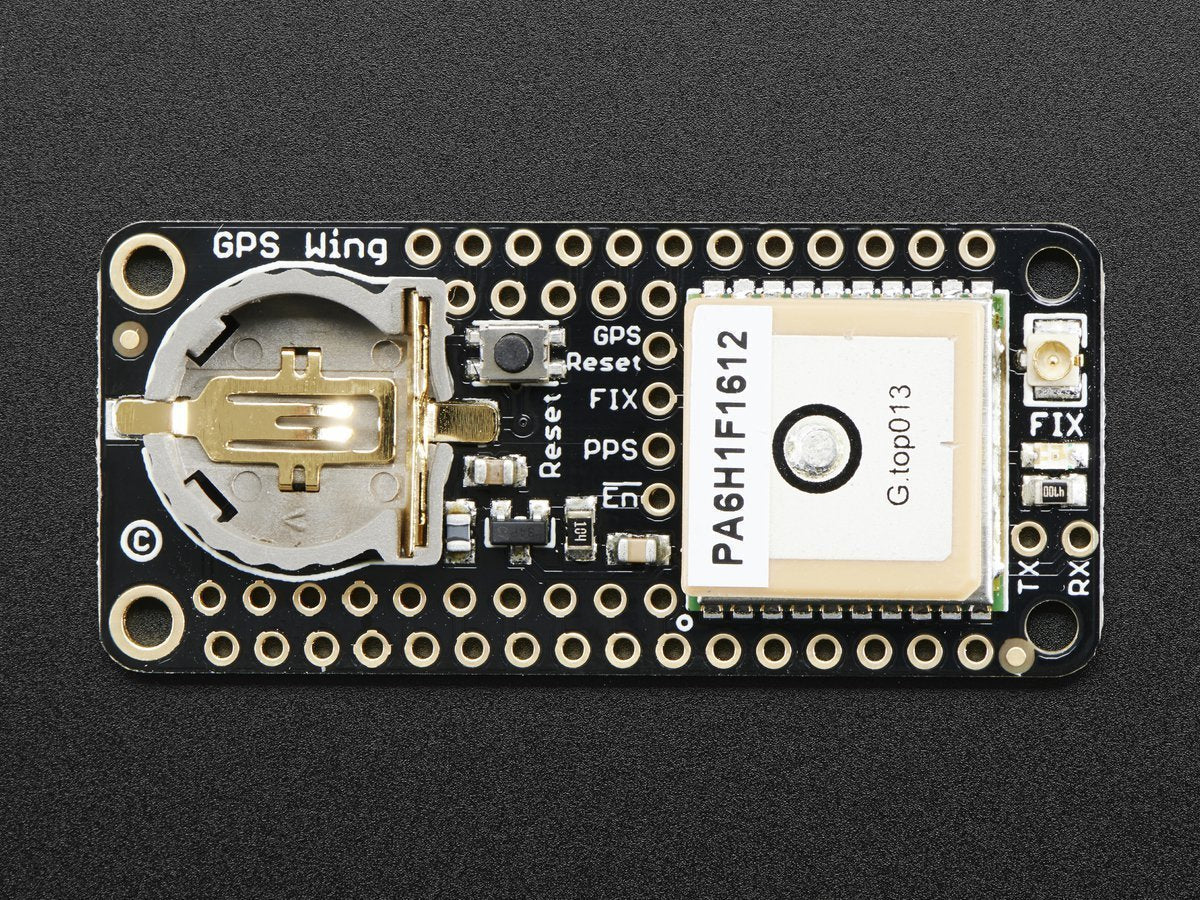

{"id":8934507806873,"title":"Adafruit Ultimate GPS FeatherWing","handle":"adafruit-ultimate-gps-featherwing","description":"\u003ch3\u003eAdafruit Ultimate GPS FeatherWing\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSatellites: 22 tracking, 66 searching Patch Antenna Size: 15mm x 15mm x 4mm\nUpdate rate: 1 to 10 Hz Position Accuracy: \u0026lt;3 meters (all GPS technology has\nabout 3m accuracy) Velocity Accuracy: 0.1 meters\/s Warm\/cold start: 34 seconds\nAcquisition sensitivity: -145 dBm Tracking sensitivity: -165 dBm Maximum\nVelocity: 515m\/s MTK3339 Operating current: 25mA tracking, 20 mA current draw\nduring navigation Output: NMEA 0183, 9600 baud default DGPS\/WAAS\/EGNOS\nsupported FCC E911 compliance and AGPS support (Offline mode : EPO valid up to\n14 days ) Up to 210 PRN channels Jammer detection and reduction Multi-path\ndetection and compensation Breakout board details: Weight (not including coin\ncell battery): 8.8g Dimensions: 22.9mm x 51.2mm x 6.7mm \/ 0.90\" x 2.02\" x\n0.26\"\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis FeatherWing plugs right into your Feather board and gives it a precise, sensitive, and low power GPS module for location identifcation anywhere in the world. As a bonus, the GPS can also keep track of time once it is synced with the satellites.\u003c\/li\u003e\n \u003cli\u003eThe Wing is built around the MTK3339 chipset, a no-nonsense, high-quality GPS module that can track up to 22 satellites on 66 channels, has an excellent high-sensitivity receiver (-165 dB tracking!), and a built in antenna. It can do up to 10 location updates a second for high speed, high sensitivity logging or tracking. Power usage is incredibly low, only 20 mA during navigation.\u003c\/li\u003e\n \u003cli\u003eThe MTK3339-based module has external antenna functionality. The module has a standard ceramic patch antenna that gives it -165 dB sensitivity, but when you want to have a bigger antenna, you can snap on any 3V active GPS antenna via the uFL connector. The module will automatically detect the active antenna and switch over!\u003c\/li\u003e\n \u003cli\u003eWe added some extra goodies to make this GPS FeatherWing better than a breakout: a FET-driven ENABLE pin so you can turn off the module using any microcontroller pin for low power use, a CR1220 coin cell holder to keep the RTC running and allow warm starts and a tiny bright red LED. The LED blinks at about 1Hz while it's searching for satellites and blinks once every 15 seconds when a fix is found to conserve power.\u003c\/li\u003e\n \u003cli\u003eComes as a fully assembled FeatherWing with GPS module and a coin cell holder. However, the 12mm coin cell is not included - it isn't required but if you would like a battery backup, a CR1220 coin battery must be purchased seperately. We also toss in some header so you can solder it in and plug into your Feather.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-08-26T22:35:22+10:00","created_at":"2026-08-26T20:31:31+10:00","vendor":"Adafruit","type":"Cables \u0026 Interconnects","tags":["electronics_selected_Aug2026"],"price":22100,"price_min":22100,"price_max":22100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48937140256921,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B01G00Q5HA","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Adafruit Ultimate GPS FeatherWing","public_title":null,"options":["Default Title"],"price":22100,"weight":23,"compare_at_price":null,"inventory_management":"shopify","barcode":"702658303990","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/B01G00Q5HA.jpg?v=1787740293","\/\/soundstores.net\/cdn\/shop\/files\/71kjZtNuHGL.jpg?v=1787740293","\/\/soundstores.net\/cdn\/shop\/files\/81NR75kRKhL.jpg?v=1787740293","\/\/soundstores.net\/cdn\/shop\/files\/81-5awgYQ-L.jpg?v=1787740293","\/\/soundstores.net\/cdn\/shop\/files\/81ZwacLCFZL.jpg?v=1787740293"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/B01G00Q5HA.jpg?v=1787740293","options":["Title"],"media":[{"alt":null,"id":37278468538521,"position":1,"preview_image":{"aspect_ratio":1.275,"height":1382,"width":1762,"src":"\/\/soundstores.net\/cdn\/shop\/files\/B01G00Q5HA.jpg?v=1787740293"},"aspect_ratio":1.275,"height":1382,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/B01G00Q5HA.jpg?v=1787740293","width":1762},{"alt":null,"id":37278468571289,"position":2,"preview_image":{"aspect_ratio":1.333,"height":900,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71kjZtNuHGL.jpg?v=1787740293"},"aspect_ratio":1.333,"height":900,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71kjZtNuHGL.jpg?v=1787740293","width":1200},{"alt":null,"id":37278468604057,"position":3,"preview_image":{"aspect_ratio":1.333,"height":900,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81NR75kRKhL.jpg?v=1787740293"},"aspect_ratio":1.333,"height":900,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81NR75kRKhL.jpg?v=1787740293","width":1200},{"alt":null,"id":37278468636825,"position":4,"preview_image":{"aspect_ratio":1.333,"height":900,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81-5awgYQ-L.jpg?v=1787740293"},"aspect_ratio":1.333,"height":900,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81-5awgYQ-L.jpg?v=1787740293","width":1200},{"alt":null,"id":37278468669593,"position":5,"preview_image":{"aspect_ratio":1.333,"height":900,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81ZwacLCFZL.jpg?v=1787740293"},"aspect_ratio":1.333,"height":900,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81ZwacLCFZL.jpg?v=1787740293","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAdafruit Ultimate GPS FeatherWing\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSatellites: 22 tracking, 66 searching Patch Antenna Size: 15mm x 15mm x 4mm\nUpdate rate: 1 to 10 Hz Position Accuracy: \u0026lt;3 meters (all GPS technology has\nabout 3m accuracy) Velocity Accuracy: 0.1 meters\/s Warm\/cold start: 34 seconds\nAcquisition sensitivity: -145 dBm Tracking sensitivity: -165 dBm Maximum\nVelocity: 515m\/s MTK3339 Operating current: 25mA tracking, 20 mA current draw\nduring navigation Output: NMEA 0183, 9600 baud default DGPS\/WAAS\/EGNOS\nsupported FCC E911 compliance and AGPS support (Offline mode : EPO valid up to\n14 days ) Up to 210 PRN channels Jammer detection and reduction Multi-path\ndetection and compensation Breakout board details: Weight (not including coin\ncell battery): 8.8g Dimensions: 22.9mm x 51.2mm x 6.7mm \/ 0.90\" x 2.02\" x\n0.26\"\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis FeatherWing plugs right into your Feather board and gives it a precise, sensitive, and low power GPS module for location identifcation anywhere in the world. As a bonus, the GPS can also keep track of time once it is synced with the satellites.\u003c\/li\u003e\n \u003cli\u003eThe Wing is built around the MTK3339 chipset, a no-nonsense, high-quality GPS module that can track up to 22 satellites on 66 channels, has an excellent high-sensitivity receiver (-165 dB tracking!), and a built in antenna. It can do up to 10 location updates a second for high speed, high sensitivity logging or tracking. Power usage is incredibly low, only 20 mA during navigation.\u003c\/li\u003e\n \u003cli\u003eThe MTK3339-based module has external antenna functionality. The module has a standard ceramic patch antenna that gives it -165 dB sensitivity, but when you want to have a bigger antenna, you can snap on any 3V active GPS antenna via the uFL connector. The module will automatically detect the active antenna and switch over!\u003c\/li\u003e\n \u003cli\u003eWe added some extra goodies to make this GPS FeatherWing better than a breakout: a FET-driven ENABLE pin so you can turn off the module using any microcontroller pin for low power use, a CR1220 coin cell holder to keep the RTC running and allow warm starts and a tiny bright red LED. The LED blinks at about 1Hz while it's searching for satellites and blinks once every 15 seconds when a fix is found to conserve power.\u003c\/li\u003e\n \u003cli\u003eComes as a fully assembled FeatherWing with GPS module and a coin cell holder. However, the 12mm coin cell is not included - it isn't required but if you would like a battery backup, a CR1220 coin battery must be purchased seperately. We also toss in some header so you can solder it in and plug into your Feather.\u003c\/li\u003e\n \u003c\/ul\u003e"}
