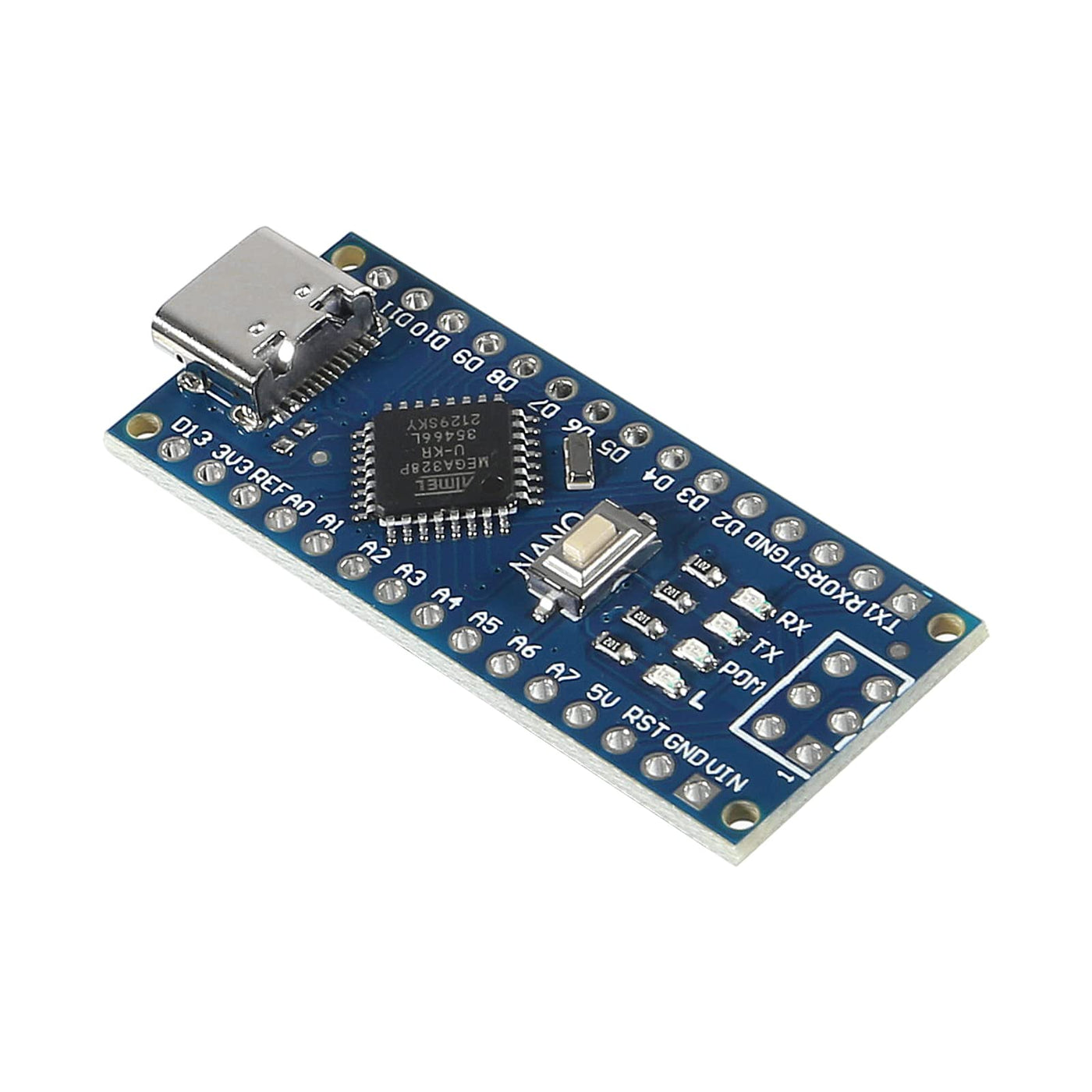

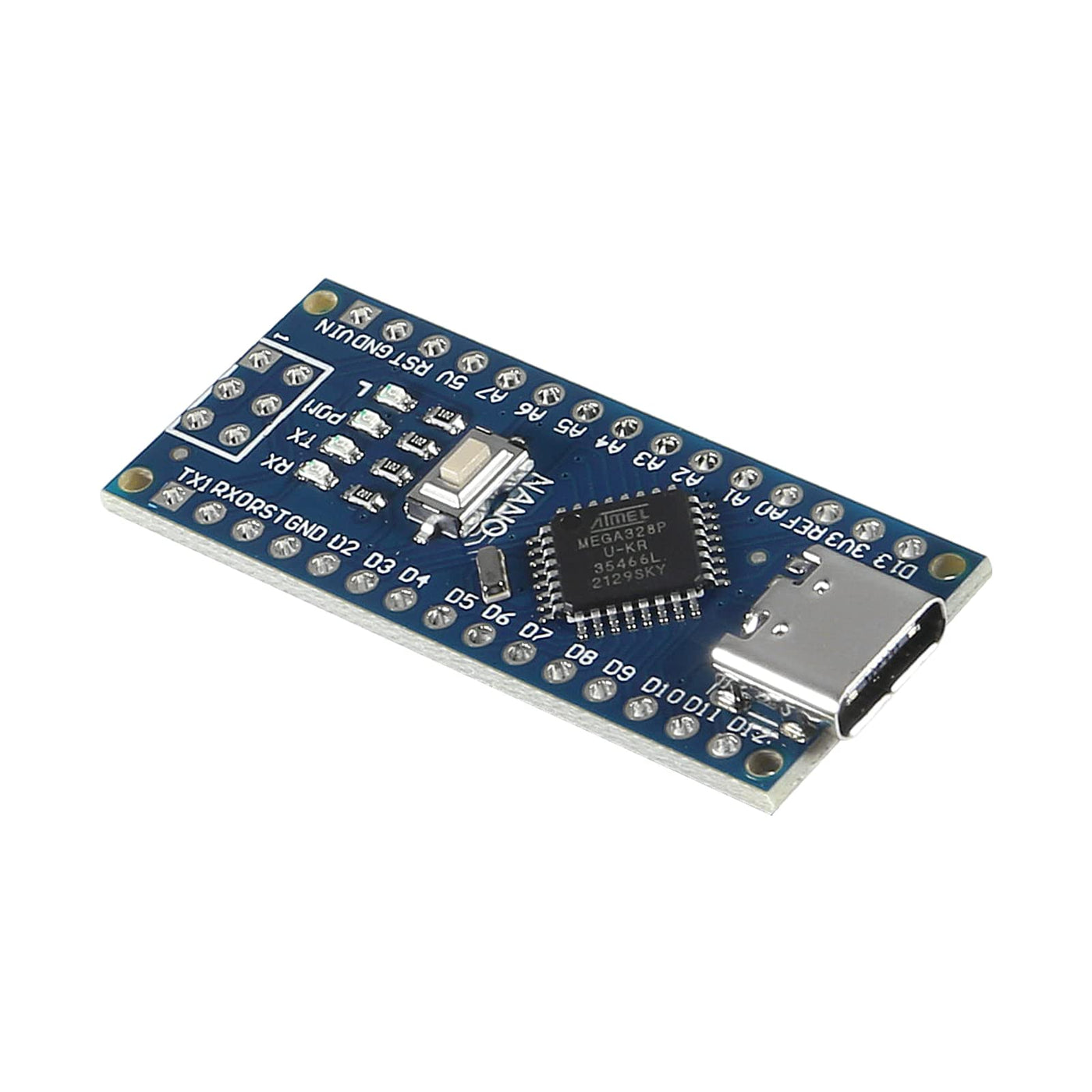

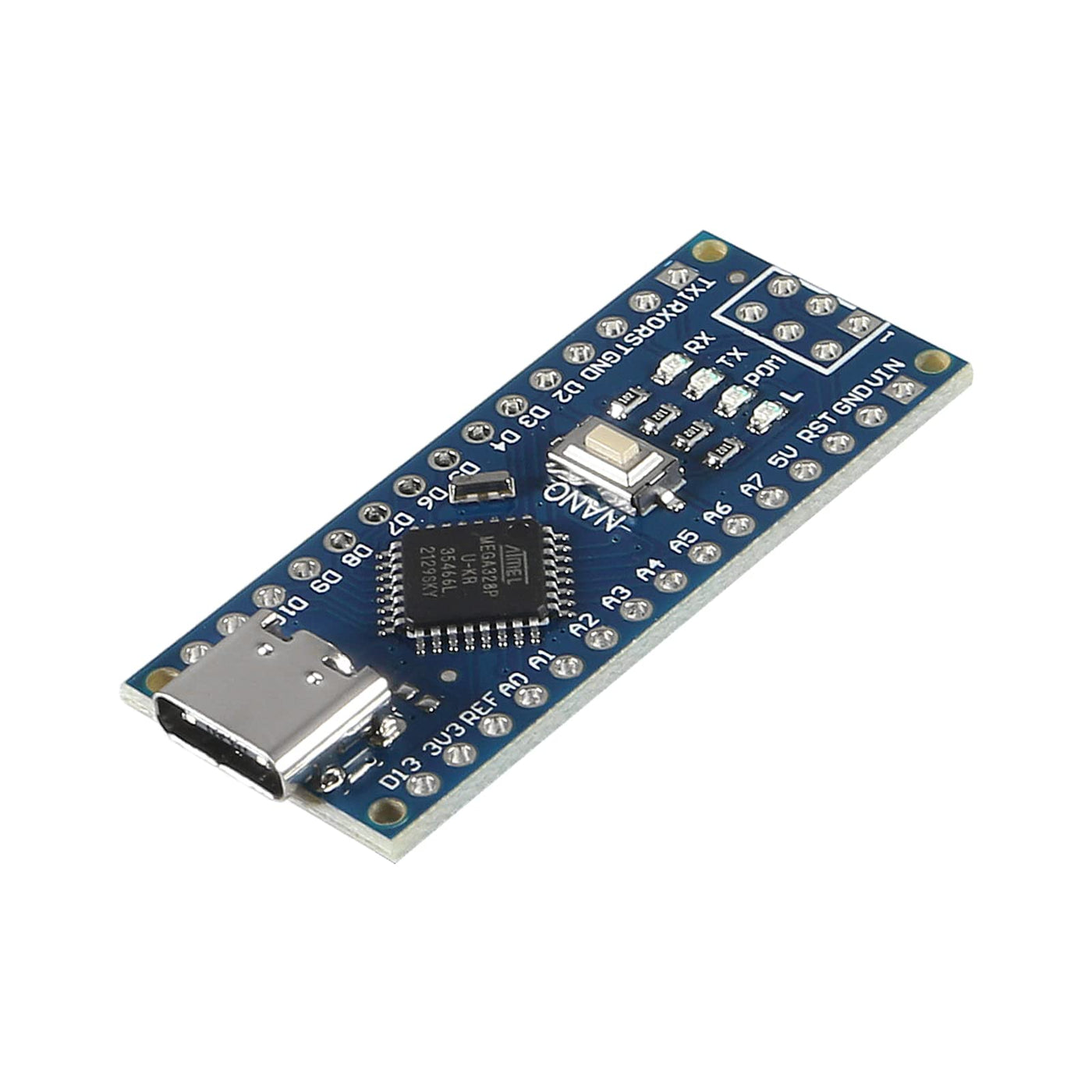

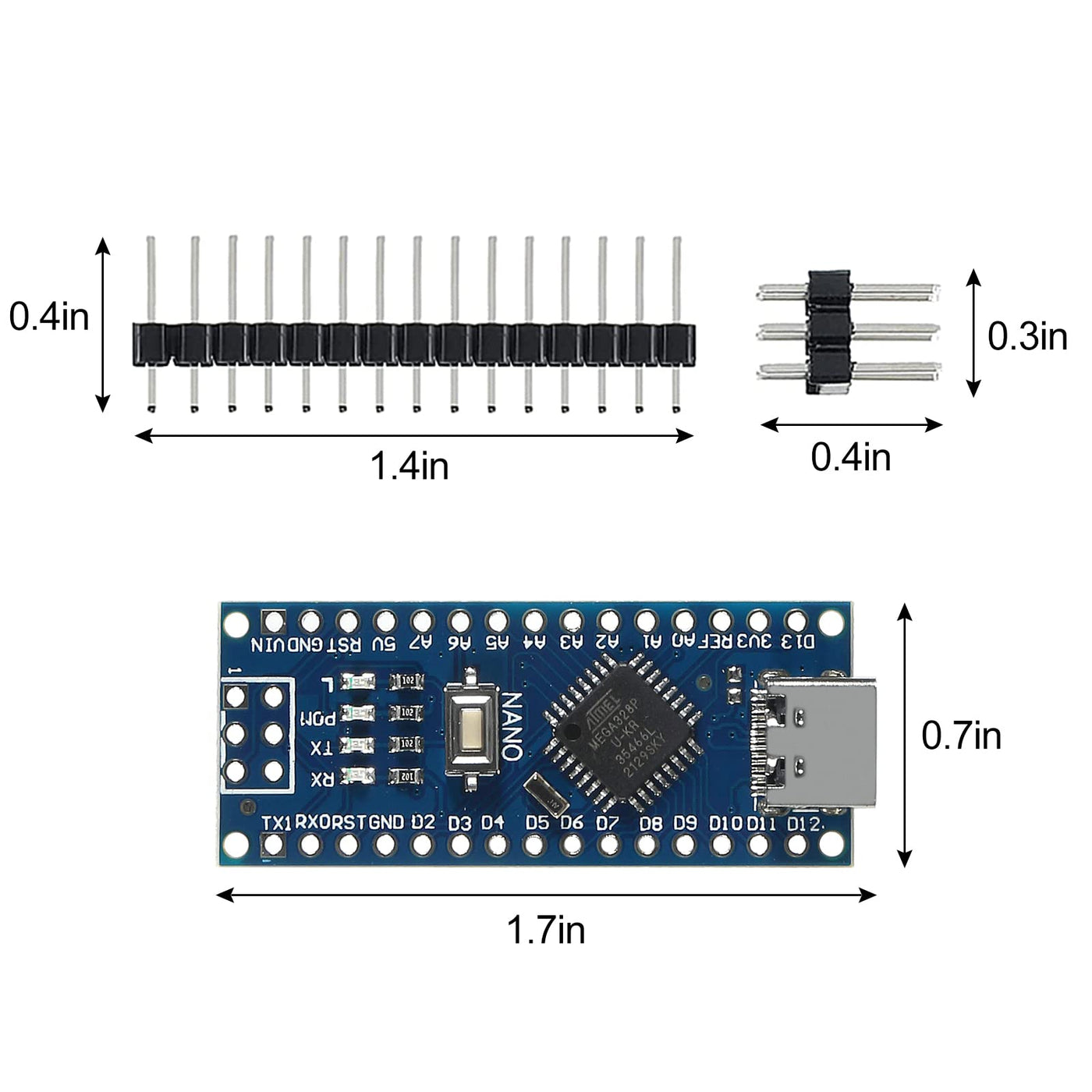

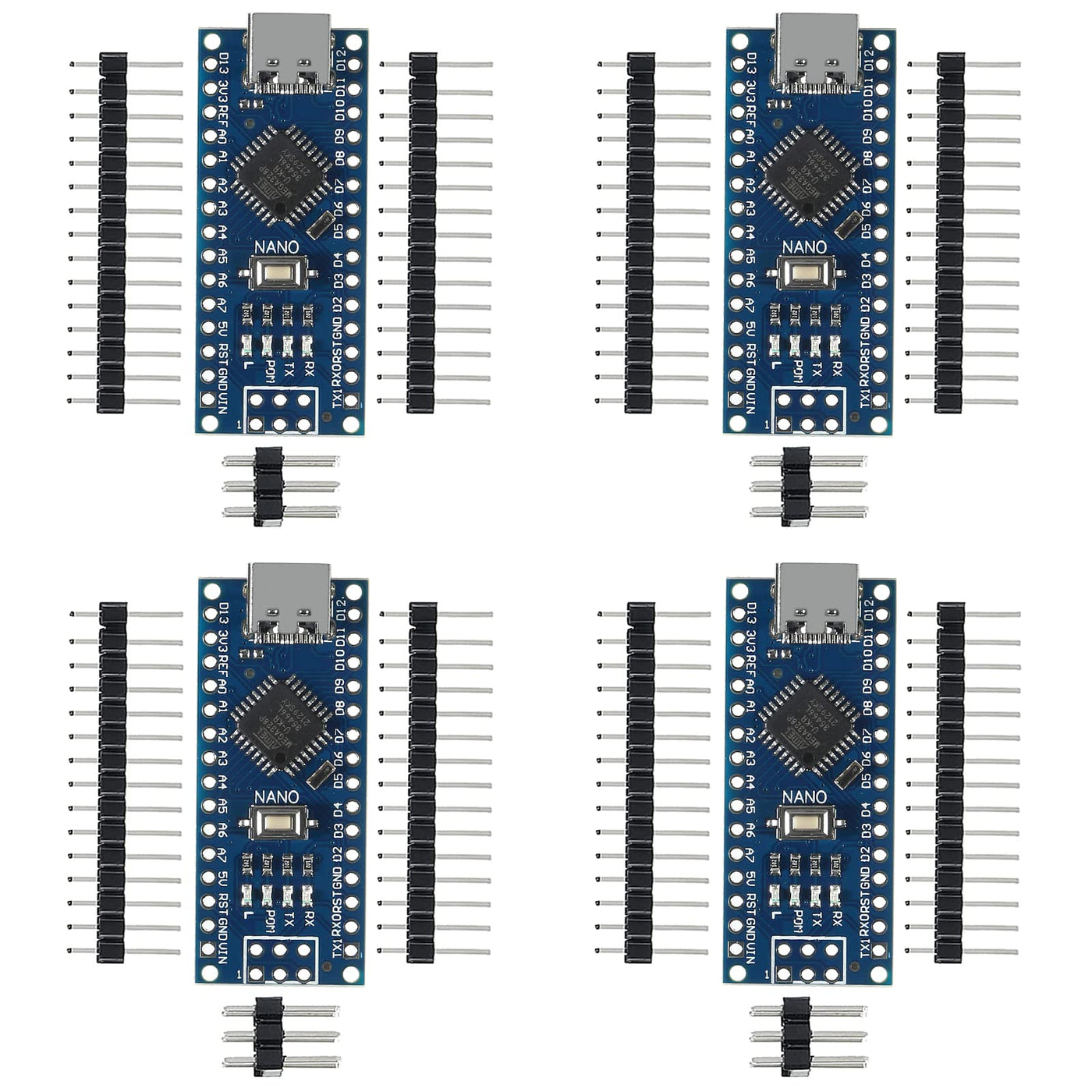

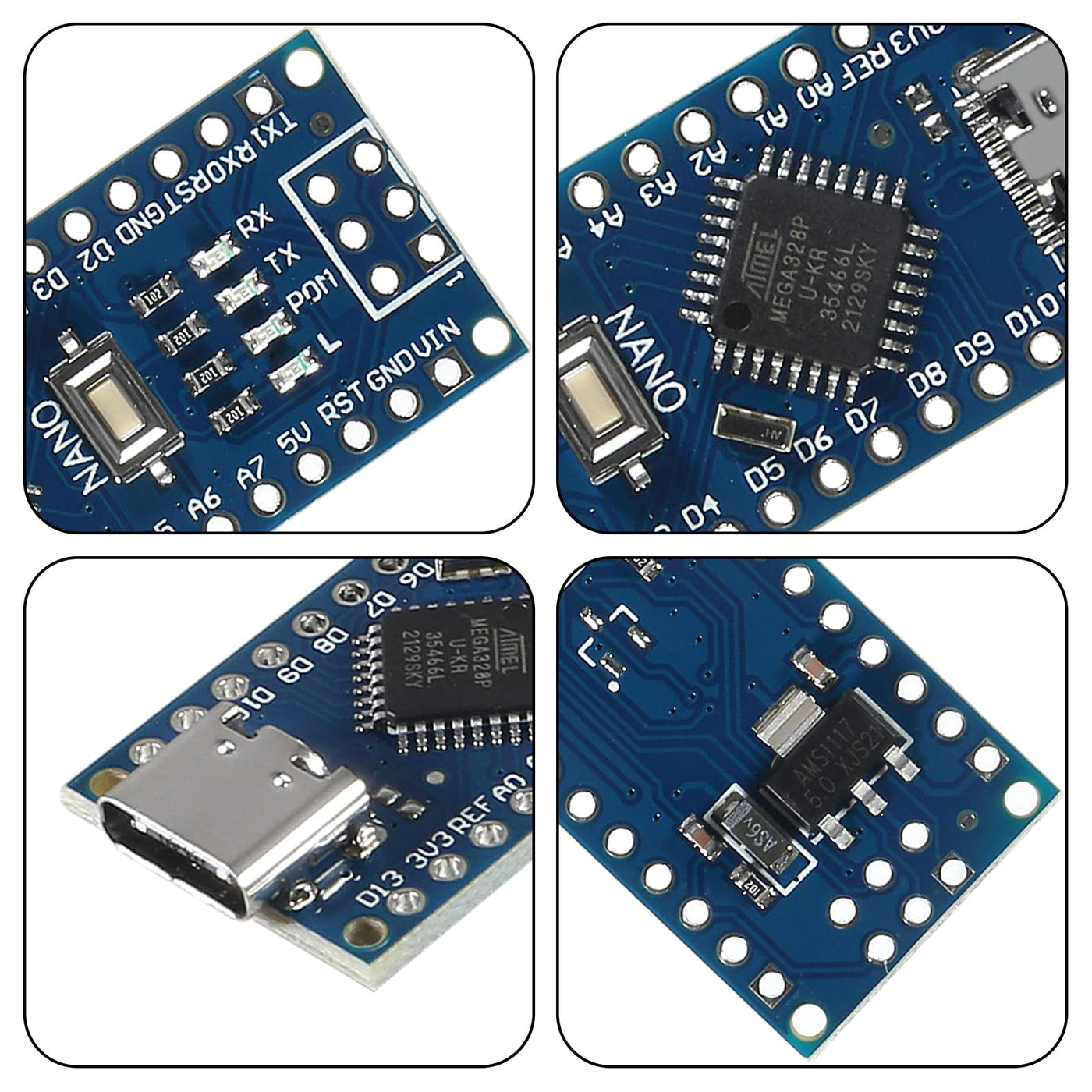

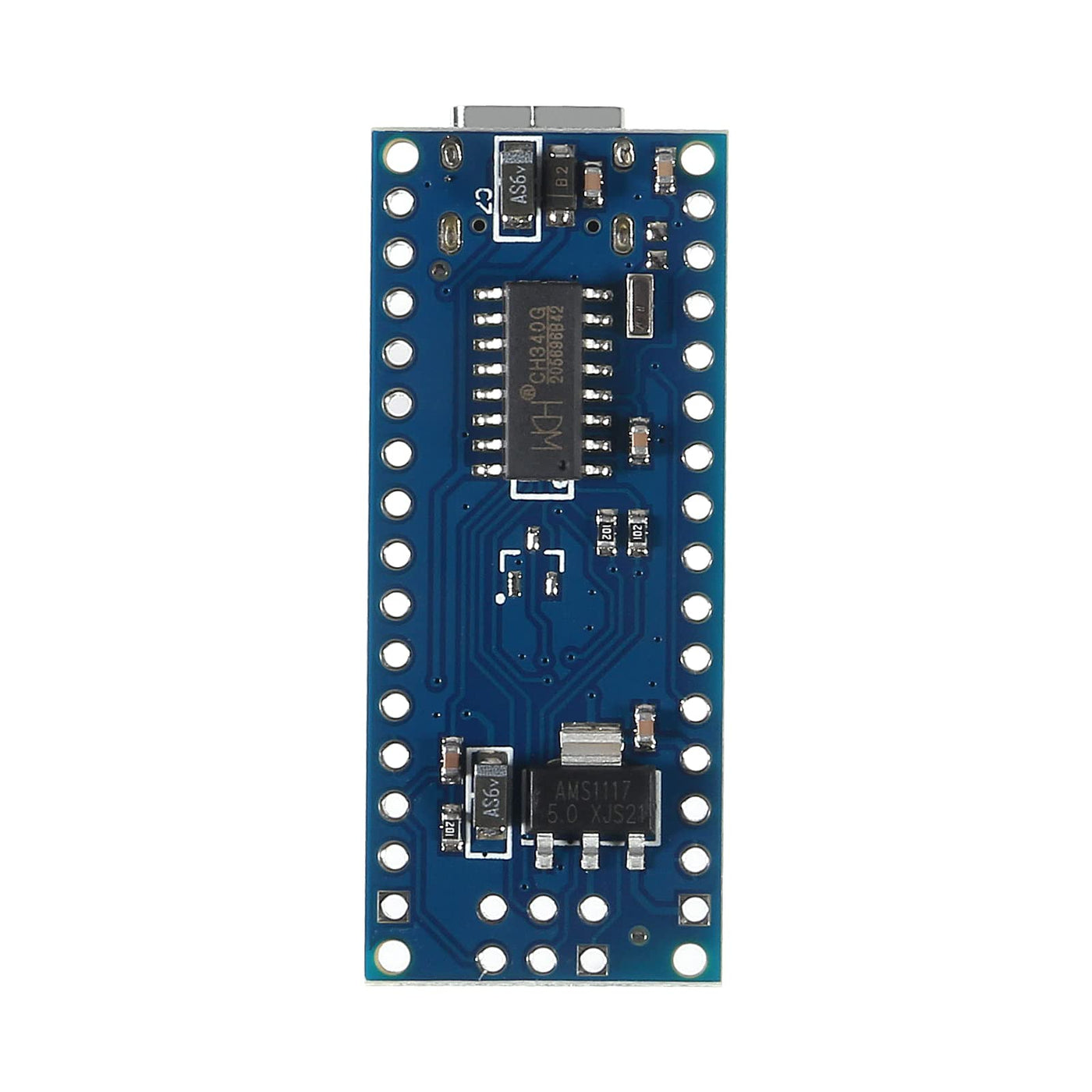

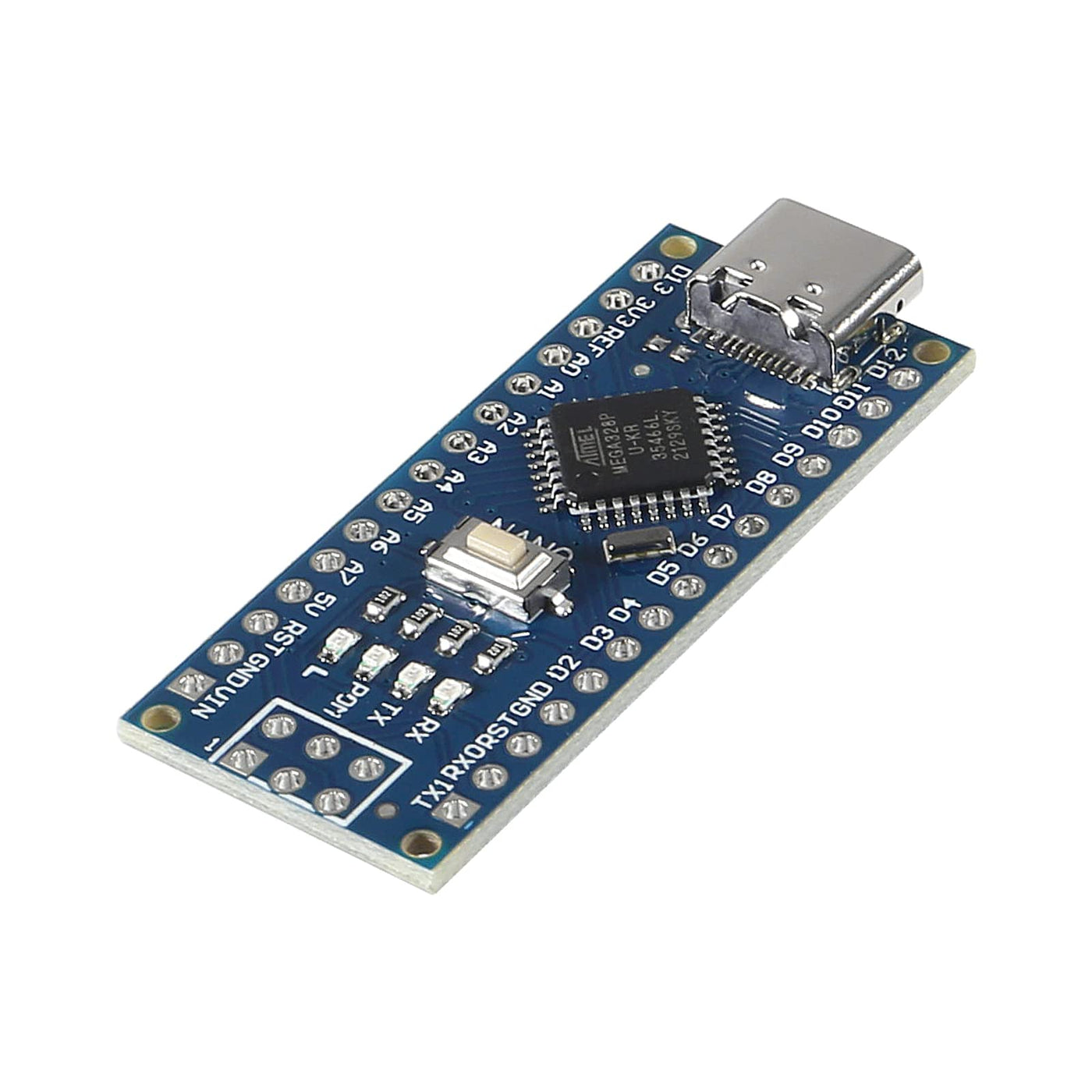

{"id":7363675881625,"title":"AITIAO 4Pcs Nano V3.0 ATmega328P Module CH340G 5V 16M Micro Controller Board Type-C Connection Compatible with Arduino Nano V3.0,Not Welded Module","handle":"aitiao-4pcs-nano-v3-0-atmega328p-module-ch340g-5v-16m-micro-controller-board-type-c-connection-compatible-with-arduino-nano-v3-0-not-welded-module","description":"\u003ch3\u003eAITIAO 4Pcs Nano V3.0 ATmega328P Module CH340G 5V 16M Micro Controller Board Type-C Connection Compatible with Arduino Nano V3.0,Not Welded Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe NANO board is designed in such a way that it is very easy for beginners to\nget started with microcontrollers. This board especially is breadboard\nfriendly is very easy to handle the connections. Features: 1. CH340G Replace\nFT232RL 2. Operating Voltage(logic level):5V 3. 8 analog inputs ports:A0 ~ A7\n4. 14 Digital input \/ output ports:TX,RX,D2 ~ D13 5. 6 PWM ports:D3, D5, D6,\nD9, D10, D11 6. 1 pairs of TTL level serial transceiver ports RX \/ TX 7. Using\nAtmel Atmega328P-AU MCU 8. Support USB download and Power; external 5V ~ 12V\nDC power supply;power supply by 9V battery; Support ISP download Package\nincluded: 4 USB Type-C Connector Nano V3.0 ATmega328P CH340G Controller\nBoard(Unsoldered)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe Nano is using the chips ATmega328P and CH340, Replace FT232RL.Support for external 5V~12V DC power supply, Support power supply by 9V battery.\u003c\/li\u003e\n \u003cli\u003eIt is a smallest, complete, and breadboard friendly board. It has everything that Diecimila\/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper.\u003c\/li\u003e\n \u003cli\u003eThe Nano can be powered via the Type-C USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.\u003c\/li\u003e\n \u003cli\u003eUses the CH340G instead of the FTDI FT232RL IC which can improve the transfer speed, increase the stability in windows and solve the issues with FTDI drivers bricking non-original chips, ATMEGA328P offers even more programming and data memory space. It also has a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one side, power, and ground on the other).\u003c\/li\u003e\n \u003cli\u003eYou will receive 4packs of Nano V3.0 Micro Controller Module, each Nano V3.0 Micro Controller module is equipped with 3pcs pin headers (2pcs 15pin headers +1pcs 6pin headers).\u003c\/li\u003e\n \u003c\/ul\u003e\n","published_at":"2022-05-03T15:48:22+10:00","created_at":"2022-04-11T11:36:12+10:00","vendor":"AITIAO","type":"Single Board Computers","tags":["wix"],"price":19200,"price_min":19200,"price_max":19200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42035744899225,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09PTPQV2Z","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"AITIAO 4Pcs Nano V3.0 ATmega328P Module CH340G 5V 16M Micro Controller Board Type-C Connection Compatible with Arduino Nano V3.0,Not Welded Module","public_title":null,"options":["Default Title"],"price":19200,"weight":29,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/products\/B09PTPQV2Z.jpg?v=1649726112","\/\/soundstores.net\/cdn\/shop\/products\/61PQmRZrWbL.jpg?v=1649640972","\/\/soundstores.net\/cdn\/shop\/products\/61OZCxg2zNL.jpg?v=1649640972","\/\/soundstores.net\/cdn\/shop\/products\/71bMUiMnxYL.jpg?v=1649640972","\/\/soundstores.net\/cdn\/shop\/products\/61f2zVVNqwL.jpg?v=1649640972","\/\/soundstores.net\/cdn\/shop\/products\/61aeR_UgNML.jpg?v=1649640972","\/\/soundstores.net\/cdn\/shop\/products\/61Eaw6ICPYL.jpg?v=1649640972","\/\/soundstores.net\/cdn\/shop\/products\/61cQXST1TaL.jpg?v=1649640972"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/products\/B09PTPQV2Z.jpg?v=1649726112","options":["Title"],"media":[{"alt":null,"id":26714854260889,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/products\/B09PTPQV2Z.jpg?v=1649726112"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/B09PTPQV2Z.jpg?v=1649726112","width":1600},{"alt":null,"id":26705701929113,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61PQmRZrWbL.jpg?v=1649640972"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61PQmRZrWbL.jpg?v=1649640972","width":1600},{"alt":null,"id":26705701961881,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61OZCxg2zNL.jpg?v=1649640972"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61OZCxg2zNL.jpg?v=1649640972","width":1600},{"alt":null,"id":26705701994649,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/products\/71bMUiMnxYL.jpg?v=1649640972"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/71bMUiMnxYL.jpg?v=1649640972","width":1600},{"alt":null,"id":26705702027417,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61f2zVVNqwL.jpg?v=1649640972"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61f2zVVNqwL.jpg?v=1649640972","width":1600},{"alt":null,"id":26705702060185,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61aeR_UgNML.jpg?v=1649640972"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61aeR_UgNML.jpg?v=1649640972","width":1600},{"alt":null,"id":26705702092953,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61Eaw6ICPYL.jpg?v=1649640972"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61Eaw6ICPYL.jpg?v=1649640972","width":1600},{"alt":null,"id":26705702125721,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61cQXST1TaL.jpg?v=1649640972"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61cQXST1TaL.jpg?v=1649640972","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAITIAO 4Pcs Nano V3.0 ATmega328P Module CH340G 5V 16M Micro Controller Board Type-C Connection Compatible with Arduino Nano V3.0,Not Welded Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe NANO board is designed in such a way that it is very easy for beginners to\nget started with microcontrollers. This board especially is breadboard\nfriendly is very easy to handle the connections. Features: 1. CH340G Replace\nFT232RL 2. Operating Voltage(logic level):5V 3. 8 analog inputs ports:A0 ~ A7\n4. 14 Digital input \/ output ports:TX,RX,D2 ~ D13 5. 6 PWM ports:D3, D5, D6,\nD9, D10, D11 6. 1 pairs of TTL level serial transceiver ports RX \/ TX 7. Using\nAtmel Atmega328P-AU MCU 8. Support USB download and Power; external 5V ~ 12V\nDC power supply;power supply by 9V battery; Support ISP download Package\nincluded: 4 USB Type-C Connector Nano V3.0 ATmega328P CH340G Controller\nBoard(Unsoldered)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe Nano is using the chips ATmega328P and CH340, Replace FT232RL.Support for external 5V~12V DC power supply, Support power supply by 9V battery.\u003c\/li\u003e\n \u003cli\u003eIt is a smallest, complete, and breadboard friendly board. It has everything that Diecimila\/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper.\u003c\/li\u003e\n \u003cli\u003eThe Nano can be powered via the Type-C USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.\u003c\/li\u003e\n \u003cli\u003eUses the CH340G instead of the FTDI FT232RL IC which can improve the transfer speed, increase the stability in windows and solve the issues with FTDI drivers bricking non-original chips, ATMEGA328P offers even more programming and data memory space. It also has a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one side, power, and ground on the other).\u003c\/li\u003e\n \u003cli\u003eYou will receive 4packs of Nano V3.0 Micro Controller Module, each Nano V3.0 Micro Controller module is equipped with 3pcs pin headers (2pcs 15pin headers +1pcs 6pin headers).\u003c\/li\u003e\n \u003c\/ul\u003e\n"}
