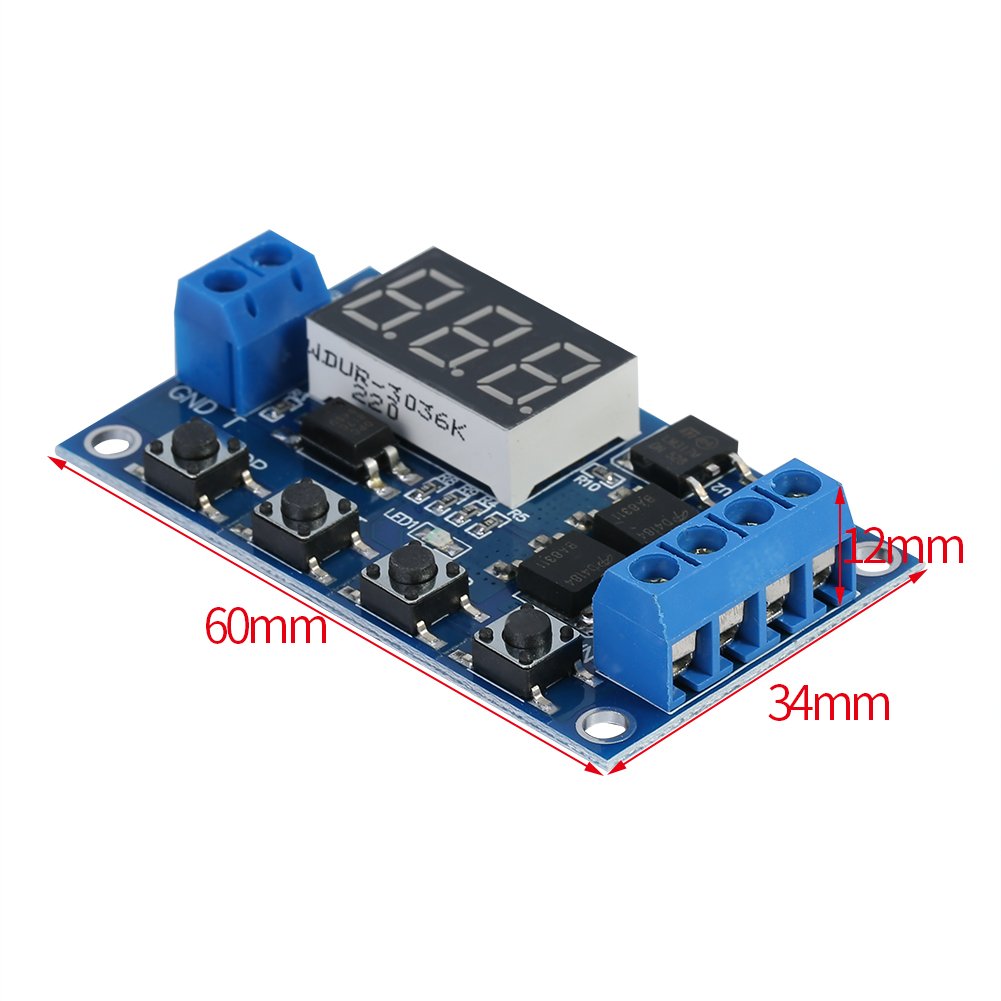

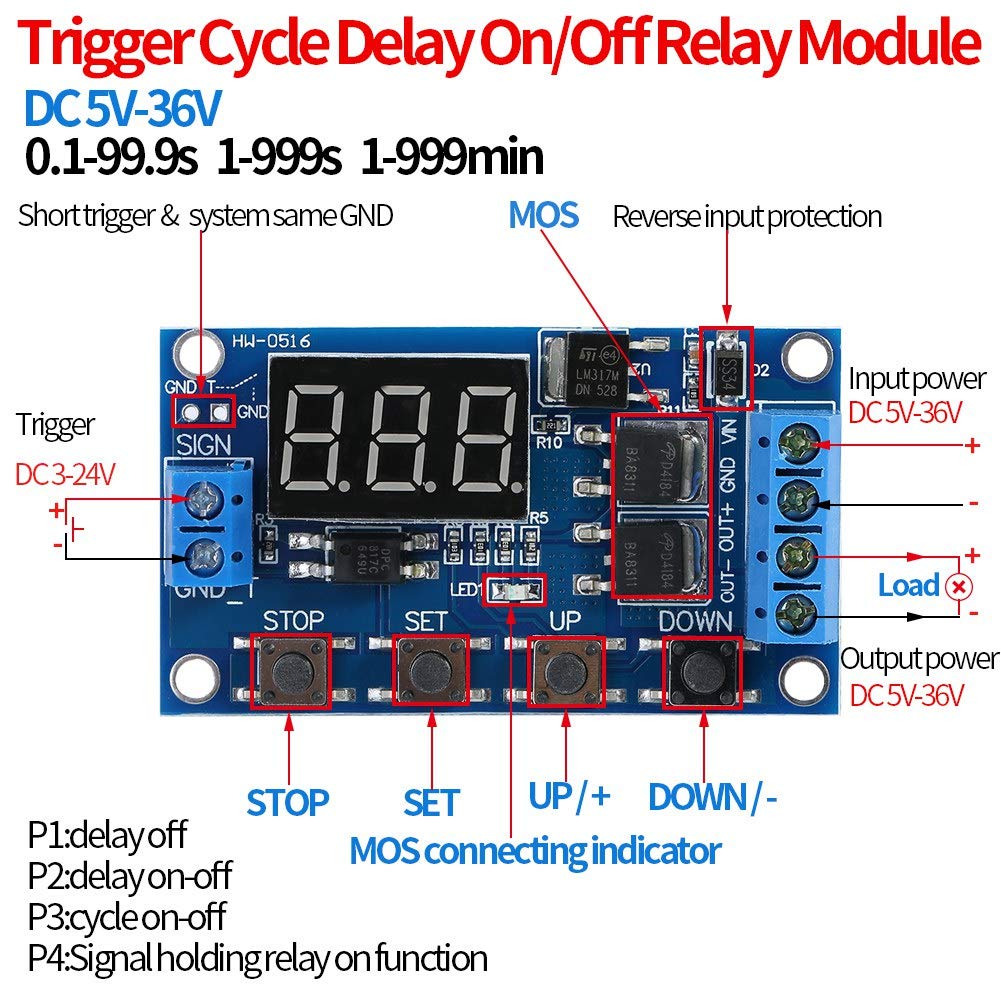

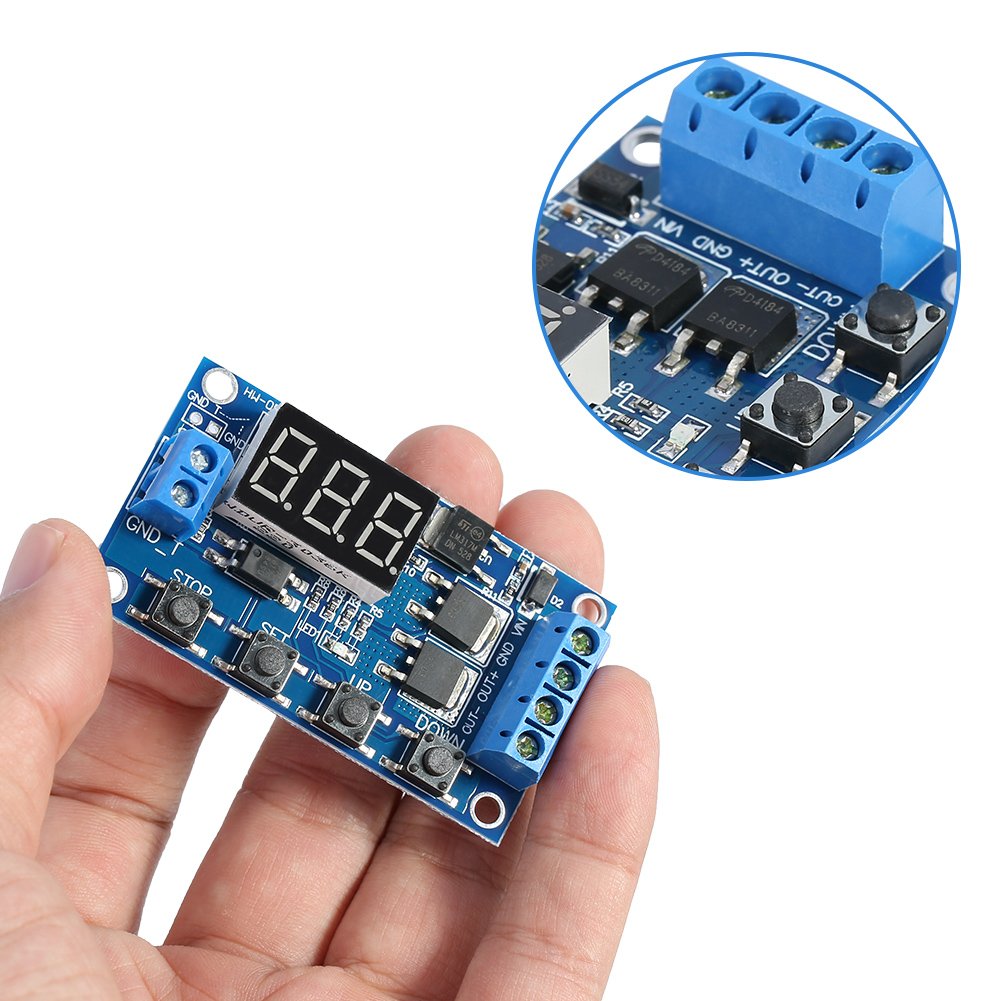

{"id":8534007840921,"title":"Akozon Timer Module, DC 5V-36V Trigger Cycle Delay Timer Switch Turn On\/Off Relay Module with LED Display","handle":"akozon-timer-module-dc-5v-36v-trigger-cycle-delay-timer-switch-turn-on-off-relay-module-with-led-display","description":"\u003ch3\u003eAkozon Timer Module, DC 5V-36V Trigger Cycle Delay Timer Switch Turn On\/Off Relay Module with LED Display\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Voltage: DC 5V ~ 36V. Trigger signal source: high voltage\nlevel trigger (3.0V~24V), signal ground and system ground are not common.\nOutput capacity: DC 5V ~ 36V, at room temperature, continuous current is 15A,\npower 400W. With improved heat dissipation, the current can be up to 30A.\nStandby current: 20 mA. Operating current: 50 mA. Working temperature: -40 ~\n85 °C. Clock (time delay) range: 0.1 seconds to 999 minutes. Size: 60 34 12 mm\n\/ 2.36 1.33 0.47 inches. How to set the clock range: After setting the\nparameter value when selecting the mode, press the \"STOP\" button to adjust the\nclock range; XXX The last decimal point is on, range: 1 second to 999 seconds.\nXX. X The penultimate decimal point illuminates, range: 0.1 seconds to 99.9\nseconds. X. X. X light up every 3 decimal points, range: 1 minute to 999\nminutes. For example, if you want to set \"OP\" as 3.2 seconds, you need to\nlight up the penultimate decimal point and set the digit display as 03.2.\nNote: 1. The module is an active output, the output voltage corresponds to the\ninput voltage. 2. \"DC +\" and \"load +\" are internally short-circuited\n(connected), but \"DC-\" and \"load -\" cannot be short-circuited, otherwise the\nload cannot be switched on and off, which corresponds to turning on the load\nalways. Package includes: 1 x timer module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNumber of switching times possible\u003c\/li\u003e\n \u003cli\u003eNo noise was made during on\/off switching, no sparks and no electromagnetic interference\u003c\/li\u003e\n \u003cli\u003eCompared to normal electromagnetic relay modules, the delay on\/off switch module has a longer service life\u003c\/li\u003e\n \u003cli\u003eDual MOS in parallel active output, low internal resistance, larger current, strong power; at room temperature, the operating current is up to 15A, the power up to 400W, which can be used for most devices\u003c\/li\u003e\n \u003cli\u003eThe delay on\/off switch module has a wide voltage input of 5V to 36V, which is usually used to control DC motors, lights, LED strips, micro pumps, solenoid valves, etc., very convenient\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T08:52:06+10:00","created_at":"2025-09-27T08:52:02+10:00","vendor":"Akozon","type":"Power Entry Modules","tags":["industryDE_Sep2025"],"price":11100,"price_min":11100,"price_max":11100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45749913583769,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07H6KSFL3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Akozon Timer Module, DC 5V-36V Trigger Cycle Delay Timer Switch Turn On\/Off Relay Module with LED Display","public_title":null,"options":["Default Title"],"price":11100,"weight":60,"compare_at_price":null,"inventory_management":"shopify","barcode":"798382844144","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B07H6KSFL3.jpg?v=1775753793","\/\/soundstores.net\/cdn\/shop\/files\/719jnNzjaCL.jpg?v=1758927125","\/\/soundstores.net\/cdn\/shop\/files\/61hKcff5_LL.jpg?v=1758927124","\/\/soundstores.net\/cdn\/shop\/files\/61FGtG2Ys6L.jpg?v=1758927124","\/\/soundstores.net\/cdn\/shop\/files\/61v8RYLrp7L.jpg?v=1758927125","\/\/soundstores.net\/cdn\/shop\/files\/71eabuPuRwL.jpg?v=1758927125","\/\/soundstores.net\/cdn\/shop\/files\/71aUBHdDKZL.jpg?v=1758927125","\/\/soundstores.net\/cdn\/shop\/files\/61njVzn-UJL.jpg?v=1758927125","\/\/soundstores.net\/cdn\/shop\/files\/61bANGyCOdL.jpg?v=1758927124"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07H6KSFL3.jpg?v=1775753793","options":["Title"],"media":[{"alt":null,"id":34662609420441,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07H6KSFL3.jpg?v=1775753793"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07H6KSFL3.jpg?v=1775753793","width":1001},{"alt":null,"id":34662609453209,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/719jnNzjaCL.jpg?v=1758927125"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/719jnNzjaCL.jpg?v=1758927125","width":1001},{"alt":null,"id":34662609485977,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61hKcff5_LL.jpg?v=1758927124"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61hKcff5_LL.jpg?v=1758927124","width":1001},{"alt":null,"id":34662609518745,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61FGtG2Ys6L.jpg?v=1758927124"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61FGtG2Ys6L.jpg?v=1758927124","width":1001},{"alt":null,"id":34662609551513,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61v8RYLrp7L.jpg?v=1758927125"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61v8RYLrp7L.jpg?v=1758927125","width":1001},{"alt":null,"id":34662609584281,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71eabuPuRwL.jpg?v=1758927125"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71eabuPuRwL.jpg?v=1758927125","width":1001},{"alt":null,"id":34662609617049,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71aUBHdDKZL.jpg?v=1758927125"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71aUBHdDKZL.jpg?v=1758927125","width":1001},{"alt":null,"id":34662609649817,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61njVzn-UJL.jpg?v=1758927125"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61njVzn-UJL.jpg?v=1758927125","width":1001},{"alt":null,"id":34662609682585,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61bANGyCOdL.jpg?v=1758927124"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61bANGyCOdL.jpg?v=1758927124","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAkozon Timer Module, DC 5V-36V Trigger Cycle Delay Timer Switch Turn On\/Off Relay Module with LED Display\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Voltage: DC 5V ~ 36V. Trigger signal source: high voltage\nlevel trigger (3.0V~24V), signal ground and system ground are not common.\nOutput capacity: DC 5V ~ 36V, at room temperature, continuous current is 15A,\npower 400W. With improved heat dissipation, the current can be up to 30A.\nStandby current: 20 mA. Operating current: 50 mA. Working temperature: -40 ~\n85 °C. Clock (time delay) range: 0.1 seconds to 999 minutes. Size: 60 34 12 mm\n\/ 2.36 1.33 0.47 inches. How to set the clock range: After setting the\nparameter value when selecting the mode, press the \"STOP\" button to adjust the\nclock range; XXX The last decimal point is on, range: 1 second to 999 seconds.\nXX. X The penultimate decimal point illuminates, range: 0.1 seconds to 99.9\nseconds. X. X. X light up every 3 decimal points, range: 1 minute to 999\nminutes. For example, if you want to set \"OP\" as 3.2 seconds, you need to\nlight up the penultimate decimal point and set the digit display as 03.2.\nNote: 1. The module is an active output, the output voltage corresponds to the\ninput voltage. 2. \"DC +\" and \"load +\" are internally short-circuited\n(connected), but \"DC-\" and \"load -\" cannot be short-circuited, otherwise the\nload cannot be switched on and off, which corresponds to turning on the load\nalways. Package includes: 1 x timer module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNumber of switching times possible\u003c\/li\u003e\n \u003cli\u003eNo noise was made during on\/off switching, no sparks and no electromagnetic interference\u003c\/li\u003e\n \u003cli\u003eCompared to normal electromagnetic relay modules, the delay on\/off switch module has a longer service life\u003c\/li\u003e\n \u003cli\u003eDual MOS in parallel active output, low internal resistance, larger current, strong power; at room temperature, the operating current is up to 15A, the power up to 400W, which can be used for most devices\u003c\/li\u003e\n \u003cli\u003eThe delay on\/off switch module has a wide voltage input of 5V to 36V, which is usually used to control DC motors, lights, LED strips, micro pumps, solenoid valves, etc., very convenient\u003c\/li\u003e\n \u003c\/ul\u003e"}
