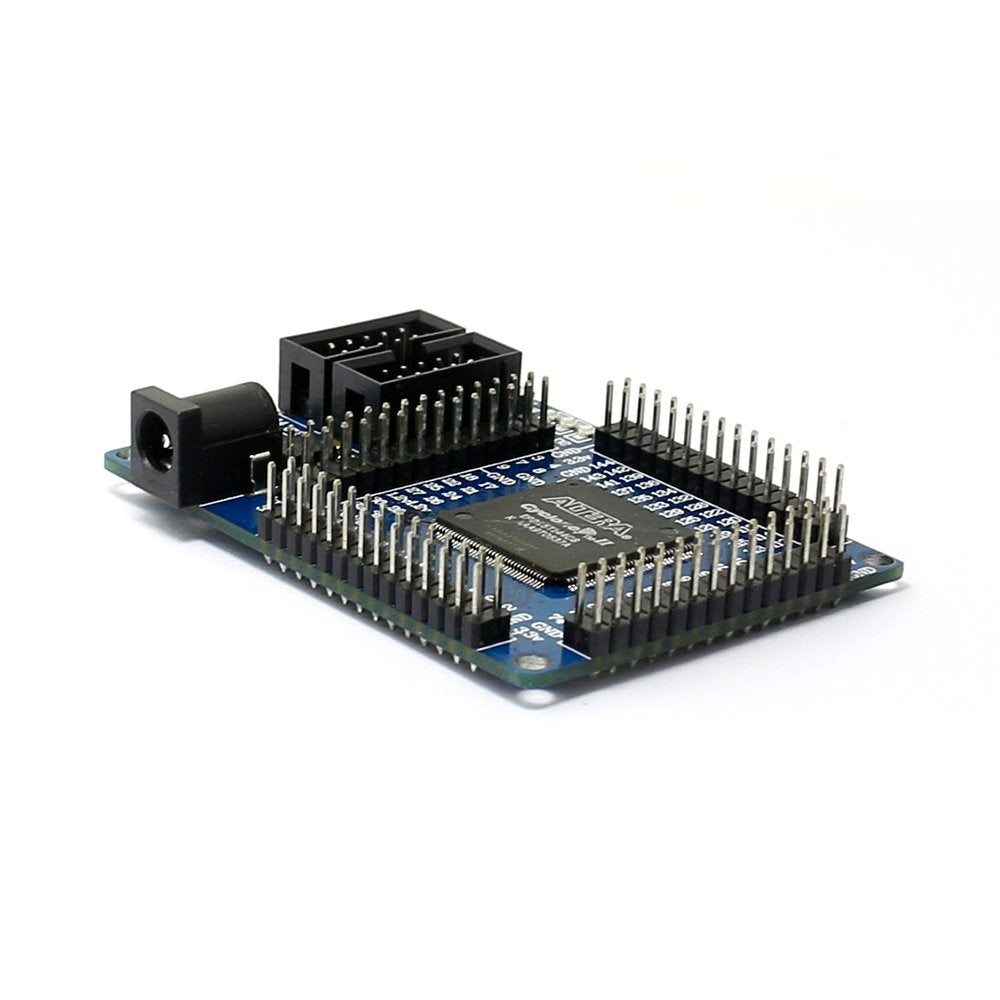

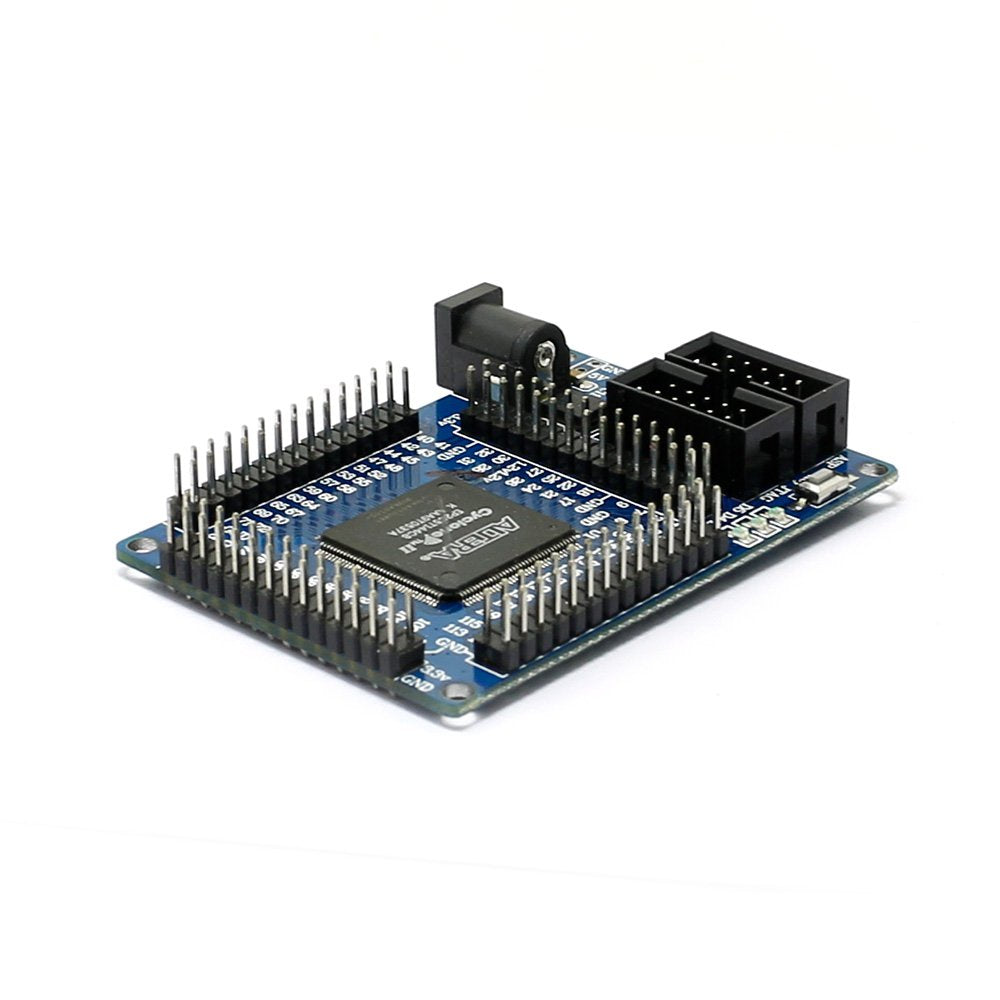

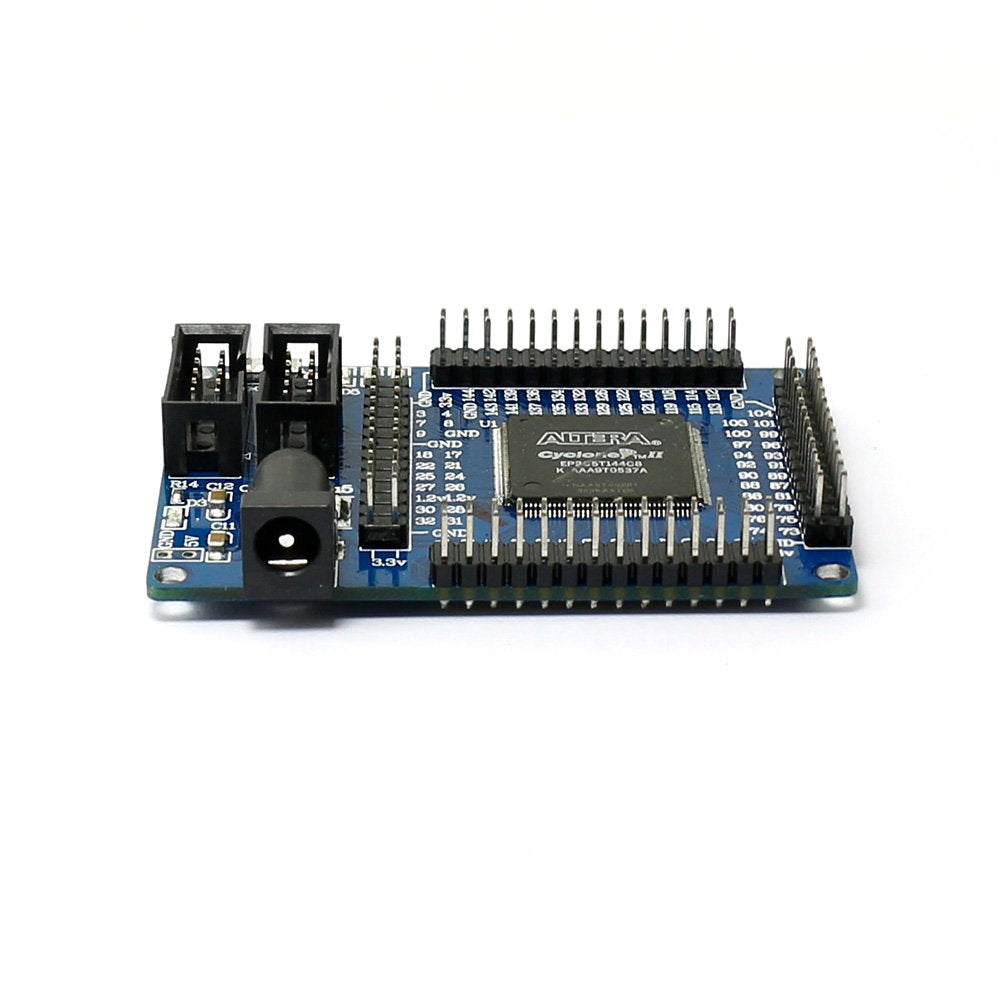

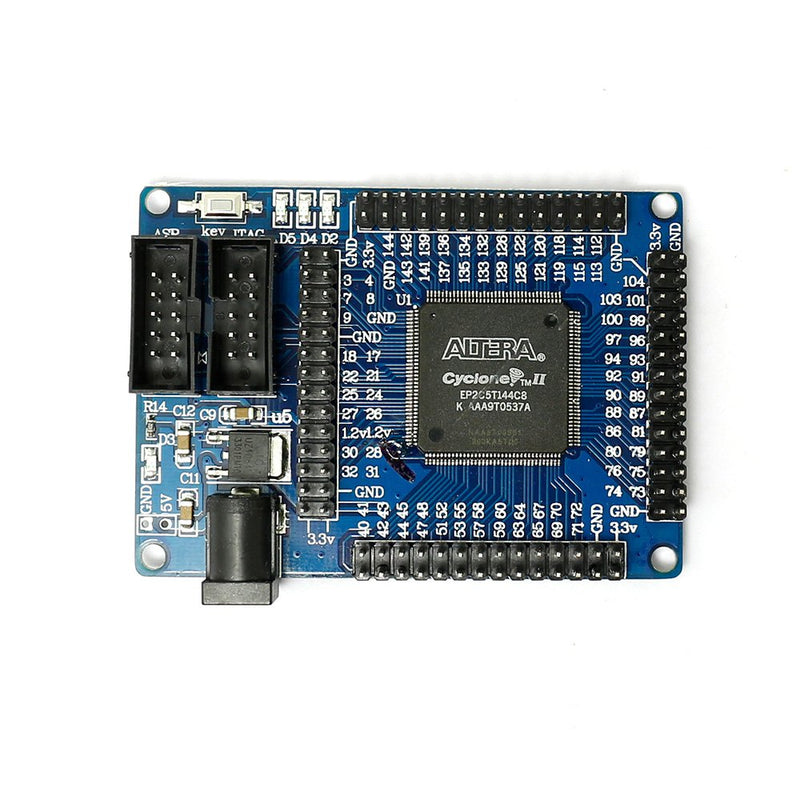

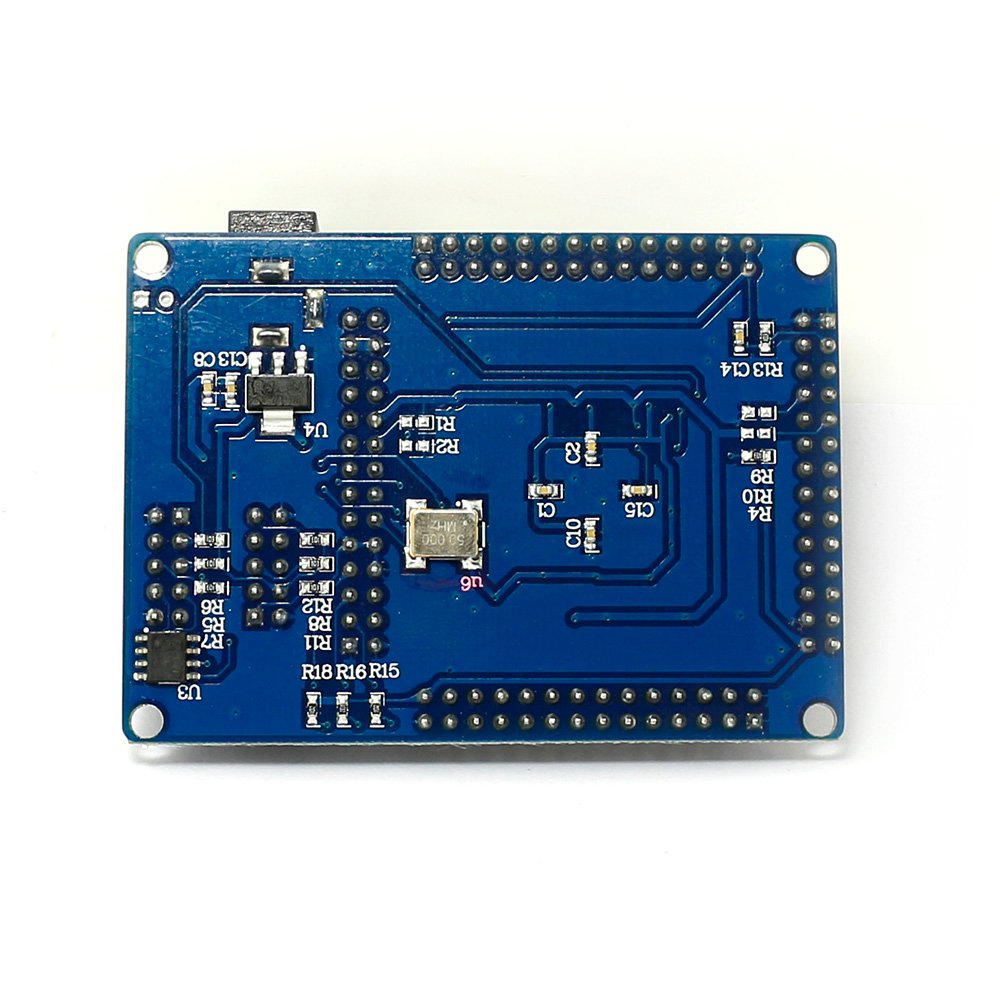

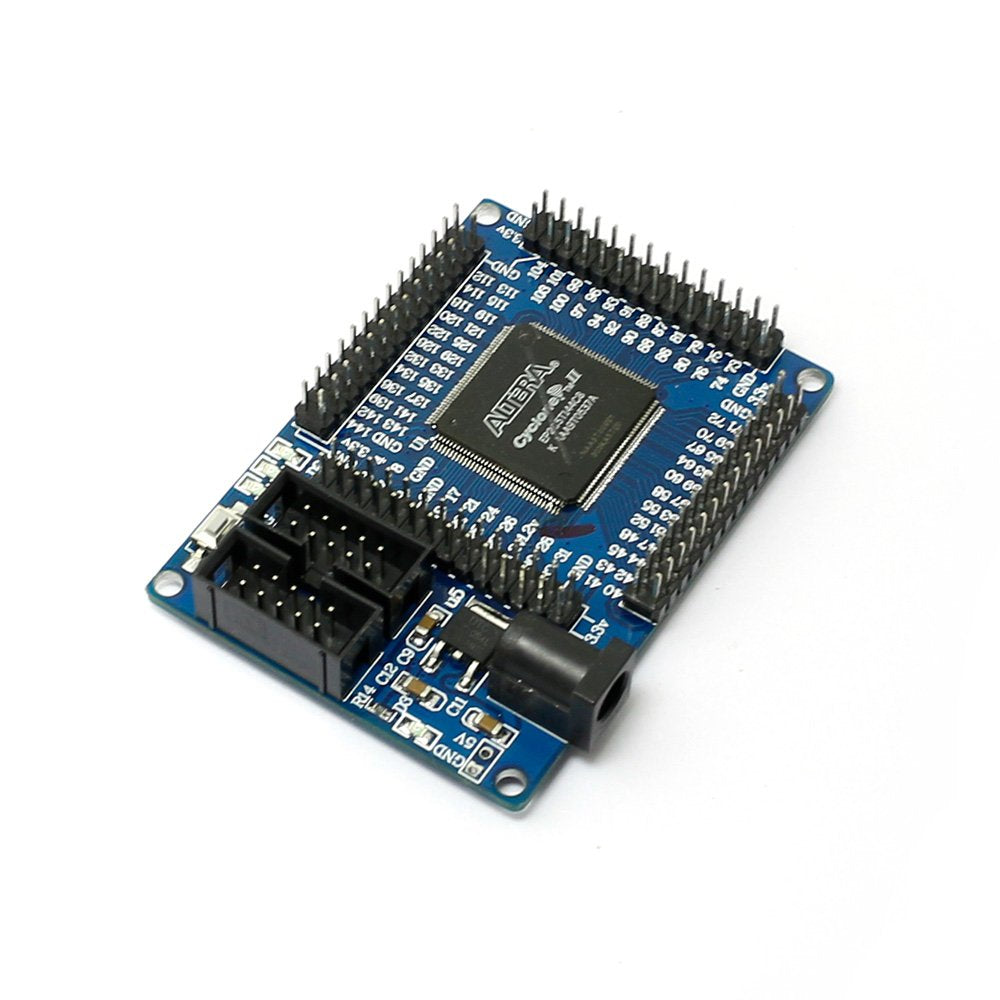

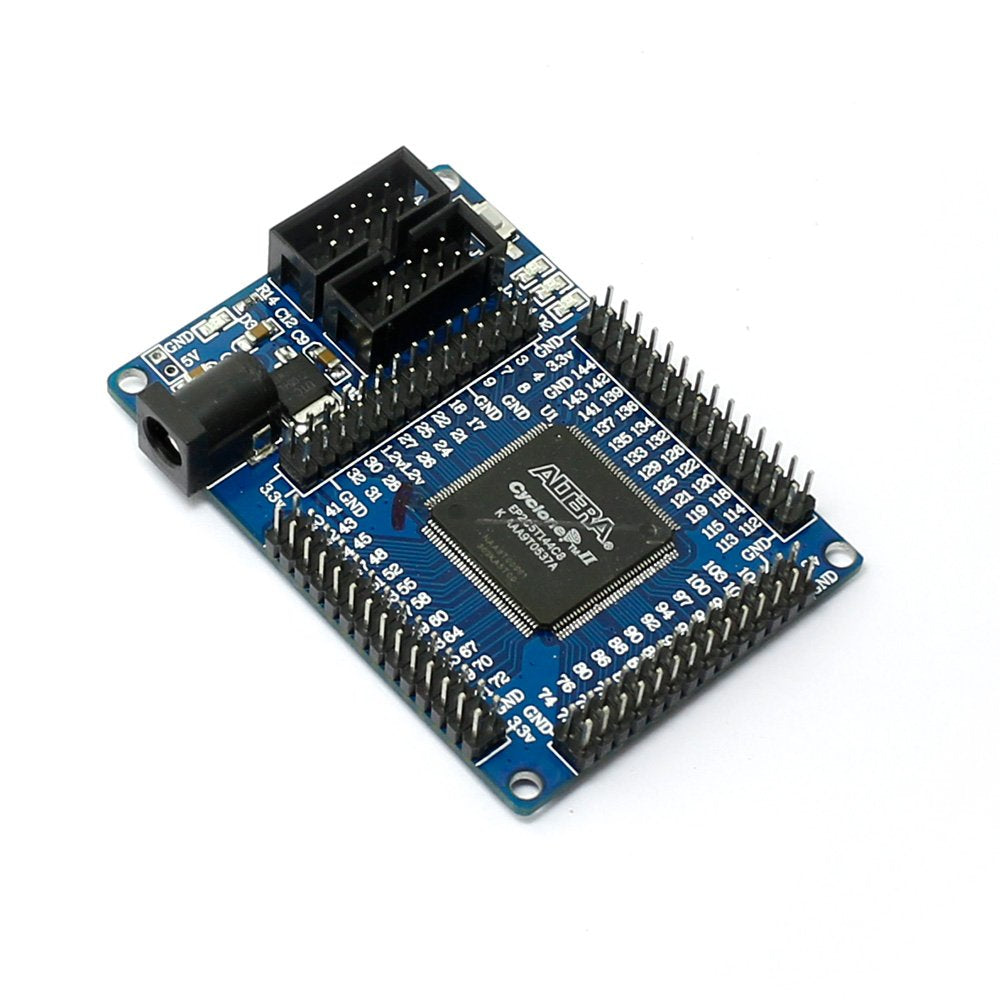

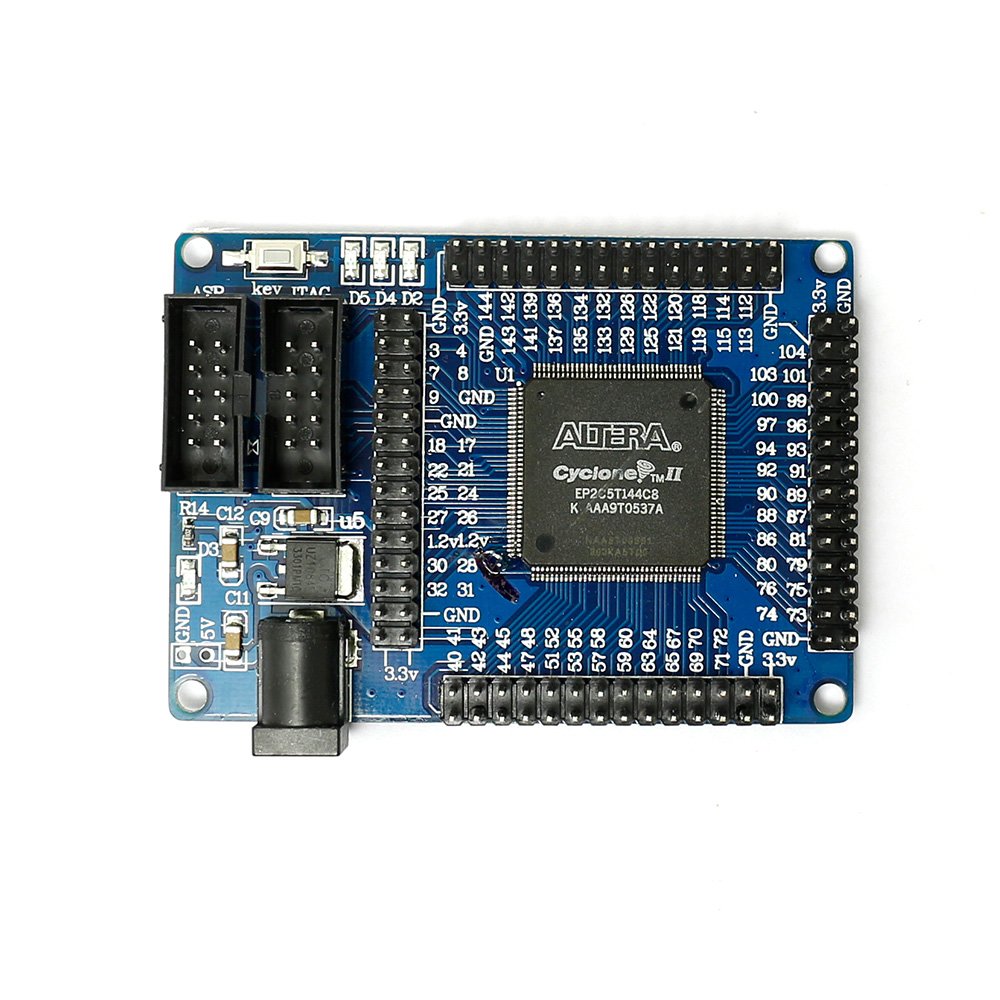

{"id":8530693324953,"title":"ALTERA FPGA Cyclone II EP2C5T144 Minimum System Development Board","handle":"altera-fpga-cyclone-ii-ep2c5t144-minimum-system-development-board","description":"\u003ch3\u003eALTERA FPGA Cyclone II EP2C5T144 Minimum System Development Board\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Hardware configuration: 1 .On-board EP2C5T144 chip. 2 .The\nconfiguration EPROM chip using EPCS4, size is 4Mbit 3 .On-board 50M active SMD\ncrystal (the crystal in the back of the board) 4 .Using big power electrical\noutlet, a single 5V power supply 5 .Panel power indicator and reset switch 6.\n3 SMD LEDs on-board can do LED test experiments, more experiments using lead\n7. All the IO ports, and clock pins through the pin leads, through these\ninterfaces can be extended to any memory and peripheral 8 .The board high\nquality tantalum capacitors for power supply filtering Support the development\nof NiosII embedded CPU Dowload documents: \nload\/ALTERA%20FPGA%20Cyclone%20II%20EP2C5T144%20Minimum%20System%20Development\n%20Board.rar Feature: 1 .ALTERA company Cyclone II EP2C5T144 chip as the core\nof the smallest system, the FPGA easily embedded in the actual system 2\n.Complete the simple logic control, data acquisition, signal processing,\nmathematical calculations and other functions 3 .Core board FPGA chip pin all\nleads directly to the board into the application board, the board's 4.5V power\nsupply can be introduced through the outlet can also be introduced through the\nrow array 5. Very compact size: 6 (cm) 8 (cm) Package: 1ALTERA FPGA Cyclone\nII EP2C5T144 Minimum System Development Board\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eALTERA FPGA Cyclone II EP2C5T144 Minimum System Development Board\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-24T23:50:39+10:00","created_at":"2025-09-24T23:50:35+10:00","vendor":"Q-BAIHE","type":"Programmable Logic Circuits","tags":["industryDE_Sep2025"],"price":32800,"price_min":32800,"price_max":32800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45743343272089,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B017SDX7BU","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ALTERA FPGA Cyclone II EP2C5T144 Minimum System Development Board","public_title":null,"options":["Default Title"],"price":32800,"weight":50,"compare_at_price":null,"inventory_management":"shopify","barcode":"DF-EP2C5T144","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B017SDX7BU.jpg?v=1775749459","\/\/soundstores.net\/cdn\/shop\/files\/61QaZdq_YNL.jpg?v=1758721837","\/\/soundstores.net\/cdn\/shop\/files\/61q-qLep8PL.jpg?v=1758721838","\/\/soundstores.net\/cdn\/shop\/files\/61g2tZlmwtL.jpg?v=1758721837","\/\/soundstores.net\/cdn\/shop\/files\/61yWw1yJN0L.jpg?v=1758721838","\/\/soundstores.net\/cdn\/shop\/files\/61kSxSZWbdL.jpg?v=1758721837","\/\/soundstores.net\/cdn\/shop\/files\/61gInrOAX-L.jpg?v=1758721837"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B017SDX7BU.jpg?v=1775749459","options":["Title"],"media":[{"alt":null,"id":34626615574681,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B017SDX7BU.jpg?v=1775749459"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B017SDX7BU.jpg?v=1775749459","width":1000},{"alt":null,"id":34626615607449,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61QaZdq_YNL.jpg?v=1758721837"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61QaZdq_YNL.jpg?v=1758721837","width":1000},{"alt":null,"id":34626615640217,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61q-qLep8PL.jpg?v=1758721838"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61q-qLep8PL.jpg?v=1758721838","width":1000},{"alt":null,"id":34626615672985,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61g2tZlmwtL.jpg?v=1758721837"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61g2tZlmwtL.jpg?v=1758721837","width":1000},{"alt":null,"id":34626615705753,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61yWw1yJN0L.jpg?v=1758721838"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61yWw1yJN0L.jpg?v=1758721838","width":1000},{"alt":null,"id":34626615738521,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61kSxSZWbdL.jpg?v=1758721837"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61kSxSZWbdL.jpg?v=1758721837","width":1000},{"alt":null,"id":34626615771289,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61gInrOAX-L.jpg?v=1758721837"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61gInrOAX-L.jpg?v=1758721837","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eALTERA FPGA Cyclone II EP2C5T144 Minimum System Development Board\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Hardware configuration: 1 .On-board EP2C5T144 chip. 2 .The\nconfiguration EPROM chip using EPCS4, size is 4Mbit 3 .On-board 50M active SMD\ncrystal (the crystal in the back of the board) 4 .Using big power electrical\noutlet, a single 5V power supply 5 .Panel power indicator and reset switch 6.\n3 SMD LEDs on-board can do LED test experiments, more experiments using lead\n7. All the IO ports, and clock pins through the pin leads, through these\ninterfaces can be extended to any memory and peripheral 8 .The board high\nquality tantalum capacitors for power supply filtering Support the development\nof NiosII embedded CPU Dowload documents: \nload\/ALTERA%20FPGA%20Cyclone%20II%20EP2C5T144%20Minimum%20System%20Development\n%20Board.rar Feature: 1 .ALTERA company Cyclone II EP2C5T144 chip as the core\nof the smallest system, the FPGA easily embedded in the actual system 2\n.Complete the simple logic control, data acquisition, signal processing,\nmathematical calculations and other functions 3 .Core board FPGA chip pin all\nleads directly to the board into the application board, the board's 4.5V power\nsupply can be introduced through the outlet can also be introduced through the\nrow array 5. Very compact size: 6 (cm) 8 (cm) Package: 1ALTERA FPGA Cyclone\nII EP2C5T144 Minimum System Development Board\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eALTERA FPGA Cyclone II EP2C5T144 Minimum System Development Board\u003c\/li\u003e\n \u003c\/ul\u003e"}
