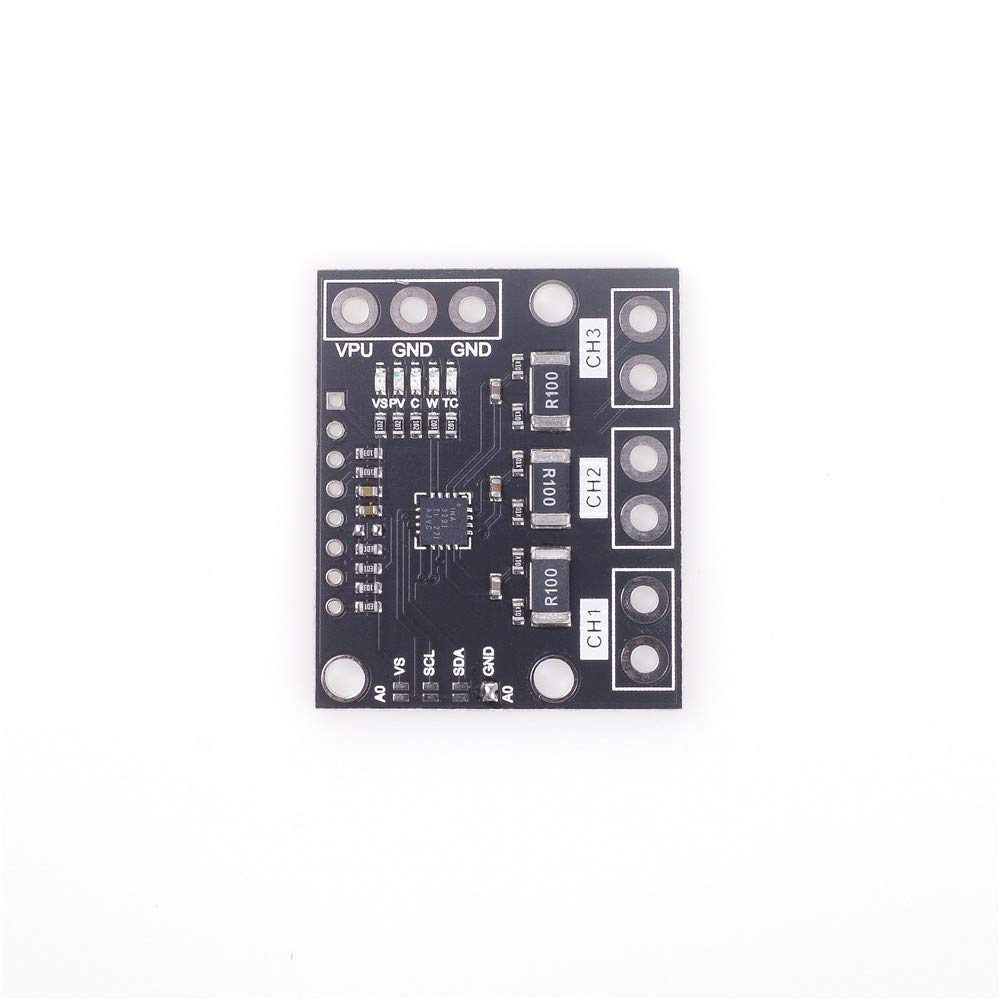

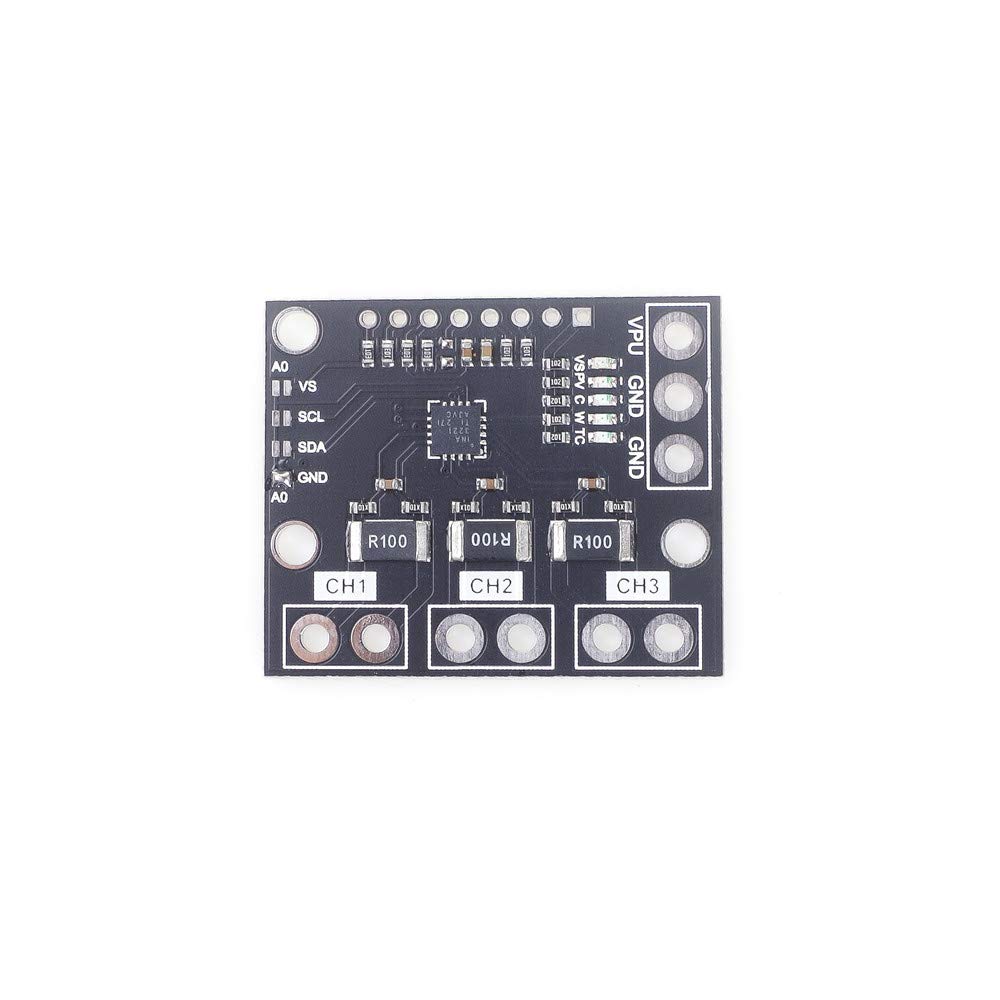

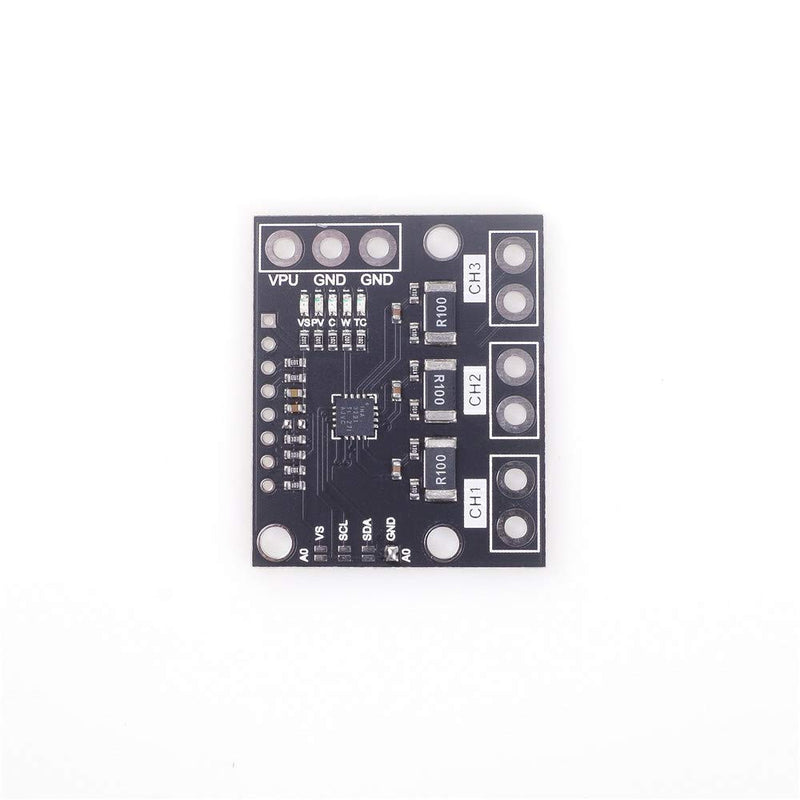

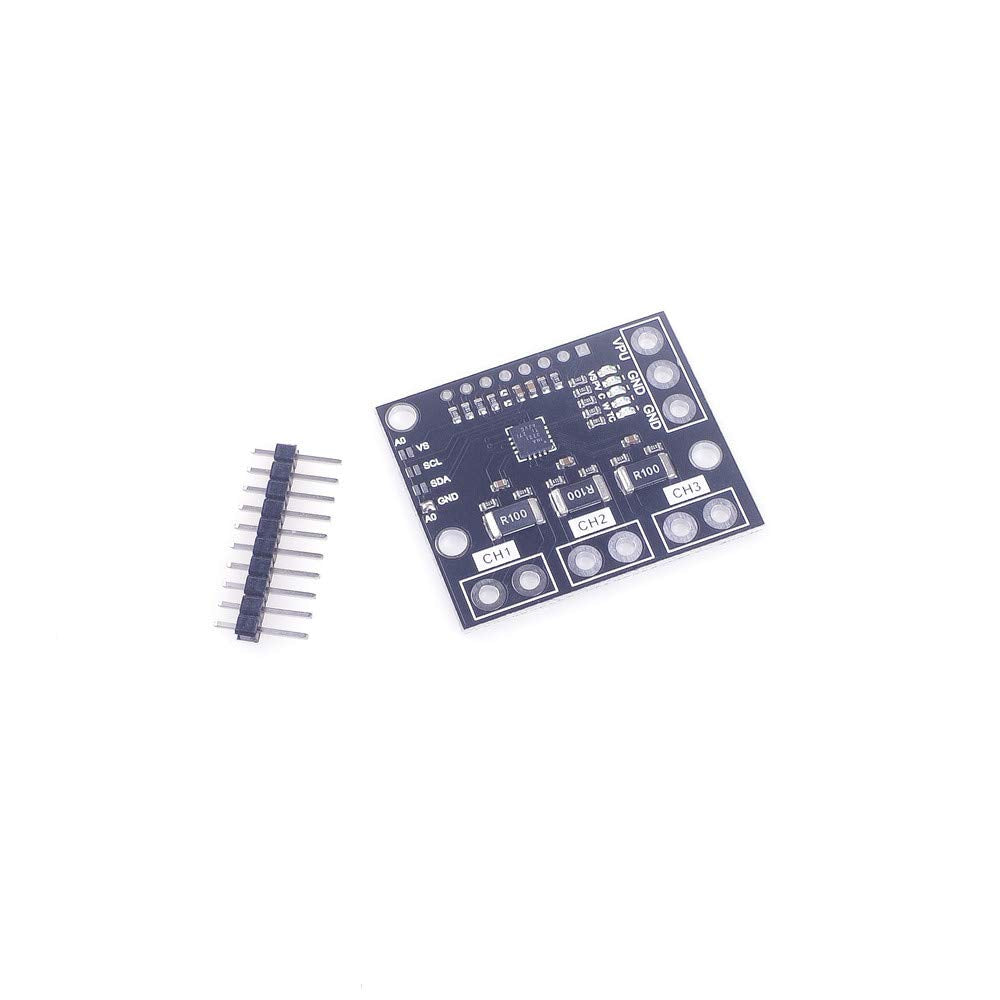

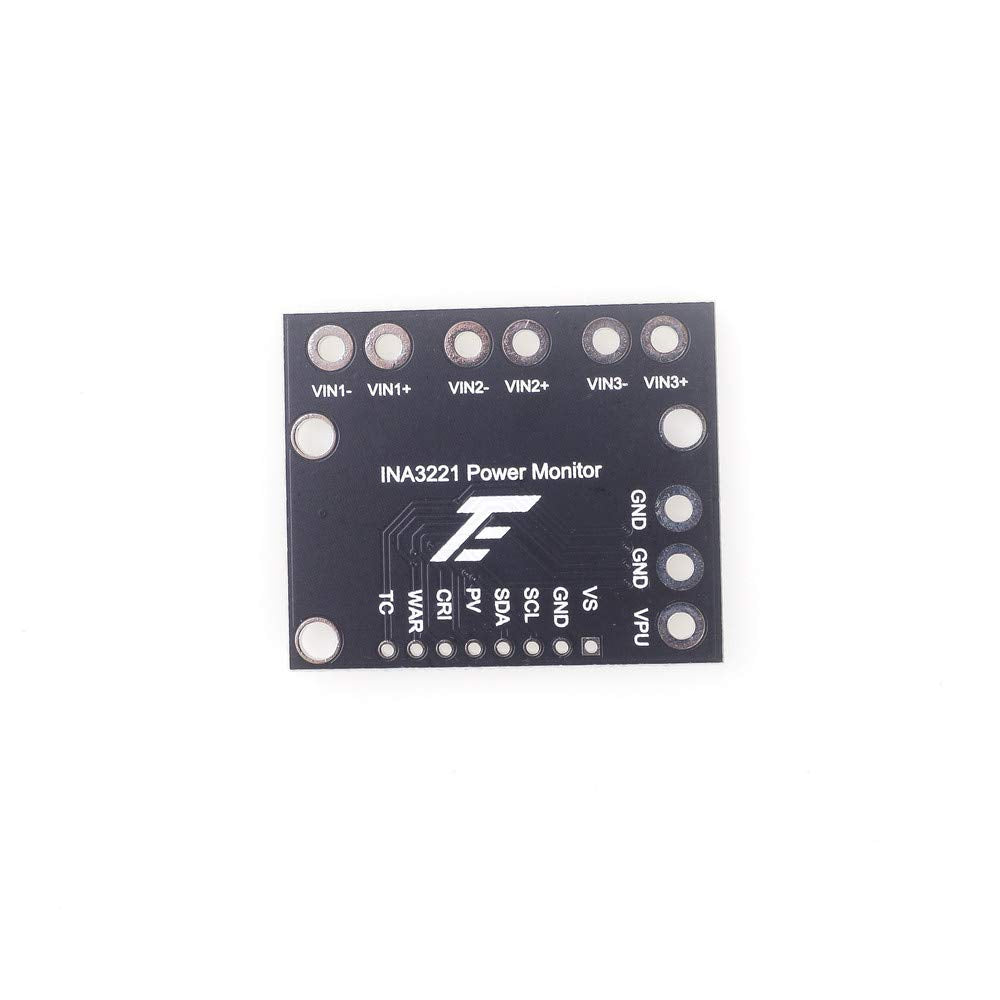

{"id":8532537409689,"title":"ANGEEK I2C SMBUS INA3221 Triple Channel Shunt Current Power Supply Voltage Monitor Sensor Board Module with Pins","handle":"angeek-i2c-smbus-ina3221-triple-channel-shunt-current-power-supply-voltage-monitor-sensor-board-module-with-pins","description":"\u003ch3\u003eANGEEK I2C SMBUS INA3221 Triple Channel Shunt Current Power Supply Voltage Monitor Sensor Board Module with Pins\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\" Description: The device is powered from a single 2.7-V to 5.5-V supply, and\ndraws 350 µA (type) of supply current. The INA3221 is specified over the\noperating temperature range of -40°C to +125°C. Triple channel with different\nbus voltage. 0.1 ohm 1% 2W current sense resistor. Up to +26V target voltage,\nwith ±8mV resolution. Up to ±1.638A current measurement, with ±0.4mA\nresolution. Dimensions: 38 x 32 mm. PCB (no header or terminal block): 4.4g.\nThis board\/chip uses I2C 4-bit addresses 0x40, 0x41, 0x44, 0x45, selectable\nwith jumpers. Package includes: 1 x INA3221 sensor module. \"\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe INA3221 is a three-channel, high-side current and bus voltage monitor with an I2C and SMBUS-compatible interface.\u003c\/li\u003e\n \u003cli\u003eThe INA3221 monitors both shunt voltage drops and bus supply voltages, in addition to having programmable conversion times and averaging modes for these signals.\u003c\/li\u003e\n \u003cli\u003eThe INA3221 offers both critical and warning alerts to detect multiple programmable out-of-range conditions for each channel.\u003c\/li\u003e\n \u003cli\u003eThe I2C- and SMBUS-compatible interface features four programmable addresses.\u003c\/li\u003e\n \u003cli\u003eThe INA3221 senses current on buses that can vary from 0 V to 26 V.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-26T01:18:26+10:00","created_at":"2025-09-26T01:18:22+10:00","vendor":"ANGEEK","type":"Current Sensors","tags":["industryDE_Sep2025"],"price":10900,"price_min":10900,"price_max":10900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45746990612633,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B08KT1YH83","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ANGEEK I2C SMBUS INA3221 Triple Channel Shunt Current Power Supply Voltage Monitor Sensor Board Module with Pins","public_title":null,"options":["Default Title"],"price":10900,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"XF0244","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B08KT1YH83.jpg?v=1775751670","\/\/soundstores.net\/cdn\/shop\/files\/51Ha-98rB5L.jpg?v=1758813505","\/\/soundstores.net\/cdn\/shop\/files\/51dyDe0VYFL.jpg?v=1758813505","\/\/soundstores.net\/cdn\/shop\/files\/51NuMak4QPL.jpg?v=1758813505"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B08KT1YH83.jpg?v=1775751670","options":["Title"],"media":[{"alt":null,"id":34642912805017,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B08KT1YH83.jpg?v=1775751670"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B08KT1YH83.jpg?v=1775751670","width":1000},{"alt":null,"id":34642912837785,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51Ha-98rB5L.jpg?v=1758813505"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51Ha-98rB5L.jpg?v=1758813505","width":1000},{"alt":null,"id":34642912870553,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51dyDe0VYFL.jpg?v=1758813505"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51dyDe0VYFL.jpg?v=1758813505","width":1000},{"alt":null,"id":34642912903321,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51NuMak4QPL.jpg?v=1758813505"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51NuMak4QPL.jpg?v=1758813505","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eANGEEK I2C SMBUS INA3221 Triple Channel Shunt Current Power Supply Voltage Monitor Sensor Board Module with Pins\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\" Description: The device is powered from a single 2.7-V to 5.5-V supply, and\ndraws 350 µA (type) of supply current. The INA3221 is specified over the\noperating temperature range of -40°C to +125°C. Triple channel with different\nbus voltage. 0.1 ohm 1% 2W current sense resistor. Up to +26V target voltage,\nwith ±8mV resolution. Up to ±1.638A current measurement, with ±0.4mA\nresolution. Dimensions: 38 x 32 mm. PCB (no header or terminal block): 4.4g.\nThis board\/chip uses I2C 4-bit addresses 0x40, 0x41, 0x44, 0x45, selectable\nwith jumpers. Package includes: 1 x INA3221 sensor module. \"\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe INA3221 is a three-channel, high-side current and bus voltage monitor with an I2C and SMBUS-compatible interface.\u003c\/li\u003e\n \u003cli\u003eThe INA3221 monitors both shunt voltage drops and bus supply voltages, in addition to having programmable conversion times and averaging modes for these signals.\u003c\/li\u003e\n \u003cli\u003eThe INA3221 offers both critical and warning alerts to detect multiple programmable out-of-range conditions for each channel.\u003c\/li\u003e\n \u003cli\u003eThe I2C- and SMBUS-compatible interface features four programmable addresses.\u003c\/li\u003e\n \u003cli\u003eThe INA3221 senses current on buses that can vary from 0 V to 26 V.\u003c\/li\u003e\n \u003c\/ul\u003e"}
