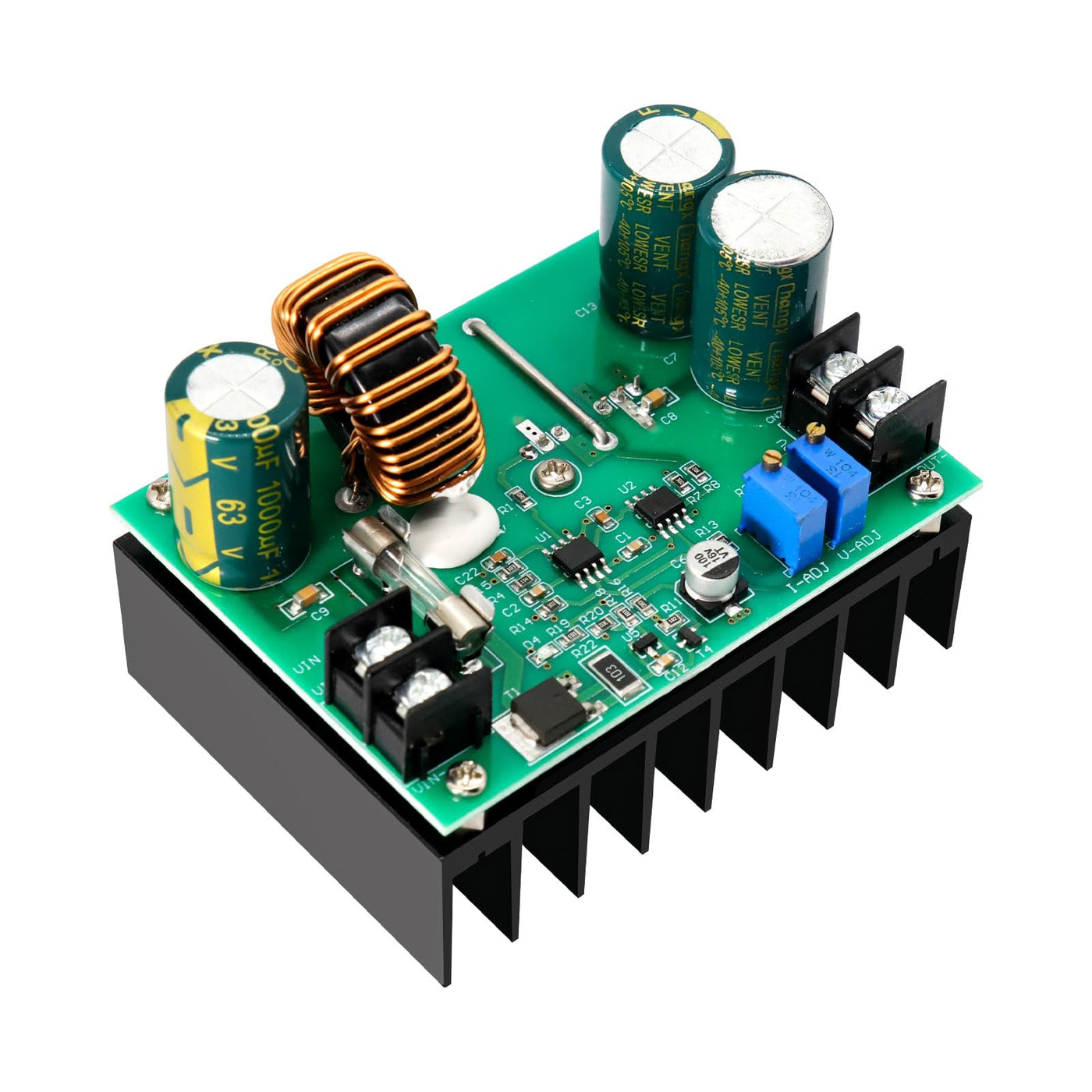

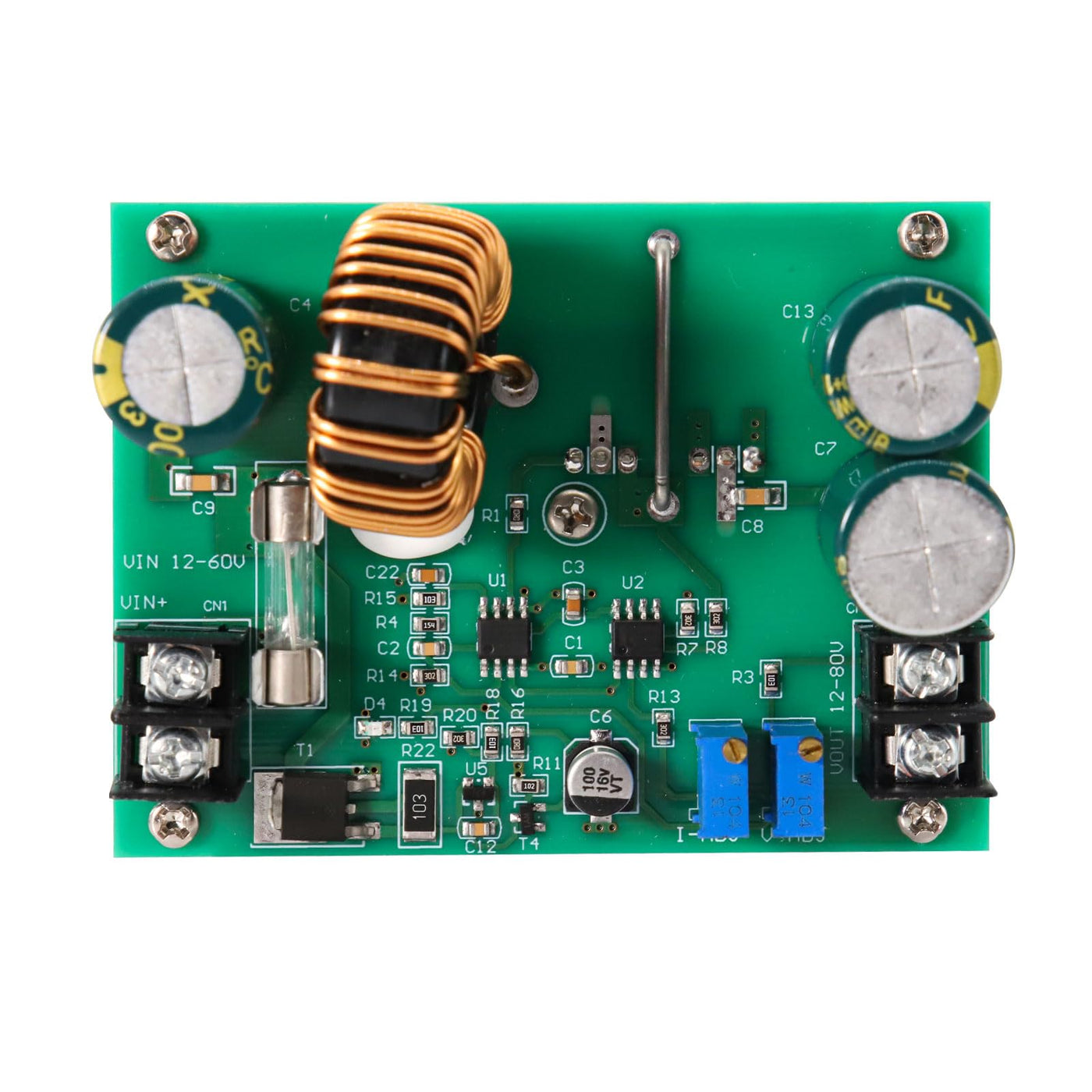

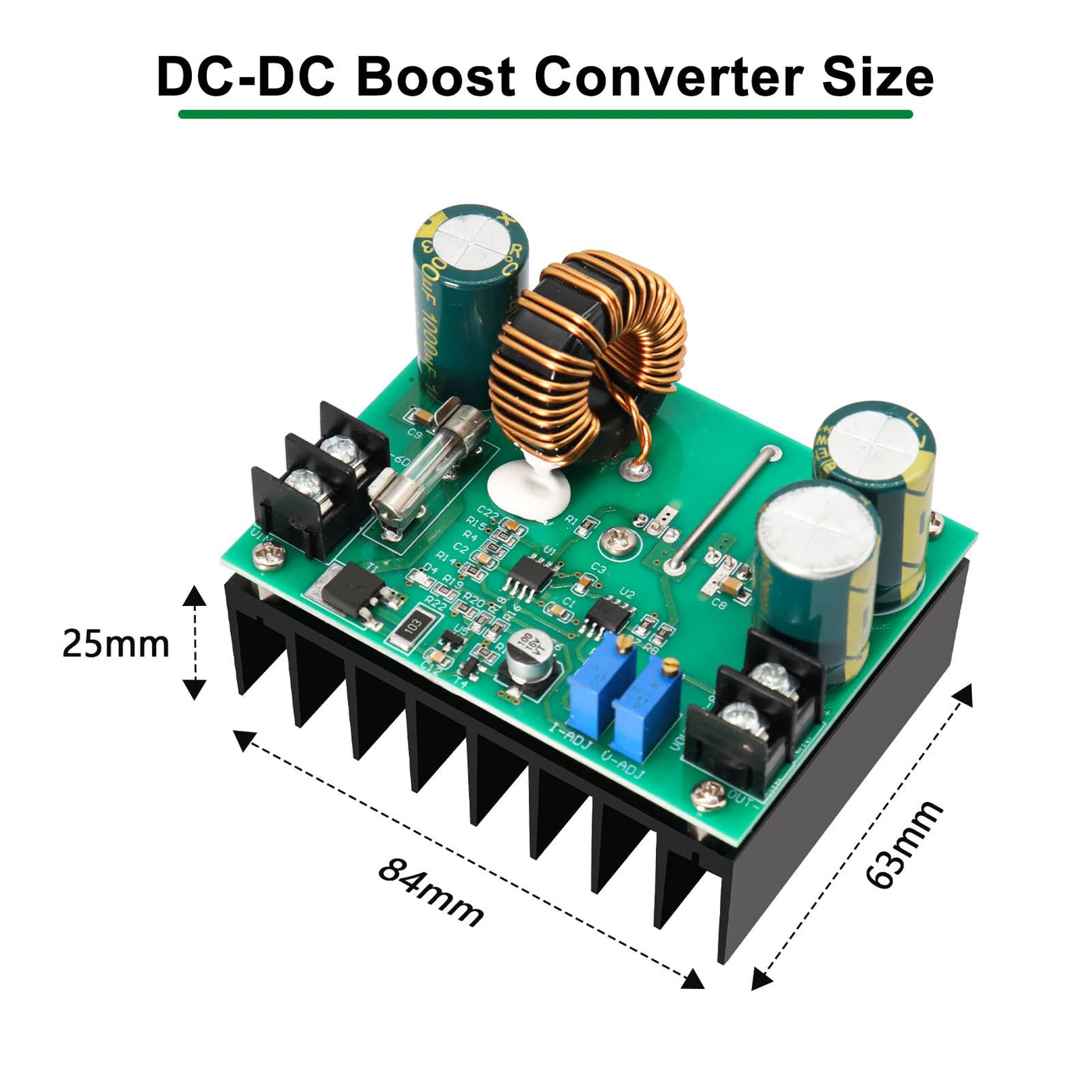

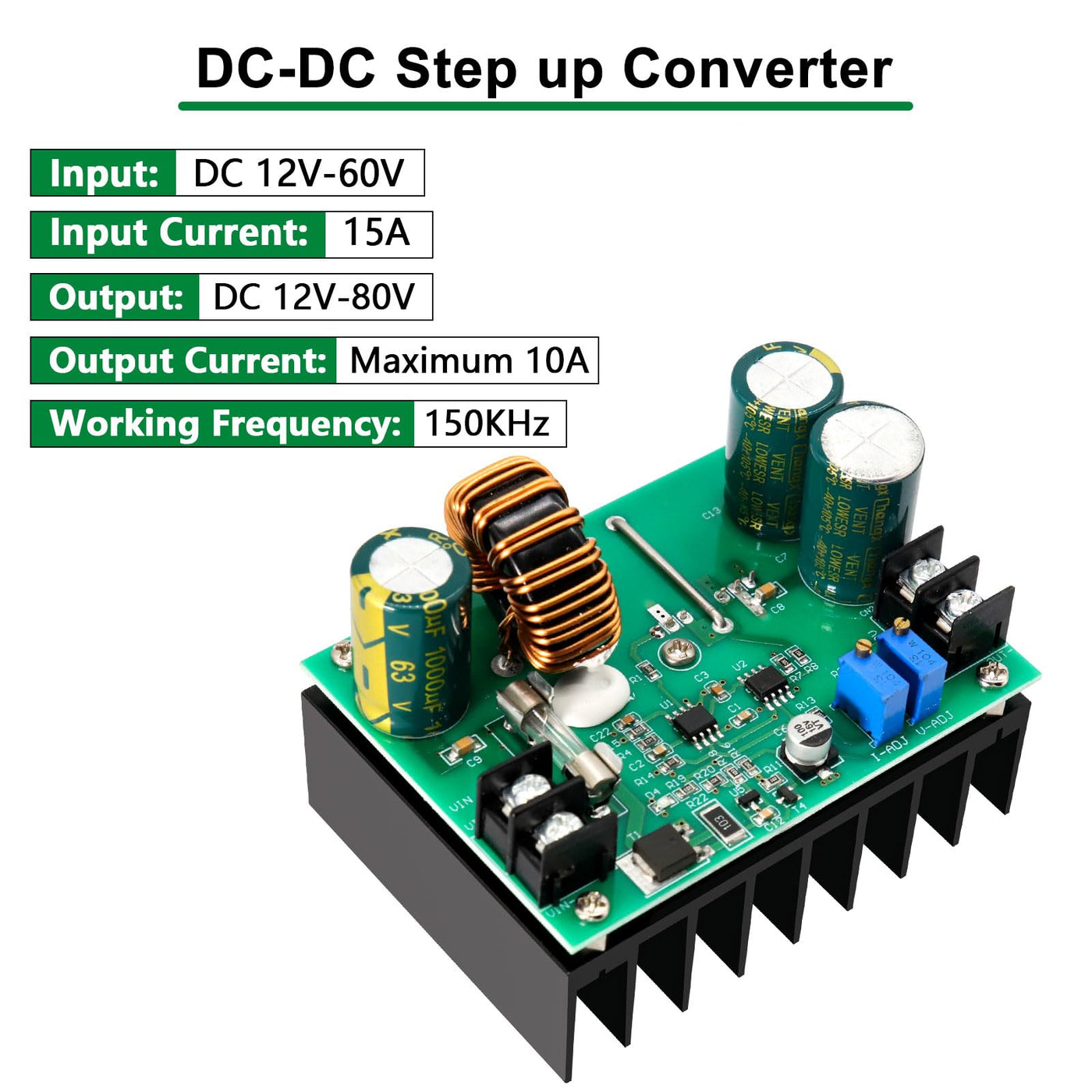

{"id":8534632431769,"title":"APKLVSR DC-DC 600W 10A Boost Converter Converter, 12-60V to 12-80V 600W DC-DC Converter Power Supply Step-up Converter Module Power Supply","handle":"apklvsr-dc-dc-600w-10a-boost-converter-converter-12-60v-to-12-80v-600w-dc-dc-converter-power-supply-step-up-converter-module-power-supply","description":"\u003ch3\u003eAPKLVSR DC-DC 600W 10A Boost Converter Converter, 12-60V to 12-80V 600W DC-DC Converter Power Supply Step-up Converter Module Power Supply\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e600W 10A DC-DC Boost Converter Converter Power Supply Step-up Converter Module\nSpecification: Input voltage: 12V-60V. Input current: input current: 15 A.\nOutput voltage: 12V-80V infinitely adjustable. Output current: maximum output\ncurrent 10A (adjustable). Output power: active power P = input voltage V x 10\nA. Conversion efficiency: up to 95% (input voltage and current; output voltage\nand current affect the conversion efficiency) Short circuit protection: fuse\nModule size: 85 x 70 x 62 mm. Operating frequency: 150 kHz Working\ntemperature: -40 ~ +85 ° (Please strengthen heat dissipation if the ambient\ntemperature is too high). Static working current: 15mA (measured when 12V rise\nto 20V; the higher the output voltage, the higher the static current\nincreases) Over current protection: Yes (input exceeds 17A, the output voltage\nis automatically reduced and there is a certain error range.) Input reverse\npolarity protection: none. If you need more power, you can use two modules in\nparallel. For example, if the output is 15A, you can use two modules in\nparallel to adjust the current of each module to 8A. The inductive magnetic\nring has a 27 mm magnetic ring made of iron silicon aluminium, a 1 mm double\nwire inductor, a high-quality filter capacitor, an input with a 1000uF63V\nelectrolytic capacitor, an output with two 470uF100V electrolytic capacitors,\nbetter output power quality and better on-board power supply. The power supply\nis switchswitchswitchindicator light as well as the potentiometer for voltage\nand current adjustment make the output more comfortable. The output voltage\nand output current can be adjusted at any time. The input and output adopts\n8500 terminal blocks. Box contents: 1 x 600 W step up converter\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDC Boost Converter: 600 W DC-DC converter 12 V, wide voltage input: 12 V ~ 60 V, 12 V ~ 80 V adjustable wide voltage output; output current can be adjusted; extremely low input and output pressure difference. If the current is \u0026gt;18A, please strengthen the heat dissipation\u003c\/li\u003e\n \u003cli\u003eWith overcurrent and short circuit protection: step up converter double short circuit protection (input 15 A fuse); with output return protection, no return diode needs to be added when charging. Note: There is no backflow protection. If you need this, please switch one diode in series with the input\u003c\/li\u003e\n \u003cli\u003eDC to DC boost converter: the 600 W step up converter module has a 1 mm dual wire winding inductor, a good filter capacitor and 8500 wiring clamps, is durable and has a longer service life.\u003c\/li\u003e\n \u003cli\u003eHigh efficiency: the step up converter of the step-up converter can be up to 95%. Please pay attention to voltage and current when using as the input voltage and current are the same. Output voltage and current affect the conversion efficiency. If you need more power, you can use two modules in parallel.\u003c\/li\u003e\n \u003cli\u003eApplicationModules commonly used for cars, laptops, PDAs and other digital products. If you have any problems, please contact us. We will try to solve your problem as soon as possible.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-28T13:30:38+10:00","created_at":"2025-09-28T13:30:35+10:00","vendor":"APKLVSR","type":"Industrial Power Supply","tags":["industryDE_Sep2025"],"price":18300,"price_min":18300,"price_max":18300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45751390109849,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0CDH3HNYH","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"APKLVSR DC-DC 600W 10A Boost Converter Converter, 12-60V to 12-80V 600W DC-DC Converter Power Supply Step-up Converter Module Power Supply","public_title":null,"options":["Default Title"],"price":18300,"weight":290,"compare_at_price":null,"inventory_management":"shopify","barcode":"V0317","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0CDH3HNYH.jpg?v=1775755053","\/\/soundstores.net\/cdn\/shop\/files\/71SkiP4bpzL.jpg?v=1759030238","\/\/soundstores.net\/cdn\/shop\/files\/71jz45YP92L.jpg?v=1759030237","\/\/soundstores.net\/cdn\/shop\/files\/71rVL8FhFuL.jpg?v=1759030237","\/\/soundstores.net\/cdn\/shop\/files\/71iufx8ZRhL.jpg?v=1759030238","\/\/soundstores.net\/cdn\/shop\/files\/71d3J0RSt9L.jpg?v=1759030237","\/\/soundstores.net\/cdn\/shop\/files\/613m-5eLVsL.jpg?v=1759030237"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0CDH3HNYH.jpg?v=1775755053","options":["Title"],"media":[{"alt":null,"id":34673884266649,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0CDH3HNYH.jpg?v=1775755053"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0CDH3HNYH.jpg?v=1775755053","width":1600},{"alt":null,"id":34673884299417,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71SkiP4bpzL.jpg?v=1759030238"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71SkiP4bpzL.jpg?v=1759030238","width":1600},{"alt":null,"id":34673884332185,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71jz45YP92L.jpg?v=1759030237"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71jz45YP92L.jpg?v=1759030237","width":1600},{"alt":null,"id":34673884364953,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71rVL8FhFuL.jpg?v=1759030237"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71rVL8FhFuL.jpg?v=1759030237","width":1600},{"alt":null,"id":34673884397721,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71iufx8ZRhL.jpg?v=1759030238"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71iufx8ZRhL.jpg?v=1759030238","width":1600},{"alt":null,"id":34673884430489,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71d3J0RSt9L.jpg?v=1759030237"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71d3J0RSt9L.jpg?v=1759030237","width":1600},{"alt":null,"id":34673884463257,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/613m-5eLVsL.jpg?v=1759030237"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/613m-5eLVsL.jpg?v=1759030237","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAPKLVSR DC-DC 600W 10A Boost Converter Converter, 12-60V to 12-80V 600W DC-DC Converter Power Supply Step-up Converter Module Power Supply\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e600W 10A DC-DC Boost Converter Converter Power Supply Step-up Converter Module\nSpecification: Input voltage: 12V-60V. Input current: input current: 15 A.\nOutput voltage: 12V-80V infinitely adjustable. Output current: maximum output\ncurrent 10A (adjustable). Output power: active power P = input voltage V x 10\nA. Conversion efficiency: up to 95% (input voltage and current; output voltage\nand current affect the conversion efficiency) Short circuit protection: fuse\nModule size: 85 x 70 x 62 mm. Operating frequency: 150 kHz Working\ntemperature: -40 ~ +85 ° (Please strengthen heat dissipation if the ambient\ntemperature is too high). Static working current: 15mA (measured when 12V rise\nto 20V; the higher the output voltage, the higher the static current\nincreases) Over current protection: Yes (input exceeds 17A, the output voltage\nis automatically reduced and there is a certain error range.) Input reverse\npolarity protection: none. If you need more power, you can use two modules in\nparallel. For example, if the output is 15A, you can use two modules in\nparallel to adjust the current of each module to 8A. The inductive magnetic\nring has a 27 mm magnetic ring made of iron silicon aluminium, a 1 mm double\nwire inductor, a high-quality filter capacitor, an input with a 1000uF63V\nelectrolytic capacitor, an output with two 470uF100V electrolytic capacitors,\nbetter output power quality and better on-board power supply. The power supply\nis switchswitchswitchindicator light as well as the potentiometer for voltage\nand current adjustment make the output more comfortable. The output voltage\nand output current can be adjusted at any time. The input and output adopts\n8500 terminal blocks. Box contents: 1 x 600 W step up converter\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDC Boost Converter: 600 W DC-DC converter 12 V, wide voltage input: 12 V ~ 60 V, 12 V ~ 80 V adjustable wide voltage output; output current can be adjusted; extremely low input and output pressure difference. If the current is \u0026gt;18A, please strengthen the heat dissipation\u003c\/li\u003e\n \u003cli\u003eWith overcurrent and short circuit protection: step up converter double short circuit protection (input 15 A fuse); with output return protection, no return diode needs to be added when charging. Note: There is no backflow protection. If you need this, please switch one diode in series with the input\u003c\/li\u003e\n \u003cli\u003eDC to DC boost converter: the 600 W step up converter module has a 1 mm dual wire winding inductor, a good filter capacitor and 8500 wiring clamps, is durable and has a longer service life.\u003c\/li\u003e\n \u003cli\u003eHigh efficiency: the step up converter of the step-up converter can be up to 95%. Please pay attention to voltage and current when using as the input voltage and current are the same. Output voltage and current affect the conversion efficiency. If you need more power, you can use two modules in parallel.\u003c\/li\u003e\n \u003cli\u003eApplicationModules commonly used for cars, laptops, PDAs and other digital products. If you have any problems, please contact us. We will try to solve your problem as soon as possible.\u003c\/li\u003e\n \u003c\/ul\u003e"}
