audio mixer Powered 10 Channels input 2 output Mini Audio Mix with 3.5mm Stereo for Broadcasting, Podcasting, Streaming,phone Recording and PC Gaming mixing mix102
audio mixer Powered 10 Channels input 2 output Mini Audio Mix with 3.5mm Stereo for Broadcasting, Podcasting, Streaming,phone Recording and PC Gaming mixing

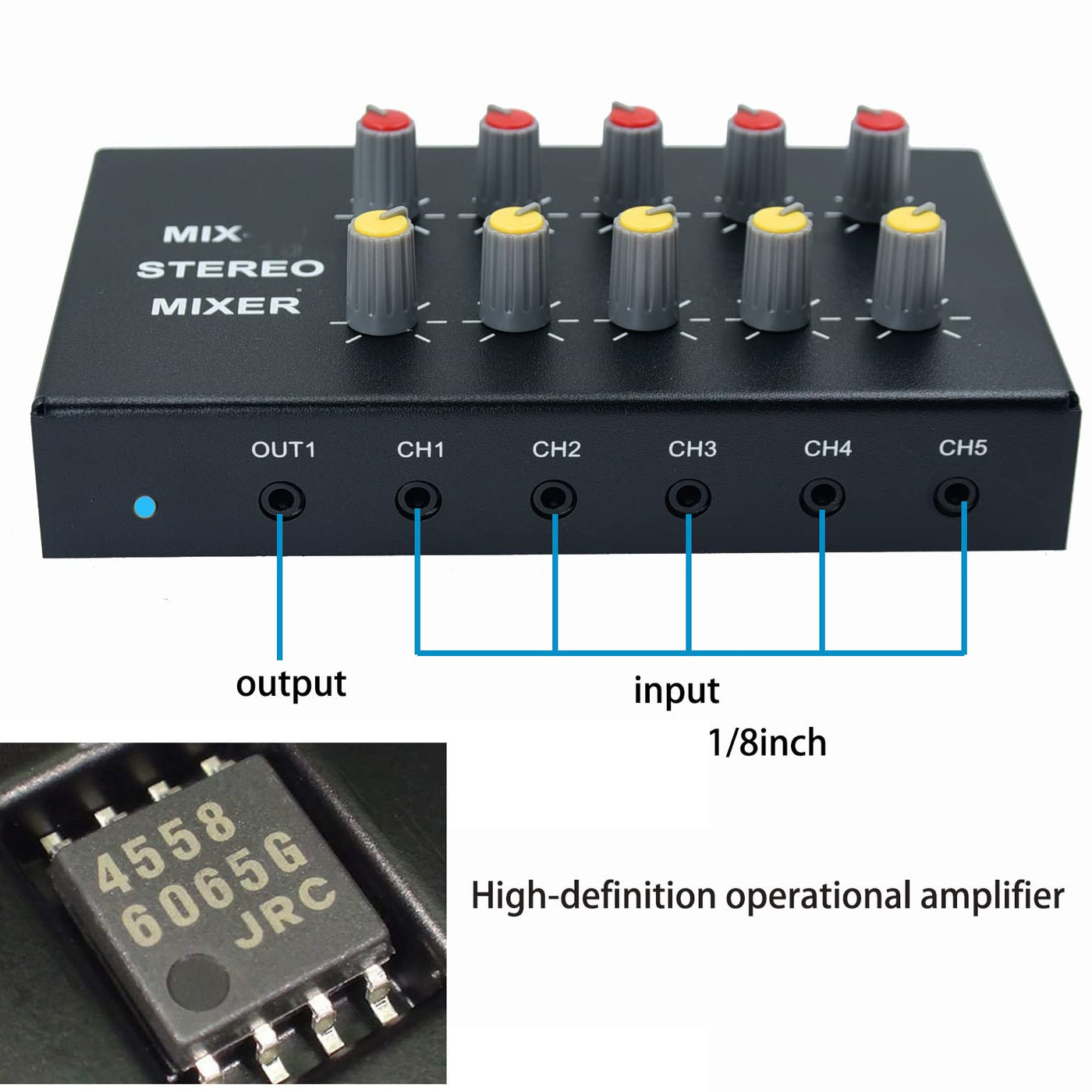

Stereo 10 channel audio input is mixed into 2 channel stereo output, which can directly drive headphones or connect power amplifiers, 3.5mm headphone socket, and potentiometer separately controls the volume of each channel without affecting each other. 10 high-quality 09 duplex potentiometer, static current of about 15 ma, low-noise 4580 dual operational amplifiers, maximum power supply of up to 24V, and amplification factor of about 2 times. Please use a low-ripple high-quality DC power supply for power supply, and use shielded wires for audio connection, which is beneficial for signal purity. The working voltage of the 10 circuit board is between 5-12v, with a static current of approximately 270ma for 5v power supply and 103ma for 12v power supply
Product Features

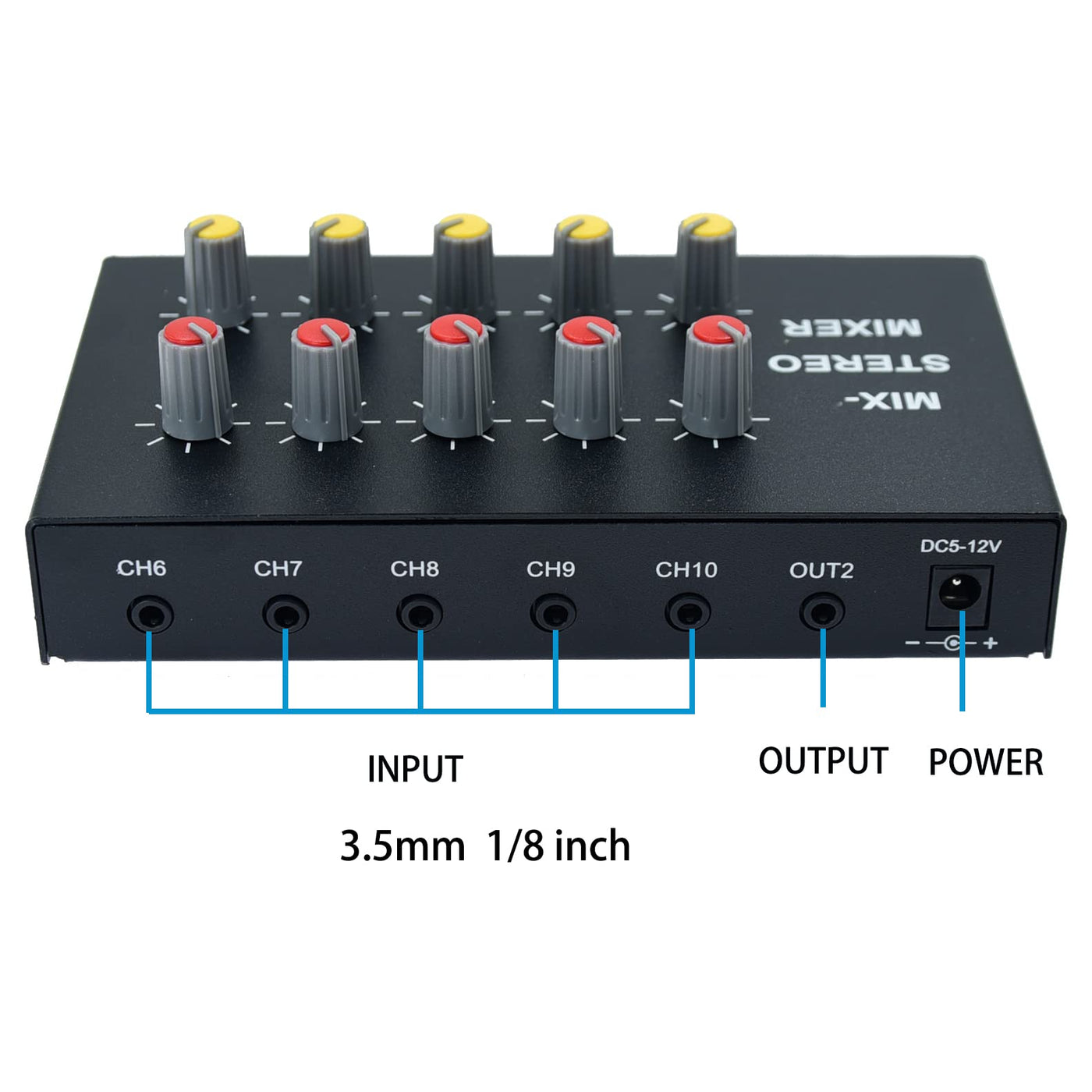

- 1/8" 3.5mm stereo 10 in mixing 2 out

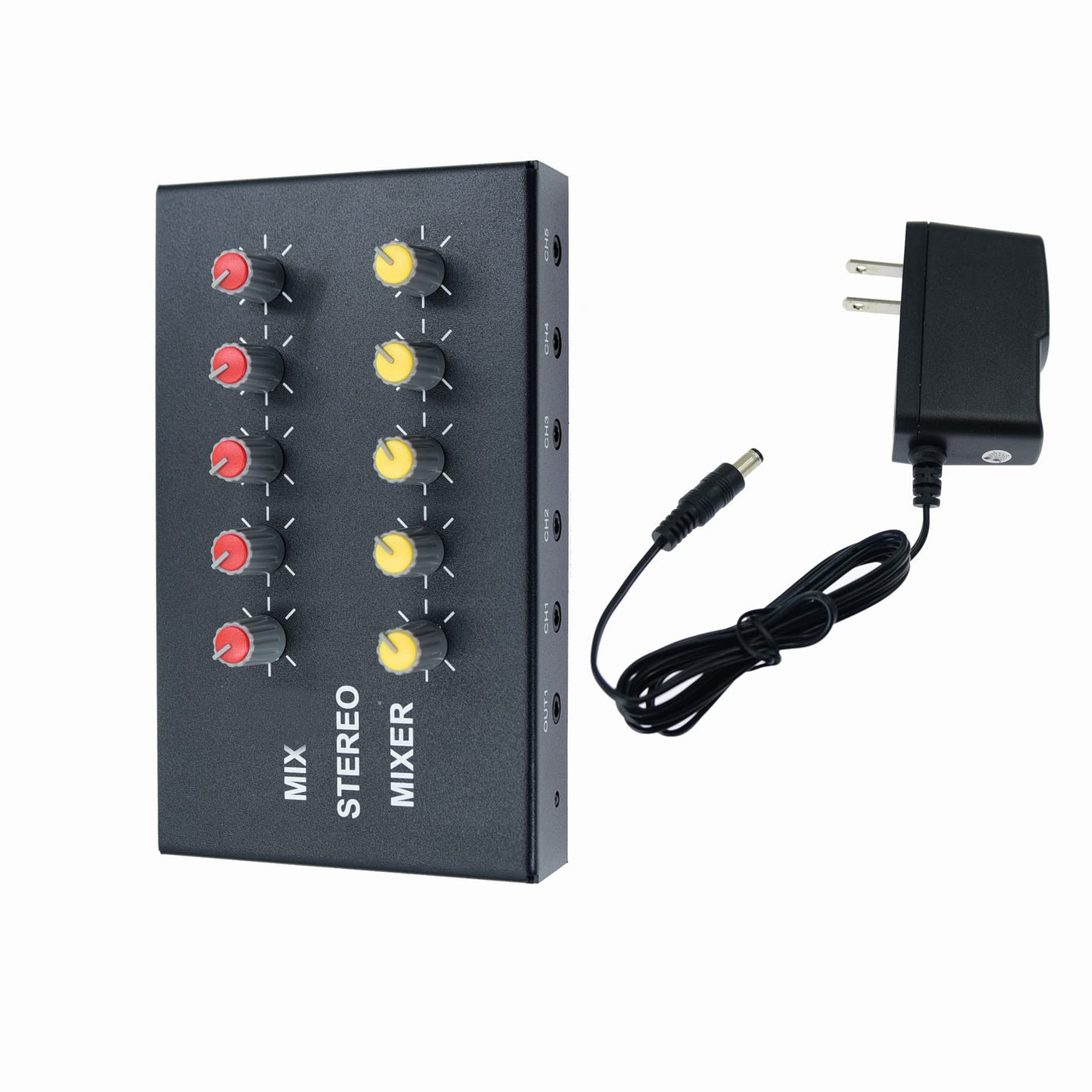

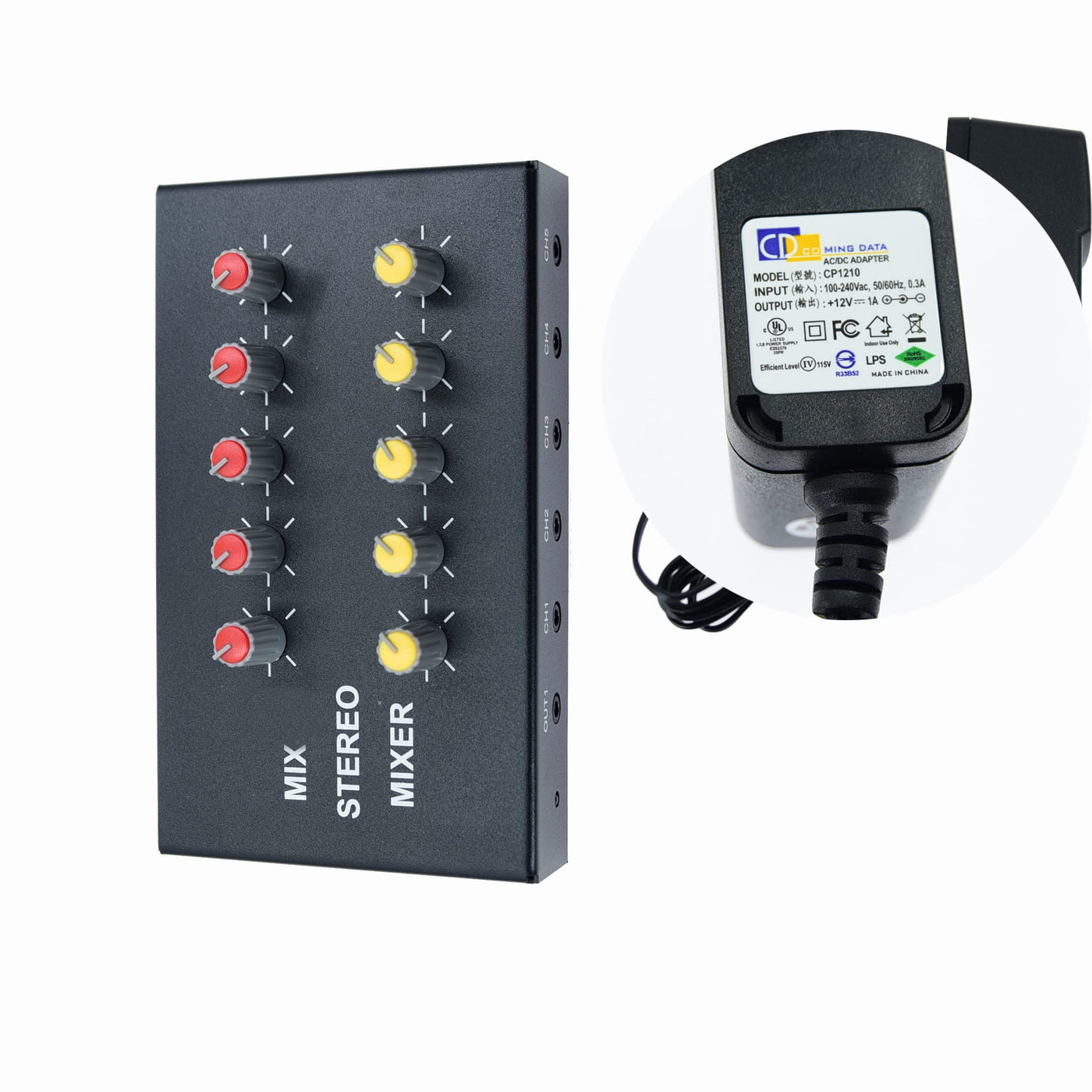

- power supply 12v 1000mA
- Used for extending control of tuning, mixing instruments, CD players, t
- 10 channels+2 channel output have independent volume knob control

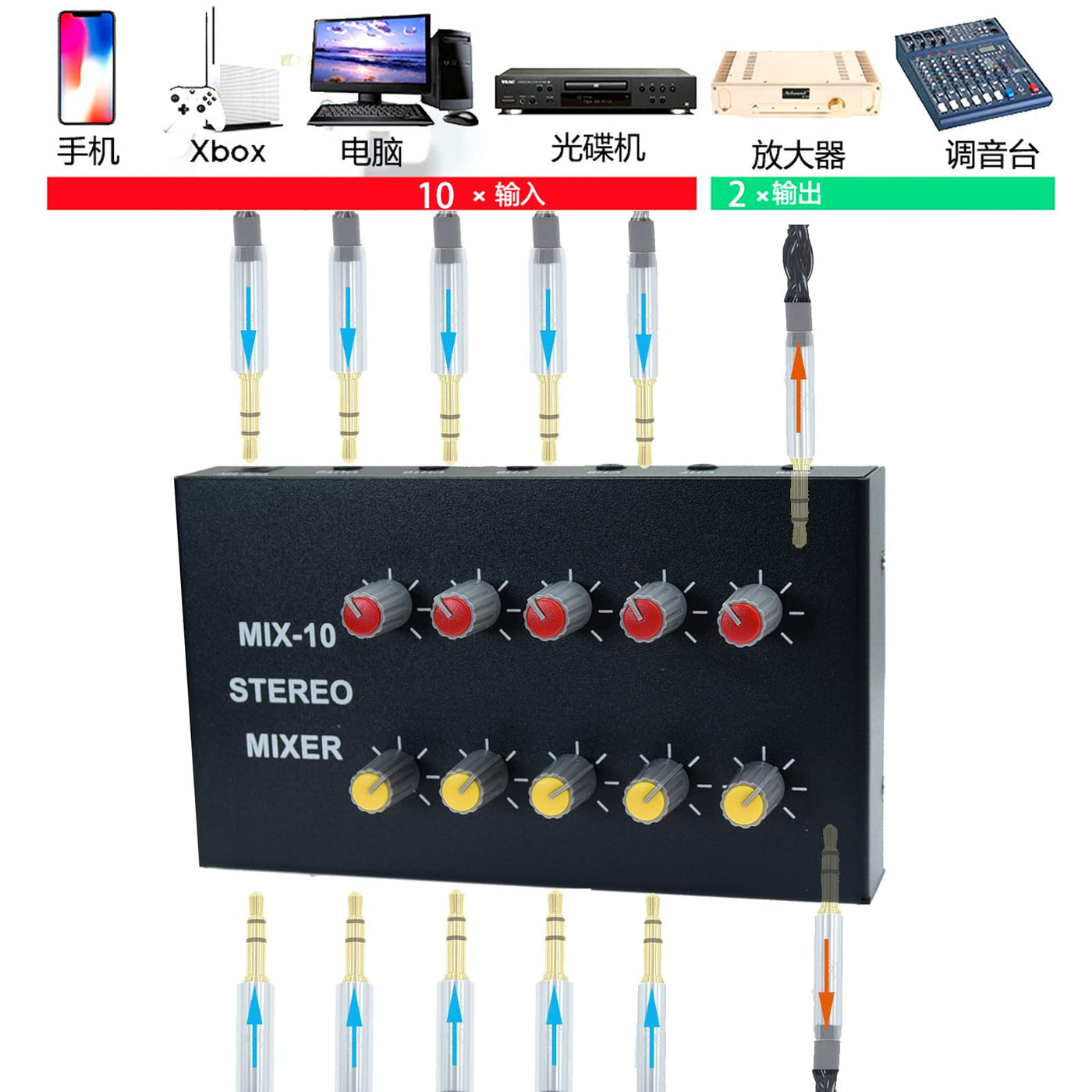

- The sound extractor input interface is compatible with PCs, mobile phones, laptops, and more. The output is compatible with speakers, headphones, bar speakers, etc. Not a professional microphone mixer, only compatible with a small number of mics
