AZDelivery 5 x KY-040 Rotary Encoder, Rotary Encoder, Module Compatible with Arduino, Includes E-Book!
AZDelivery 5 x KY-040 Rotary Encoder, Rotary Encoder, Module Compatible with Arduino, Includes E-Book!

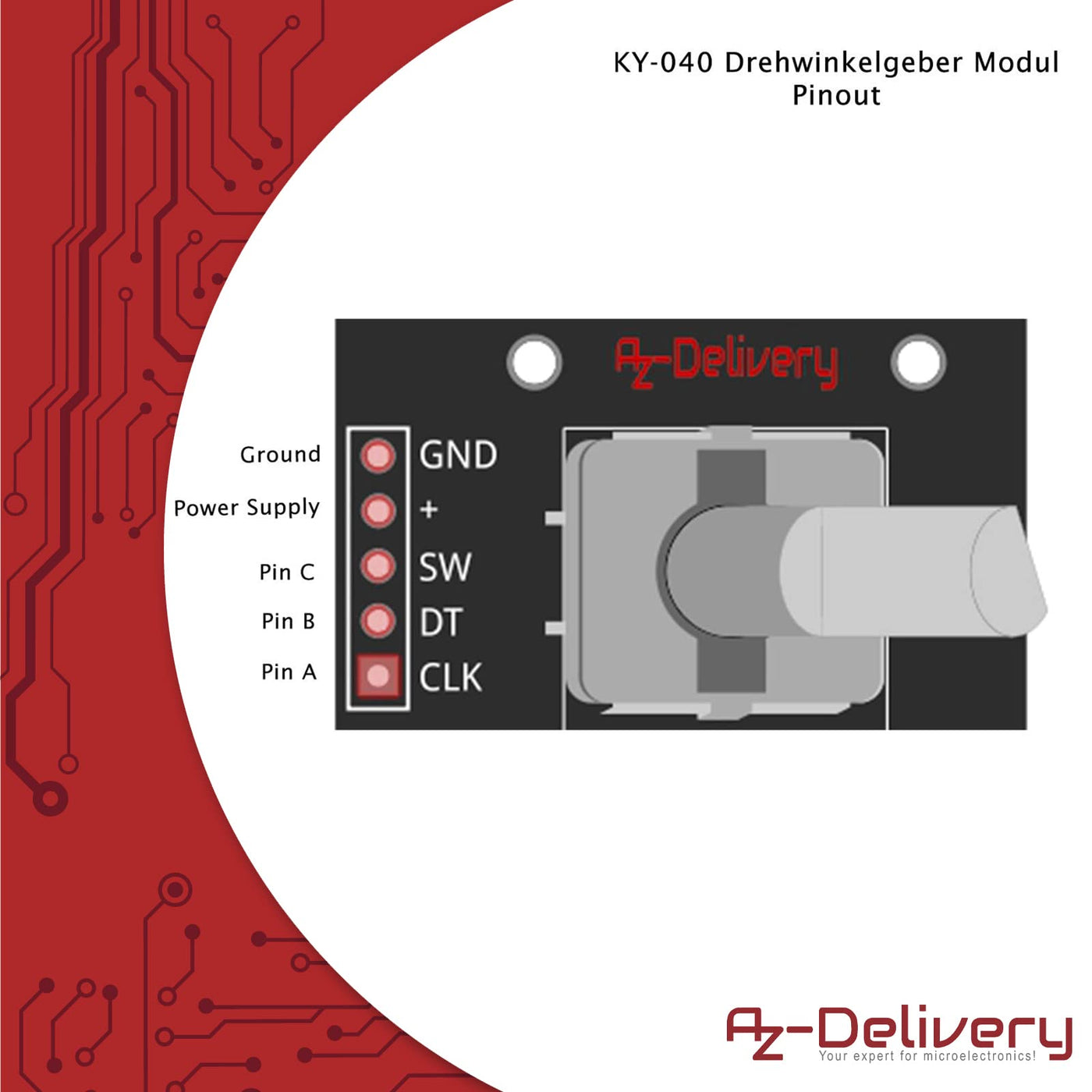

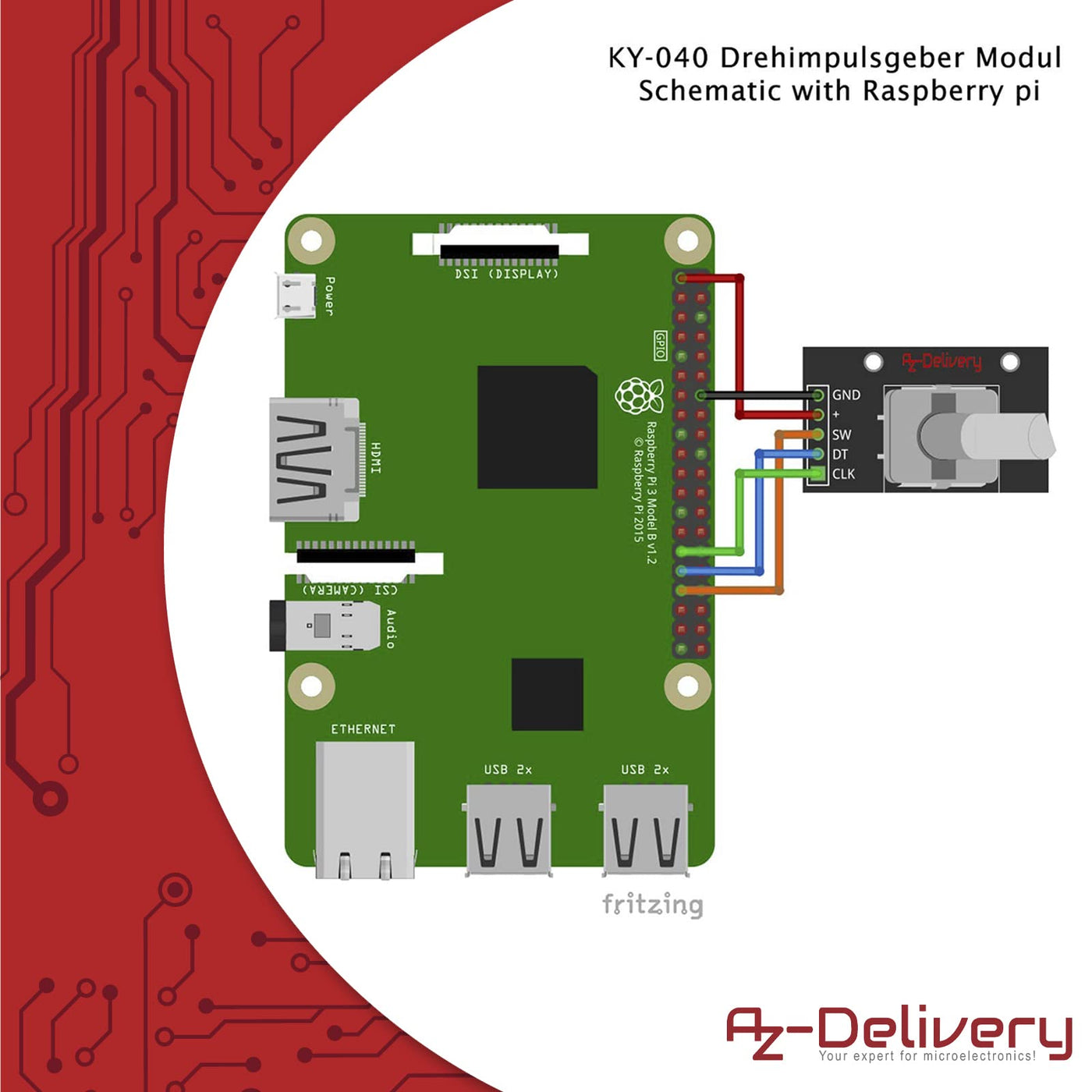

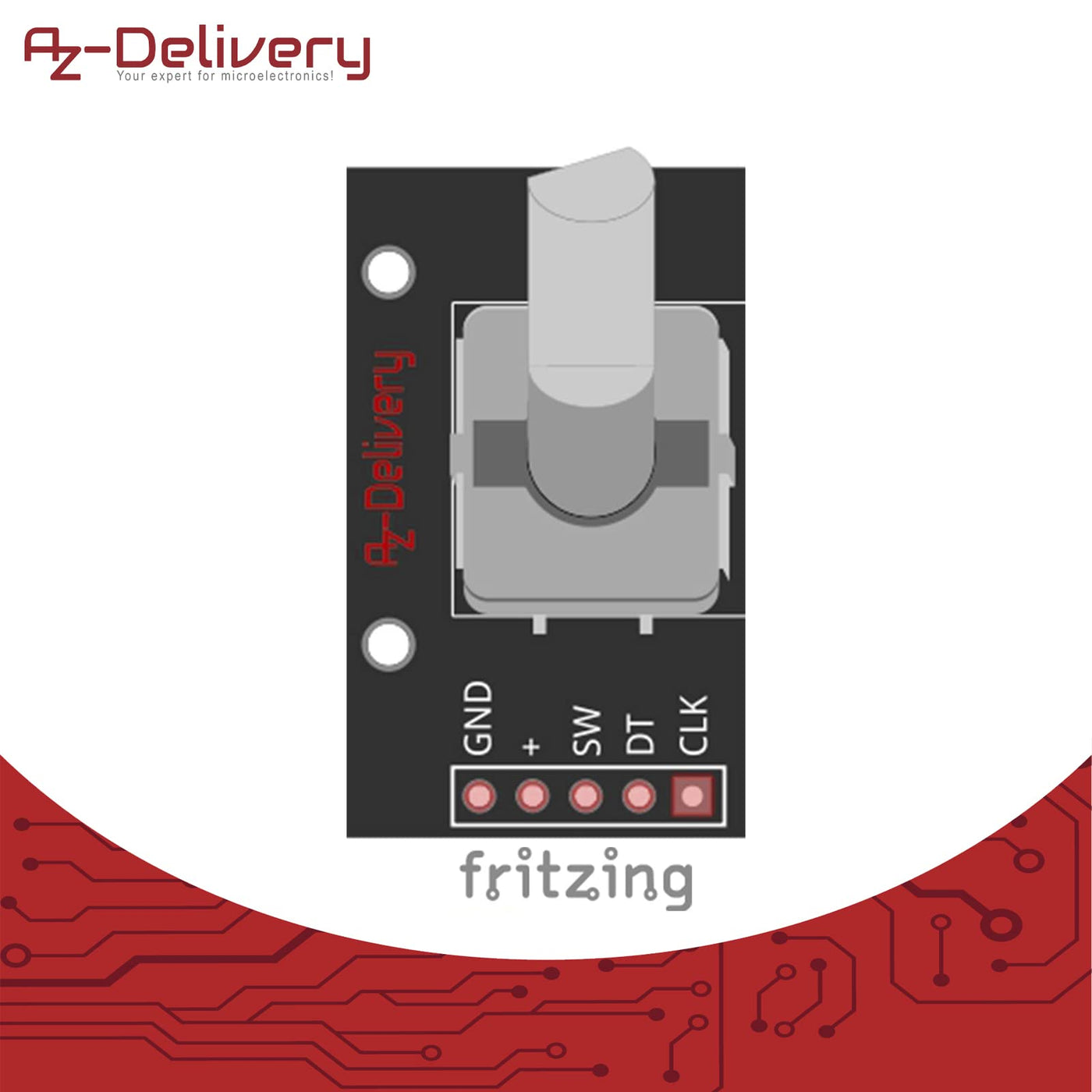

Use the rotary encoder as a control for a motor, as a volume control or as a menu control. The digital pot for your project: with the KY-040 rotary momentum sensor you can navigate through your self-created menu items or control speeds. Unlike analogue potentiometers, the rotation angle is not limited. Practical modular design. With additional switching contact! Connections: "GND" = ground connection; "+" = 5V power supply; "SW" = interrupt for push button; "DT" = encoder pin B; "CLK" = encoder pin A. Read the rotation: The encoder reproduces the signal for rotation to pin "CLK" and "DT". It is crucial which pin changes the state first. When rotating clockwise, "CLK" changes state first. When rotating counterclockwise, "DT" changes state first. Use of the button: The pin "SW" gives a high pulse as long as the rotary knob is pressed down. Connection assignment module: CLK=[Pin 3] DT=[Pin 4] Button=[Pin 5] += [Pin 5V] GND=[Pin GND] Connection assignment Raspberry Pi: CLK=GPIO16[Pin 36] DT=GPIO15[Pin 10] SW=GPIO14[Pin 8] += 3.3 V [pin 1] GND = ground[pin 6] Technical data: Chip: KY-040. Operating voltage: 5 V. Step width: 20 positions/revolution. With your order from AZ- Delivery you will receive a product in the usual high quality and with fast delivery directly from Germany at a discount price! For further ideas and projects, visit our blog on the Internet or download our free eBooks on our website! AZ-Delivery: Your expert in microelectronics! AZ-Delivery is a trademark registered with the DPMA (German Trademark and Patent Office). Pursuant to § 14 (2) of the Trademark Act, third parties are prohibited from using this trademark in commercial transactions.
Product Features

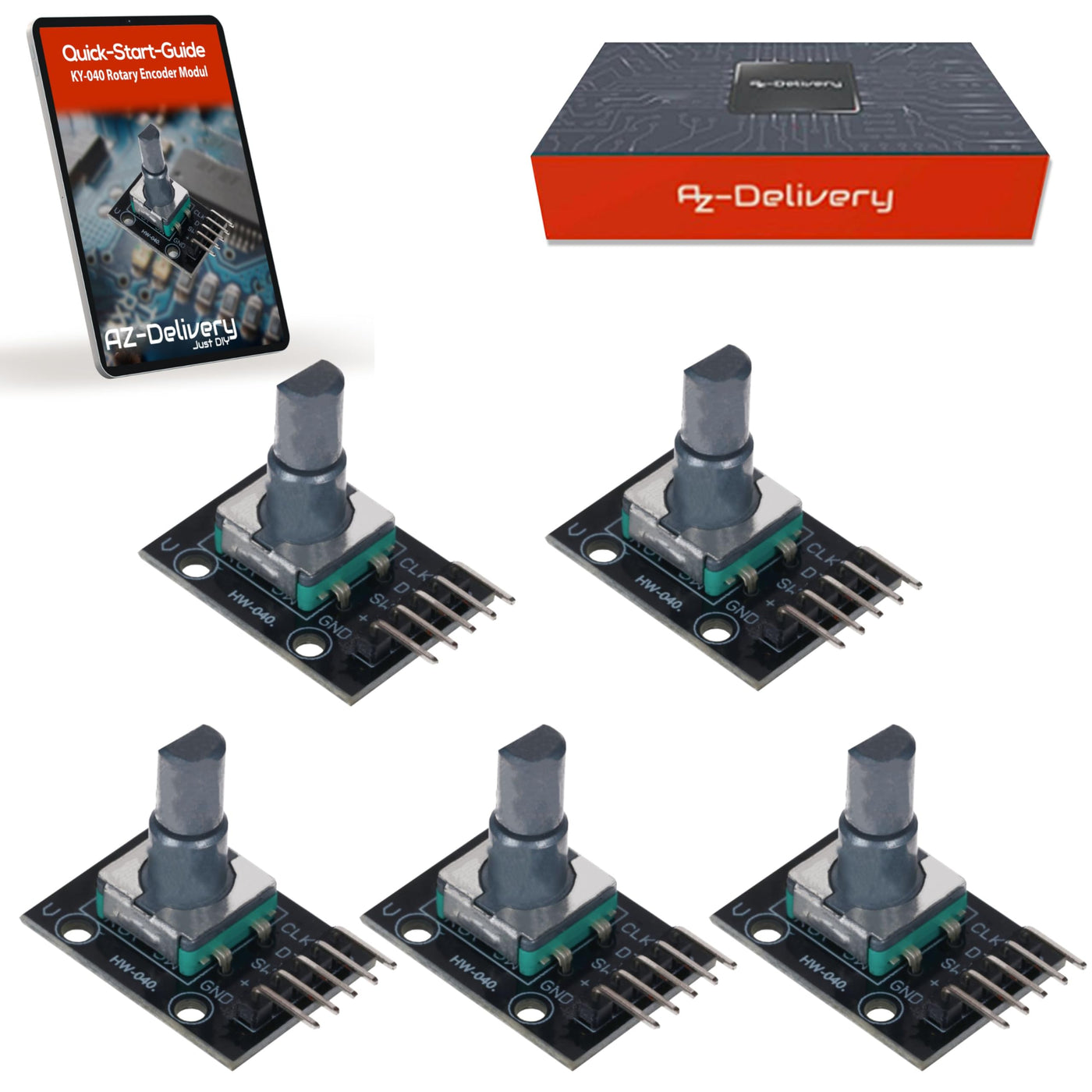

- Get five AZDelivery KY-040 rotary angle encoders rotary encoder module including e-book at a great price with quantity discount
- With our AZDelivery rotary encoder KY-040, you have the opportunity to simulate a volume control or simply count. The knob on the rotary encoder can not only be rotated, but also pressed. So you have even more possibilities.
- The AZDelivery rotary encoder KY-040 has no fixed end position. You can keep turning it as many times as you like.
- The AZDelivery Rotary Encoder fits your Raspberry Pi.
- This product contains an e-book that contains useful information about the beginning of your project, it helps with a quick setup and saves time in the configuration process. We offer a range of application examples, complete installation guides and libraries.
