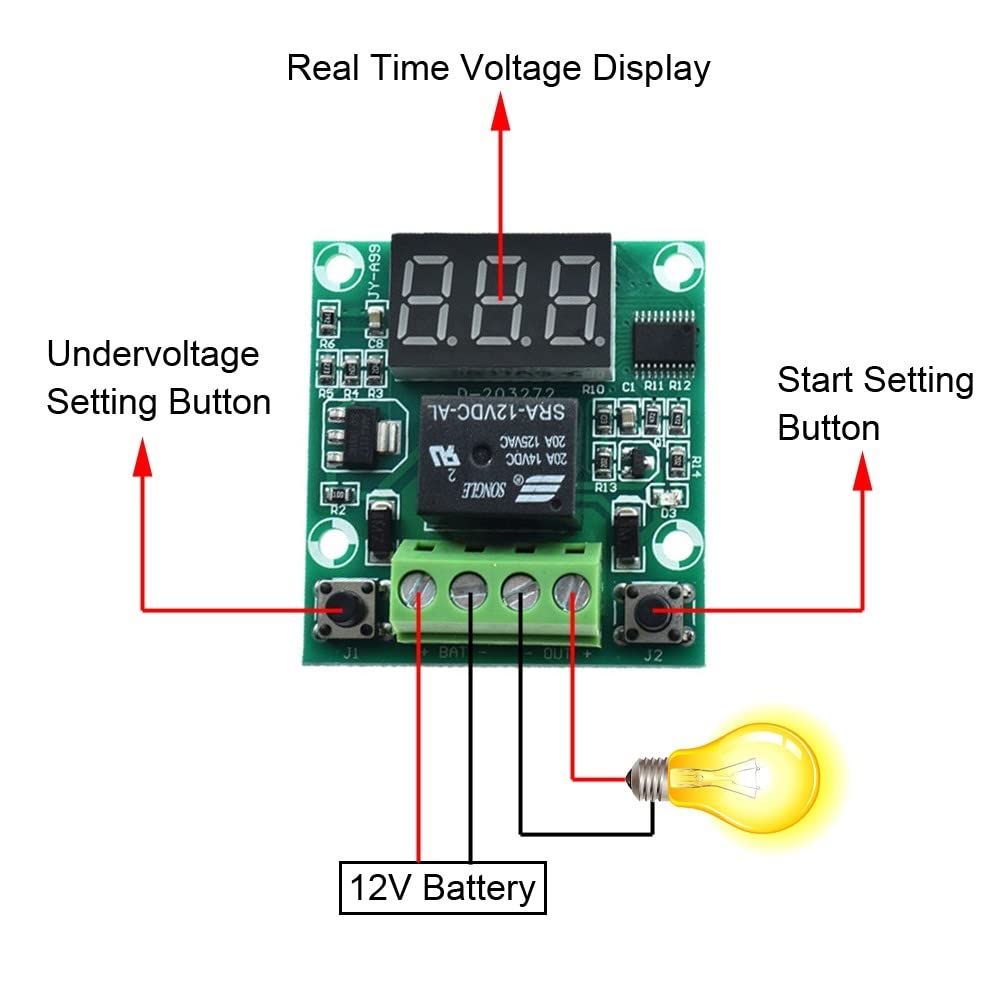

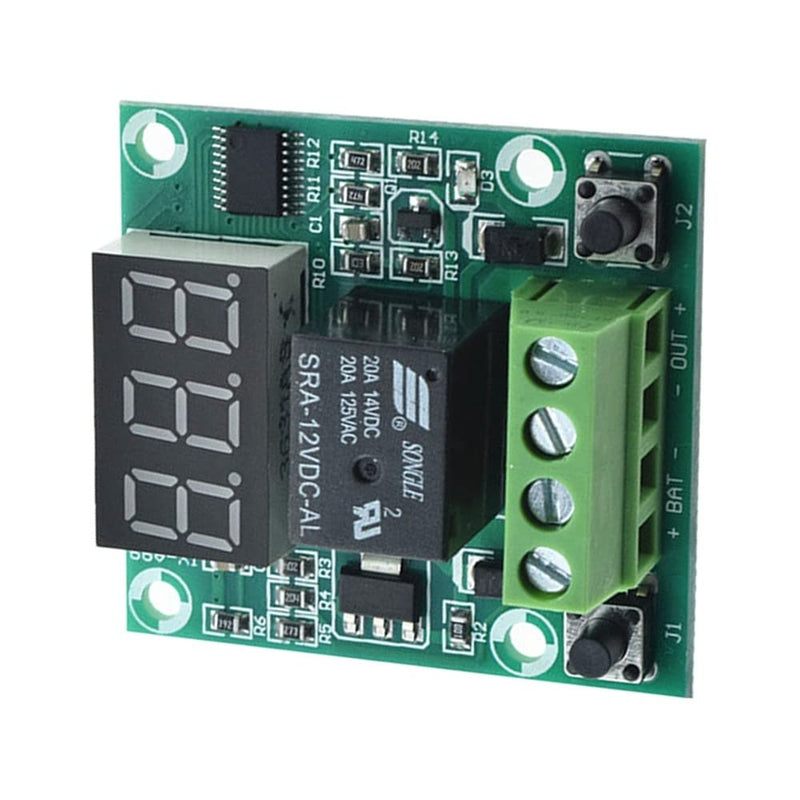

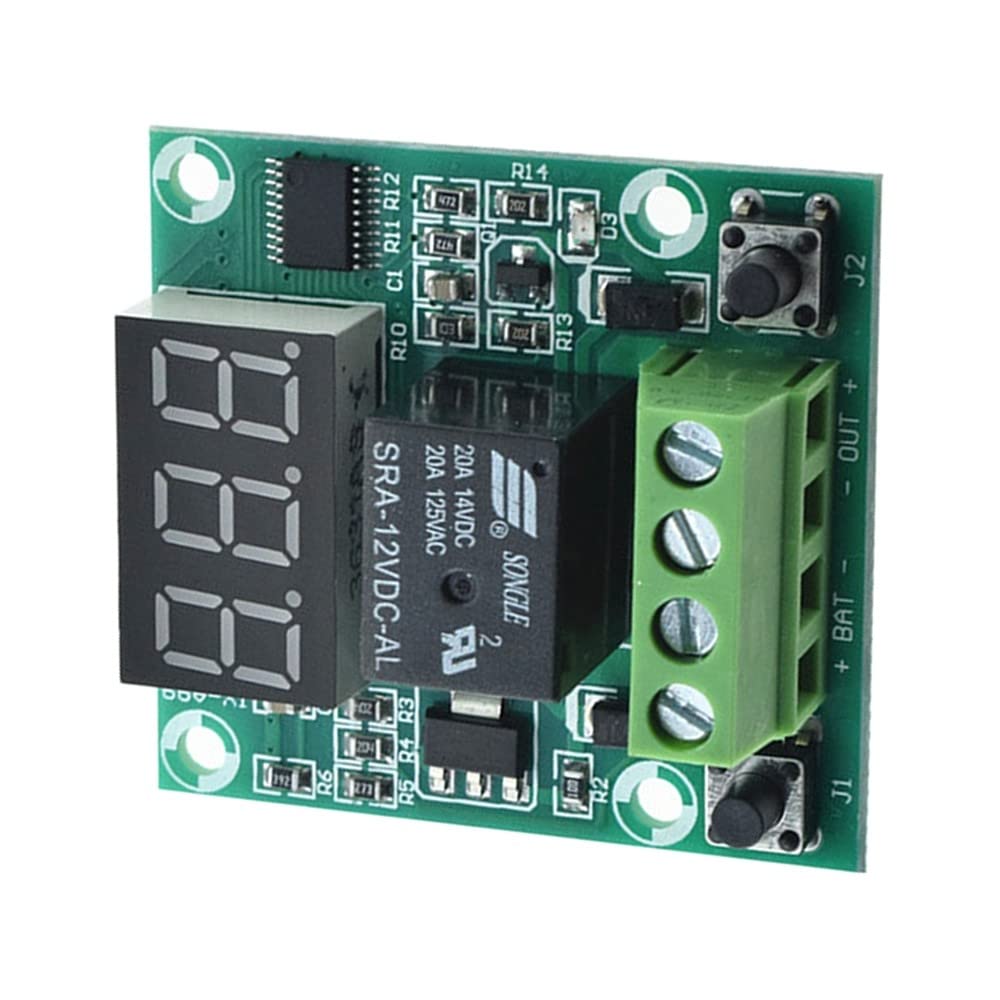

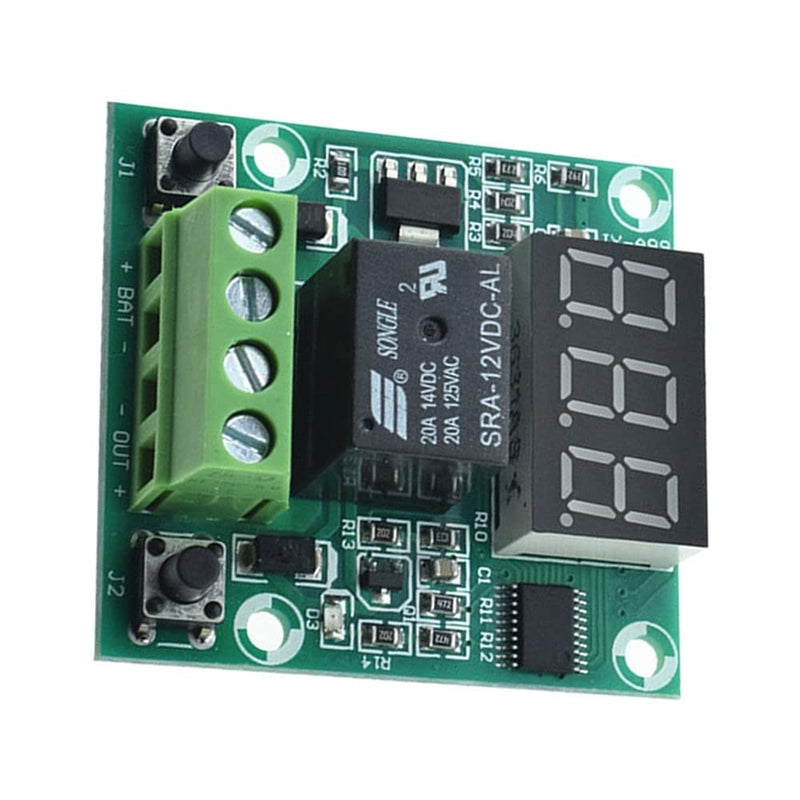

{"id":8534698524825,"title":"Battery Undervoltage Protection Module, JY-A99 DC 12V Battery Undervoltage Protection Module, 6s Delay Under Voltage Regulator, Battery Voltage Protection","handle":"battery-undervoltage-protection-module-jy-a99-dc-12v-battery-undervoltage-protection-module-6s-delay-under-voltage-regulator-battery-voltage-protection","description":"\u003ch3\u003eBattery Undervoltage Protection Module, JY-A99 DC 12V Battery Undervoltage Protection Module, 6s Delay Under Voltage Regulator, Battery Voltage Protection\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: When the battery voltage is lower than the set low voltage value,\nthe module will be automatically disconnected from the load; when the battery\nvoltage is higher than the starting value, the module automatically connects\nthe load. Adjustment instructions: 1).Instructions for adjusting the low\nvoltage value: 1.1). Display current parameters: Press the J1 button to\ndisplay the currently set undervoltage parameter value. 1.2). Set the\nundervoltage parameter: long press the J1 button until the digital tube\nflashes, and use J1 and J2 to adjust the undervoltage parameter value.\nInstructions for setting the starting value: 2.1). Display current parameters:\nPress the J2 button to display the currently set start parameters. 2.2). Set\nStart Parameters Long press the J2 button until the digital tube flashes, and\nuse J1 and J2 to adjust the start parameters. Specifications: Input voltage:\nDC 10V-15V (for 12V battery) Load capacity: 20 A relay. Working temperature:\n-25℃~85℃. Working humidity: 5% ~ 95% RH Size: 45 x 42 x 18 mm Package list: 1\nx battery low voltage protection module.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eIt is a battery low voltage protection module. When the battery voltage is below the set low voltage value, the module automatically disconnects the load. When the battery voltage is higher than the starting value, the module automatically connects the load. It has a digital display that can display the real-time voltage of the battery.\u003c\/li\u003e\n \u003cli\u003eIts battery voltage is lower than the low voltage value or higher than the starting value, it reacts automatically.\u003c\/li\u003e\n \u003cli\u003eIt is easy to connect with clamps and can be used after connecting the battery and load.\u003c\/li\u003e\n \u003cli\u003eIt has two buttons that can be used to adjust the undervoltage value and the start value.\u003c\/li\u003e\n \u003cli\u003eSHOP WITH CONFIDENCE: To provide you with the highest quality service, please feel free to contact us if you have any questions. We provide after-sales service until you are satisfied.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-28T14:23:32+10:00","created_at":"2025-09-28T14:23:28+10:00","vendor":"DONGKER","type":"Power Entry Modules","tags":["industryDE_Sep2025"],"price":13800,"price_min":13800,"price_max":13800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45751488446617,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0B71S4PT4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Battery Undervoltage Protection Module, JY-A99 DC 12V Battery Undervoltage Protection Module, 6s Delay Under Voltage Regulator, Battery Voltage Protection","public_title":null,"options":["Default Title"],"price":13800,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"774827388633","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0B71S4PT4.jpg?v=1775756491","\/\/soundstores.net\/cdn\/shop\/files\/510iASPF4vL.jpg?v=1759033411","\/\/soundstores.net\/cdn\/shop\/files\/614EWL3yc6L.jpg?v=1759033411","\/\/soundstores.net\/cdn\/shop\/files\/61g279zKadL.jpg?v=1759033411","\/\/soundstores.net\/cdn\/shop\/files\/51ELygteKJL.jpg?v=1759033411","\/\/soundstores.net\/cdn\/shop\/files\/618NUEPSr4L.jpg?v=1759033411","\/\/soundstores.net\/cdn\/shop\/files\/51DNwqB5O3L.jpg?v=1759033411","\/\/soundstores.net\/cdn\/shop\/files\/510UTvnFIJL.jpg?v=1759033411","\/\/soundstores.net\/cdn\/shop\/files\/51N3JlXxSEL.jpg?v=1759033411"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B71S4PT4.jpg?v=1775756491","options":["Title"],"media":[{"alt":null,"id":34674176229529,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B71S4PT4.jpg?v=1775756491"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B71S4PT4.jpg?v=1775756491","width":1000},{"alt":null,"id":34674176262297,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/510iASPF4vL.jpg?v=1759033411"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/510iASPF4vL.jpg?v=1759033411","width":1000},{"alt":null,"id":34674176295065,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/614EWL3yc6L.jpg?v=1759033411"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/614EWL3yc6L.jpg?v=1759033411","width":1000},{"alt":null,"id":34674176327833,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61g279zKadL.jpg?v=1759033411"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61g279zKadL.jpg?v=1759033411","width":1000},{"alt":null,"id":34674176360601,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51ELygteKJL.jpg?v=1759033411"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51ELygteKJL.jpg?v=1759033411","width":1000},{"alt":null,"id":34674176393369,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/618NUEPSr4L.jpg?v=1759033411"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/618NUEPSr4L.jpg?v=1759033411","width":1000},{"alt":null,"id":34674176426137,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51DNwqB5O3L.jpg?v=1759033411"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51DNwqB5O3L.jpg?v=1759033411","width":1000},{"alt":null,"id":34674176458905,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/510UTvnFIJL.jpg?v=1759033411"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/510UTvnFIJL.jpg?v=1759033411","width":1000},{"alt":null,"id":34674176491673,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51N3JlXxSEL.jpg?v=1759033411"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51N3JlXxSEL.jpg?v=1759033411","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBattery Undervoltage Protection Module, JY-A99 DC 12V Battery Undervoltage Protection Module, 6s Delay Under Voltage Regulator, Battery Voltage Protection\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: When the battery voltage is lower than the set low voltage value,\nthe module will be automatically disconnected from the load; when the battery\nvoltage is higher than the starting value, the module automatically connects\nthe load. Adjustment instructions: 1).Instructions for adjusting the low\nvoltage value: 1.1). Display current parameters: Press the J1 button to\ndisplay the currently set undervoltage parameter value. 1.2). Set the\nundervoltage parameter: long press the J1 button until the digital tube\nflashes, and use J1 and J2 to adjust the undervoltage parameter value.\nInstructions for setting the starting value: 2.1). Display current parameters:\nPress the J2 button to display the currently set start parameters. 2.2). Set\nStart Parameters Long press the J2 button until the digital tube flashes, and\nuse J1 and J2 to adjust the start parameters. Specifications: Input voltage:\nDC 10V-15V (for 12V battery) Load capacity: 20 A relay. Working temperature:\n-25℃~85℃. Working humidity: 5% ~ 95% RH Size: 45 x 42 x 18 mm Package list: 1\nx battery low voltage protection module.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eIt is a battery low voltage protection module. When the battery voltage is below the set low voltage value, the module automatically disconnects the load. When the battery voltage is higher than the starting value, the module automatically connects the load. It has a digital display that can display the real-time voltage of the battery.\u003c\/li\u003e\n \u003cli\u003eIts battery voltage is lower than the low voltage value or higher than the starting value, it reacts automatically.\u003c\/li\u003e\n \u003cli\u003eIt is easy to connect with clamps and can be used after connecting the battery and load.\u003c\/li\u003e\n \u003cli\u003eIt has two buttons that can be used to adjust the undervoltage value and the start value.\u003c\/li\u003e\n \u003cli\u003eSHOP WITH CONFIDENCE: To provide you with the highest quality service, please feel free to contact us if you have any questions. We provide after-sales service until you are satisfied.\u003c\/li\u003e\n \u003c\/ul\u003e"}
