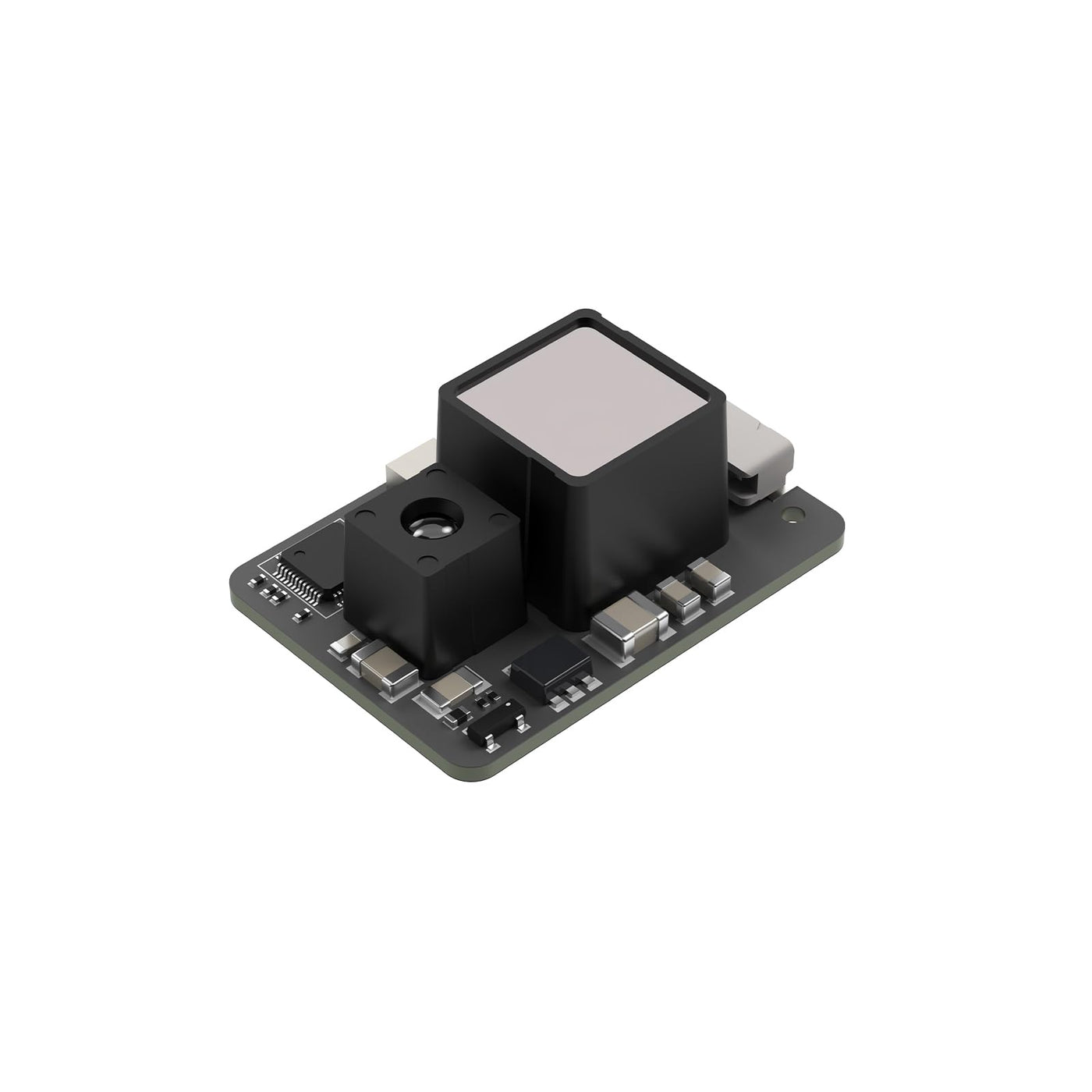

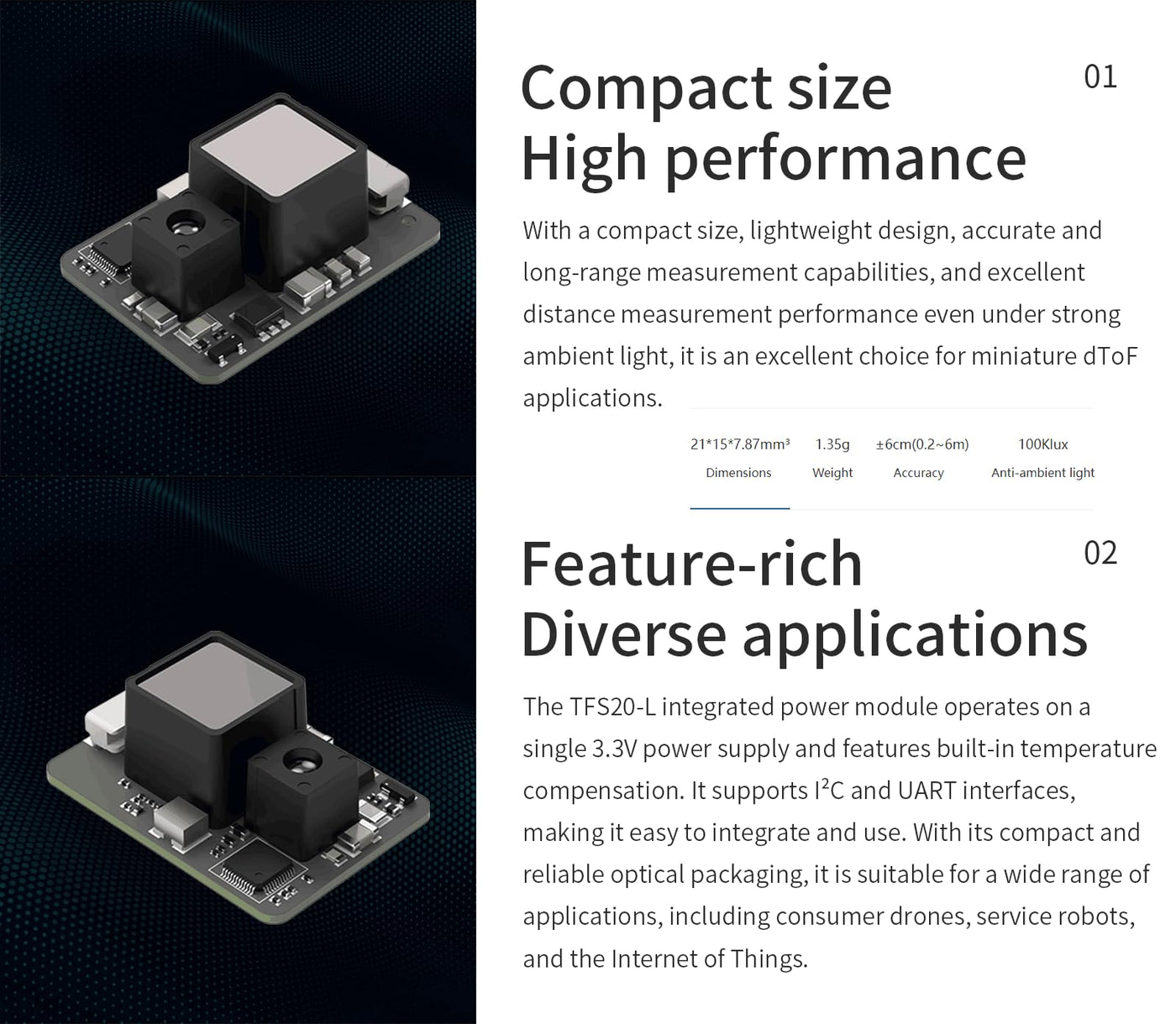

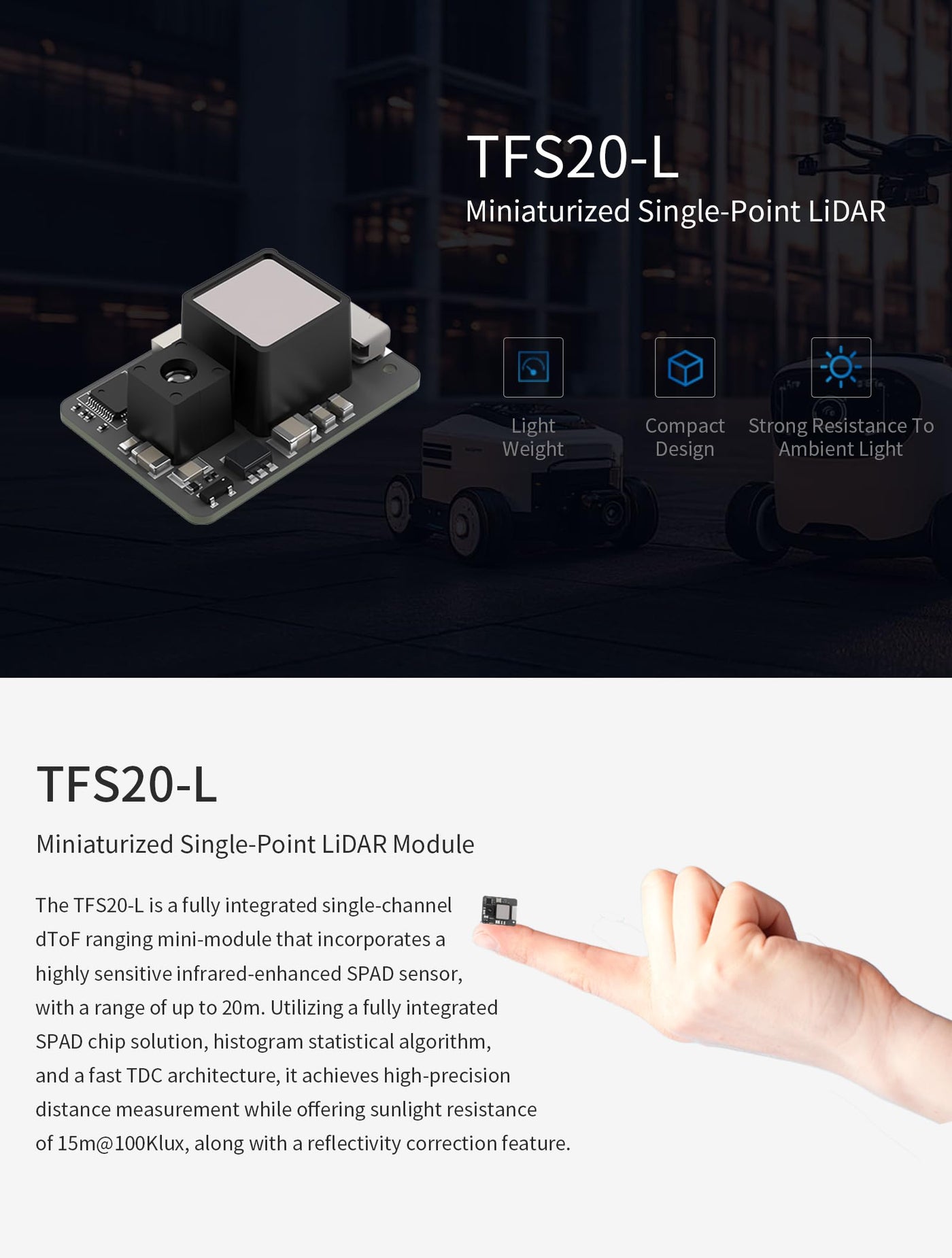

{"id":8530693521561,"title":"Benewake TFS20-L UART \u0026 IIC Miniaturised Single-Point LiDAR Module, 20 m Range Sensors, for Drones or UAVs Robots Fall Protection","handle":"benewake-tfs20-l-uart-iic-miniaturised-single-point-lidar-module-20-m-range-sensors-for-drones-or-uavs-robots-fall-protection","description":"\u003ch3\u003eBenewake TFS20-L UART \u0026amp; IIC Miniaturised Single-Point LiDAR Module, 20 m Range Sensors, for Drones or UAVs Robots Fall Protection\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe TFS20-L is a fully integrated single-channel dToF distance mini module\nwith a highly sensitive infrared amplified SPAD sensor and a range of up to 20\nm. By using a fully integrated SPAD chip solution, histogram statistics\nalgorithm and fast TDC architecture, it achieves high-precision distance\nmeasurement while providing a Sunlight resistance of 1 5m@100Klux and a\nreflection correction function. Important parameters: Size: 21 x 15 x 7.87\nmm³. Weight: 1.35 g. Accuracy: ±6 cm (0.2 ~ 6 Anti-ambient light: 100Klux\nSupport: Forum: forum.youyeetoo.com (recommended) Communication and personal\nadvice:(\u0026gt;\u0026gt;\u0026gt;@)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e[20m] The TFS20-L is a fully integrated single-channel mini module for dToF distance measurement, which includes a highly sensitive infrared amplified SPAD sensor with a range of up to 20 m.\u003c\/li\u003e\n \u003cli\u003e[15m@100Klux] By using a fully integrated SPAD chip solution, a statistical histogram algorithm and a fast TDC architecture, it achieves high-precision distance measurement and offers sunlight resistance of 15m@100Klux as well as a reflection correction function.\u003c\/li\u003e\n \u003cli\u003e[1.35g Weight] With its compact size, lightweight design and precise and far-reaching measuring capabilities, it is an excellent choice for miniature dToF applications.\u003c\/li\u003e\n \u003cli\u003e3.3 V power supply: The integrated TFS20 L power supply module works with a single 3.3 V power supply and has built-in temperature compensation.\u003c\/li\u003e\n \u003cli\u003e[I2C and UART] It supports I2C and UART interfaces and is therefore easy to integrate and use\u003c\/li\u003e\n \u003cli\u003e[Wide Applications] Thanks to its compact and reliable optical housing, it is suitable for a variety of applications, including consumer drones, service robots and the Internet of Things.\u003c\/li\u003e\n \u003cli\u003e[Wiki] \"en.benewake.com\/DataDownload\/index_pid_20_lcid_99.html\";If you have any questions, please click \"youyeetoo\" to ask them, or send an email to am2#youyeetoo.com (#\u0026gt;\u0026gt;\u0026gt;@)\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-24T23:50:55+10:00","created_at":"2025-09-24T23:50:52+10:00","vendor":"youyeetoo","type":"Terminal Blocks","tags":["industryDE_Sep2025"],"price":28000,"price_min":28000,"price_max":28000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45743343730841,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0DNQ1DHDB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Benewake TFS20-L UART \u0026 IIC Miniaturised Single-Point LiDAR Module, 20 m Range Sensors, for Drones or UAVs Robots Fall Protection","public_title":null,"options":["Default Title"],"price":28000,"weight":1,"compare_at_price":null,"inventory_management":"shopify","barcode":"BXDPTFS20L01","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0DNQ1DHDB.jpg?v=1775749466","\/\/soundstores.net\/cdn\/shop\/files\/71_RTbvxahL.jpg?v=1758721854","\/\/soundstores.net\/cdn\/shop\/files\/71BCv8bOBIL.jpg?v=1758721855","\/\/soundstores.net\/cdn\/shop\/files\/71giIDw_v1L.jpg?v=1758721854","\/\/soundstores.net\/cdn\/shop\/files\/71jj085ym-L.jpg?v=1758721854","\/\/soundstores.net\/cdn\/shop\/files\/51SDT6Jm8TL.jpg?v=1758721854","\/\/soundstores.net\/cdn\/shop\/files\/41-kp6_gAdL.jpg?v=1758721854","\/\/soundstores.net\/cdn\/shop\/files\/41dppc6AebL.jpg?v=1758721855"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0DNQ1DHDB.jpg?v=1775749466","options":["Title"],"media":[{"alt":null,"id":34626617507993,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0DNQ1DHDB.jpg?v=1775749466"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0DNQ1DHDB.jpg?v=1775749466","width":1600},{"alt":null,"id":34626617540761,"position":2,"preview_image":{"aspect_ratio":0.757,"height":2114,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71_RTbvxahL.jpg?v=1758721854"},"aspect_ratio":0.757,"height":2114,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71_RTbvxahL.jpg?v=1758721854","width":1600},{"alt":null,"id":34626617573529,"position":3,"preview_image":{"aspect_ratio":1.149,"height":1393,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71BCv8bOBIL.jpg?v=1758721855"},"aspect_ratio":1.149,"height":1393,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71BCv8bOBIL.jpg?v=1758721855","width":1600},{"alt":null,"id":34626617606297,"position":4,"preview_image":{"aspect_ratio":0.758,"height":2111,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71giIDw_v1L.jpg?v=1758721854"},"aspect_ratio":0.758,"height":2111,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71giIDw_v1L.jpg?v=1758721854","width":1600},{"alt":null,"id":34626617639065,"position":5,"preview_image":{"aspect_ratio":0.856,"height":1869,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71jj085ym-L.jpg?v=1758721854"},"aspect_ratio":0.856,"height":1869,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71jj085ym-L.jpg?v=1758721854","width":1600},{"alt":null,"id":34626617671833,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51SDT6Jm8TL.jpg?v=1758721854"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51SDT6Jm8TL.jpg?v=1758721854","width":1600},{"alt":null,"id":34626617704601,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/41-kp6_gAdL.jpg?v=1758721854"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/41-kp6_gAdL.jpg?v=1758721854","width":1600},{"alt":null,"id":34626617737369,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/41dppc6AebL.jpg?v=1758721855"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/41dppc6AebL.jpg?v=1758721855","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBenewake TFS20-L UART \u0026amp; IIC Miniaturised Single-Point LiDAR Module, 20 m Range Sensors, for Drones or UAVs Robots Fall Protection\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe TFS20-L is a fully integrated single-channel dToF distance mini module\nwith a highly sensitive infrared amplified SPAD sensor and a range of up to 20\nm. By using a fully integrated SPAD chip solution, histogram statistics\nalgorithm and fast TDC architecture, it achieves high-precision distance\nmeasurement while providing a Sunlight resistance of 1 5m@100Klux and a\nreflection correction function. Important parameters: Size: 21 x 15 x 7.87\nmm³. Weight: 1.35 g. Accuracy: ±6 cm (0.2 ~ 6 Anti-ambient light: 100Klux\nSupport: Forum: forum.youyeetoo.com (recommended) Communication and personal\nadvice:(\u0026gt;\u0026gt;\u0026gt;@)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e[20m] The TFS20-L is a fully integrated single-channel mini module for dToF distance measurement, which includes a highly sensitive infrared amplified SPAD sensor with a range of up to 20 m.\u003c\/li\u003e\n \u003cli\u003e[15m@100Klux] By using a fully integrated SPAD chip solution, a statistical histogram algorithm and a fast TDC architecture, it achieves high-precision distance measurement and offers sunlight resistance of 15m@100Klux as well as a reflection correction function.\u003c\/li\u003e\n \u003cli\u003e[1.35g Weight] With its compact size, lightweight design and precise and far-reaching measuring capabilities, it is an excellent choice for miniature dToF applications.\u003c\/li\u003e\n \u003cli\u003e3.3 V power supply: The integrated TFS20 L power supply module works with a single 3.3 V power supply and has built-in temperature compensation.\u003c\/li\u003e\n \u003cli\u003e[I2C and UART] It supports I2C and UART interfaces and is therefore easy to integrate and use\u003c\/li\u003e\n \u003cli\u003e[Wide Applications] Thanks to its compact and reliable optical housing, it is suitable for a variety of applications, including consumer drones, service robots and the Internet of Things.\u003c\/li\u003e\n \u003cli\u003e[Wiki] \"en.benewake.com\/DataDownload\/index_pid_20_lcid_99.html\";If you have any questions, please click \"youyeetoo\" to ask them, or send an email to am2#youyeetoo.com (#\u0026gt;\u0026gt;\u0026gt;@)\u003c\/li\u003e\n \u003c\/ul\u003e"}
