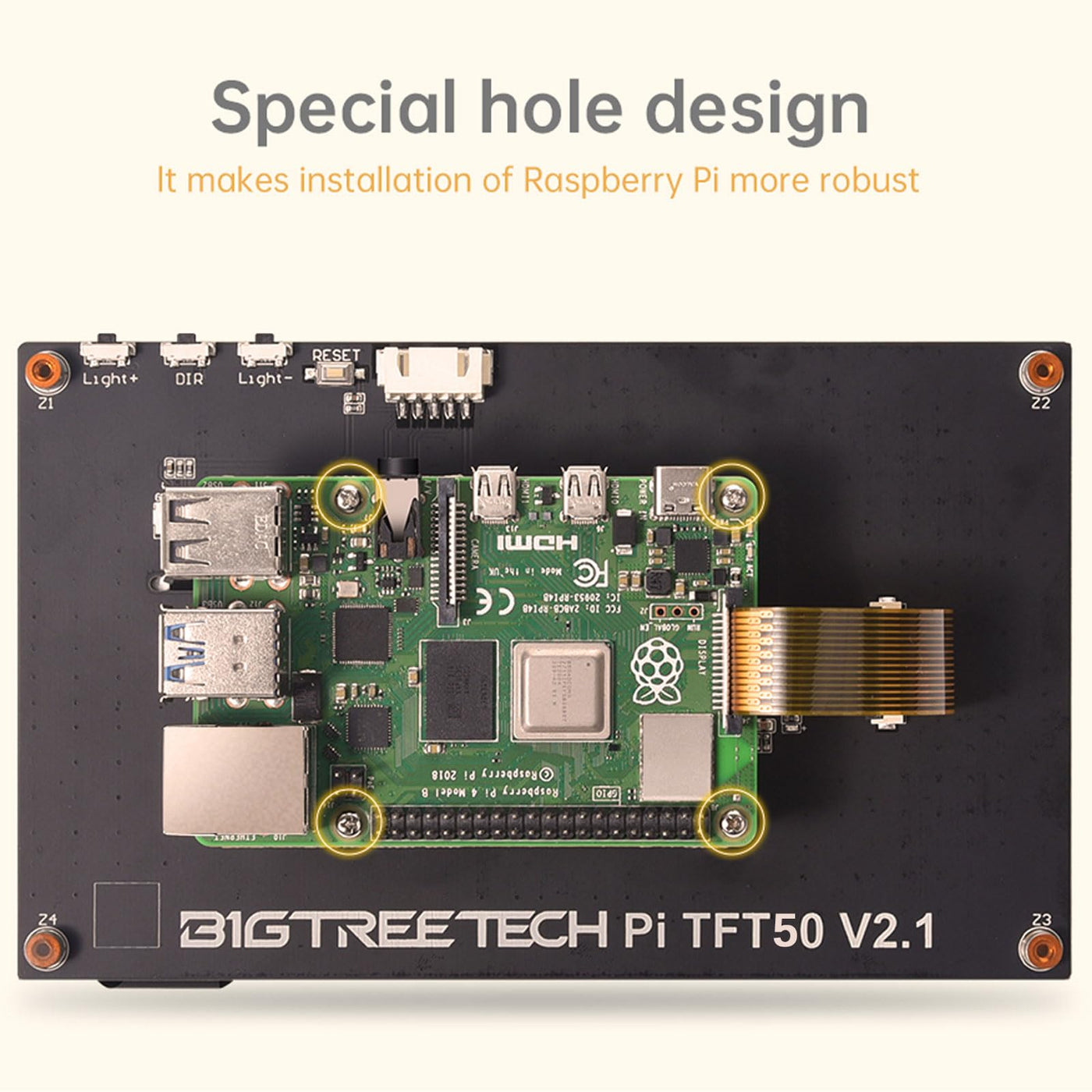

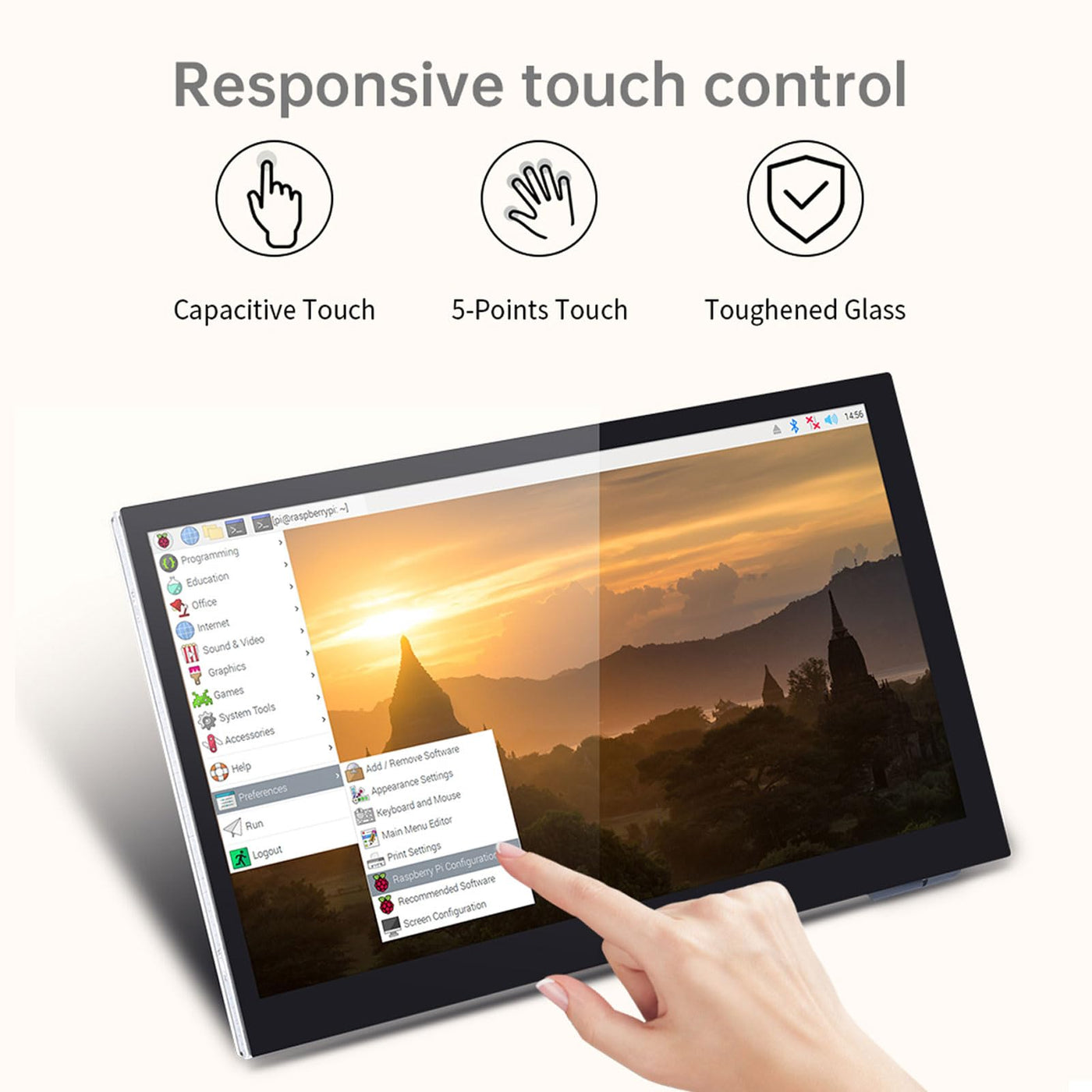

{"id":8528979755161,"title":"BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1","handle":"bigtreetech-upgrade-pitft50-v2-1-graphic-smart-display-dsi-interface-5-inch-lcd-touch-screen-suitable-for-raspberry-pi-pi-tft50-v2-1","description":"\u003ch3\u003eBIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePI-TFT50 V2.1 Technical Specifications: Working Voltage: 3.3V (provided by\nRaspberry Pi display interface) Maximum Working Current: 320mA Screen Current:\n100mA Screen Resolution: 800480 Video Interface: Raspberry Pi DSI Touch\nPoints: 5 points Viewing Angle: 60°\/70°\/70°\/70° RGB888-16 Trillion True Color\nRefresh Rate: 60Hz Luminous Rate: 280 cd\/m2 Working Temperature: -20℃-70℃\nDimensions: 121mm x 76mm Mounting Hole Size: M2.5 Outer Mounting Hole\nPosition: 113mm x 68mm Inner Mounting Hole Position: 58mm x 49m Use Tutorial:\nThe first step is to insert the SD card with the Raspberry-Pi system into the\nRaspberry-PI. Step 2: Connect the DISPLAY interface of the 5-inch touch screen\nto the DISPLAY interface on the Raspberry-Pi through the provided FPC cable.\nStep 3: After powering on the Raspberry-Pi, you can use the 5-inch touch\nscreen.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis is a 5-inch LCD touch screen with a resolution of 800 x 480 for Raspberry-Pi. The display area can reach 108 x 64.8mm\u003c\/li\u003e\n \u003cli\u003eAdapt to the Raspberry-Pi DSI display interface, directly driven by DSI; with a capacitive touch panel. Supports 5-point touch\u003c\/li\u003e\n \u003cli\u003eThe unique hole design on the back allows you to install the Raspberry-Pi directly. PI TFT50 display adopts Raspberry-Pi power supply design, no external power supply is needed\u003c\/li\u003e\n \u003cli\u003eThe PI TFT50 display supports hardware backlight adjustment, and the backlight brightness can be adjusted by rotating the potentiometer behind the screen\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-23T10:19:07+10:00","created_at":"2025-09-23T10:19:03+10:00","vendor":"BIGTREETECH","type":"3D Printer Accessories","tags":["industryDE_Sep2025"],"price":27100,"price_min":27100,"price_max":27100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45739223482521,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B08FDGRXGF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1","public_title":null,"options":["Default Title"],"price":27100,"weight":209,"compare_at_price":null,"inventory_management":"shopify","barcode":"079156874322","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B08FDGRXGF.jpg?v=1775748307","\/\/soundstores.net\/cdn\/shop\/files\/61Uo_VtC0QL.jpg?v=1758586746","\/\/soundstores.net\/cdn\/shop\/files\/61IHq35A71L.jpg?v=1758586745","\/\/soundstores.net\/cdn\/shop\/files\/616-h7oLqUL.jpg?v=1758586746","\/\/soundstores.net\/cdn\/shop\/files\/71bfare5DQL.jpg?v=1758586746","\/\/soundstores.net\/cdn\/shop\/files\/61N_YxU-BpL.jpg?v=1758586746","\/\/soundstores.net\/cdn\/shop\/files\/71rmEWcSpzL.jpg?v=1758586746","\/\/soundstores.net\/cdn\/shop\/files\/81A7GK0b4jL.jpg?v=1758586746","\/\/soundstores.net\/cdn\/shop\/files\/81VvO2xB0TL.jpg?v=1758586746","\/\/soundstores.net\/cdn\/shop\/files\/81AHL164w0L.jpg?v=1758586746","\/\/soundstores.net\/cdn\/shop\/files\/81A_5kpe1OL.jpg?v=1758586746","\/\/soundstores.net\/cdn\/shop\/files\/81JXOP8ppYL.jpg?v=1758586746"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B08FDGRXGF.jpg?v=1775748307","options":["Title"],"media":[{"alt":null,"id":34597007130777,"position":1,"preview_image":{"aspect_ratio":1.125,"height":1600,"width":1800,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B08FDGRXGF.jpg?v=1775748307"},"aspect_ratio":1.125,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B08FDGRXGF.jpg?v=1775748307","width":1800},{"alt":null,"id":34597007163545,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61Uo_VtC0QL.jpg?v=1758586746"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61Uo_VtC0QL.jpg?v=1758586746","width":1600},{"alt":null,"id":34597007196313,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61IHq35A71L.jpg?v=1758586745"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61IHq35A71L.jpg?v=1758586745","width":1600},{"alt":null,"id":34597007229081,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/616-h7oLqUL.jpg?v=1758586746"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/616-h7oLqUL.jpg?v=1758586746","width":1600},{"alt":null,"id":34597007261849,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71bfare5DQL.jpg?v=1758586746"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71bfare5DQL.jpg?v=1758586746","width":1600},{"alt":null,"id":34597007294617,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61N_YxU-BpL.jpg?v=1758586746"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61N_YxU-BpL.jpg?v=1758586746","width":1600},{"alt":null,"id":34597007327385,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71rmEWcSpzL.jpg?v=1758586746"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71rmEWcSpzL.jpg?v=1758586746","width":1600},{"alt":null,"id":34597007360153,"position":8,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81A7GK0b4jL.jpg?v=1758586746"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81A7GK0b4jL.jpg?v=1758586746","width":2560},{"alt":null,"id":34597007392921,"position":9,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81VvO2xB0TL.jpg?v=1758586746"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81VvO2xB0TL.jpg?v=1758586746","width":2560},{"alt":null,"id":34597007425689,"position":10,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81AHL164w0L.jpg?v=1758586746"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81AHL164w0L.jpg?v=1758586746","width":2560},{"alt":null,"id":34597007458457,"position":11,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81A_5kpe1OL.jpg?v=1758586746"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81A_5kpe1OL.jpg?v=1758586746","width":2560},{"alt":null,"id":34597007491225,"position":12,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81JXOP8ppYL.jpg?v=1758586746"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81JXOP8ppYL.jpg?v=1758586746","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePI-TFT50 V2.1 Technical Specifications: Working Voltage: 3.3V (provided by\nRaspberry Pi display interface) Maximum Working Current: 320mA Screen Current:\n100mA Screen Resolution: 800480 Video Interface: Raspberry Pi DSI Touch\nPoints: 5 points Viewing Angle: 60°\/70°\/70°\/70° RGB888-16 Trillion True Color\nRefresh Rate: 60Hz Luminous Rate: 280 cd\/m2 Working Temperature: -20℃-70℃\nDimensions: 121mm x 76mm Mounting Hole Size: M2.5 Outer Mounting Hole\nPosition: 113mm x 68mm Inner Mounting Hole Position: 58mm x 49m Use Tutorial:\nThe first step is to insert the SD card with the Raspberry-Pi system into the\nRaspberry-PI. Step 2: Connect the DISPLAY interface of the 5-inch touch screen\nto the DISPLAY interface on the Raspberry-Pi through the provided FPC cable.\nStep 3: After powering on the Raspberry-Pi, you can use the 5-inch touch\nscreen.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis is a 5-inch LCD touch screen with a resolution of 800 x 480 for Raspberry-Pi. The display area can reach 108 x 64.8mm\u003c\/li\u003e\n \u003cli\u003eAdapt to the Raspberry-Pi DSI display interface, directly driven by DSI; with a capacitive touch panel. Supports 5-point touch\u003c\/li\u003e\n \u003cli\u003eThe unique hole design on the back allows you to install the Raspberry-Pi directly. PI TFT50 display adopts Raspberry-Pi power supply design, no external power supply is needed\u003c\/li\u003e\n \u003cli\u003eThe PI TFT50 display supports hardware backlight adjustment, and the backlight brightness can be adjusted by rotating the potentiometer behind the screen\u003c\/li\u003e\n \u003c\/ul\u003e"}
