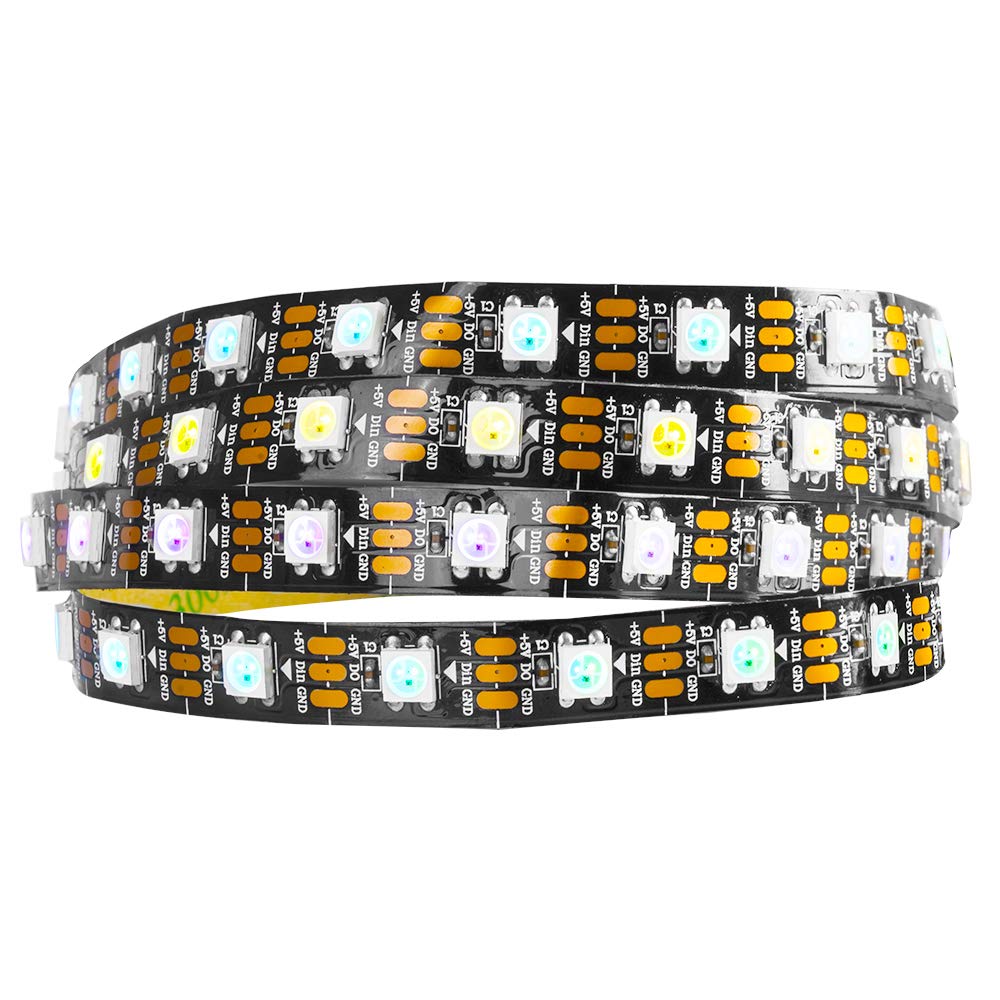

{"id":7356902473881,"title":"BTF-LIGHTING WS2812B RGB 5050SMD Individual Addressable 3.3FT 60(2x30)Pixels\/m Flexible Black PCB Full Color LED Pixel Strip Dream Color IP30 Non-Waterproof for Bedroom,DIY Project Only DC5V Black Pcb Ip30 3.2FT 60LEDs","handle":"btf-lighting-ws2812b-rgb-5050smd-individual-addressable-3-3ft-602x30pixels-m-flexible-black-pcb-full-color-led-pixel-strip-dream-color-ip30-non-waterproof-for-bedroom-diy-project-only-dc5v-black-pcb-ip30-3-2ft-60leds","description":"\u003ch3\u003eBTF-LIGHTING WS2812B RGB 5050SMD Individual Addressable 3.3FT 60(2x30)Pixels\/m Flexible Black PCB Full Color LED Pixel Strip Dream Color IP30 Non-Waterproof for Bedroom,DIY Project Only DC5V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameters Brand:BTF-LIGHTING IC type :WS2812B IC Color\norder : G R B（NOT RGB） Gray level: 256 View angle: 120° Input voltage: DC5V\nColor: full color 24-bit FPCB board color: Black\/WhiteLED strip width: IP30\nIP65 :10mm LED strip width : IP67:12mm( include silicone\nsheathing)Power:0.1W~0.3W\/LED 6W~18W\/3.3ft Recommended power supply：DC5V3A\n(15W) Standard Reel Length:3.3FT\/roll Model: WS2812 strip 5050rgb chips\nOperating Temperature: -20 ~ +50°C Led Qty: 60LEDs\/3.3ft 60 pixels\/3.3ft\nLength x Widthx Height：IP30:1000mmx10mmx2mm IP65:1000mmx10mmx3mm\nIP67:1000mmx12mmx3.85mmWave length(nm):Red（620-630） ; Green（515-530） ;\nBlue（465-475）Waterproof level: IP30\/IP65\/IP67Double Side Tape: IP30\/IP65 .\nThere is no double side tape on IP67.Light up 1 color（red or green or blue)\n0.1W\/LED . Light up 2 colors (red+green) 0.2W\/LED , Light up 3 colors\n(red+green+blue=mixed white) 0.3W\/LED Features Cuttable Every LED can be cut\noff, LED strip still working after it is cut. Cut it to the length you just\nneed. Adhesive They(Only IP30, IP65) have double sides adhesive tapes on the\nback.There is no double side tape on IP67 , IP67 needs screws and clips to\ninstall. You can paste IP30\/IP65 on the bookcase, TV, wine cabinet, ceiling,\nwindowsill easily. Colorful Red, Green, Blue. Dream full color. curtain-up\/\nflow water\/raindrop jump flash and so on hundreds of lighting effect, you can\nalso edit animation effect by Coreldraw\/Flash\/LedEdit software. Long life Life\nspan: more than 50000hrs Waterproof level Non-waterproof (IP30) Silicone\ncoating waterproof (IP65) Silicone coating sheathing waterproof (IP67) Glue-\nPouring Waterproof(IP68) Precautions Using 5VDC power supply. Higher than 5V\nwill destroy it. If you need more data of WS2812 led strip, we will send it to\nyou. The LEDs at the far end of the strip might be dimmer because of the added\nresistance and voltage drop that occurs during the current flows to that end\nof the strip. The solution is adding DC5V voltage every 16.4ft or 32ft\naccording to the actual situation . LED strip is made by 50cm FPCB, so there\nis a solder point each 50cm(1.6FT) on strip. But this minor flaw has no any\nbad effect on the strip's performance. In fact, ALL the LED strips on the\nmarket are manufactured in half-meter lengths. Package 1x3.3ft 60LEDs( 60\nPixels) WS2812 LED strip 1x3 pin male connector Power adapter or controller is\nnot included(Only DC5V) Waterproof Level IP30: Non-waterproof . Only work\nindoor . IP65: Silicone Coating Splash Proof .Dust prevention splash proofing\ndesigns. Only work indoor. IP67: Sheating Waterproof. Dust prevention water\nproofing designs. Can work outdoor but the 3 PIN connectors are non-\nwaterproof. IP68:Glue-Pouring Waterproof.Dust prevention water proofing\ndesigns. Can work underwater.3 PIN waterproof connector. IP68 needs to be\ncustomized. If you want to install our LED strip on the eaves, we recommend\nyou customize IP68. Common problem 1. Why the end of LED strip looks like red\nor yellow when you light up maximum brightness White Light ? A1: It is better\nto add DC5V voltage every 16.4FT, because the LEDs at the far end of the strip\nmight be dimmer due to the added resistance and voltage drop that occurs as\nthe current flows to that end of the strip. 2. Why do I light up a few LEDs ?\nA1: Please make sure you using the right power supply . For this LED strip ,\nit is DC5V .Please don't use DC12V power supply for it . It will burn this LED\nstrip . A2:The controller is defective . Please make sure the controller can\nwork fine . 3. What are the functions of the two extra wires on two ends ,one\nis white ,one is red ? A1: They are using to connected the DC5V power supply\nwhen the LED strip out of voltage . So we also call them voltage adding wires\n. 4. Can I connect them in series when I want to control 4 reels of them ? A1:\nYes , they can end to end connect many reels .\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eIt comes with 3pin JST-SM connectors on both ends for easy installation and separated power\/ground wires on both ends. Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.\u003c\/li\u003e\n \u003cli\u003eThe addressable IC is built-in the 5050SMD.Each pixel can have its own color and brightness as your wish. Compatible with K1000C etc programmable controllers. Support SP110E SP105E SP108E SP110E etc APP controllers, CSY07 CSY08 X2 SP106E SP107E etc music controllers, SP501E etc smart WiFi Voice Controllers. Power adapter or controller is not included\u003c\/li\u003e\n \u003cli\u003eOnly Support DC5V. Do not try DC12V or DC24V power supply.Match use controller can appear colorful curtain-up\/ flow water\/raindrop\/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw\/Flash\/LedEdit software.Power adapter and controller need to be purchased separately\u003c\/li\u003e\n \u003cli\u003eMaking led screen, led wall, advertising board, apply to hotel, KTV, bars, Outdoor advertising signs, Festivel Christmas or wedding party decoration,There is adhesive tape on IP30\/IP65 LED strip's back, so you can stick it to the wall or other items conveniently as you like. IP67 is available with fixing clips and screws.\u003c\/li\u003e\n \u003c\/ul\u003e\n","published_at":"2022-04-05T16:31:30+10:00","created_at":"2022-04-05T16:31:38+10:00","vendor":"BTF-LIGHTING","type":"LED Strip Lights","tags":["sound"],"price":11300,"price_min":11300,"price_max":11300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42018468331673,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B01CDTED80","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BTF-LIGHTING WS2812B RGB 5050SMD Individual Addressable 3.3FT 60(2x30)Pixels\/m Flexible Black PCB Full Color LED Pixel Strip Dream Color IP30 Non-Waterproof for Bedroom,DIY Project Only DC5V Black Pcb Ip30 3.2FT 60LEDs","public_title":null,"options":["Default Title"],"price":11300,"weight":40,"compare_at_price":null,"inventory_management":null,"barcode":"WS2812B1M60LB30","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/soundstores.net\/cdn\/shop\/products\/B01CDTED80.jpg?v=1650747970","\/\/soundstores.net\/cdn\/shop\/products\/61uN0xhAfhL.jpg?v=1649140298","\/\/soundstores.net\/cdn\/shop\/products\/61RHzOTUaML.jpg?v=1649140298","\/\/soundstores.net\/cdn\/shop\/products\/61RH4fulmlL.jpg?v=1649140298","\/\/soundstores.net\/cdn\/shop\/products\/615qDqJj1AL.jpg?v=1649140298","\/\/soundstores.net\/cdn\/shop\/products\/61e_eSZnz-L.jpg?v=1649140298","\/\/soundstores.net\/cdn\/shop\/products\/51S5Hq96kGL.jpg?v=1649140298"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/products\/B01CDTED80.jpg?v=1650747970","options":["Title"],"media":[{"alt":null,"id":26789889867929,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/products\/B01CDTED80.jpg?v=1650747970"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/B01CDTED80.jpg?v=1650747970","width":1000},{"alt":null,"id":26658231713945,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61uN0xhAfhL.jpg?v=1649140298"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61uN0xhAfhL.jpg?v=1649140298","width":1000},{"alt":null,"id":26658231746713,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61RHzOTUaML.jpg?v=1649140298"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61RHzOTUaML.jpg?v=1649140298","width":1200},{"alt":null,"id":26658231779481,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61RH4fulmlL.jpg?v=1649140298"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61RH4fulmlL.jpg?v=1649140298","width":1000},{"alt":null,"id":26658231812249,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/products\/615qDqJj1AL.jpg?v=1649140298"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/615qDqJj1AL.jpg?v=1649140298","width":1000},{"alt":null,"id":26658231845017,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61e_eSZnz-L.jpg?v=1649140298"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61e_eSZnz-L.jpg?v=1649140298","width":1000},{"alt":null,"id":26658231877785,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51S5Hq96kGL.jpg?v=1649140298"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51S5Hq96kGL.jpg?v=1649140298","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBTF-LIGHTING WS2812B RGB 5050SMD Individual Addressable 3.3FT 60(2x30)Pixels\/m Flexible Black PCB Full Color LED Pixel Strip Dream Color IP30 Non-Waterproof for Bedroom,DIY Project Only DC5V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameters Brand:BTF-LIGHTING IC type :WS2812B IC Color\norder : G R B（NOT RGB） Gray level: 256 View angle: 120° Input voltage: DC5V\nColor: full color 24-bit FPCB board color: Black\/WhiteLED strip width: IP30\nIP65 :10mm LED strip width : IP67:12mm( include silicone\nsheathing)Power:0.1W~0.3W\/LED 6W~18W\/3.3ft Recommended power supply：DC5V3A\n(15W) Standard Reel Length:3.3FT\/roll Model: WS2812 strip 5050rgb chips\nOperating Temperature: -20 ~ +50°C Led Qty: 60LEDs\/3.3ft 60 pixels\/3.3ft\nLength x Widthx Height：IP30:1000mmx10mmx2mm IP65:1000mmx10mmx3mm\nIP67:1000mmx12mmx3.85mmWave length(nm):Red（620-630） ; Green（515-530） ;\nBlue（465-475）Waterproof level: IP30\/IP65\/IP67Double Side Tape: IP30\/IP65 .\nThere is no double side tape on IP67.Light up 1 color（red or green or blue)\n0.1W\/LED . Light up 2 colors (red+green) 0.2W\/LED , Light up 3 colors\n(red+green+blue=mixed white) 0.3W\/LED Features Cuttable Every LED can be cut\noff, LED strip still working after it is cut. Cut it to the length you just\nneed. Adhesive They(Only IP30, IP65) have double sides adhesive tapes on the\nback.There is no double side tape on IP67 , IP67 needs screws and clips to\ninstall. You can paste IP30\/IP65 on the bookcase, TV, wine cabinet, ceiling,\nwindowsill easily. Colorful Red, Green, Blue. Dream full color. curtain-up\/\nflow water\/raindrop jump flash and so on hundreds of lighting effect, you can\nalso edit animation effect by Coreldraw\/Flash\/LedEdit software. Long life Life\nspan: more than 50000hrs Waterproof level Non-waterproof (IP30) Silicone\ncoating waterproof (IP65) Silicone coating sheathing waterproof (IP67) Glue-\nPouring Waterproof(IP68) Precautions Using 5VDC power supply. Higher than 5V\nwill destroy it. If you need more data of WS2812 led strip, we will send it to\nyou. The LEDs at the far end of the strip might be dimmer because of the added\nresistance and voltage drop that occurs during the current flows to that end\nof the strip. The solution is adding DC5V voltage every 16.4ft or 32ft\naccording to the actual situation . LED strip is made by 50cm FPCB, so there\nis a solder point each 50cm(1.6FT) on strip. But this minor flaw has no any\nbad effect on the strip's performance. In fact, ALL the LED strips on the\nmarket are manufactured in half-meter lengths. Package 1x3.3ft 60LEDs( 60\nPixels) WS2812 LED strip 1x3 pin male connector Power adapter or controller is\nnot included(Only DC5V) Waterproof Level IP30: Non-waterproof . Only work\nindoor . IP65: Silicone Coating Splash Proof .Dust prevention splash proofing\ndesigns. Only work indoor. IP67: Sheating Waterproof. Dust prevention water\nproofing designs. Can work outdoor but the 3 PIN connectors are non-\nwaterproof. IP68:Glue-Pouring Waterproof.Dust prevention water proofing\ndesigns. Can work underwater.3 PIN waterproof connector. IP68 needs to be\ncustomized. If you want to install our LED strip on the eaves, we recommend\nyou customize IP68. Common problem 1. Why the end of LED strip looks like red\nor yellow when you light up maximum brightness White Light ? A1: It is better\nto add DC5V voltage every 16.4FT, because the LEDs at the far end of the strip\nmight be dimmer due to the added resistance and voltage drop that occurs as\nthe current flows to that end of the strip. 2. Why do I light up a few LEDs ?\nA1: Please make sure you using the right power supply . For this LED strip ,\nit is DC5V .Please don't use DC12V power supply for it . It will burn this LED\nstrip . A2:The controller is defective . Please make sure the controller can\nwork fine . 3. What are the functions of the two extra wires on two ends ,one\nis white ,one is red ? A1: They are using to connected the DC5V power supply\nwhen the LED strip out of voltage . So we also call them voltage adding wires\n. 4. Can I connect them in series when I want to control 4 reels of them ? A1:\nYes , they can end to end connect many reels .\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eIt comes with 3pin JST-SM connectors on both ends for easy installation and separated power\/ground wires on both ends. Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.\u003c\/li\u003e\n \u003cli\u003eThe addressable IC is built-in the 5050SMD.Each pixel can have its own color and brightness as your wish. Compatible with K1000C etc programmable controllers. Support SP110E SP105E SP108E SP110E etc APP controllers, CSY07 CSY08 X2 SP106E SP107E etc music controllers, SP501E etc smart WiFi Voice Controllers. Power adapter or controller is not included\u003c\/li\u003e\n \u003cli\u003eOnly Support DC5V. Do not try DC12V or DC24V power supply.Match use controller can appear colorful curtain-up\/ flow water\/raindrop\/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw\/Flash\/LedEdit software.Power adapter and controller need to be purchased separately\u003c\/li\u003e\n \u003cli\u003eMaking led screen, led wall, advertising board, apply to hotel, KTV, bars, Outdoor advertising signs, Festivel Christmas or wedding party decoration,There is adhesive tape on IP30\/IP65 LED strip's back, so you can stick it to the wall or other items conveniently as you like. IP67 is available with fixing clips and screws.\u003c\/li\u003e\n \u003c\/ul\u003e\n"}
