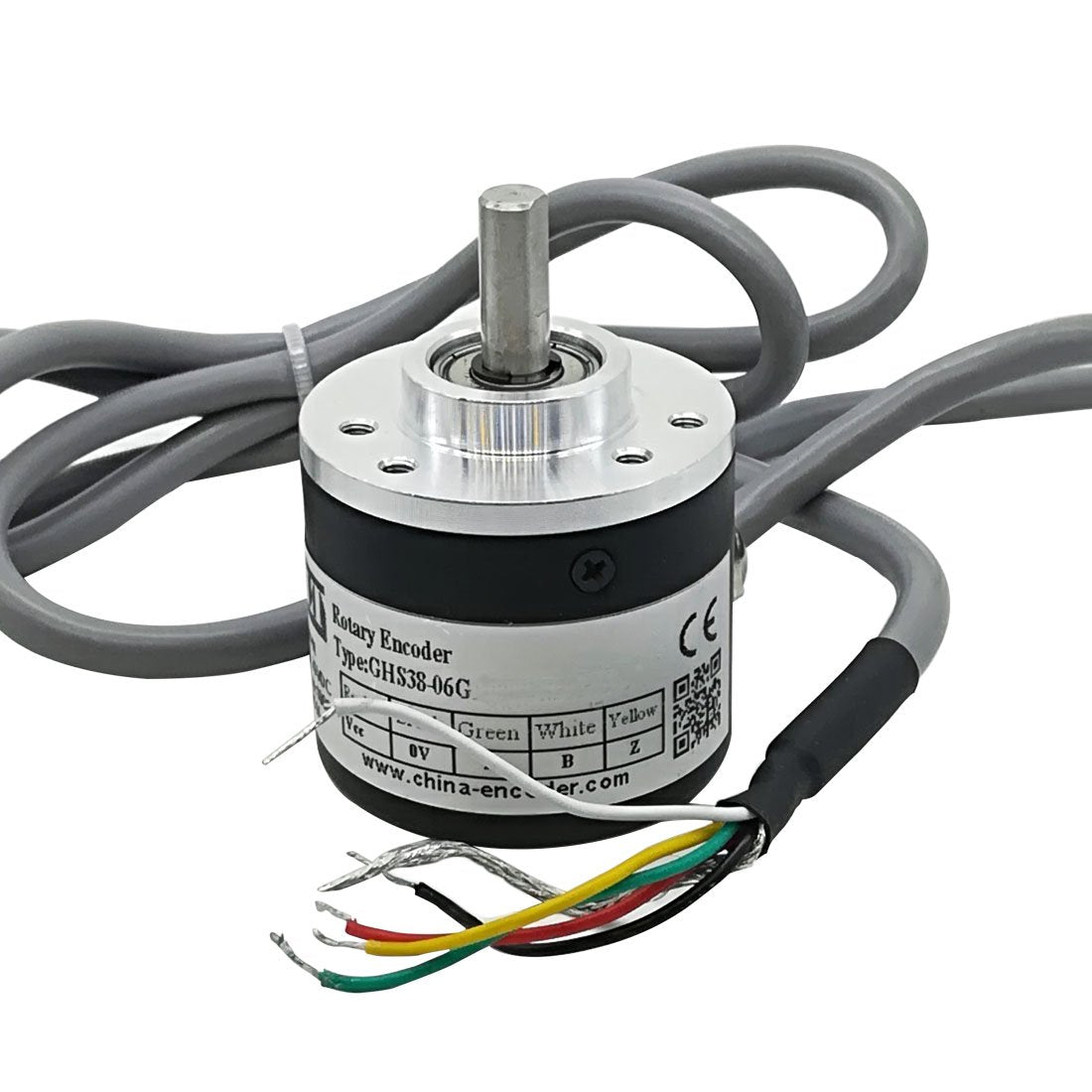

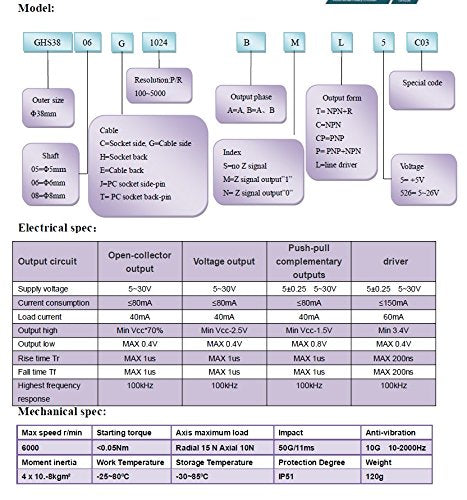

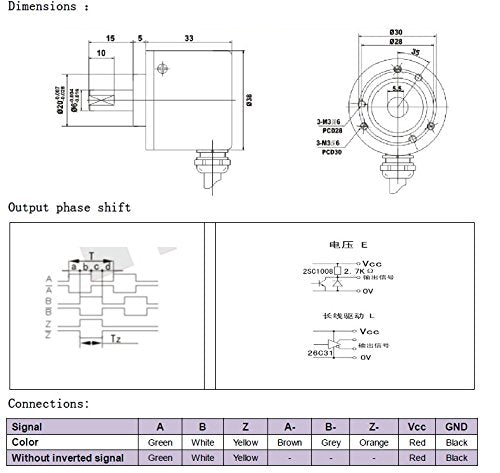

{"id":8534007513241,"title":"CALT 5 Volt Line Driver Output, 6mm Shank, Optical Rotary Encoder Sensors (1000ppr)","handle":"calt-5-volt-line-driver-output-6mm-shank-optical-rotary-encoder-sensors-1000ppr","description":"\u003ch3\u003eCALT 5 Volt Line Driver Output, 6mm Shank, Optical Rotary Encoder Sensors (1000ppr)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWidely used in steel industry, textile machinery, port machinery, plastic\nmachinery, hoisting machinery, printing machinery, glass machinery, printing\nmachinery, wood machinery, packaging machinery, machine tools, logistics\nmachinery, tire machinery, electronics and solar, elevators. Specifications:\nColor: as picture show Power supply: DC 5V Max. Speed: 6000rpm Size:Shank:6mm\ndiameter, bowl size:38mm outer diameter. Output: line driver with ABZ, A, B, Z\nsignals Connection: With 3 channels: Red = VCC, Black = 0V, Green = A, White =\nB, Yellow = Z If 6 channels: red = VCC, black = 0V, green = A, white = B,\nyellow = Z, brown = A, grey = B, orange = Z Note: If the encoder is not\nconnected to the device, cannot be directly oscilloscope oscilloscope (open\ncollector output without pull-up resistance if there is no voltage output) If\nyou want the oscilloscope in AB two-phase output with two pull-up resistors.\nCable: 1m cable side\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e38mm OD 6mm Stainless Steel Rotary Encoders with Solid Shank\u003c\/li\u003e\n \u003cli\u003eDC 5V line driver with A, B, Z, A, B, Z signals\u003c\/li\u003e\n \u003cli\u003eProtection class: IP54\u003c\/li\u003e\n \u003cli\u003eLoad capacity heavy, anti-oil and water\u003c\/li\u003e\n \u003cli\u003e1 year warranty\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T08:51:26+10:00","created_at":"2025-09-27T08:51:23+10:00","vendor":"CALT","type":"Optical Sensors","tags":["industryDE_Sep2025"],"price":31900,"price_min":31900,"price_max":31900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45749912928409,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07BBN835F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CALT 5 Volt Line Driver Output, 6mm Shank, Optical Rotary Encoder Sensors (1000ppr)","public_title":null,"options":["Default Title"],"price":31900,"weight":160,"compare_at_price":null,"inventory_management":"shopify","barcode":"795042381506","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B07BBN835F.jpg?v=1775753777","\/\/soundstores.net\/cdn\/shop\/files\/610dXUwdDBL.jpg?v=1758927085","\/\/soundstores.net\/cdn\/shop\/files\/51SlmysXgQL.jpg?v=1758927085","\/\/soundstores.net\/cdn\/shop\/files\/51szU0kWVYL.jpg?v=1758927085","\/\/soundstores.net\/cdn\/shop\/files\/61vqhW-xgCL.jpg?v=1758927085","\/\/soundstores.net\/cdn\/shop\/files\/51wfDrqfviL.jpg?v=1758927085","\/\/soundstores.net\/cdn\/shop\/files\/51Y0KQAnzdL.jpg?v=1758927085"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07BBN835F.jpg?v=1775753777","options":["Title"],"media":[{"alt":null,"id":34662606274713,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07BBN835F.jpg?v=1775753777"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07BBN835F.jpg?v=1775753777","width":1100},{"alt":null,"id":34662606307481,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/610dXUwdDBL.jpg?v=1758927085"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/610dXUwdDBL.jpg?v=1758927085","width":1100},{"alt":null,"id":34662606340249,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51SlmysXgQL.jpg?v=1758927085"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51SlmysXgQL.jpg?v=1758927085","width":1100},{"alt":null,"id":34662606373017,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51szU0kWVYL.jpg?v=1758927085"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51szU0kWVYL.jpg?v=1758927085","width":1100},{"alt":null,"id":34662606405785,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61vqhW-xgCL.jpg?v=1758927085"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61vqhW-xgCL.jpg?v=1758927085","width":1100},{"alt":null,"id":34662606438553,"position":6,"preview_image":{"aspect_ratio":1.057,"height":473,"width":500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51wfDrqfviL.jpg?v=1758927085"},"aspect_ratio":1.057,"height":473,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51wfDrqfviL.jpg?v=1758927085","width":500},{"alt":null,"id":34662606471321,"position":7,"preview_image":{"aspect_ratio":0.934,"height":500,"width":467,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51Y0KQAnzdL.jpg?v=1758927085"},"aspect_ratio":0.934,"height":500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51Y0KQAnzdL.jpg?v=1758927085","width":467}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eCALT 5 Volt Line Driver Output, 6mm Shank, Optical Rotary Encoder Sensors (1000ppr)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWidely used in steel industry, textile machinery, port machinery, plastic\nmachinery, hoisting machinery, printing machinery, glass machinery, printing\nmachinery, wood machinery, packaging machinery, machine tools, logistics\nmachinery, tire machinery, electronics and solar, elevators. Specifications:\nColor: as picture show Power supply: DC 5V Max. Speed: 6000rpm Size:Shank:6mm\ndiameter, bowl size:38mm outer diameter. Output: line driver with ABZ, A, B, Z\nsignals Connection: With 3 channels: Red = VCC, Black = 0V, Green = A, White =\nB, Yellow = Z If 6 channels: red = VCC, black = 0V, green = A, white = B,\nyellow = Z, brown = A, grey = B, orange = Z Note: If the encoder is not\nconnected to the device, cannot be directly oscilloscope oscilloscope (open\ncollector output without pull-up resistance if there is no voltage output) If\nyou want the oscilloscope in AB two-phase output with two pull-up resistors.\nCable: 1m cable side\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e38mm OD 6mm Stainless Steel Rotary Encoders with Solid Shank\u003c\/li\u003e\n \u003cli\u003eDC 5V line driver with A, B, Z, A, B, Z signals\u003c\/li\u003e\n \u003cli\u003eProtection class: IP54\u003c\/li\u003e\n \u003cli\u003eLoad capacity heavy, anti-oil and water\u003c\/li\u003e\n \u003cli\u003e1 year warranty\u003c\/li\u003e\n \u003c\/ul\u003e"}
