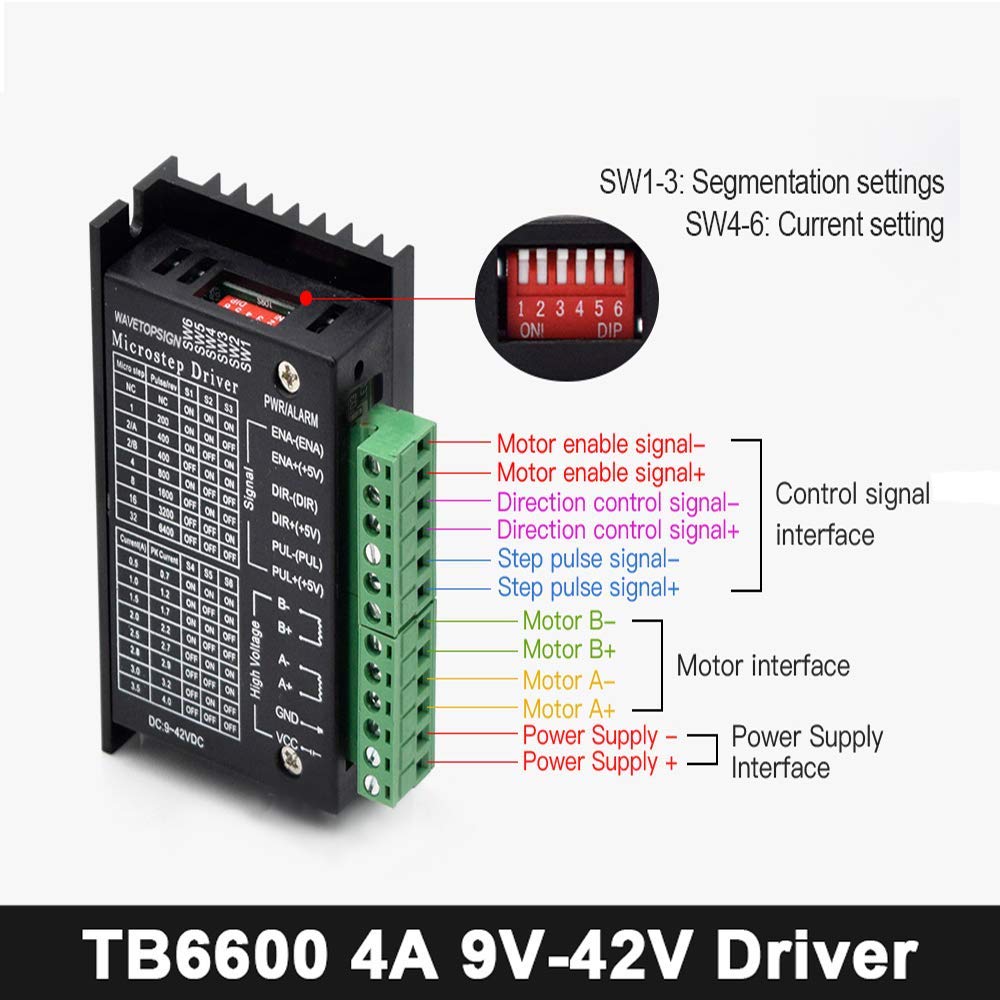

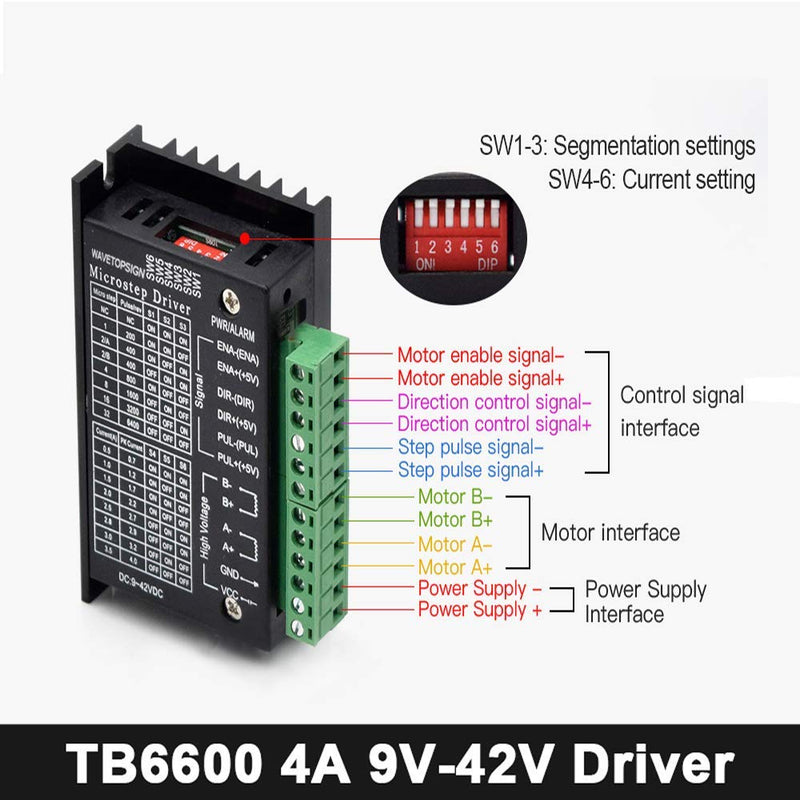

{"id":8533986115737,"title":"COVVY TB6600 4A 9-42V Stepper Motor Control CNC Controller 32 Segments 2\/4 Phase Hybrid Stepper Motor Control Board","handle":"covvy-tb6600-4a-9-42v-stepper-motor-control-cnc-controller-32-segments-2-4-phase-hybrid-stepper-motor-control-board","description":"\u003ch3\u003eCOVVY TB6600 4A 9-42V Stepper Motor Control CNC Controller 32 Segments 2\/4 Phase Hybrid Stepper Motor Control Board\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe TB6600 controller is a professional 2\/4 phase hybrid stepper motor\ncontroller, suitable for 42mm\/57mm\/86mm phase current below 4.0A. Through\n6-digit DIP switch, set 7 subdivisions (1.2\/A, 2\/B, 4, 8, 16, 32) and 8 levels\noutput current (0.5A\/1.0A\/1.5A\/2.0A\/2.5A\/2.8A\/3.0A\/3.5A). IC parameters:\nSignal input: Single-end, Pulse\/Direction. Input voltage: DC 9-42V\n(recommended 12-24V) Output Current: 0.5-4.0A Maximum Current: Output = 4.0A\nPart range: 1.2\/A, 2\/B, 4, 8, 16, 32 segments. Humidity: 40-90%RH Vibration:\n10-55Hz\/0.15mm External signal 3.3-24V universal. Optocoupler isolated signal\ninput, strong anti-interference ability. Built-in overheating protection\n(TSD). Built-in undervoltage protection (UVLO). Built-in overcurrent detection\n(ISD) Can rotate 4, 6, 8-wire 2-phase, 4-phase stepper motors forward and\nbackward. With 1-2, W1-2, 2W1-2, 4W1-2 phase excitation mode. Only the clock\nsignal can be operated with a two-phase bipolar stepper motor to achieve low-\nvibration and highly efficient work. Application: Widely used in a variety of\nsmall automatic equipment and hardware, such as engraving machines, marking\nmachines, cutting machines, laser copying, plotters, CNC machine tools,\ncrystal grinding machines, automatic assembly equipment, etc. The best torque\nis 1.8 Nm and below Nema 17, Nema 23 stepper motors. Package Content : 1 x 32\nSegments TB6600 Controller\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePower supply: DC 9-42V H-bridge, bipolar constant phase flow drive.\u003c\/li\u003e\n \u003cli\u003eThe maximum output current is 4.0A (peak, in 100ms), 8 output current optional.\u003c\/li\u003e\n \u003cli\u003e6 subdivision modes of up to 32 segments can be selected and can be used for high division.\u003c\/li\u003e\n \u003cli\u003eFor type 42, 57, 86, 2\/4 phase, 4\/6\/8 wires stepper motor. The best application target torque is 1.8Nm and under Nema 17, Nema 23 stepper motors.\u003c\/li\u003e\n \u003cli\u003eSuitable for all small automatic equipment and hardware, such as engraving machines, marking machines, cutting machines, laser photocopying, plotters, CNC machine tools, etc.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T08:21:44+10:00","created_at":"2025-09-27T08:21:41+10:00","vendor":"COVVY","type":"Motor Drivers","tags":["industryDE_Sep2025"],"price":12300,"price_min":12300,"price_max":12300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45749865087129,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07SBZ9SM5","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"COVVY TB6600 4A 9-42V Stepper Motor Control CNC Controller 32 Segments 2\/4 Phase Hybrid Stepper Motor Control Board","public_title":null,"options":["Default Title"],"price":12300,"weight":120,"compare_at_price":null,"inventory_management":"shopify","barcode":"06-061-071","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B07SBZ9SM5.jpg?v=1775753018","\/\/soundstores.net\/cdn\/shop\/files\/61FWLoIIxjL.jpg?v=1758925303","\/\/soundstores.net\/cdn\/shop\/files\/61vPlRSuZSL.jpg?v=1758925303","\/\/soundstores.net\/cdn\/shop\/files\/61ye_LkP4-L.jpg?v=1758925303","\/\/soundstores.net\/cdn\/shop\/files\/618AcJ9PUVL.jpg?v=1758925303","\/\/soundstores.net\/cdn\/shop\/files\/51dMFmvEehL.jpg?v=1758925303","\/\/soundstores.net\/cdn\/shop\/files\/61BhZoR8E9L.jpg?v=1758925303"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07SBZ9SM5.jpg?v=1775753018","options":["Title"],"media":[{"alt":null,"id":34662459080857,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07SBZ9SM5.jpg?v=1775753018"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07SBZ9SM5.jpg?v=1775753018","width":1000},{"alt":null,"id":34662459113625,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61FWLoIIxjL.jpg?v=1758925303"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61FWLoIIxjL.jpg?v=1758925303","width":1200},{"alt":null,"id":34662459146393,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61vPlRSuZSL.jpg?v=1758925303"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61vPlRSuZSL.jpg?v=1758925303","width":1000},{"alt":null,"id":34662459179161,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61ye_LkP4-L.jpg?v=1758925303"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61ye_LkP4-L.jpg?v=1758925303","width":1000},{"alt":null,"id":34662459211929,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/618AcJ9PUVL.jpg?v=1758925303"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/618AcJ9PUVL.jpg?v=1758925303","width":1000},{"alt":null,"id":34662459244697,"position":6,"preview_image":{"aspect_ratio":1.616,"height":619,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51dMFmvEehL.jpg?v=1758925303"},"aspect_ratio":1.616,"height":619,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51dMFmvEehL.jpg?v=1758925303","width":1000},{"alt":null,"id":34662459277465,"position":7,"preview_image":{"aspect_ratio":1.524,"height":656,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61BhZoR8E9L.jpg?v=1758925303"},"aspect_ratio":1.524,"height":656,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61BhZoR8E9L.jpg?v=1758925303","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eCOVVY TB6600 4A 9-42V Stepper Motor Control CNC Controller 32 Segments 2\/4 Phase Hybrid Stepper Motor Control Board\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe TB6600 controller is a professional 2\/4 phase hybrid stepper motor\ncontroller, suitable for 42mm\/57mm\/86mm phase current below 4.0A. Through\n6-digit DIP switch, set 7 subdivisions (1.2\/A, 2\/B, 4, 8, 16, 32) and 8 levels\noutput current (0.5A\/1.0A\/1.5A\/2.0A\/2.5A\/2.8A\/3.0A\/3.5A). IC parameters:\nSignal input: Single-end, Pulse\/Direction. Input voltage: DC 9-42V\n(recommended 12-24V) Output Current: 0.5-4.0A Maximum Current: Output = 4.0A\nPart range: 1.2\/A, 2\/B, 4, 8, 16, 32 segments. Humidity: 40-90%RH Vibration:\n10-55Hz\/0.15mm External signal 3.3-24V universal. Optocoupler isolated signal\ninput, strong anti-interference ability. Built-in overheating protection\n(TSD). Built-in undervoltage protection (UVLO). Built-in overcurrent detection\n(ISD) Can rotate 4, 6, 8-wire 2-phase, 4-phase stepper motors forward and\nbackward. With 1-2, W1-2, 2W1-2, 4W1-2 phase excitation mode. Only the clock\nsignal can be operated with a two-phase bipolar stepper motor to achieve low-\nvibration and highly efficient work. Application: Widely used in a variety of\nsmall automatic equipment and hardware, such as engraving machines, marking\nmachines, cutting machines, laser copying, plotters, CNC machine tools,\ncrystal grinding machines, automatic assembly equipment, etc. The best torque\nis 1.8 Nm and below Nema 17, Nema 23 stepper motors. Package Content : 1 x 32\nSegments TB6600 Controller\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePower supply: DC 9-42V H-bridge, bipolar constant phase flow drive.\u003c\/li\u003e\n \u003cli\u003eThe maximum output current is 4.0A (peak, in 100ms), 8 output current optional.\u003c\/li\u003e\n \u003cli\u003e6 subdivision modes of up to 32 segments can be selected and can be used for high division.\u003c\/li\u003e\n \u003cli\u003eFor type 42, 57, 86, 2\/4 phase, 4\/6\/8 wires stepper motor. The best application target torque is 1.8Nm and under Nema 17, Nema 23 stepper motors.\u003c\/li\u003e\n \u003cli\u003eSuitable for all small automatic equipment and hardware, such as engraving machines, marking machines, cutting machines, laser photocopying, plotters, CNC machine tools, etc.\u003c\/li\u003e\n \u003c\/ul\u003e"}
