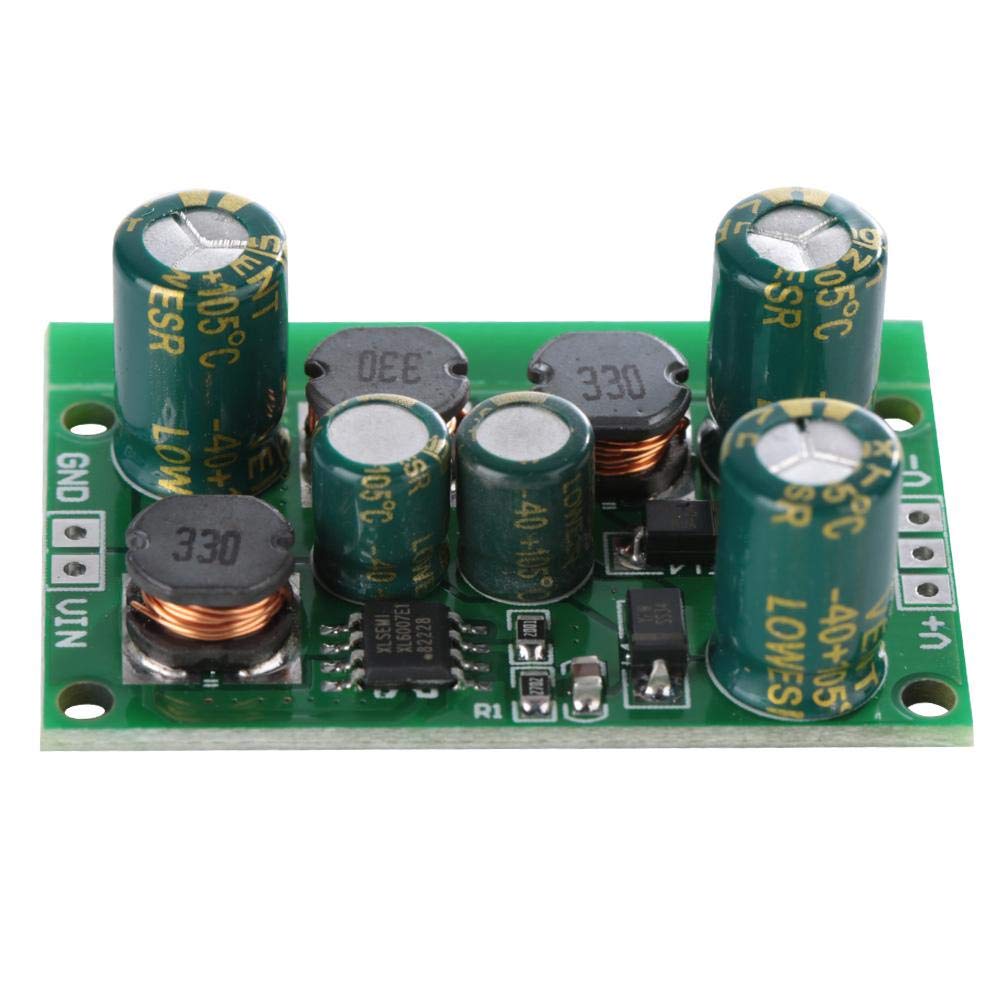

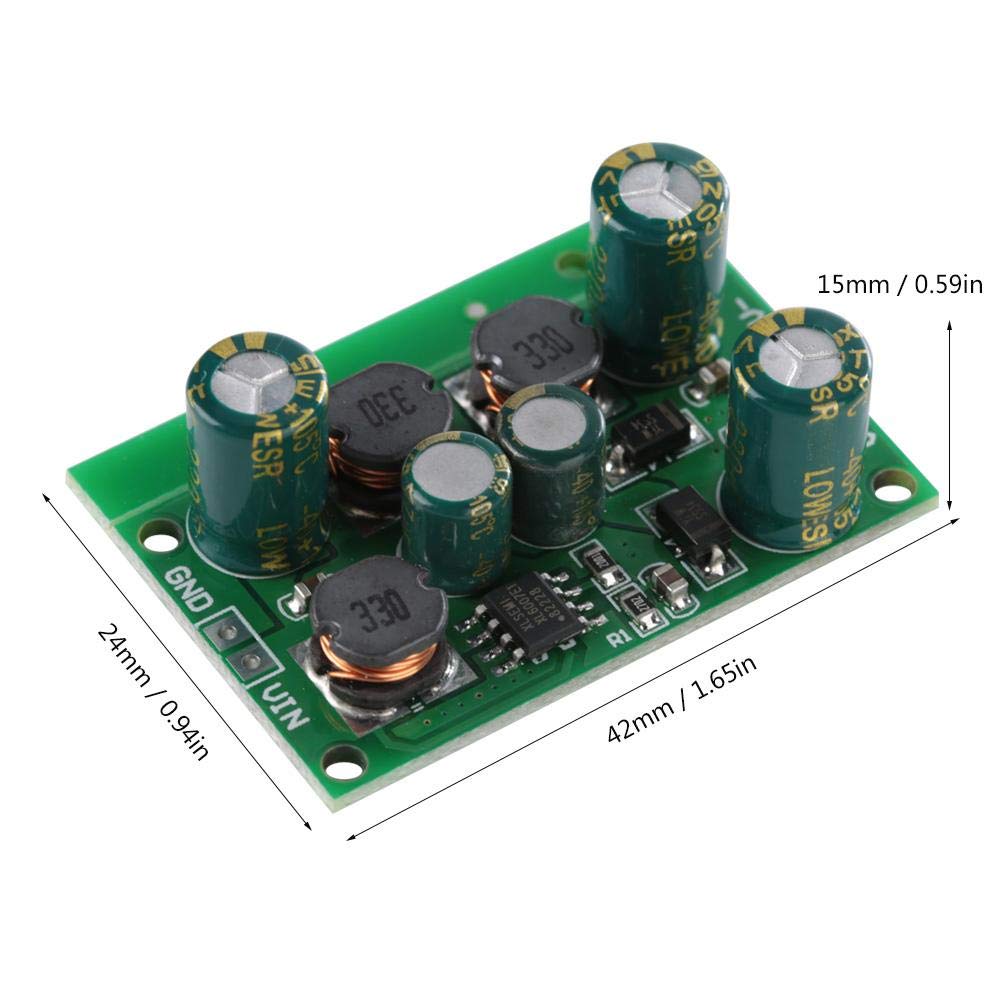

{"id":6676538392729,"title":"DC-DC Positive \u0026 Negative Voltage Boost-Buck Converter Output ±5V 6V 9V 10V 12V 15V 18V 24V (Output voltage ±15VDC) Output voltage ±15VDC","handle":"dc-dc-positive-negative-voltage-boost-buck-converter-output-5v-6v-9v-10v-12v-15v-18v-24v-output-voltage-15vdc-output-voltage-15vdc","description":"\u003ch4\u003eDC-DC Positive \u0026amp; Negative Voltage Boost-Buck Converter Output ±5V 6V 9V 10V 12V 15V 18V 24V (Output voltage ±15VDC)\u003c\/h4\u003e\n\u003cp id=\"b\"\u003eSize:Output voltage ±15VDC Specification: Input voltage: 3~24V Output voltage:\n±5V\/±6V\/±9V\/±10V\/±12V\/±15V\/±18V\/±24V (Optional) Maximum output power: 1-8W\nConversion efficiency :70-90% Quiescent current: 3-4mA Accuracy : Positive\nvoltage ±3%, Negative voltage ±5% Working frequency: 400kHz Operating\ntemperature: -40~85℃ Size: 42×24×15mm \/ 1.65×0.94×0.59in Weight: 12g (approx.)\nPackage List: 1 × Positive Negative Voltage Converter\u003c\/p\u003e \n\n\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct Introduction: This boost-buck converter supports positive and negative dual output voltages, manufactured with high quality electronic components and stable performance.\u003c\/li\u003e\n \u003cli\u003eApplications: The boost buck converter can be used in ADCs, DACs, operational amplifiers, audio equipment, LCD power supplies, and more.\u003c\/li\u003e\n \u003cli\u003eSpecifications: Input voltage: 3~24V; Output voltage: 5V \/ 6V \/ 9V \/ 10V \/ 12V \/ 15V \/ 18V \/ 24V (optional); Maximum output power: 1-8W; Conversion efficiency : 70-90%; quiescent current: 3-4mA; accuracy: positive voltage 3%, negative voltage 5%; operating frequency: 400kHz; working temperature: -40 ~ 85 C\u003c\/li\u003e\n \u003cli\u003e90% Conversion Efficiency: The boost buck regulator has a conversion efficiency of up to 90% and a stable output voltage.\u003c\/li\u003e\n \u003cli\u003eFunction: Built-in frequency compensation, soft start function, thermal shutdown function and current limiting function.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2021-04-09T00:39:11+10:00","created_at":"2021-04-09T00:39:11+10:00","vendor":"YWBL-WH","type":"Adapters \u0026 Converters","tags":[],"price":11700,"price_min":11700,"price_max":11700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":39737871433881,"title":"Output voltage ±15VDC","option1":"Output voltage ±15VDC","option2":null,"option3":null,"sku":"B07SFLVGMJ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DC-DC Positive \u0026 Negative Voltage Boost-Buck Converter Output ±5V 6V 9V 10V 12V 15V 18V 24V (Output voltage ±15VDC) Output voltage ±15VDC - Output voltage ±15VDC","public_title":"Output voltage ±15VDC","options":["Output voltage ±15VDC"],"price":11700,"weight":18,"compare_at_price":null,"inventory_management":null,"barcode":"YWBL-WH14dhe9wf7p-06","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/products\/B07SFLVGMJ.jpg?v=1650623925","\/\/soundstores.net\/cdn\/shop\/products\/61Wr-EWvu0L.jpg?v=1622176911","\/\/soundstores.net\/cdn\/shop\/products\/61RRZeUzjIL.jpg?v=1622176911","\/\/soundstores.net\/cdn\/shop\/products\/61mCkoGaOiL.jpg?v=1622176911","\/\/soundstores.net\/cdn\/shop\/products\/61fyvonm2lL.jpg?v=1622176911","\/\/soundstores.net\/cdn\/shop\/products\/61mmWO5yyQL.jpg?v=1622176911","\/\/soundstores.net\/cdn\/shop\/products\/61aof2OUPUL.jpg?v=1622176911","\/\/soundstores.net\/cdn\/shop\/products\/51jGvldBjyL.jpg?v=1622176911"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/products\/B07SFLVGMJ.jpg?v=1650623925","options":["Size"],"media":[{"alt":null,"id":26779947827353,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/B07SFLVGMJ.jpg?v=1650623925"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/B07SFLVGMJ.jpg?v=1650623925","width":1001},{"alt":null,"id":21305914491033,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61Wr-EWvu0L.jpg?v=1622176911"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61Wr-EWvu0L.jpg?v=1622176911","width":1001},{"alt":null,"id":21305914523801,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61RRZeUzjIL.jpg?v=1622176911"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61RRZeUzjIL.jpg?v=1622176911","width":1001},{"alt":null,"id":21305914556569,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61mCkoGaOiL.jpg?v=1622176911"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61mCkoGaOiL.jpg?v=1622176911","width":1001},{"alt":null,"id":21305914589337,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61fyvonm2lL.jpg?v=1622176911"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61fyvonm2lL.jpg?v=1622176911","width":1001},{"alt":null,"id":21305914622105,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61mmWO5yyQL.jpg?v=1622176911"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61mmWO5yyQL.jpg?v=1622176911","width":1001},{"alt":null,"id":21305914654873,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61aof2OUPUL.jpg?v=1622176911"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61aof2OUPUL.jpg?v=1622176911","width":1001},{"alt":null,"id":21305914687641,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51jGvldBjyL.jpg?v=1622176911"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51jGvldBjyL.jpg?v=1622176911","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch4\u003eDC-DC Positive \u0026amp; Negative Voltage Boost-Buck Converter Output ±5V 6V 9V 10V 12V 15V 18V 24V (Output voltage ±15VDC)\u003c\/h4\u003e\n\u003cp id=\"b\"\u003eSize:Output voltage ±15VDC Specification: Input voltage: 3~24V Output voltage:\n±5V\/±6V\/±9V\/±10V\/±12V\/±15V\/±18V\/±24V (Optional) Maximum output power: 1-8W\nConversion efficiency :70-90% Quiescent current: 3-4mA Accuracy : Positive\nvoltage ±3%, Negative voltage ±5% Working frequency: 400kHz Operating\ntemperature: -40~85℃ Size: 42×24×15mm \/ 1.65×0.94×0.59in Weight: 12g (approx.)\nPackage List: 1 × Positive Negative Voltage Converter\u003c\/p\u003e \n\n\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct Introduction: This boost-buck converter supports positive and negative dual output voltages, manufactured with high quality electronic components and stable performance.\u003c\/li\u003e\n \u003cli\u003eApplications: The boost buck converter can be used in ADCs, DACs, operational amplifiers, audio equipment, LCD power supplies, and more.\u003c\/li\u003e\n \u003cli\u003eSpecifications: Input voltage: 3~24V; Output voltage: 5V \/ 6V \/ 9V \/ 10V \/ 12V \/ 15V \/ 18V \/ 24V (optional); Maximum output power: 1-8W; Conversion efficiency : 70-90%; quiescent current: 3-4mA; accuracy: positive voltage 3%, negative voltage 5%; operating frequency: 400kHz; working temperature: -40 ~ 85 C\u003c\/li\u003e\n \u003cli\u003e90% Conversion Efficiency: The boost buck regulator has a conversion efficiency of up to 90% and a stable output voltage.\u003c\/li\u003e\n \u003cli\u003eFunction: Built-in frequency compensation, soft start function, thermal shutdown function and current limiting function.\u003c\/li\u003e\n \u003c\/ul\u003e"}
