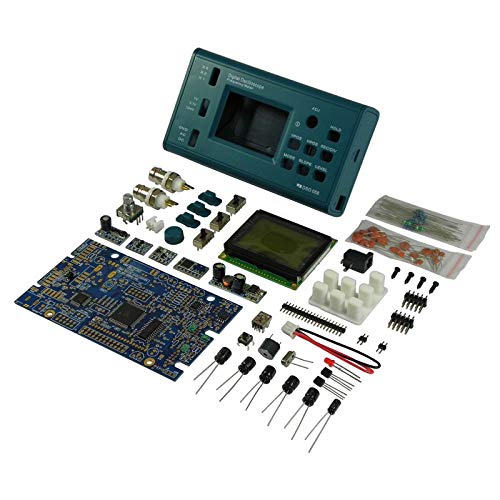

{"id":7494758793369,"title":"Digital LCD Oscilloscope JYE Tech 068 DIY KIT","handle":"digital-lcd-oscilloscope-jye-tech-068-diy-kit","description":"\u003ch3\u003eDigital LCD Oscilloscope JYE Tech 068 DIY KIT\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDSO 068 DIY kit uses through-hole components as much as it can. This makes the\nscope unique among peers. With through-hole components the kit eases off the\nrequirement of assembly skills and at the same time allows deeper user\ninvolvement. Most importantly it brings in the freedom for users to test,\nmodify, experiment, and even design their own projects. And this means more\nfun! More over, DSO 068 is not just a kit for training but also a practical\ntool for everyday use. It was designed on the base of DSO 062 kit and\ncomprises many enhancements in hardware and firmware. Major improvements\ninclude: Higher sensitivity (10mV\/div vs 100mV\/div) Wider analog bandwidth\n(3MHz vs 1MHz) Larger capture buffer (1024 points vs 256 points) Variable\ntrigger position (1% - 100%) with indicator Test signal generator with\nvariable frequency and amplitude USB connection Upload of captured raw data as\nCSV file [ Example ] Work as USB scope (with jyeLab) and data logger (8\nchannels, 10-bit resolution) Higher sensitivity (0.2Vpp vs 3Vpp) in built-in\nfrequecy meter Battery\/USB powered (Battery not included. USB Cable not\nincluded) Fully enclosures Operations of DSO 068 are even easier thanks to\nsilicone pushbuttons and rotary encoder. Parameter setting is simply,\nstraightforward, and quick. Mode switch and utilities are driven by menu.\nAbsolutely no complicate navigation. This kit is particularly suitable for\neducational use. It is a great tool for college students. Soldering and\nassembly required.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1 Channel, Resolution - 8 bits, Analog bandwidth - 0 - 3MHz\u003c\/li\u003e\n \u003cli\u003eMax input voltage - 50Vpk (1x probe) [400Vpk for 10x probe]\u003c\/li\u003e\n \u003cli\u003eAuto\/Normal\/Single trig modes\u003c\/li\u003e\n \u003cli\u003eRising\/Falling edge trigger\u003c\/li\u003e\n \u003cli\u003eFFT function available\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n","published_at":"2022-08-20T00:46:18+10:00","created_at":"2022-08-20T00:46:19+10:00","vendor":"JYETech","type":"Oscilloscopes","tags":["industrial2"],"price":32600,"price_min":32600,"price_max":32600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42503099744409,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00J2FW3TK","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Digital LCD Oscilloscope JYE Tech 068 DIY KIT","public_title":null,"options":["Default Title"],"price":32600,"weight":318,"compare_at_price":null,"inventory_management":null,"barcode":"799430211840","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/products\/B00J2FW3TK.jpg?v=1660924463"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/products\/B00J2FW3TK.jpg?v=1660924463","options":["Title"],"media":[{"alt":null,"id":27641877201049,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/soundstores.net\/cdn\/shop\/products\/B00J2FW3TK.jpg?v=1660924463"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/B00J2FW3TK.jpg?v=1660924463","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDigital LCD Oscilloscope JYE Tech 068 DIY KIT\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDSO 068 DIY kit uses through-hole components as much as it can. This makes the\nscope unique among peers. With through-hole components the kit eases off the\nrequirement of assembly skills and at the same time allows deeper user\ninvolvement. Most importantly it brings in the freedom for users to test,\nmodify, experiment, and even design their own projects. And this means more\nfun! More over, DSO 068 is not just a kit for training but also a practical\ntool for everyday use. It was designed on the base of DSO 062 kit and\ncomprises many enhancements in hardware and firmware. Major improvements\ninclude: Higher sensitivity (10mV\/div vs 100mV\/div) Wider analog bandwidth\n(3MHz vs 1MHz) Larger capture buffer (1024 points vs 256 points) Variable\ntrigger position (1% - 100%) with indicator Test signal generator with\nvariable frequency and amplitude USB connection Upload of captured raw data as\nCSV file [ Example ] Work as USB scope (with jyeLab) and data logger (8\nchannels, 10-bit resolution) Higher sensitivity (0.2Vpp vs 3Vpp) in built-in\nfrequecy meter Battery\/USB powered (Battery not included. USB Cable not\nincluded) Fully enclosures Operations of DSO 068 are even easier thanks to\nsilicone pushbuttons and rotary encoder. Parameter setting is simply,\nstraightforward, and quick. Mode switch and utilities are driven by menu.\nAbsolutely no complicate navigation. This kit is particularly suitable for\neducational use. It is a great tool for college students. Soldering and\nassembly required.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1 Channel, Resolution - 8 bits, Analog bandwidth - 0 - 3MHz\u003c\/li\u003e\n \u003cli\u003eMax input voltage - 50Vpk (1x probe) [400Vpk for 10x probe]\u003c\/li\u003e\n \u003cli\u003eAuto\/Normal\/Single trig modes\u003c\/li\u003e\n \u003cli\u003eRising\/Falling edge trigger\u003c\/li\u003e\n \u003cli\u003eFFT function available\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n"}
