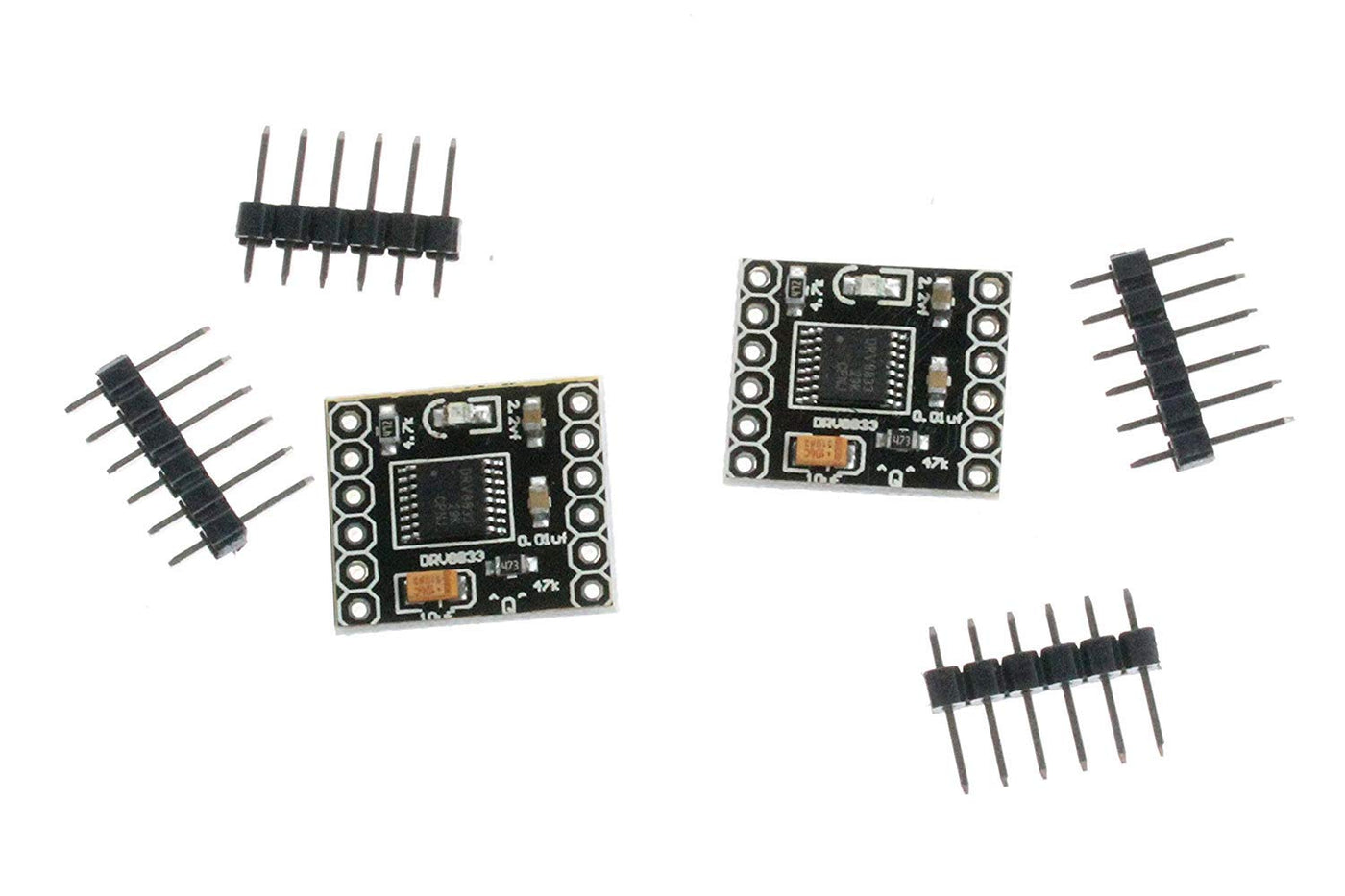

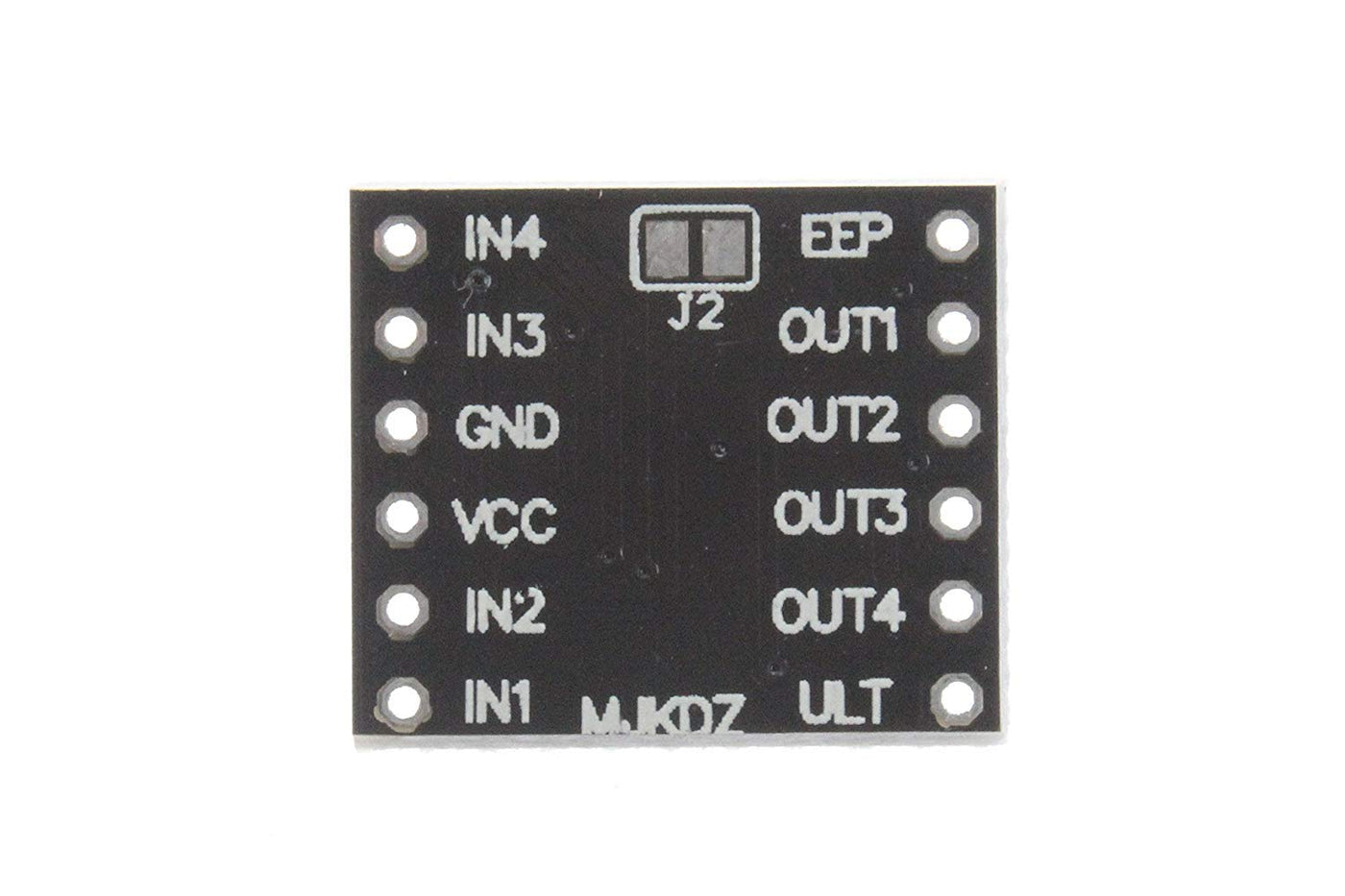

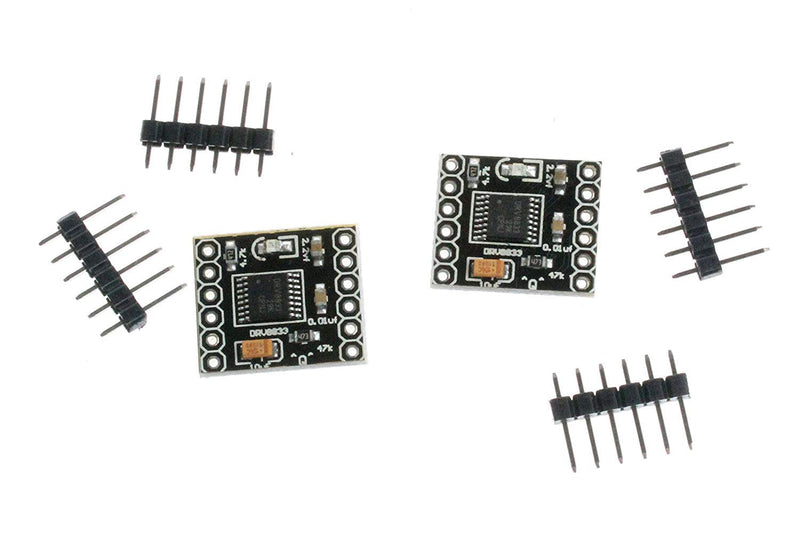

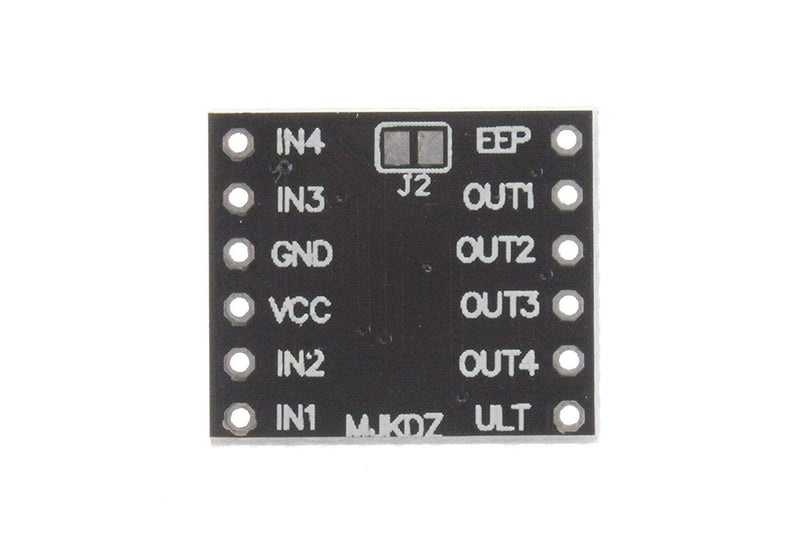

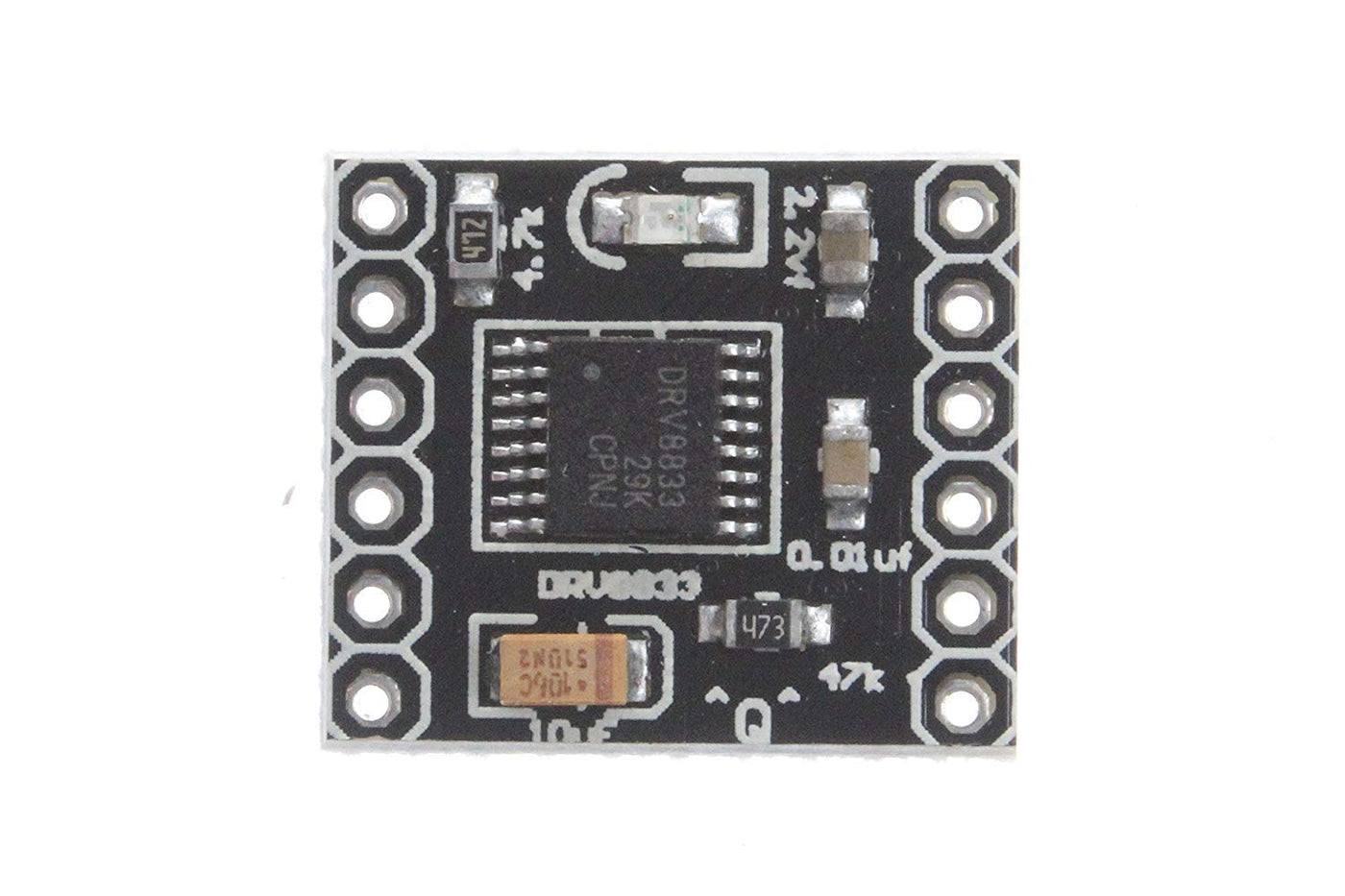

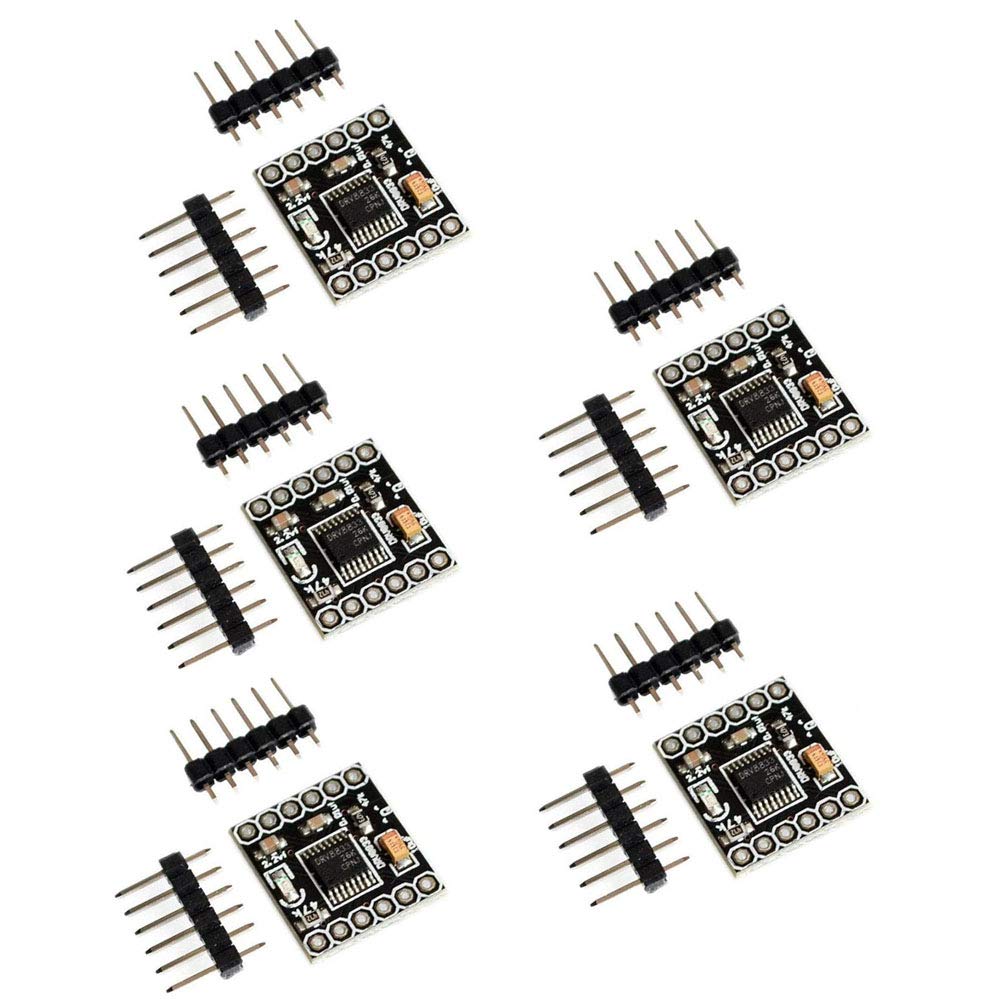

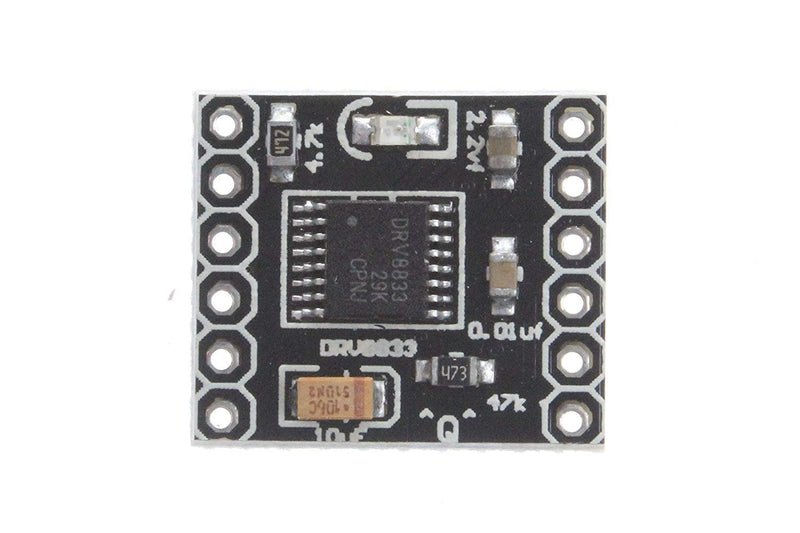

{"id":8530693914777,"title":"DollaTek 5pcs DRV8833 1.5A 2-Channel DC Motor Drive Board Ultra Small Volume Motor Drive Module Input Voltage 3-10V","handle":"dollatek-5pcs-drv8833-1-5a-2-channel-dc-motor-drive-board-ultra-small-volume-motor-drive-module-input-voltage-3-10v","description":"\u003ch3\u003eDollaTek 5pcs DRV8833 1.5A 2-Channel DC Motor Drive Board Ultra Small Volume Motor Drive Module Input Voltage 3-10V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Output current for one H bridge: 1.5A, can drive 2 DC gear motors.\nBuilt-in over-current protection, short circuit protection, undervoltage\nshutdown and over temperature protection. In power saving mode. Usage It can\ndrive DC motors up to 1.5A and 4-wire stepper motors. Size: 18.5 x 16 mm.\nInput voltage: 3-10V. Instructions for use: ULT low level is sleep mode (the\nJ2 short circuit solder connection must be disconnected behind the module)\nOUT1, 0UT2 is a 1-way H bridge and the corresponding control is IN1, IN2.\nOUT3, 0UT4 is the second H bridge and the corresponding control is IN3, IN4.\nEEP is the protection output and is not used by default. VCC is a voltage\ninput from 3 to 10V. GND is grounded. Package includes: 5 x DRV8833 1.5A 2\nChannel Driver Board for DC Motors\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eBuilt-in over-current protection, short circuit protection, undervoltage shutdown and over temperature protection. In power saving mode.\u003c\/li\u003e\n \u003cli\u003eUsage It can drive DC motors up to 1.5A and 4-wire stepper motors.\u003c\/li\u003e\n \u003cli\u003eSize: 18.5 x 16 mm\u003c\/li\u003e\n \u003cli\u003eInput voltage: 3-10V\u003c\/li\u003e\n \u003cli\u003eRated power: 100 W\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-24T23:51:26+10:00","created_at":"2025-09-24T23:51:22+10:00","vendor":"DollaTek","type":"Motor Drivers","tags":["industryDE_Sep2025"],"price":12700,"price_min":12700,"price_max":12700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45743344517273,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07ML2RDNY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DollaTek 5pcs DRV8833 1.5A 2-Channel DC Motor Drive Board Ultra Small Volume Motor Drive Module Input Voltage 3-10V","public_title":null,"options":["Default Title"],"price":12700,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"725835035224","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B07ML2RDNY.jpg?v=1775749481","\/\/soundstores.net\/cdn\/shop\/files\/61vEFGKAFWL.jpg?v=1758721885","\/\/soundstores.net\/cdn\/shop\/files\/61_Zug3JeHL.jpg?v=1758721885","\/\/soundstores.net\/cdn\/shop\/files\/61yn8k9XbeL.jpg?v=1758721885"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07ML2RDNY.jpg?v=1775749481","options":["Title"],"media":[{"alt":null,"id":34626621276313,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07ML2RDNY.jpg?v=1775749481"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07ML2RDNY.jpg?v=1775749481","width":1000},{"alt":null,"id":34626621309081,"position":2,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61vEFGKAFWL.jpg?v=1758721885"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61vEFGKAFWL.jpg?v=1758721885","width":1500},{"alt":null,"id":34626621341849,"position":3,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61_Zug3JeHL.jpg?v=1758721885"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61_Zug3JeHL.jpg?v=1758721885","width":1500},{"alt":null,"id":34626621374617,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61yn8k9XbeL.jpg?v=1758721885"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61yn8k9XbeL.jpg?v=1758721885","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDollaTek 5pcs DRV8833 1.5A 2-Channel DC Motor Drive Board Ultra Small Volume Motor Drive Module Input Voltage 3-10V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Output current for one H bridge: 1.5A, can drive 2 DC gear motors.\nBuilt-in over-current protection, short circuit protection, undervoltage\nshutdown and over temperature protection. In power saving mode. Usage It can\ndrive DC motors up to 1.5A and 4-wire stepper motors. Size: 18.5 x 16 mm.\nInput voltage: 3-10V. Instructions for use: ULT low level is sleep mode (the\nJ2 short circuit solder connection must be disconnected behind the module)\nOUT1, 0UT2 is a 1-way H bridge and the corresponding control is IN1, IN2.\nOUT3, 0UT4 is the second H bridge and the corresponding control is IN3, IN4.\nEEP is the protection output and is not used by default. VCC is a voltage\ninput from 3 to 10V. GND is grounded. Package includes: 5 x DRV8833 1.5A 2\nChannel Driver Board for DC Motors\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eBuilt-in over-current protection, short circuit protection, undervoltage shutdown and over temperature protection. In power saving mode.\u003c\/li\u003e\n \u003cli\u003eUsage It can drive DC motors up to 1.5A and 4-wire stepper motors.\u003c\/li\u003e\n \u003cli\u003eSize: 18.5 x 16 mm\u003c\/li\u003e\n \u003cli\u003eInput voltage: 3-10V\u003c\/li\u003e\n \u003cli\u003eRated power: 100 W\u003c\/li\u003e\n \u003c\/ul\u003e"}
