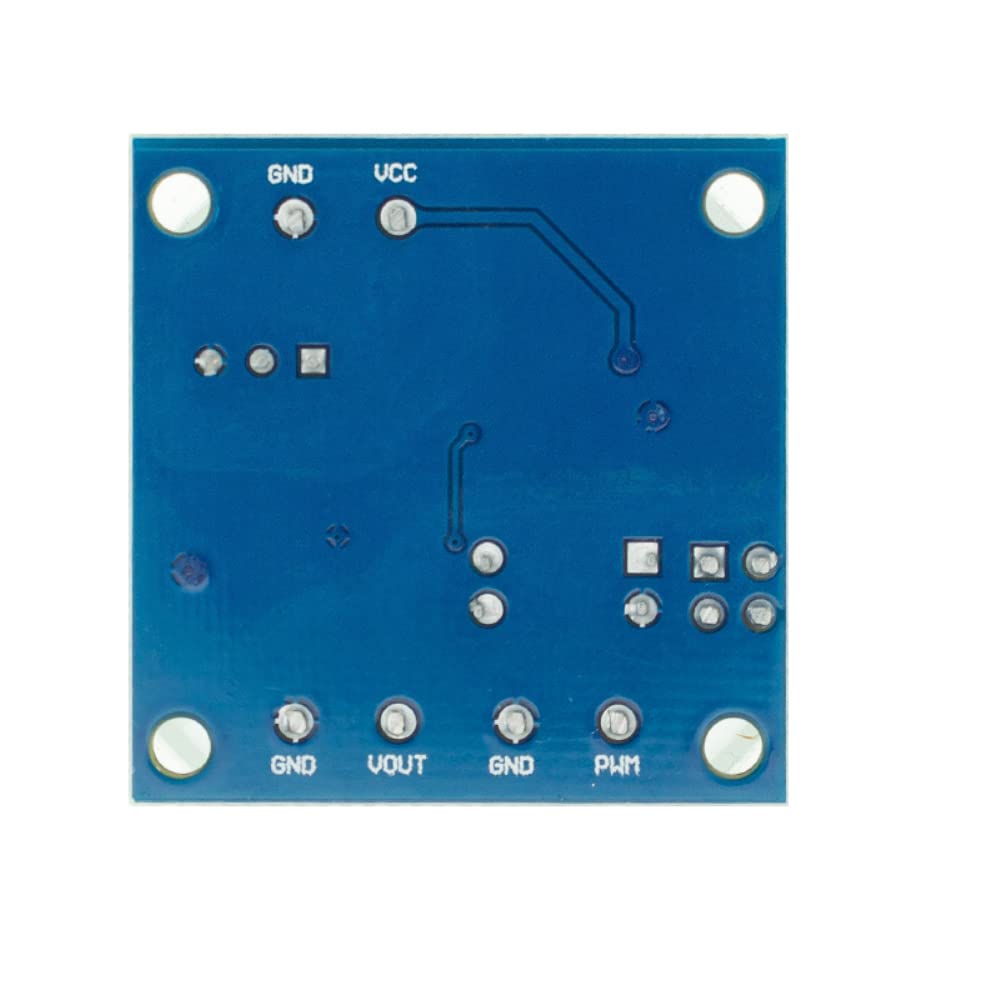

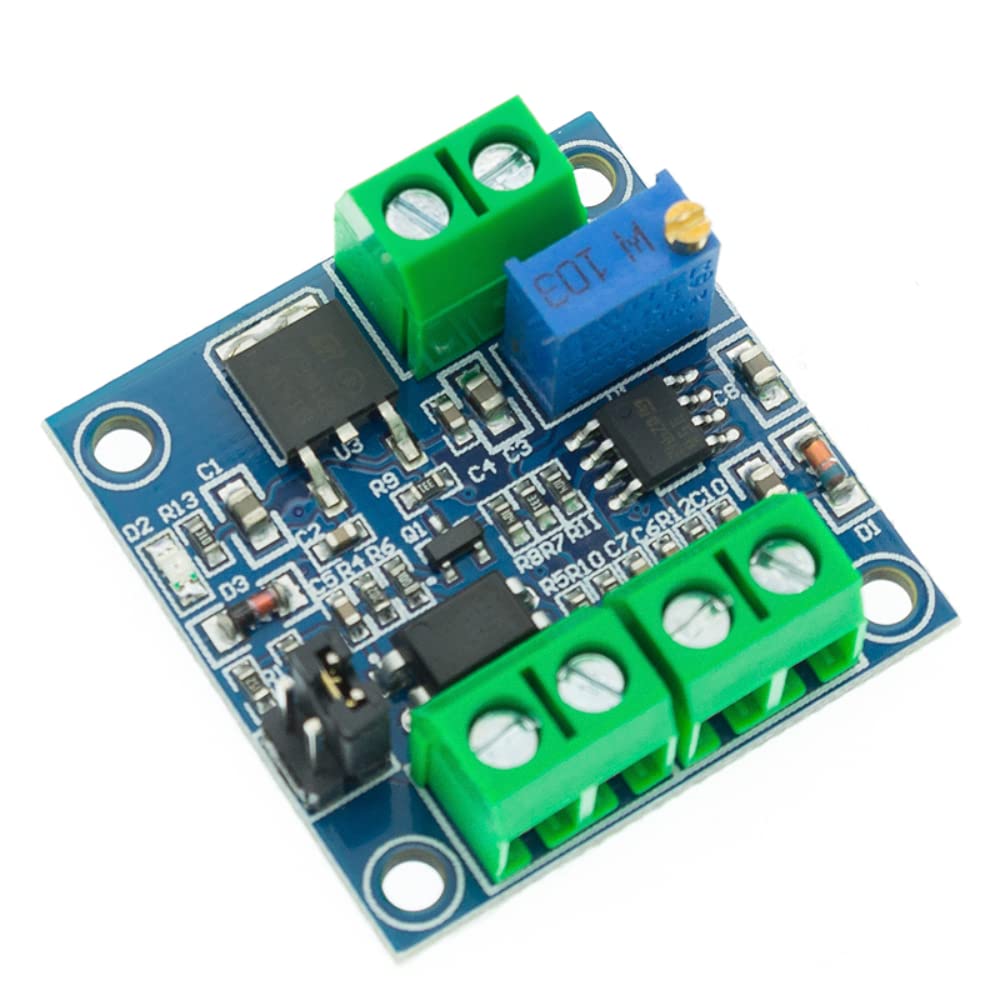

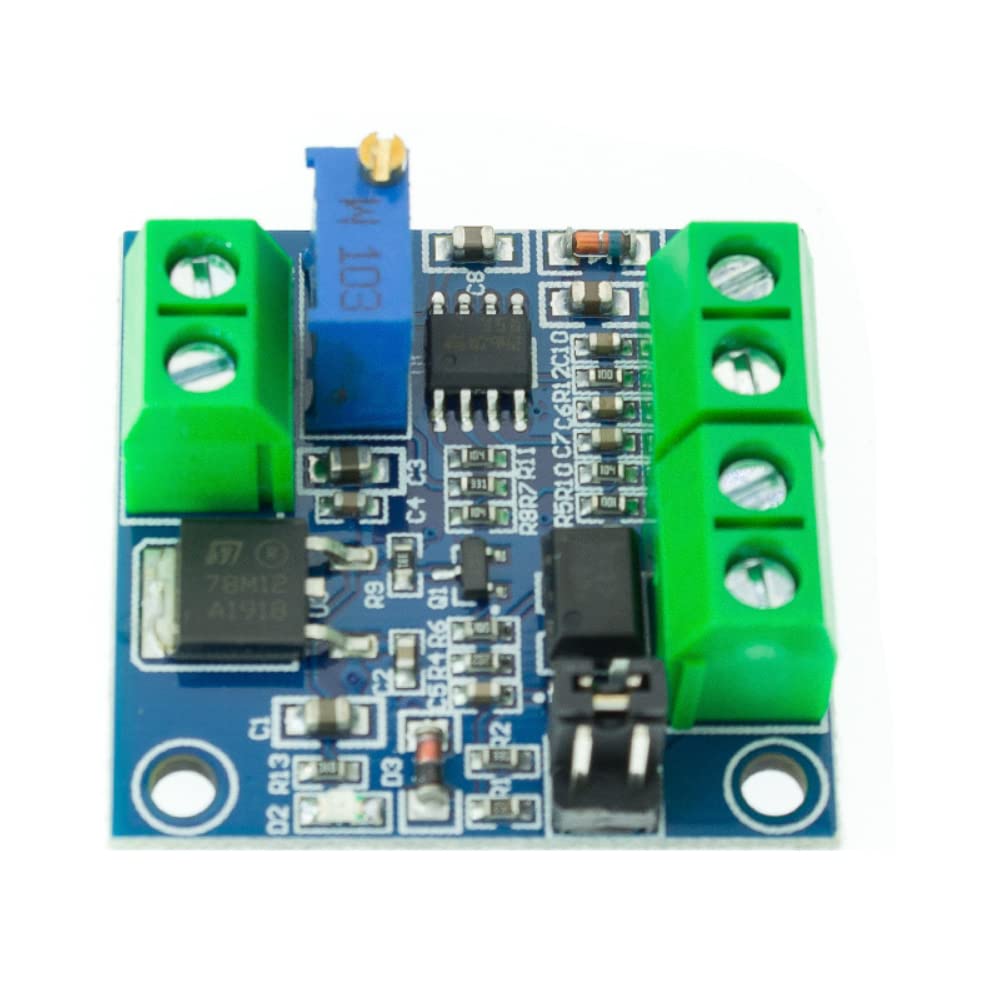

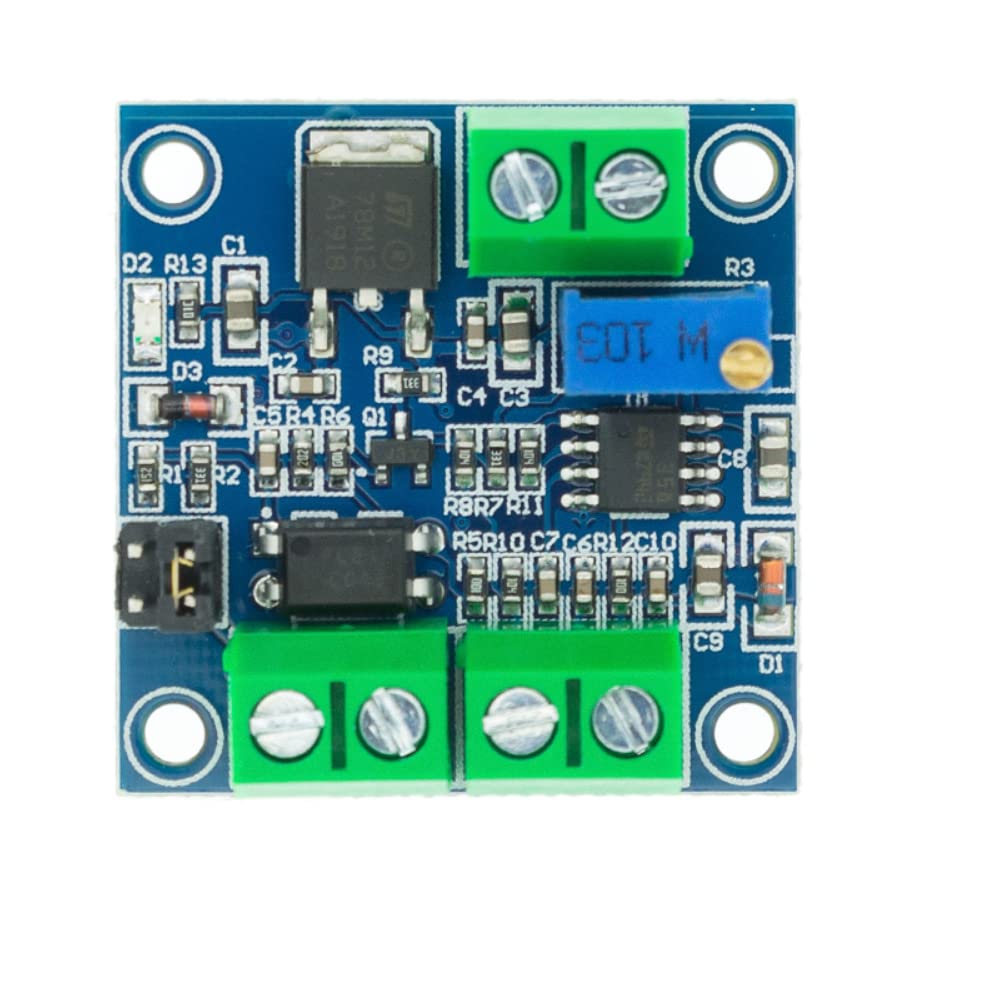

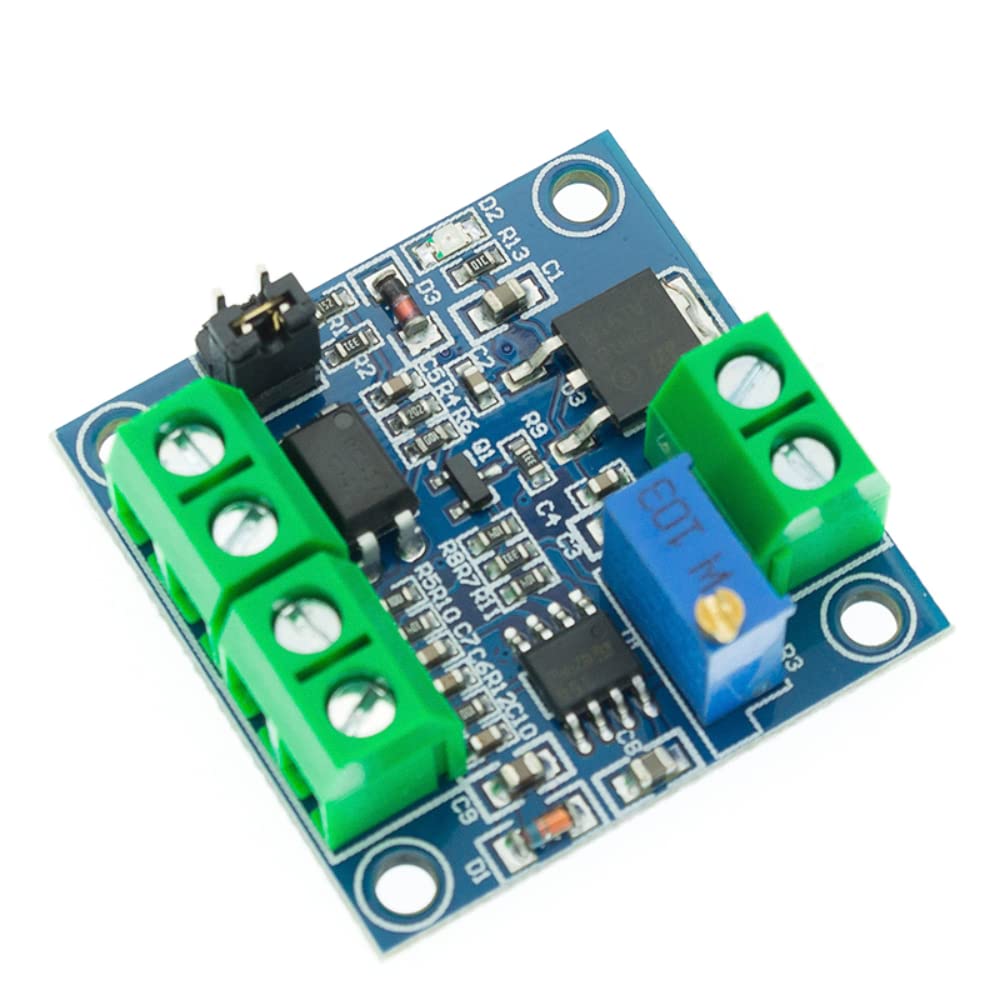

{"id":8532513783961,"title":"DollaTek PWM Rotary Voltage Module 0% -100% PWM Turn to 0V-10V Voltage","handle":"dollatek-pwm-rotary-voltage-module-0-100-pwm-turn-to-0v-10v-voltage","description":"\u003ch3\u003eDollaTek PWM Rotary Voltage Module 0% -100% PWM Turn to 0V-10V Voltage\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDollaTek trademark Reg.NO:013726393 DollaTek PWM rotary voltage module 0%\n-100% PWM turn to 0V-10V voltage. Summary: PWM rotary voltage module LC-\nLM358-PWM2V can convert PWM digital signal into 0 to 10V analog signals. Can\nbe used in the PLC or other industrial panel switch signal interface. By\nadjusting the PWM duty cycle to adjust the output voltage. Module size is\nsmall, easy to use in different places. Technical parameters: Module operating\nvoltage: DC 12V-30V (power requirement: more than 100mA) PWM signal reception\nfrequency range: 1KHz - 3KHz; PWM signal input level range: Feng value from\n4.5V to 10V level, jump needle at 5V. Class level signal mainly for\nconventional industrial control CARDS (e.g. MACH3 cards), 5V CPU interface;\nFengfeng value between 12V and 24V level, jump needle at 24V. Class level\nsignal mainly for conventional PLC interface. PWM conversion range: 0% - 100%\nPWM conversion 0 to 10 V. Introductions: VCC: working power 12V-30V.GND:\nworking power.PWM: input PWM signal positive pole. GND: the input signal is\nnegative end.VOUT: 0 to 10V output voltage.GND: output voltage. Instructions:\nAfter power on, there is no input signal, the output is 0V. Electricity for\nthe first time it is best to perform a calibration debugging: find a 50% duty\ncycle of access to the PWM signal GND, according to the relative amplitude\njump needle. The output voltage can be adjusted by adjusting the duty cycle.\nThe precision could be controlled by adjusting the potentiometer. Box\ncontents: 1 x DollaTek PWM rotary voltage module 0% -100% PWM turn to 0V-10V\nvoltage\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMCU embedded technology.\u003c\/li\u003e\n \u003cli\u003eEasy to use, can be passed to fine tuning potentiometer.\u003c\/li\u003e\n \u003cli\u003eBy short circuit, select the PWM signal input level range.\u003c\/li\u003e\n \u003cli\u003eModule is small, portable and easy to use.\u003c\/li\u003e\n \u003cli\u003eThe frequency in 1 kHz - 3 kHz Vout is measured with a multimeter, GND two ports, the table displays at approx. 5V, adjust the potentiometer on the board, output in 5.00V on the multimeter.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-26T00:55:04+10:00","created_at":"2025-09-26T00:54:59+10:00","vendor":"DollaTek","type":"Power Transformers","tags":["industryDE_Sep2025"],"price":11600,"price_min":11600,"price_max":11600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45746949193881,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07DK51KXR","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DollaTek PWM Rotary Voltage Module 0% -100% PWM Turn to 0V-10V Voltage","public_title":null,"options":["Default Title"],"price":11600,"weight":90,"compare_at_price":null,"inventory_management":"shopify","barcode":"742548979669","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B07DK51KXR.jpg?v=1775751109","\/\/soundstores.net\/cdn\/shop\/files\/61zkr2txNbL_62fcea3d-2edb-4f20-aee8-ea24e53be976.jpg?v=1758812102","\/\/soundstores.net\/cdn\/shop\/files\/61Dx3oHkbTL_a2022320-d005-4749-9bb8-563ea66f805f.jpg?v=1758812102","\/\/soundstores.net\/cdn\/shop\/files\/5144_2ZGz1L_a74de852-ca9b-4543-90e4-65a5201766a2.jpg?v=1758812102","\/\/soundstores.net\/cdn\/shop\/files\/51ghJFLSuyL_f5213739-56a1-4d1b-9973-88c79e35b48c.jpg?v=1758812102"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07DK51KXR.jpg?v=1775751109","options":["Title"],"media":[{"alt":null,"id":34642689425561,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07DK51KXR.jpg?v=1775751109"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07DK51KXR.jpg?v=1775751109","width":1000},{"alt":null,"id":34642689458329,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61zkr2txNbL_62fcea3d-2edb-4f20-aee8-ea24e53be976.jpg?v=1758812102"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61zkr2txNbL_62fcea3d-2edb-4f20-aee8-ea24e53be976.jpg?v=1758812102","width":1000},{"alt":null,"id":34642689491097,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61Dx3oHkbTL_a2022320-d005-4749-9bb8-563ea66f805f.jpg?v=1758812102"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61Dx3oHkbTL_a2022320-d005-4749-9bb8-563ea66f805f.jpg?v=1758812102","width":1000},{"alt":null,"id":34642689523865,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/5144_2ZGz1L_a74de852-ca9b-4543-90e4-65a5201766a2.jpg?v=1758812102"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/5144_2ZGz1L_a74de852-ca9b-4543-90e4-65a5201766a2.jpg?v=1758812102","width":1000},{"alt":null,"id":34642689556633,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51ghJFLSuyL_f5213739-56a1-4d1b-9973-88c79e35b48c.jpg?v=1758812102"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51ghJFLSuyL_f5213739-56a1-4d1b-9973-88c79e35b48c.jpg?v=1758812102","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDollaTek PWM Rotary Voltage Module 0% -100% PWM Turn to 0V-10V Voltage\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDollaTek trademark Reg.NO:013726393 DollaTek PWM rotary voltage module 0%\n-100% PWM turn to 0V-10V voltage. Summary: PWM rotary voltage module LC-\nLM358-PWM2V can convert PWM digital signal into 0 to 10V analog signals. Can\nbe used in the PLC or other industrial panel switch signal interface. By\nadjusting the PWM duty cycle to adjust the output voltage. Module size is\nsmall, easy to use in different places. Technical parameters: Module operating\nvoltage: DC 12V-30V (power requirement: more than 100mA) PWM signal reception\nfrequency range: 1KHz - 3KHz; PWM signal input level range: Feng value from\n4.5V to 10V level, jump needle at 5V. Class level signal mainly for\nconventional industrial control CARDS (e.g. MACH3 cards), 5V CPU interface;\nFengfeng value between 12V and 24V level, jump needle at 24V. Class level\nsignal mainly for conventional PLC interface. PWM conversion range: 0% - 100%\nPWM conversion 0 to 10 V. Introductions: VCC: working power 12V-30V.GND:\nworking power.PWM: input PWM signal positive pole. GND: the input signal is\nnegative end.VOUT: 0 to 10V output voltage.GND: output voltage. Instructions:\nAfter power on, there is no input signal, the output is 0V. Electricity for\nthe first time it is best to perform a calibration debugging: find a 50% duty\ncycle of access to the PWM signal GND, according to the relative amplitude\njump needle. The output voltage can be adjusted by adjusting the duty cycle.\nThe precision could be controlled by adjusting the potentiometer. Box\ncontents: 1 x DollaTek PWM rotary voltage module 0% -100% PWM turn to 0V-10V\nvoltage\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMCU embedded technology.\u003c\/li\u003e\n \u003cli\u003eEasy to use, can be passed to fine tuning potentiometer.\u003c\/li\u003e\n \u003cli\u003eBy short circuit, select the PWM signal input level range.\u003c\/li\u003e\n \u003cli\u003eModule is small, portable and easy to use.\u003c\/li\u003e\n \u003cli\u003eThe frequency in 1 kHz - 3 kHz Vout is measured with a multimeter, GND two ports, the table displays at approx. 5V, adjust the potentiometer on the board, output in 5.00V on the multimeter.\u003c\/li\u003e\n \u003c\/ul\u003e"}
