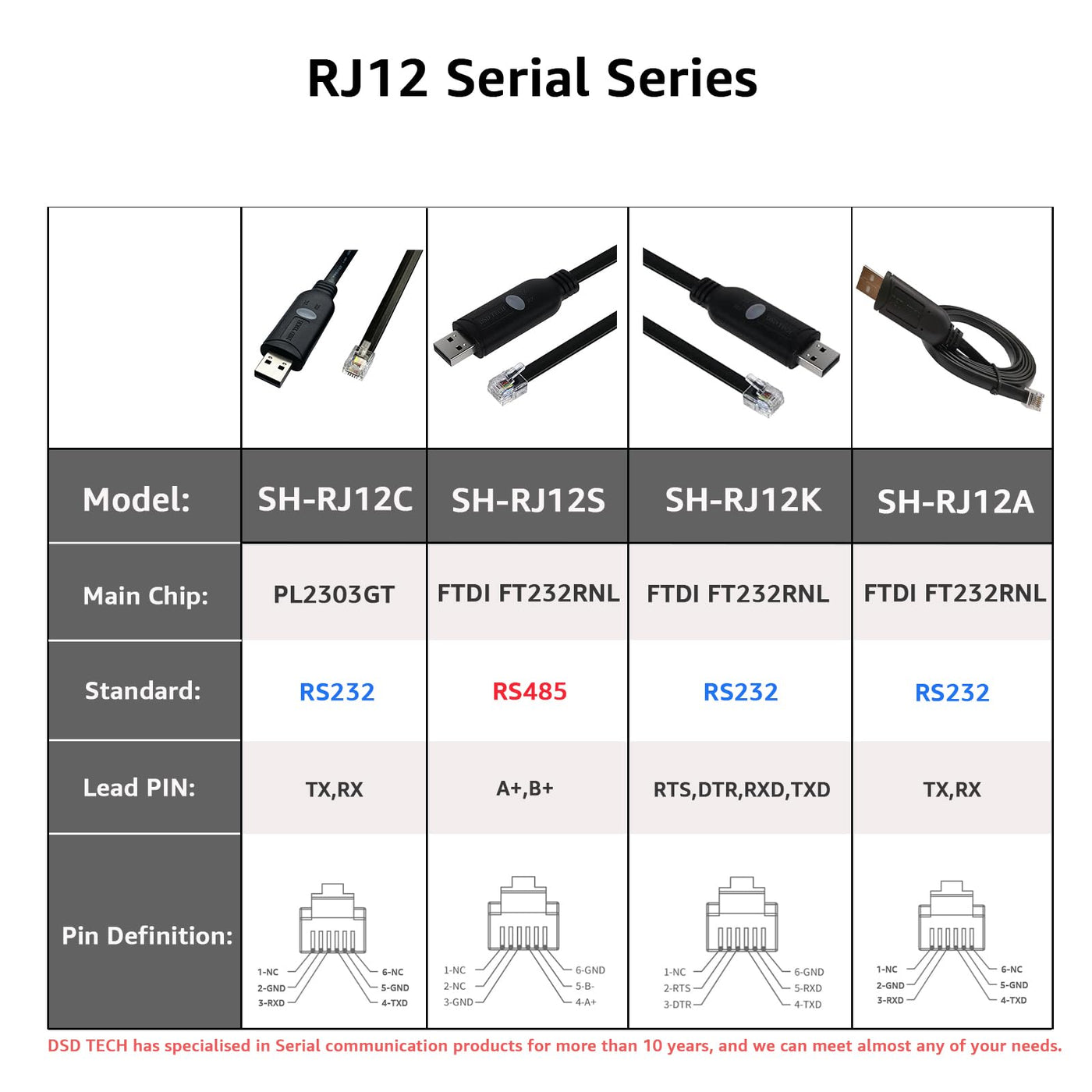

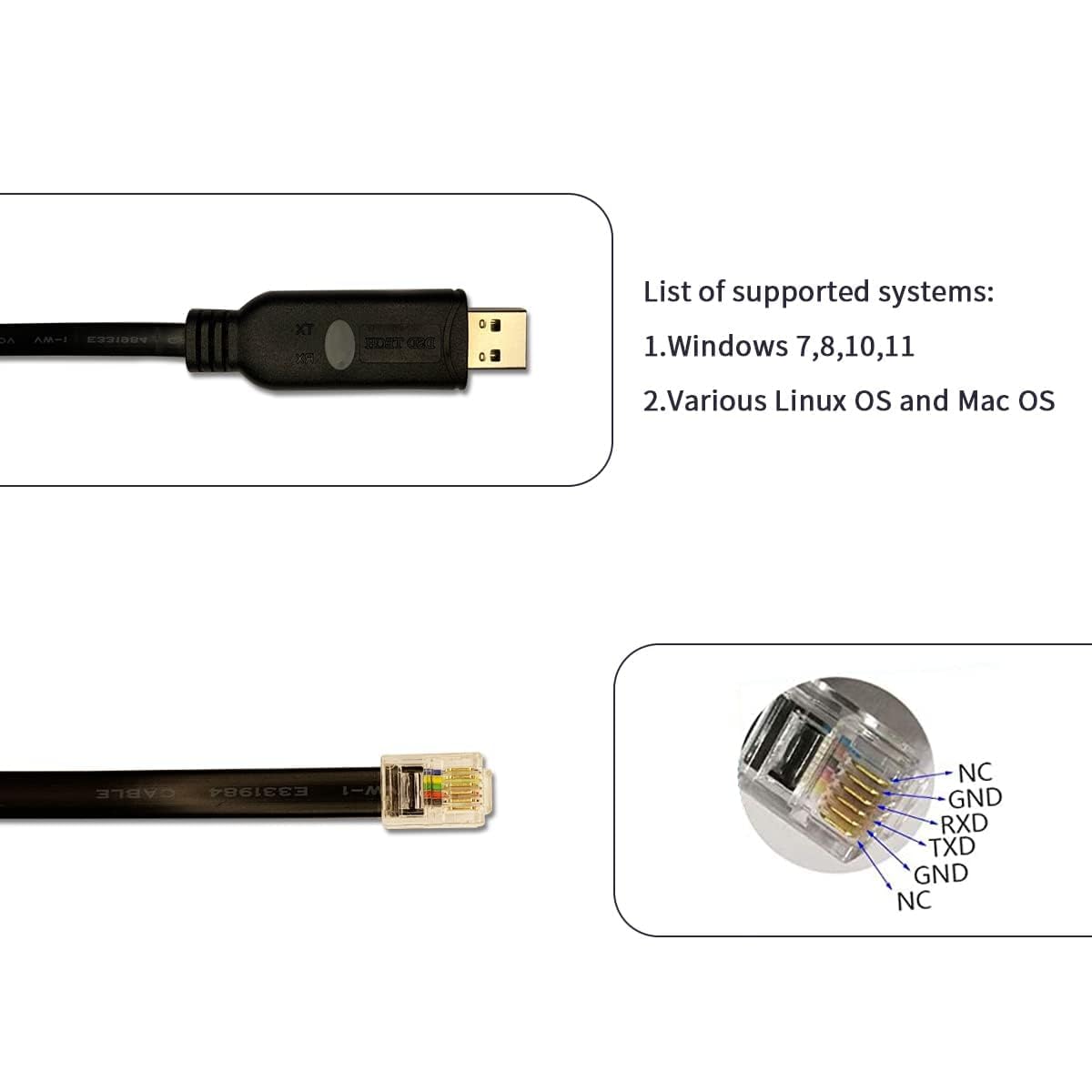

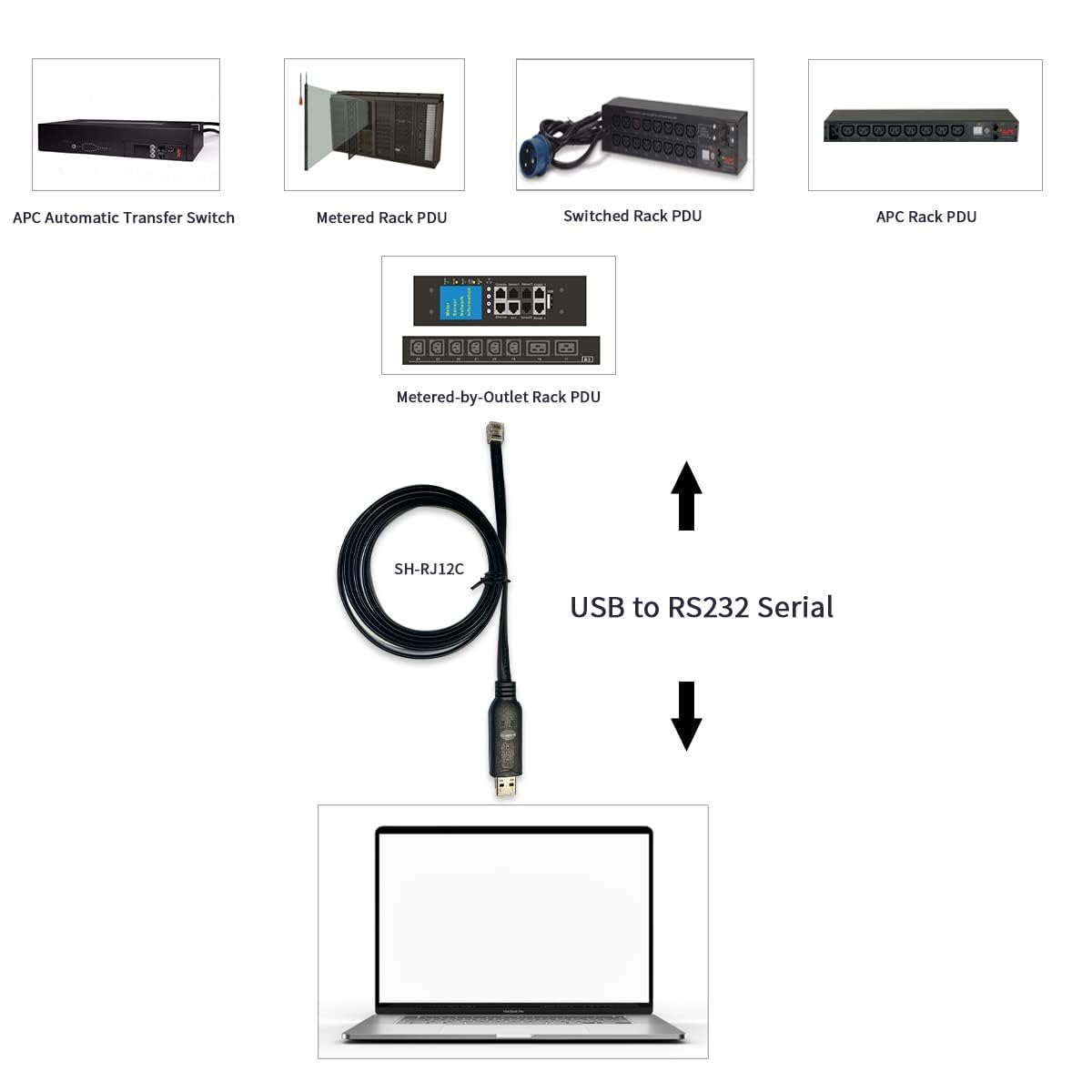

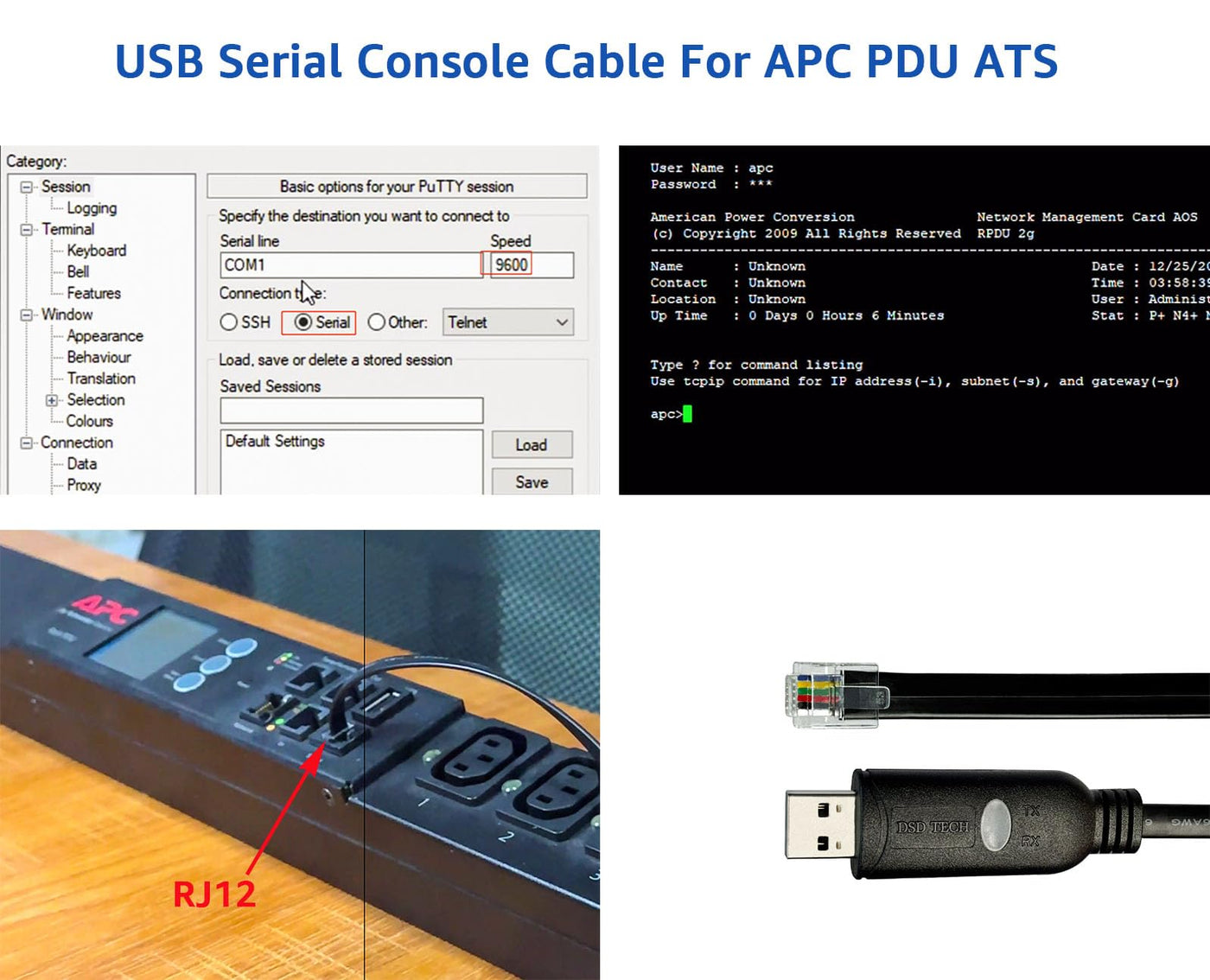

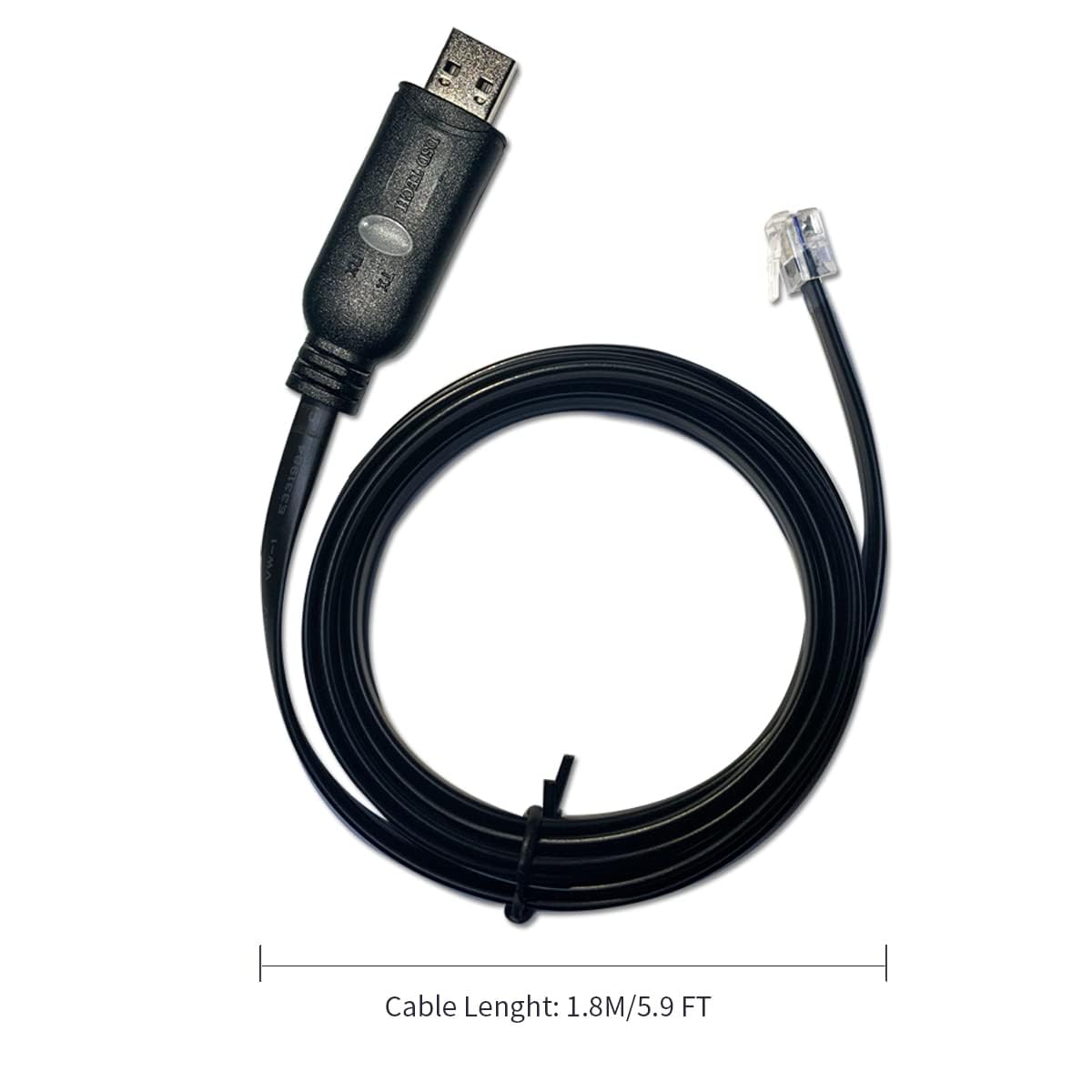

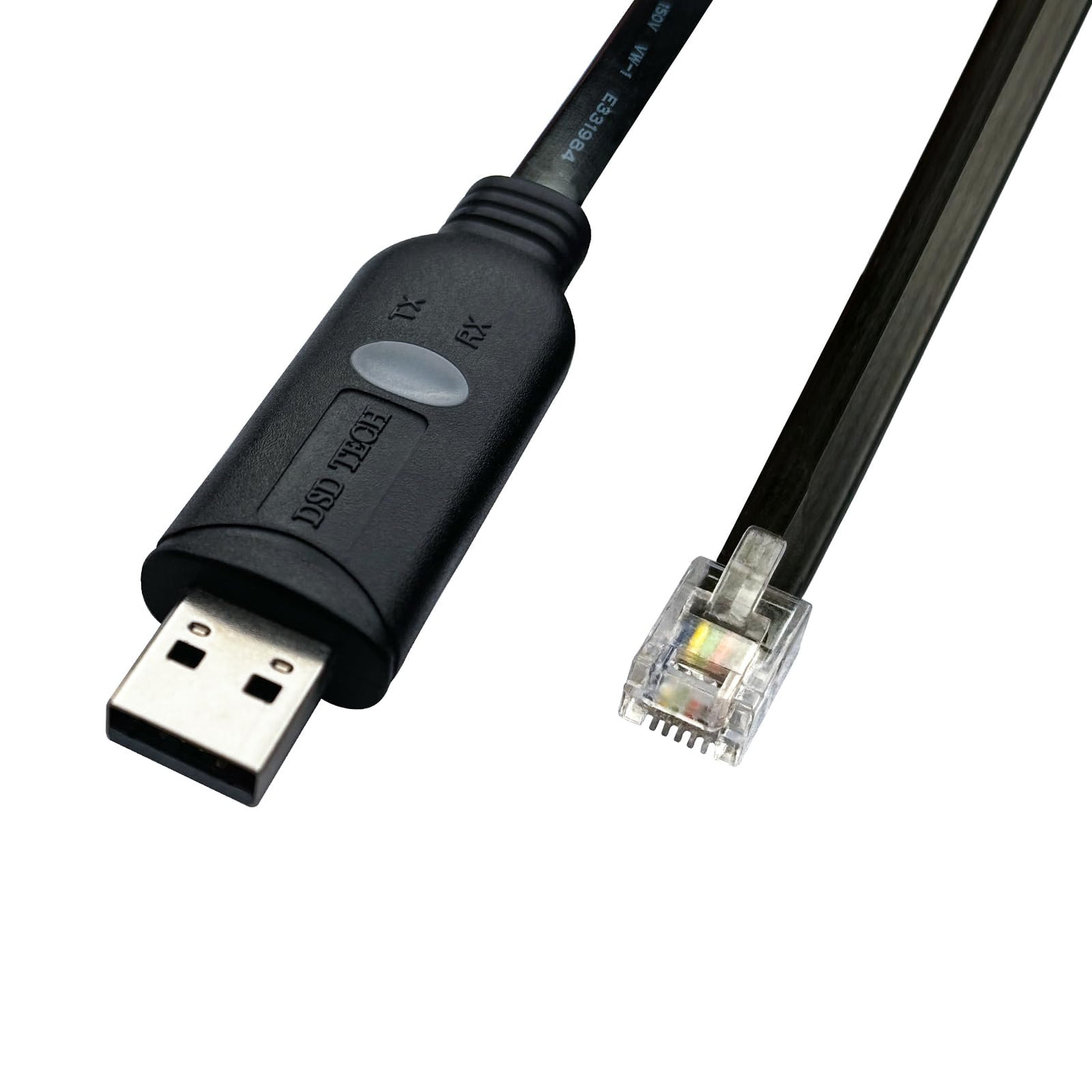

{"id":8305959043225,"title":"DSD TECH SH-RJ12C USB to RJ12 6P4C RS232 Serial Cable for APC PDU ATS(5.9FT\/1.8M)","handle":"dsd-tech-sh-rj12c-usb-to-rj12-6p4c-rs232-serial-cable-for-apc-pdu-ats5-9ft-1-8m","description":"\u003ch3\u003eDSD TECH SH-RJ12C USB to RJ12 6P4C RS232 Serial Cable for APC PDU ATS(5.9FT\/1.8M)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSH-RJ12C is the replacement of APC part 940-0144 and 940-0144A, used for APC\nswitched or metered PDU unit.When your APC PDU or ATS needs to be debugged or\nconfigured, you can use this USB to RJ12 Serial Cable to communicate with it.\nCompatible for most of APC PDU units that have a RJ12 port like APC metered\nand switched PDU AP78xx, AP79xx, AP86xx, AP88xx, AP89xx, and etc.\nSpecification: Model:SH-RJ12C Main chip:PL2303GT Pin Definition: Gnd,Tx,Rx,Gnd\nCommunication Protocol: RS232 Connectors: USB Type A, RJ12\/RJ11 (6P4C) The\nMaximum Speed: 1 Mbps Cable Lenght: 1.8M\/5.9 FT Plug \u0026amp; Play after one time\ndriver installation; Precautions: Although this data cable can transmit RS232\nsignals, it may not be compatible with your device. Because the line sequence\nof this data line is: NULL, Gnd, Tx, Rx, GND, NULL (please refer to the\npicture) Different devices have different requirements for compatible data\nlines. You can adjust it manually or contact us for customization. Applicable\nEquipment: APC Automatic Transfer Switch: AP7721, AP7723, AP7730, AP7732,\nAP7752 APC Rack PDU: P78xx, AP79xx, AP86xx, AP88xx, AP89xx Metered-by-Outlet\nwith Switching Rack PDU: AP8632, AP8641, AP8653, AP8659, AP8659EU3, AP8659NA3,\nAP8661, AP8681 Metered Rack PDU: AP7152, AP7155, AP7175,AP7800, AP7801,\nAP7802, AP7802J, AP7811, AP7820 Metered-by-Outlet Rack PDU: AP8441,\nAP8453,AP8459EU3, AP8459NA3, AP8459WW, AP8461, SPD10K Switched Rack PDU:\nAP7900, AP7901, AP7902, AP7902J, AP8930J, AP8931, AP8932, AP8930 List of\nsupported systems: 1,Windows 7,8,10,11 2, various Linux OS and Mac OS Packing\nlist: 1 X SH-RJ12C USB to RJ12\/RJ11 Serial Cable(5.9 Feet) 1 X User Manual\nCustomer Support: DSD TECH offers a 1-year Replacement service and lifetime\ntechnical support for this USB to RJ12\/RJ11 Serial Console Cable.If you meet\nany questions, Please contact us, We will fix your issue within 24 hours.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDSD TECH: DSD TECH focuses on the development of communication connection devices such as USB\/Serial\/Wireless. We have served more than 100,000 customers in Europe, North America and Japan.\u003c\/li\u003e\n \u003cli\u003eUSB to RJ12\/RJ11: RJ12 and RJ11 are the same on the physical interface. The difference is that RJ12 uses 6 data lines, while RJ11 uses 4 data lines.This cable leads to 4 signals: GND, TX, RX, GND.\u003c\/li\u003e\n \u003cli\u003eManage your APC PDU\/ATS:When your APC PDU or ATS needs to be debugged or configured, you can use this USB to RJ12 Serial Cable to communicate with it.\u003c\/li\u003e\n \u003cli\u003eReplacement for APC Part# 940-0144A. Suitable for the following APC models: AP77XX AP78XX AP79XX AP86XX AP88XX AP89XX.\u003c\/li\u003e\n \u003cli\u003eCustomer Support:Offering permanent technical support and a 1-Year Product Replacement service. All questions will be answered for you within 1 business day\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-01-27T10:36:37+11:00","created_at":"2025-01-26T14:33:33+11:00","vendor":"DSD TECH","type":"Serial Cables","tags":["electronics_best_sellers_Jan2025","sold2025"],"price":11800,"price_min":11800,"price_max":11800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45090793816217,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0C4F4WLYQ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DSD TECH SH-RJ12C USB to RJ12 6P4C RS232 Serial Cable for APC PDU ATS(5.9FT\/1.8M)","public_title":null,"options":["Default Title"],"price":11800,"weight":100,"compare_at_price":null,"inventory_management":"shopify","barcode":"794251082105","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/B0C4F4WLYQ.jpg?v=1737907762","\/\/soundstores.net\/cdn\/shop\/files\/71uRoGncNmL.jpg?v=1737862416","\/\/soundstores.net\/cdn\/shop\/files\/51BC-84nh9L.jpg?v=1737862416","\/\/soundstores.net\/cdn\/shop\/files\/71Z22R09JOL.jpg?v=1737862416","\/\/soundstores.net\/cdn\/shop\/files\/51h-AjG2S4L.jpg?v=1737862416","\/\/soundstores.net\/cdn\/shop\/files\/51xbMaJDCAL.jpg?v=1737862416","\/\/soundstores.net\/cdn\/shop\/files\/71jDLLlJ25L.jpg?v=1737862416"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/B0C4F4WLYQ.jpg?v=1737907762","options":["Title"],"media":[{"alt":null,"id":32586627154073,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/B0C4F4WLYQ.jpg?v=1737907762"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/B0C4F4WLYQ.jpg?v=1737907762","width":1600},{"alt":null,"id":32584843886745,"position":2,"preview_image":{"aspect_ratio":1.235,"height":1293,"width":1597,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71uRoGncNmL.jpg?v=1737862416"},"aspect_ratio":1.235,"height":1293,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71uRoGncNmL.jpg?v=1737862416","width":1597},{"alt":null,"id":32584843919513,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51BC-84nh9L.jpg?v=1737862416"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51BC-84nh9L.jpg?v=1737862416","width":1200},{"alt":null,"id":32584843952281,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71Z22R09JOL.jpg?v=1737862416"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71Z22R09JOL.jpg?v=1737862416","width":1600},{"alt":null,"id":32584843985049,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51h-AjG2S4L.jpg?v=1737862416"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51h-AjG2S4L.jpg?v=1737862416","width":1200},{"alt":null,"id":32584844017817,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51xbMaJDCAL.jpg?v=1737862416"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51xbMaJDCAL.jpg?v=1737862416","width":1200},{"alt":null,"id":32584844050585,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71jDLLlJ25L.jpg?v=1737862416"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71jDLLlJ25L.jpg?v=1737862416","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDSD TECH SH-RJ12C USB to RJ12 6P4C RS232 Serial Cable for APC PDU ATS(5.9FT\/1.8M)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSH-RJ12C is the replacement of APC part 940-0144 and 940-0144A, used for APC\nswitched or metered PDU unit.When your APC PDU or ATS needs to be debugged or\nconfigured, you can use this USB to RJ12 Serial Cable to communicate with it.\nCompatible for most of APC PDU units that have a RJ12 port like APC metered\nand switched PDU AP78xx, AP79xx, AP86xx, AP88xx, AP89xx, and etc.\nSpecification: Model:SH-RJ12C Main chip:PL2303GT Pin Definition: Gnd,Tx,Rx,Gnd\nCommunication Protocol: RS232 Connectors: USB Type A, RJ12\/RJ11 (6P4C) The\nMaximum Speed: 1 Mbps Cable Lenght: 1.8M\/5.9 FT Plug \u0026amp; Play after one time\ndriver installation; Precautions: Although this data cable can transmit RS232\nsignals, it may not be compatible with your device. Because the line sequence\nof this data line is: NULL, Gnd, Tx, Rx, GND, NULL (please refer to the\npicture) Different devices have different requirements for compatible data\nlines. You can adjust it manually or contact us for customization. Applicable\nEquipment: APC Automatic Transfer Switch: AP7721, AP7723, AP7730, AP7732,\nAP7752 APC Rack PDU: P78xx, AP79xx, AP86xx, AP88xx, AP89xx Metered-by-Outlet\nwith Switching Rack PDU: AP8632, AP8641, AP8653, AP8659, AP8659EU3, AP8659NA3,\nAP8661, AP8681 Metered Rack PDU: AP7152, AP7155, AP7175,AP7800, AP7801,\nAP7802, AP7802J, AP7811, AP7820 Metered-by-Outlet Rack PDU: AP8441,\nAP8453,AP8459EU3, AP8459NA3, AP8459WW, AP8461, SPD10K Switched Rack PDU:\nAP7900, AP7901, AP7902, AP7902J, AP8930J, AP8931, AP8932, AP8930 List of\nsupported systems: 1,Windows 7,8,10,11 2, various Linux OS and Mac OS Packing\nlist: 1 X SH-RJ12C USB to RJ12\/RJ11 Serial Cable(5.9 Feet) 1 X User Manual\nCustomer Support: DSD TECH offers a 1-year Replacement service and lifetime\ntechnical support for this USB to RJ12\/RJ11 Serial Console Cable.If you meet\nany questions, Please contact us, We will fix your issue within 24 hours.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDSD TECH: DSD TECH focuses on the development of communication connection devices such as USB\/Serial\/Wireless. We have served more than 100,000 customers in Europe, North America and Japan.\u003c\/li\u003e\n \u003cli\u003eUSB to RJ12\/RJ11: RJ12 and RJ11 are the same on the physical interface. The difference is that RJ12 uses 6 data lines, while RJ11 uses 4 data lines.This cable leads to 4 signals: GND, TX, RX, GND.\u003c\/li\u003e\n \u003cli\u003eManage your APC PDU\/ATS:When your APC PDU or ATS needs to be debugged or configured, you can use this USB to RJ12 Serial Cable to communicate with it.\u003c\/li\u003e\n \u003cli\u003eReplacement for APC Part# 940-0144A. Suitable for the following APC models: AP77XX AP78XX AP79XX AP86XX AP88XX AP89XX.\u003c\/li\u003e\n \u003cli\u003eCustomer Support:Offering permanent technical support and a 1-Year Product Replacement service. All questions will be answered for you within 1 business day\u003c\/li\u003e\n \u003c\/ul\u003e"}
