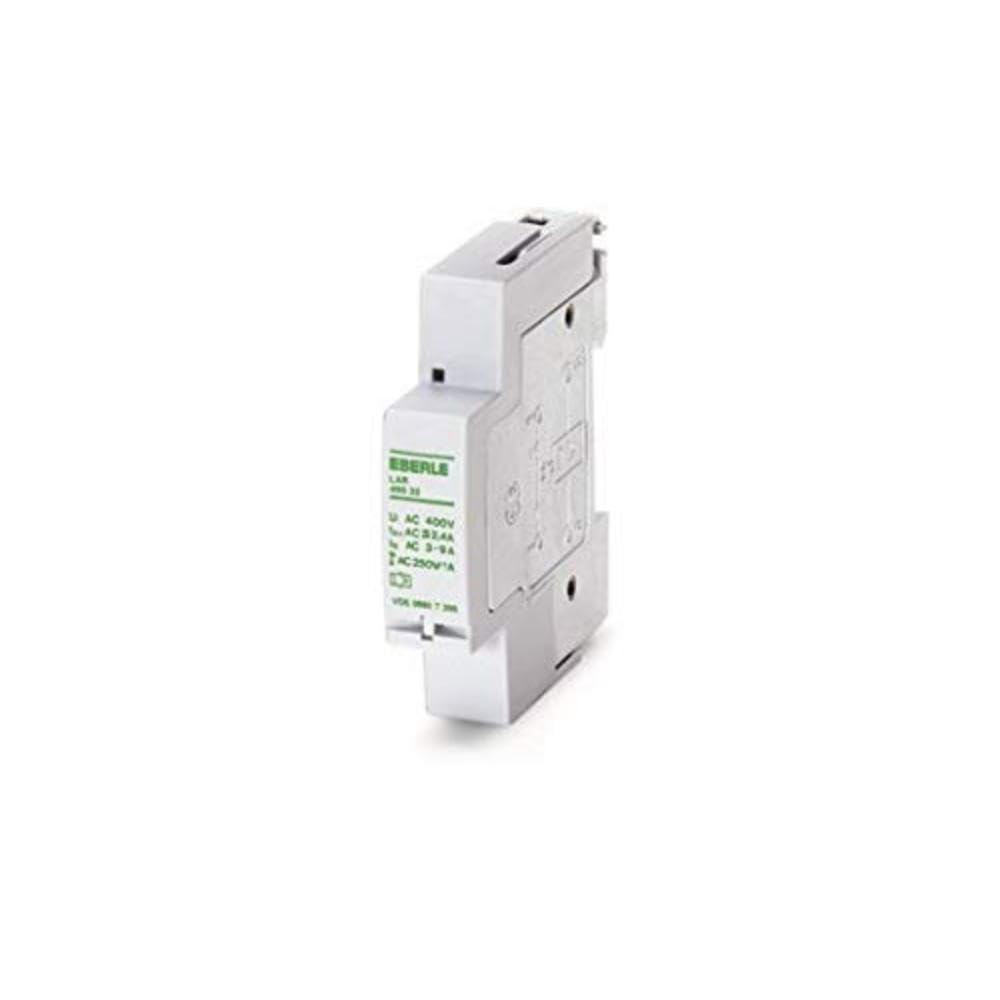

{"id":8534628073625,"title":"Eberle Controls 046537390000 Load Release Relay LAR 46537 (for Reduction of Cable Cross Section for Large Consumers, 4.6 to 27 KW, 43 A AC)","handle":"eberle-controls-046537390000-load-release-relay-lar-46537-for-reduction-of-cable-cross-section-for-large-consumers-4-6-to-27-kw-43-a-ac","description":"\u003ch3\u003eEberle Controls 046537390000 Load Release Relay LAR 46537 (for Reduction of Cable Cross Section for Large Consumers, 4.6 to 27 KW, 43 A AC)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eEberle undervoltage monitoring relay, load release relay LAR 46537,\n. To reduce the required cable cross-section for large consumers\nby mutual locking of consumers The relay is sealable. Suitable for\nelectronically controlled instantaneous water heaters. For mounting on support\nrail. Technical details: Rated current range AC: 6.7 - 39 A. Trigger current:\n≤ 5.7 A AC. Max. Continuous current: 43 A AC. Thermal continuous load capacity\nat 40 °C: 2.5 W. Contact type: 1 opener. Nominal contact current at 250 V AC:\n1 A. Contact material: hard silver. Max. Switching voltage: 400 V AC. Max.\nSwitching capacity: 250 VA. Max. Inrush peak current: 5 A. Electrical life at\nrated load: 105 switching cycles Mechanical life: 10 x 106 switching cycles\nDuty cycle: 100% Max. Permitted Switching frequency: 1800 switching cycles\/h\nat rated load. Max. Permitted Operating temperature: 40 °C. Contact\nresistance: approx. 3 mΩ. Test Voltage - Contact\/Coil: 2500V AC Insulation\ngroup according to VDE 0110: C\/250 V. Protection class housing: IP 40. Weight:\napprox. 90 g Box contents: 1 x Eberle undervoltage monitoring relay, load\nrelease relay LAR 46537, . Eberle Controls traditional brands are\nvivid testimonies to the fact that individual companies in the changeable\neconomic history act on the market with prudence and experience over decades.\nEberle is now one of the outstanding traditional German brands, and Eberle\nControls looks back on 85 years of successful company history. With creativity\nand quality awareness, Eberle Controls wants to create growth, promote\ninnovation and reduce waste. The satisfied customer is the benchmark for the\ncompany's success.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe relay is used to reduce the required cable cross section for large consumers\u003c\/li\u003e\n \u003cli\u003eThe undervoltage monitoring relay is suitable for mounting on mounting rails according to DIN EN 50 052 or for wall mounting\u003c\/li\u003e\n \u003cli\u003eThe LAR46537 load release relay is specially designed for electronically controlled instantaneous water heaters\u003c\/li\u003e\n \u003cli\u003eTechnical details: Rated current range AC: 6.7 to 39 A \/ Power consumption at rated power: 0.5 to 4 VA \/ Maximum continuous current: 43 A AC\u003c\/li\u003e\n \u003cli\u003eA relay is included\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-28T13:26:28+10:00","created_at":"2025-09-28T13:26:25+10:00","vendor":"Eberle","type":"Relays","tags":["industryDE_Sep2025"],"price":22700,"price_min":22700,"price_max":22700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45751383031961,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B000ONUA08","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Eberle Controls 046537390000 Load Release Relay LAR 46537 (for Reduction of Cable Cross Section for Large Consumers, 4.6 to 27 KW, 43 A AC)","public_title":null,"options":["Default Title"],"price":22700,"weight":90,"compare_at_price":null,"inventory_management":"shopify","barcode":"046537390000","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B000ONUA08.jpg?v=1775754941"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B000ONUA08.jpg?v=1775754941","options":["Title"],"media":[{"alt":null,"id":34673866670233,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B000ONUA08.jpg?v=1775754941"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B000ONUA08.jpg?v=1775754941","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eEberle Controls 046537390000 Load Release Relay LAR 46537 (for Reduction of Cable Cross Section for Large Consumers, 4.6 to 27 KW, 43 A AC)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eEberle undervoltage monitoring relay, load release relay LAR 46537,\n. To reduce the required cable cross-section for large consumers\nby mutual locking of consumers The relay is sealable. Suitable for\nelectronically controlled instantaneous water heaters. For mounting on support\nrail. Technical details: Rated current range AC: 6.7 - 39 A. Trigger current:\n≤ 5.7 A AC. Max. Continuous current: 43 A AC. Thermal continuous load capacity\nat 40 °C: 2.5 W. Contact type: 1 opener. Nominal contact current at 250 V AC:\n1 A. Contact material: hard silver. Max. Switching voltage: 400 V AC. Max.\nSwitching capacity: 250 VA. Max. Inrush peak current: 5 A. Electrical life at\nrated load: 105 switching cycles Mechanical life: 10 x 106 switching cycles\nDuty cycle: 100% Max. Permitted Switching frequency: 1800 switching cycles\/h\nat rated load. Max. Permitted Operating temperature: 40 °C. Contact\nresistance: approx. 3 mΩ. Test Voltage - Contact\/Coil: 2500V AC Insulation\ngroup according to VDE 0110: C\/250 V. Protection class housing: IP 40. Weight:\napprox. 90 g Box contents: 1 x Eberle undervoltage monitoring relay, load\nrelease relay LAR 46537, . Eberle Controls traditional brands are\nvivid testimonies to the fact that individual companies in the changeable\neconomic history act on the market with prudence and experience over decades.\nEberle is now one of the outstanding traditional German brands, and Eberle\nControls looks back on 85 years of successful company history. With creativity\nand quality awareness, Eberle Controls wants to create growth, promote\ninnovation and reduce waste. The satisfied customer is the benchmark for the\ncompany's success.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe relay is used to reduce the required cable cross section for large consumers\u003c\/li\u003e\n \u003cli\u003eThe undervoltage monitoring relay is suitable for mounting on mounting rails according to DIN EN 50 052 or for wall mounting\u003c\/li\u003e\n \u003cli\u003eThe LAR46537 load release relay is specially designed for electronically controlled instantaneous water heaters\u003c\/li\u003e\n \u003cli\u003eTechnical details: Rated current range AC: 6.7 to 39 A \/ Power consumption at rated power: 0.5 to 4 VA \/ Maximum continuous current: 43 A AC\u003c\/li\u003e\n \u003cli\u003eA relay is included\u003c\/li\u003e\n \u003c\/ul\u003e"}
