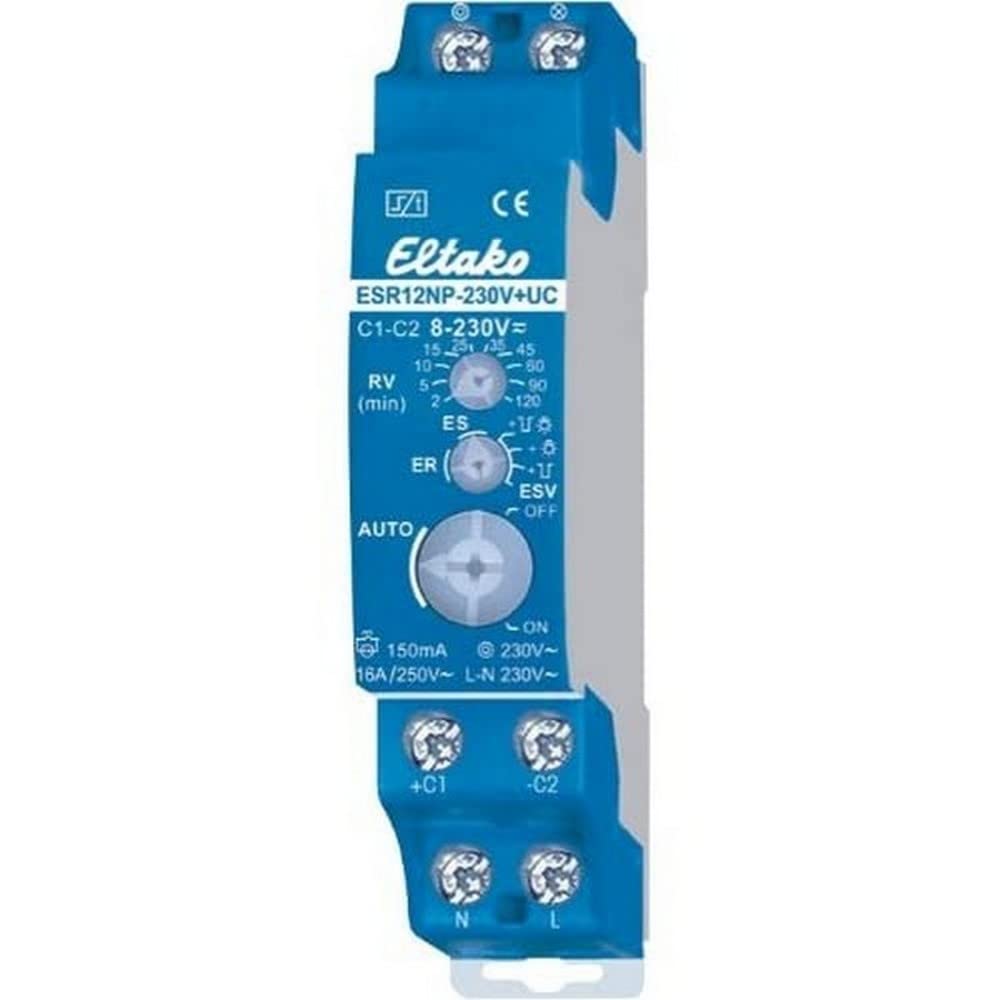

{"id":8534629974169,"title":"Eltako ESR12NP – 230 + UC Surge Switch Relay","handle":"eltako-esr12np-230-uc-surge-switch-relay","description":"\u003ch3\u003eEltako ESR12NP – 230 + UC Surge Switch Relay\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1 NO NO POTENTIAL FREE 16A\/250V AC, 230V LED bulbs up to 600W, incandescent\nbulbs 2300W, relapse delay with switch-off warning and button continuous light\ncan be switched on. Stand-by loss only 0.5 watts. Row installation device for\nmounting on DIN EN 60715 TH35 mounting rail. 1 division unit = 18 mm wide, 58\nmm deep. Contact circuit in zero crossing to protect the contacts and lamps.\nState-of-the-art hybrid technology combines the advantages of wear-free\nelectronic control with the high performance of special relay. Control voltage\n230V, additionally with galvanically isolated universal control voltage\n8..230V UC. Supply and switching voltage: 230 V. Very low switching noise.\nAccurate time setting of the relapse delay RV in the ESV function from 2 to\n120 minutes with minute scale. With control LED. This flashes after 15 minutes\nwhen the button is blocked (not in the ER function). At the 230 V control\ninput glow lamp current up to 150 mA, regardless of the ignition voltage (not\nin the ER function). In the relay functions for feedback with the switching\nvoltage of a dimmer switch. In the event of a failure of the supply voltage is\nswitched off defined. With a rotary switch, you can set the functions ES, ER\nand ESV: ES = surge switch. ER = Switch Relay ESV = impulse switch with drop\ndelay. The impulse switch turns off automatically after the set delay time has\nelapsed if the manual off command has not been given. Time range up to 120\nminutes adjustable. ESV + switch-off warning = When the switch-off warning is\nswitched on, the switch-off warning is made 30 seconds before the time\nexpiration by several short flickering of the lighting. During this time, you\ncan switch downstream. ESV + button continuous light = When the button\ncontinuous light is switched on, this surge switch switches to continuous\nlight when a control button is operated for more than 1 second. It can be\nturned off for more than 2 seconds by pressing again. If this is forgotten,\nthe continuous light is automatically switched off after 2 hours. ESV +\nswitch-off warning and button continuous light = If the switch-off warning and\nbutton continuous light are switched on, the switch-off warning is only after\nswitching off the continuous light. If this surge switching relay is in a\ncircuit that is monitored with a field release switch FR12-230V, it does not\nrequire an additional base load, but the monitoring voltage of the FR12-230V\nmust be set to max.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eEltako Impulse switch, top-hat rail ESR12NP, 1 N\/O contact, 230 V\/DC, 230 V\/AC 16 A, 2000 W, pack of 1.\u003c\/li\u003e\n \u003cli\u003eContents: 1 item\u003c\/li\u003e\n \u003cli\u003eEltako\u003c\/li\u003e\n \u003cli\u003e2000386\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-28T13:28:04+10:00","created_at":"2025-09-28T13:28:01+10:00","vendor":"Eltako","type":"Relays","tags":["industryDE_Sep2025"],"price":29400,"price_min":29400,"price_max":29400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45751386439833,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B000UWEXH4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Eltako ESR12NP – 230 + UC Surge Switch Relay","public_title":null,"options":["Default Title"],"price":29400,"weight":80,"compare_at_price":null,"inventory_management":"shopify","barcode":"2000386","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B000UWEXH4.jpg?v=1775754988"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B000UWEXH4.jpg?v=1775754988","options":["Title"],"media":[{"alt":null,"id":34673873584281,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B000UWEXH4.jpg?v=1775754988"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B000UWEXH4.jpg?v=1775754988","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eEltako ESR12NP – 230 + UC Surge Switch Relay\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1 NO NO POTENTIAL FREE 16A\/250V AC, 230V LED bulbs up to 600W, incandescent\nbulbs 2300W, relapse delay with switch-off warning and button continuous light\ncan be switched on. Stand-by loss only 0.5 watts. Row installation device for\nmounting on DIN EN 60715 TH35 mounting rail. 1 division unit = 18 mm wide, 58\nmm deep. Contact circuit in zero crossing to protect the contacts and lamps.\nState-of-the-art hybrid technology combines the advantages of wear-free\nelectronic control with the high performance of special relay. Control voltage\n230V, additionally with galvanically isolated universal control voltage\n8..230V UC. Supply and switching voltage: 230 V. Very low switching noise.\nAccurate time setting of the relapse delay RV in the ESV function from 2 to\n120 minutes with minute scale. With control LED. This flashes after 15 minutes\nwhen the button is blocked (not in the ER function). At the 230 V control\ninput glow lamp current up to 150 mA, regardless of the ignition voltage (not\nin the ER function). In the relay functions for feedback with the switching\nvoltage of a dimmer switch. In the event of a failure of the supply voltage is\nswitched off defined. With a rotary switch, you can set the functions ES, ER\nand ESV: ES = surge switch. ER = Switch Relay ESV = impulse switch with drop\ndelay. The impulse switch turns off automatically after the set delay time has\nelapsed if the manual off command has not been given. Time range up to 120\nminutes adjustable. ESV + switch-off warning = When the switch-off warning is\nswitched on, the switch-off warning is made 30 seconds before the time\nexpiration by several short flickering of the lighting. During this time, you\ncan switch downstream. ESV + button continuous light = When the button\ncontinuous light is switched on, this surge switch switches to continuous\nlight when a control button is operated for more than 1 second. It can be\nturned off for more than 2 seconds by pressing again. If this is forgotten,\nthe continuous light is automatically switched off after 2 hours. ESV +\nswitch-off warning and button continuous light = If the switch-off warning and\nbutton continuous light are switched on, the switch-off warning is only after\nswitching off the continuous light. If this surge switching relay is in a\ncircuit that is monitored with a field release switch FR12-230V, it does not\nrequire an additional base load, but the monitoring voltage of the FR12-230V\nmust be set to max.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eEltako Impulse switch, top-hat rail ESR12NP, 1 N\/O contact, 230 V\/DC, 230 V\/AC 16 A, 2000 W, pack of 1.\u003c\/li\u003e\n \u003cli\u003eContents: 1 item\u003c\/li\u003e\n \u003cli\u003eEltako\u003c\/li\u003e\n \u003cli\u003e2000386\u003c\/li\u003e\n \u003c\/ul\u003e"}
