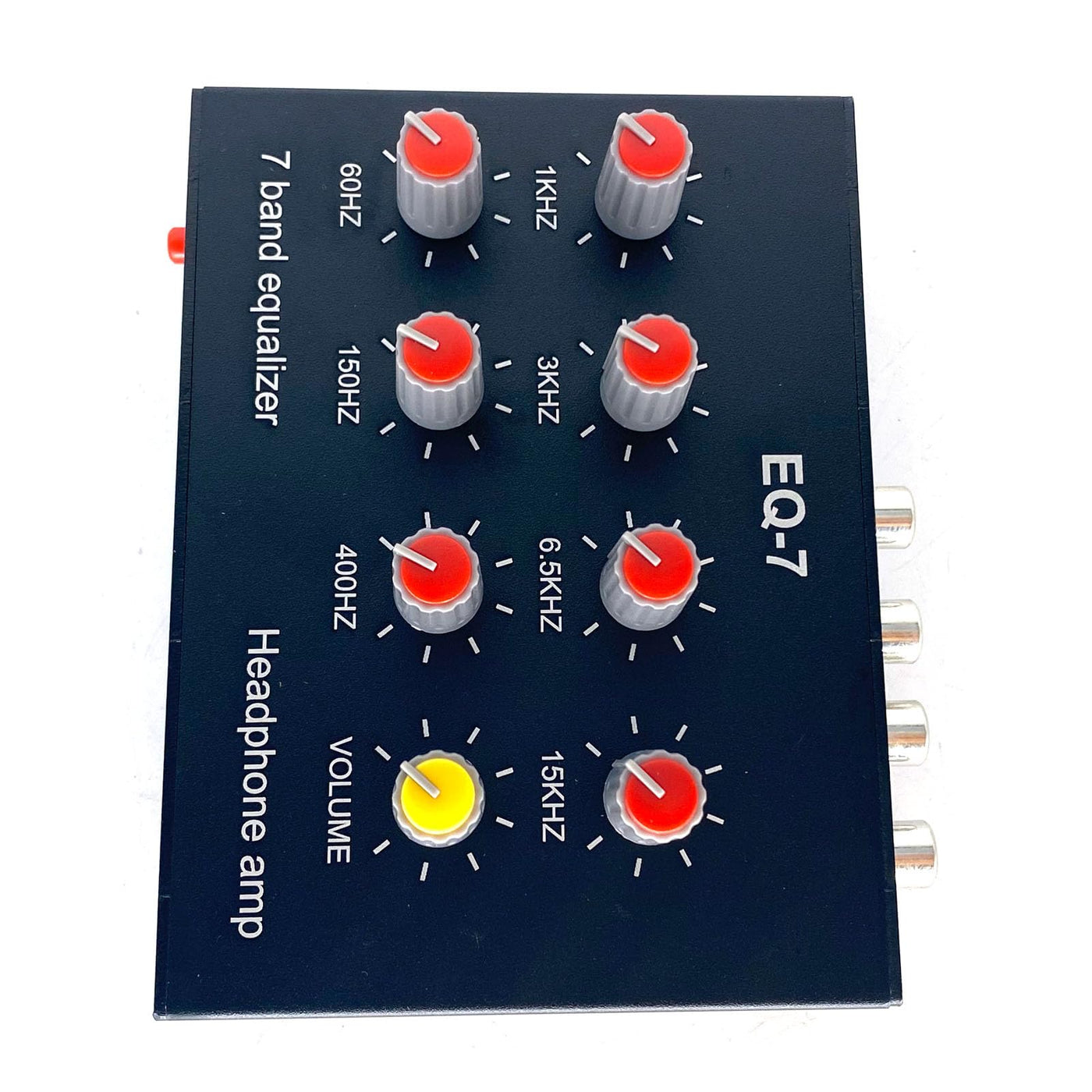

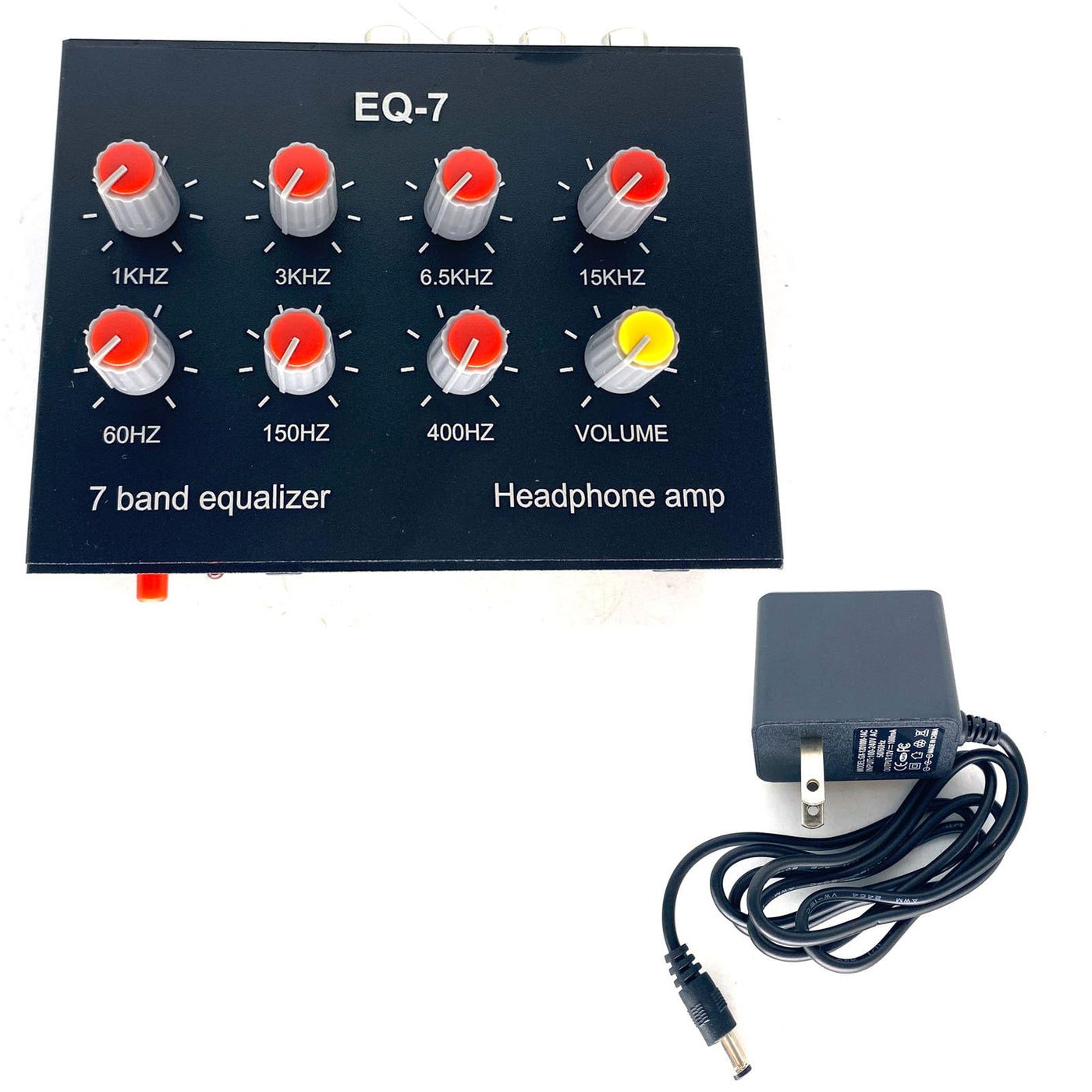

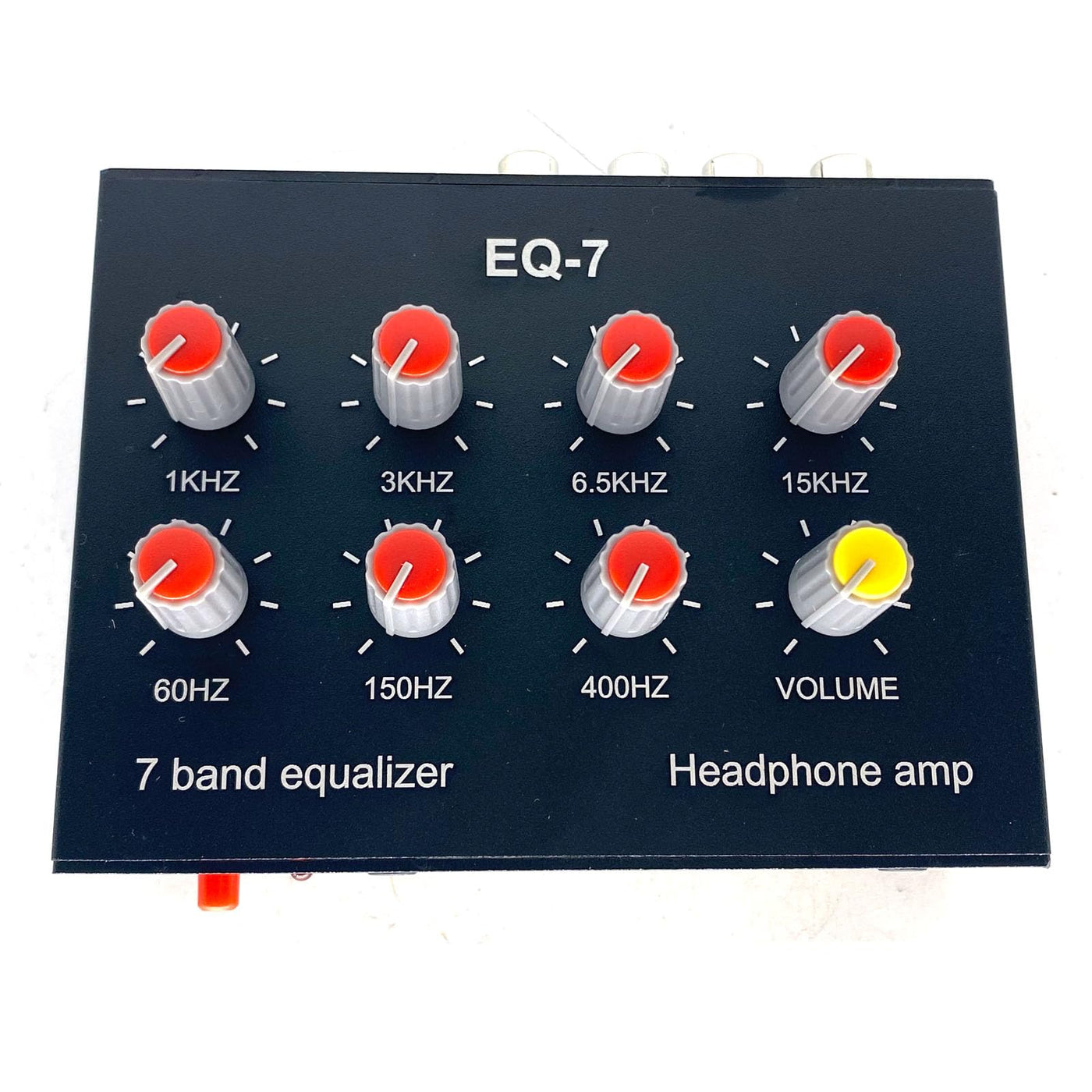

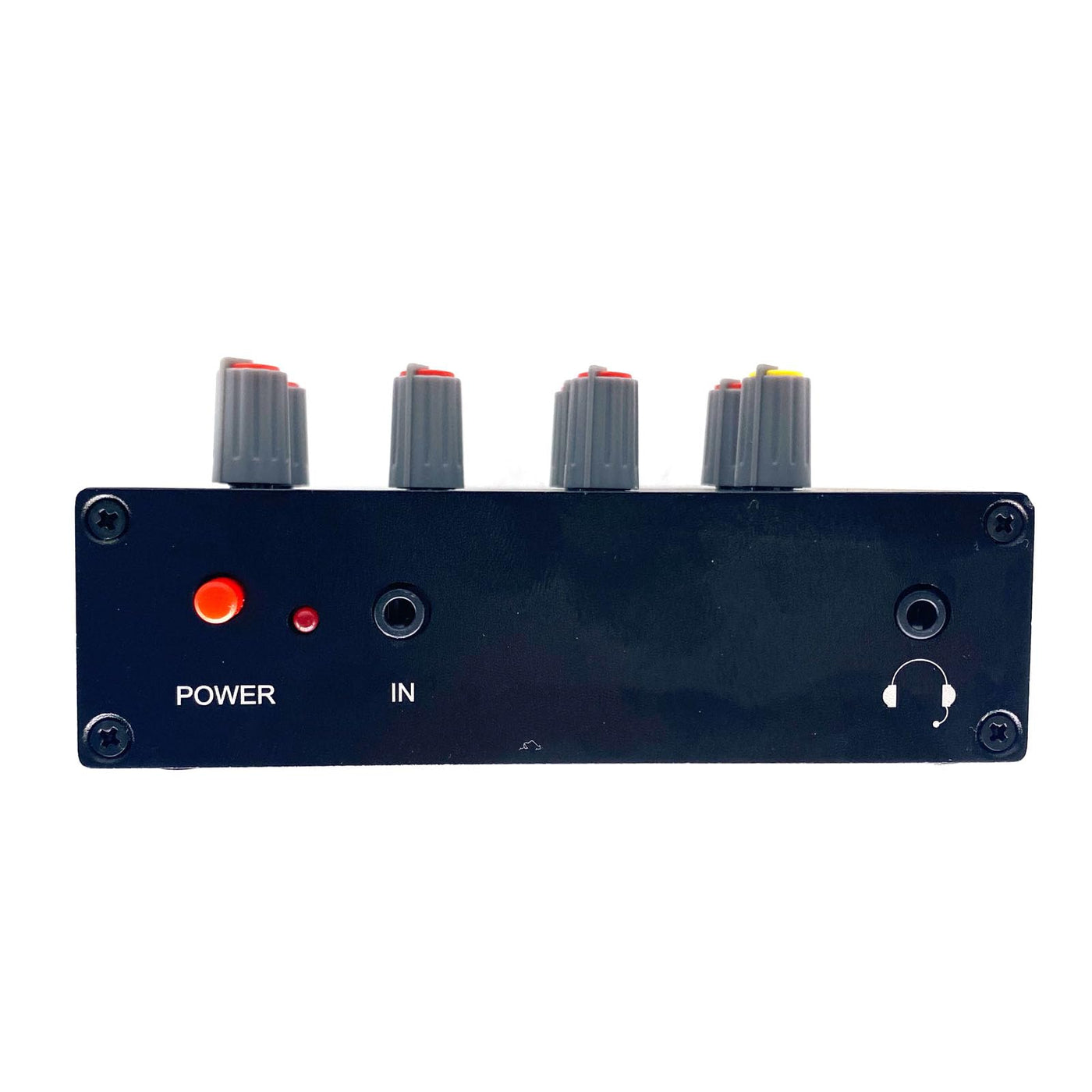

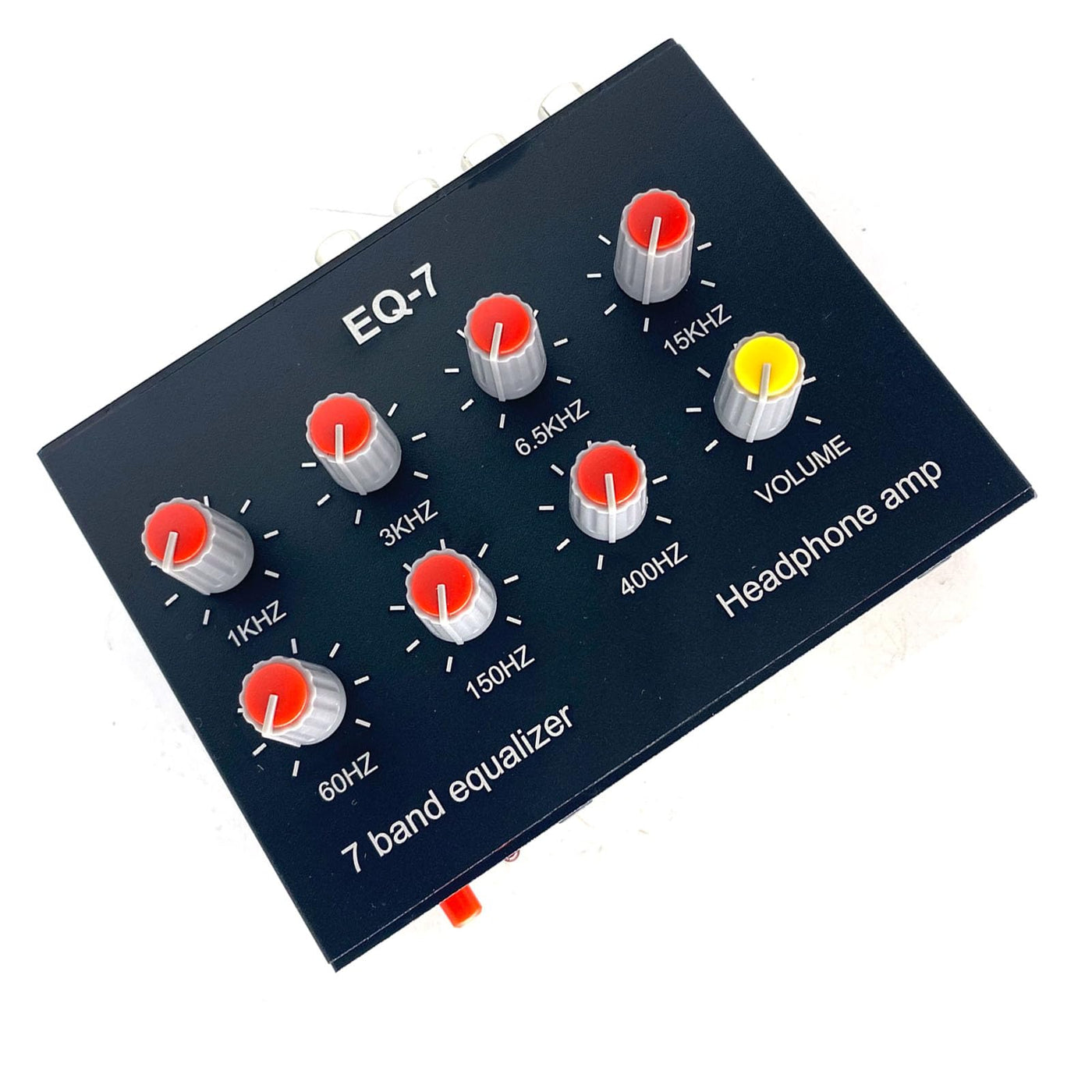

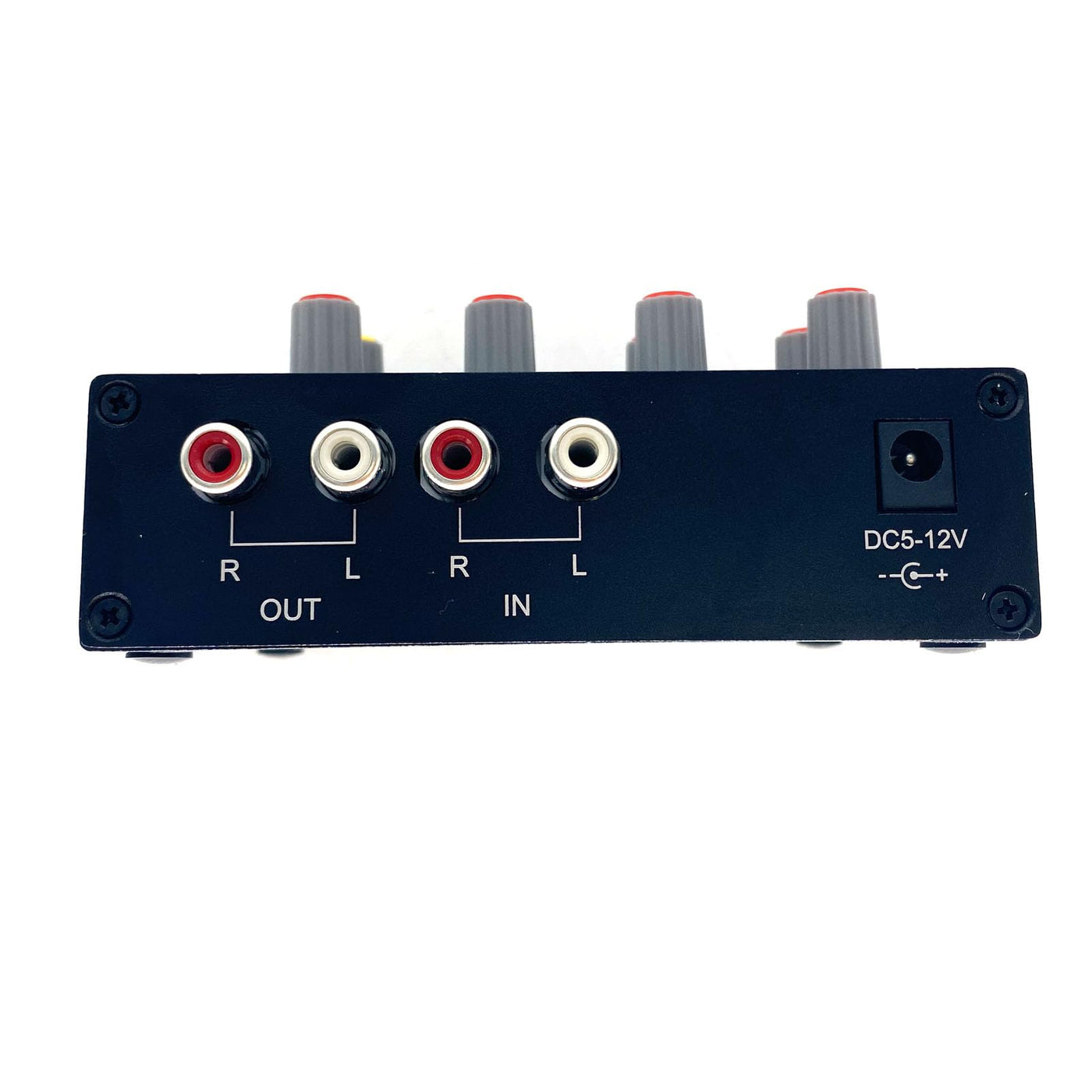

{"id":8147136741529,"title":"EQ-7 Audio Signal Headset Amplifier 7-Band EQ Equalizer 2 Channel Digital Sound Equalizer +12V Power Adapter","handle":"eq-7-audio-signal-headset-amplifier-7-band-eq-equalizer-2-channel-digital-sound-equalizer-12v-power-adapter","description":"\u003ch3\u003eEQ-7 Audio Signal Headset Amplifier 7-Band EQ Equalizer 2 Channel Digital Sound Equalizer +12V Power Adapter\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct parameters:Power supply :DC5V-12VInterface :DC5.5x2.1\/3.5mmInput\nimpedance :20KOutput impedance: 600ΩEqualization circuit control range\n:±12dBBalance frequency band :60Hz, 150Hz, 400Hz, 1KHz, 3KHz, 6.5KHz, 15KHz1,\nseven stage balance adjustment range ±12db, composed of TI or ST original\nTL074 circuit2, 60 hz, 150 hz, 40 ohz, 1 KHZ, 3 KHZ, 6.5 KHZ, 15 KHZ, seven\nfrequency knob in the middle of the origin, counterclockwise for attenuation,\nclockwise for ascension; 60HZ for bass, 150HZ for bass, 400HZ for bass, 1KHZ\nfor alto, 3KHZ for treble, 6.5KHZ for treble, 15KHZ for super treble,\naccording to personal listening preferences to adjust.3, pre-amplification\ngain :4580 classic op amp provides 5 times amplification (14db); The earphone\npart adopts the 47 earphone driving circuit composed of two NE5532, which can\neasily drive all types of earphones from 16 euro to 600 euro; Input impedance\n20K, output impedance 600 OHMs;4, 3.5mm input and output interface support 3\n\/4 pole plug, headset with microphone can be normal voice call on the phone,\nsuitable for game lovers and music lovers, another group lotus interface\nterminal is available5. Power supply: between DC5V-12v, the interface\nspecification is 5.52.1, 5V power supply is static current 390ma, 12V power\nsupply is about 14Oma, power consumption is about 1.8w.Package\nIncluded:1.EQ-7 Audio Signal Headset Amplifier 112V Power Adapter\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct parameters: Power supply :DC5V-12V, interface :DC5.5x2.1\/3.5mm, input impedance :20K, output impedance: 600, balance circuit control range :12dB, balance frequency :60Hz, 150Hz, 400Hz, 1KHz, 3KHz, 6.5KHz, 15KHz\u003c\/li\u003e\n \u003cli\u003ePower supply: between DC5V-12v, interface specification is 5.5*2.1, 5V power supply is static current 390ma, 12V power supply is about 14Oma, power consumption is about 1.8w, seven equalization adjustment range 12db, composed of TI or ST original TL074 circuit\u003c\/li\u003e\n \u003cli\u003ePre-amplification gain :4580 classic op amp provides 5x magnification (14db); The earphone part adopts the 47 earphone driving circuit composed of two NE5532, which can easily drive all types of earphones from 16 euro to 600 euro; Input impedance 20K, output impedance 600 OHMs;\u003c\/li\u003e\n \u003cli\u003e3.5mm input\/output interface support 3-pole \/ 4-pole plug, headset with microphone can be normal voice call on mobile phone, suitable for game lovers and music lovers, another group of lotus interface terminal is available\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-07-20T02:31:17+10:00","created_at":"2024-07-20T02:31:17+10:00","vendor":"Cywhrvzsf","type":"Equalizers","tags":["electronics_July2024_update"],"price":19900,"price_min":19900,"price_max":19900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44621190856857,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CXXBP1GS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"EQ-7 Audio Signal Headset Amplifier 7-Band EQ Equalizer 2 Channel Digital Sound Equalizer +12V Power Adapter","public_title":null,"options":["Default Title"],"price":19900,"weight":340,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/B0CXXBP1GS.jpg?v=1721408072","\/\/soundstores.net\/cdn\/shop\/files\/61-RMjfGleL.jpg?v=1721406687","\/\/soundstores.net\/cdn\/shop\/files\/61PGAhCmpIL.jpg?v=1721406687","\/\/soundstores.net\/cdn\/shop\/files\/71a7qvC2hVL.jpg?v=1721406687","\/\/soundstores.net\/cdn\/shop\/files\/71nWXnMbpSL.jpg?v=1721406687","\/\/soundstores.net\/cdn\/shop\/files\/71OdHvm192L.jpg?v=1721406687"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/B0CXXBP1GS.jpg?v=1721408072","options":["Title"],"media":[{"alt":"[AUSTRALIA] - EQ-7 Audio Signal Headset Amplifier 7-Band EQ Equalizer 2 Channel Digital Sound Equalizer +12V Power Adapter ","id":31450385809561,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/B0CXXBP1GS.jpg?v=1721408072"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/B0CXXBP1GS.jpg?v=1721408072","width":1600},{"alt":"[AUSTRALIA] - EQ-7 Audio Signal Headset Amplifier 7-Band EQ Equalizer 2 Channel Digital Sound Equalizer +12V Power Adapter ","id":31450286194841,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61-RMjfGleL.jpg?v=1721406687"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61-RMjfGleL.jpg?v=1721406687","width":1600},{"alt":"[AUSTRALIA] - EQ-7 Audio Signal Headset Amplifier 7-Band EQ Equalizer 2 Channel Digital Sound Equalizer +12V Power Adapter ","id":31450286227609,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61PGAhCmpIL.jpg?v=1721406687"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61PGAhCmpIL.jpg?v=1721406687","width":1600},{"alt":"[AUSTRALIA] - EQ-7 Audio Signal Headset Amplifier 7-Band EQ Equalizer 2 Channel Digital Sound Equalizer +12V Power Adapter ","id":31450286260377,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71a7qvC2hVL.jpg?v=1721406687"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71a7qvC2hVL.jpg?v=1721406687","width":1600},{"alt":"[AUSTRALIA] - EQ-7 Audio Signal Headset Amplifier 7-Band EQ Equalizer 2 Channel Digital Sound Equalizer +12V Power Adapter ","id":31450286293145,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71nWXnMbpSL.jpg?v=1721406687"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71nWXnMbpSL.jpg?v=1721406687","width":1600},{"alt":"[AUSTRALIA] - EQ-7 Audio Signal Headset Amplifier 7-Band EQ Equalizer 2 Channel Digital Sound Equalizer +12V Power Adapter ","id":31450286325913,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71OdHvm192L.jpg?v=1721406687"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71OdHvm192L.jpg?v=1721406687","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eEQ-7 Audio Signal Headset Amplifier 7-Band EQ Equalizer 2 Channel Digital Sound Equalizer +12V Power Adapter\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct parameters:Power supply :DC5V-12VInterface :DC5.5x2.1\/3.5mmInput\nimpedance :20KOutput impedance: 600ΩEqualization circuit control range\n:±12dBBalance frequency band :60Hz, 150Hz, 400Hz, 1KHz, 3KHz, 6.5KHz, 15KHz1,\nseven stage balance adjustment range ±12db, composed of TI or ST original\nTL074 circuit2, 60 hz, 150 hz, 40 ohz, 1 KHZ, 3 KHZ, 6.5 KHZ, 15 KHZ, seven\nfrequency knob in the middle of the origin, counterclockwise for attenuation,\nclockwise for ascension; 60HZ for bass, 150HZ for bass, 400HZ for bass, 1KHZ\nfor alto, 3KHZ for treble, 6.5KHZ for treble, 15KHZ for super treble,\naccording to personal listening preferences to adjust.3, pre-amplification\ngain :4580 classic op amp provides 5 times amplification (14db); The earphone\npart adopts the 47 earphone driving circuit composed of two NE5532, which can\neasily drive all types of earphones from 16 euro to 600 euro; Input impedance\n20K, output impedance 600 OHMs;4, 3.5mm input and output interface support 3\n\/4 pole plug, headset with microphone can be normal voice call on the phone,\nsuitable for game lovers and music lovers, another group lotus interface\nterminal is available5. Power supply: between DC5V-12v, the interface\nspecification is 5.52.1, 5V power supply is static current 390ma, 12V power\nsupply is about 14Oma, power consumption is about 1.8w.Package\nIncluded:1.EQ-7 Audio Signal Headset Amplifier 112V Power Adapter\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct parameters: Power supply :DC5V-12V, interface :DC5.5x2.1\/3.5mm, input impedance :20K, output impedance: 600, balance circuit control range :12dB, balance frequency :60Hz, 150Hz, 400Hz, 1KHz, 3KHz, 6.5KHz, 15KHz\u003c\/li\u003e\n \u003cli\u003ePower supply: between DC5V-12v, interface specification is 5.5*2.1, 5V power supply is static current 390ma, 12V power supply is about 14Oma, power consumption is about 1.8w, seven equalization adjustment range 12db, composed of TI or ST original TL074 circuit\u003c\/li\u003e\n \u003cli\u003ePre-amplification gain :4580 classic op amp provides 5x magnification (14db); The earphone part adopts the 47 earphone driving circuit composed of two NE5532, which can easily drive all types of earphones from 16 euro to 600 euro; Input impedance 20K, output impedance 600 OHMs;\u003c\/li\u003e\n \u003cli\u003e3.5mm input\/output interface support 3-pole \/ 4-pole plug, headset with microphone can be normal voice call on mobile phone, suitable for game lovers and music lovers, another group of lotus interface terminal is available\u003c\/li\u003e\n \u003c\/ul\u003e"}
