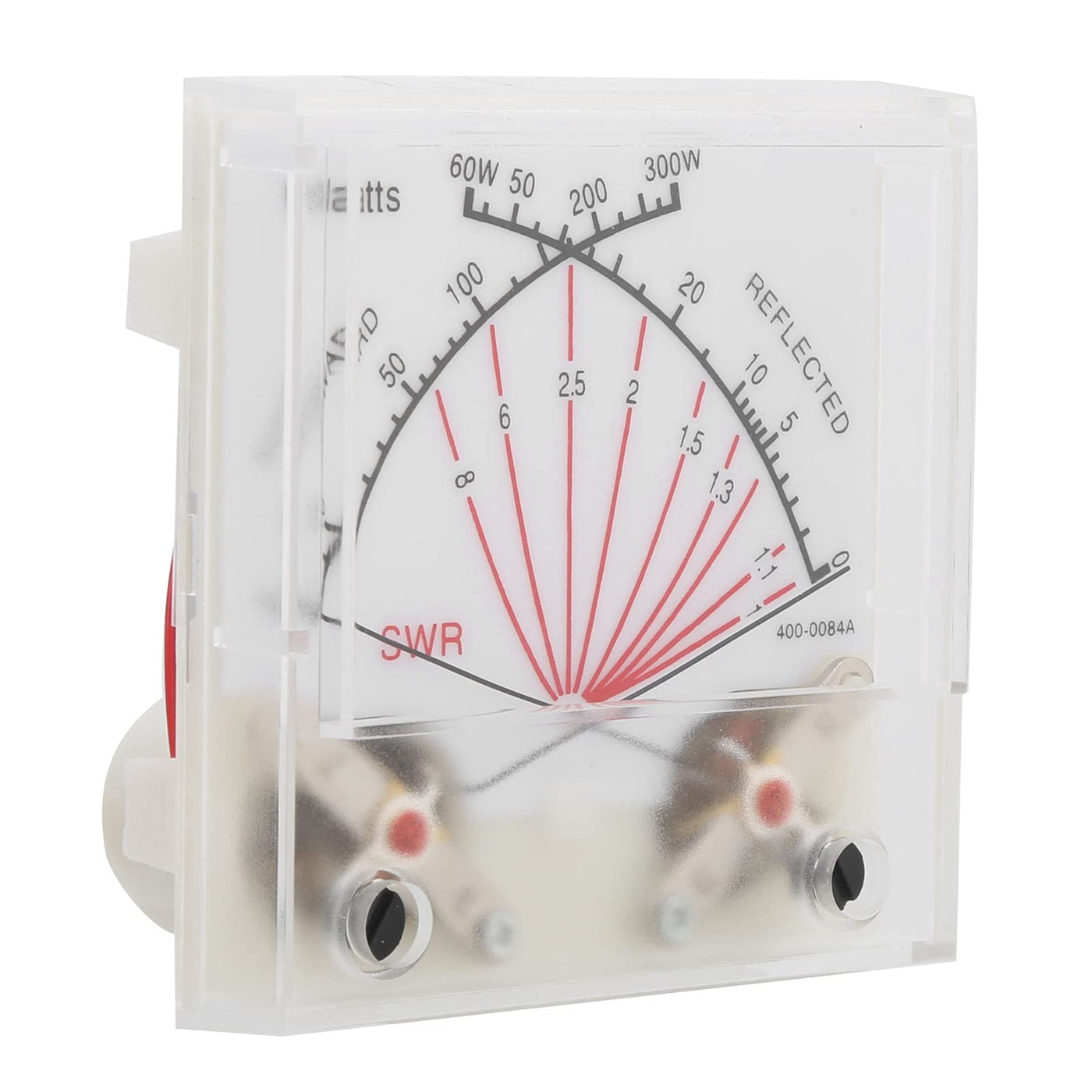

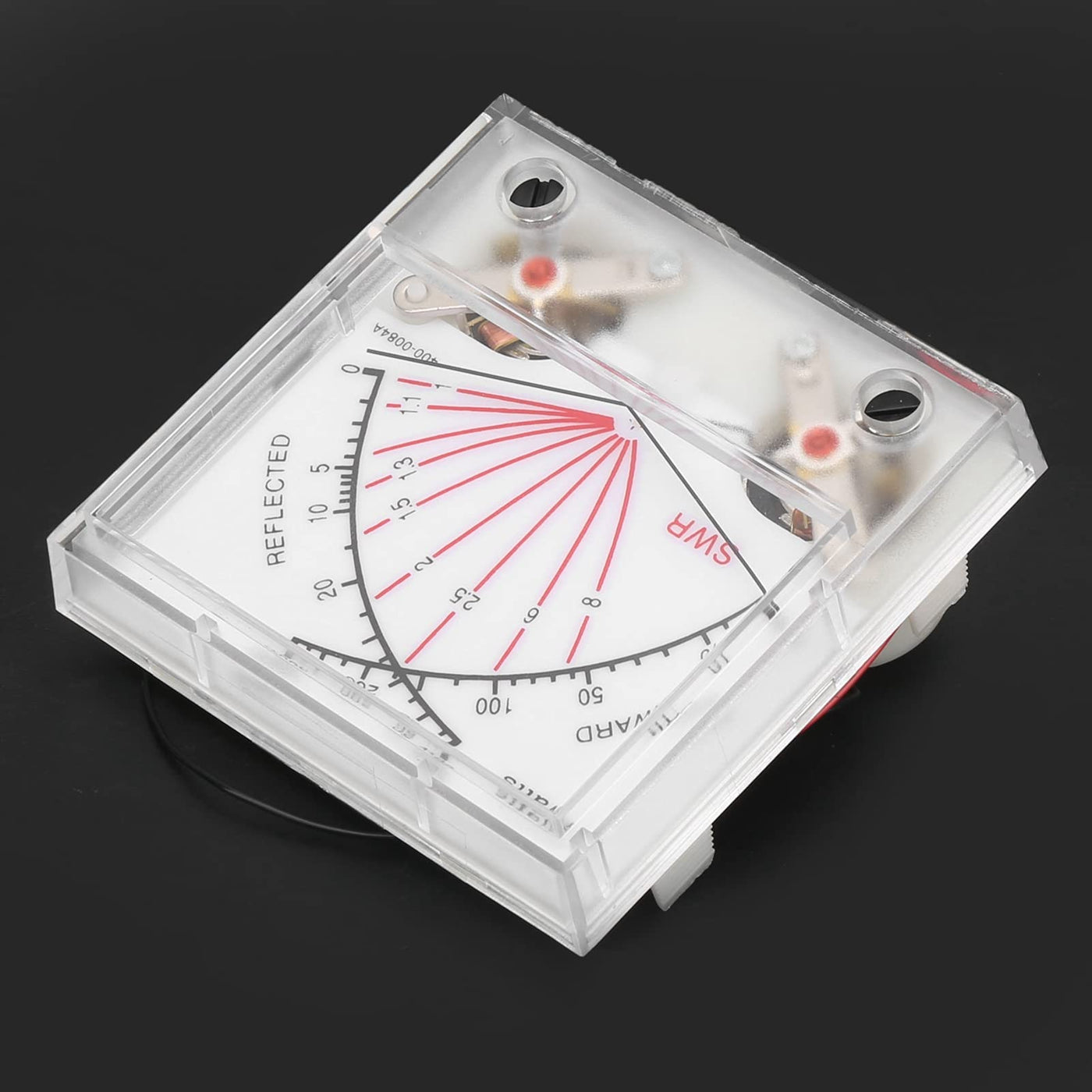

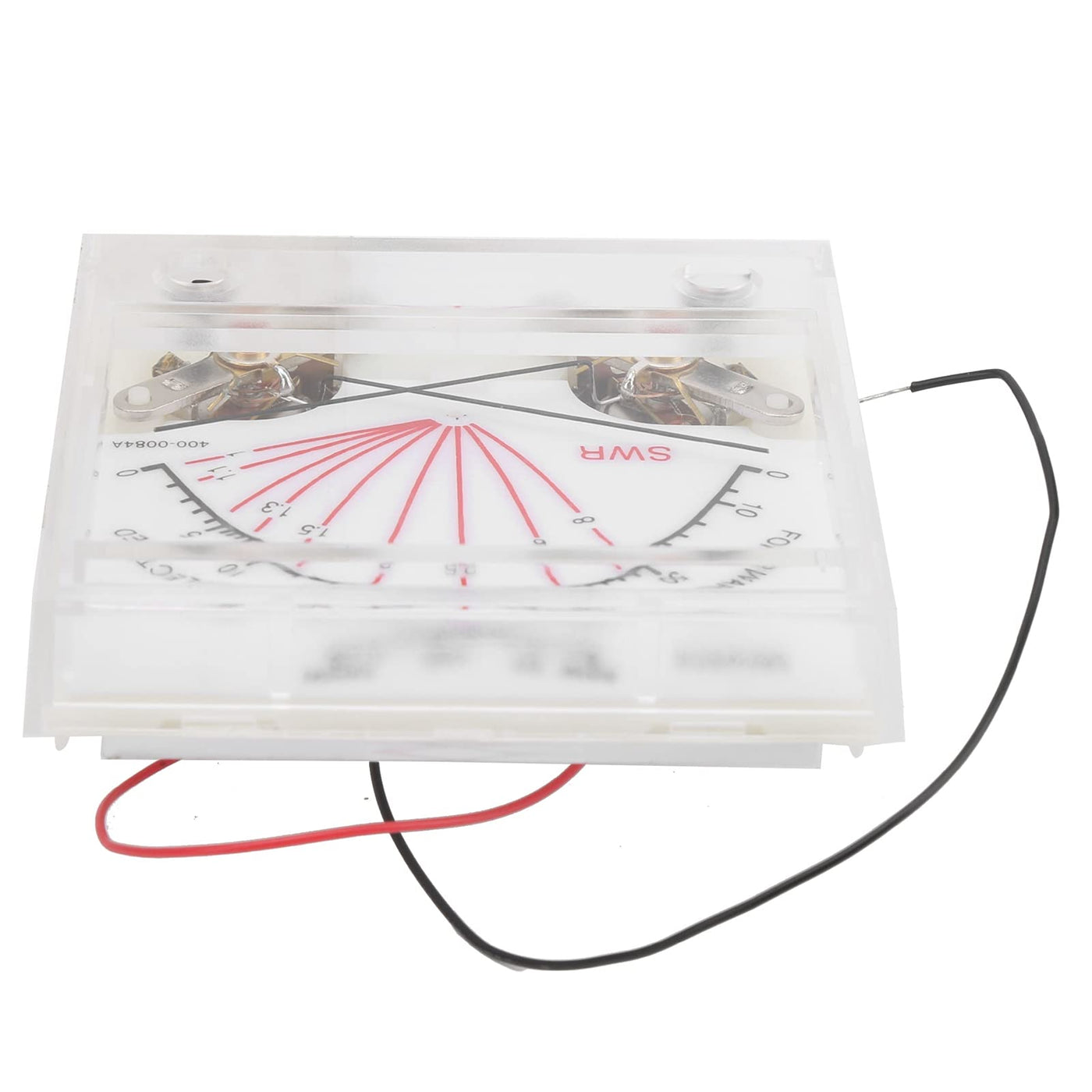

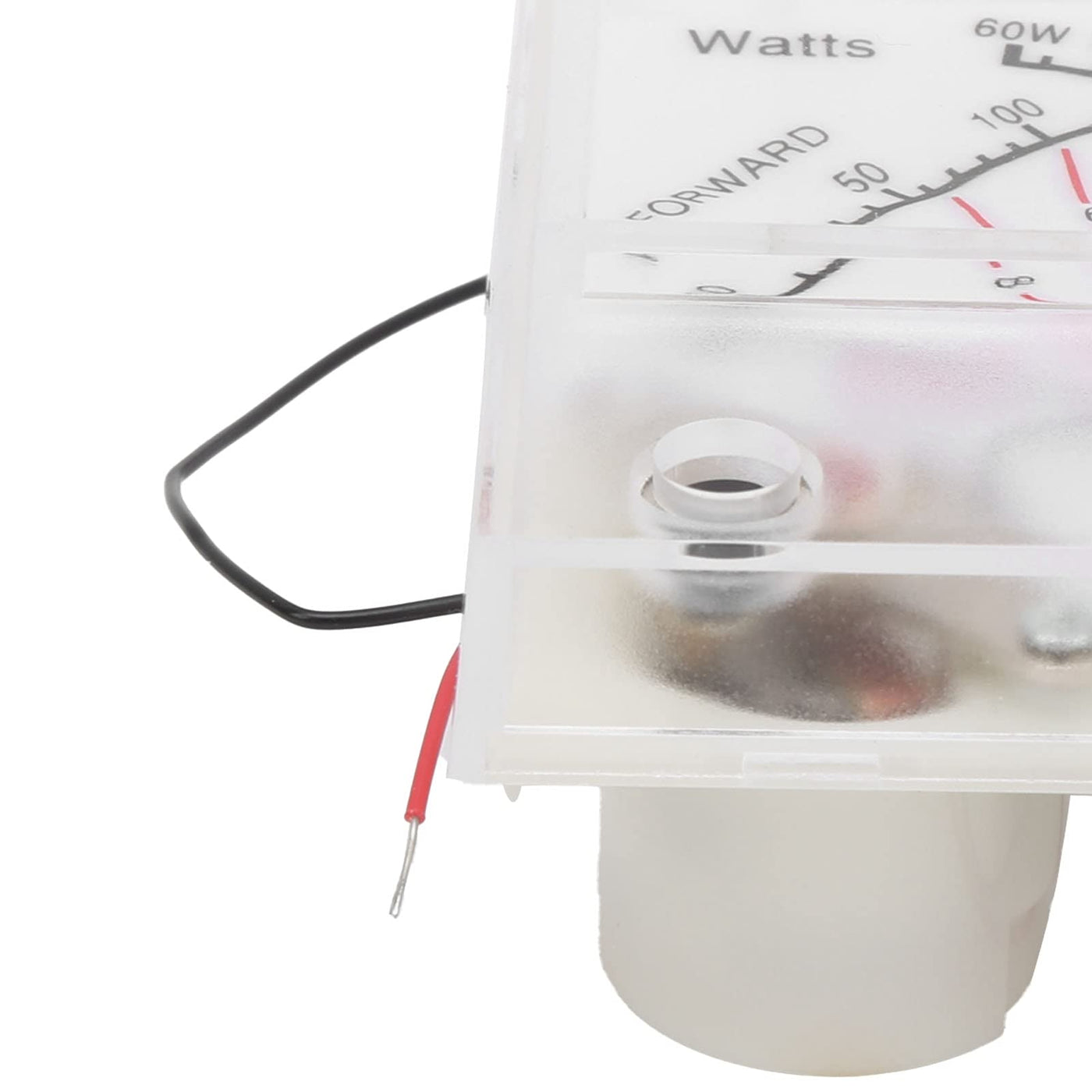

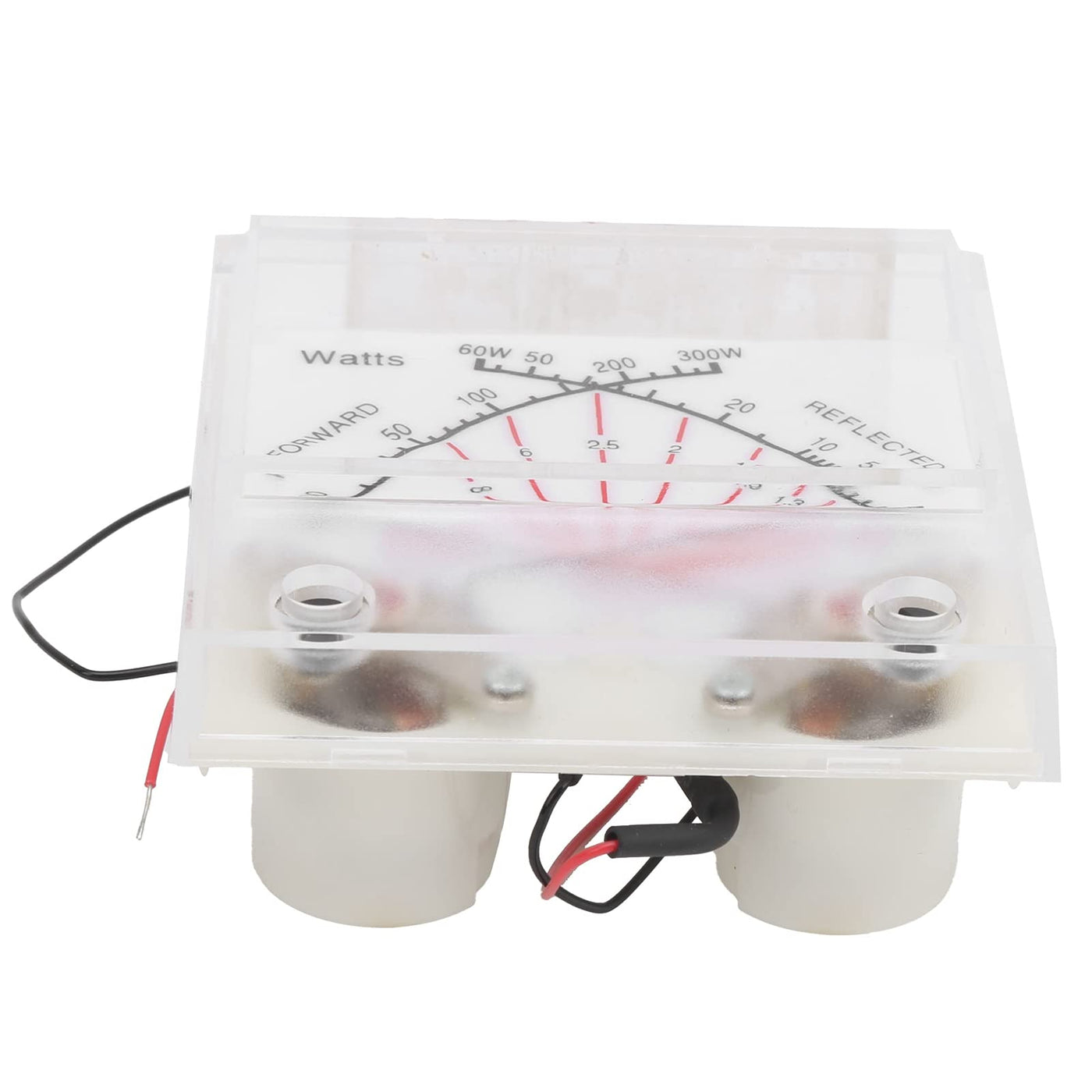

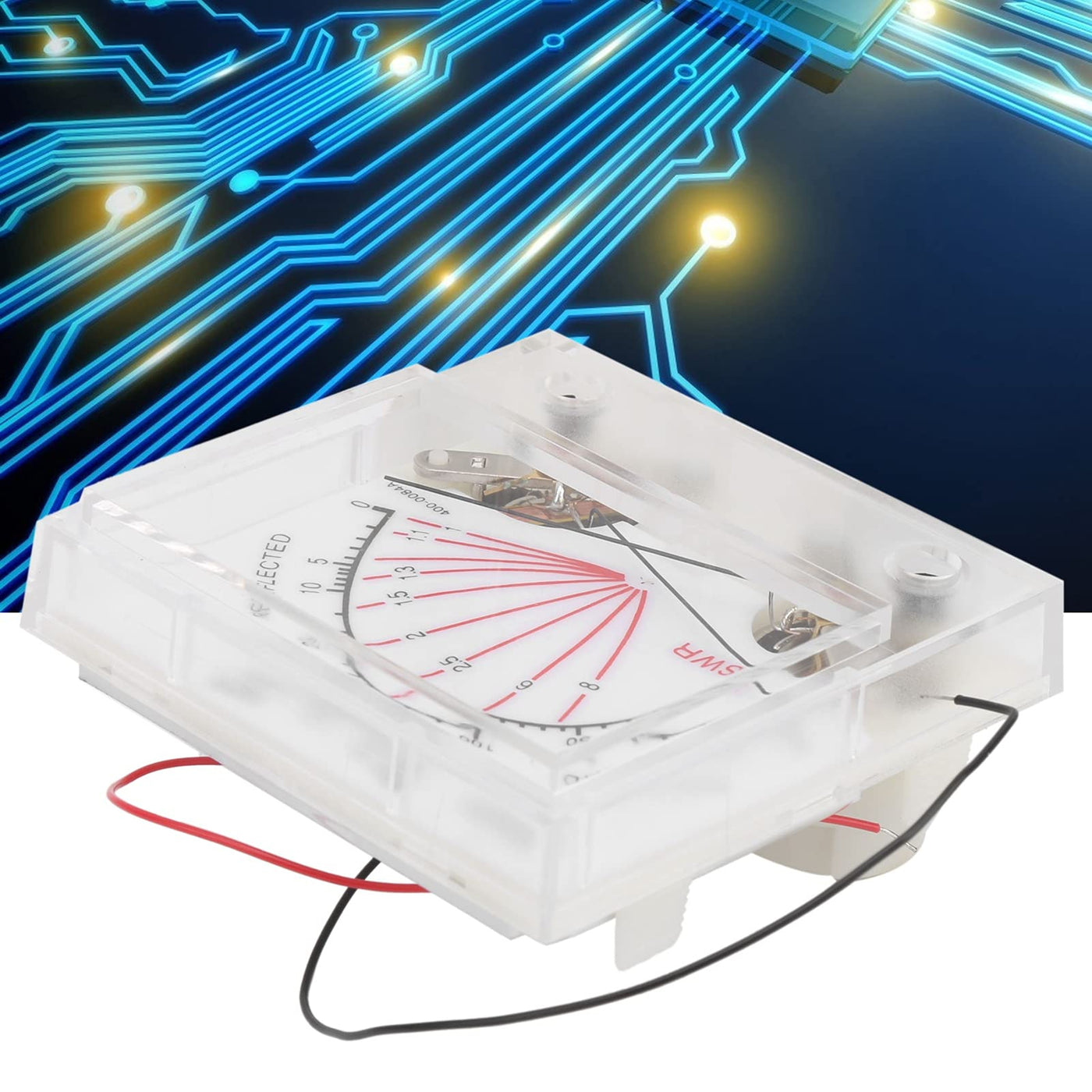

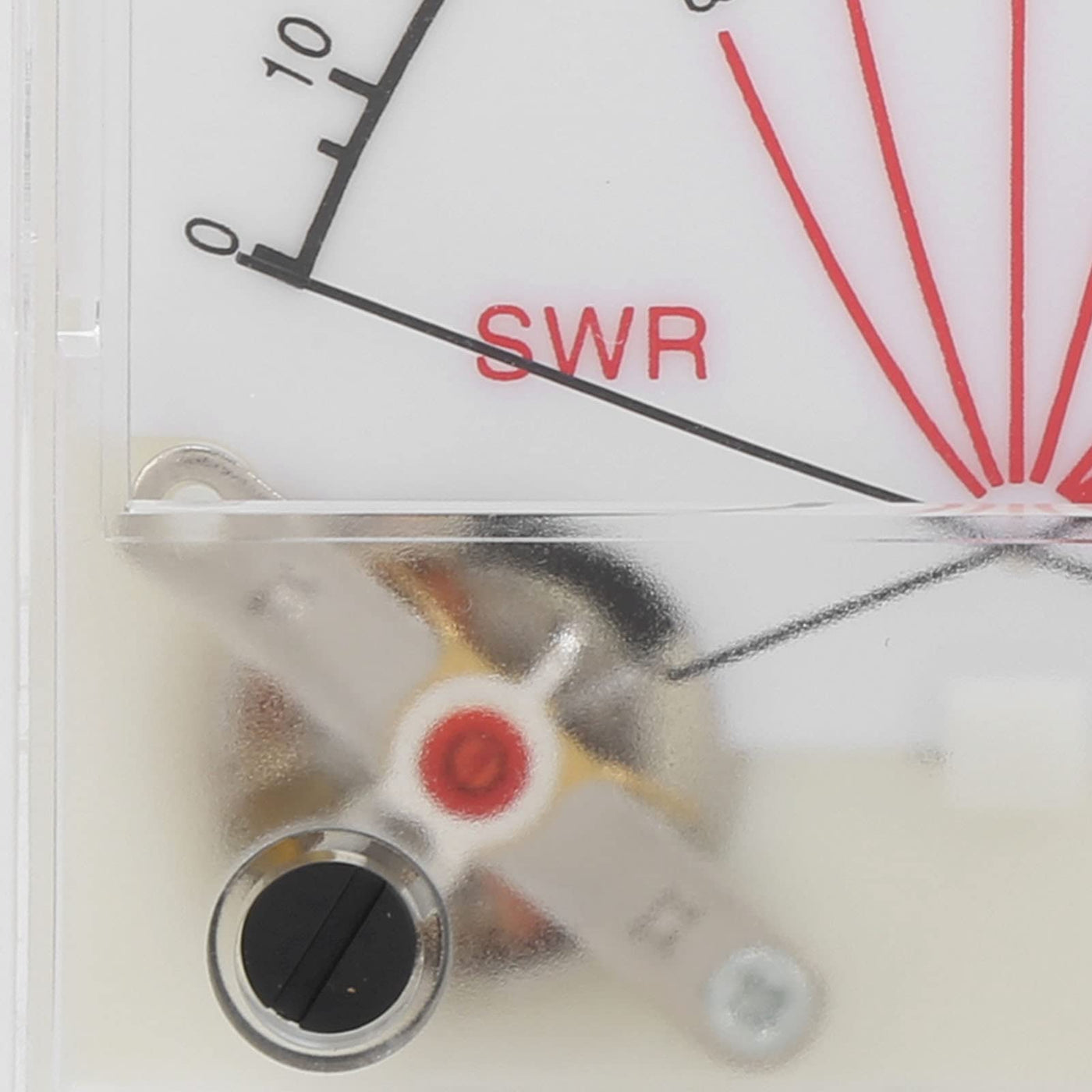

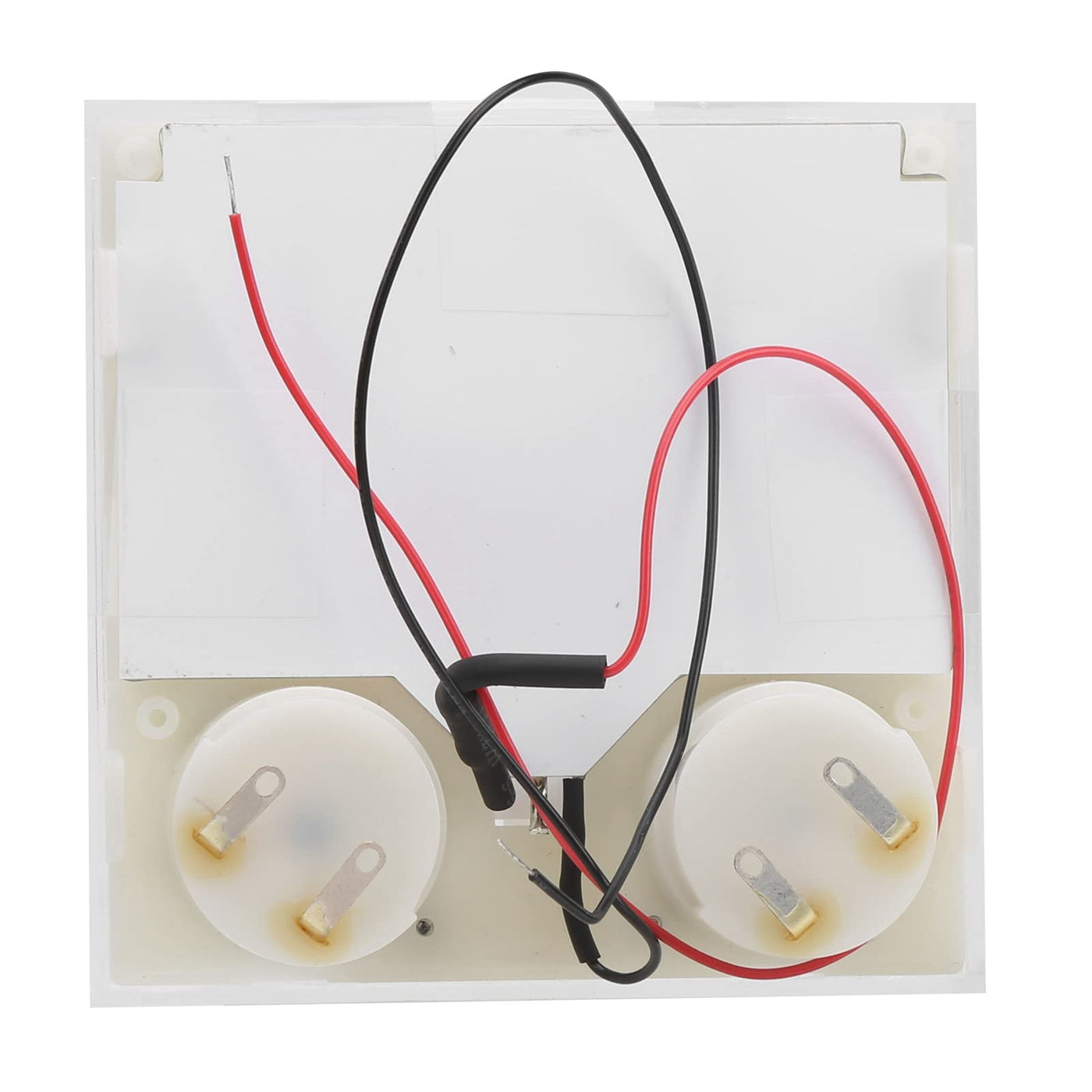

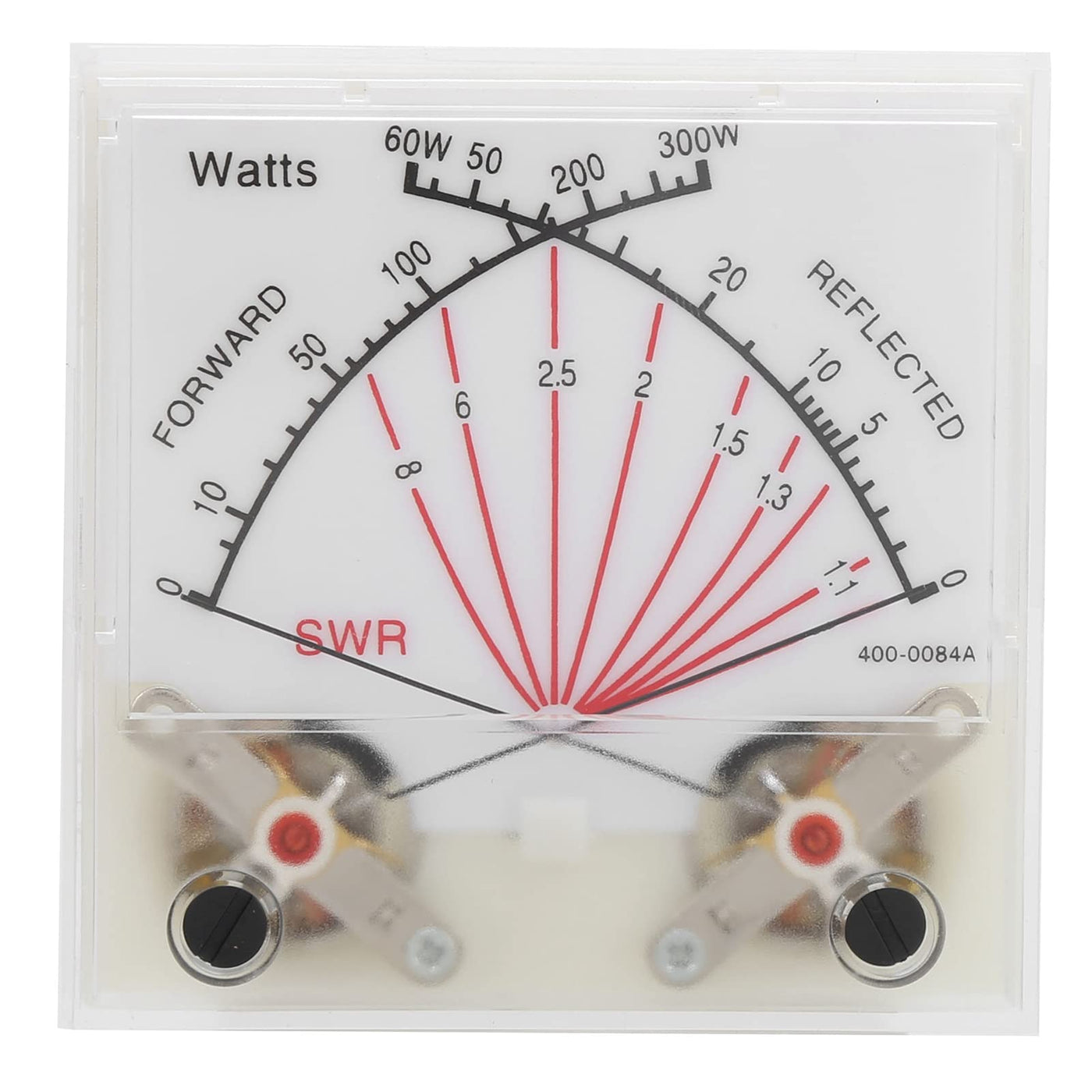

{"id":8150299279513,"title":"Eujgoov Cross Needle SWR\/Watt Meter, Double Needle 60\/300W Dual Band Standing- Meter with Backlight","handle":"eujgoov-cross-needle-swr-watt-meter-double-needle-60-300w-dual-band-standing-meter-with-backlight","description":"\u003ch3\u003eEujgoov Cross Needle SWR\/Watt Meter, Double Needle 60\/300W Dual Band Standing- Meter with Backlight\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Item Type: SWR Power Meter Material: ABS Color: As shown in the\npicture Maximum Current Sensitivity: 200uA±8% Internal DC Impedance: 750Ω±8%\nInsulation Resistance: Above 50MΩ Friction: ±1mm \/ 0.04in Pointer Length: 49mm\n\/ 1.93in±1mm \/ 0.04in Pointer Width: 0.45mm \/ 0.02in±0.05mm\/0.002in Pointer\nSwing Direction: From left to right Meter Installation Position: Vertical\nBacklight Board: White background Backlight: White light Type 1: Two LEDs in\nseries \"6V, 20mA\", connect a resistor, 620Ω1\/2W Type 2: Two LEDs in series\n\"6V, 20mA\", connect a resistor, 1.3KΩ1\/2W Package List: 1 x SWR Power Meter\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eEQUIPPED WITH BACKLIGHT: Convenient for reading. The display can be clearly seen even at night.\u003c\/li\u003e\n \u003cli\u003eGOOD DURABILITY: Adopts high quality ABS material, and sturdy, anti shock, can be used for a long time.\u003c\/li\u003e\n \u003cli\u003eHIGH PRECISION: Equipped with pointer dial, high accuracy, can directly display the measurement results\u003c\/li\u003e\n \u003cli\u003eWIDE TEST RANGE: 60\/300W power test, the maximum current sensitivity is 200uA8%.\u003c\/li\u003e\n \u003cli\u003eEASY TO USE: The control layout is convenient and the operation is simple. The electric meter is installed vertically.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-07-21T06:30:46+10:00","created_at":"2024-07-21T06:30:46+10:00","vendor":"Eujgoov","type":"Radio Scanners","tags":["electronics_July2024_update"],"price":16100,"price_min":16100,"price_max":16100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44629244346521,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09GKZC6WZ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Eujgoov Cross Needle SWR\/Watt Meter, Double Needle 60\/300W Dual Band Standing- Meter with Backlight","public_title":null,"options":["Default Title"],"price":16100,"weight":91,"compare_at_price":null,"inventory_management":"shopify","barcode":"Eujgoov630cbns48g598","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/B09GKZC6WZ.jpg?v=1721576955","\/\/soundstores.net\/cdn\/shop\/files\/71_YoXxTQ5S.jpg?v=1721507459","\/\/soundstores.net\/cdn\/shop\/files\/61Qwc5mNjXS.jpg?v=1721507459","\/\/soundstores.net\/cdn\/shop\/files\/51CG5dJm1CS.jpg?v=1721507459","\/\/soundstores.net\/cdn\/shop\/files\/61OB9ych-mS.jpg?v=1721507459","\/\/soundstores.net\/cdn\/shop\/files\/617J55GuOyS.jpg?v=1721507460","\/\/soundstores.net\/cdn\/shop\/files\/513ZRgrDsZS.jpg?v=1721507460","\/\/soundstores.net\/cdn\/shop\/files\/61adRWmdcRL.jpg?v=1721507460","\/\/soundstores.net\/cdn\/shop\/files\/61XzQXspzoL.jpg?v=1721507460"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/B09GKZC6WZ.jpg?v=1721576955","options":["Title"],"media":[{"alt":null,"id":31457794097305,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/files\/B09GKZC6WZ.jpg?v=1721576955"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/B09GKZC6WZ.jpg?v=1721576955","width":1601},{"alt":null,"id":31455428509849,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71_YoXxTQ5S.jpg?v=1721507459"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71_YoXxTQ5S.jpg?v=1721507459","width":1601},{"alt":null,"id":31455428542617,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61Qwc5mNjXS.jpg?v=1721507459"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61Qwc5mNjXS.jpg?v=1721507459","width":1601},{"alt":null,"id":31455428575385,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51CG5dJm1CS.jpg?v=1721507459"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51CG5dJm1CS.jpg?v=1721507459","width":1601},{"alt":null,"id":31455428608153,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61OB9ych-mS.jpg?v=1721507459"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61OB9ych-mS.jpg?v=1721507459","width":1601},{"alt":null,"id":31455428640921,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/files\/617J55GuOyS.jpg?v=1721507460"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/617J55GuOyS.jpg?v=1721507460","width":1601},{"alt":null,"id":31455428673689,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/files\/513ZRgrDsZS.jpg?v=1721507460"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/513ZRgrDsZS.jpg?v=1721507460","width":1601},{"alt":null,"id":31455428706457,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61adRWmdcRL.jpg?v=1721507460"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61adRWmdcRL.jpg?v=1721507460","width":1601},{"alt":null,"id":31455428739225,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61XzQXspzoL.jpg?v=1721507460"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61XzQXspzoL.jpg?v=1721507460","width":1601}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eEujgoov Cross Needle SWR\/Watt Meter, Double Needle 60\/300W Dual Band Standing- Meter with Backlight\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Item Type: SWR Power Meter Material: ABS Color: As shown in the\npicture Maximum Current Sensitivity: 200uA±8% Internal DC Impedance: 750Ω±8%\nInsulation Resistance: Above 50MΩ Friction: ±1mm \/ 0.04in Pointer Length: 49mm\n\/ 1.93in±1mm \/ 0.04in Pointer Width: 0.45mm \/ 0.02in±0.05mm\/0.002in Pointer\nSwing Direction: From left to right Meter Installation Position: Vertical\nBacklight Board: White background Backlight: White light Type 1: Two LEDs in\nseries \"6V, 20mA\", connect a resistor, 620Ω1\/2W Type 2: Two LEDs in series\n\"6V, 20mA\", connect a resistor, 1.3KΩ1\/2W Package List: 1 x SWR Power Meter\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eEQUIPPED WITH BACKLIGHT: Convenient for reading. The display can be clearly seen even at night.\u003c\/li\u003e\n \u003cli\u003eGOOD DURABILITY: Adopts high quality ABS material, and sturdy, anti shock, can be used for a long time.\u003c\/li\u003e\n \u003cli\u003eHIGH PRECISION: Equipped with pointer dial, high accuracy, can directly display the measurement results\u003c\/li\u003e\n \u003cli\u003eWIDE TEST RANGE: 60\/300W power test, the maximum current sensitivity is 200uA8%.\u003c\/li\u003e\n \u003cli\u003eEASY TO USE: The control layout is convenient and the operation is simple. The electric meter is installed vertically.\u003c\/li\u003e\n \u003c\/ul\u003e"}
