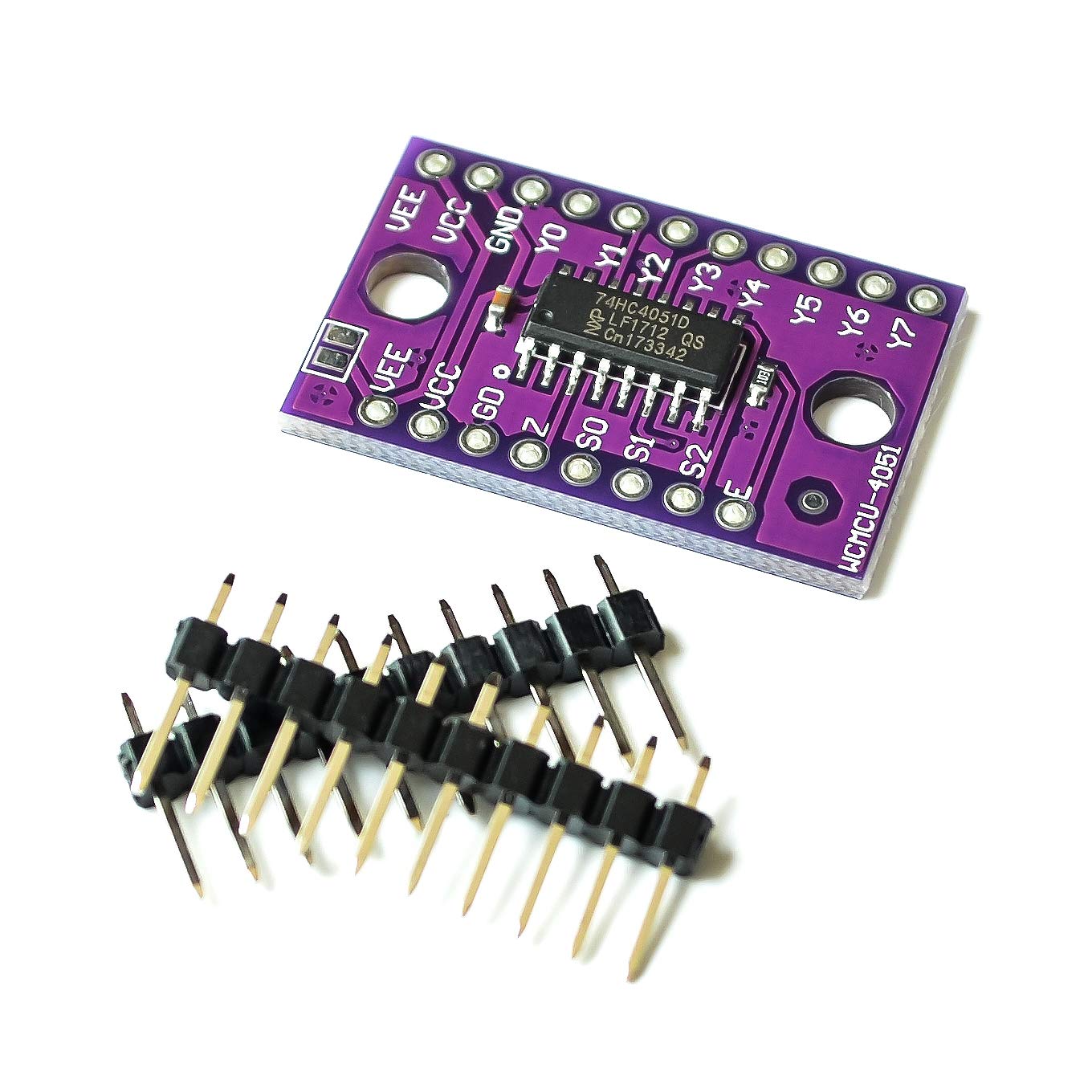

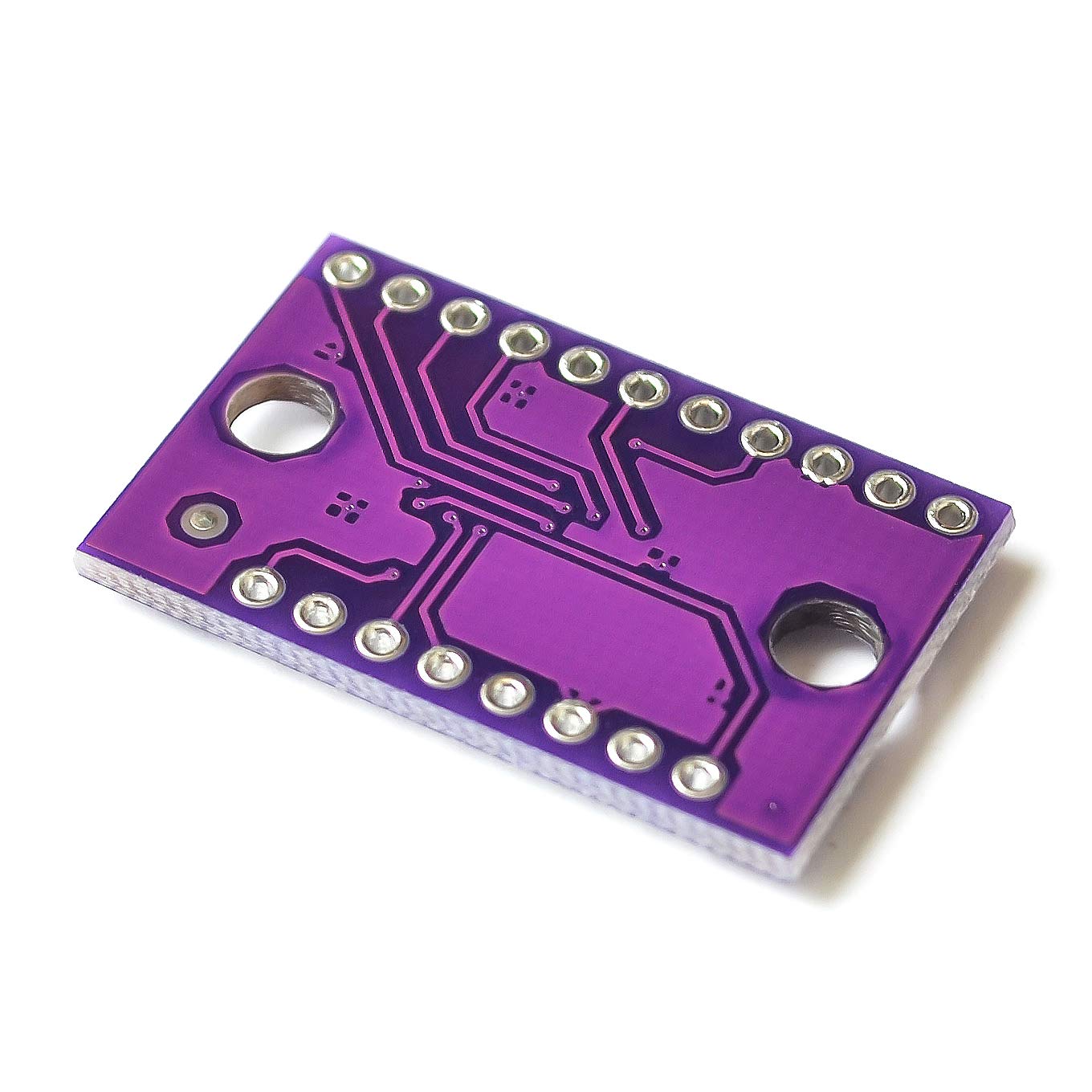

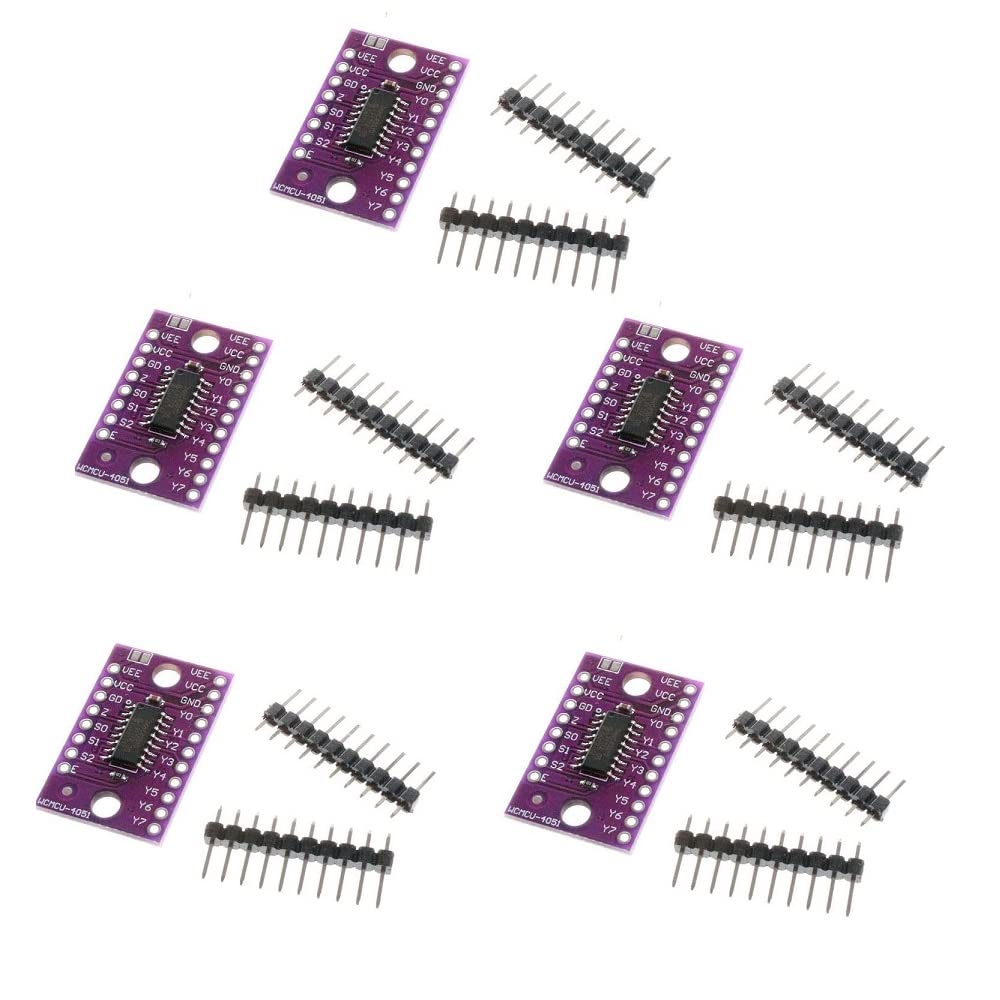

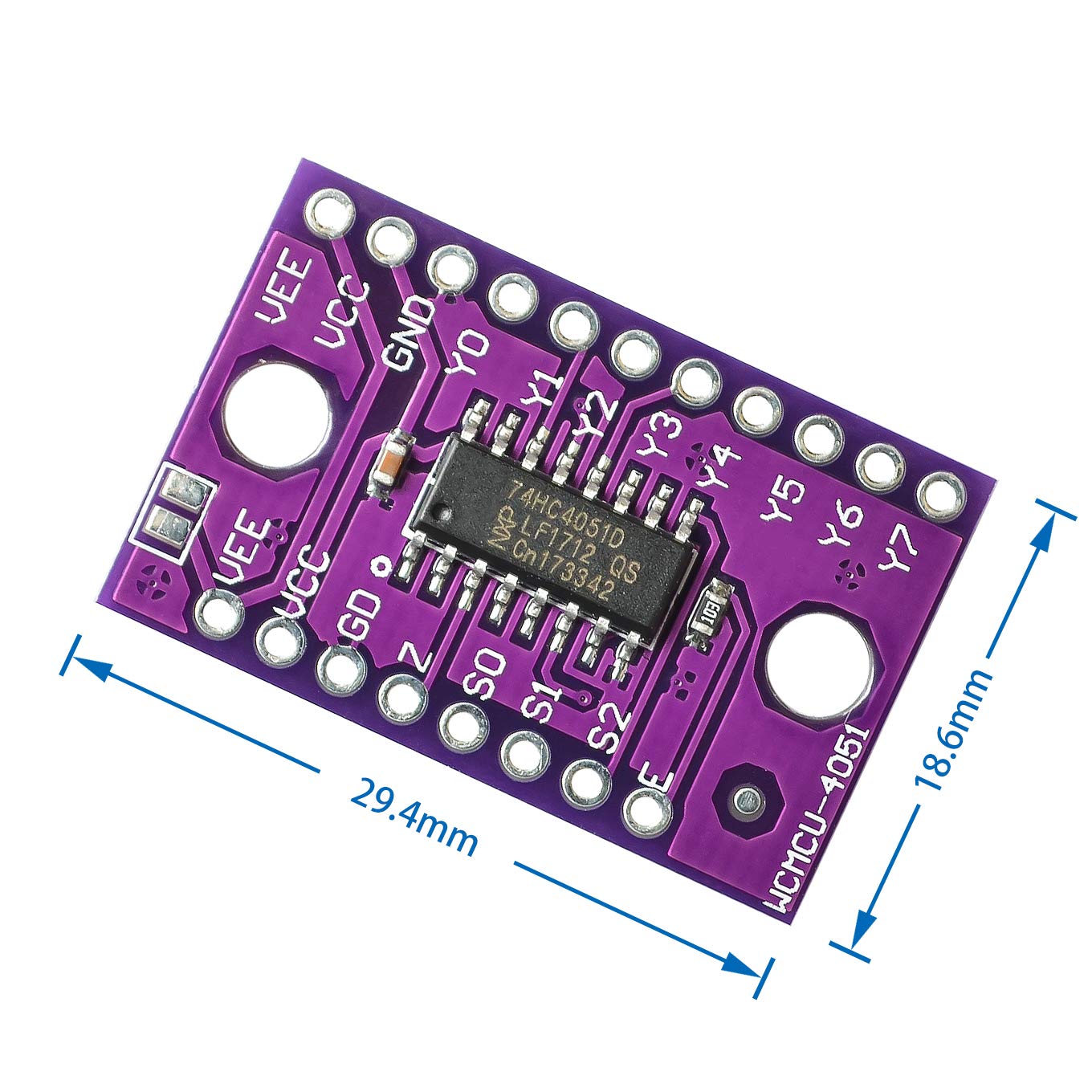

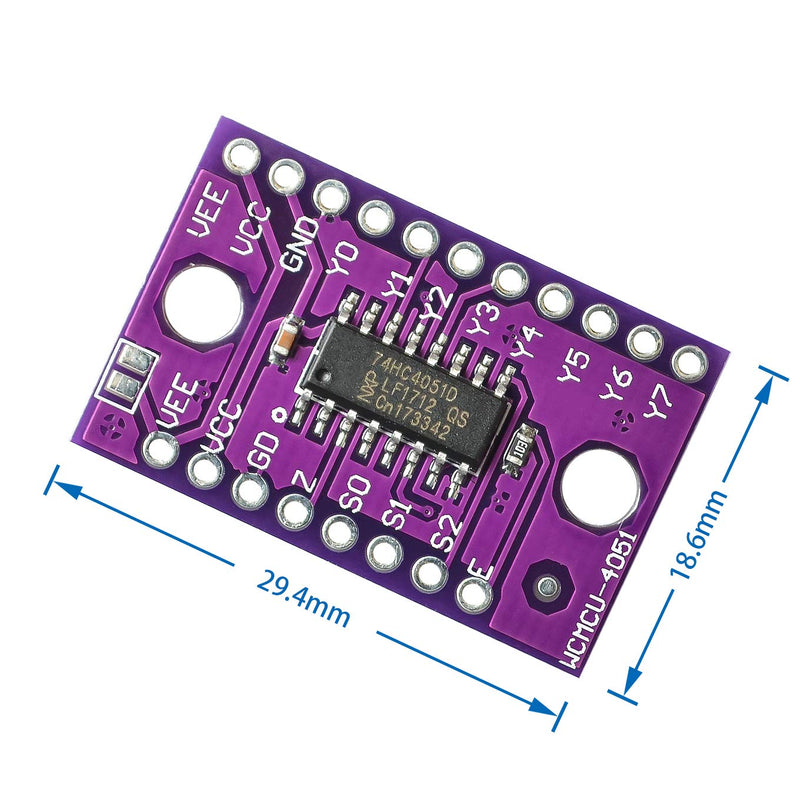

{"id":8532552482969,"title":"Fasizi 5PCS 74HC4051 8-Channel Mux-Analog Multiplexer Selector Module","handle":"fasizi-5pcs-74hc4051-8-channel-mux-analog-multiplexer-selector-module","description":"\u003ch3\u003eFasizi 5PCS 74HC4051 8-Channel Mux-Analog Multiplexer Selector Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: The 74HC4051 is a single pole analog octal switch (SP8T) suitable\nfor analog or digital 8:1 multiplexer\/demultiplexer applications. The switch\nhas three digital selection inputs (S0, S1 and S2), eight independent\ninput\/outputs (Yn), one common input\/output (Z) and one digital release input\n(E). When E is high, the switches are off. The inputs contain clamping diodes.\nThis allows the use of current limiting resistors to connect inputs to\nvoltages via VCC. Features: Wide analogue input voltage range from -5V to +5V\nComplies with JEDEC standard 7A Low duty resistance: 80 Ohm (typical) at VCC\n- VEE = 4.5 V. 70 Ohm (typical) at VCC - VEE = 6.0 V. 60 Ohm (typical) at VCC\n- VEE = 9.0 V. Logic level conversion: allows communication of 5V logic with\nanalog ± 5V signals Typical built-in \"break before make\" ESD protection: HBM\nJESD22-A114F exceeds 2000V MM JESD22-A115-A exceeds 200V CDM JESD22-C101E\nexceeds 1000V Rated from -40°C to + 85°C and -40°C to +125°C. Box contents: 5\nx 74HC4051 8 Channel Mux-Analog Multiplexer Selection Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe 74HC4051 is an 8-channel analog multiplexer\/demultiplexer with 3 digital selections (S0-S2), active low release (E) and 8 independent input\/output (Y0-Y7)) and a common input\/output (Z).\u003c\/li\u003e\n \u003cli\u003eWhen E is low, one of the 8 switches is selected by S0-S2 (low impedance state). When E is high, all switches enter a high-impedance state and ignore S0-S2 directly.\u003c\/li\u003e\n \u003cli\u003eVCC and GND are the supply pins for the digital control terminals (S0-S2, E). The VCC to GND range of the 74HC4051 is 2.0V to 10.0V.\u003c\/li\u003e\n \u003cli\u003eAs a digital multiplexer\/demultiplexer, the VEE is connected to GND (usually grounded).\u003c\/li\u003e\n \u003cli\u003eAll products are tested for stability, consistency and reliability.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-26T01:36:01+10:00","created_at":"2025-09-26T01:35:57+10:00","vendor":"Fasizi","type":"Signal Components","tags":["industryDE_Sep2025"],"price":10900,"price_min":10900,"price_max":10900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45747023839385,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09Z29W8XV","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fasizi 5PCS 74HC4051 8-Channel Mux-Analog Multiplexer Selector Module","public_title":null,"options":["Default Title"],"price":10900,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"798339963072","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B09Z29W8XV.jpg?v=1775752028","\/\/soundstores.net\/cdn\/shop\/files\/71-sX-AgLYL.jpg?v=1758814561","\/\/soundstores.net\/cdn\/shop\/files\/71qHluqIv_L.jpg?v=1758814561","\/\/soundstores.net\/cdn\/shop\/files\/61IvomGNPUL.jpg?v=1758814561","\/\/soundstores.net\/cdn\/shop\/files\/717ZSTrqOlL.jpg?v=1758814560"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B09Z29W8XV.jpg?v=1775752028","options":["Title"],"media":[{"alt":null,"id":34643084083353,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B09Z29W8XV.jpg?v=1775752028"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B09Z29W8XV.jpg?v=1775752028","width":1000},{"alt":null,"id":34643084116121,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1360,"width":1360,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71-sX-AgLYL.jpg?v=1758814561"},"aspect_ratio":1.0,"height":1360,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71-sX-AgLYL.jpg?v=1758814561","width":1360},{"alt":null,"id":34643084148889,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1360,"width":1360,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71qHluqIv_L.jpg?v=1758814561"},"aspect_ratio":1.0,"height":1360,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71qHluqIv_L.jpg?v=1758814561","width":1360},{"alt":null,"id":34643084181657,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1360,"width":1360,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61IvomGNPUL.jpg?v=1758814561"},"aspect_ratio":1.0,"height":1360,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61IvomGNPUL.jpg?v=1758814561","width":1360},{"alt":null,"id":34643084214425,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1360,"width":1360,"src":"\/\/soundstores.net\/cdn\/shop\/files\/717ZSTrqOlL.jpg?v=1758814560"},"aspect_ratio":1.0,"height":1360,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/717ZSTrqOlL.jpg?v=1758814560","width":1360}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eFasizi 5PCS 74HC4051 8-Channel Mux-Analog Multiplexer Selector Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: The 74HC4051 is a single pole analog octal switch (SP8T) suitable\nfor analog or digital 8:1 multiplexer\/demultiplexer applications. The switch\nhas three digital selection inputs (S0, S1 and S2), eight independent\ninput\/outputs (Yn), one common input\/output (Z) and one digital release input\n(E). When E is high, the switches are off. The inputs contain clamping diodes.\nThis allows the use of current limiting resistors to connect inputs to\nvoltages via VCC. Features: Wide analogue input voltage range from -5V to +5V\nComplies with JEDEC standard 7A Low duty resistance: 80 Ohm (typical) at VCC\n- VEE = 4.5 V. 70 Ohm (typical) at VCC - VEE = 6.0 V. 60 Ohm (typical) at VCC\n- VEE = 9.0 V. Logic level conversion: allows communication of 5V logic with\nanalog ± 5V signals Typical built-in \"break before make\" ESD protection: HBM\nJESD22-A114F exceeds 2000V MM JESD22-A115-A exceeds 200V CDM JESD22-C101E\nexceeds 1000V Rated from -40°C to + 85°C and -40°C to +125°C. Box contents: 5\nx 74HC4051 8 Channel Mux-Analog Multiplexer Selection Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe 74HC4051 is an 8-channel analog multiplexer\/demultiplexer with 3 digital selections (S0-S2), active low release (E) and 8 independent input\/output (Y0-Y7)) and a common input\/output (Z).\u003c\/li\u003e\n \u003cli\u003eWhen E is low, one of the 8 switches is selected by S0-S2 (low impedance state). When E is high, all switches enter a high-impedance state and ignore S0-S2 directly.\u003c\/li\u003e\n \u003cli\u003eVCC and GND are the supply pins for the digital control terminals (S0-S2, E). The VCC to GND range of the 74HC4051 is 2.0V to 10.0V.\u003c\/li\u003e\n \u003cli\u003eAs a digital multiplexer\/demultiplexer, the VEE is connected to GND (usually grounded).\u003c\/li\u003e\n \u003cli\u003eAll products are tested for stability, consistency and reliability.\u003c\/li\u003e\n \u003c\/ul\u003e"}
