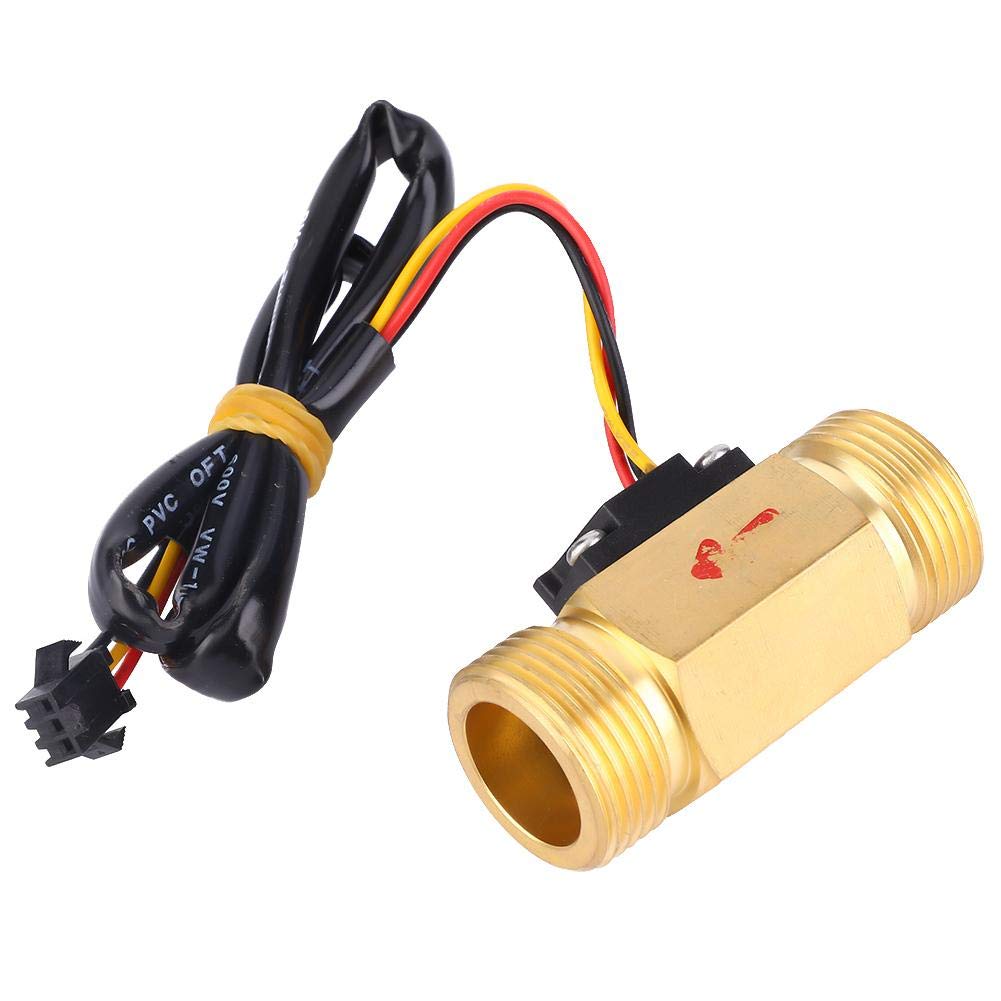

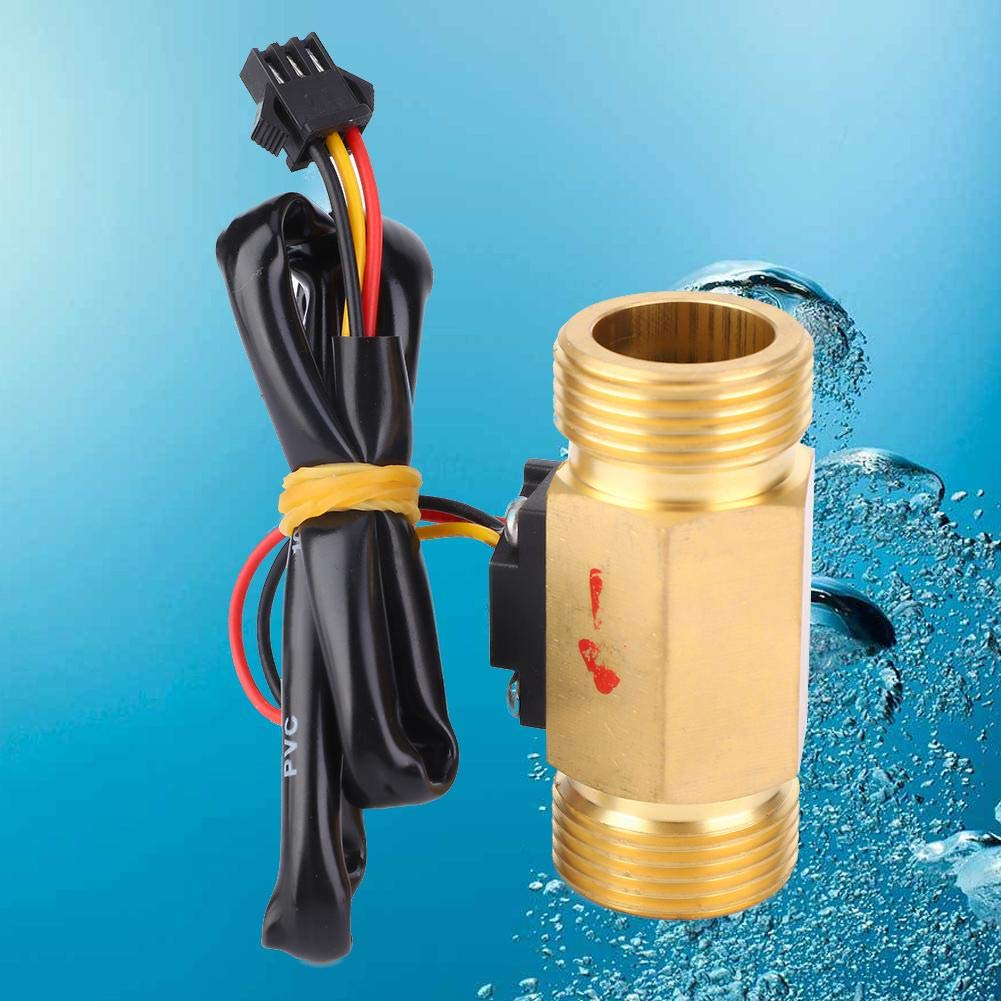

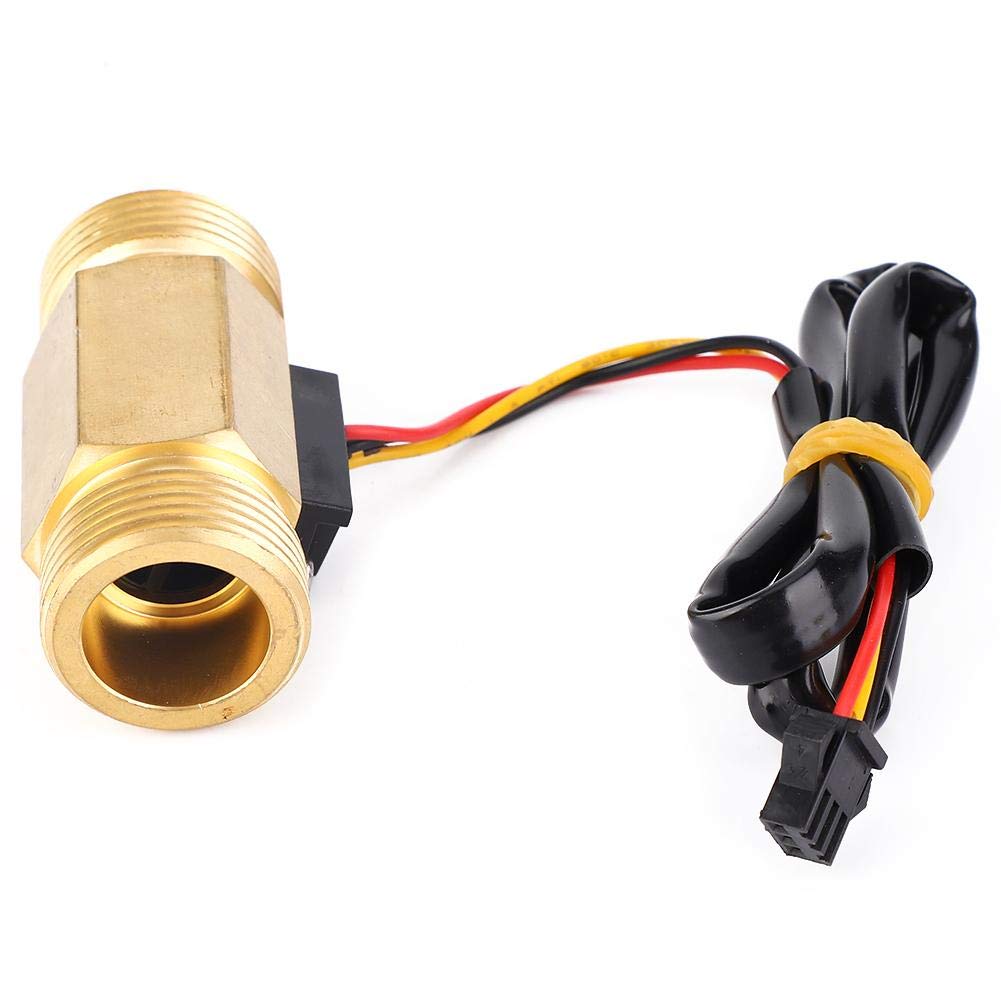

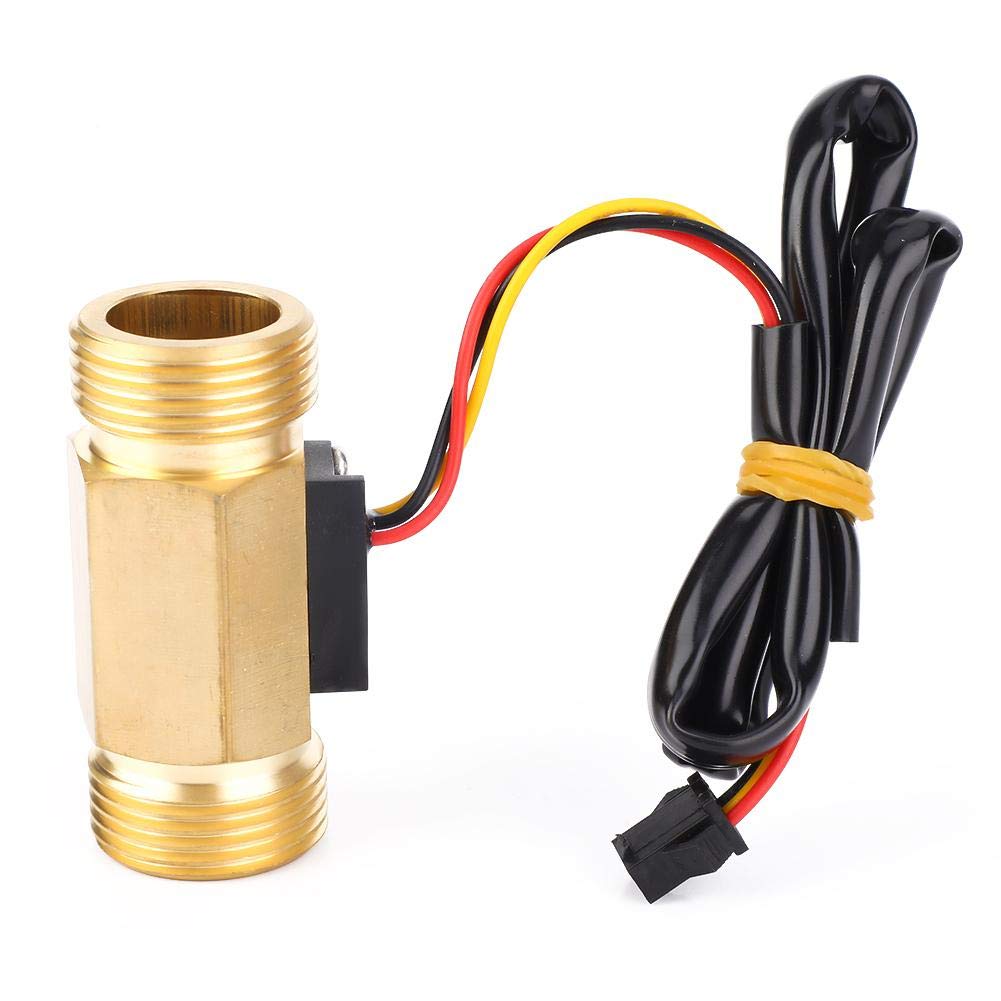

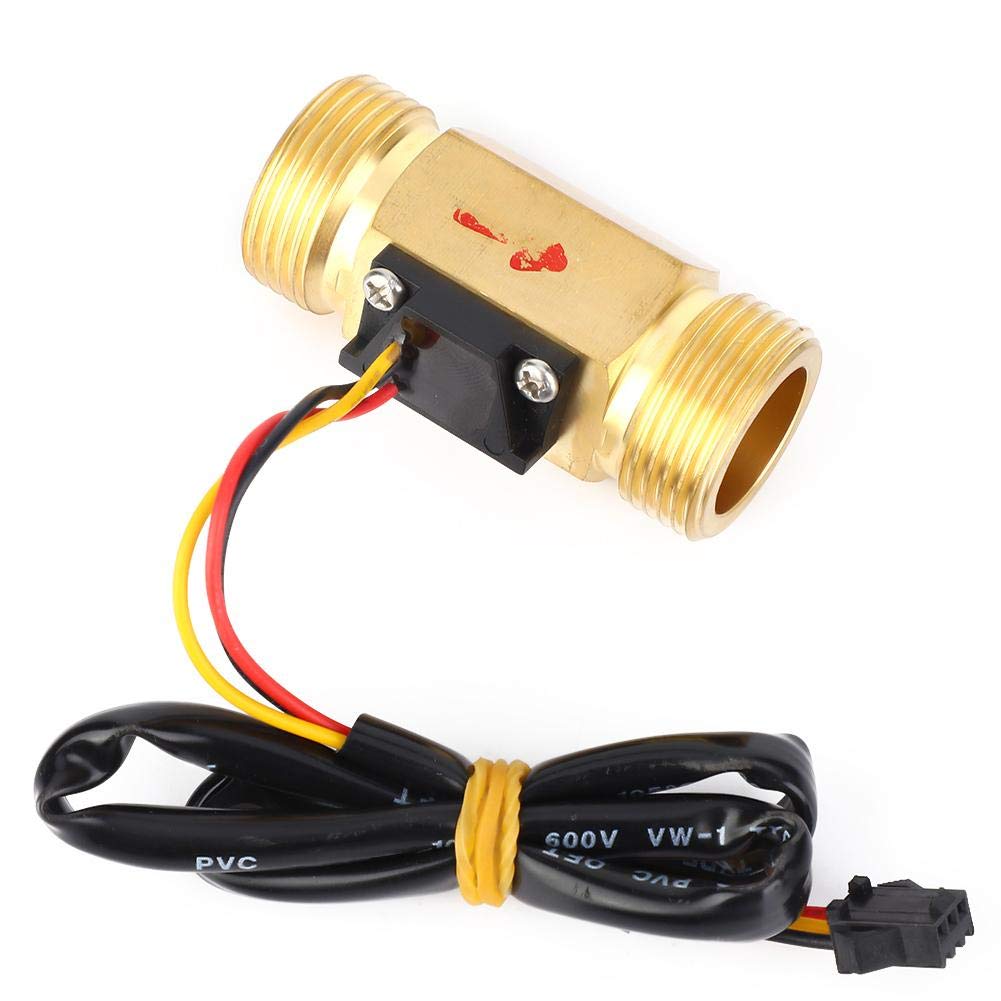

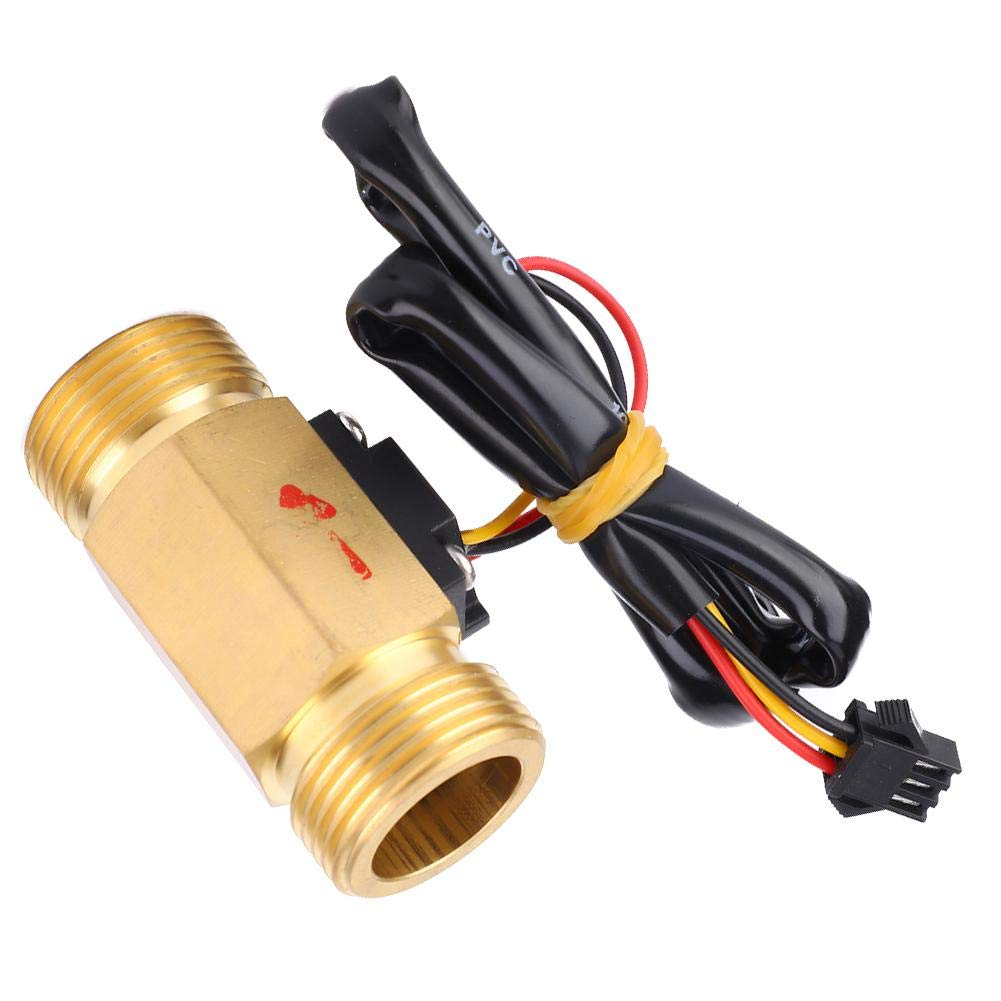

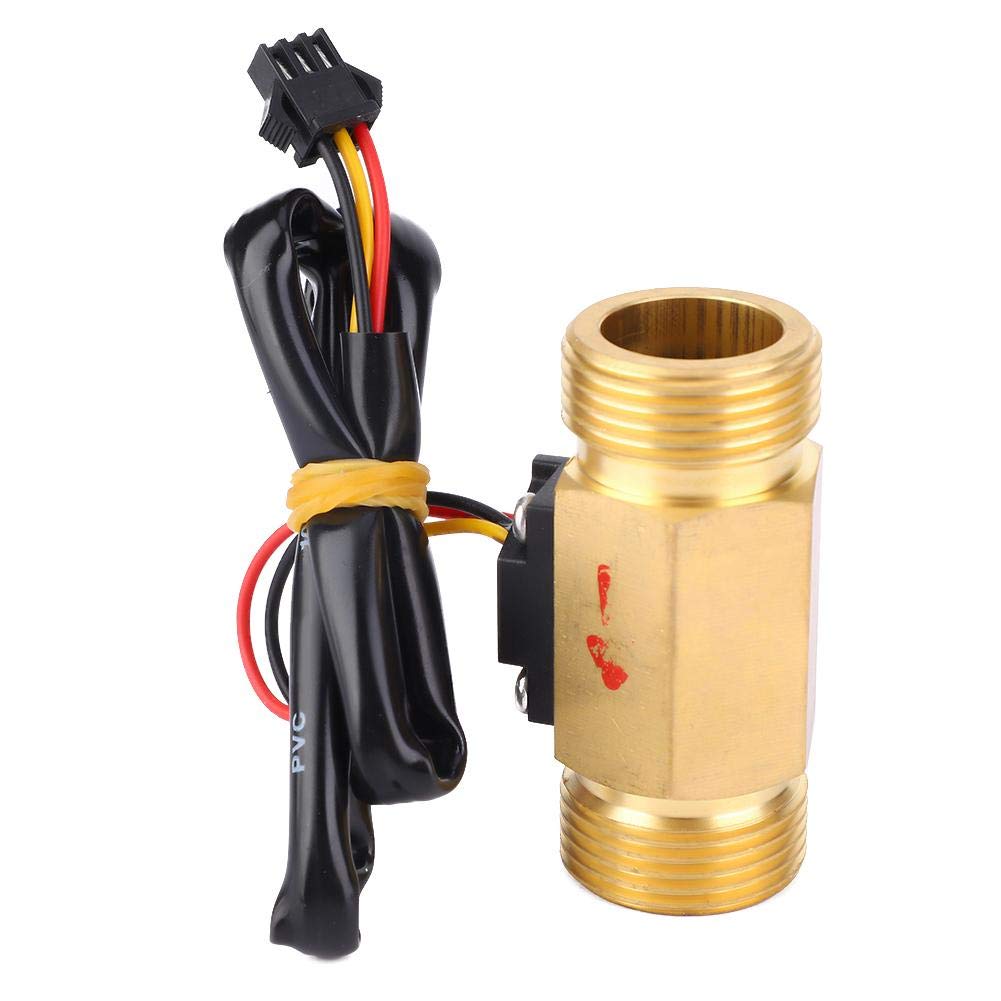

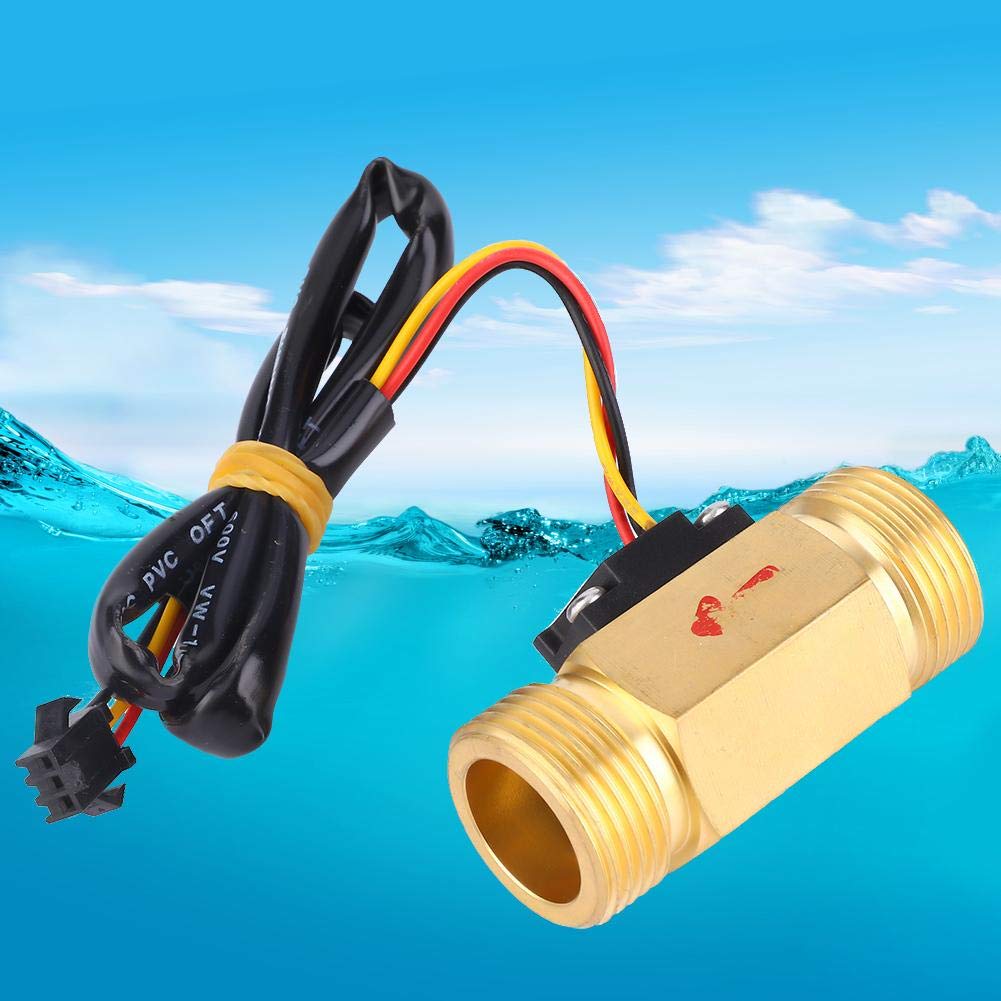

{"id":7501320650905,"title":"Flow Meter Controller,G3\/4 Male-Male Hall Effect Sensor Switch,Water Flowmeter Counter Flow Sensor Rate Meter,1~30L\/min","handle":"flow-meter-controller-g3-4-male-male-hall-effect-sensor-switch-water-flowmeter-counter-flow-sensor-rate-meter-1-30l-min","description":"\u003ch3\u003eFlow Meter Controller,G3\/4 Male-Male Hall Effect Sensor Switch,Water Flowmeter Counter Flow Sensor Rate Meter,1~30L\/min\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Thread: G3\/4 Male-Male Flow Rate Range:1~30L\/min Voltage: DC5V\nFlow Rate:1~30L\/min Accuracy:5% Maximum Working Current: 15mA(DC5V) Working\nVoltage Range:5~18V Working Temperature Range:0~120℃(Without Ice) Working\nHumidity Range:35~90%RH(No frosting) Pressure Allowed:\u0026lt;1.75Mpa Water Pressure\nStorage Temperature:-20~+80℃(No Ice) Storage Humidity:25~90%RH Length :60mm \/\n2.36in Output Pulse High Level:\u0026gt;DC4.3V(Input DC5V) Output Pulse Low Level:\u003cdc dc5v flow pulse characteristics: f=\"8.1\" q per minute output duty cycle: rise time: fall wiring diagram: red wire: positive power supply black negative yellow signal package list: x meter note: severe impact and chemical attack are strictly prohibited. it is forbidden to throw or collide. horizontal installation in any direction. the temperature of medium should not exceed\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eInsulation withstand ability: The Hall sensor lead wire and the valve body are pressurized by AC600V (50\/60Hz) for 1 second without insulation abnormality.Thermal shock resistance: placed in an environment of 803C for 1h, then placed directly in the environment of -203C for 1h for a cycle, a total of 10 cycles, no cracks, slack, expansion, deformation, etc. phenomenon.\u003c\/li\u003e\n \u003cli\u003eCold resistance: It is placed in the environment of -203C for 72h, returning to normal temperature for 1-2h without abnormality, and the parts have no crack, slack, expansion and deformation.\u003c\/li\u003e\n \u003cli\u003eMoisture resistance: After being placed at 603C and relative humidity of 90%~95% RH for 72h, the insulation resistance is above 1M.Pulling strength: Apply 10N pulling force for 1 minute on the lead-out line, without loosening or breaking.\u003c\/li\u003e\n \u003cli\u003ePulling strength: Apply 10N pulling force for 1 minute on the lead-out line, without loosening or breaking.Moisture resistance: After being placed at 603C and relative humidity of 90%~95% RH for 72h, the insulation resistance is above 1M.\u003c\/li\u003e\n \u003cli\u003eThermal shock resistance: placed in an environment of 803C for 1h, then placed directly in the environment of -203C for 1h for a cycle, a total of 10 cycles, no cracks, slack, expansion, deformation, etc. phenomenon.\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n\u003c\/dc\u003e\u003c\/p\u003e","published_at":"2022-08-27T02:47:31+10:00","created_at":"2022-08-27T02:47:40+10:00","vendor":"Liccx","type":"Flowmeters","tags":["deletenow","industrial2","industrial_update_Aug2022"],"price":14200,"price_min":14200,"price_max":14200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42532057448601,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08B8NHB17","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Flow Meter Controller,G3\/4 Male-Male Hall Effect Sensor Switch,Water Flowmeter Counter Flow Sensor Rate Meter,1~30L\/min","public_title":null,"options":["Default Title"],"price":14200,"weight":155,"compare_at_price":null,"inventory_management":null,"barcode":"Liccx50b4vwcgfp","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/products\/B08B8NHB17.jpg?v=1661613779","\/\/soundstores.net\/cdn\/shop\/products\/61CkDFs863L.jpg?v=1661532460","\/\/soundstores.net\/cdn\/shop\/products\/61pkY2gdyAL.jpg?v=1661532460","\/\/soundstores.net\/cdn\/shop\/products\/51pJhds2hXL.jpg?v=1661532460","\/\/soundstores.net\/cdn\/shop\/products\/51PoepPXHOL.jpg?v=1661532460","\/\/soundstores.net\/cdn\/shop\/products\/51PAH67sBKL.jpg?v=1661532460","\/\/soundstores.net\/cdn\/shop\/products\/51C76SiWO-L.jpg?v=1661532460","\/\/soundstores.net\/cdn\/shop\/products\/51SUhePuu0L.jpg?v=1661532460"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/products\/B08B8NHB17.jpg?v=1661613779","options":["Title"],"media":[{"alt":null,"id":27689213886617,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/B08B8NHB17.jpg?v=1661613779"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/B08B8NHB17.jpg?v=1661613779","width":1001},{"alt":null,"id":27682708258969,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61CkDFs863L.jpg?v=1661532460"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61CkDFs863L.jpg?v=1661532460","width":1001},{"alt":null,"id":27682708291737,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61pkY2gdyAL.jpg?v=1661532460"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61pkY2gdyAL.jpg?v=1661532460","width":1001},{"alt":null,"id":27682708324505,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51pJhds2hXL.jpg?v=1661532460"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51pJhds2hXL.jpg?v=1661532460","width":1001},{"alt":null,"id":27682708357273,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51PoepPXHOL.jpg?v=1661532460"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51PoepPXHOL.jpg?v=1661532460","width":1001},{"alt":null,"id":27682708390041,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51PAH67sBKL.jpg?v=1661532460"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51PAH67sBKL.jpg?v=1661532460","width":1001},{"alt":null,"id":27682708422809,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51C76SiWO-L.jpg?v=1661532460"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51C76SiWO-L.jpg?v=1661532460","width":1001},{"alt":null,"id":27682708455577,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51SUhePuu0L.jpg?v=1661532460"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51SUhePuu0L.jpg?v=1661532460","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eFlow Meter Controller,G3\/4 Male-Male Hall Effect Sensor Switch,Water Flowmeter Counter Flow Sensor Rate Meter,1~30L\/min\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Thread: G3\/4 Male-Male Flow Rate Range:1~30L\/min Voltage: DC5V\nFlow Rate:1~30L\/min Accuracy:5% Maximum Working Current: 15mA(DC5V) Working\nVoltage Range:5~18V Working Temperature Range:0~120℃(Without Ice) Working\nHumidity Range:35~90%RH(No frosting) Pressure Allowed:\u0026lt;1.75Mpa Water Pressure\nStorage Temperature:-20~+80℃(No Ice) Storage Humidity:25~90%RH Length :60mm \/\n2.36in Output Pulse High Level:\u0026gt;DC4.3V(Input DC5V) Output Pulse Low Level:\u003cdc dc5v flow pulse characteristics: f=\"8.1\" q per minute output duty cycle: rise time: fall wiring diagram: red wire: positive power supply black negative yellow signal package list: x meter note: severe impact and chemical attack are strictly prohibited. it is forbidden to throw or collide. horizontal installation in any direction. the temperature of medium should not exceed\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eInsulation withstand ability: The Hall sensor lead wire and the valve body are pressurized by AC600V (50\/60Hz) for 1 second without insulation abnormality.Thermal shock resistance: placed in an environment of 803C for 1h, then placed directly in the environment of -203C for 1h for a cycle, a total of 10 cycles, no cracks, slack, expansion, deformation, etc. phenomenon.\u003c\/li\u003e\n \u003cli\u003eCold resistance: It is placed in the environment of -203C for 72h, returning to normal temperature for 1-2h without abnormality, and the parts have no crack, slack, expansion and deformation.\u003c\/li\u003e\n \u003cli\u003eMoisture resistance: After being placed at 603C and relative humidity of 90%~95% RH for 72h, the insulation resistance is above 1M.Pulling strength: Apply 10N pulling force for 1 minute on the lead-out line, without loosening or breaking.\u003c\/li\u003e\n \u003cli\u003ePulling strength: Apply 10N pulling force for 1 minute on the lead-out line, without loosening or breaking.Moisture resistance: After being placed at 603C and relative humidity of 90%~95% RH for 72h, the insulation resistance is above 1M.\u003c\/li\u003e\n \u003cli\u003eThermal shock resistance: placed in an environment of 803C for 1h, then placed directly in the environment of -203C for 1h for a cycle, a total of 10 cycles, no cracks, slack, expansion, deformation, etc. phenomenon.\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n\u003c\/dc\u003e\u003c\/p\u003e"}
