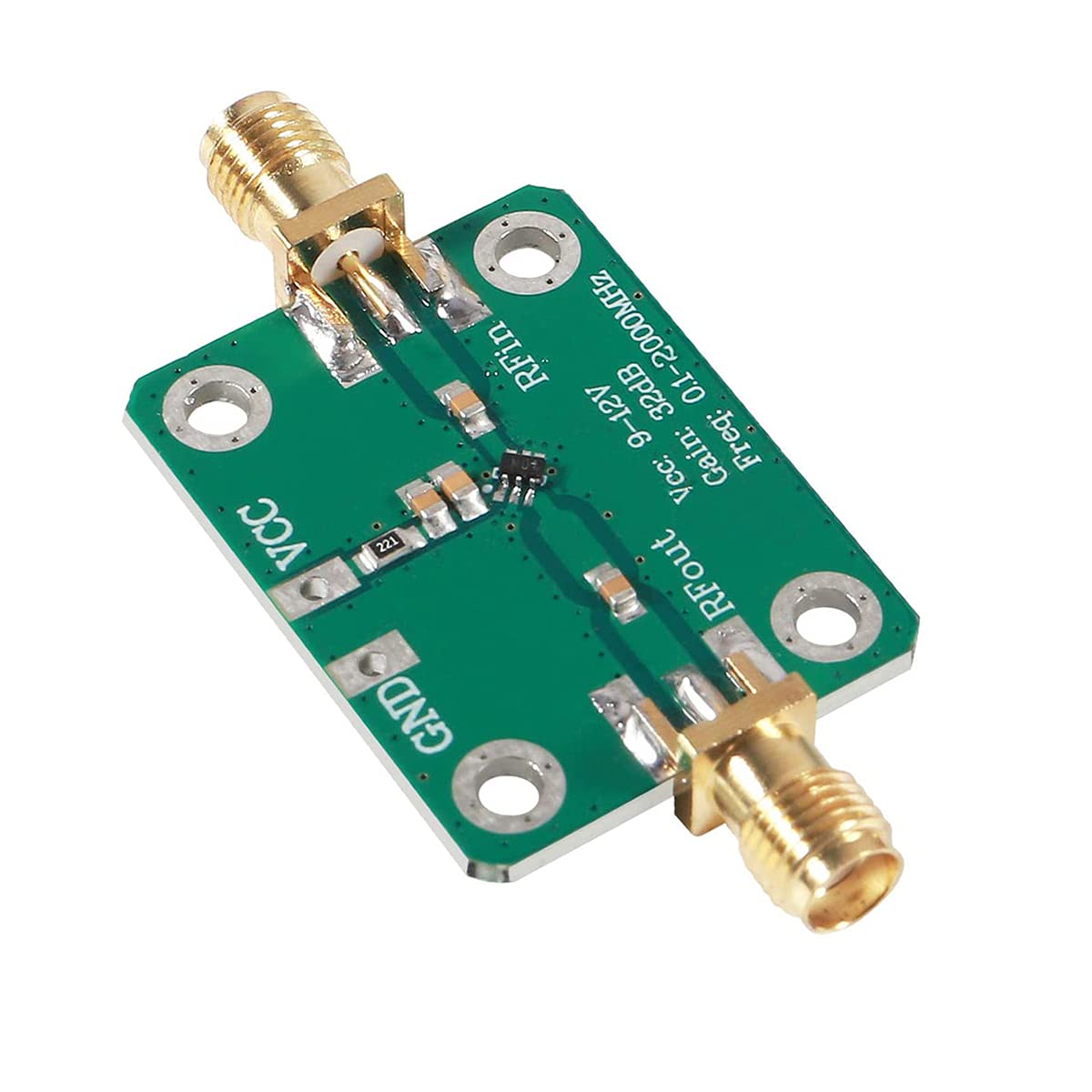

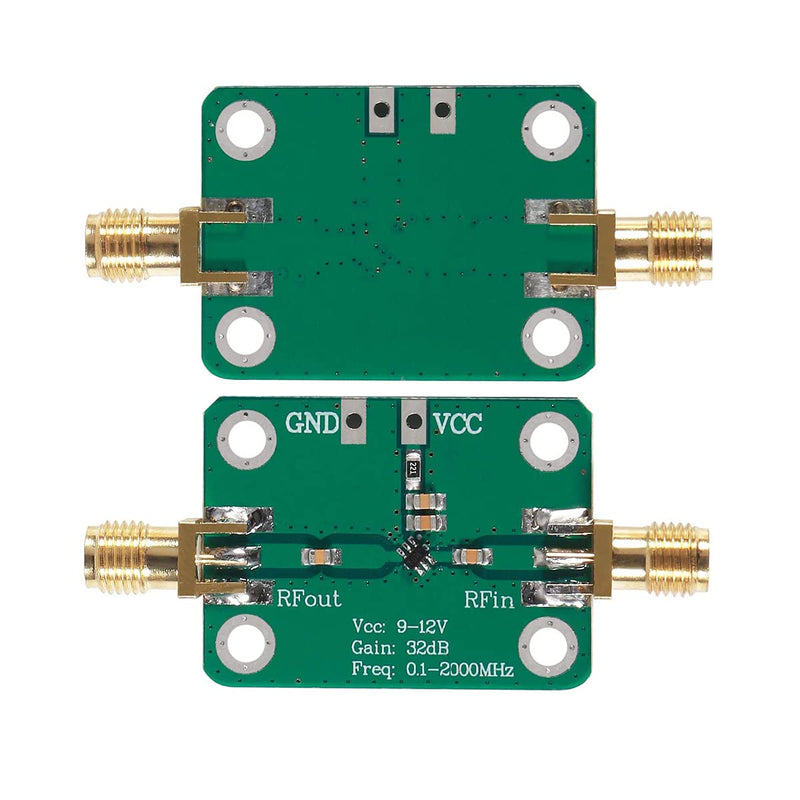

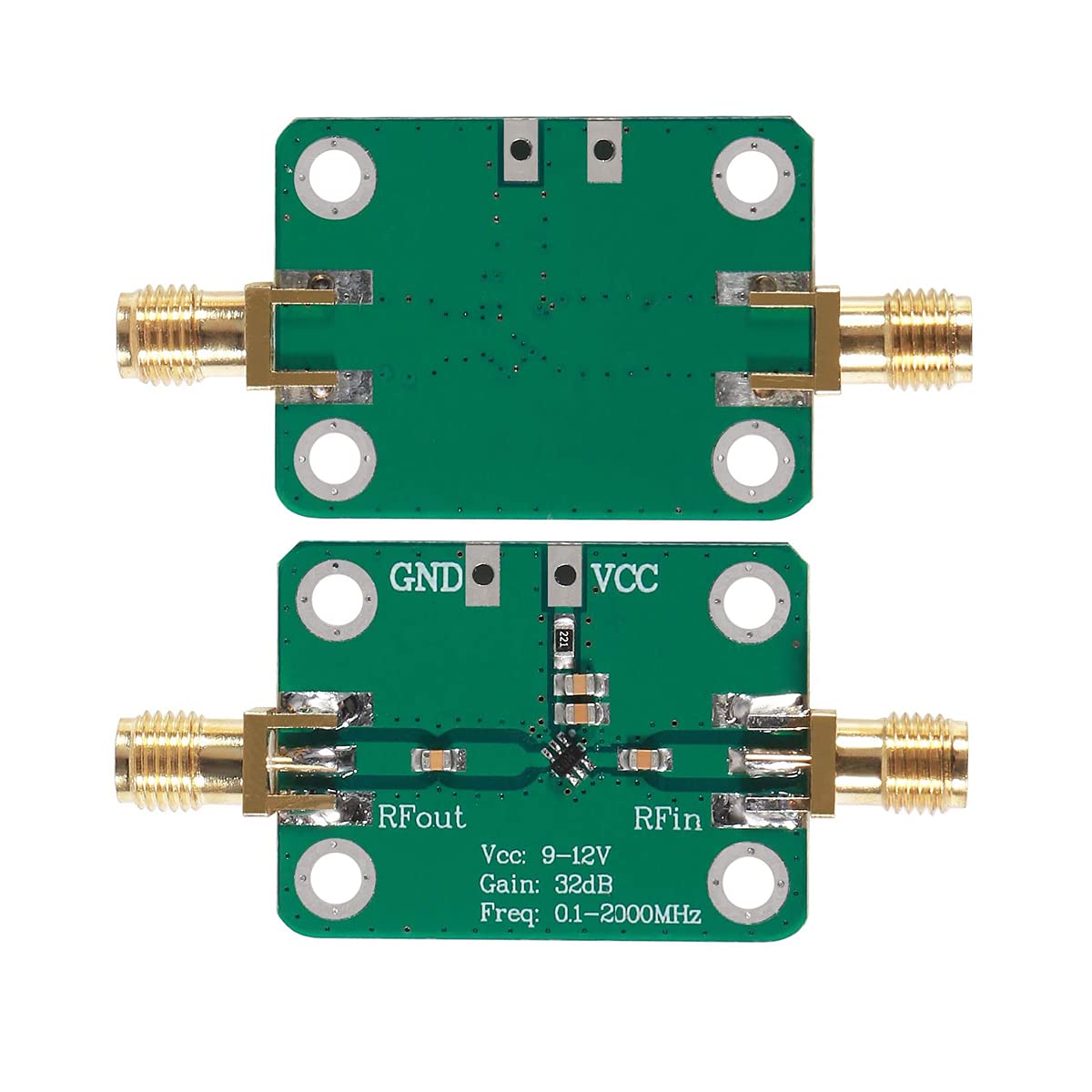

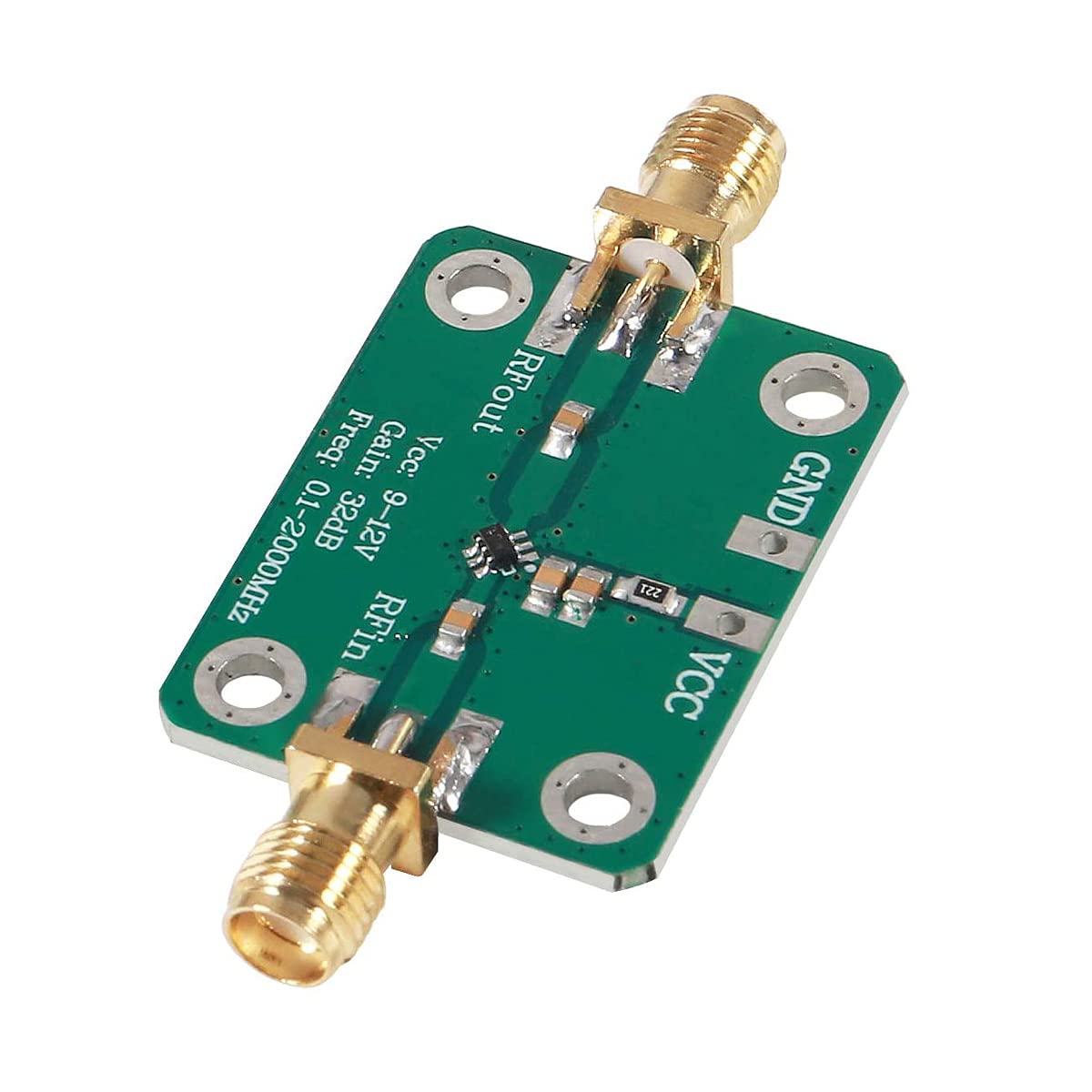

{"id":8534637740185,"title":"Hailege 0.1-2000MHz RF Broadband Amplifier 30dB Low Noise LNA Amplifier High Gain AMP Module DC 6-12V","handle":"hailege-0-1-2000mhz-rf-broadband-amplifier-30db-low-noise-lna-amplifier-high-gain-amp-module-dc-6-12v","description":"\u003ch3\u003eHailege 0.1-2000MHz RF Broadband Amplifier 30dB Low Noise LNA Amplifier High Gain AMP Module DC 6-12V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Specifications: Operating frequency: 0.1-2000 MHz. Amplifier\namplification F = 0.1 MHz, gain = 32 dB. F = 500 MHz, gain = 31 dB. F = 1000\nMHz, gain = 29 dB. F = 1500 MHz, gain = 25 dB. F = 2000 MHz, gain = 20 dB.\nMaximum output power + 10dBm 10mW Supply voltage: 6-12 VDC. System Impedance50\nTips: 1. If the working frequency is less than 500MHz, you will get a good\ngain level, which can be less than 1dB after careful adjustment. The lower the\nfrequency, the higher the gain consistency. 2. The working frequency of the\namplifier of the lower limit depends on the input and output capacitor, the\ndefault value is 0.1uF and works up to 0.1MHz. Increase the input and output\ncapacity accordingly to expand the cut-off frequency, e.g. B. the capacity can\nwork from 10uF to 5KHz. 3. When the supply voltage changes to 5-8V, it can be\nused as a variable gain amplifier. The gain increases with the increase in the\nsupply voltage suitable for the high frequency reception front end circuit,\nusing the DA control power supply voltage to control the amplification of the\namplifier, automatic gain control 4. When the supply voltage is in the 8-10V,\nthe low frequency final gain up to 30dB, the amplifier has a low noise\ncoefficient and good stability at this time. 5. When the voltage is 12V, you\ncan reach the maximum gain, the low frequency final gain of 32.5dB. Box\ncontents: 1 x 0.1-2000 MHz RF broadband amplifier module 30 dB high gain\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eOperating frequency: 0.1-2000 MHz\u003c\/li\u003e\n \u003cli\u003e0.1-2000MHz RF Broadband Amplifier 30dB Low Noise LNA Amplifier with High Gain\u003c\/li\u003e\n \u003cli\u003eLow noise LNA amplifier with high gain\u003c\/li\u003e\n \u003cli\u003eIt has low characteristics and fits perfectly with different circuits as an ideal amplifier buffer amplifier.\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-28T13:35:12+10:00","created_at":"2025-09-28T13:35:09+10:00","vendor":"Hailege","type":"Signal Components","tags":["industryDE_Sep2025"],"price":12000,"price_min":12000,"price_max":12000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45751397712025,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07YJML3VL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hailege 0.1-2000MHz RF Broadband Amplifier 30dB Low Noise LNA Amplifier High Gain AMP Module DC 6-12V","public_title":null,"options":["Default Title"],"price":12000,"weight":7,"compare_at_price":null,"inventory_management":"shopify","barcode":"H-1-1225","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B07YJML3VL.jpg?v=1775755306","\/\/soundstores.net\/cdn\/shop\/files\/61l74fZ1-RS.jpg?v=1759030511","\/\/soundstores.net\/cdn\/shop\/files\/61cIjBRskOS.jpg?v=1759030511","\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_c4d3b7e7-70b1-4cf9-989b-adcacd97ff70.jpg?v=1759030511"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07YJML3VL.jpg?v=1775755306","options":["Title"],"media":[{"alt":null,"id":34673904615577,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07YJML3VL.jpg?v=1775755306"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07YJML3VL.jpg?v=1775755306","width":1200},{"alt":null,"id":34673904648345,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61l74fZ1-RS.jpg?v=1759030511"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61l74fZ1-RS.jpg?v=1759030511","width":1200},{"alt":null,"id":34673904681113,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61cIjBRskOS.jpg?v=1759030511"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61cIjBRskOS.jpg?v=1759030511","width":1200},{"alt":null,"id":34673904713881,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_c4d3b7e7-70b1-4cf9-989b-adcacd97ff70.jpg?v=1759030511"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_c4d3b7e7-70b1-4cf9-989b-adcacd97ff70.jpg?v=1759030511","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHailege 0.1-2000MHz RF Broadband Amplifier 30dB Low Noise LNA Amplifier High Gain AMP Module DC 6-12V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Specifications: Operating frequency: 0.1-2000 MHz. Amplifier\namplification F = 0.1 MHz, gain = 32 dB. F = 500 MHz, gain = 31 dB. F = 1000\nMHz, gain = 29 dB. F = 1500 MHz, gain = 25 dB. F = 2000 MHz, gain = 20 dB.\nMaximum output power + 10dBm 10mW Supply voltage: 6-12 VDC. System Impedance50\nTips: 1. If the working frequency is less than 500MHz, you will get a good\ngain level, which can be less than 1dB after careful adjustment. The lower the\nfrequency, the higher the gain consistency. 2. The working frequency of the\namplifier of the lower limit depends on the input and output capacitor, the\ndefault value is 0.1uF and works up to 0.1MHz. Increase the input and output\ncapacity accordingly to expand the cut-off frequency, e.g. B. the capacity can\nwork from 10uF to 5KHz. 3. When the supply voltage changes to 5-8V, it can be\nused as a variable gain amplifier. The gain increases with the increase in the\nsupply voltage suitable for the high frequency reception front end circuit,\nusing the DA control power supply voltage to control the amplification of the\namplifier, automatic gain control 4. When the supply voltage is in the 8-10V,\nthe low frequency final gain up to 30dB, the amplifier has a low noise\ncoefficient and good stability at this time. 5. When the voltage is 12V, you\ncan reach the maximum gain, the low frequency final gain of 32.5dB. Box\ncontents: 1 x 0.1-2000 MHz RF broadband amplifier module 30 dB high gain\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eOperating frequency: 0.1-2000 MHz\u003c\/li\u003e\n \u003cli\u003e0.1-2000MHz RF Broadband Amplifier 30dB Low Noise LNA Amplifier with High Gain\u003c\/li\u003e\n \u003cli\u003eLow noise LNA amplifier with high gain\u003c\/li\u003e\n \u003cli\u003eIt has low characteristics and fits perfectly with different circuits as an ideal amplifier buffer amplifier.\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e"}
