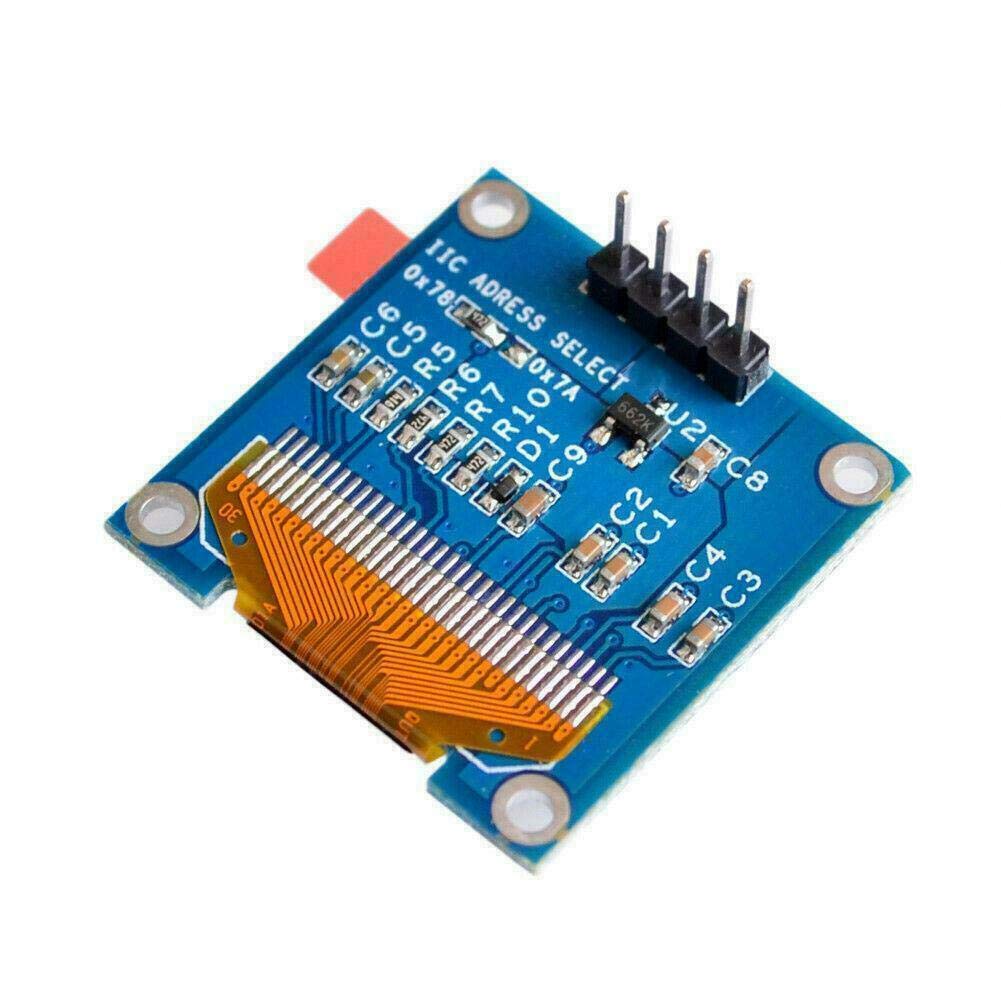

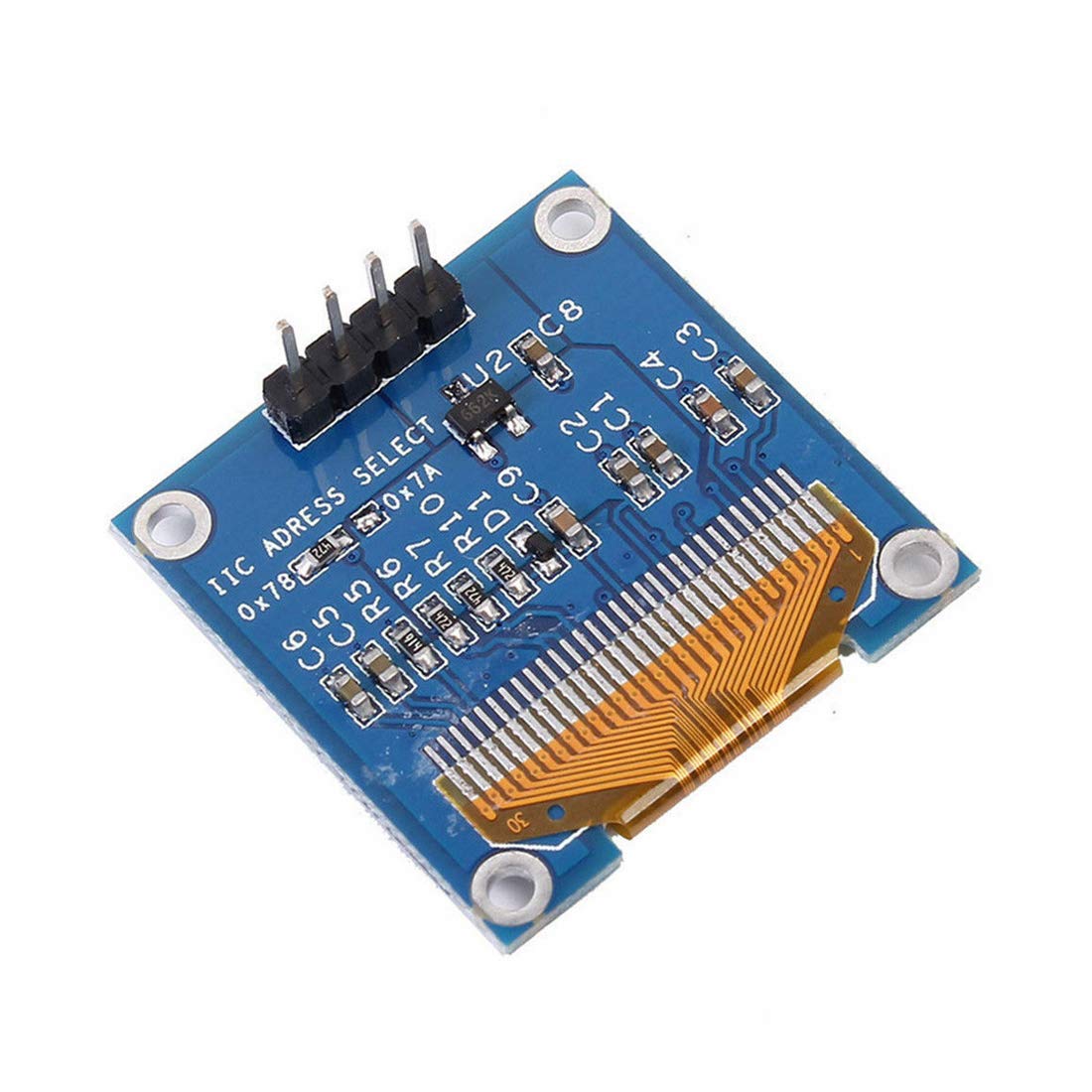

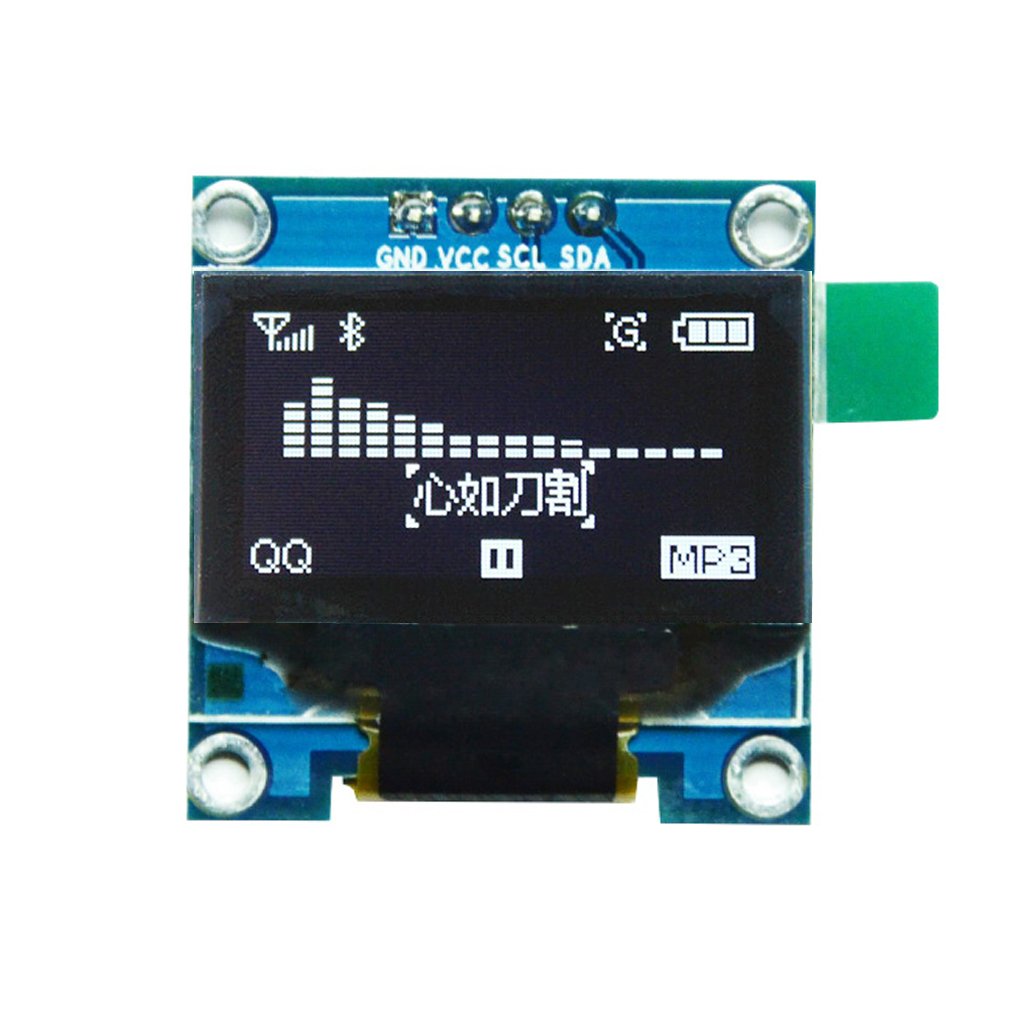

{"id":8532573880473,"title":"Hailege 0.96 Inch I2C IIC OLED LCD Display 128 x 64 4-Pin OLED Display Module (White)","handle":"hailege-0-96-inch-i2c-iic-oled-lcd-display-128-x-64-4-pin-oled-display-module-white","description":"\u003ch3\u003eHailege 0.96 Inch I2C IIC OLED LCD Display 128 x 64 4-Pin OLED Display Module (White)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: This OLED Part No. is UG-2864HSWEG01, not UG-2864AMBAG01. Needn't\nbacklight, the display unit can self-luminous High resolution: 128 x 64.\nViewing angle: \u0026gt; 160°. Supports many control chip: Fully compatible with, 51\nSeries, MSP430 Series, STM32 \/ 2, CSR IC, etc. Ultra-low power consumption:\nfull screen lit 0.08 W. Voltage: 3V ~ 5V DC. Working temperature: -30 ℃ ~ 70\n℃. Module size: 27.0 mm x 27.0 mm x 4.1 mm. I2C\/IIC interface, need 2 IO only.\nDriver IC: S.S.D 1306. Features: Super High Brightness (Adjustable) Super High\nContrast (Adjustable) Embedded Driver\/Controller Colours: white\/blue\/blue\nyellow. Drive Duty: 1\/64 Duty Pixels: 128 x 64. Panel size: 26.70 mm x 19.26\nmm x 1.85 mm. Active area: 21.74 mm x 11.2 mm. Pixel size: 0.15 mm x 0.15 mm.\nPackage includes: 1 x 0.96 inch I2C IIC 128 x 64 OLED LCD display (white).\nNote: Please contact us if you need the Schematic\/Program code\/User Manual\netc.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDriver IC: 1306; Drive Duty: 1\/64 Duty; Voltage: DC3V ~ 5V; High Resolution: 128 x 64\u003c\/li\u003e\n \u003cli\u003e0.96 inch 128 x 64 OLED LCD display, I2C IIC or SPI optional\u003c\/li\u003e\n \u003cli\u003eUltra-low power consumption, Super High Brightness, Super High Contrast\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-26T02:02:33+10:00","created_at":"2025-09-26T02:02:29+10:00","vendor":"Hailege","type":"Displays","tags":["industryDE_Sep2025"],"price":11400,"price_min":11400,"price_max":11400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45747075612825,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07Z8Q6V9C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hailege 0.96 Inch I2C IIC OLED LCD Display 128 x 64 4-Pin OLED Display Module (White)","public_title":null,"options":["Default Title"],"price":11400,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"H-1-1234-IIC-W","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B07Z8Q6V9C.jpg?v=1775752647","\/\/soundstores.net\/cdn\/shop\/files\/611dUKSXZVL.jpg?v=1758816152","\/\/soundstores.net\/cdn\/shop\/files\/61_VhoJn5uL.jpg?v=1758816152","\/\/soundstores.net\/cdn\/shop\/files\/51LUcLEQmFL.jpg?v=1758816152","\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_9afc4985-62c3-45e4-bf10-01e87bc64b6d.jpg?v=1758816152"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07Z8Q6V9C.jpg?v=1775752647","options":["Title"],"media":[{"alt":"[AUSTRALIA] - Hailege 0.96 Inch I2C IIC OLED LCD Display 128 x 64 4-Pin OLED Display Module (White) ","id":34643335282841,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07Z8Q6V9C.jpg?v=1775752647"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07Z8Q6V9C.jpg?v=1775752647","width":1010},{"alt":"[AUSTRALIA] - Hailege 0.96 Inch I2C IIC OLED LCD Display 128 x 64 4-Pin OLED Display Module (White) ","id":34643335315609,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/611dUKSXZVL.jpg?v=1758816152"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/611dUKSXZVL.jpg?v=1758816152","width":1100},{"alt":"[AUSTRALIA] - Hailege 0.96 Inch I2C IIC OLED LCD Display 128 x 64 4-Pin OLED Display Module (White) ","id":34643335348377,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61_VhoJn5uL.jpg?v=1758816152"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61_VhoJn5uL.jpg?v=1758816152","width":1001},{"alt":"[AUSTRALIA] - Hailege 0.96 Inch I2C IIC OLED LCD Display 128 x 64 4-Pin OLED Display Module (White) ","id":34643335381145,"position":4,"preview_image":{"aspect_ratio":1.877,"height":799,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51LUcLEQmFL.jpg?v=1758816152"},"aspect_ratio":1.877,"height":799,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51LUcLEQmFL.jpg?v=1758816152","width":1500},{"alt":"[AUSTRALIA] - Hailege 0.96 Inch I2C IIC OLED LCD Display 128 x 64 4-Pin OLED Display Module (White) ","id":34643335413913,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_9afc4985-62c3-45e4-bf10-01e87bc64b6d.jpg?v=1758816152"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_9afc4985-62c3-45e4-bf10-01e87bc64b6d.jpg?v=1758816152","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHailege 0.96 Inch I2C IIC OLED LCD Display 128 x 64 4-Pin OLED Display Module (White)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: This OLED Part No. is UG-2864HSWEG01, not UG-2864AMBAG01. Needn't\nbacklight, the display unit can self-luminous High resolution: 128 x 64.\nViewing angle: \u0026gt; 160°. Supports many control chip: Fully compatible with, 51\nSeries, MSP430 Series, STM32 \/ 2, CSR IC, etc. Ultra-low power consumption:\nfull screen lit 0.08 W. Voltage: 3V ~ 5V DC. Working temperature: -30 ℃ ~ 70\n℃. Module size: 27.0 mm x 27.0 mm x 4.1 mm. I2C\/IIC interface, need 2 IO only.\nDriver IC: S.S.D 1306. Features: Super High Brightness (Adjustable) Super High\nContrast (Adjustable) Embedded Driver\/Controller Colours: white\/blue\/blue\nyellow. Drive Duty: 1\/64 Duty Pixels: 128 x 64. Panel size: 26.70 mm x 19.26\nmm x 1.85 mm. Active area: 21.74 mm x 11.2 mm. Pixel size: 0.15 mm x 0.15 mm.\nPackage includes: 1 x 0.96 inch I2C IIC 128 x 64 OLED LCD display (white).\nNote: Please contact us if you need the Schematic\/Program code\/User Manual\netc.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDriver IC: 1306; Drive Duty: 1\/64 Duty; Voltage: DC3V ~ 5V; High Resolution: 128 x 64\u003c\/li\u003e\n \u003cli\u003e0.96 inch 128 x 64 OLED LCD display, I2C IIC or SPI optional\u003c\/li\u003e\n \u003cli\u003eUltra-low power consumption, Super High Brightness, Super High Contrast\u003c\/li\u003e\n \u003c\/ul\u003e"}
