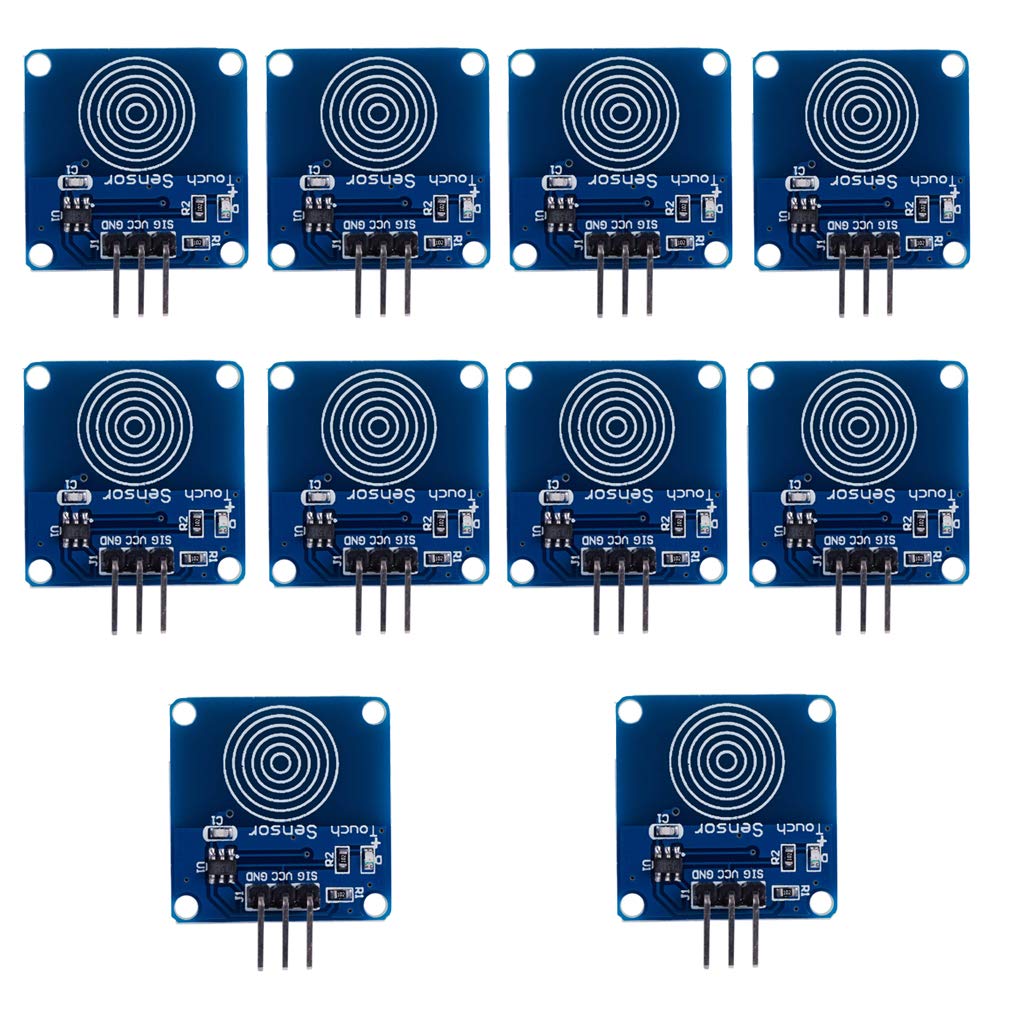

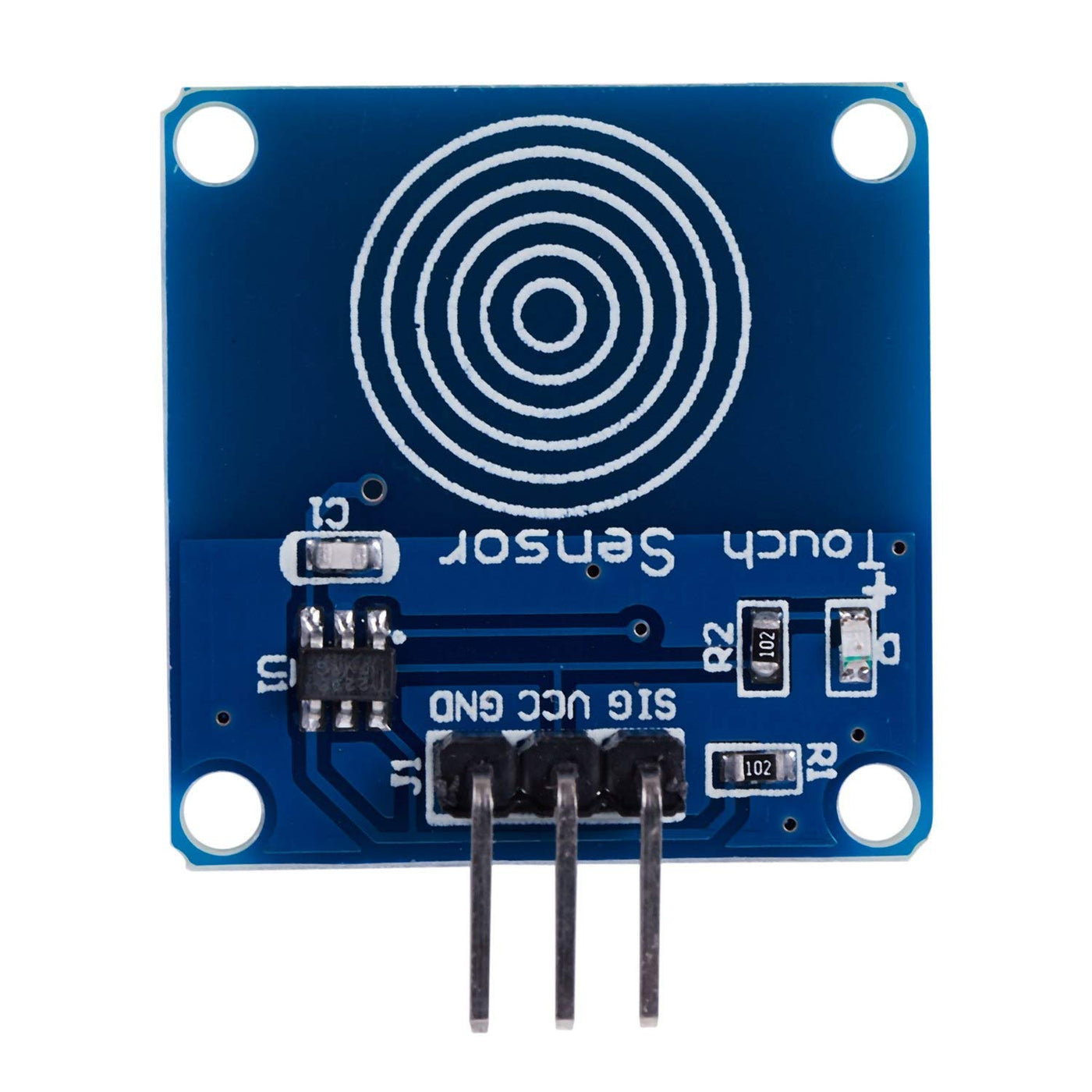

{"id":8530690900121,"title":"Hailege 10pcs TTP223B Capacitive Touch Switch Module Touch Sensor Switch Digital Capacitive Touch Sensor Switch DC 2~5.5V Raspberry Pi","handle":"hailege-10pcs-ttp223b-capacitive-touch-switch-module-touch-sensor-switch-digital-capacitive-touch-sensor-switch-dc-2-5-5v-raspberry-pi","description":"\u003ch3\u003eHailege 10pcs TTP223B Capacitive Touch Switch Module Touch Sensor Switch Digital Capacitive Touch Sensor Switch DC 2~5.5V Raspberry Pi\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Low power consumption. Power supply: 2~5.5VDC This module can\nreplace the conventional touch button Four M2 screws positioning holes for\neasy Installation specification: Supply voltage VCC: 2.0 - 5.5 V (typical 3\nV). Output high VOH: 0.8VCC Output low VOL: 0.3VCC Output pin sink current (@\nVCC = 3V, VOL = 0.6V): 8mA Output pin pull-up current (@ VCC = 3V, VOH = 2.4\nV): 4 mA. Response time (economic mode): 220 mS Response time (touch mode): 60\nmS Size: 24 x 24 x 7.2 mm Weight: 2g Box contents: 10 x TTP223B switching\nmodule digital touch sensor\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis is the \"instantaneous\" version of the touch sensor - touch and it turns on, releases and turns off.\u003c\/li\u003e\n \u003cli\u003ePositive and negative can be used as a touch surface and can replace the conventional touch button.\u003c\/li\u003e\n \u003cli\u003eIn addition to the thin paper (non-metallic) that covers the surface of the module, as long as the correct position of the touch is, you can hide in the walls, desks and other parts of the buttons.\u003c\/li\u003e\n \u003cli\u003eThe module is based on a capacitive touch switch module with touch sensing IC (TTP223B). In normal state, the module outputs low power consumption. When a finger touches the corresponding position, the module output switches to high when not touched for 12 seconds to power saving mode.\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-24T23:47:55+10:00","created_at":"2025-09-24T23:47:52+10:00","vendor":"Hailege","type":"Proximity Sensors","tags":["industryDE_Sep2025"],"price":11200,"price_min":11200,"price_max":11200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45743337865369,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07XPMH2NZ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hailege 10pcs TTP223B Capacitive Touch Switch Module Touch Sensor Switch Digital Capacitive Touch Sensor Switch DC 2~5.5V Raspberry Pi","public_title":null,"options":["Default Title"],"price":11200,"weight":30,"compare_at_price":null,"inventory_management":"shopify","barcode":"H-1-0019","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B07XPMH2NZ.jpg?v=1775749390","\/\/soundstores.net\/cdn\/shop\/files\/71J40LfTy8L.jpg?v=1758721674","\/\/soundstores.net\/cdn\/shop\/files\/41QGCwP3dnL.jpg?v=1758721674","\/\/soundstores.net\/cdn\/shop\/files\/31zNQv1KmwL.jpg?v=1758721674","\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_36d9778d-8219-40c4-ac05-eea6ddeb3972.jpg?v=1758721674"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07XPMH2NZ.jpg?v=1775749390","options":["Title"],"media":[{"alt":"[AUSTRALIA] - Hailege 10pcs TTP223B Capacitive Touch Switch Module Touch Sensor Switch Digital Capacitive Touch Sensor Switch DC 2~5.5V Raspberry Pi ","id":34626597585049,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07XPMH2NZ.jpg?v=1775749390"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07XPMH2NZ.jpg?v=1775749390","width":1010},{"alt":"[AUSTRALIA] - Hailege 10pcs TTP223B Capacitive Touch Switch Module Touch Sensor Switch Digital Capacitive Touch Sensor Switch DC 2~5.5V Raspberry Pi ","id":34626597617817,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71J40LfTy8L.jpg?v=1758721674"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71J40LfTy8L.jpg?v=1758721674","width":1500},{"alt":"[AUSTRALIA] - Hailege 10pcs TTP223B Capacitive Touch Switch Module Touch Sensor Switch Digital Capacitive Touch Sensor Switch DC 2~5.5V Raspberry Pi ","id":34626597650585,"position":3,"preview_image":{"aspect_ratio":1.131,"height":390,"width":441,"src":"\/\/soundstores.net\/cdn\/shop\/files\/41QGCwP3dnL.jpg?v=1758721674"},"aspect_ratio":1.131,"height":390,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/41QGCwP3dnL.jpg?v=1758721674","width":441},{"alt":"[AUSTRALIA] - Hailege 10pcs TTP223B Capacitive Touch Switch Module Touch Sensor Switch Digital Capacitive Touch Sensor Switch DC 2~5.5V Raspberry Pi ","id":34626597683353,"position":4,"preview_image":{"aspect_ratio":1.639,"height":305,"width":500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/31zNQv1KmwL.jpg?v=1758721674"},"aspect_ratio":1.639,"height":305,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/31zNQv1KmwL.jpg?v=1758721674","width":500},{"alt":"[AUSTRALIA] - Hailege 10pcs TTP223B Capacitive Touch Switch Module Touch Sensor Switch Digital Capacitive Touch Sensor Switch DC 2~5.5V Raspberry Pi ","id":34626597716121,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_36d9778d-8219-40c4-ac05-eea6ddeb3972.jpg?v=1758721674"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_36d9778d-8219-40c4-ac05-eea6ddeb3972.jpg?v=1758721674","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHailege 10pcs TTP223B Capacitive Touch Switch Module Touch Sensor Switch Digital Capacitive Touch Sensor Switch DC 2~5.5V Raspberry Pi\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Low power consumption. Power supply: 2~5.5VDC This module can\nreplace the conventional touch button Four M2 screws positioning holes for\neasy Installation specification: Supply voltage VCC: 2.0 - 5.5 V (typical 3\nV). Output high VOH: 0.8VCC Output low VOL: 0.3VCC Output pin sink current (@\nVCC = 3V, VOL = 0.6V): 8mA Output pin pull-up current (@ VCC = 3V, VOH = 2.4\nV): 4 mA. Response time (economic mode): 220 mS Response time (touch mode): 60\nmS Size: 24 x 24 x 7.2 mm Weight: 2g Box contents: 10 x TTP223B switching\nmodule digital touch sensor\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis is the \"instantaneous\" version of the touch sensor - touch and it turns on, releases and turns off.\u003c\/li\u003e\n \u003cli\u003ePositive and negative can be used as a touch surface and can replace the conventional touch button.\u003c\/li\u003e\n \u003cli\u003eIn addition to the thin paper (non-metallic) that covers the surface of the module, as long as the correct position of the touch is, you can hide in the walls, desks and other parts of the buttons.\u003c\/li\u003e\n \u003cli\u003eThe module is based on a capacitive touch switch module with touch sensing IC (TTP223B). In normal state, the module outputs low power consumption. When a finger touches the corresponding position, the module output switches to high when not touched for 12 seconds to power saving mode.\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e"}
