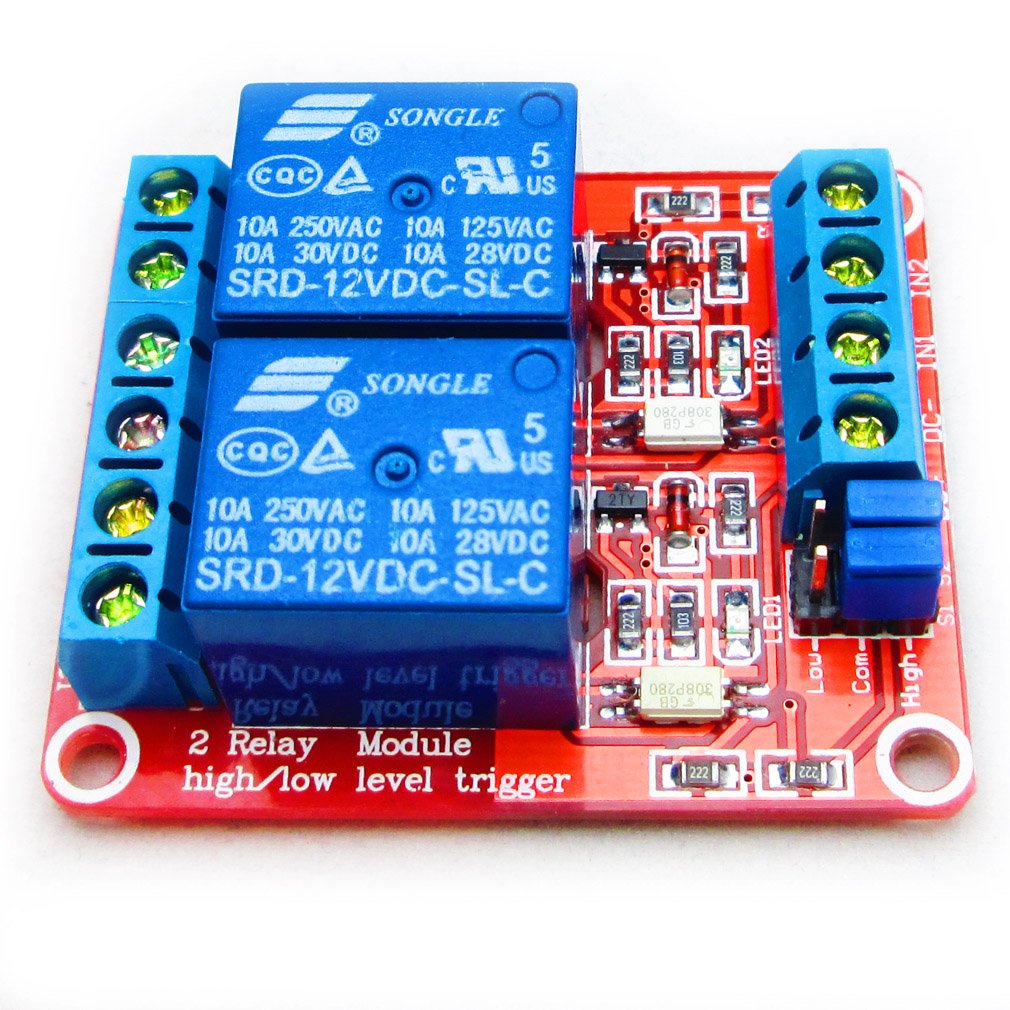

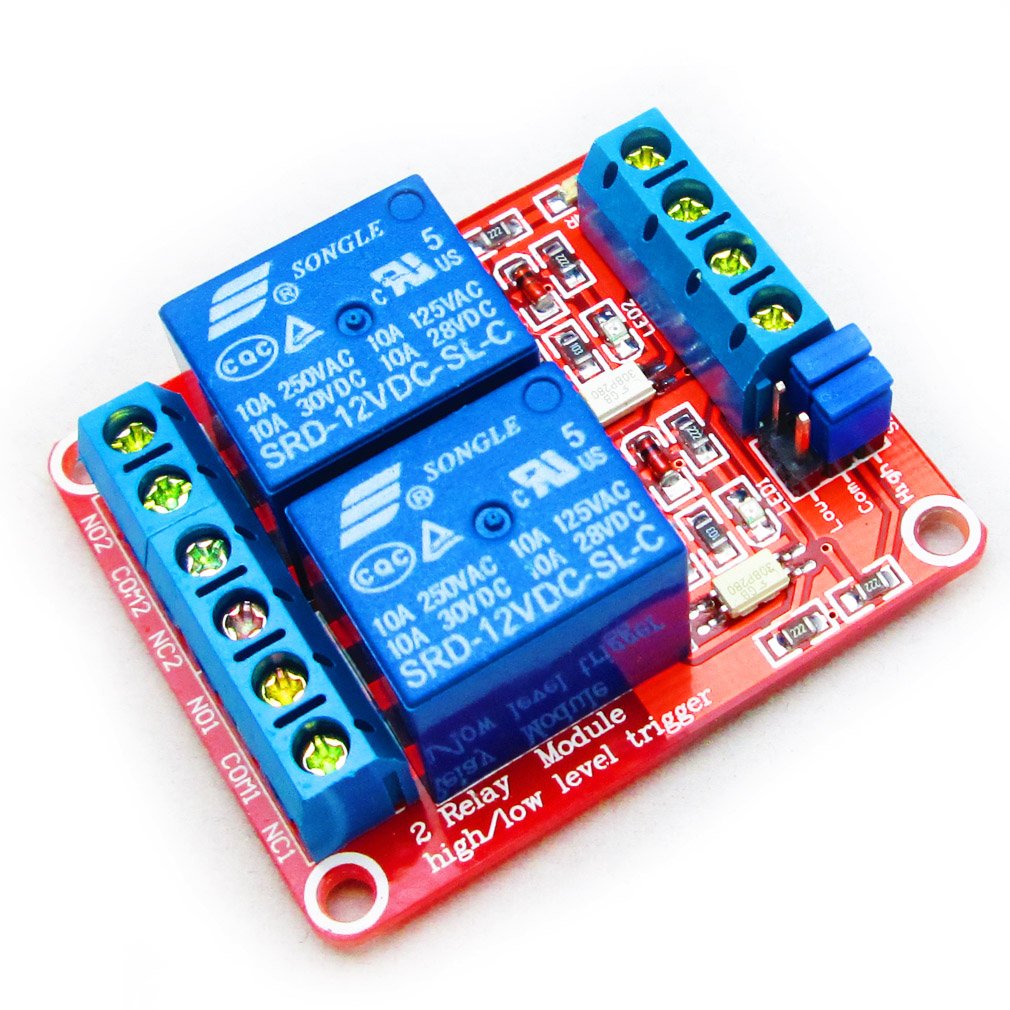

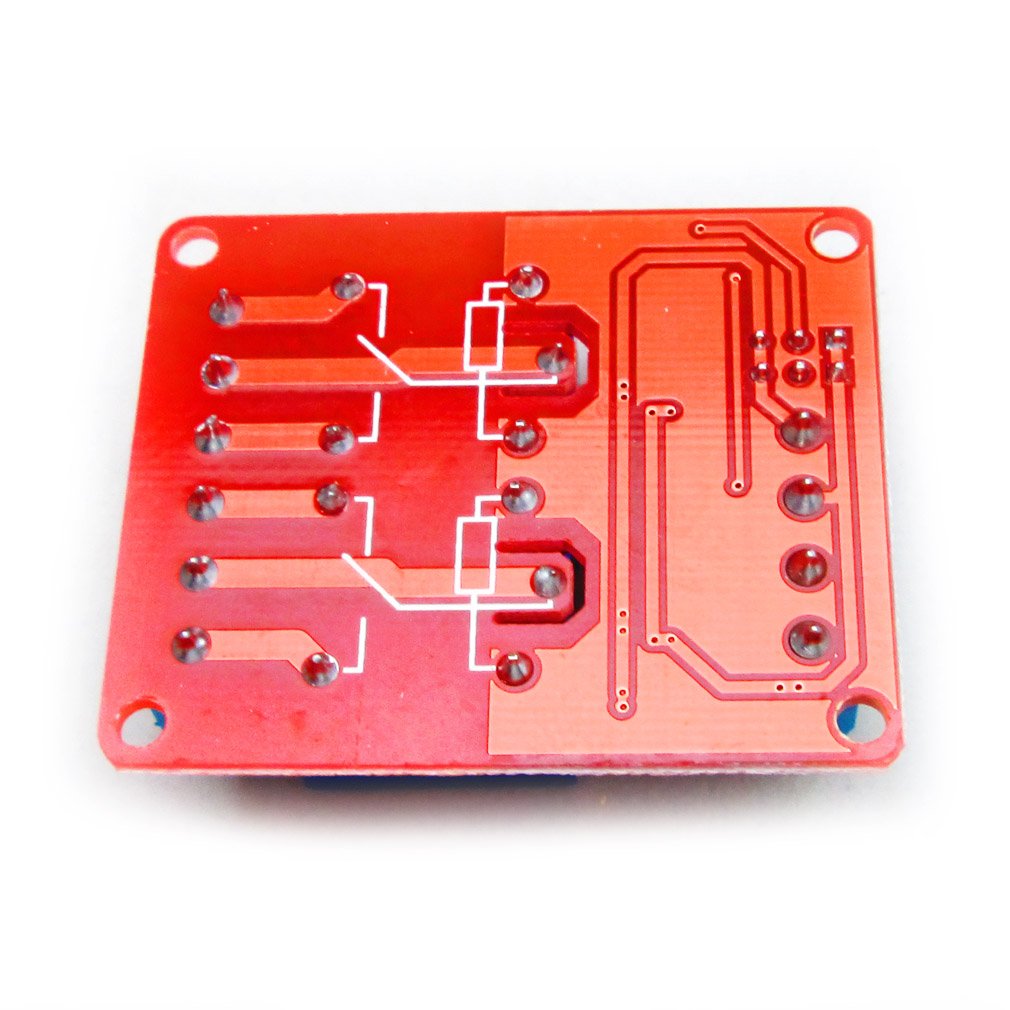

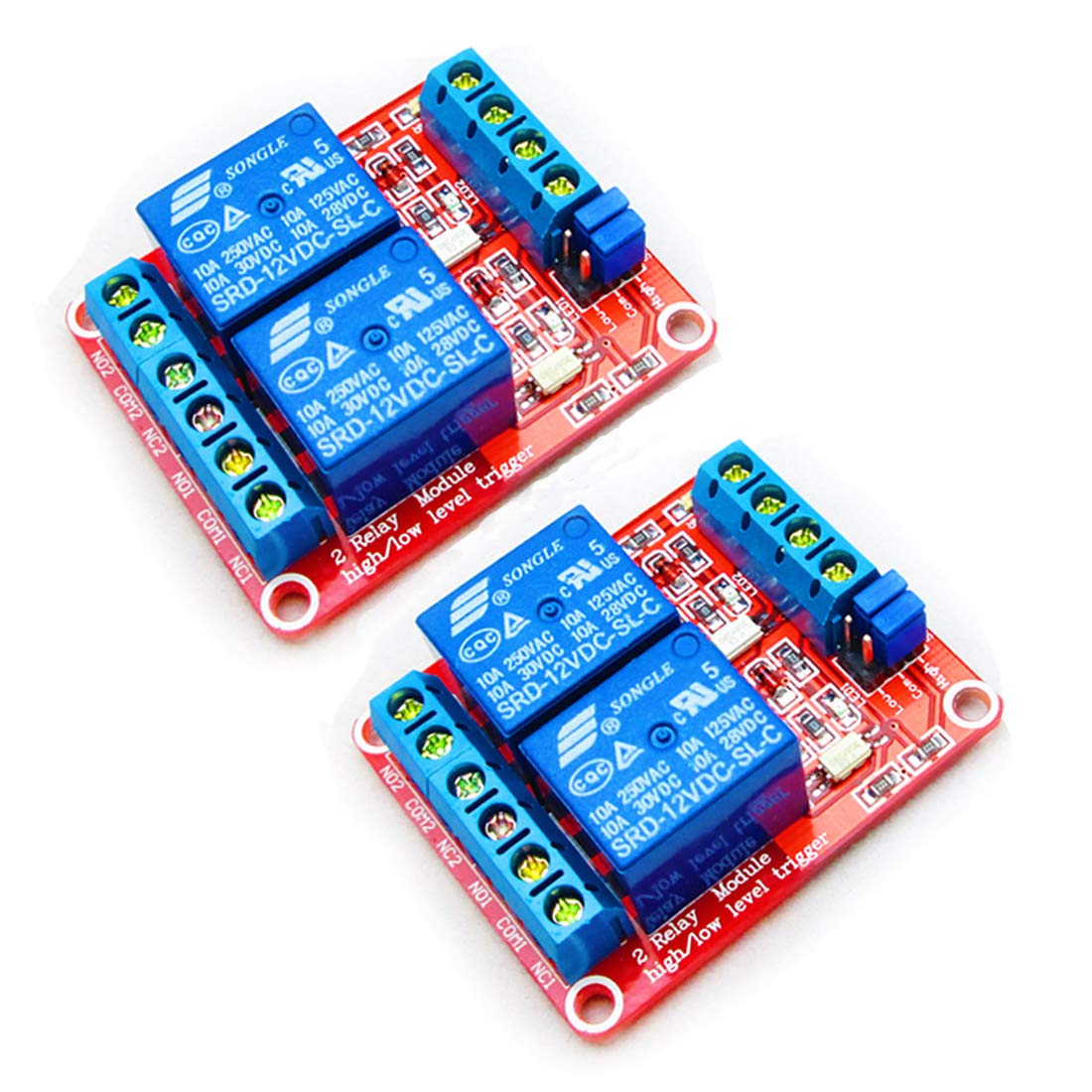

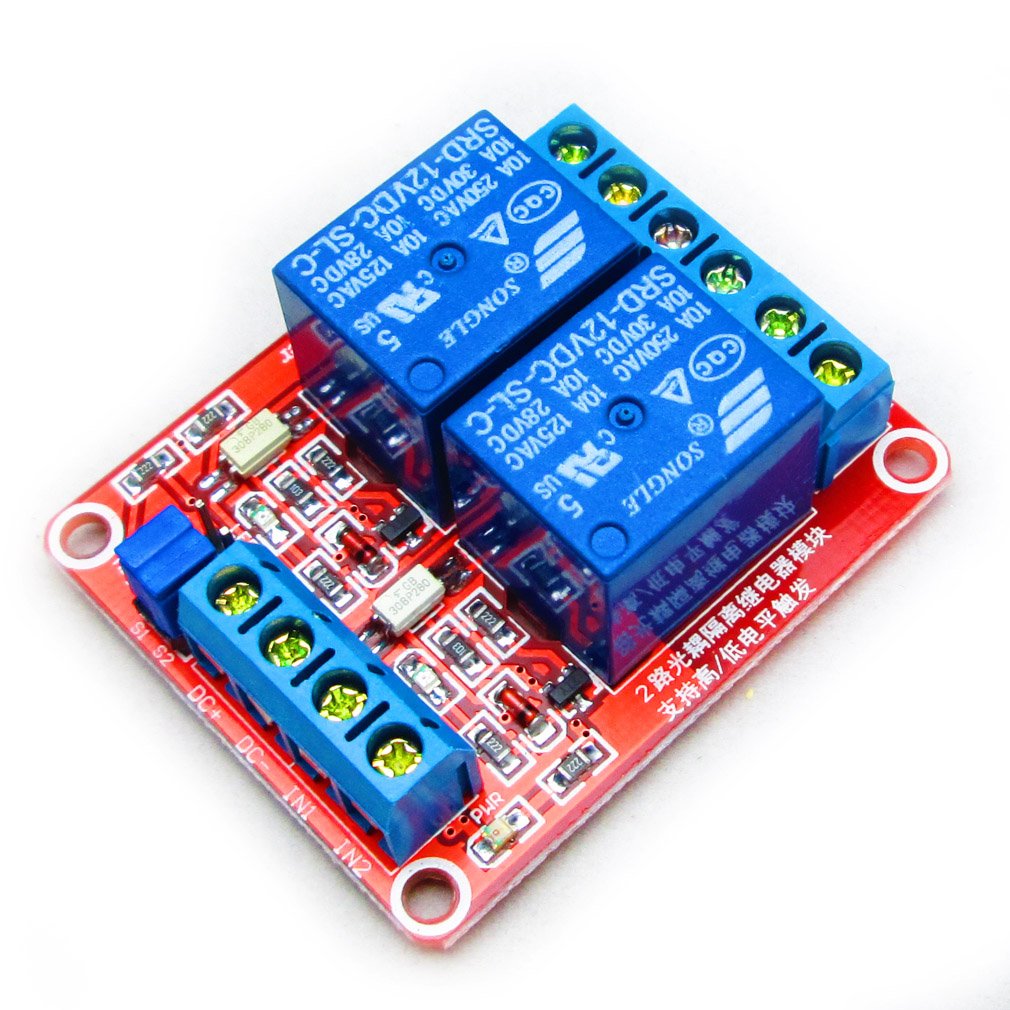

{"id":8532560937113,"title":"Hailege 2pcs DC 12V 2 Channel Relay Module with Insulated Optocoupler High and Low Level H\/L Level Trigger Module Triggered by DC 12V","handle":"hailege-2pcs-dc-12v-2-channel-relay-module-with-insulated-optocoupler-high-and-low-level-h-l-level-trigger-module-triggered-by-dc-12v","description":"\u003ch3\u003eHailege 2pcs DC 12V 2 Channel Relay Module with Insulated Optocoupler High and Low Level H\/L Level Trigger Module Triggered by DC 12V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: 1. The module uses original quality relay, normally open\ninterfaces. Maximum load: AC 250V\/10A, DC 30V\/10A. 2. The power indicator\n(green), the status display of the relay (red). 3. Module size: 50 mm x 26 mm\nx 18.5 mm (L x W x H). 4. Has four mounting screw holes, hole 3.1 mm, 44.5 mm\nx 20.5 mm grid. Module interface: 1. DC +: positive power supply DC 12 V. 2.\nDC-: negative circuit. 3. IN1: 1 channel signal to trigger the end, you can\nuse a high or low level control relay Set 4. IN2: 2 channel signal to trigger\nthe end, you can set a high or low level control relay Relay outputs: 1. NO1:\nafter a relay normally open interfaces, relay before floating, short circuit\npull with COM1 2. COM1: 1 relay common interface 3. NC1: 1 relay currentless\nclosed port, COM1 relay short-circuited before and after pulling - Free 4.\nNO2: way normally open relay interface, the relay before floating, retracting\nand COM2 short 5. COM2: 2 relays 6 for the common interface . NC2: 2 way\nnormal closed relay interface relay short front and COM2, pull the empty post\nNote: This relay is triggered by DC 12V and cannot trigger with the signal at\n5V. Box contents: 2 x DC 12 V 2-channel relay module with insulated\noptocoupler high and low level trigger\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWith optical patch isolation, strong drive capability and stable performance;\u003c\/li\u003e\n \u003cli\u003eCan set a high or low level trigger with jumper to meet the demand for more trigger applications.\u003c\/li\u003e\n \u003cli\u003eThe module can be high or low through a jumper adjustment trigger;\u003c\/li\u003e\n \u003cli\u003eFault tolerant design, even if the control line is interrupted, the relay will not work\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-26T01:45:52+10:00","created_at":"2025-09-26T01:45:48+10:00","vendor":"Hailege","type":"Relays","tags":["industryDE_Sep2025"],"price":11800,"price_min":11800,"price_max":11800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45747044679833,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07XYRDZ9Y","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hailege 2pcs DC 12V 2 Channel Relay Module with Insulated Optocoupler High and Low Level H\/L Level Trigger Module Triggered by DC 12V","public_title":null,"options":["Default Title"],"price":11800,"weight":60,"compare_at_price":null,"inventory_management":"shopify","barcode":"H-1-0342","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B07XYRDZ9Y.jpg?v=1775752219","\/\/soundstores.net\/cdn\/shop\/files\/71-f3bOOw8L.jpg?v=1758815151","\/\/soundstores.net\/cdn\/shop\/files\/71TI684NxVL.jpg?v=1758815151","\/\/soundstores.net\/cdn\/shop\/files\/71WoaM1pk4L.jpg?v=1758815151","\/\/soundstores.net\/cdn\/shop\/files\/61nMFonao4L.jpg?v=1758815151","\/\/soundstores.net\/cdn\/shop\/files\/41vjcQBnwyL.jpg?v=1758815151","\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_853878f9-9536-4533-a29a-3fe13d79b89c.jpg?v=1758815151"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07XYRDZ9Y.jpg?v=1775752219","options":["Title"],"media":[{"alt":null,"id":34643181600921,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07XYRDZ9Y.jpg?v=1775752219"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07XYRDZ9Y.jpg?v=1775752219","width":1100},{"alt":null,"id":34643181633689,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71-f3bOOw8L.jpg?v=1758815151"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71-f3bOOw8L.jpg?v=1758815151","width":1010},{"alt":null,"id":34643181666457,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71TI684NxVL.jpg?v=1758815151"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71TI684NxVL.jpg?v=1758815151","width":1010},{"alt":null,"id":34643181699225,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71WoaM1pk4L.jpg?v=1758815151"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71WoaM1pk4L.jpg?v=1758815151","width":1010},{"alt":null,"id":34643181731993,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61nMFonao4L.jpg?v=1758815151"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61nMFonao4L.jpg?v=1758815151","width":1010},{"alt":null,"id":34643181764761,"position":6,"preview_image":{"aspect_ratio":1.305,"height":383,"width":500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/41vjcQBnwyL.jpg?v=1758815151"},"aspect_ratio":1.305,"height":383,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/41vjcQBnwyL.jpg?v=1758815151","width":500},{"alt":null,"id":34643181797529,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_853878f9-9536-4533-a29a-3fe13d79b89c.jpg?v=1758815151"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_853878f9-9536-4533-a29a-3fe13d79b89c.jpg?v=1758815151","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHailege 2pcs DC 12V 2 Channel Relay Module with Insulated Optocoupler High and Low Level H\/L Level Trigger Module Triggered by DC 12V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: 1. The module uses original quality relay, normally open\ninterfaces. Maximum load: AC 250V\/10A, DC 30V\/10A. 2. The power indicator\n(green), the status display of the relay (red). 3. Module size: 50 mm x 26 mm\nx 18.5 mm (L x W x H). 4. Has four mounting screw holes, hole 3.1 mm, 44.5 mm\nx 20.5 mm grid. Module interface: 1. DC +: positive power supply DC 12 V. 2.\nDC-: negative circuit. 3. IN1: 1 channel signal to trigger the end, you can\nuse a high or low level control relay Set 4. IN2: 2 channel signal to trigger\nthe end, you can set a high or low level control relay Relay outputs: 1. NO1:\nafter a relay normally open interfaces, relay before floating, short circuit\npull with COM1 2. COM1: 1 relay common interface 3. NC1: 1 relay currentless\nclosed port, COM1 relay short-circuited before and after pulling - Free 4.\nNO2: way normally open relay interface, the relay before floating, retracting\nand COM2 short 5. COM2: 2 relays 6 for the common interface . NC2: 2 way\nnormal closed relay interface relay short front and COM2, pull the empty post\nNote: This relay is triggered by DC 12V and cannot trigger with the signal at\n5V. Box contents: 2 x DC 12 V 2-channel relay module with insulated\noptocoupler high and low level trigger\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWith optical patch isolation, strong drive capability and stable performance;\u003c\/li\u003e\n \u003cli\u003eCan set a high or low level trigger with jumper to meet the demand for more trigger applications.\u003c\/li\u003e\n \u003cli\u003eThe module can be high or low through a jumper adjustment trigger;\u003c\/li\u003e\n \u003cli\u003eFault tolerant design, even if the control line is interrupted, the relay will not work\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e"}
