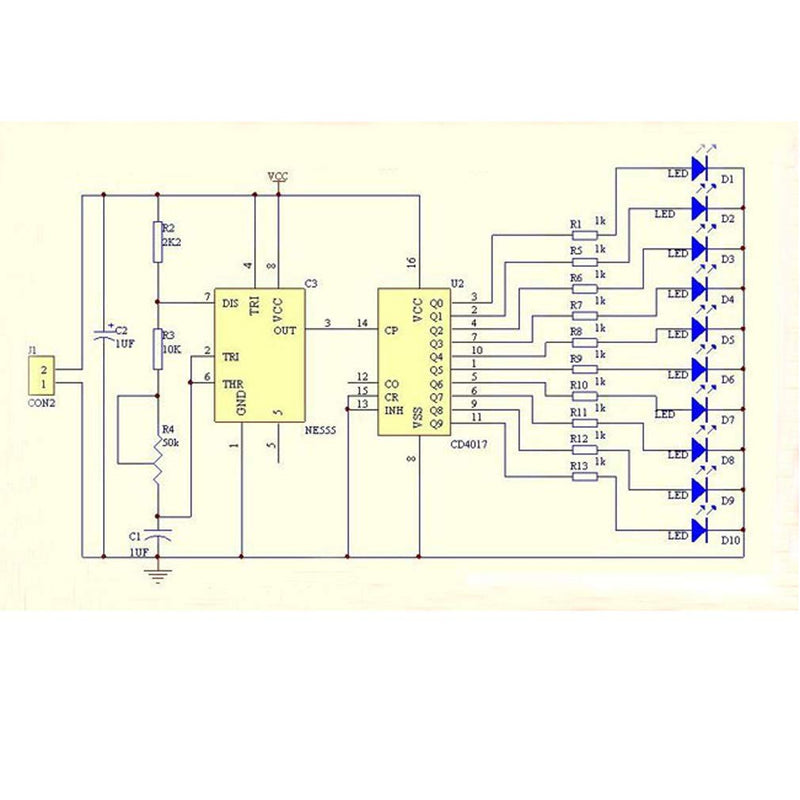

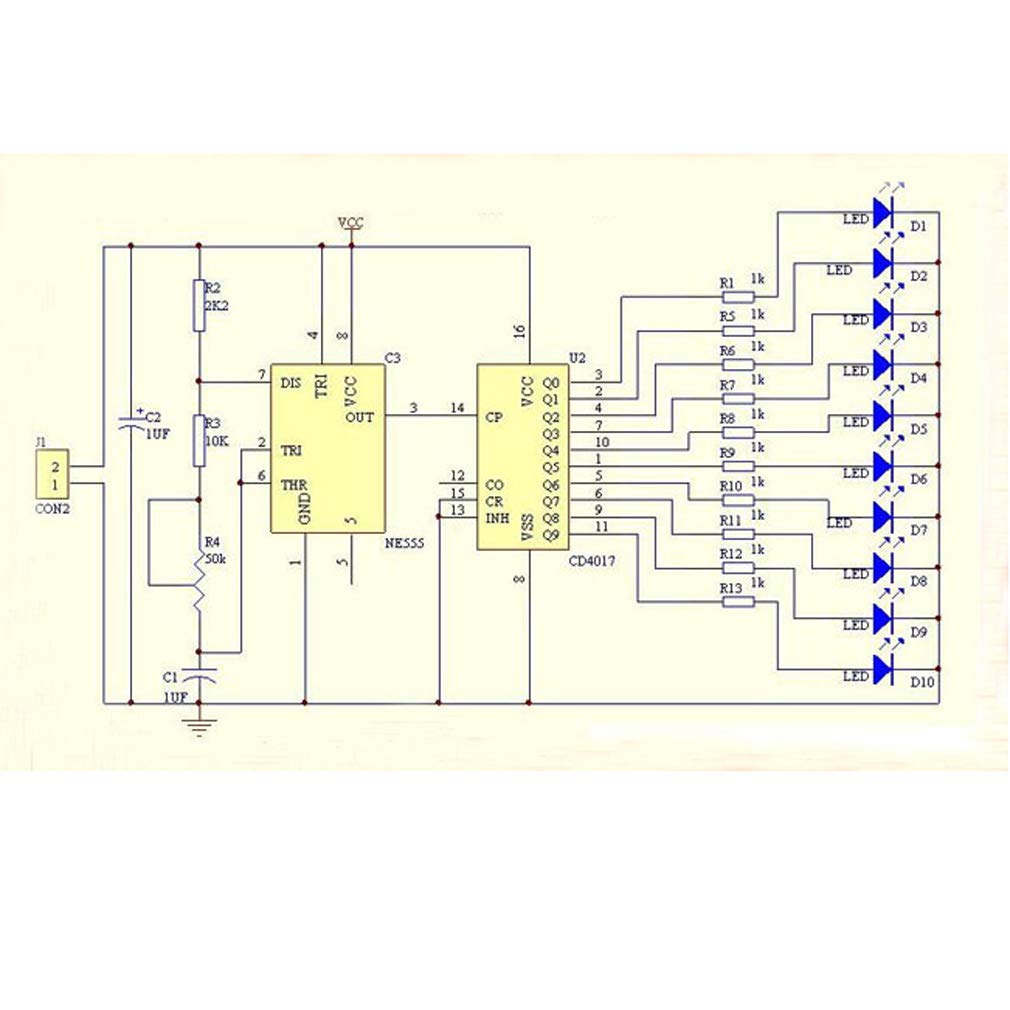

{"id":8533986279577,"title":"Hailege 2pcs NE555+CD4017 Running LED Flow LED Light Electronic Production Suite DIY Kit 2.5-14.5V","handle":"hailege-2pcs-ne555-cd4017-running-led-flow-led-light-electronic-production-suite-diy-kit-2-5-14-5v","description":"\u003ch3\u003eHailege 2pcs NE555+CD4017 Running LED Flow LED Light Electronic Production Suite DIY Kit 2.5-14.5V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: This package is mainly decimal counter circuit and circuit\ngenerated by the clock, from the core of the self-excited NE555 multivibrator\npower through R2, R3, R4 charge the capacitor C1, C1 started when charging,\nNE555 2 feet still in low, so the output pin 3 goes high when power through\nR2, R3, R4 to charge C1 to 2\/3 of The supply voltage , the output pin 3 level\nfrom high to low , NE555 conducting internal discharge , capacitor C1 through\nR4, R3, NE555 7 feet discharge until the voltage across C1 is less than 1 \/3\nof the supply voltage , NE555 and 3 feet level from low to high . C1 and\ncharge again this cycle oscillations formed . Charging time: 0.695 (R2 + R3 +\nR4) C1, discharge time: 0.695 (R4 + R3) C1, R4 can be adjusted to control the\noutput frequency of the oscillator, the oscillation clock signal is applied\ncontinuously NE555 CD4017 14 feet, the output terminal 10 is connected with\nthe CD4017 10 LED, when the output terminal 10 turns CD4017 generated clock\nsignal is applied at a high level, the D1 - D10 are sequentially lit to form a\nwater -light effect. Package includes: 2 x NE555 + CD4017 running LED flow LED\nDIY suite\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSupply voltage: 2.5-14.5 V; dimensions: 53 mm x 19 mm\u003c\/li\u003e\n \u003cli\u003eNE555+CD4017 Running LED Flow LED DIY Suite\u003c\/li\u003e\n \u003cli\u003eBest gift for Studens electronics study or electronic experiments.\u003c\/li\u003e\n \u003cli\u003eYou can adjust the flow rate adjustment R4 LED lights.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T08:22:05+10:00","created_at":"2025-09-27T08:22:02+10:00","vendor":"Hailege","type":"LEDs","tags":["industryDE_Sep2025"],"price":10000,"price_min":10000,"price_max":10000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45749865414809,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07XR86QLG","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hailege 2pcs NE555+CD4017 Running LED Flow LED Light Electronic Production Suite DIY Kit 2.5-14.5V","public_title":null,"options":["Default Title"],"price":10000,"weight":18,"compare_at_price":null,"inventory_management":"shopify","barcode":"H-1-0095","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B07XR86QLG.jpg?v=1775753027","\/\/soundstores.net\/cdn\/shop\/files\/611Da6gwlnL.jpg?v=1758925324","\/\/soundstores.net\/cdn\/shop\/files\/61ZbuNfv72L.jpg?v=1758925324","\/\/soundstores.net\/cdn\/shop\/files\/61-BCjAvHCL.jpg?v=1758925324","\/\/soundstores.net\/cdn\/shop\/files\/51jfbsfNZvL.jpg?v=1758925324","\/\/soundstores.net\/cdn\/shop\/files\/41y2nHIp3vL.jpg?v=1758925324","\/\/soundstores.net\/cdn\/shop\/files\/61C6lgcPTlL.jpg?v=1758925324","\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_028af5a8-a8e3-4c79-8183-daff1541951e.jpg?v=1758925324"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07XR86QLG.jpg?v=1775753027","options":["Title"],"media":[{"alt":null,"id":34662461014169,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07XR86QLG.jpg?v=1775753027"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07XR86QLG.jpg?v=1775753027","width":1010},{"alt":null,"id":34662461046937,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/611Da6gwlnL.jpg?v=1758925324"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/611Da6gwlnL.jpg?v=1758925324","width":1001},{"alt":null,"id":34662461079705,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61ZbuNfv72L.jpg?v=1758925324"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61ZbuNfv72L.jpg?v=1758925324","width":1001},{"alt":null,"id":34662461112473,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61-BCjAvHCL.jpg?v=1758925324"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61-BCjAvHCL.jpg?v=1758925324","width":1010},{"alt":null,"id":34662461178009,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51jfbsfNZvL.jpg?v=1758925324"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51jfbsfNZvL.jpg?v=1758925324","width":500},{"alt":null,"id":34662461210777,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/41y2nHIp3vL.jpg?v=1758925324"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/41y2nHIp3vL.jpg?v=1758925324","width":500},{"alt":null,"id":34662461243545,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61C6lgcPTlL.jpg?v=1758925324"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61C6lgcPTlL.jpg?v=1758925324","width":1010},{"alt":null,"id":34662461276313,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_028af5a8-a8e3-4c79-8183-daff1541951e.jpg?v=1758925324"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_028af5a8-a8e3-4c79-8183-daff1541951e.jpg?v=1758925324","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHailege 2pcs NE555+CD4017 Running LED Flow LED Light Electronic Production Suite DIY Kit 2.5-14.5V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: This package is mainly decimal counter circuit and circuit\ngenerated by the clock, from the core of the self-excited NE555 multivibrator\npower through R2, R3, R4 charge the capacitor C1, C1 started when charging,\nNE555 2 feet still in low, so the output pin 3 goes high when power through\nR2, R3, R4 to charge C1 to 2\/3 of The supply voltage , the output pin 3 level\nfrom high to low , NE555 conducting internal discharge , capacitor C1 through\nR4, R3, NE555 7 feet discharge until the voltage across C1 is less than 1 \/3\nof the supply voltage , NE555 and 3 feet level from low to high . C1 and\ncharge again this cycle oscillations formed . Charging time: 0.695 (R2 + R3 +\nR4) C1, discharge time: 0.695 (R4 + R3) C1, R4 can be adjusted to control the\noutput frequency of the oscillator, the oscillation clock signal is applied\ncontinuously NE555 CD4017 14 feet, the output terminal 10 is connected with\nthe CD4017 10 LED, when the output terminal 10 turns CD4017 generated clock\nsignal is applied at a high level, the D1 - D10 are sequentially lit to form a\nwater -light effect. Package includes: 2 x NE555 + CD4017 running LED flow LED\nDIY suite\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSupply voltage: 2.5-14.5 V; dimensions: 53 mm x 19 mm\u003c\/li\u003e\n \u003cli\u003eNE555+CD4017 Running LED Flow LED DIY Suite\u003c\/li\u003e\n \u003cli\u003eBest gift for Studens electronics study or electronic experiments.\u003c\/li\u003e\n \u003cli\u003eYou can adjust the flow rate adjustment R4 LED lights.\u003c\/li\u003e\n \u003c\/ul\u003e"}
