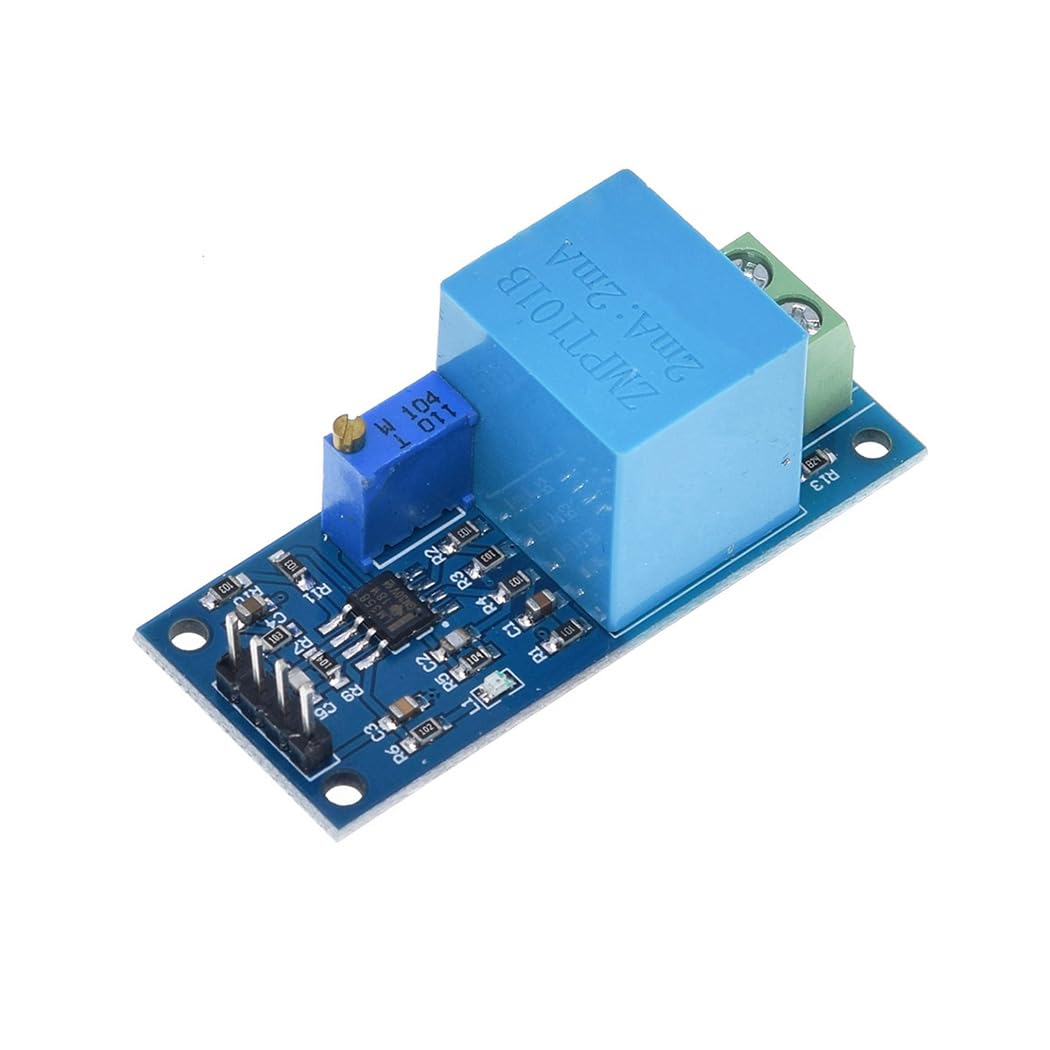

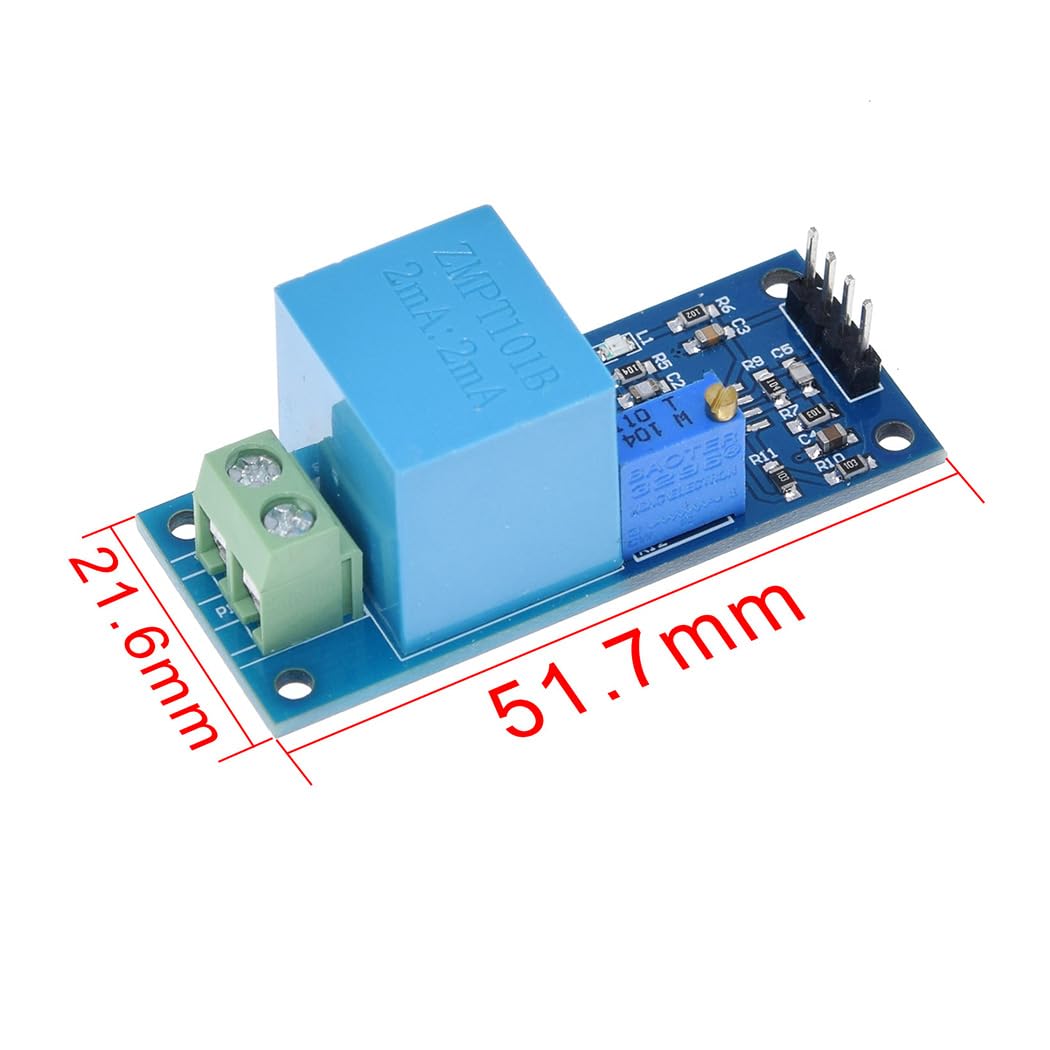

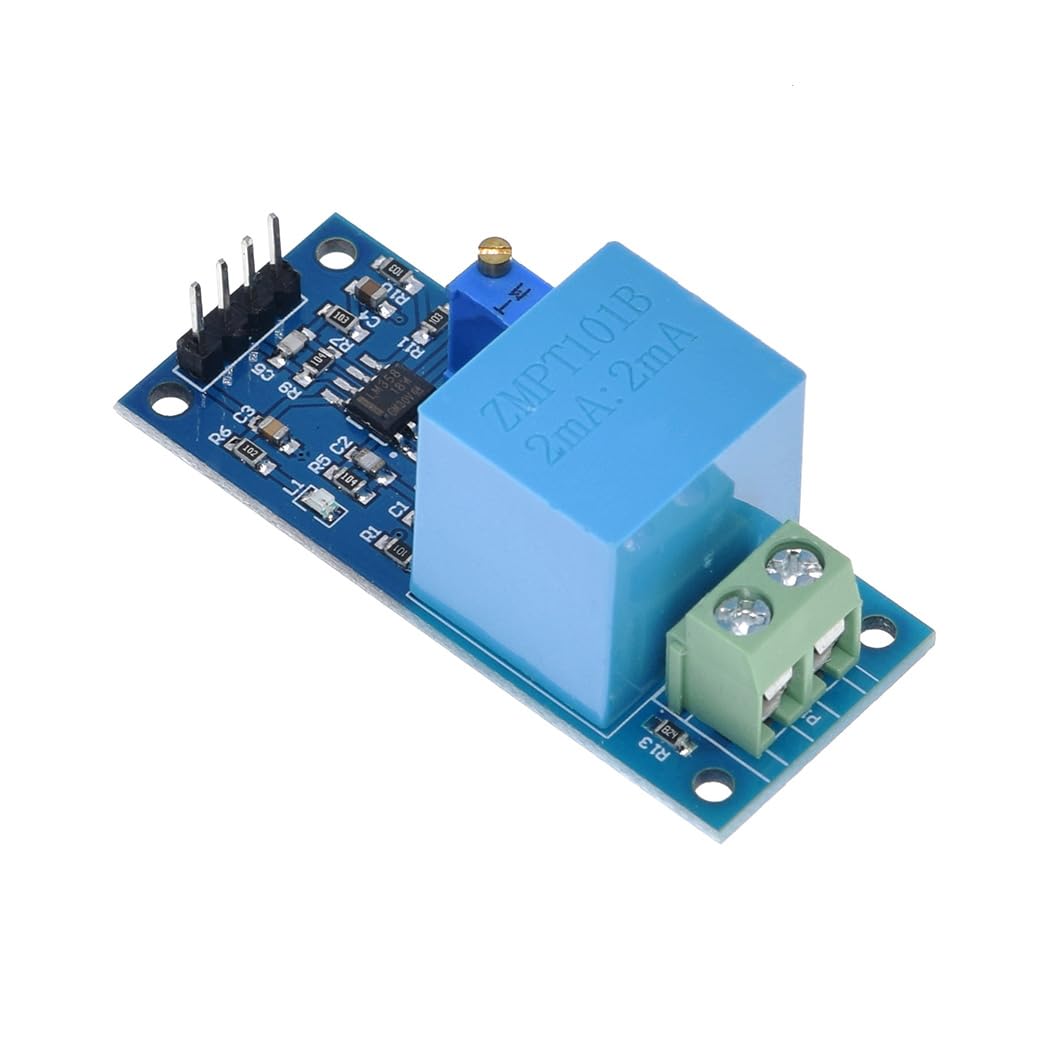

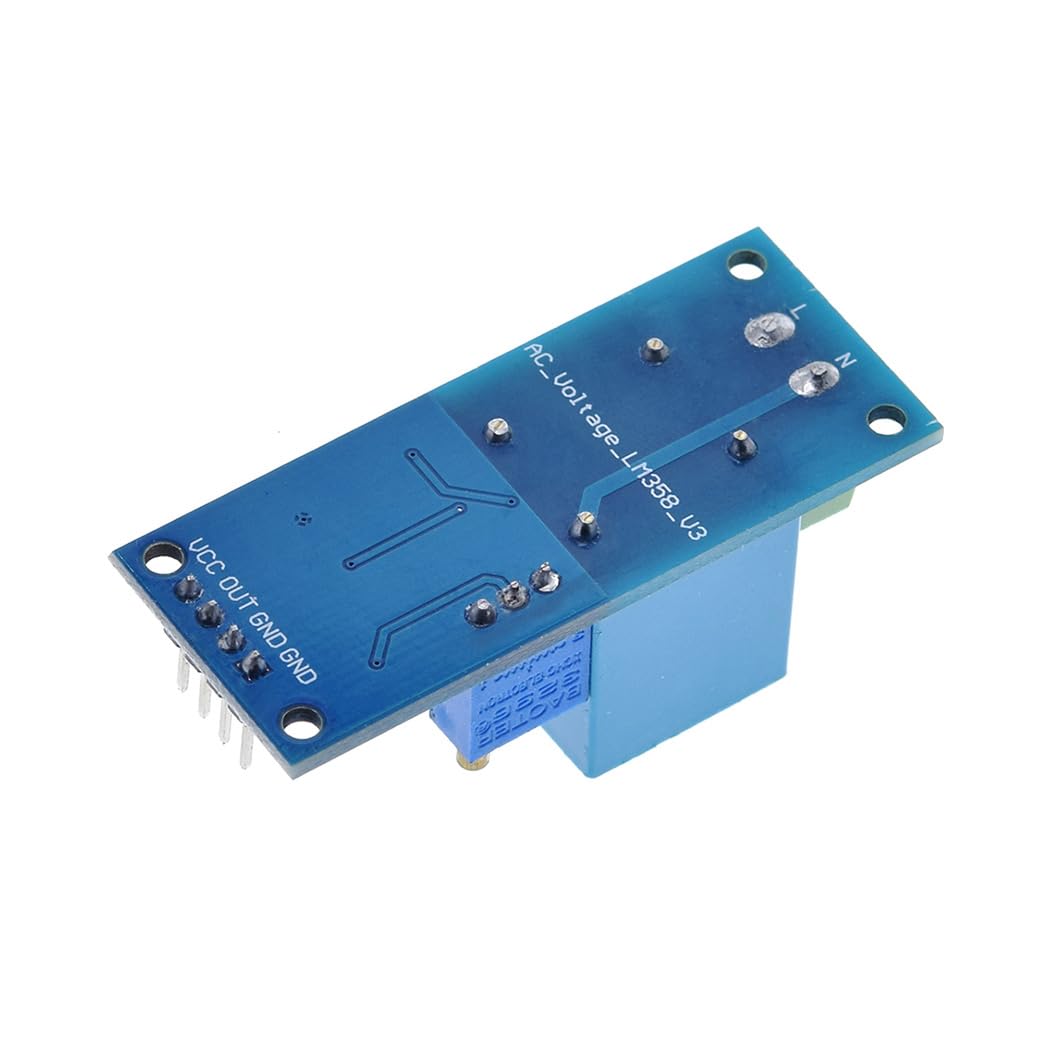

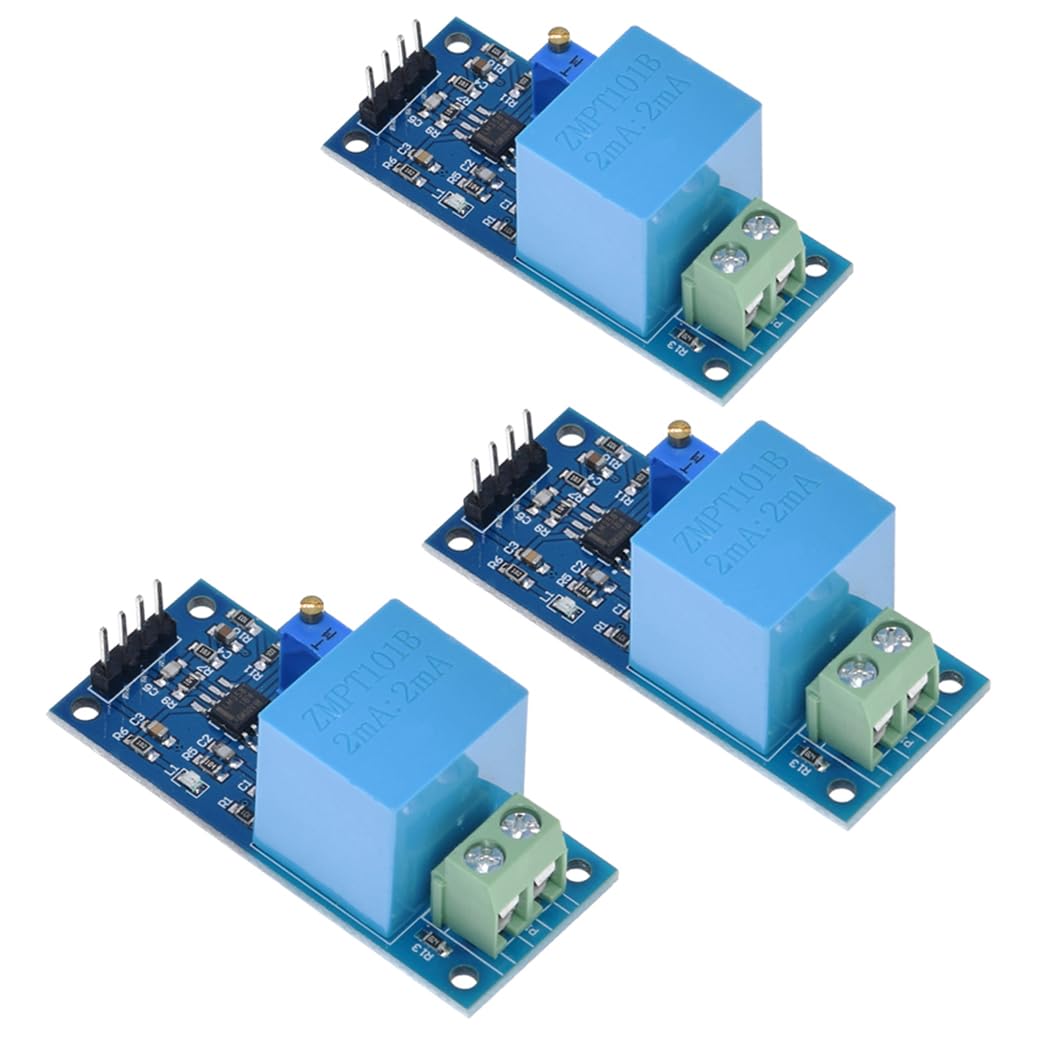

{"id":8532528496793,"title":"Hailege 3pcs ZMPT101B Voltage Sensor Voltage Converter Module AC Current Signal Detection 5-30V AC Active Single-Phase Output","handle":"hailege-3pcs-zmpt101b-voltage-sensor-voltage-converter-module-ac-current-signal-detection-5-30v-ac-active-single-phase-output","description":"\u003ch3\u003eHailege 3pcs ZMPT101B Voltage Sensor Voltage Converter Module AC Current Signal Detection 5-30V AC Active Single-Phase Output\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: 1. When L, N is connected to AC220V. VCC, GND input DC5V-30V OUT,\nGND, which is connected to the oscilloscope, can produce a sine wave. 2. By\nadjusting the potentiometer, the amplitude of the output waveform (the mean\nvalue does not change during the setting process), the waveform of the range\nof 0-VCC can be changed. 3. If the waveform is distorted when increasing the\namplitude, this can be remedied by increasing the operating voltage VCC\naccordingly. If you want the mean value of the waveform to be shifted to 0\no'clock, you can switch a capacitor of about 105 pF in series with OUT to\nfilter out the DC component in the waveform. 4. Adjusting the potentiometer\ncan change the amplitude of the output waveform (the setting process does not\nchange the mean value). The waveform changes in the range of 0-VCC between;\nduring the increase of amplitude, when the waveform distortion, can be\nappropriately increased by working voltage VCC to release. 5. When the median\nvalue of the waveform is shifted to 0, a capacitor of about 105 pF at the OUT\nport can be connected in series to filter the DC component in the waveform.\nBox contents: 3 x ZMPT101B Voltage Converter Voltage Sensor Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh precision operational amplifier current, easy to 250V within AC current signal detection.\u003c\/li\u003e\n \u003cli\u003eZMPT101B Voltage Converter Voltage Sensor Module\u003c\/li\u003e\n \u003cli\u003eSingle phase AC module with active output voltage and mutual inductance, equipped with ZMPT101B series of high precision voltage converters and high precision operational amplifier current.\u003c\/li\u003e\n \u003cli\u003eBy adjusting the potentiometer, the amplitude of the output waveform can be changed, the setting process does not change the middle value.\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-26T01:10:31+10:00","created_at":"2025-09-26T01:10:27+10:00","vendor":"Hailege","type":"Transducers","tags":["industryDE_Sep2025"],"price":12300,"price_min":12300,"price_max":12300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45746975572121,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0CJY2TK47","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hailege 3pcs ZMPT101B Voltage Sensor Voltage Converter Module AC Current Signal Detection 5-30V AC Active Single-Phase Output","public_title":null,"options":["Default Title"],"price":12300,"weight":60,"compare_at_price":null,"inventory_management":"shopify","barcode":"H-1-1816","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0CJY2TK47.jpg?v=1775751480","\/\/soundstores.net\/cdn\/shop\/files\/51ZOMIv42aL.jpg?v=1758813030","\/\/soundstores.net\/cdn\/shop\/files\/51y-2Eqp1WL.jpg?v=1758813030","\/\/soundstores.net\/cdn\/shop\/files\/51lQRTvhGVL.jpg?v=1758813030","\/\/soundstores.net\/cdn\/shop\/files\/51oGFqVwOlL.jpg?v=1758813030","\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_4aac7033-76d7-480f-b0b6-b5c320fe68d8.jpg?v=1758813030"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0CJY2TK47.jpg?v=1775751480","options":["Title"],"media":[{"alt":null,"id":34642830327961,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0CJY2TK47.jpg?v=1775751480"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0CJY2TK47.jpg?v=1775751480","width":1050},{"alt":null,"id":34642830360729,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51ZOMIv42aL.jpg?v=1758813030"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51ZOMIv42aL.jpg?v=1758813030","width":1050},{"alt":null,"id":34642830393497,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51y-2Eqp1WL.jpg?v=1758813030"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51y-2Eqp1WL.jpg?v=1758813030","width":1050},{"alt":null,"id":34642830426265,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51lQRTvhGVL.jpg?v=1758813030"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51lQRTvhGVL.jpg?v=1758813030","width":1050},{"alt":null,"id":34642830459033,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51oGFqVwOlL.jpg?v=1758813030"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51oGFqVwOlL.jpg?v=1758813030","width":1050},{"alt":null,"id":34642830491801,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_4aac7033-76d7-480f-b0b6-b5c320fe68d8.jpg?v=1758813030"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_4aac7033-76d7-480f-b0b6-b5c320fe68d8.jpg?v=1758813030","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHailege 3pcs ZMPT101B Voltage Sensor Voltage Converter Module AC Current Signal Detection 5-30V AC Active Single-Phase Output\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: 1. When L, N is connected to AC220V. VCC, GND input DC5V-30V OUT,\nGND, which is connected to the oscilloscope, can produce a sine wave. 2. By\nadjusting the potentiometer, the amplitude of the output waveform (the mean\nvalue does not change during the setting process), the waveform of the range\nof 0-VCC can be changed. 3. If the waveform is distorted when increasing the\namplitude, this can be remedied by increasing the operating voltage VCC\naccordingly. If you want the mean value of the waveform to be shifted to 0\no'clock, you can switch a capacitor of about 105 pF in series with OUT to\nfilter out the DC component in the waveform. 4. Adjusting the potentiometer\ncan change the amplitude of the output waveform (the setting process does not\nchange the mean value). The waveform changes in the range of 0-VCC between;\nduring the increase of amplitude, when the waveform distortion, can be\nappropriately increased by working voltage VCC to release. 5. When the median\nvalue of the waveform is shifted to 0, a capacitor of about 105 pF at the OUT\nport can be connected in series to filter the DC component in the waveform.\nBox contents: 3 x ZMPT101B Voltage Converter Voltage Sensor Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh precision operational amplifier current, easy to 250V within AC current signal detection.\u003c\/li\u003e\n \u003cli\u003eZMPT101B Voltage Converter Voltage Sensor Module\u003c\/li\u003e\n \u003cli\u003eSingle phase AC module with active output voltage and mutual inductance, equipped with ZMPT101B series of high precision voltage converters and high precision operational amplifier current.\u003c\/li\u003e\n \u003cli\u003eBy adjusting the potentiometer, the amplitude of the output waveform can be changed, the setting process does not change the middle value.\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e"}
