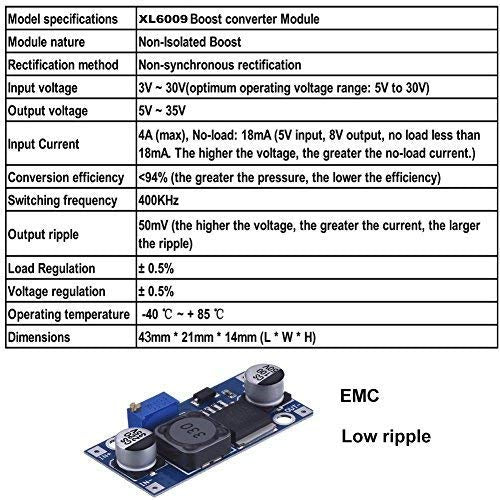

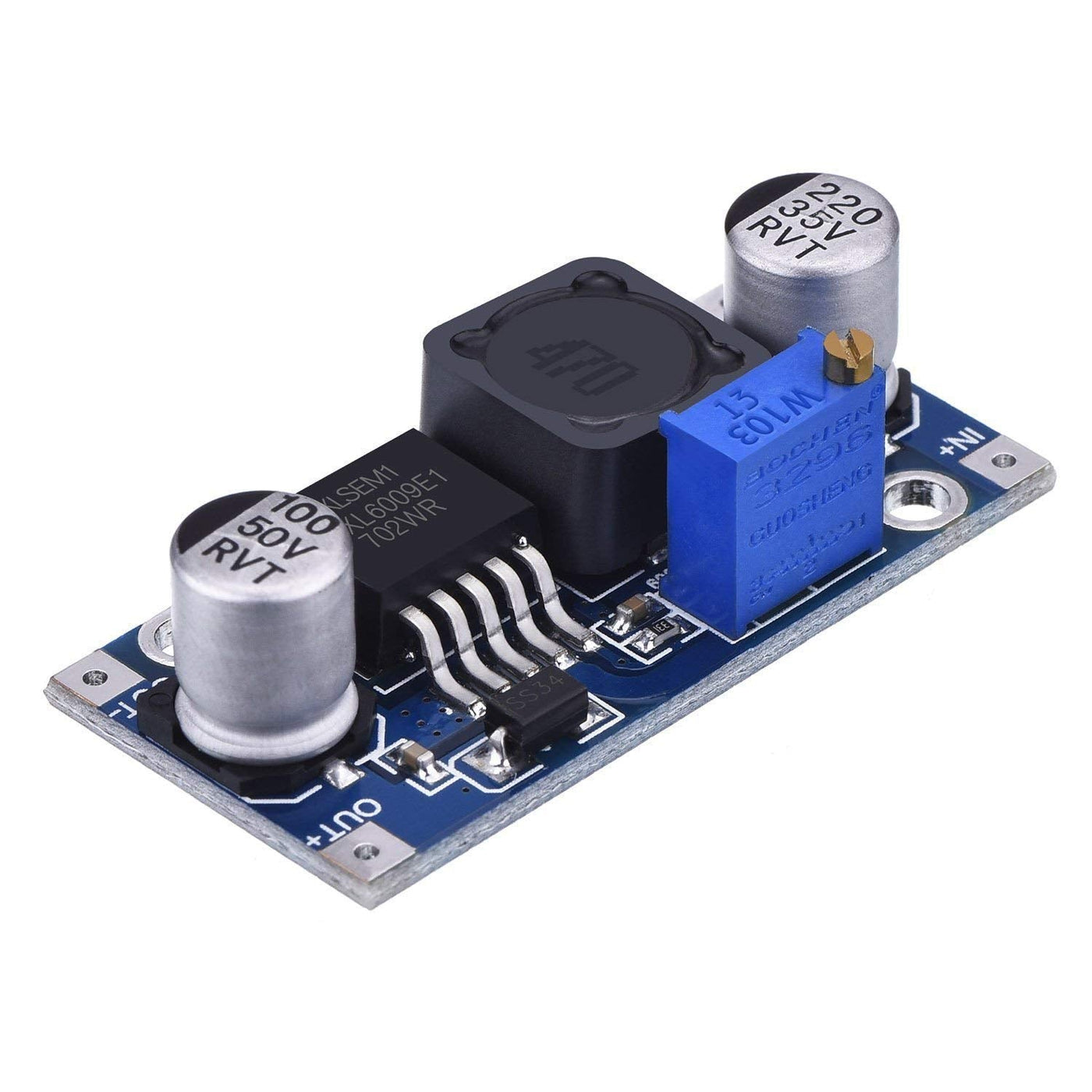

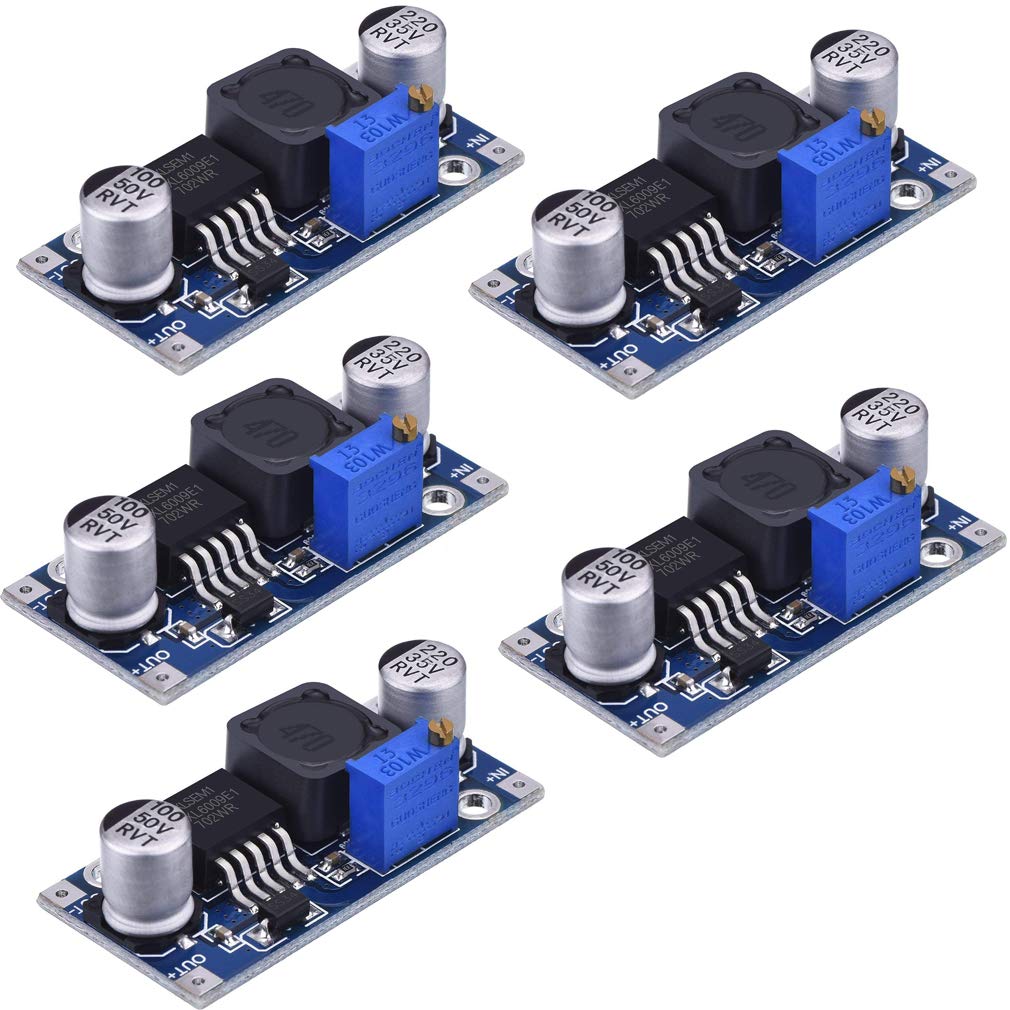

{"id":8534012395673,"title":"Hailege 5pcs XL6009 DC-DC Adjustable Boost Module DC3.0-30V to DC5-35V Output Voltage Power Converter PCB Module 400KHz","handle":"hailege-5pcs-xl6009-dc-dc-adjustable-boost-module-dc3-0-30v-to-dc5-35v-output-voltage-power-converter-pcb-module-400khz","description":"\u003ch3\u003eHailege 5pcs XL6009 DC-DC Adjustable Boost Module DC3.0-30V to DC5-35V Output Voltage Power Converter PCB Module 400KHz\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: Input 3V output 12V 0.4A 4.8W Input 5 V output 12 V 0.8 A 9.6 W.\nInput 7.4 V output 12 V 1.5 A 18 W. Input 12 V output 15 V 2 A 30 W. Input 12\nV output 16 V 2 A 32 W. Input 12 V output 18 V 1.6 A 28.8 W. Input 12 V output\n19 V 1.5 A 28.5 W. Input 12 V output 24 V 1 A 24 W. Vin Iin Efficiency =\nVout Iout Vin: input voltage. Iin: input current. Vout: output voltage.\nIout: output current. Features: Module texture: non-isolated step-up (boost).\nRectification: Non-synchronous rectification Input voltage: 3V-32V. Output\nvoltage: 5V-35V. Input current: 4 A (max), no-load current 18 mA. Conversion\nefficiency: 94% (highest). Switching frequency: 400 kHz. Output ripple: 50mV\n(max). Load control: 0.5. % voltage regulation: 0.5%. Operating temperature:\n-40 °C. C to +85? c cup Dimensions: 47 x 22 x 13 mm. Short circuit protection:\nNone. Applications: DIY a mobile Power supply boost charger Power supply for\nelectronic devices. Box contents: 5 x XL6009 adjustable DC boost module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWide input voltage: 3 V ~ 32 V; optimal operating voltage range: 5 ~ 32 V; wide output voltage: 5 V ~ 35 V\u003c\/li\u003e\n \u003cli\u003eThe XL6009 is a powerful 400kHz 4A switch currency step-up module (BOOST). This module is equipped with the high-frequency switch technology of the 3rd generation as a core chip. The performance is much higher than LM2577\u003c\/li\u003e\n \u003cli\u003eWith an ultra-high switching frequency of 400 kHz, the ripple is lower, even if filter capacitors with small capacity can achieve very good results (compared to the LM2577, the frequency is 50 kHz)\u003c\/li\u003e\n \u003cli\u003eWith 4A MOSFET switches with high efficiency, the efficiency of the XL6009 can be up to 94% (LM2577current is 3A\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T08:59:30+10:00","created_at":"2025-09-27T08:59:26+10:00","vendor":"Hailege","type":"Transducers","tags":["industryDE_Sep2025"],"price":12500,"price_min":12500,"price_max":12500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45749922398361,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07XRCJGLK","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hailege 5pcs XL6009 DC-DC Adjustable Boost Module DC3.0-30V to DC5-35V Output Voltage Power Converter PCB Module 400KHz","public_title":null,"options":["Default Title"],"price":12500,"weight":50,"compare_at_price":null,"inventory_management":"shopify","barcode":"H-1-0101","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B07XRCJGLK.jpg?v=1775754127","\/\/soundstores.net\/cdn\/shop\/files\/71nizWVW3NL.jpg?v=1758927569","\/\/soundstores.net\/cdn\/shop\/files\/711fja4SmqL.jpg?v=1758927569","\/\/soundstores.net\/cdn\/shop\/files\/71Ywe8dBxWL.jpg?v=1758927569","\/\/soundstores.net\/cdn\/shop\/files\/51XX8rQ6rQL.jpg?v=1758927569","\/\/soundstores.net\/cdn\/shop\/files\/513ox-x2r9L.jpg?v=1758927569","\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_7067dce7-6616-479b-b1e2-56a4065160cb.jpg?v=1758927569"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07XRCJGLK.jpg?v=1775754127","options":["Title"],"media":[{"alt":null,"id":34662647234713,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07XRCJGLK.jpg?v=1775754127"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07XRCJGLK.jpg?v=1775754127","width":1010},{"alt":null,"id":34662647267481,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71nizWVW3NL.jpg?v=1758927569"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71nizWVW3NL.jpg?v=1758927569","width":1500},{"alt":null,"id":34662647300249,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/711fja4SmqL.jpg?v=1758927569"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/711fja4SmqL.jpg?v=1758927569","width":1500},{"alt":null,"id":34662647333017,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71Ywe8dBxWL.jpg?v=1758927569"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71Ywe8dBxWL.jpg?v=1758927569","width":1500},{"alt":null,"id":34662647365785,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51XX8rQ6rQL.jpg?v=1758927569"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51XX8rQ6rQL.jpg?v=1758927569","width":500},{"alt":null,"id":34662647398553,"position":6,"preview_image":{"aspect_ratio":1.152,"height":434,"width":500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/513ox-x2r9L.jpg?v=1758927569"},"aspect_ratio":1.152,"height":434,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/513ox-x2r9L.jpg?v=1758927569","width":500},{"alt":null,"id":34662647431321,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_7067dce7-6616-479b-b1e2-56a4065160cb.jpg?v=1758927569"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_7067dce7-6616-479b-b1e2-56a4065160cb.jpg?v=1758927569","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHailege 5pcs XL6009 DC-DC Adjustable Boost Module DC3.0-30V to DC5-35V Output Voltage Power Converter PCB Module 400KHz\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: Input 3V output 12V 0.4A 4.8W Input 5 V output 12 V 0.8 A 9.6 W.\nInput 7.4 V output 12 V 1.5 A 18 W. Input 12 V output 15 V 2 A 30 W. Input 12\nV output 16 V 2 A 32 W. Input 12 V output 18 V 1.6 A 28.8 W. Input 12 V output\n19 V 1.5 A 28.5 W. Input 12 V output 24 V 1 A 24 W. Vin Iin Efficiency =\nVout Iout Vin: input voltage. Iin: input current. Vout: output voltage.\nIout: output current. Features: Module texture: non-isolated step-up (boost).\nRectification: Non-synchronous rectification Input voltage: 3V-32V. Output\nvoltage: 5V-35V. Input current: 4 A (max), no-load current 18 mA. Conversion\nefficiency: 94% (highest). Switching frequency: 400 kHz. Output ripple: 50mV\n(max). Load control: 0.5. % voltage regulation: 0.5%. Operating temperature:\n-40 °C. C to +85? c cup Dimensions: 47 x 22 x 13 mm. Short circuit protection:\nNone. Applications: DIY a mobile Power supply boost charger Power supply for\nelectronic devices. Box contents: 5 x XL6009 adjustable DC boost module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWide input voltage: 3 V ~ 32 V; optimal operating voltage range: 5 ~ 32 V; wide output voltage: 5 V ~ 35 V\u003c\/li\u003e\n \u003cli\u003eThe XL6009 is a powerful 400kHz 4A switch currency step-up module (BOOST). This module is equipped with the high-frequency switch technology of the 3rd generation as a core chip. The performance is much higher than LM2577\u003c\/li\u003e\n \u003cli\u003eWith an ultra-high switching frequency of 400 kHz, the ripple is lower, even if filter capacitors with small capacity can achieve very good results (compared to the LM2577, the frequency is 50 kHz)\u003c\/li\u003e\n \u003cli\u003eWith 4A MOSFET switches with high efficiency, the efficiency of the XL6009 can be up to 94% (LM2577current is 3A\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e"}
