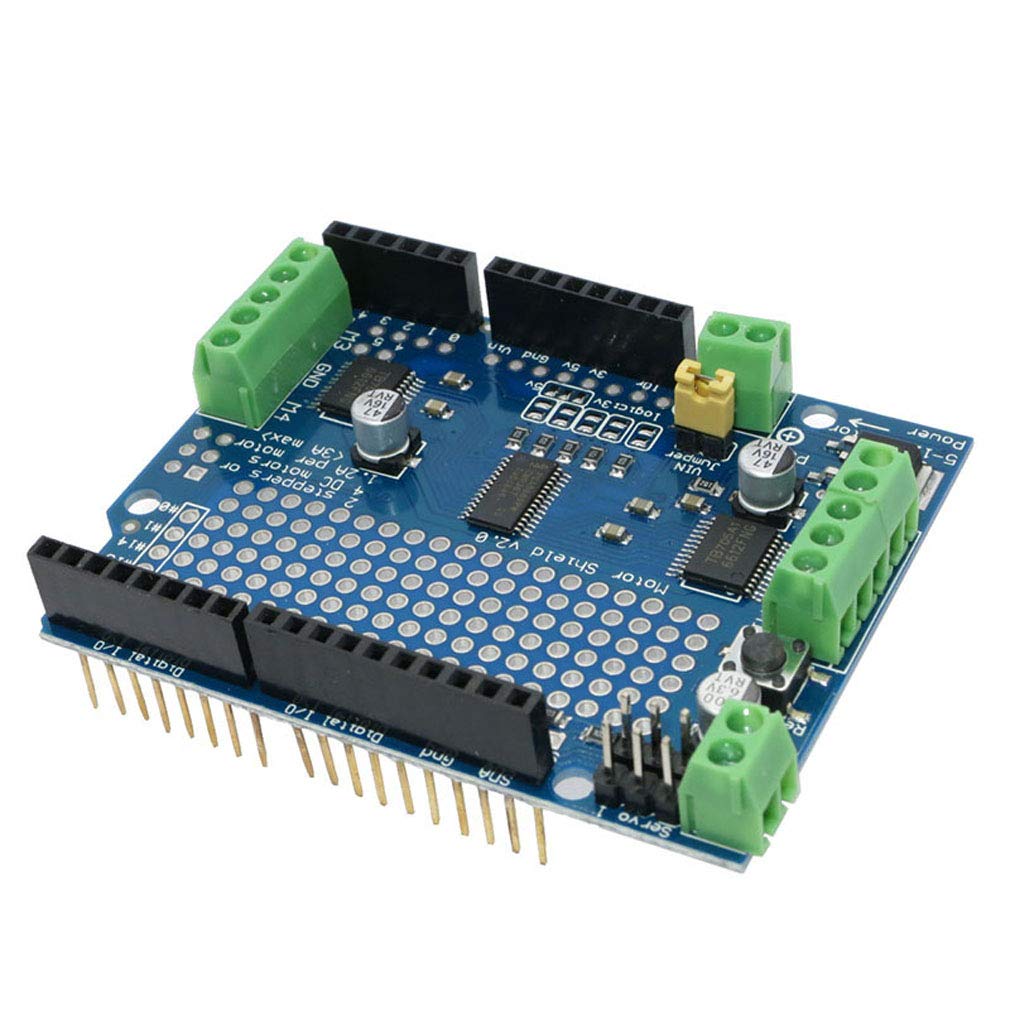

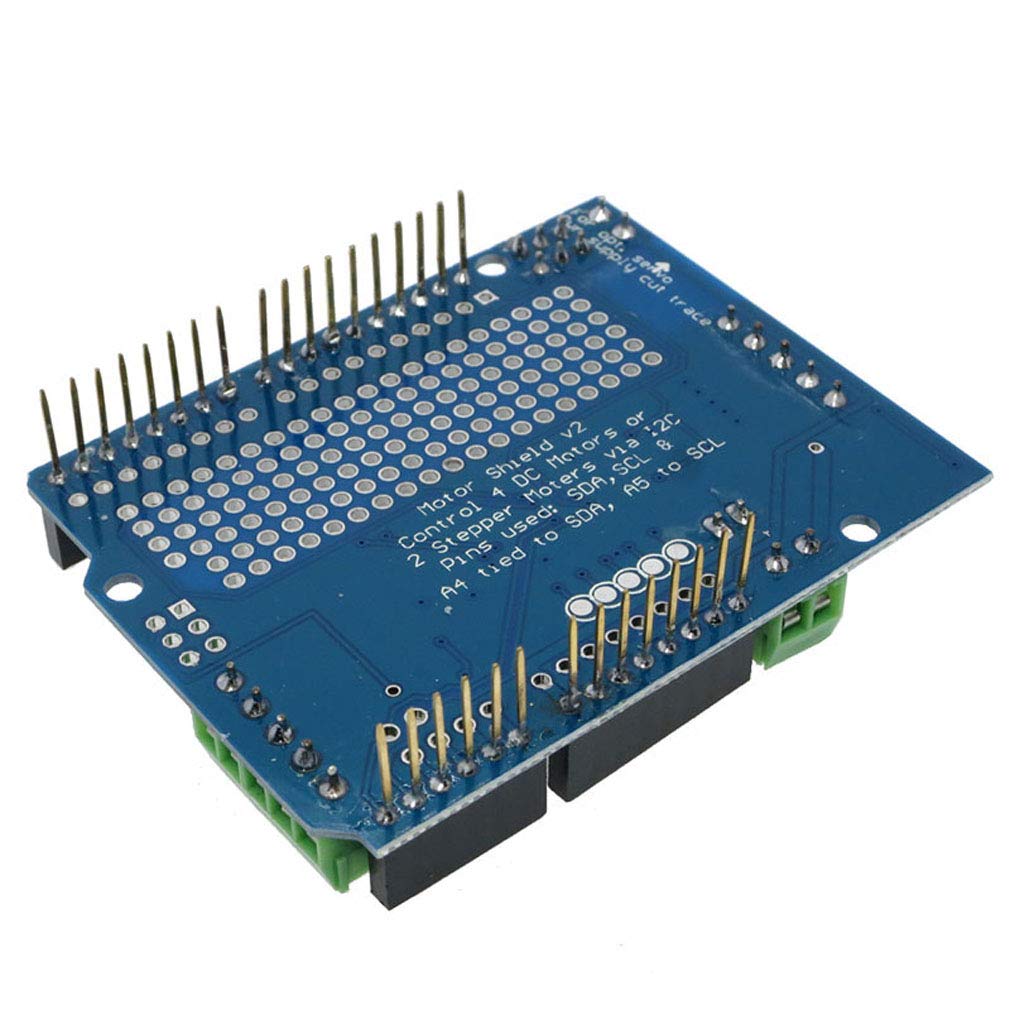

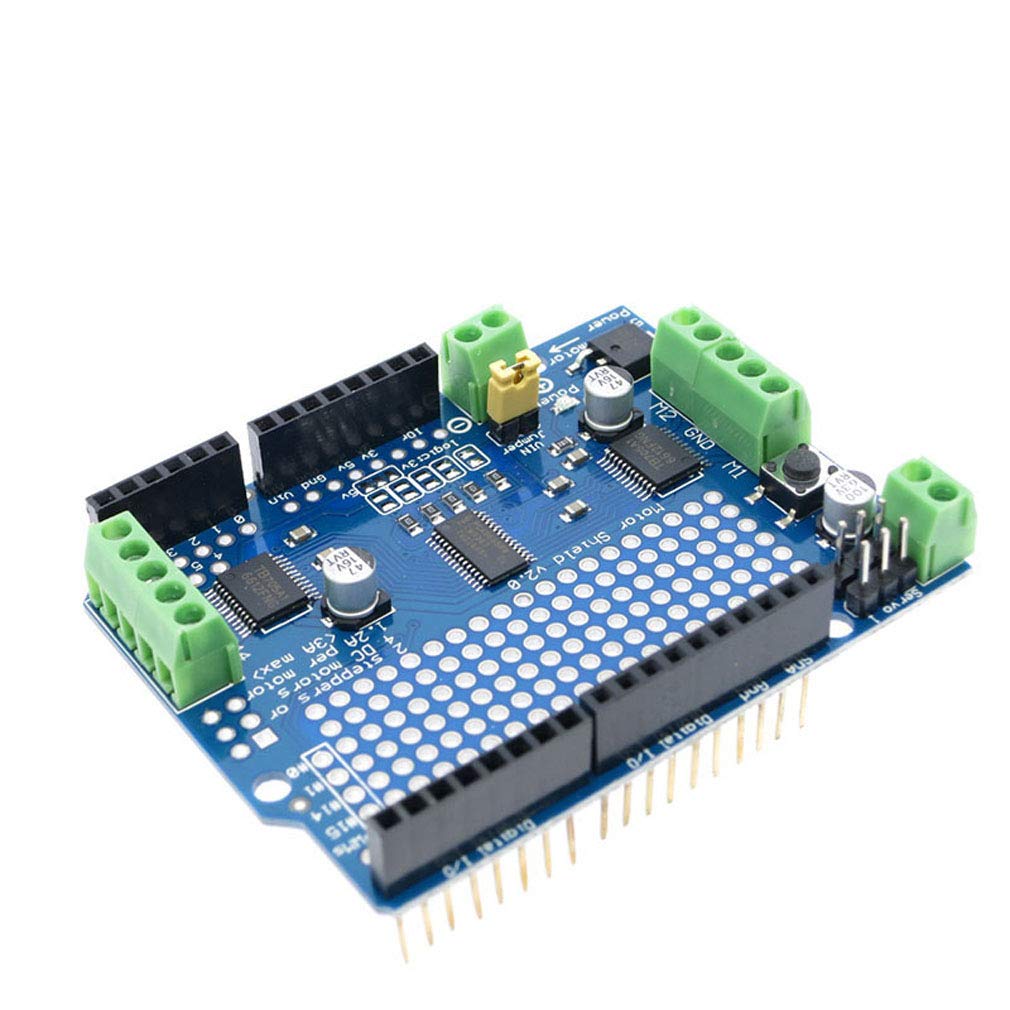

{"id":8532573225113,"title":"Hailege TB6612 TB6612FNG Mosfet Motor Shield IIC I2C Stepper Motor PCA9685 PWM Servo Driver Shield V2 Robot PWM Replaces L293D","handle":"hailege-tb6612-tb6612fng-mosfet-motor-shield-iic-i2c-stepper-motor-pca9685-pwm-servo-driver-shield-v2-robot-pwm-replaces-l293d","description":"\u003ch3\u003eHailege TB6612 TB6612FNG Mosfet Motor Shield IIC I2C Stepper Motor PCA9685 PWM Servo Driver Shield V2 Robot PWM Replaces L293D\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: Make your own motor party with a motor shield and a fine\nselection of engines! The original L293D Motorshield kit is one of our most\npopular kits. We have maintained the ability to run up to 4 DC motors or 2\nstepper motors, but added many improvements. Instead of a L293D Darlington\ndriver, we now have the. MOSFET Driver TB6612: with 1.2A per channel and 3A\npeak current. It also has much lower voltage drops on the motor, so you get\nmore torque out of your batteries, and there are also built-in flyback diodes.\nInstead of using a latch and the PWM pins, we have a fully dedicated PWM\ndriver chip on board. This chip takes over all engine and speed controls via\nI2C. Only two pins (SDA \u0026amp; SCL) are required to control the multiple motors,\nand since these are I2C, you can also connect any other I2C devices or shields\nto the same pins. This makes it also drop-in compatible with all, such as Uno,\nDue, Leonardo and Mega R3. Fully stackable design: 5 address selection pins\nmean up to 32 stackable shields: that's 64 stepper motors or 128 DC motors!\nWhat in the world could you do with so many steppers? I have no idea, but if\nyou think of something, send us a photo, because that would be a pretty great\nproject. Tested compatible with UNO, Leonardo, ADK\/Mega R3, Due, Diecimila \u0026amp;\nDuemilanove. Works with Mega\/ADK R2 and earlier with 2 wire bridges. Box\ncontents: 1 x TB6612FNG stepper motor servo\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eChip: TB6612FNG Motor Driver Chip\u003c\/li\u003e\n \u003cli\u003eThe TB6612 chipset provides 1.2A per bridge (3A peak)\u003c\/li\u003e\n \u003cli\u003eFULLY STACKABLE DESIGN 5 address selection pins mean up to 32 stackable shields\u003c\/li\u003e\n \u003cli\u003eMotors are automatically deactivated when switched on\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-26T02:01:50+10:00","created_at":"2025-09-26T02:01:46+10:00","vendor":"Hailege","type":"Transistors","tags":["industryDE_Sep2025"],"price":19500,"price_min":19500,"price_max":19500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45747074367641,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07Z78DH14","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hailege TB6612 TB6612FNG Mosfet Motor Shield IIC I2C Stepper Motor PCA9685 PWM Servo Driver Shield V2 Robot PWM Replaces L293D","public_title":null,"options":["Default Title"],"price":19500,"weight":50,"compare_at_price":null,"inventory_management":"shopify","barcode":"H-1-1428","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B07Z78DH14.jpg?v=1775752632","\/\/soundstores.net\/cdn\/shop\/files\/61w0lRDnX5L.jpg?v=1758816109","\/\/soundstores.net\/cdn\/shop\/files\/61T38Na9teL.jpg?v=1758816109","\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_8dc97b26-286e-4a09-9050-a18042dc45ad.jpg?v=1758816109"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07Z78DH14.jpg?v=1775752632","options":["Title"],"media":[{"alt":"[AUSTRALIA] - Hailege TB6612 TB6612FNG Mosfet Motor Shield IIC I2C Stepper Motor PCA9685 PWM Servo Driver Shield V2 Robot PWM Replaces L293D ","id":34643329286297,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07Z78DH14.jpg?v=1775752632"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07Z78DH14.jpg?v=1775752632","width":1010},{"alt":"[AUSTRALIA] - Hailege TB6612 TB6612FNG Mosfet Motor Shield IIC I2C Stepper Motor PCA9685 PWM Servo Driver Shield V2 Robot PWM Replaces L293D ","id":34643329319065,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61w0lRDnX5L.jpg?v=1758816109"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61w0lRDnX5L.jpg?v=1758816109","width":1010},{"alt":"[AUSTRALIA] - Hailege TB6612 TB6612FNG Mosfet Motor Shield IIC I2C Stepper Motor PCA9685 PWM Servo Driver Shield V2 Robot PWM Replaces L293D ","id":34643329351833,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61T38Na9teL.jpg?v=1758816109"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61T38Na9teL.jpg?v=1758816109","width":1010},{"alt":"[AUSTRALIA] - Hailege TB6612 TB6612FNG Mosfet Motor Shield IIC I2C Stepper Motor PCA9685 PWM Servo Driver Shield V2 Robot PWM Replaces L293D ","id":34643329384601,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_8dc97b26-286e-4a09-9050-a18042dc45ad.jpg?v=1758816109"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51c0Ga4AmdL_8dc97b26-286e-4a09-9050-a18042dc45ad.jpg?v=1758816109","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHailege TB6612 TB6612FNG Mosfet Motor Shield IIC I2C Stepper Motor PCA9685 PWM Servo Driver Shield V2 Robot PWM Replaces L293D\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: Make your own motor party with a motor shield and a fine\nselection of engines! The original L293D Motorshield kit is one of our most\npopular kits. We have maintained the ability to run up to 4 DC motors or 2\nstepper motors, but added many improvements. Instead of a L293D Darlington\ndriver, we now have the. MOSFET Driver TB6612: with 1.2A per channel and 3A\npeak current. It also has much lower voltage drops on the motor, so you get\nmore torque out of your batteries, and there are also built-in flyback diodes.\nInstead of using a latch and the PWM pins, we have a fully dedicated PWM\ndriver chip on board. This chip takes over all engine and speed controls via\nI2C. Only two pins (SDA \u0026amp; SCL) are required to control the multiple motors,\nand since these are I2C, you can also connect any other I2C devices or shields\nto the same pins. This makes it also drop-in compatible with all, such as Uno,\nDue, Leonardo and Mega R3. Fully stackable design: 5 address selection pins\nmean up to 32 stackable shields: that's 64 stepper motors or 128 DC motors!\nWhat in the world could you do with so many steppers? I have no idea, but if\nyou think of something, send us a photo, because that would be a pretty great\nproject. Tested compatible with UNO, Leonardo, ADK\/Mega R3, Due, Diecimila \u0026amp;\nDuemilanove. Works with Mega\/ADK R2 and earlier with 2 wire bridges. Box\ncontents: 1 x TB6612FNG stepper motor servo\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eChip: TB6612FNG Motor Driver Chip\u003c\/li\u003e\n \u003cli\u003eThe TB6612 chipset provides 1.2A per bridge (3A peak)\u003c\/li\u003e\n \u003cli\u003eFULLY STACKABLE DESIGN 5 address selection pins mean up to 32 stackable shields\u003c\/li\u003e\n \u003cli\u003eMotors are automatically deactivated when switched on\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e"}
