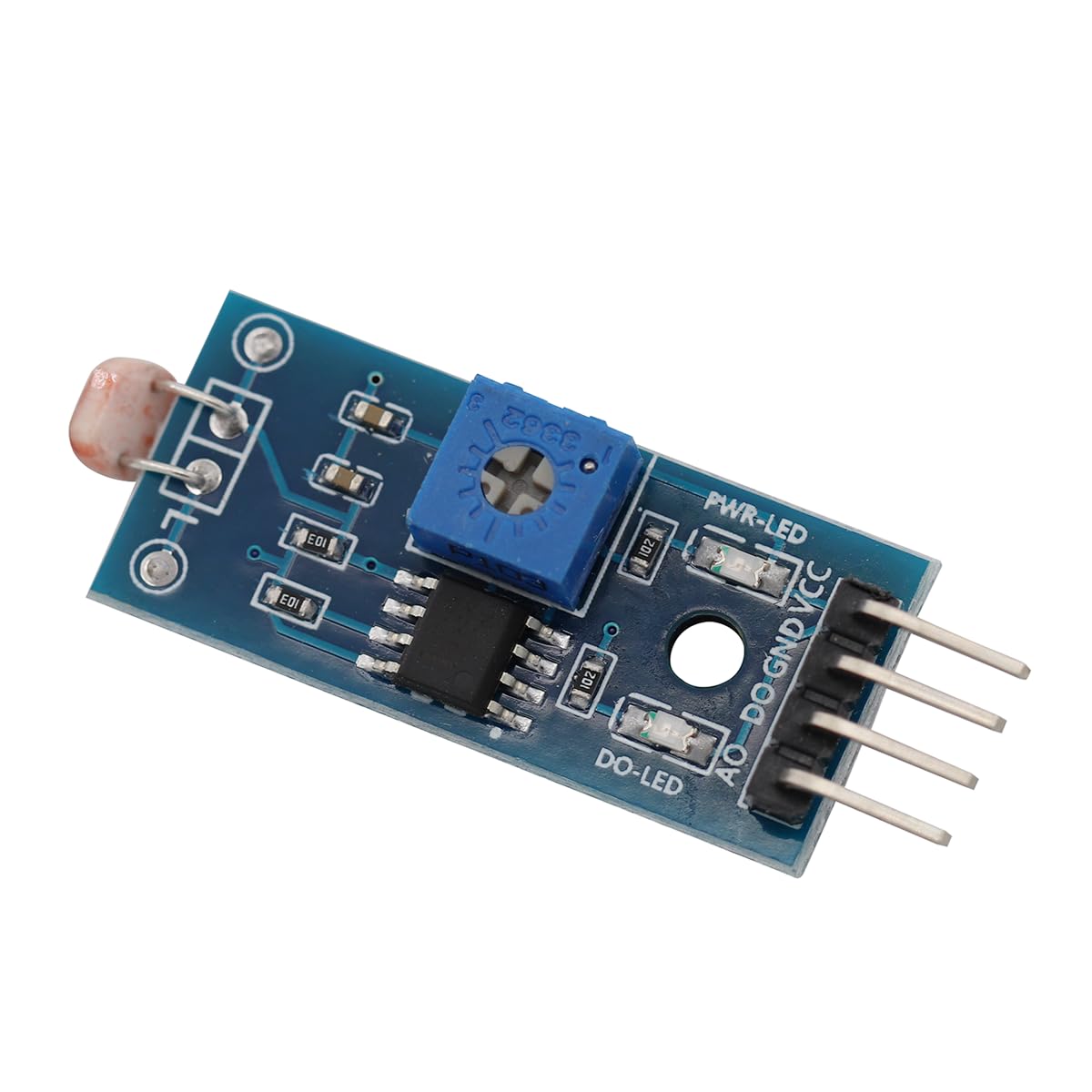

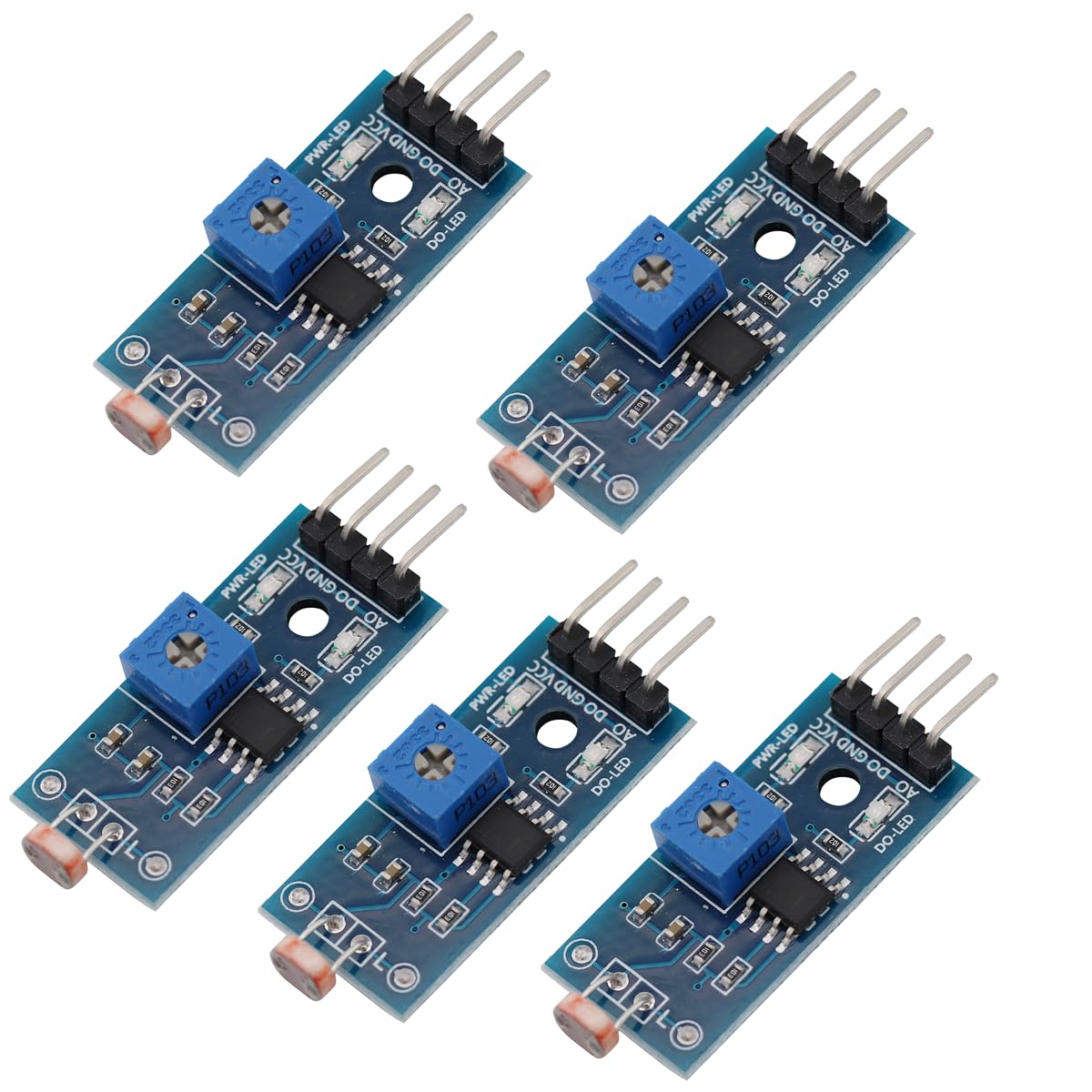

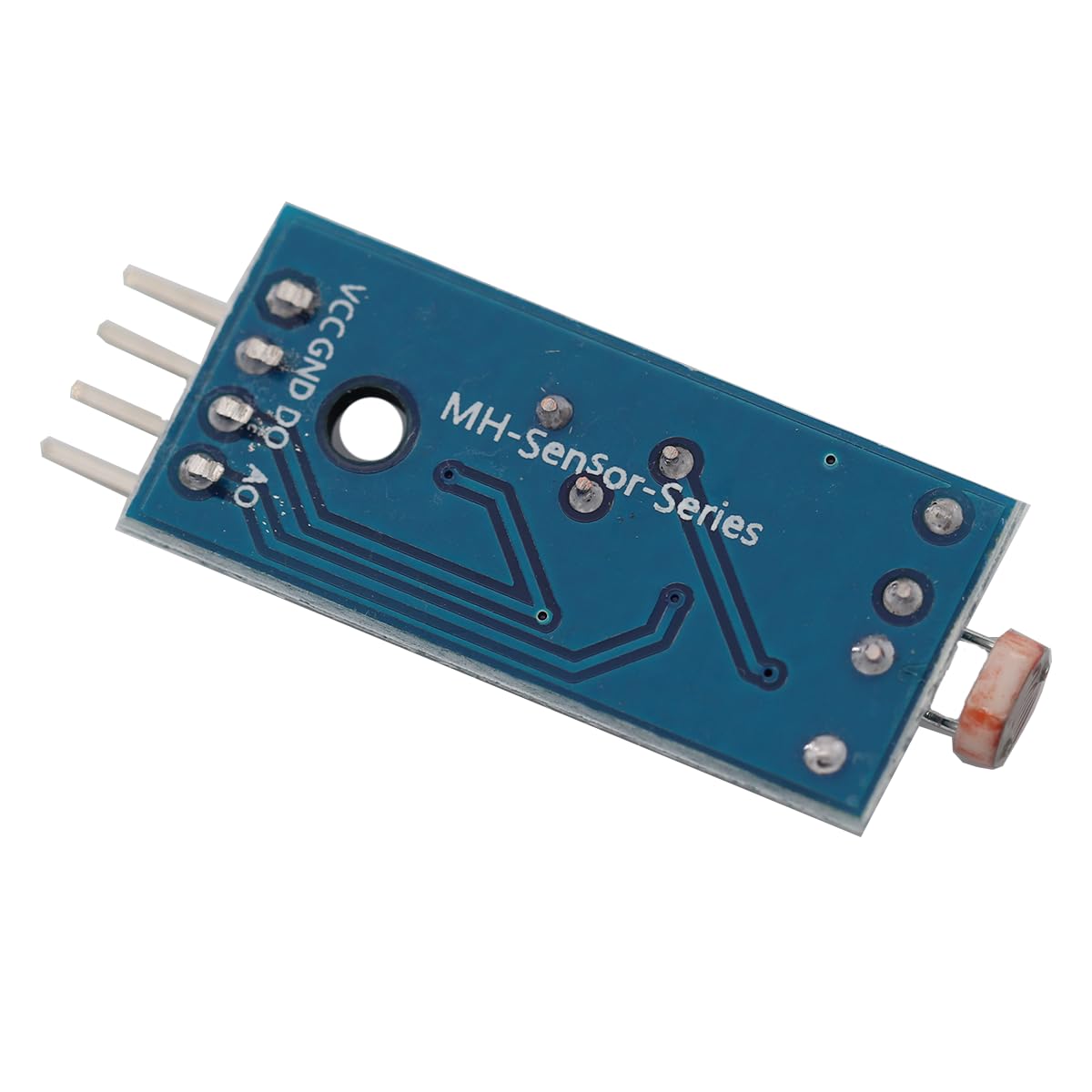

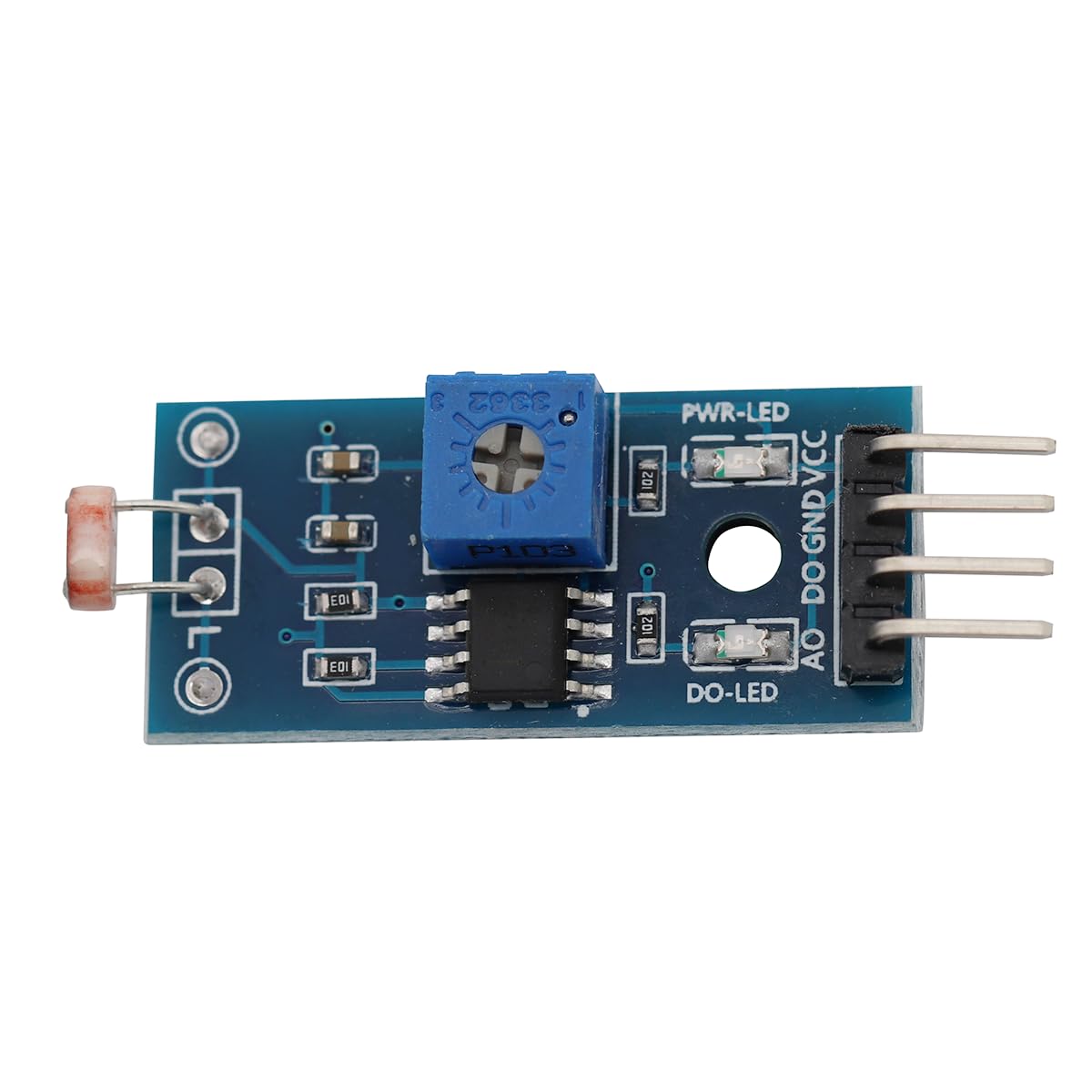

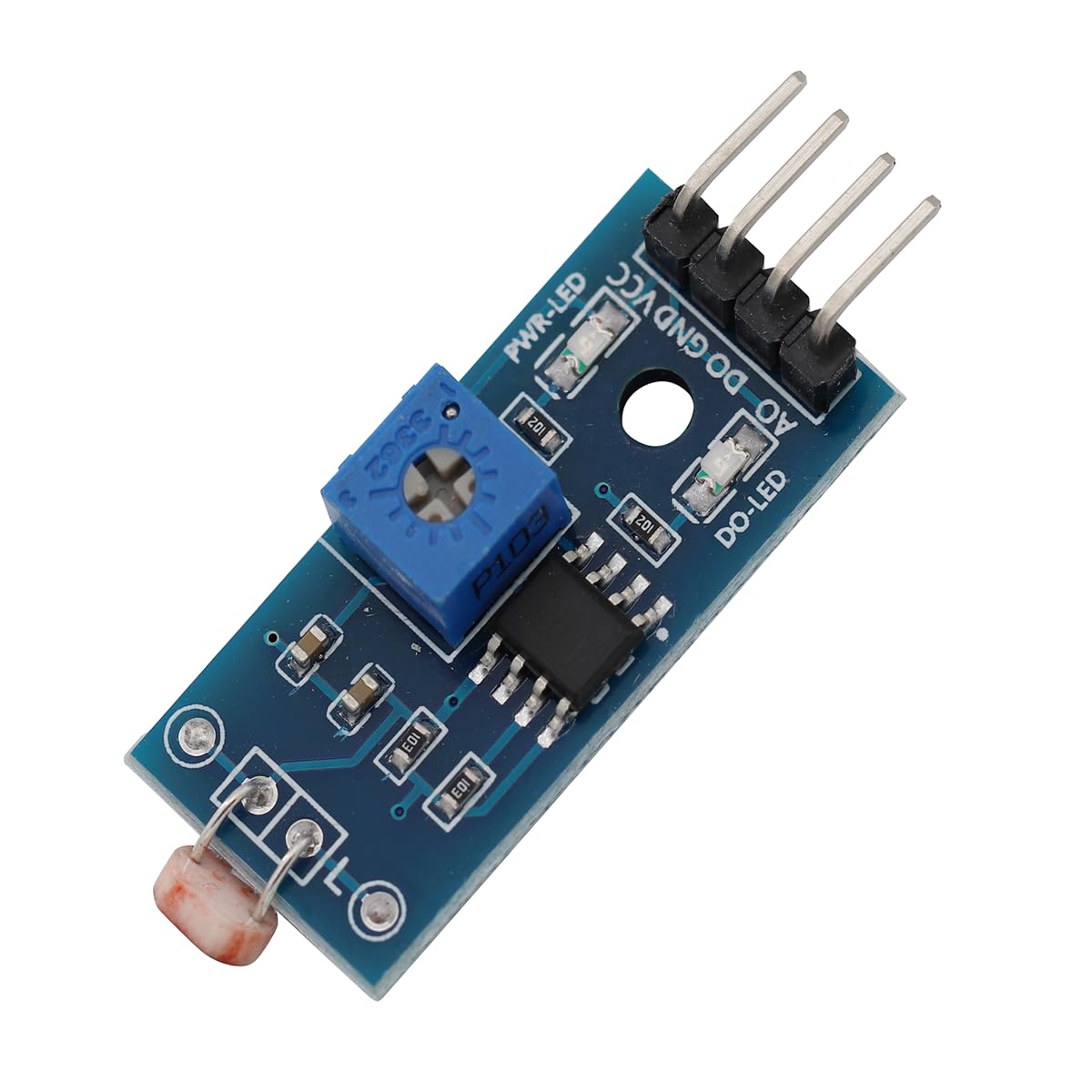

{"id":8530697617561,"title":"Heevhas 5pcs 4 Pin Photoresistor Sensor Light Detection Photoresistor Module Light Sensor Light Detector Module with Digital Output","handle":"heevhas-5pcs-4-pin-photoresistor-sensor-light-detection-photoresistor-module-light-sensor-light-detector-module-with-digital-output","description":"\u003ch3\u003eHeevhas 5pcs 4 Pin Photoresistor Sensor Light Detection Photoresistor Module Light Sensor Light Detector Module with Digital Output\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eModule functions: 1. Use a sensitive photoresistance sensor. 2. Comparator\noutput, clean signal, good waveform, strong driving ability, more than 15 mA.\n3. Equipped with an adjustable potentiometer to adjust the brightness of the\ndetection light. 4. Working voltage 3.3V-5V 5. Output form: DO digital\nswitching output (0 and 1) and AO analog voltage output. 6. Equipped with\nmounting screw holes for easy installation. 7. Small PCB Size: 32mm x 14mm 8.\nUse the LM393 wide voltage comparator. 4 wire interfaces: - VCC: positive\npower supply 3.3-5V. - GND: power supply is negative - DO: TTL switching\nsignal output. - AO: analogue output. Application: Light intensity detection,\nintelligent car light module, with directional, only perceptible light source\nin front of the sensor, more suitable for looking for light. Use: 1. If there\nis no light or light intensity, the value cannot be reached, DO intensity\noutput is high level. When light is above than the value, DO the module power\nis low level. 2. The module digital output DO can be connected directly to the\nmicrocontroller, the use microcontrollers detect high or low level, so that\nthe environmental light intensity change can detect. 3. This board can use\ndigital output interface module drive relay directly DO can also be used as an\noptical switch. 4. The analog output AO connects with AD module, and it can\nget a more accurate light intensity value through the AD converter. Package\nincludes: 5 x 4 pin photoresistor sensor light detector module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eVoltage Parameters: Using a wide voltage LM393 comparator; Working voltage: 3.3V-5V, output form: DO digital switching output (0 and 1) and AO analog voltage output.With a mouting screw hole to install easily.\u003c\/li\u003e\n \u003cli\u003eHigh power high efficiency: low power consumption, small size, easy for embedded installation. With the sensitive light-sensitive resistance sensor. High sensitivity and high reliability. The waveform of the output signal is good, which has a strong driving ability. Small size, low power consumption, fast response. Strong vibration resistance, good electromechanical performance, long signal transmission;\u003c\/li\u003e\n \u003cli\u003eApplication: This module is sensitive to the light, commonly used to detect ambient brightness and light intensity, widely used in various automatic detection functions for electrical appliances, body induction lamps, body sensor toys, especially battery powered products for automatic control.\u003c\/li\u003e\n \u003cli\u003eFunction 1: The DO output port can be connected directly to the microcontroller, and the microcontroller detects the high and low levels and thus detects changes in the brightness of the ambient light. The DO output can directly control our relay module, which can form a light-controlled module.\u003c\/li\u003e\n \u003cli\u003eFunction 2: The small board analogue output AO can be connected to the AD module. AD conversion allows a more accurate value of ambient light intensity to be determined.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-24T23:55:22+10:00","created_at":"2025-09-24T23:55:18+10:00","vendor":"Heevhas","type":"Photo Detectors","tags":["industryDE_Sep2025"],"price":10400,"price_min":10400,"price_max":10400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45743353888921,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0CW9PH46Z","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Heevhas 5pcs 4 Pin Photoresistor Sensor Light Detection Photoresistor Module Light Sensor Light Detector Module with Digital Output","public_title":null,"options":["Default Title"],"price":10400,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"058","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0CW9PH46Z.jpg?v=1775749590","\/\/soundstores.net\/cdn\/shop\/files\/61e5XhrriTL.jpg?v=1758722121","\/\/soundstores.net\/cdn\/shop\/files\/61VlkTavISL.jpg?v=1758722121","\/\/soundstores.net\/cdn\/shop\/files\/51FnQmQcFSL.jpg?v=1758722121","\/\/soundstores.net\/cdn\/shop\/files\/519qCnQpRAL.jpg?v=1758722121"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0CW9PH46Z.jpg?v=1775749590","options":["Title"],"media":[{"alt":null,"id":34626654306457,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0CW9PH46Z.jpg?v=1775749590"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0CW9PH46Z.jpg?v=1775749590","width":1200},{"alt":null,"id":34626654339225,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61e5XhrriTL.jpg?v=1758722121"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61e5XhrriTL.jpg?v=1758722121","width":1200},{"alt":null,"id":34626654371993,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61VlkTavISL.jpg?v=1758722121"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61VlkTavISL.jpg?v=1758722121","width":1200},{"alt":null,"id":34626654404761,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51FnQmQcFSL.jpg?v=1758722121"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51FnQmQcFSL.jpg?v=1758722121","width":1200},{"alt":null,"id":34626654437529,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/519qCnQpRAL.jpg?v=1758722121"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/519qCnQpRAL.jpg?v=1758722121","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHeevhas 5pcs 4 Pin Photoresistor Sensor Light Detection Photoresistor Module Light Sensor Light Detector Module with Digital Output\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eModule functions: 1. Use a sensitive photoresistance sensor. 2. Comparator\noutput, clean signal, good waveform, strong driving ability, more than 15 mA.\n3. Equipped with an adjustable potentiometer to adjust the brightness of the\ndetection light. 4. Working voltage 3.3V-5V 5. Output form: DO digital\nswitching output (0 and 1) and AO analog voltage output. 6. Equipped with\nmounting screw holes for easy installation. 7. Small PCB Size: 32mm x 14mm 8.\nUse the LM393 wide voltage comparator. 4 wire interfaces: - VCC: positive\npower supply 3.3-5V. - GND: power supply is negative - DO: TTL switching\nsignal output. - AO: analogue output. Application: Light intensity detection,\nintelligent car light module, with directional, only perceptible light source\nin front of the sensor, more suitable for looking for light. Use: 1. If there\nis no light or light intensity, the value cannot be reached, DO intensity\noutput is high level. When light is above than the value, DO the module power\nis low level. 2. The module digital output DO can be connected directly to the\nmicrocontroller, the use microcontrollers detect high or low level, so that\nthe environmental light intensity change can detect. 3. This board can use\ndigital output interface module drive relay directly DO can also be used as an\noptical switch. 4. The analog output AO connects with AD module, and it can\nget a more accurate light intensity value through the AD converter. Package\nincludes: 5 x 4 pin photoresistor sensor light detector module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eVoltage Parameters: Using a wide voltage LM393 comparator; Working voltage: 3.3V-5V, output form: DO digital switching output (0 and 1) and AO analog voltage output.With a mouting screw hole to install easily.\u003c\/li\u003e\n \u003cli\u003eHigh power high efficiency: low power consumption, small size, easy for embedded installation. With the sensitive light-sensitive resistance sensor. High sensitivity and high reliability. The waveform of the output signal is good, which has a strong driving ability. Small size, low power consumption, fast response. Strong vibration resistance, good electromechanical performance, long signal transmission;\u003c\/li\u003e\n \u003cli\u003eApplication: This module is sensitive to the light, commonly used to detect ambient brightness and light intensity, widely used in various automatic detection functions for electrical appliances, body induction lamps, body sensor toys, especially battery powered products for automatic control.\u003c\/li\u003e\n \u003cli\u003eFunction 1: The DO output port can be connected directly to the microcontroller, and the microcontroller detects the high and low levels and thus detects changes in the brightness of the ambient light. The DO output can directly control our relay module, which can form a light-controlled module.\u003c\/li\u003e\n \u003cli\u003eFunction 2: The small board analogue output AO can be connected to the AD module. AD conversion allows a more accurate value of ambient light intensity to be determined.\u003c\/li\u003e\n \u003c\/ul\u003e"}
