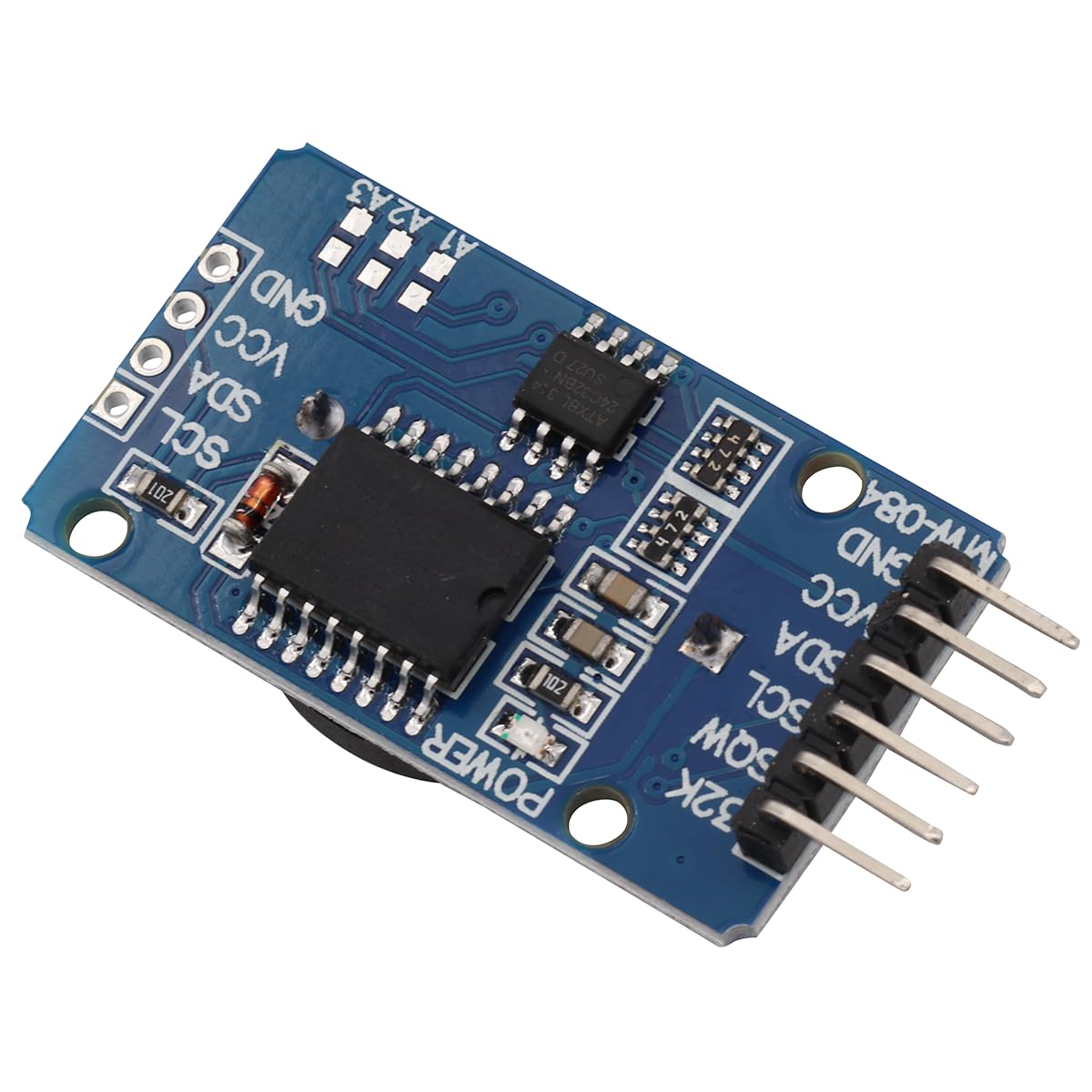

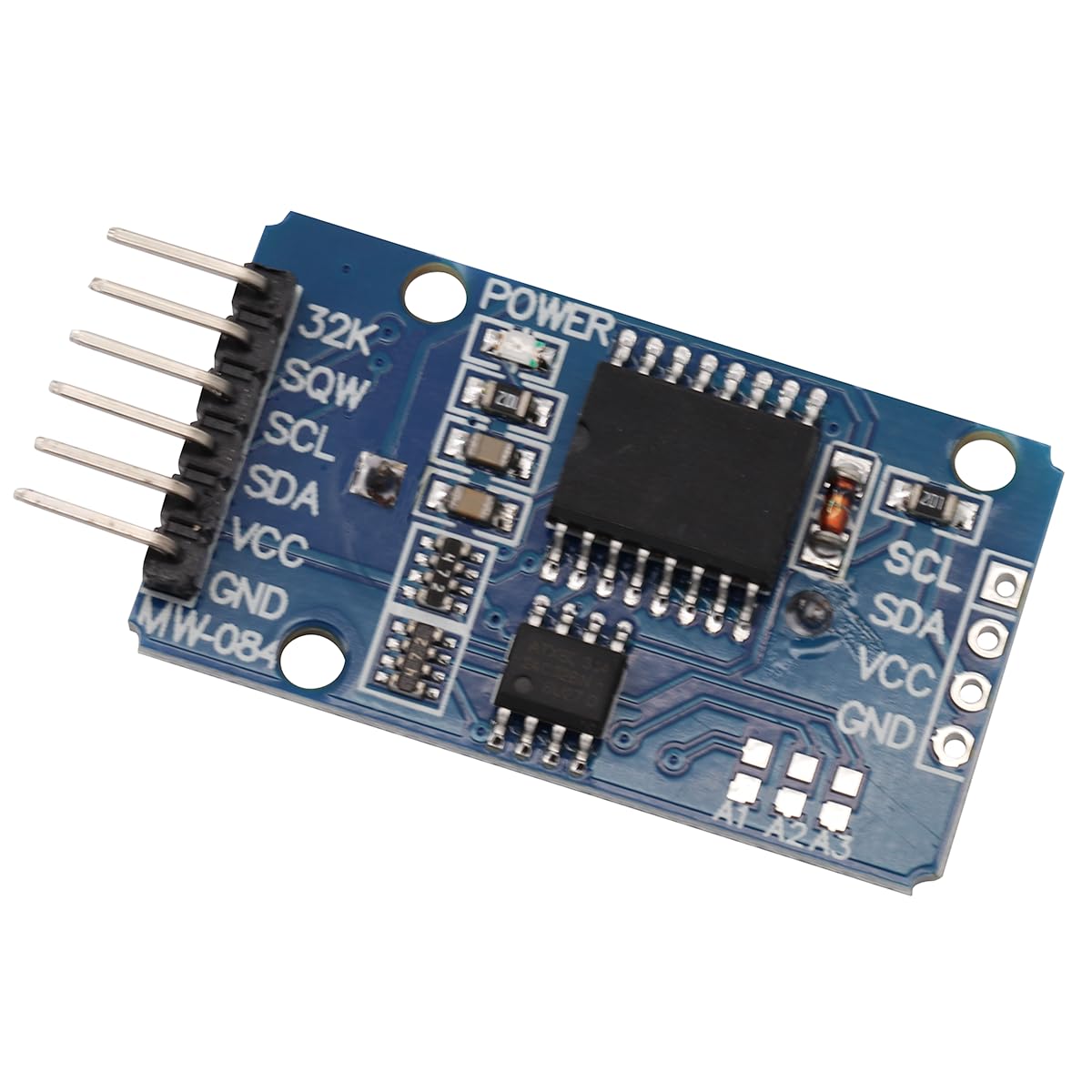

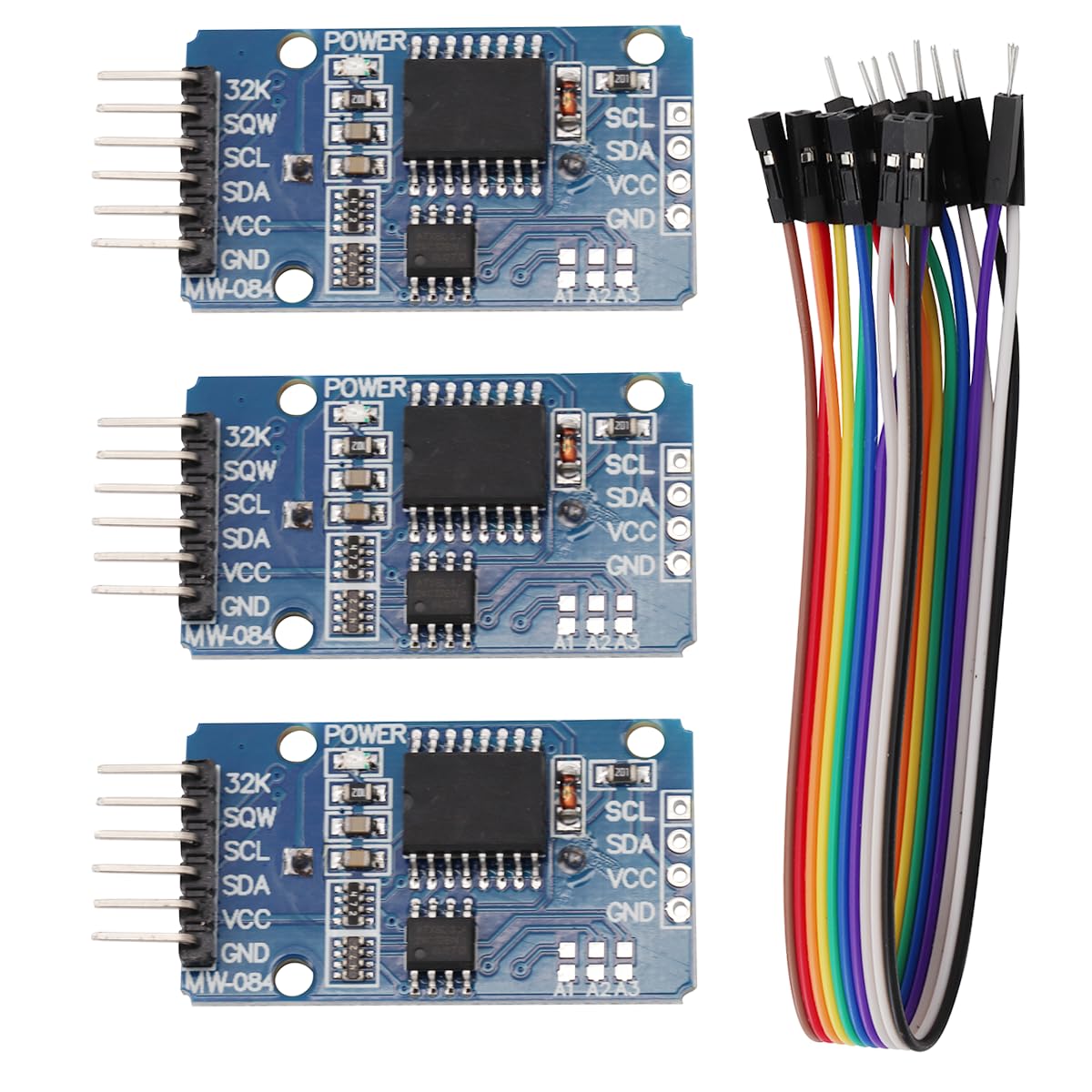

Heevhas Real Time Clock Module RTC Module DS3231 AT24C32 High Precision Clock Module IIC Module Memory Module + 10P Cable (Pack of 3)
Heevhas Real Time Clock Module RTC Module DS3231 AT24C32 High Precision Clock Module IIC Module Memory Module + 10P Cable (Pack of 3)

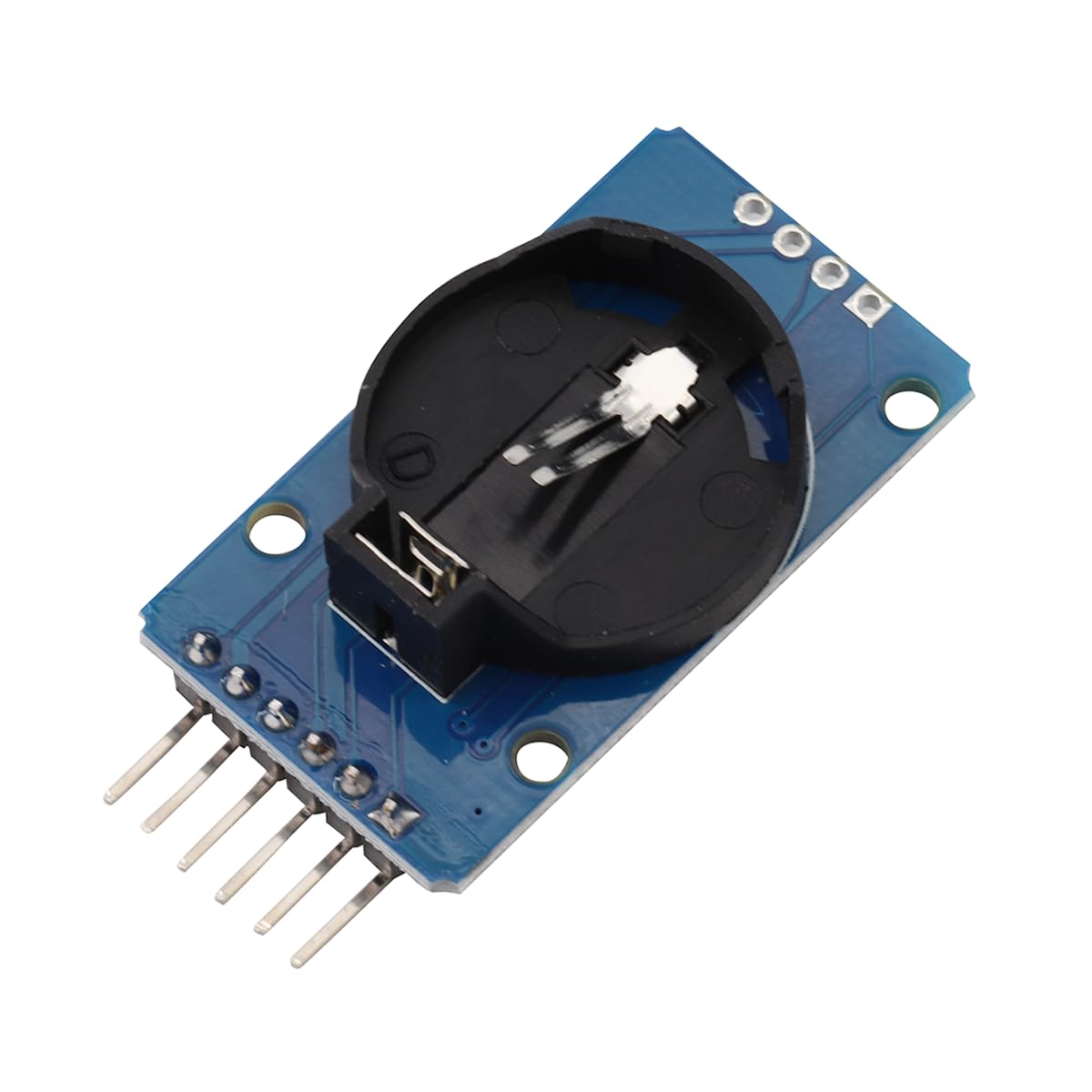

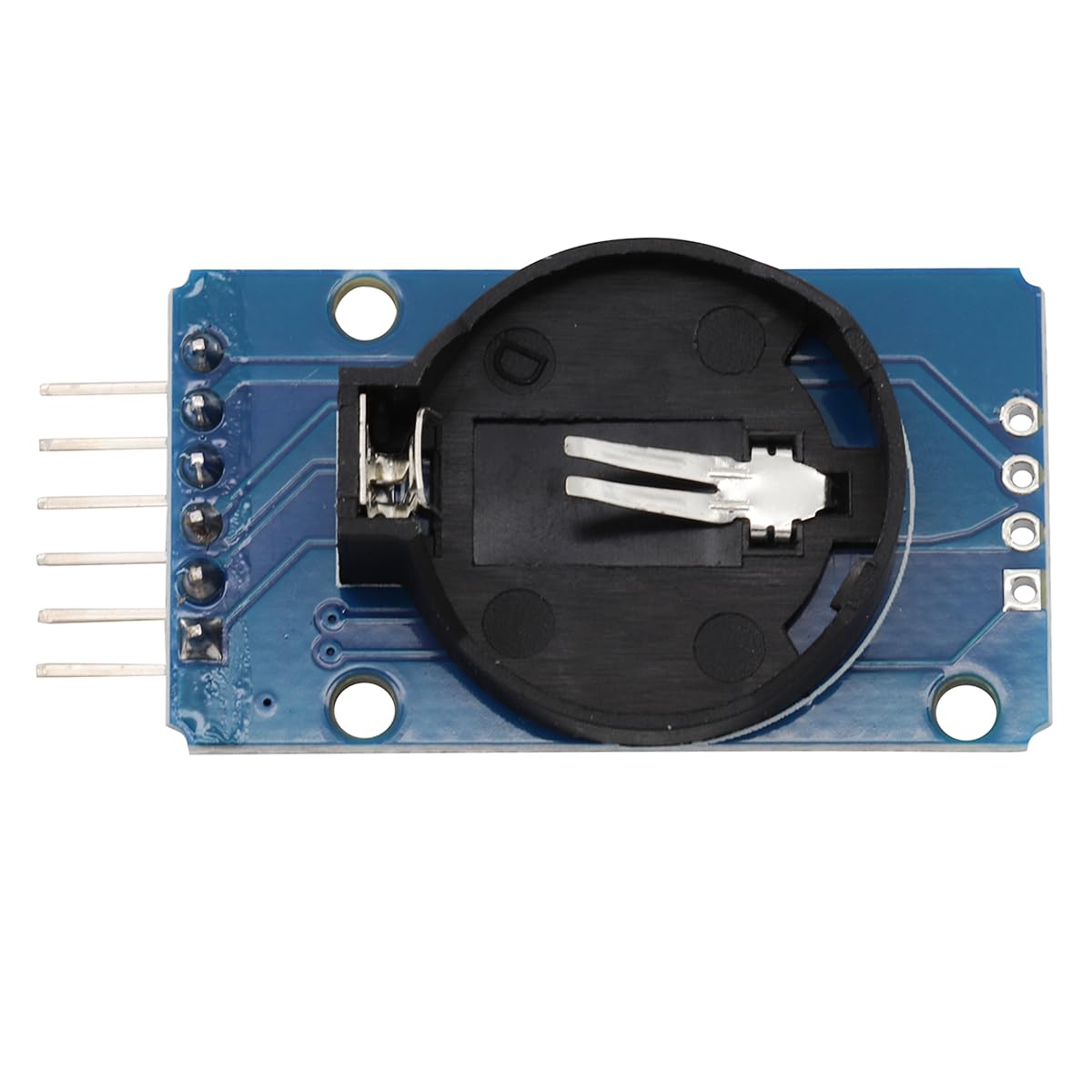

Product description: The control circuit of the film can realise automatic power detection and manages the power switch between the main power supply and the replacement power supply (i.e. the low voltage battery). If the main power supply is lost, the device can continue to provide timing and temperature and the performance is not affected. When the main power supply is re-button or the voltage value is returned to the allowed range, the reset function on the film can be used to restart the system microprocessor. Module parameters: 1. Size: 38 mm x 22 mm x 14 mm. 2. Weight: 8 g. 3. Working voltage: 3.3-5.5V 4. Clock chip: high-precision clock chip DS3231. 5. Clock Accuracy: In the range of 0-40℃, the accuracy is 2ppm and the annual error is about 1 minute. 6. Comes with 2 calendar alarm clocks 7. Programmable rectangular wave output. 8. The real-time clock generates seconds, minutes, hours, day of the week, date, month and year and offers leap year compensation valid up to the year 2100. 9. The chip has its own temperature sensor with an accuracy of ±3°C. 10. Memory chip: AT24C32 (storage capacity 32K) 11.IIC bus interface, transmission speed 400 kHz (at a working voltage of 5V). 12. Other IIC devices can be cascaded. The 24C32 address can be changed by short circuiting A0/A1/A2. The default address is 0x57. 13. When you prepare the CR2032 battery, it will ensure that the clock continues to run normally even after turning off the system (battery not included, you need to prepare the battery yourself). Wiring instructions: SCL → A5. SDA→A4. VCC → 5 V. GND→GND Package includes: 3 x real time clock module RTC module. 10P cable
Product Features
- Parameters: DS3231 AT24C32 real-time clock module; Working voltage: 3.3V-5.5V, Chip: High-accuracy chip DS3231M, AT24C32 memory chip with a reliable storage capacity of 32k for data and configuration information.
- Full Clock Calendar: RTC manages seconds, minutes, hours, day, date, month and year. For less than 31 days a month, the end date is automatically adjusted, including adjustments for the leap year. The watch works in either 24 hour format or band/AM/PM format in 12 hour format.
- Real Time Clock DS3231 RTC Module: DS3231 is a cost-effective, highly accurate I2C real-time clock (RTC) with integrated temperature compensated quartz oscillator (TCXO) and quartz. Two programmable daytime alarms and a 1 Hz output are available. Address and data are transmitted serially via a bi-directional I2C bus.Clock Accuracy: range 0-40, accuracy 2ppm, error approx. 1 minute;
- High performance: IIC bus interface, the maximum transmission speed of 400 kHz (working voltage of 5 V); can be cascaded with other IIC devices, 24C32 addresses can be short-circuited. Change A0/A1/A2, default address is 0x57.
