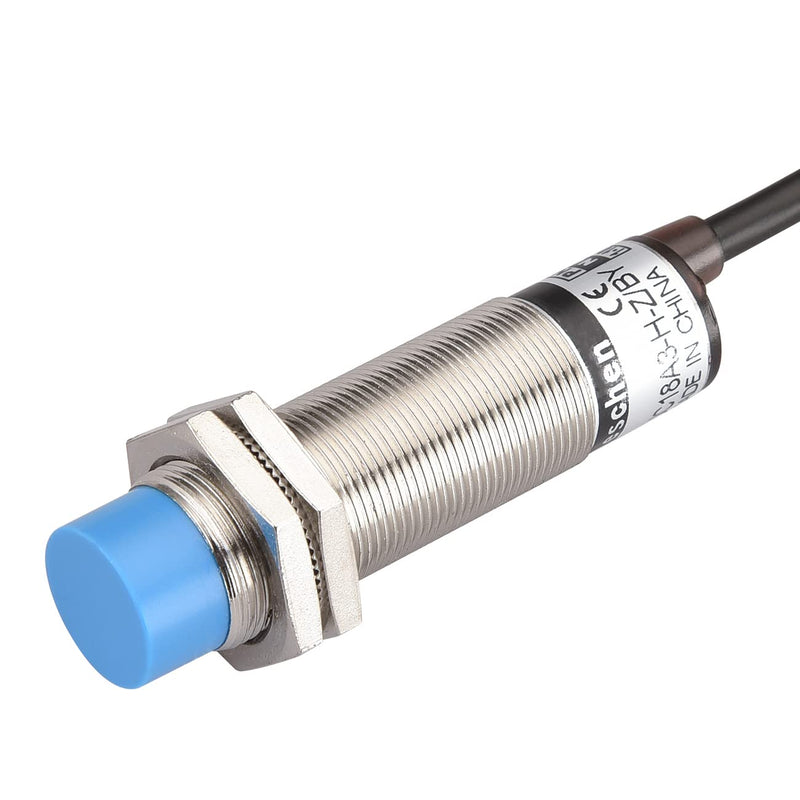

{"id":7503080816793,"title":"Heschen M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-H-Z\/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires","handle":"heschen-m18-capacitive-proximity-sensor-switch-non-shield-type-ljc18a3-h-z-by-detection-10mm-10-30vdc-200ma-pnp-normally-openno-3-wires","description":"\u003ch3\u003eHeschen M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-H-Z\/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDetection Object:Can detect any dielectric.Delay Distance:10% below of the\ndetection distance.Supply Voltage:DC12-24V(10-30V) Impulse (p-p)10%\nbelow.Comsuption Current:13mA below.Control Output: 200mA below.Loop\nProtection :reversal connection protection,surge absorption,load short-circuit\nprotection.Ambient Temperature \u0026amp; Humidity:During operation , storage :\nindividually-30～＋65℃(no freeze ,no drew ) ,During\noperation,storage:individually 35-95%RH.Insulation Impedance :50MΩ above (\nDC500 megameter ) between charging part and shell.Withstand Voltage : AC1000V\n50\/60Hz 1 min. between charging part and shell.Temperature Influence :\nTemperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature\nrange-25～＋60℃,at +23℃,±10% detection distance.Voltage influence : Inside ±I5%\nrated supply voltage range,at rated supply voltage value ,inside ± 10 %\ndetection distance.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Diameter: 18mm\u003c\/li\u003e\n \u003cli\u003eDetecting Distance: 10mm10%; Set distance:0-8mm\u003c\/li\u003e\n \u003cli\u003eOutput Type: PNP Normally Open(NO), Non-Shield Type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 200mA; Working Voltage: 10-30 VDC\u003c\/li\u003e\n \u003cli\u003eDetection Object: Can detect any dielectric\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n","published_at":"2022-08-29T04:33:57+10:00","created_at":"2022-08-29T04:34:05+10:00","vendor":"Heschen","type":"Proximity Sensors","tags":["industrial2","industrial_update_Aug2022"],"price":10400,"price_min":10400,"price_max":10400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42540044189849,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B071W4V351","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Heschen M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-H-Z\/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires","public_title":null,"options":["Default Title"],"price":10400,"weight":115,"compare_at_price":null,"inventory_management":null,"barcode":"LJC18A3-H-Z\/BY","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/products\/B071W4V351.jpg?v=1661789929","\/\/soundstores.net\/cdn\/shop\/products\/61r-Ssd9B3L.jpg?v=1661711645","\/\/soundstores.net\/cdn\/shop\/products\/61fhm47lK8L.jpg?v=1661711645","\/\/soundstores.net\/cdn\/shop\/products\/61-Xh4cz-mL_f4bf8894-b1bf-4652-b706-8dc7e003f96a.jpg?v=1661711645","\/\/soundstores.net\/cdn\/shop\/products\/61BmO1ur8wL.jpg?v=1661711645","\/\/soundstores.net\/cdn\/shop\/products\/61iM5IlMeWL.jpg?v=1661711645","\/\/soundstores.net\/cdn\/shop\/products\/61m0sPnJZ0L.jpg?v=1661711645"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/products\/B071W4V351.jpg?v=1661789929","options":["Title"],"media":[{"alt":null,"id":27701553528985,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/products\/B071W4V351.jpg?v=1661789929"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/B071W4V351.jpg?v=1661789929","width":1300},{"alt":null,"id":27694313930905,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61r-Ssd9B3L.jpg?v=1661711645"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61r-Ssd9B3L.jpg?v=1661711645","width":1300},{"alt":null,"id":27694313963673,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61fhm47lK8L.jpg?v=1661711645"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61fhm47lK8L.jpg?v=1661711645","width":1300},{"alt":null,"id":27694313996441,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61-Xh4cz-mL_f4bf8894-b1bf-4652-b706-8dc7e003f96a.jpg?v=1661711645"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61-Xh4cz-mL_f4bf8894-b1bf-4652-b706-8dc7e003f96a.jpg?v=1661711645","width":1300},{"alt":null,"id":27694314029209,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61BmO1ur8wL.jpg?v=1661711645"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61BmO1ur8wL.jpg?v=1661711645","width":1300},{"alt":null,"id":27694314061977,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61iM5IlMeWL.jpg?v=1661711645"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61iM5IlMeWL.jpg?v=1661711645","width":1300},{"alt":null,"id":27694314094745,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61m0sPnJZ0L.jpg?v=1661711645"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61m0sPnJZ0L.jpg?v=1661711645","width":1300}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHeschen M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-H-Z\/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDetection Object:Can detect any dielectric.Delay Distance:10% below of the\ndetection distance.Supply Voltage:DC12-24V(10-30V) Impulse (p-p)10%\nbelow.Comsuption Current:13mA below.Control Output: 200mA below.Loop\nProtection :reversal connection protection,surge absorption,load short-circuit\nprotection.Ambient Temperature \u0026amp; Humidity:During operation , storage :\nindividually-30～＋65℃(no freeze ,no drew ) ,During\noperation,storage:individually 35-95%RH.Insulation Impedance :50MΩ above (\nDC500 megameter ) between charging part and shell.Withstand Voltage : AC1000V\n50\/60Hz 1 min. between charging part and shell.Temperature Influence :\nTemperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature\nrange-25～＋60℃,at +23℃,±10% detection distance.Voltage influence : Inside ±I5%\nrated supply voltage range,at rated supply voltage value ,inside ± 10 %\ndetection distance.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Diameter: 18mm\u003c\/li\u003e\n \u003cli\u003eDetecting Distance: 10mm10%; Set distance:0-8mm\u003c\/li\u003e\n \u003cli\u003eOutput Type: PNP Normally Open(NO), Non-Shield Type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 200mA; Working Voltage: 10-30 VDC\u003c\/li\u003e\n \u003cli\u003eDetection Object: Can detect any dielectric\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n"}
