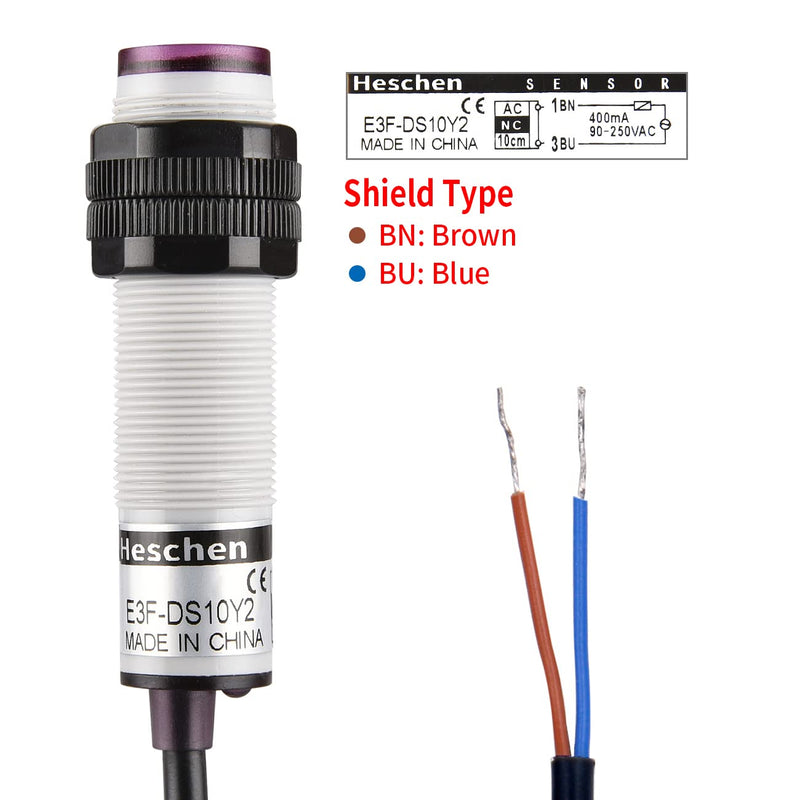

{"id":8534005416089,"title":"Heschen M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS10Y2, Detection Distance 10 cm, 90-250VAC 400mA, Normally Closed (NC), 2 Wires","handle":"heschen-m18-column-infrared-photoelectric-proximity-switch-diffuse-reflection-type-e3f-ds10y2-detection-distance-10-cm-90-250vac-400ma-normally-closed-nc-2-wires","description":"\u003ch3\u003eHeschen M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS10Y2, Detection Distance 10 cm, 90-250VAC 400mA, Normally Closed (NC), 2 Wires\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eConnection delay: 1.5ms Light source: infrared light 660nm Mains voltage: AC\n90-250V 50\/60Hz. Combination current: 1.7mA at the bottom. Control Output:\n400mA Bottom Loop protection: surge attenuation. Ambient temperature and\nhumidity: during operation, storage: individually 30 ~ + 65 °C (no freezing,\nno drew), during operation, storage: individually 35 - 95% RH. Insulation\nimpedance: 50 MΩ above (DC500 megameter) between charging part and housing.\nDielectric strength: AC 1000 V, 50\/60 Hz, 1 min between charging part and\nhousing. Temperature influence: temperature range: 30 ~ +65 °C, at + 23 °C, ±\n15% detection distance, temperature range: 25 ~ + 60 °C, at +23 °C, ± 10%\ndetection distance. Voltage influence: indoor ± 15% rated supply voltage\nrange, at rated supply voltage value, within ± 10% detection distance.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Dia:18mm\/0.71\";Cable Length:150cm\/59\u003c\/li\u003e\n \u003cli\u003eDetection distance: 10 cm 10%, not adjustable\u003c\/li\u003e\n \u003cli\u003eOutput type: normally closed (NC); diffuse reflection type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 400mA; Working Voltage: AC 90-250V\u003c\/li\u003e\n \u003cli\u003eDetection terget: opaque object\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T08:47:50+10:00","created_at":"2025-09-27T08:47:47+10:00","vendor":"Heschen","type":"Photoelectric Sensors","tags":["industryDE_Sep2025"],"price":11500,"price_min":11500,"price_max":11500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45749908701337,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0B12J9KC8","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Heschen M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS10Y2, Detection Distance 10 cm, 90-250VAC 400mA, Normally Closed (NC), 2 Wires","public_title":null,"options":["Default Title"],"price":11500,"weight":80,"compare_at_price":null,"inventory_management":"shopify","barcode":"HS-E3F-DS10Y2","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0B12J9KC8.jpg?v=1775753685","\/\/soundstores.net\/cdn\/shop\/files\/61_o2-Q8aGL.jpg?v=1758926869","\/\/soundstores.net\/cdn\/shop\/files\/61BBk3TDmOL.jpg?v=1758926869","\/\/soundstores.net\/cdn\/shop\/files\/617pg8o4myL.jpg?v=1758926869","\/\/soundstores.net\/cdn\/shop\/files\/51n_Jjy7vVL.jpg?v=1758926869"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B12J9KC8.jpg?v=1775753685","options":["Title"],"media":[{"alt":null,"id":34662587138201,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B12J9KC8.jpg?v=1775753685"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B12J9KC8.jpg?v=1775753685","width":1300},{"alt":null,"id":34662587170969,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61_o2-Q8aGL.jpg?v=1758926869"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61_o2-Q8aGL.jpg?v=1758926869","width":1300},{"alt":null,"id":34662587203737,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61BBk3TDmOL.jpg?v=1758926869"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61BBk3TDmOL.jpg?v=1758926869","width":1300},{"alt":null,"id":34662587236505,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/617pg8o4myL.jpg?v=1758926869"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/617pg8o4myL.jpg?v=1758926869","width":1300},{"alt":null,"id":34662587269273,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51n_Jjy7vVL.jpg?v=1758926869"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51n_Jjy7vVL.jpg?v=1758926869","width":1300}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHeschen M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS10Y2, Detection Distance 10 cm, 90-250VAC 400mA, Normally Closed (NC), 2 Wires\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eConnection delay: 1.5ms Light source: infrared light 660nm Mains voltage: AC\n90-250V 50\/60Hz. Combination current: 1.7mA at the bottom. Control Output:\n400mA Bottom Loop protection: surge attenuation. Ambient temperature and\nhumidity: during operation, storage: individually 30 ~ + 65 °C (no freezing,\nno drew), during operation, storage: individually 35 - 95% RH. Insulation\nimpedance: 50 MΩ above (DC500 megameter) between charging part and housing.\nDielectric strength: AC 1000 V, 50\/60 Hz, 1 min between charging part and\nhousing. Temperature influence: temperature range: 30 ~ +65 °C, at + 23 °C, ±\n15% detection distance, temperature range: 25 ~ + 60 °C, at +23 °C, ± 10%\ndetection distance. Voltage influence: indoor ± 15% rated supply voltage\nrange, at rated supply voltage value, within ± 10% detection distance.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Dia:18mm\/0.71\";Cable Length:150cm\/59\u003c\/li\u003e\n \u003cli\u003eDetection distance: 10 cm 10%, not adjustable\u003c\/li\u003e\n \u003cli\u003eOutput type: normally closed (NC); diffuse reflection type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 400mA; Working Voltage: AC 90-250V\u003c\/li\u003e\n \u003cli\u003eDetection terget: opaque object\u003c\/li\u003e\n \u003c\/ul\u003e"}
