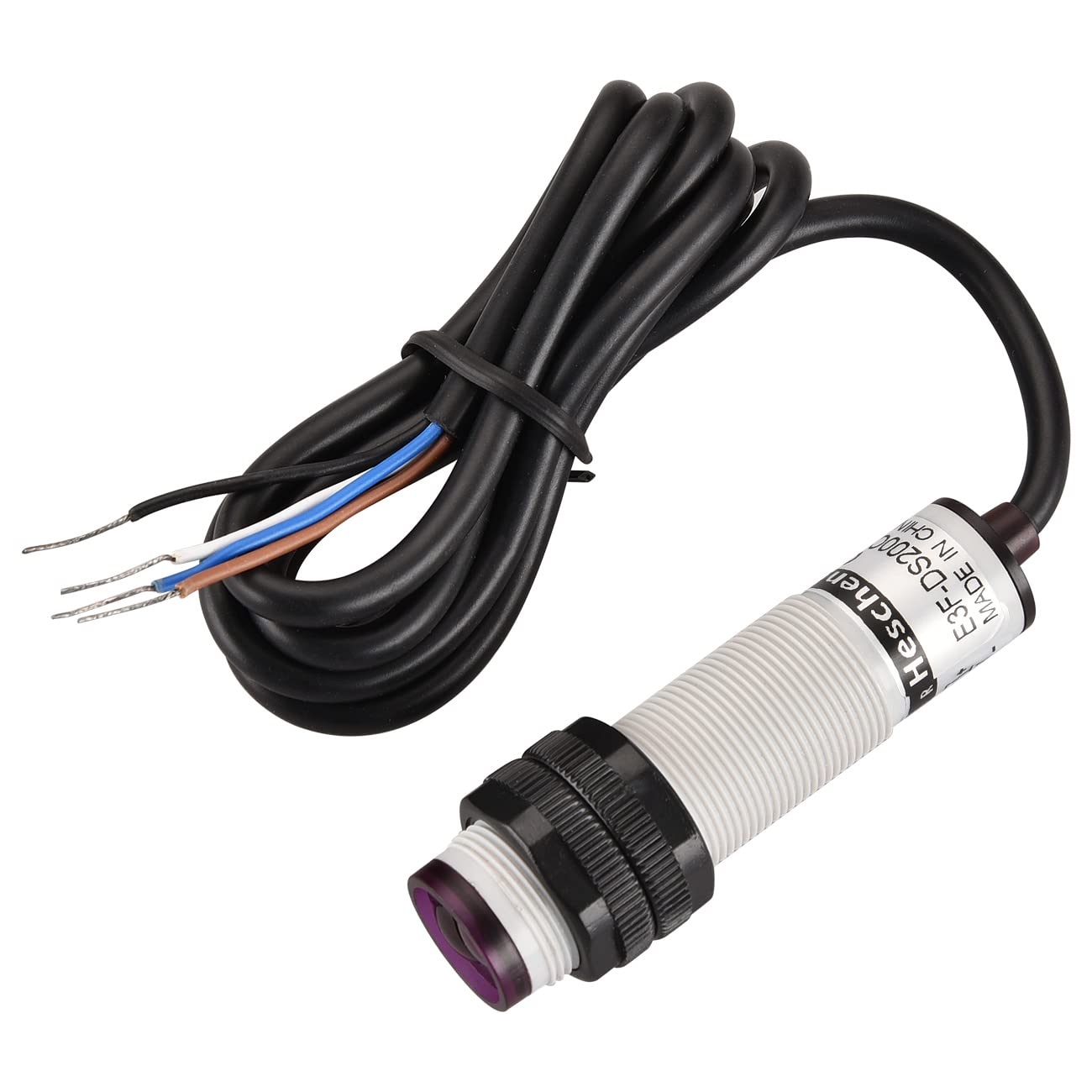

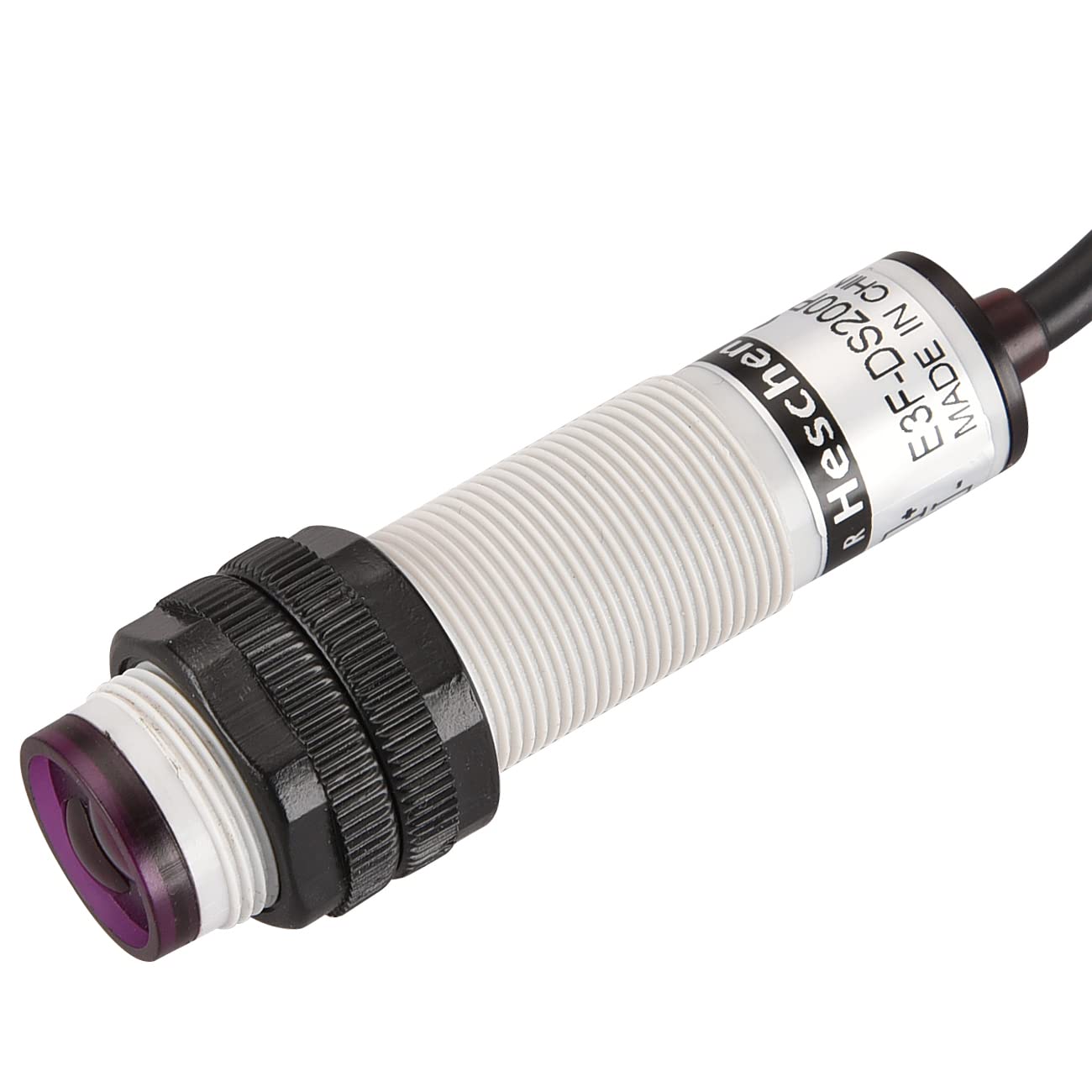

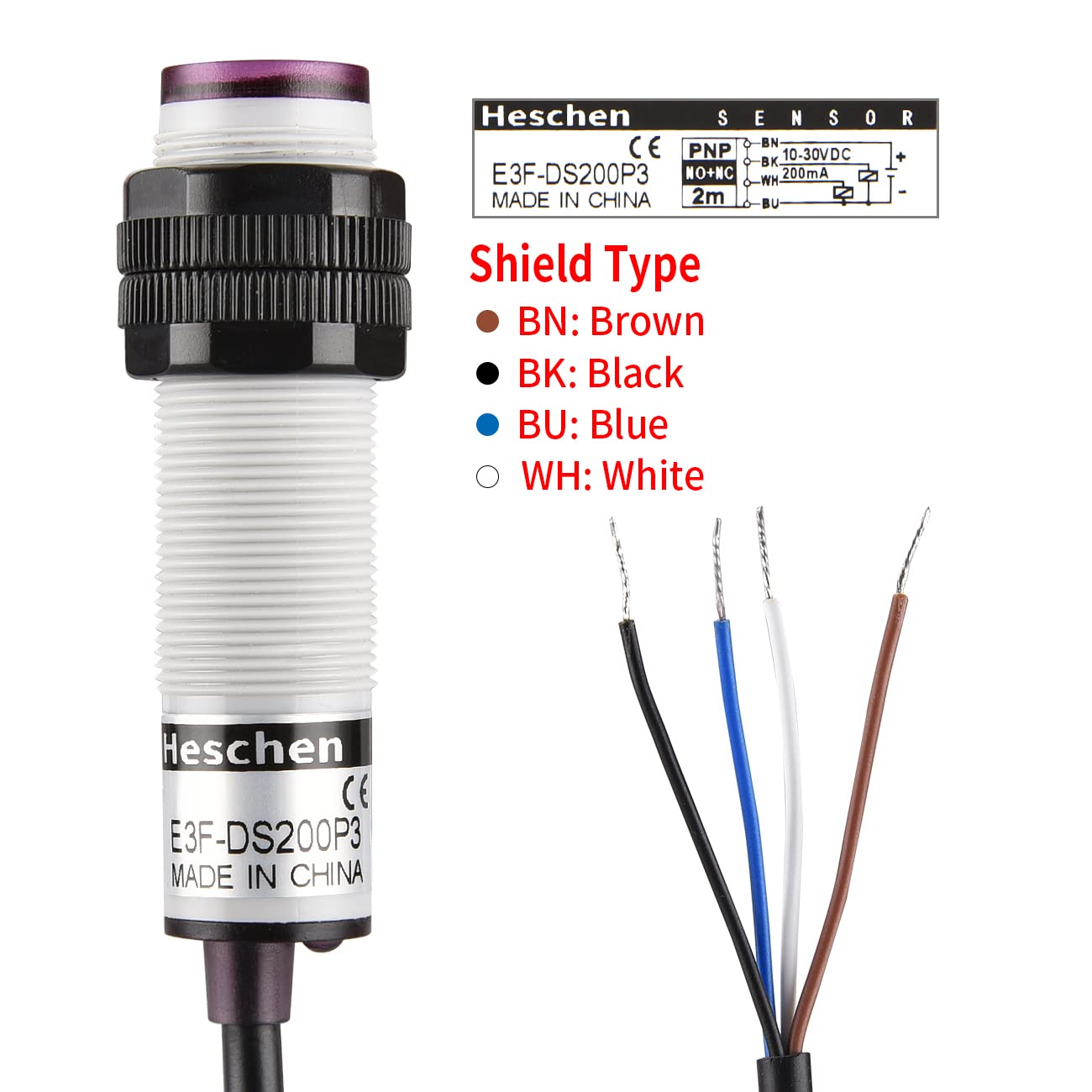

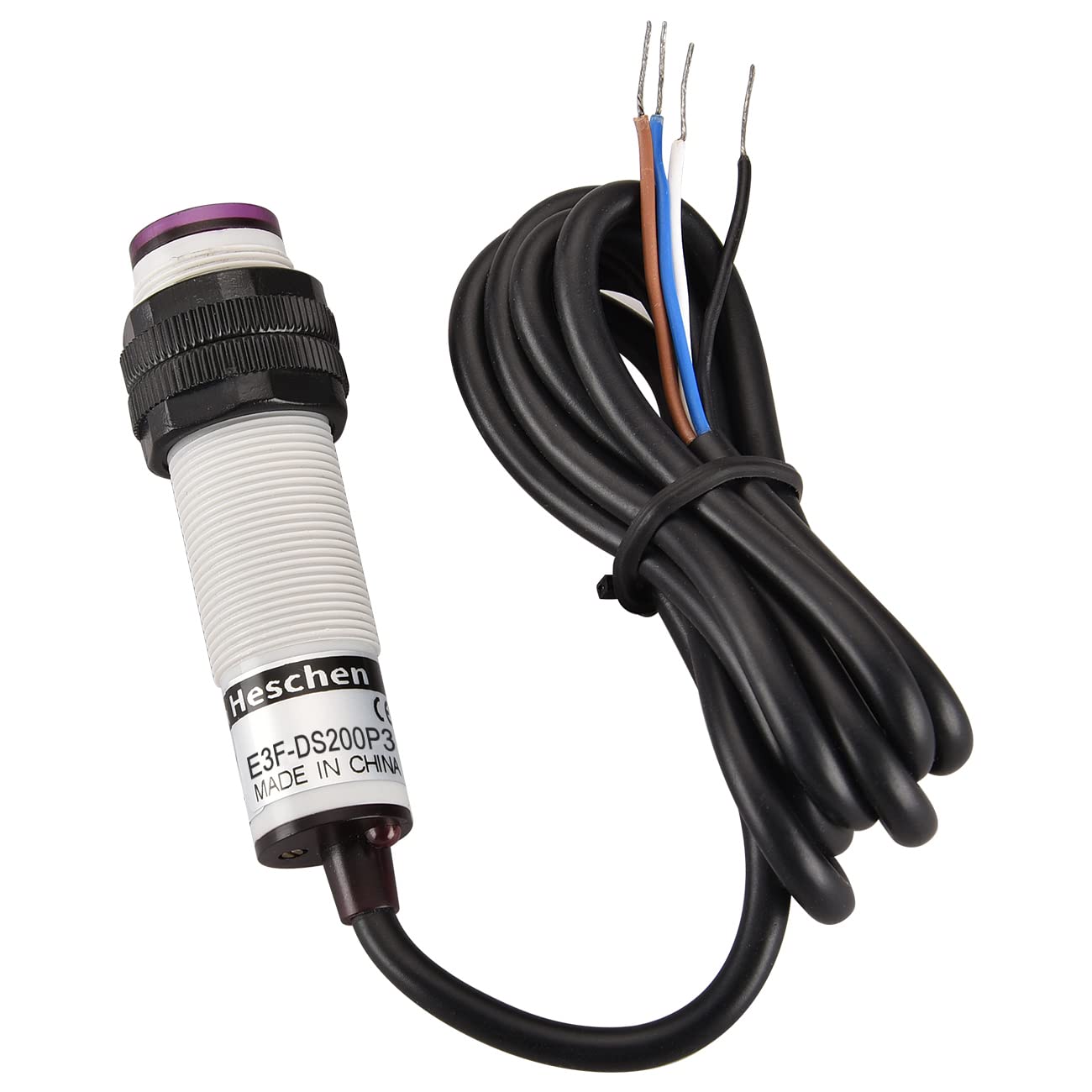

{"id":8532531871897,"title":"Heschen M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS200P3, Detection Distance 10-200CM, 10-30VDC 200mA, PNP NO+NC, 4 Wire","handle":"heschen-m18-column-infrared-photoelectric-proximity-switch-diffuse-reflection-type-e3f-ds200p3-detection-distance-10-200cm-10-30vdc-200ma-pnp-no-nc-4-wire","description":"\u003ch3\u003eHeschen M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS200P3, Detection Distance 10-200CM, 10-30VDC 200mA, PNP NO+NC, 4 Wire\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eConnection delay: 1.5ms Light source: infrared light 660nm Supply voltage: DC\n10-30V pulse (p-p) 10% below Current: 20mA Bottom Control Output: 200mA Bottom\nLoop protection: reverse protection, surge attenuation, load short circuit\nprotection. Ambient temperature and humidity: during operation, storage:\nindividually 30 ~ + 65 °C (no freezing, no drew), during operation, storage:\nindividually 35 - 95% RH. Insulation impedance: 50 MΩ above (DC500 megameter)\nbetween charging part and housing. Dielectric strength: AC 1000 V, 50\/60 Hz, 1\nmin between charging part and housing. Temperature influence: temperature\nrange: 30 ~ +65 °C, at + 23 °C, ± 15% detection distance, temperature range:\n25 ~ + 60 °C, at +23 °C, ± 10% detection distance. Voltage influence: indoor ±\n15% rated supply voltage range, at rated supply voltage value, within ± 10%\ndetection distance.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Dia:18mm\/0.71\";Cable Length:150cm\/59\u003c\/li\u003e\n \u003cli\u003eDetection distance: 10-200 cm 10%, adjustable\u003c\/li\u003e\n \u003cli\u003eOutput type: PNP NO + NC; diffuse reflection type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 200mA; Working Voltage: 10-30V DC\u003c\/li\u003e\n \u003cli\u003eDetection terget: opaque object\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-26T01:12:46+10:00","created_at":"2025-09-26T01:12:42+10:00","vendor":"Heschen","type":"Photoelectric Sensors","tags":["industryDE_Sep2025"],"price":14300,"price_min":14300,"price_max":14300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45746981142681,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0B1WQ64Q8","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Heschen M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS200P3, Detection Distance 10-200CM, 10-30VDC 200mA, PNP NO+NC, 4 Wire","public_title":null,"options":["Default Title"],"price":14300,"weight":70,"compare_at_price":null,"inventory_management":"shopify","barcode":"HS-E3F-DS200P3","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0B1WQ64Q8.jpg?v=1775751534","\/\/soundstores.net\/cdn\/shop\/files\/618oNnuP_KL.jpg?v=1758813165","\/\/soundstores.net\/cdn\/shop\/files\/61qABLKKL6L.jpg?v=1758813165","\/\/soundstores.net\/cdn\/shop\/files\/61MpTVKYXkL_6a015804-83ec-4202-981b-16ab81b732b6.jpg?v=1758813165","\/\/soundstores.net\/cdn\/shop\/files\/613uLRiDOtL.jpg?v=1758813165","\/\/soundstores.net\/cdn\/shop\/files\/51CJzA15jxL_bd6f00ac-96f6-4f22-983a-fb0ea9888d20.jpg?v=1758813165"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B1WQ64Q8.jpg?v=1775751534","options":["Title"],"media":[{"alt":null,"id":34642851332249,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B1WQ64Q8.jpg?v=1775751534"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B1WQ64Q8.jpg?v=1775751534","width":1300},{"alt":null,"id":34642851365017,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/618oNnuP_KL.jpg?v=1758813165"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/618oNnuP_KL.jpg?v=1758813165","width":1300},{"alt":null,"id":34642851397785,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61qABLKKL6L.jpg?v=1758813165"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61qABLKKL6L.jpg?v=1758813165","width":1300},{"alt":null,"id":34642851430553,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61MpTVKYXkL_6a015804-83ec-4202-981b-16ab81b732b6.jpg?v=1758813165"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61MpTVKYXkL_6a015804-83ec-4202-981b-16ab81b732b6.jpg?v=1758813165","width":1300},{"alt":null,"id":34642851463321,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/613uLRiDOtL.jpg?v=1758813165"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/613uLRiDOtL.jpg?v=1758813165","width":1300},{"alt":null,"id":34642851496089,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51CJzA15jxL_bd6f00ac-96f6-4f22-983a-fb0ea9888d20.jpg?v=1758813165"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51CJzA15jxL_bd6f00ac-96f6-4f22-983a-fb0ea9888d20.jpg?v=1758813165","width":1300}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHeschen M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS200P3, Detection Distance 10-200CM, 10-30VDC 200mA, PNP NO+NC, 4 Wire\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eConnection delay: 1.5ms Light source: infrared light 660nm Supply voltage: DC\n10-30V pulse (p-p) 10% below Current: 20mA Bottom Control Output: 200mA Bottom\nLoop protection: reverse protection, surge attenuation, load short circuit\nprotection. Ambient temperature and humidity: during operation, storage:\nindividually 30 ~ + 65 °C (no freezing, no drew), during operation, storage:\nindividually 35 - 95% RH. Insulation impedance: 50 MΩ above (DC500 megameter)\nbetween charging part and housing. Dielectric strength: AC 1000 V, 50\/60 Hz, 1\nmin between charging part and housing. Temperature influence: temperature\nrange: 30 ~ +65 °C, at + 23 °C, ± 15% detection distance, temperature range:\n25 ~ + 60 °C, at +23 °C, ± 10% detection distance. Voltage influence: indoor ±\n15% rated supply voltage range, at rated supply voltage value, within ± 10%\ndetection distance.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Dia:18mm\/0.71\";Cable Length:150cm\/59\u003c\/li\u003e\n \u003cli\u003eDetection distance: 10-200 cm 10%, adjustable\u003c\/li\u003e\n \u003cli\u003eOutput type: PNP NO + NC; diffuse reflection type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 200mA; Working Voltage: 10-30V DC\u003c\/li\u003e\n \u003cli\u003eDetection terget: opaque object\u003c\/li\u003e\n \u003c\/ul\u003e"}
