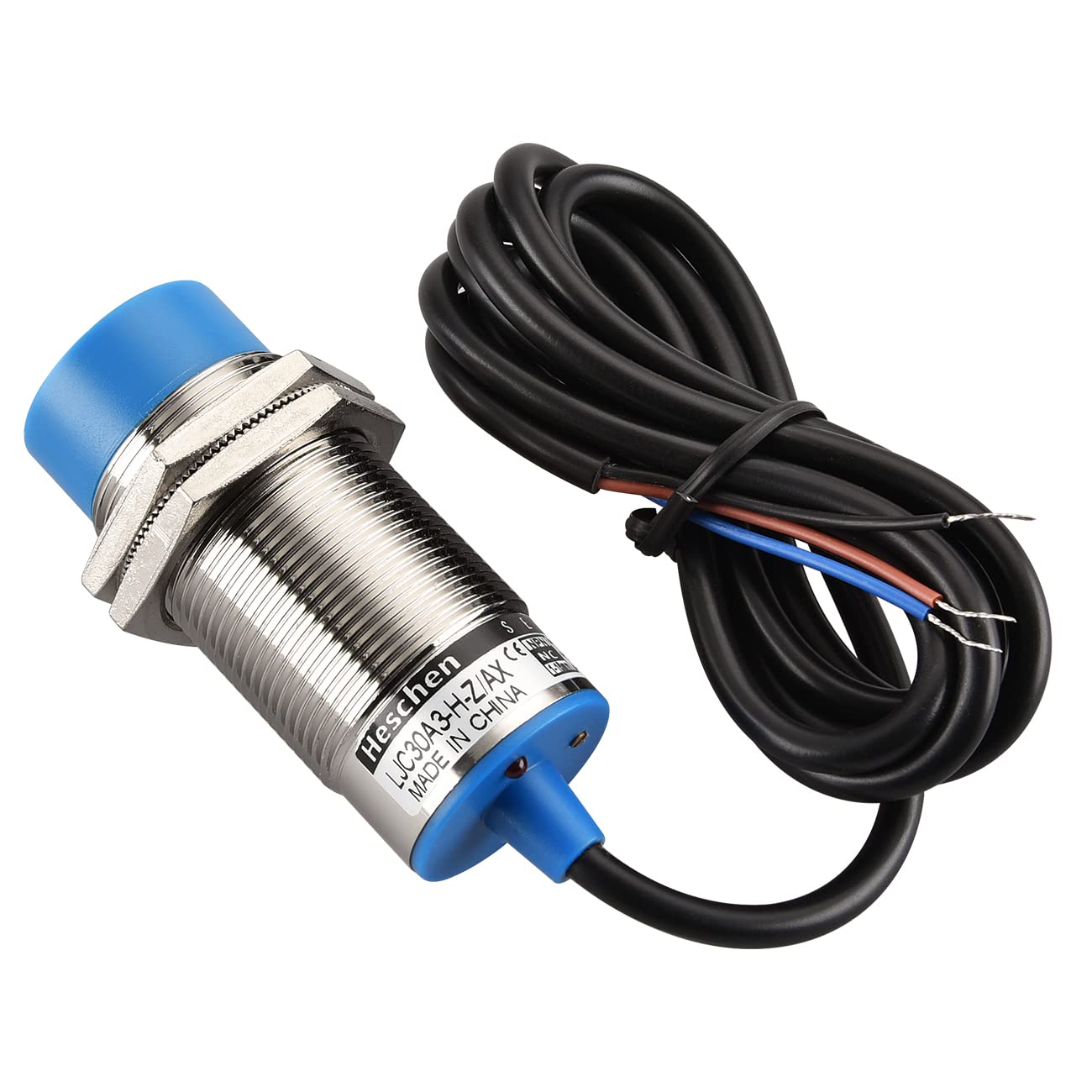

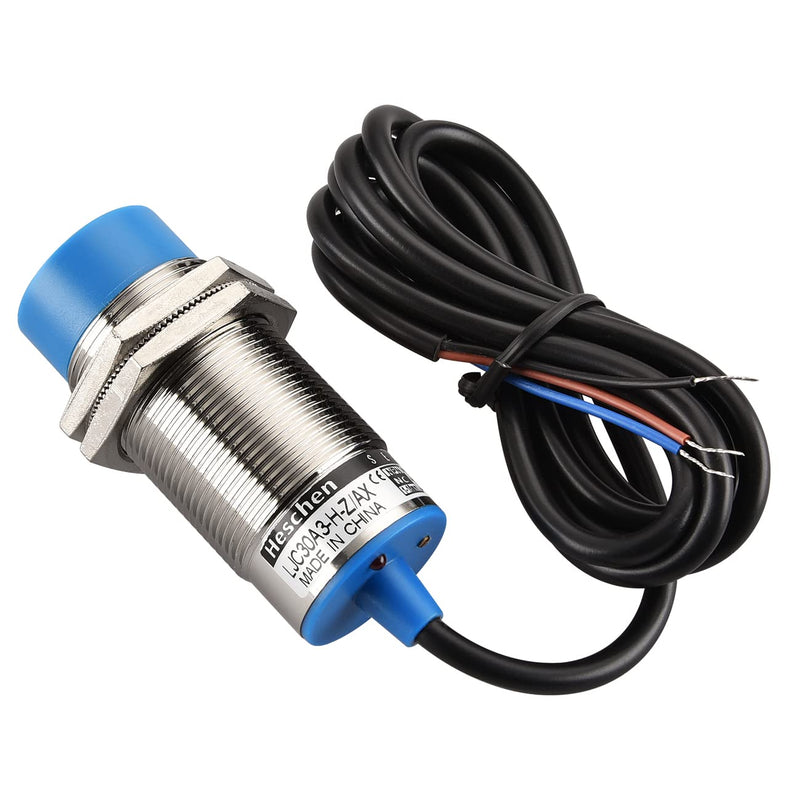

{"id":7498030645401,"title":"Heschen M30 Capacitive Proximity Sensor Switch Non-Shield Type LJC30A3-H-Z\/AX Detection 1-15mm 10-30VDC 200mA NPN Normally Closed(NC) 3 Wires","handle":"heschen-m30-capacitive-proximity-sensor-switch-non-shield-type-ljc30a3-h-z-ax-detection-1-15mm-10-30vdc-200ma-npn-normally-closednc-3-wires","description":"\u003ch3\u003eHeschen M30 Capacitive Proximity Sensor Switch Non-Shield Type LJC30A3-H-Z\/AX Detection 1-15mm 10-30VDC 200mA NPN Normally Closed(NC) 3 Wires\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDetection Object:Can detect any dielectric.Delay Distance:10% below of the\ndetection distance.Supply Voltage:DC10-30V Impulse (p-p)10% below.Comsuption\nCurrent:13mA below.Control Output: 200mA below.Loop Protection :reversal\nconnection protection,surge absorption,load short-circuit protection.Ambient\nTemperature \u0026amp; Humidity:During operation , storage : individually-30～＋65℃(no\nfreeze ,no drew ) ,During operation,storage:individually 35-95%RH.Insulation\nImpedance :50MΩ above ( DC500 megameter ) between charging part and\nshell.Withstand Voltage : AC1000V 50\/60Hz 1 min. between charging part and\nshell.Temperature Influence : Temperature range-30～＋65℃,at + 23℃,± 15%\ndetection distance, Temperature range-25～＋60℃,at +23℃,±10% detection\ndistance.Voltage influence : Inside ±I5% rated supply voltage range,at rated\nsupply voltage value ,inside ± 10 % detection distance.Protection structure:\nIP67(IEC specification)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Diameter: 30mm\u003c\/li\u003e\n \u003cli\u003eDetecting Distance: 20mm10%; Set Distance:0-18mm\u003c\/li\u003e\n \u003cli\u003eOutput Type: NPN Normally Closed(NC); Non-Shield Type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 200mA; Working Voltage: 10-30 VDC\u003c\/li\u003e\n \u003cli\u003eDetection Object:Can detect any dielectric\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n","published_at":"2022-08-25T01:55:13+10:00","created_at":"2022-08-25T01:55:20+10:00","vendor":"Heschen","type":"Proximity Sensors","tags":["industrial2"],"price":13000,"price_min":13000,"price_max":13000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42523672117401,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B071PCYH4T","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Heschen M30 Capacitive Proximity Sensor Switch Non-Shield Type LJC30A3-H-Z\/AX Detection 1-15mm 10-30VDC 200mA NPN Normally Closed(NC) 3 Wires","public_title":null,"options":["Default Title"],"price":13000,"weight":200,"compare_at_price":null,"inventory_management":null,"barcode":"LJC30A3-H-Z\/AX","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/products\/B071PCYH4T.jpg?v=1661439436","\/\/soundstores.net\/cdn\/shop\/products\/61zGiMX0WnL.jpg?v=1661356520","\/\/soundstores.net\/cdn\/shop\/products\/616qR1isCOL.jpg?v=1661356520","\/\/soundstores.net\/cdn\/shop\/products\/61utBpb8o0L_d0af4df5-cfe0-48b0-b34a-41ec97445334.jpg?v=1661356520","\/\/soundstores.net\/cdn\/shop\/products\/71mxkssDYcL.jpg?v=1661356520","\/\/soundstores.net\/cdn\/shop\/products\/611FZHug-AL.jpg?v=1661356520"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/products\/B071PCYH4T.jpg?v=1661439436","options":["Title"],"media":[{"alt":null,"id":27672876810393,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/products\/B071PCYH4T.jpg?v=1661439436"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/B071PCYH4T.jpg?v=1661439436","width":1300},{"alt":null,"id":27666100813977,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61zGiMX0WnL.jpg?v=1661356520"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61zGiMX0WnL.jpg?v=1661356520","width":1300},{"alt":null,"id":27666100846745,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/products\/616qR1isCOL.jpg?v=1661356520"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/616qR1isCOL.jpg?v=1661356520","width":1300},{"alt":null,"id":27666100879513,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61utBpb8o0L_d0af4df5-cfe0-48b0-b34a-41ec97445334.jpg?v=1661356520"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61utBpb8o0L_d0af4df5-cfe0-48b0-b34a-41ec97445334.jpg?v=1661356520","width":1300},{"alt":null,"id":27666100912281,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/products\/71mxkssDYcL.jpg?v=1661356520"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/71mxkssDYcL.jpg?v=1661356520","width":1300},{"alt":null,"id":27666100945049,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/products\/611FZHug-AL.jpg?v=1661356520"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/611FZHug-AL.jpg?v=1661356520","width":1300}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHeschen M30 Capacitive Proximity Sensor Switch Non-Shield Type LJC30A3-H-Z\/AX Detection 1-15mm 10-30VDC 200mA NPN Normally Closed(NC) 3 Wires\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDetection Object:Can detect any dielectric.Delay Distance:10% below of the\ndetection distance.Supply Voltage:DC10-30V Impulse (p-p)10% below.Comsuption\nCurrent:13mA below.Control Output: 200mA below.Loop Protection :reversal\nconnection protection,surge absorption,load short-circuit protection.Ambient\nTemperature \u0026amp; Humidity:During operation , storage : individually-30～＋65℃(no\nfreeze ,no drew ) ,During operation,storage:individually 35-95%RH.Insulation\nImpedance :50MΩ above ( DC500 megameter ) between charging part and\nshell.Withstand Voltage : AC1000V 50\/60Hz 1 min. between charging part and\nshell.Temperature Influence : Temperature range-30～＋65℃,at + 23℃,± 15%\ndetection distance, Temperature range-25～＋60℃,at +23℃,±10% detection\ndistance.Voltage influence : Inside ±I5% rated supply voltage range,at rated\nsupply voltage value ,inside ± 10 % detection distance.Protection structure:\nIP67(IEC specification)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Diameter: 30mm\u003c\/li\u003e\n \u003cli\u003eDetecting Distance: 20mm10%; Set Distance:0-18mm\u003c\/li\u003e\n \u003cli\u003eOutput Type: NPN Normally Closed(NC); Non-Shield Type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 200mA; Working Voltage: 10-30 VDC\u003c\/li\u003e\n \u003cli\u003eDetection Object:Can detect any dielectric\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n"}
